Isuzu N-Series. Manual - part 6

POWER TAKE OFF 00-19

• Coat the rod end ball of the cable tip with a

small amount of grease and assemble it in the
groove of the control cable connector on the
PTO side.

• Install the cable holder in the PTO and tempo-

rarily tighten the bolt.

Notice:

Tighten the bolt after having adjusted it in accordance
with the work procedure of the “Control Cable Adjust-
ment”.

3. Special Nut

• Tighten the special nut to the cable holder at a

specified torque pressing down the control ca-
ble to the PTO side lightly.

Tighten:

Special nut to 147 N

⋅m (15 kg⋅m / 108 lb⋅ft)

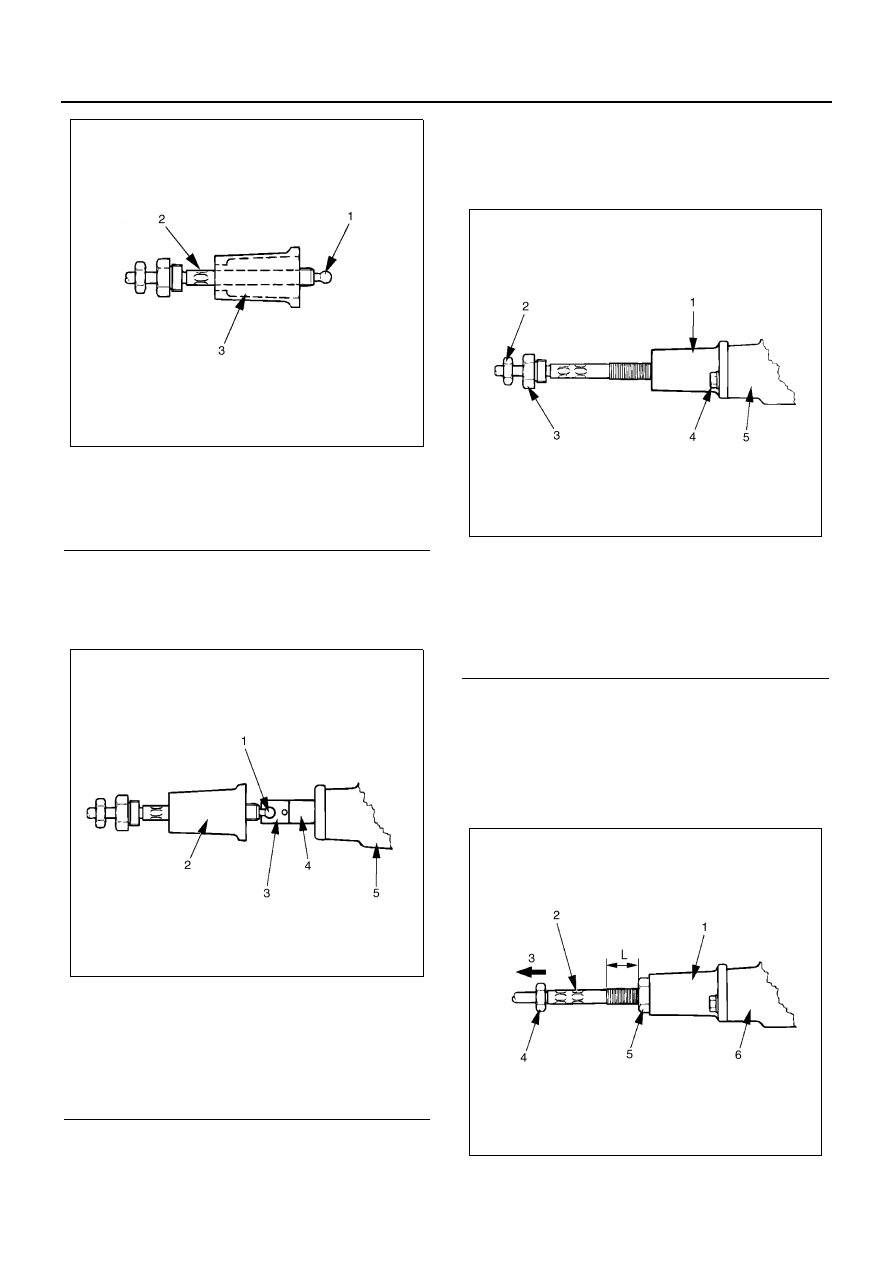

Legend

1. Rod end ball portion
2. Control cable
3. Cable holder

Legend

1. Rod end ball (apply a small amount of grease)
2. Cable holder
3. Cable connector
4. Shift rod
5. PTO

NPA0037E

NPA0038E

Legend

1. Cable holder
2. Lock nut
3. Special nut
4. Bolt
5. PTO

NPA0039E

NPA0040E

00-20 POWER TAKE OFF

• At this time, check that the “L” dimension is

34

±1 mm (1.339±0.039 inch.)

• If the “L” dimension does not satisfy the speci-

fied value, remove the cable holder from the
PTO and rotate the cable holder to adjust the
dimension.

Notice:

Both “clockwise rotation” and “counterclockwise rota-
tion” indicate that the cable moves by about 0.75 mm
(0.0295 inch) every time the cable holder rotates by 180
degrees.

• Re-install the cable holder on the PTO and tem-

porarily tighten the bolt.

4. Lock Nut (PTO Side)

• After having checked the specified value di-

mensions of the cable outer threaded portion,
temporarily tighten the lock nut.

Notice:

Tighten the special nut and lock nut after having adjust-
ed it in accordance with the work procedure of the “Con-
trol Cable Adjustment”.

5. Clip (Cab Inside)

• Draw the control cable in the instrument panel

bottom inside the cab and firmly install the
grommet.

• Firmly install and fix the clip in the cable flange

portion groove.

6. Lock Nut (Dump Lever Side)

• Assemble the control cable tip in the boss por-

tion of the dump lever and tighten the lock nut
at a specified torque.

Tighten:

Lock nut to 6 N

⋅m (0.6 kg⋅m / 52 lb⋅in)

Notice:

If the double nut position of the control cable is not fixed,
it is fixed to a reference value.

Control cable length (Reference): 18

±1 mm

(0.709

±0.039 in)

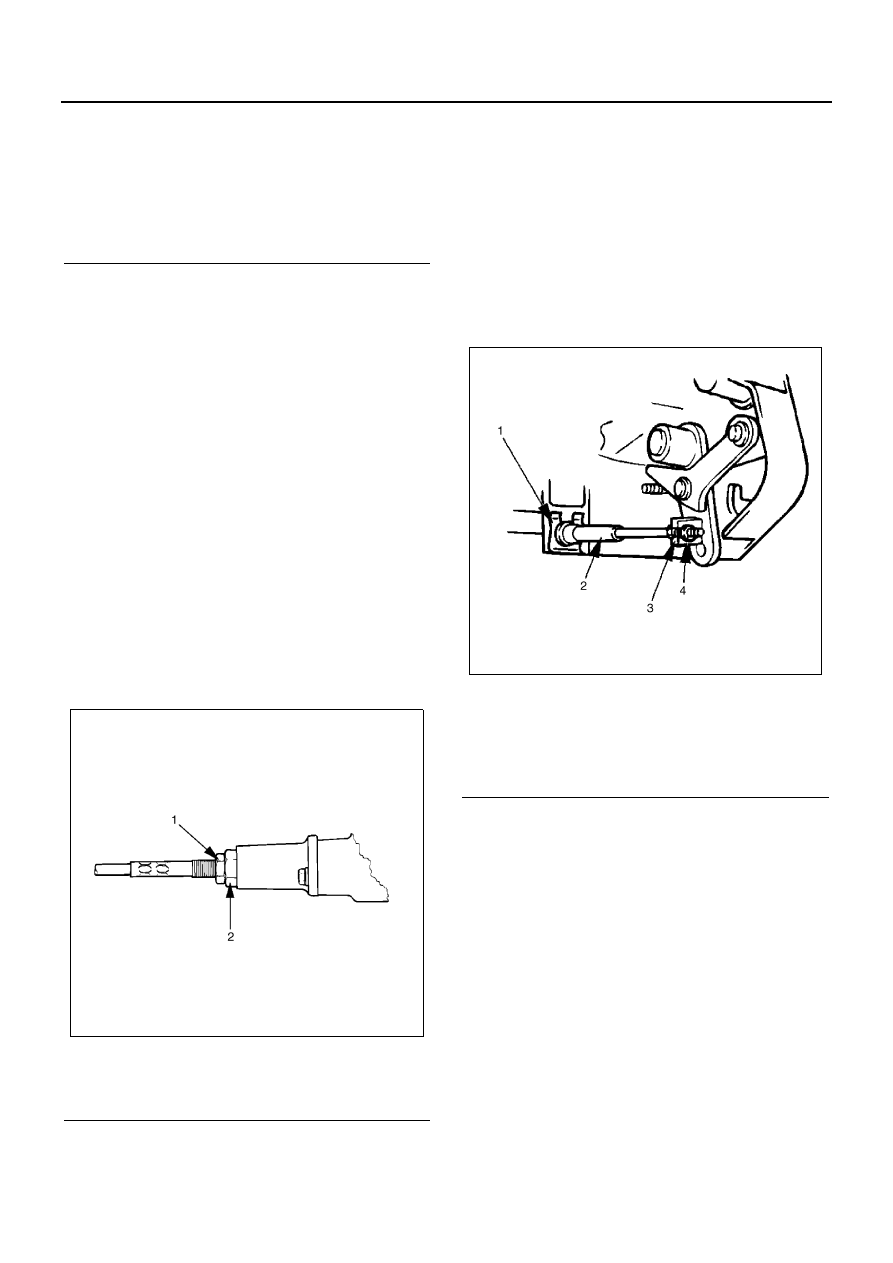

Legend

1. Cable holder
2. Control cable
3. Truck front
4. Lock nut
5. Special nut
6. PTO

Legend

1. Lock nut
2. Special nut

NPA0041E

Legend

1. Clip
2. Control cable
3. Boss portion
4. Lock nut

NPA0042E

POWER TAKE OFF 00-21

Control Cable Adjustment
Inspecting the Amount of Spool Extrusion
After having installed the control cable, inspect the
amount of spool extrusion according to the following
procedure.

1. Remove the shift cap tightening bolt of the oil pump

rear and remove the shift cap.

2. Repeat the “Up” and “Down” operations of the

dump lever twice or three times and slowly set the
dump lever to the “Up” position as much as possi-
ble.

3. Measure the amount of spool extrusion of the oil

pump rear and check that it is a specified amount.

Amount of spool extrusion: 24 mm (0.945 in) or more

4. Repeat the “Up” and “Down” operations of the

dump lever twice or three times and slowly set the
dump lever to the “Up” position as much as possi-
ble.

5. Measure the amount of spool extrusion of the oil

pump rear and check that it is a specified amount.

Amount of spool extrusion: less than 2 mm (0.0787 in)

Notice:

Both amounts of spool extrusion at “Up” and “Down”
shall be within a standard value.

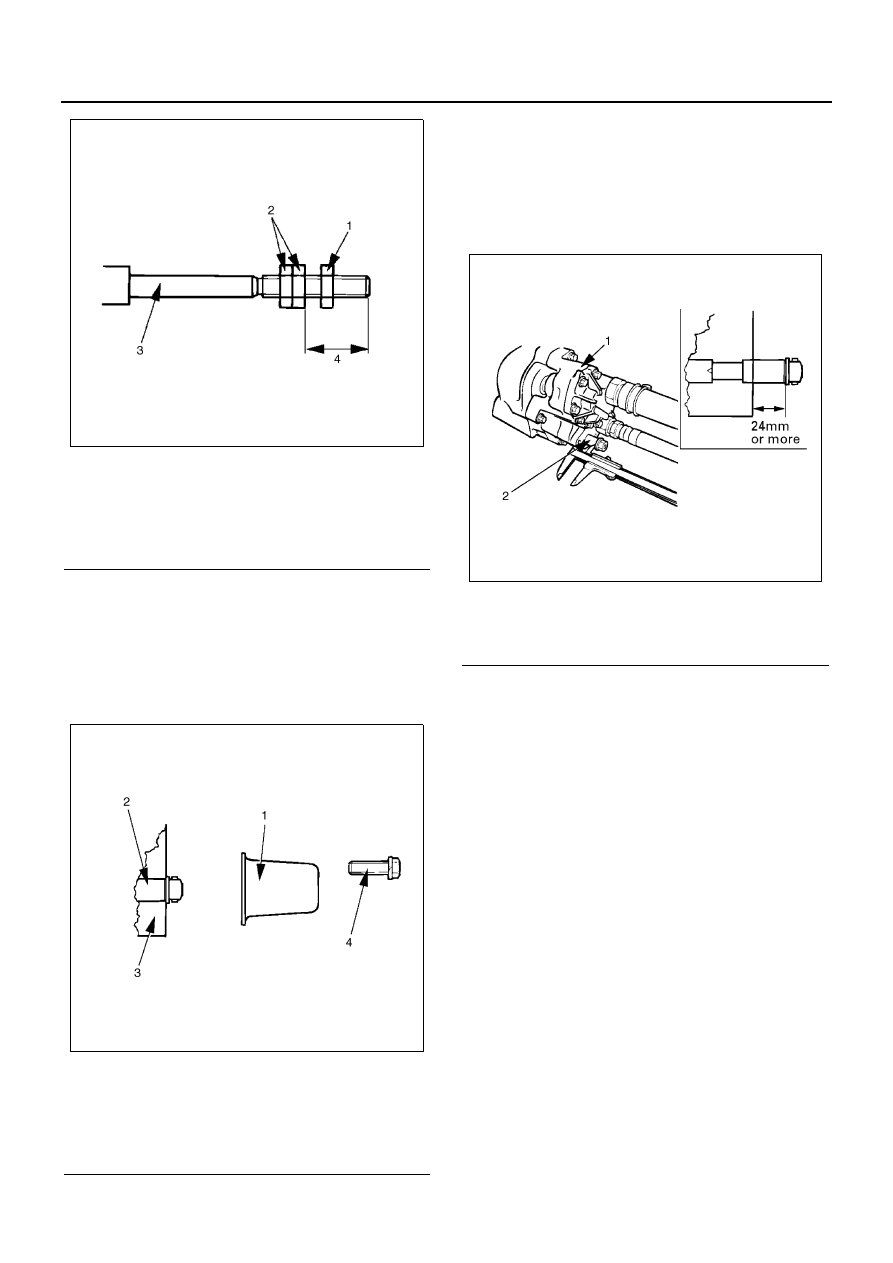

Legend

1. Lock nut
2. Double nut
3. Control cable
4. Reference valve

Legend

1. Shift cap
2. Spool
3. Oil pump rear end
4. Bolt

NPA0043E

NPA0044E

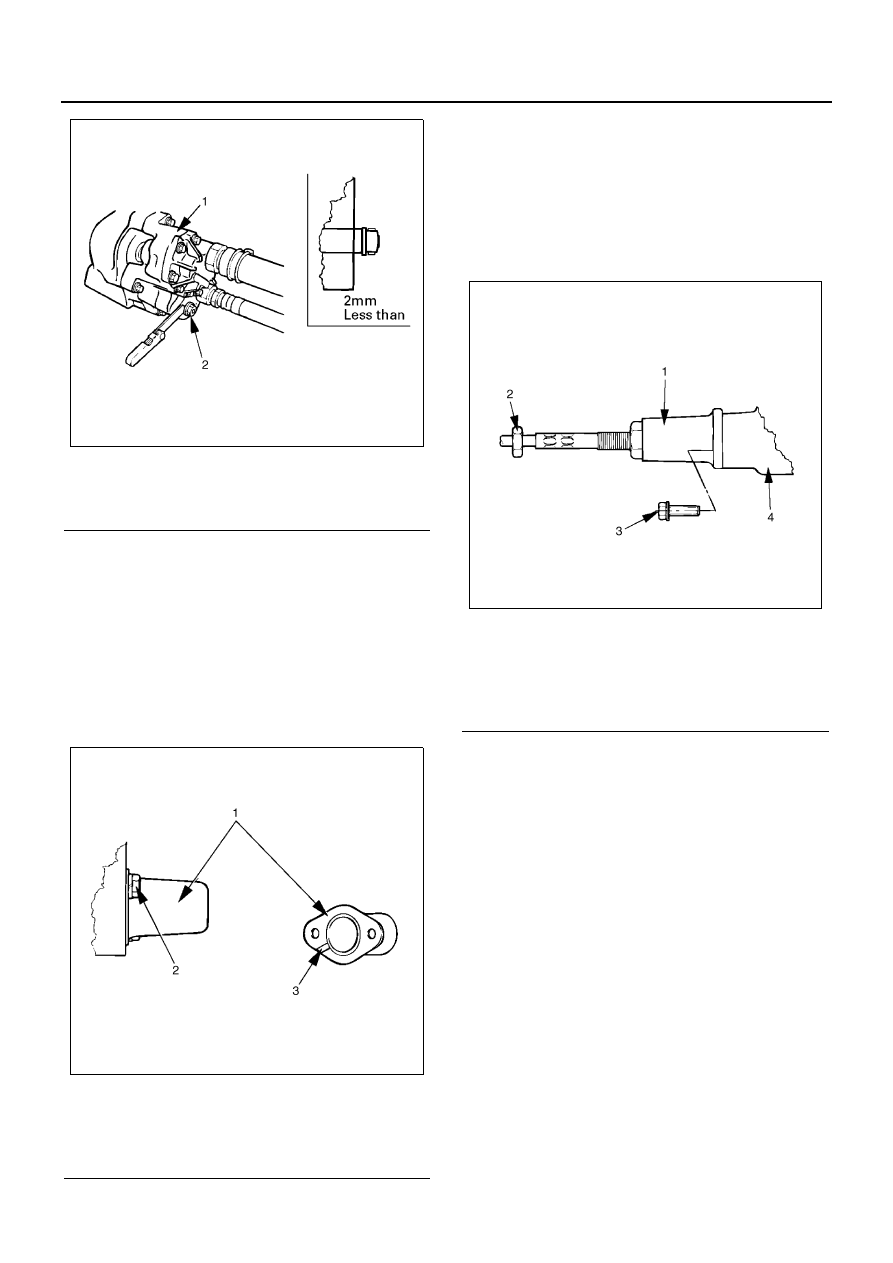

Legend

1. Oil pump
2. Spool extrusion

NPA0045E

00-22 POWER TAKE OFF

6. If the amount of spool extrusion is within a speci-

fied dimension, install the shift cap and tighten the
bolt at a specified torque.

Tighten:

Shift cap fixing bolt to 24 N

⋅m (2.4 kg⋅m / 17 lb⋅ft)

Notice:

If the groove is not installed facing downward, the water
intruded in the shift cap is not ejected but collected.
Rusting and freezing will cause an incorrect actuation.

Cable Adjustment (PTO Side)

If no specified extrusion dimensions can be obtained as
a result of measuring the amount of spool extrusion de-
scribed previously, adjust (PTO side) the cable so that
the specified amount of spool extrusion can be obtained
according to the following procedure.

1. Loosen the lock nut of the control cable.
2. Remove the tightening bolt of the cable holder.

3. Adjust the cable rotating the cable holder.

• If the amount of spool extrusion is improper (in-

sufficient) at “Dump lever Up”, rotate the cable
holder toward “Counterclockwise rotation”
shown by the arrow mark of the drawing.

• If the amount of spool extrusion is improper (ex-

cessive) at “Dump lever Down”, rotate the cable
holder toward “Clockwise rotation” shown by
the arrow mark of the drawing.

Notice:

Both “clockwise rotation” and “counterclockwise rota-
tion” indicate that the cable moves by about 0.75 mm
(0.0295 inch) every time the cable holder rotates by 180
degrees.

Legend

1. Oil pump
2. Spool extrusion

Legend

1. Shift cap
2. Bolt
3. Make groove face downward

NPA0046E

NPA0047E

Legend

1. Cable holder
2. Lock nut
3. Bolt
4. PTO

NPA0048E
