EXTERIOR/INTERIOR TRIM

8J–3

Front Door Trim Panel

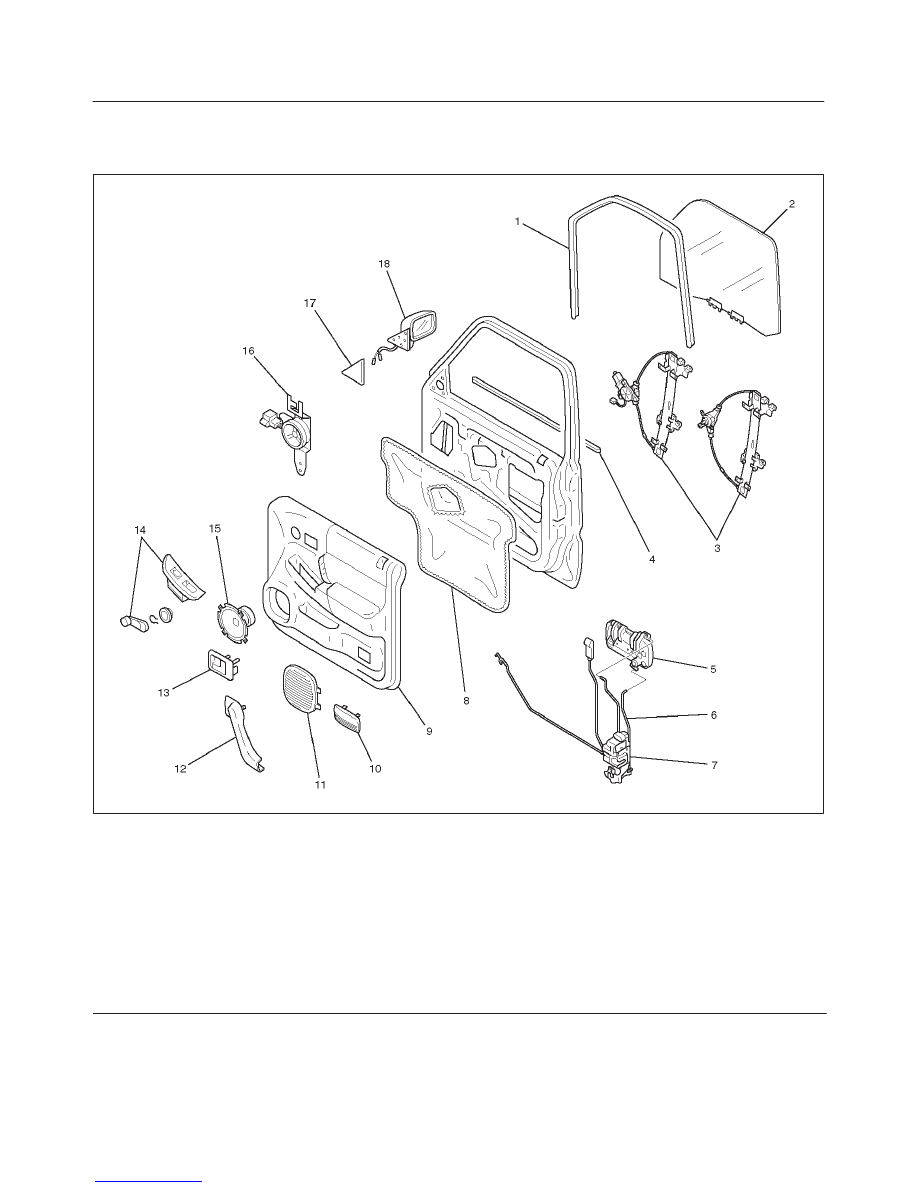

Front Door Trim Panel and Associated Parts

635RW005

Legend

(1) Glass Run
(2) Glass
(3) Window Regulator/Power Window Regulator
(4) Outer Waste Seal
(5) Outside Handle
(6) Door Lock Cylinder
(7) Door Lock Assembly/Door Lock Actuator
(8) Waterproof Sheet
(9) Door Trim Panel

(10) Courtesy Light Lens

(11) Speaker Grill

(12) Grip Cover
(13) Inside Handle
(14) Power Window Switch/Window Regulator

Handle

(15) Speaker Assembly
(16) Tweeter
(17) Door Mirror Cover
(18) Door Mirror Assembly

Removal

1. Disconnect the battery ground cable.

2. Remove the door mirror cover (2).

8J–4

EXTERIOR/INTERIOR TRIM

635RW006

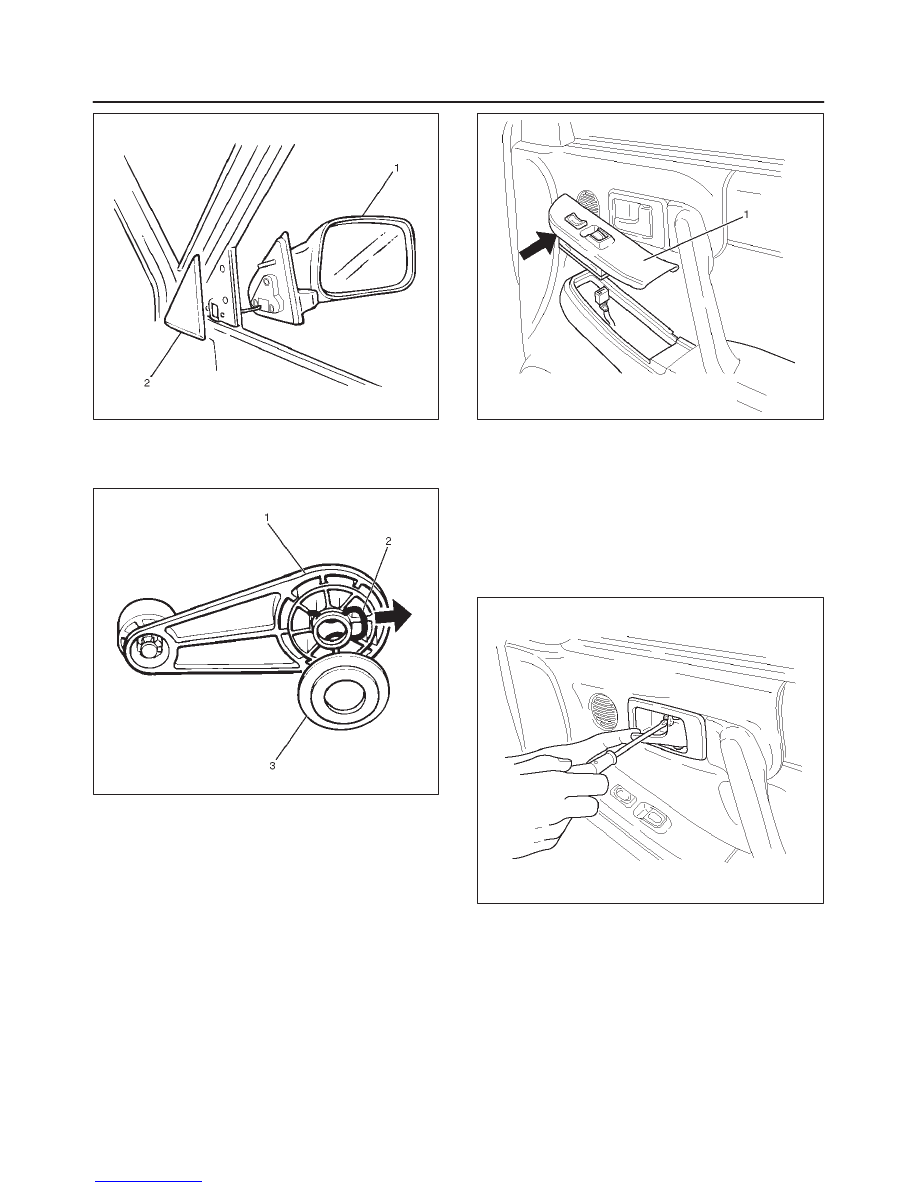

3. Remove the regulator handle (1).

f

Pull the hook (2) out and remove the regulator
handle.

631RW004

4. Remove the power window switch (1).

f

Pry the power window switch out and disconnect
the switch connector.

825RW097

5. Remove the speaker cover.
6. Remove the front speaker.

f

Remove the front speaker fixing screws in order to
disconnect the speaker connector.

7. Remove the inside handle fixing screw.

CAUTION: Take care not to apply excessive force on
the inside handle link, lest this link is elongated,
which could make it impossible to operate the door
with the inside handle.

632RW003

8. Remove the door trim panel.

f

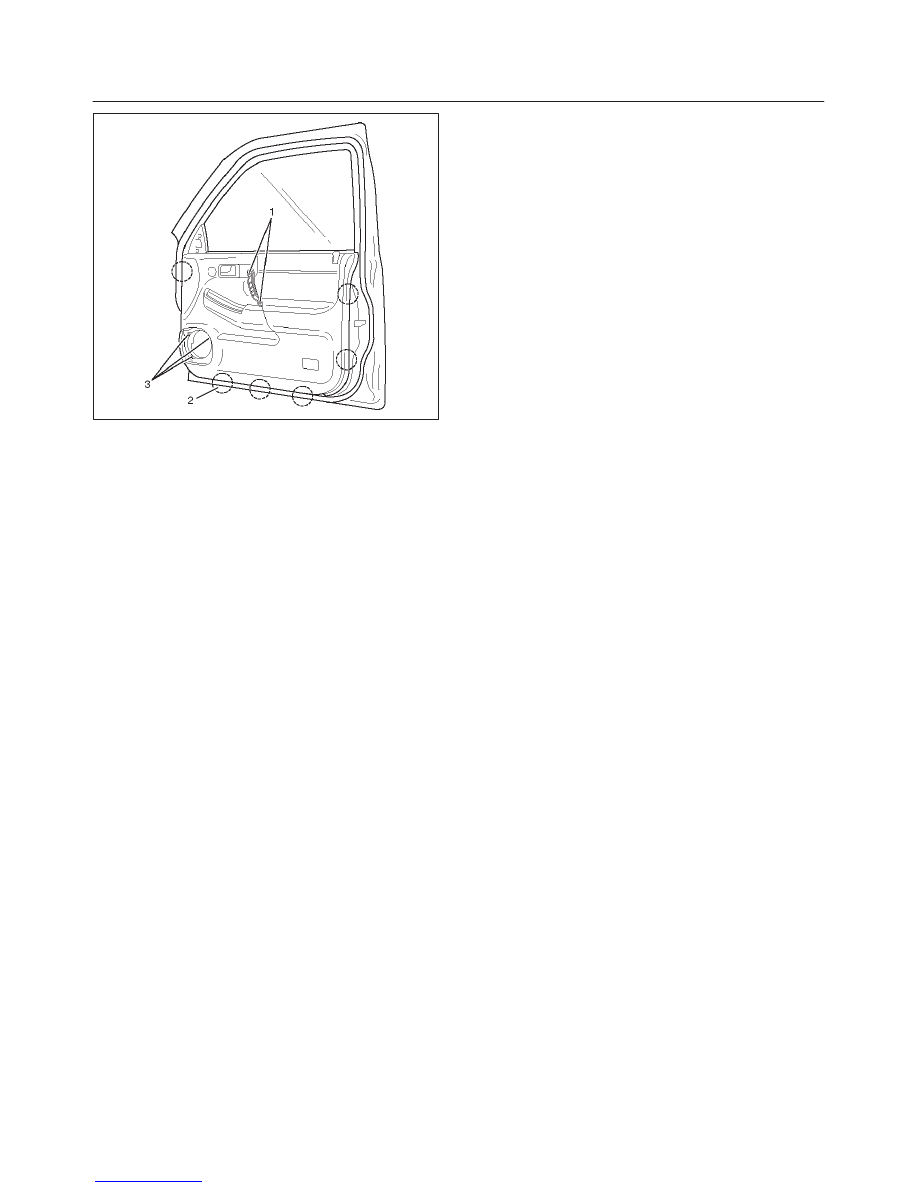

Remove 5 fixing screws (1), (3) in order to take off 6
clips (2) from the door panel.

EXTERIOR/INTERIOR TRIM

8J–5

635RW007

f

Disconnect the courtesy light connector to lift the
door trim panel and unlock the engagement of the
waist seal section.  Then, pass the inside handle
through the mounting hole of the trim panel, and
detach the trim panel.

9. Remove the inside handle.

Installation

To install, follow the removal steps in the reverse order.

8J–6

EXTERIOR/INTERIOR TRIM

Rear Door Trim Panel

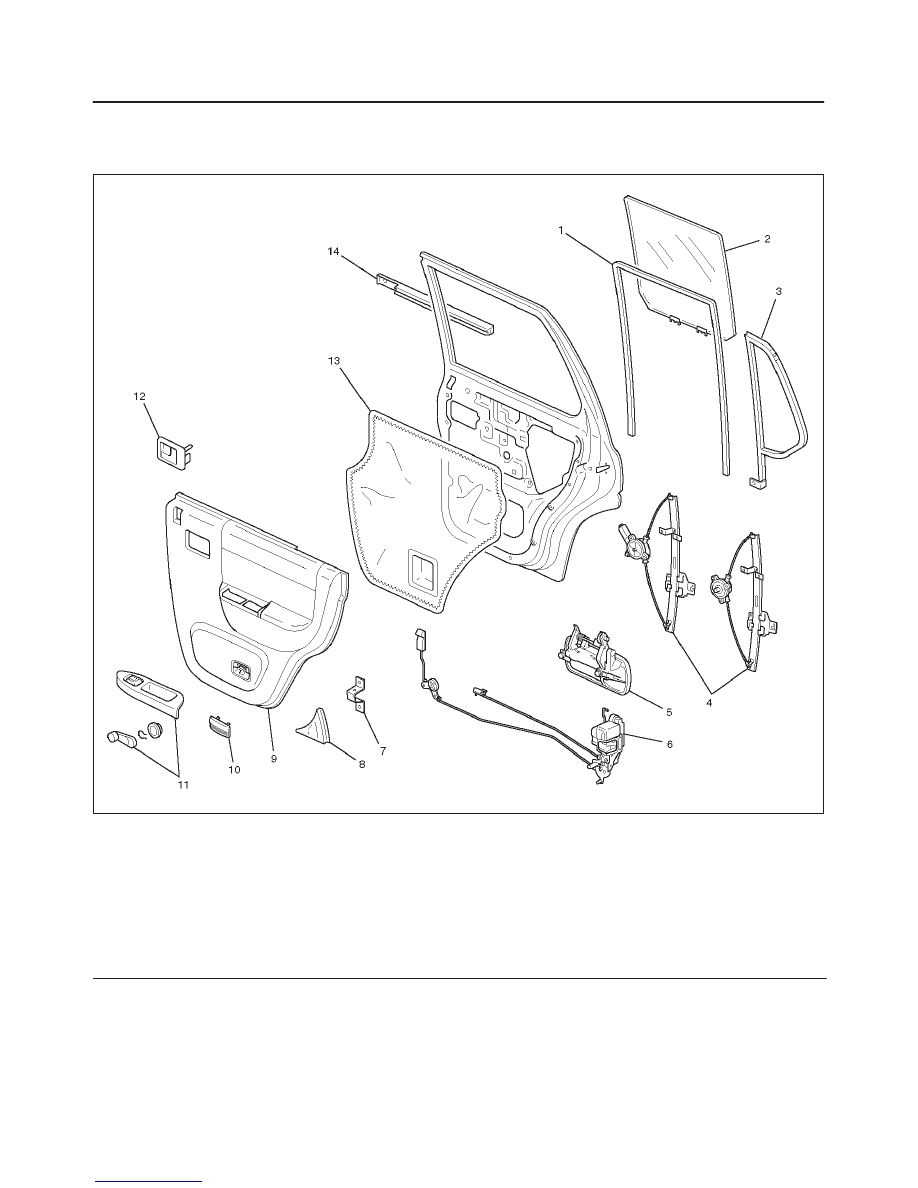

Rear Door Trim Panel and Associated Parts

655RW001

Legend

(1) Glass Run
(2) Glass
(3) Fix Window Glass
(4) Window Regulator/Power Window Regulator
(5) Outside Handle
(6) Door Lock Assembly
(7) Bracket

(8) Rear Door Corner Garnish
(9) Door Trim Panel

(10) Courtesy Light Lens

(11) Power Window Switch/Window Regulator

Handle

(12) Inside Handle
(13) Waterproof Sheet
(14) Outer Waste Seal

Removal

1. Disconnect the battery ground cable.

2. Remove the regulator handle(1).

f

Pull the hook(2) out and remove the regulator
handle.
