Isuzu Rodeo UE. Manual - part 630





EXTERIOR/INTERIOR TRIM

8J–7

631RW002

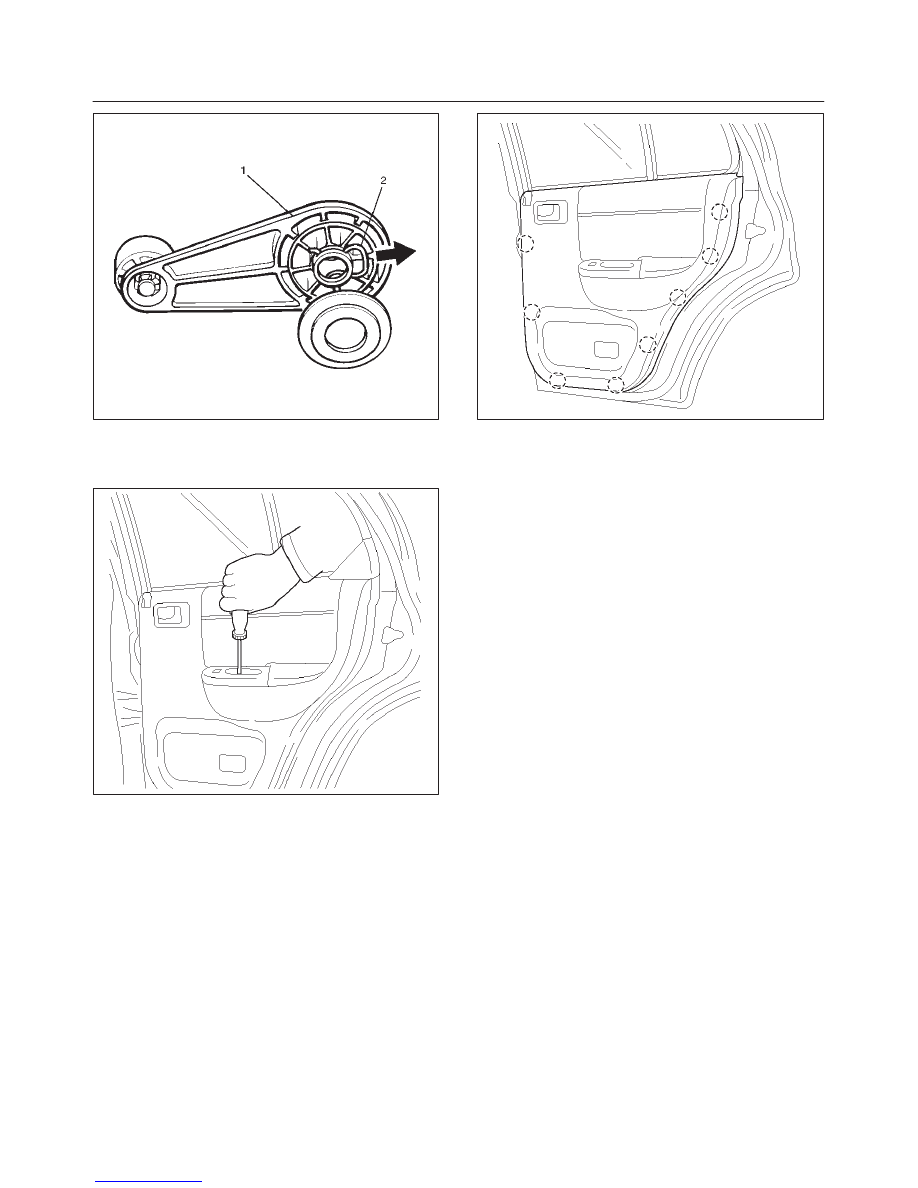

3. Remove the power window switch.

f

Remove the one screw and pry the power window
switch out and disconnect the switch connector.

655RW003

CAUTION: Take care not to apply excessive force on
the inside handle link, lest this link be elongated,
which could make it impossible to operate the door
with the inside handle.

4. Remove the door trim panel.

f

Remove two fixing screws to take off eight clips
from the door panel.

655RW002

f

Unplug the courtesy light connector to lift the trim
panel and unlock the engagement of the waist seal
section, then pass the inside lever through the
mounting hole of the trim panel, and detach the trim
panel.

5. Remove the inside handle.

Installation

To install, follow the removal steps in the reverse order.

8J–8

EXTERIOR/INTERIOR TRIM

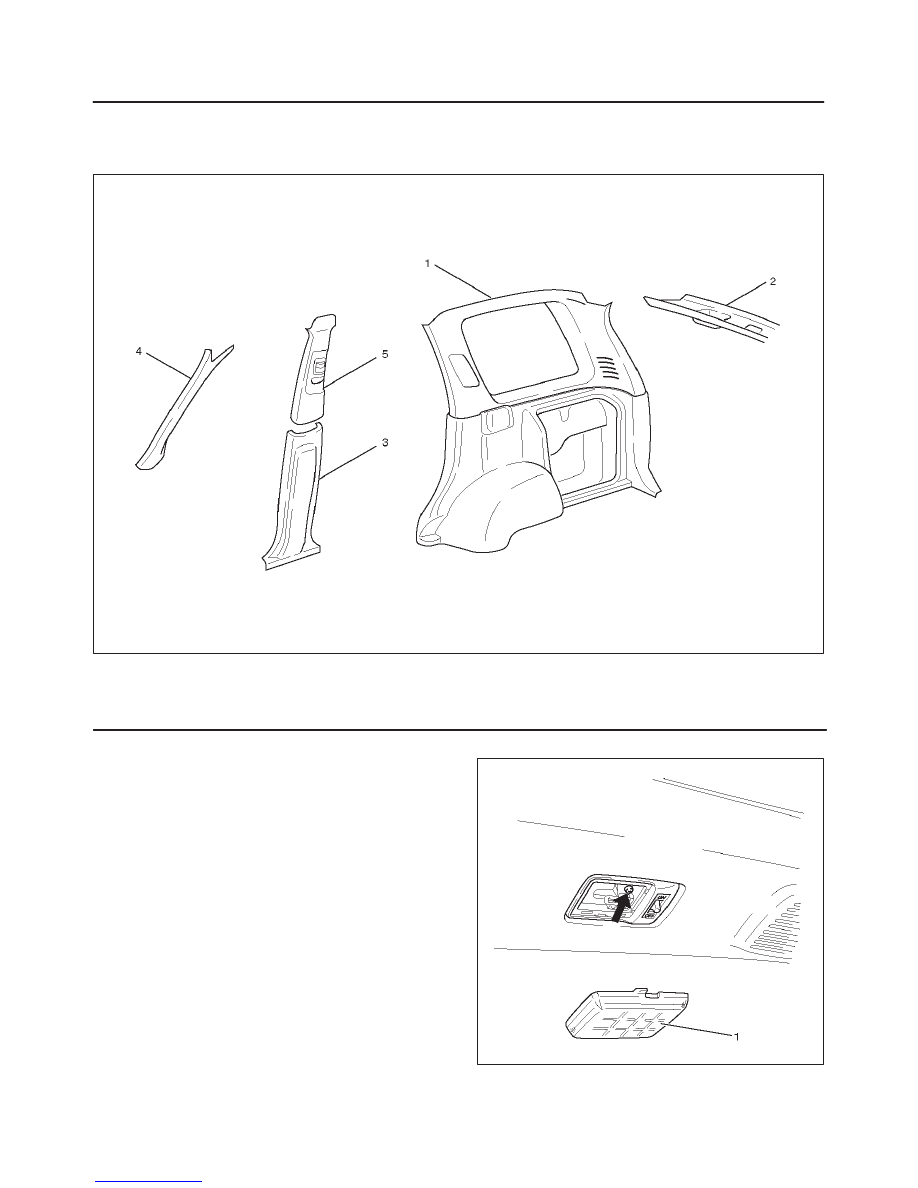

Interior Trim Panels

Interior Trim Panels and Associated Parts

643RW002

Legend

(1) Quarter Trim Cover
(2) Rear Roof Trim Cover

(3) Center Lower Trim Cover
(4) Front Pillar Trim Cover
(5) Center Upper Trim Cover

Removal

1. Disconnect the battery ground cable.
2. Remove the rear end floor trim cover.
3. Remove the luggage room light.

f

Remove the luggage room light lens (1) and the
fixing screw.

f

Disconnect the luggage room light connector.

825RW100

EXTERIOR/INTERIOR TRIM

8J–9

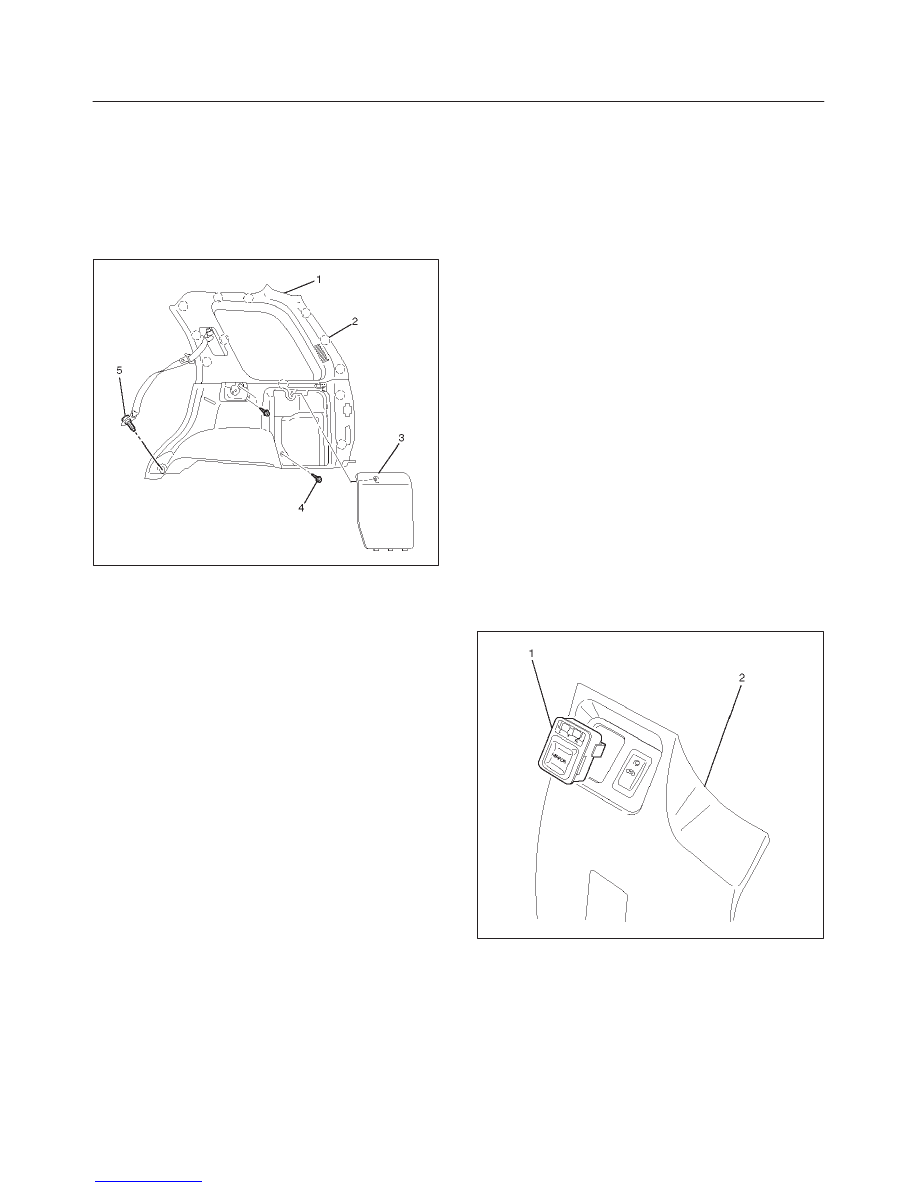

4. Remove the rear roof trim cover.

f

Pry the trim cover clips free from the body panel.

5. Remove the rear seat belt lower anchor bolt cover

and the lower anchor bolt (5).

6. Remove the quarter trim cover (1).

f

Remove the tool box lid (3) and 3 fixing screws (4).
Pry the quarter trim cover retainers (2) free from the
body panel.

643RW001

7. Remove the center lower trim cover.

f

Remove the front seat belt lower anchor bolt cover
and lower anchor bolt.

f

Remove the sill plate and pry the trim cover clips
free from the body panel.

8. Remove the center upper trim cover.

f

Turn up the finisher and pry the trim cover clips free
from the body panel.

9. Remove the front pillar trim cover

f

Turn up the finisher and pry the trim cover clips free
from the body panel.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Tighten the seat belt anchor bolt to the specified

torque.

Torque: 39 N·m (29 lb ft)

Power Door Mirror System

General Description

The system consists of the starter switch, door mirror
switch, rear defogger/mirror defogger switch and door
mirrors on both sides.
When the door mirror switch is operated with the starter
switch at either “ACC” or “ON” position, the motor in the
door mirror (on either side) rotates to allow the horizontal
and vertical adjustment of mirror angles.
When the rear defogger/mirror defogger switch is turned
“ON” (with the starter switch at “ON” position), the heaters
in both left and right mirrors and the rear windshield glass
are active defog both mirrors and rear windshield glass at
the same time.

Door Mirror Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel lower cover (2).

Refer to the instrument panel assembly in Body
Structure section.

3. Remove the door mirror switch (1).

825RW094

Rear Defogger/Mirror Defogger Switch

Refer to the Rear Defogger/Mirror switch removal and
installation steps in Lighting System section.

Door Mirrors

Refer to the Door mirrors removal and installation steps in
Exterior/Interior Trim section.

8J–10

EXTERIOR/INTERIOR TRIM

Power Window System

General Description

The power window system consists of power window
switches and power window motors on driver and
passenger sides and power window relay. With the starter
switch in “ON” position, the battery voltage is supplied
through power window relay to the power window
switches on driver and passenger sides. Selection of up
or down switch changes the motor rotating direction to
open or close the window.
When the lock switch on the switch panel on the driver
side is pressed, the power window switch is in open state.
As a result, the power source to the other switches are cut
off, and the power window motors do not run.

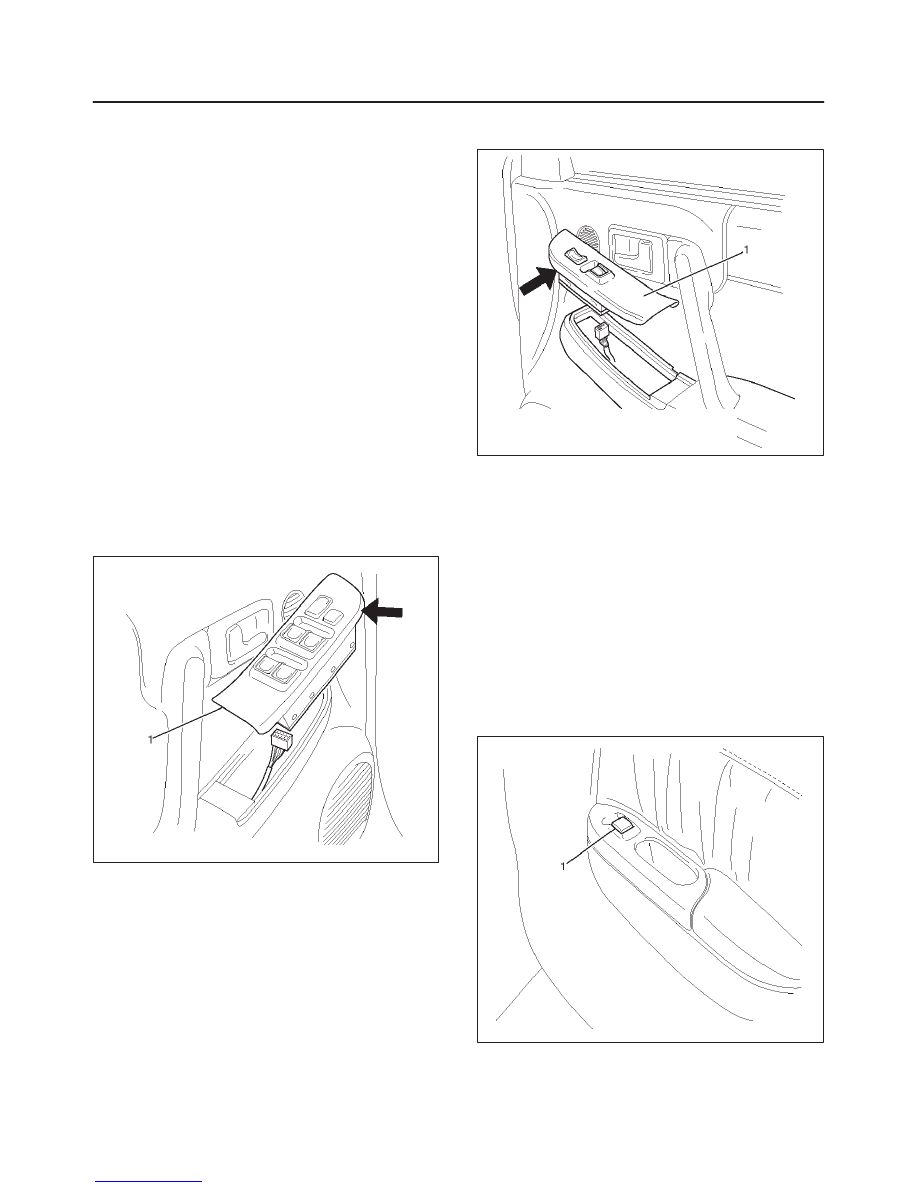

Power Window Switch Driver Seat
Side

Removal

1. Disconnect the battery ground cable.
2. Remove the switch (1).

f

Pull out the switch by pushing the spring with the tip
of a screwdriver.

f

Disconnect the connector.

825RW080

Installation
To install, follow the removal steps in the reverse order.

Front Passenger Seat Side

Removal

1. Disconnect the battery ground cable.
2. Remove the switch (1).

f

Pull out the switch by pushing the spring with the tip
of a screwdriver.

f

Disconnect the connector.

825RW097

Installation
To install, follow the removal steps in the reverse order.

Rear-Left and Right Sides

Removal

1. Disconnect the battery ground cable.
2. Remove the rear door trim pad (2).

f

Refer to the Rear Door Trim Pad removal steps in
Exterior/Interior Trim section.

f

Disconnect the rear power window switch (1)
connector.

3. Remove the rear power window switch (1).

f

Remove the switch fixing screw from the back side
of the rear door trim (2).

825RW081
