SUN ROOF/CONVERTIBLE TOP

8I–5

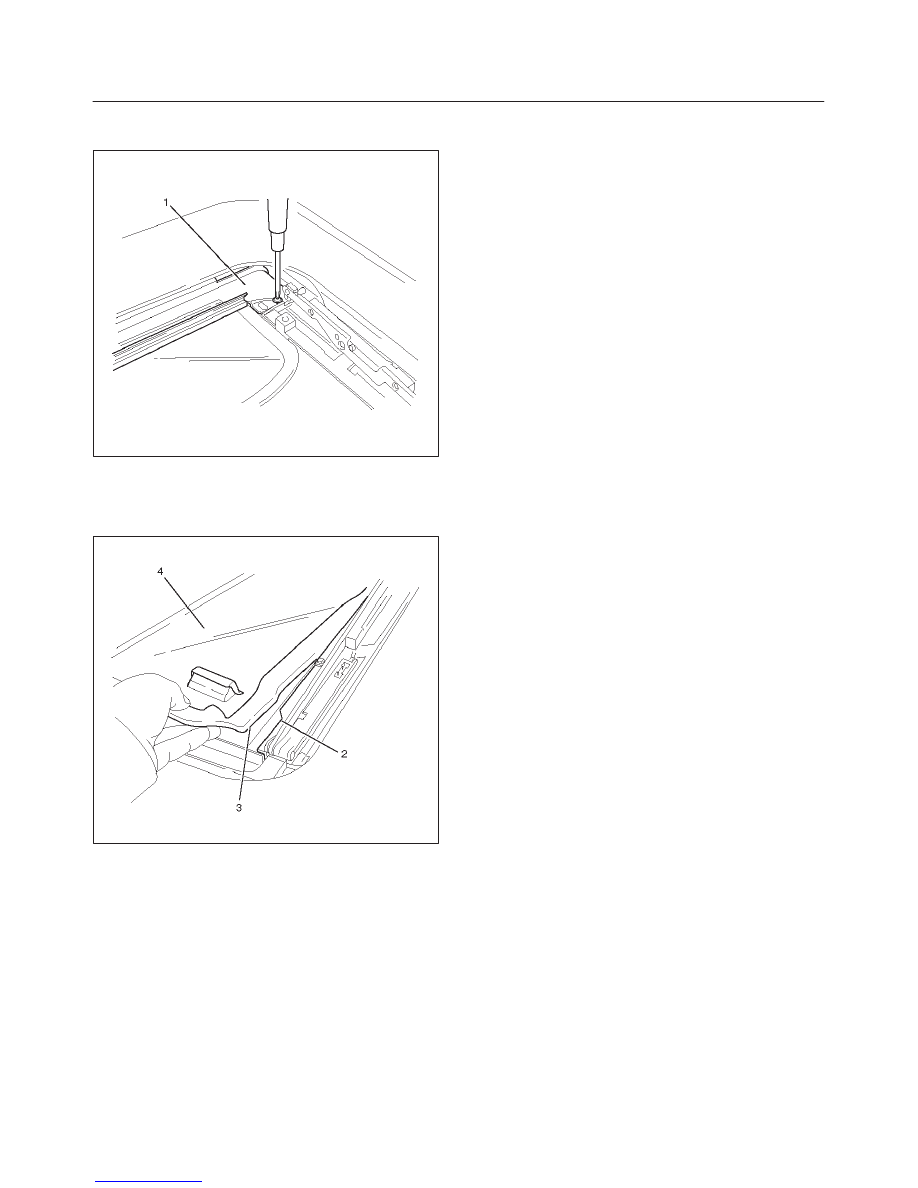

5. Remove 2 sunshade stopper fixing screws and

remove sunshade stopper (1).

665RW007

6. Pull out the sunshade (4) up to the guide rail edge. Lift

the front of sunshade and clear the projection (3) of
sunshade through the notch (2) of guide rail edge,
then draw the sunshade out of the roof.

665RW009

Installation

To install, follow the removal steps in the reverse order.

8I–6

SUN ROOF/CONVERTIBLE TOP

Sun Roof Frame Complete Assembly

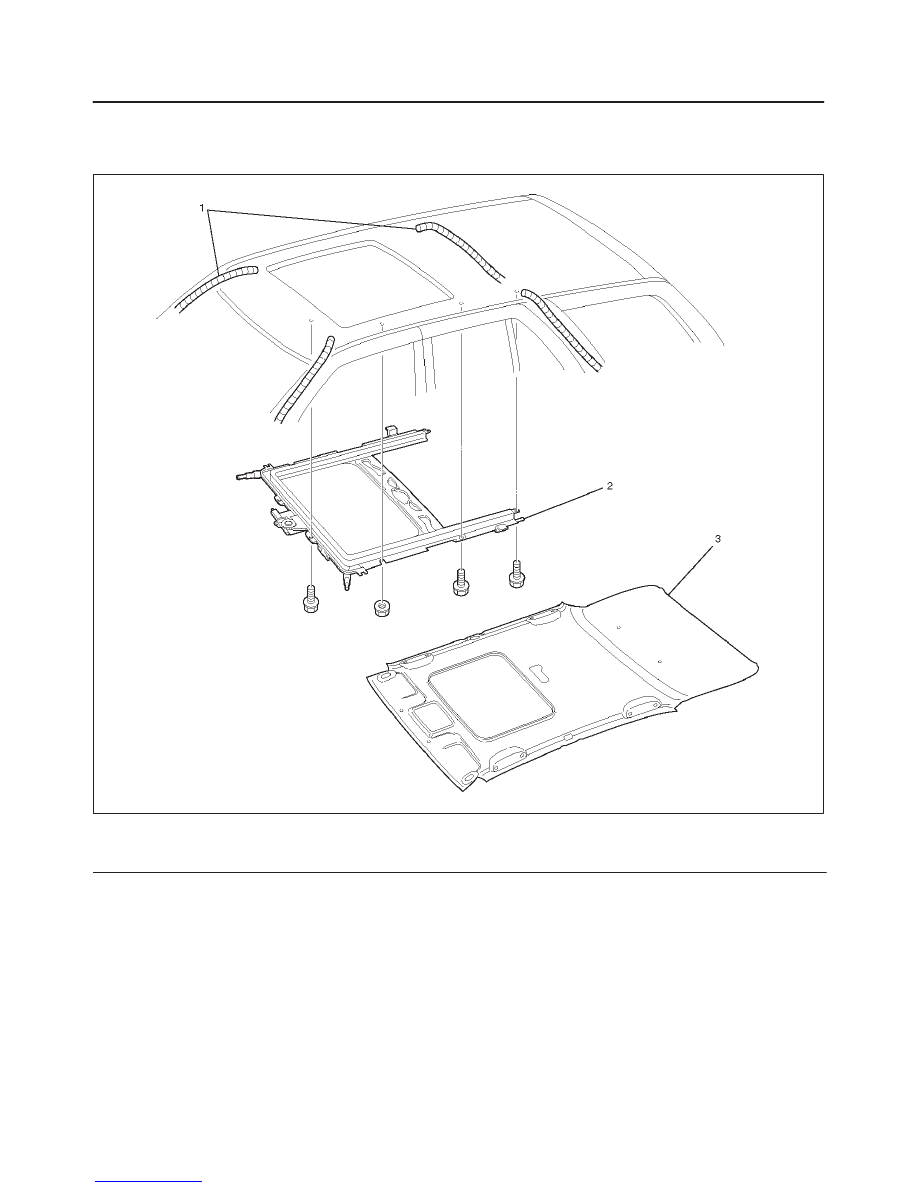

Sun Roof Frame Complete Assembly and Associated Parts

665RW005

Legend

(1) Sun Roof Drain Hose

(2) Sun Roof Frame Complete Assembly
(3) Headlining

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining.

Refer to Headlining in Body Structure section.

SUN ROOF/CONVERTIBLE TOP

8I–7

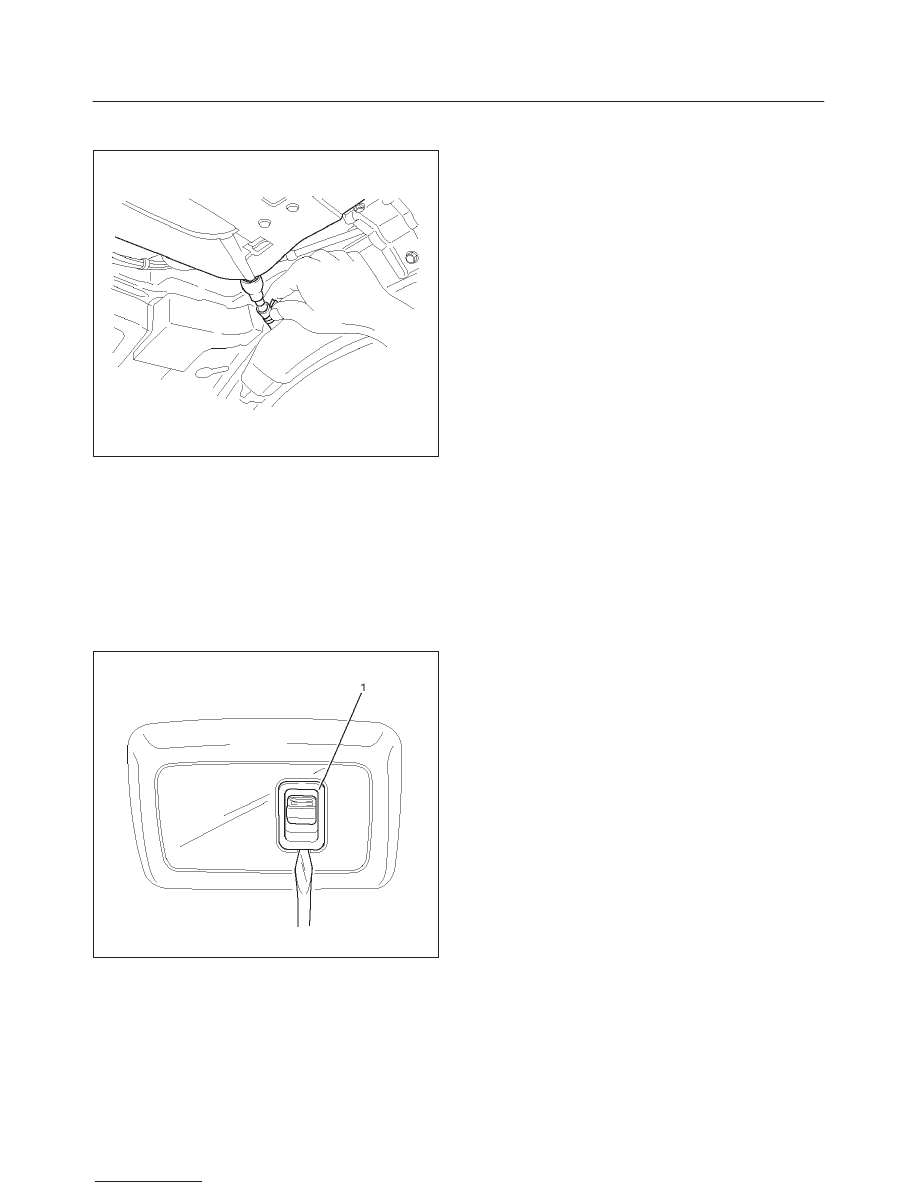

3. Disconnect the sun roof drain hose at the sun roof

frame side as shown in the figure.

665RW010

4. Disconnect the sun roof harness connection.
5. Remove 2 sun roof frame complete assembly fixing

nuts (front side) and 6 fixing bolts from the frame
complete assembly, and then remove the sun roof
frame complete assembly.

NOTE: Be sure to remove the frame complete assembly
while supporting it.

Installation

1. Install the sun roof frame complete assembly.
2. After installing the frame complete assembly, loosen

the sun roof glass fixing nuts and adjust the sun roof
glass setting position.
Refer to Sun Roof Glass in this section.

3. Install the sun roof drain hose.
4. Install the headlining.

Refer to Headlining in Body Structure section.

Sun Roof Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the sun roof switch (1).

f

Remove the switch by pushing the spring with the
tip of a screwdriver.

f

Disconnect the switch connector.

825RW091

Installation

To install, follow the removal steps in the reverse order.

8I–8

SUN ROOF/CONVERTIBLE TOP

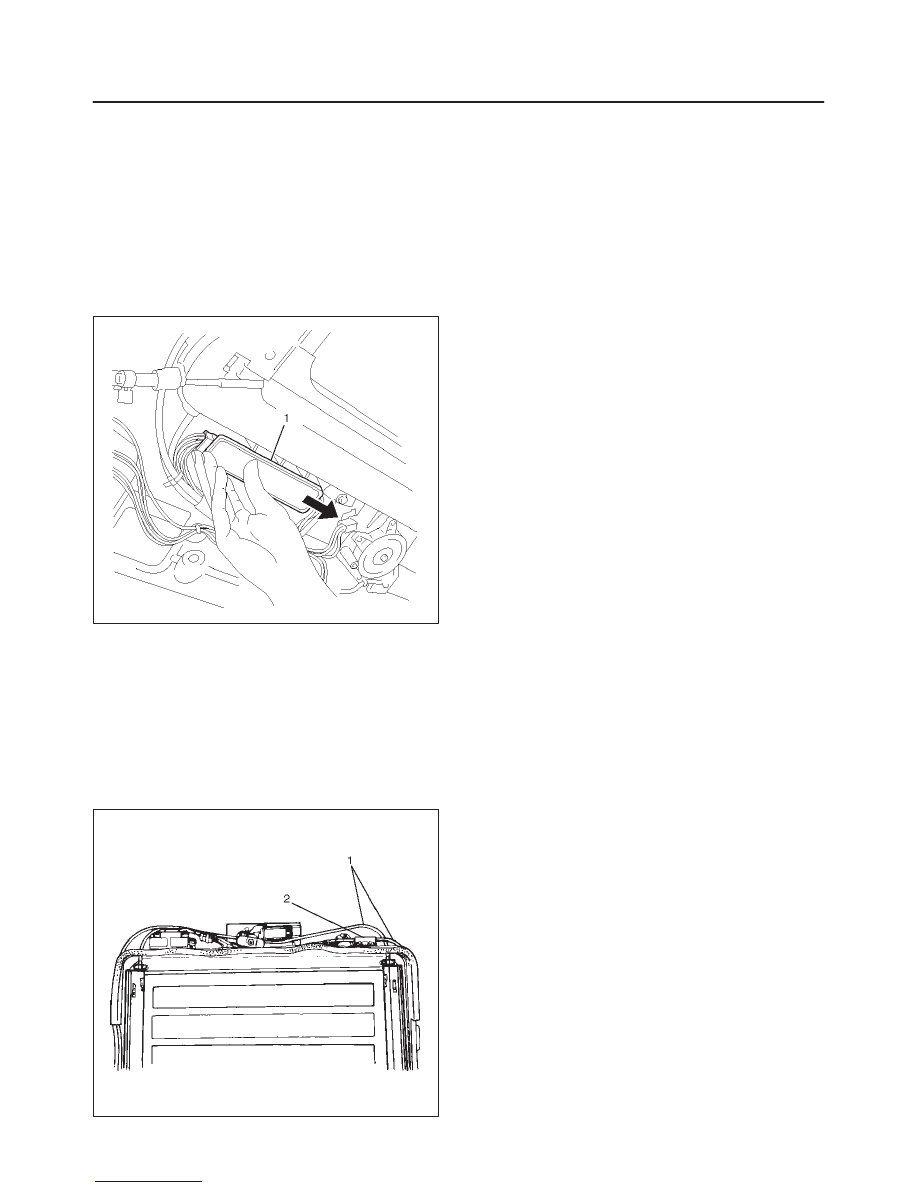

Sun Roof Control Unit

Removal

1. Disconnect the battery ground cable.
2. Remove the headlining (2).

Refer to the Headlining removal steps in
Exterior/Interior Trim section.

3. Remove the sun roof control unit (1).

f

Disconnect two connectors.

f

Remove two screws.

665RW013

Installation

To install, follow the removal steps in the reverse order.

Safety Stop Switch

Removal

1. Disconnect the battery ground cable.
2. Remove the sun roof drive unit assembly (1) to

remove the safety stop switch (2).
Refer to the Sun Roof Frame Complete Assembly
disassembly steps in this section.

665RS022

Installation

To install, follow the removal steps in the reverse order.
