SECURITY AND LOCKS

8H–11

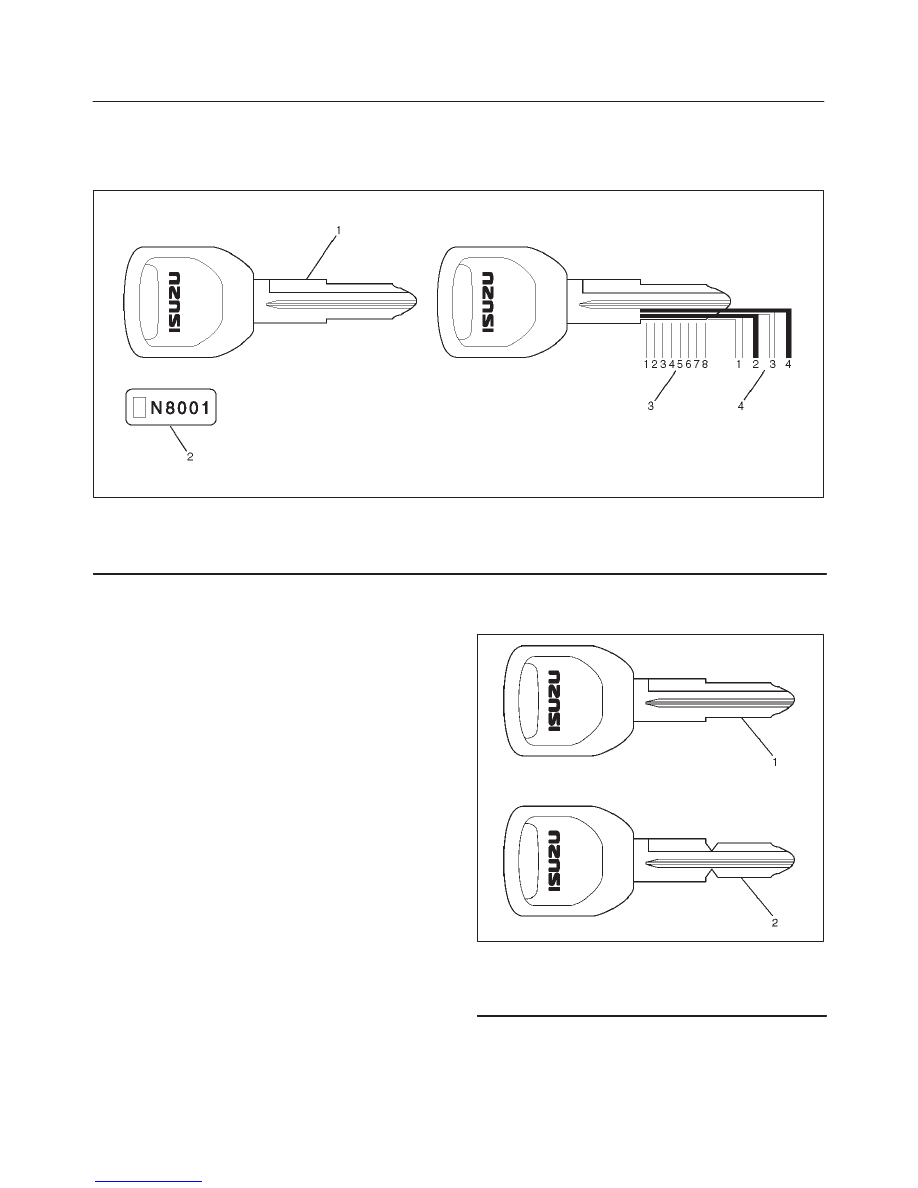

Key

Key Coding

730RW003

Legend

(1) Key (Actual size)
(2) Key Code Tag

(3) Position
(4) Level

One key is used for the ignition, door, and tailgate lock
cylinders. The keys are cut on both edges to make them
reversible.
Key identification is obtained from the five character key
code stamped on the key code tag. From this key code,
the key code cutting combination can be determined from
a code list (available to owners of key cutting equipment
from suppliers).
If key codes are not available from records or tags, the
key code can be obtained from the right hand door lock
cylinder (if lock has not been replaced). Lock cylinders
supplied by the factory as service parts are unmarked.
If the original key is available, the key code cutting
combination can be determined by laying the key on the
diagram shown in the figure.

Key Styles

730RW004

Legend

(1) Blank Key Style “A”
(2) Blank Key Style “B”

The keys come in styles A or B depending on the key code
cutting combination. When the first position in the
combination is a 1, 2 or 3, Style A is used. When the first
position is a 4, Style B (factory pre–cut key) is used.

8H–12 SECURITY AND LOCKS

Power Door Lock System

General Description

The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch.
The front door lock switch–LH is always provided with the
battery voltage.
The key or the inside lock button on the both driver’s and
the front passenger’s door can activate the lock
mechanism of all the doors (including the tailgate).
When the driver’s door lock switch or the front
passenger’s door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch–LH to activate the actuator to lock
and unlock the doors.

Door Lock Key Switch

Removal and Installation

f

Refer to the Front Door Lock Assembly removal and
installation steps in this section.

Front Door Lock Actuator

Removal and Installation

f

Refer to the Front Door Lock Assembly removal and
installation steps in this section.

Rear Door Lock Actuator

Removal and Installation

f

Refer to the Rear Door Lock Assembly removal and
installation steps in this section.

Tailgate Lock Actuator

Removal and Installation

f

Refer to the Tailgate Lock Assembly removal and
installation steps in this section.

Anti–Theft System

General Description

The circuit consists of the starter switch, anti–theft &
keyless entry controller, anti–theft horn, front door and
tailgate key switch (detect and tamper) switch, door lock
actuator for each door, engine hood switch, clutch start
switch (M/T), ANTI–THEFT indicator light and mode
switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights start flashing, the horn sounds,
and the starter circuit is disabled. (However, the engine
hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from “OFF” to “ACC” by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.

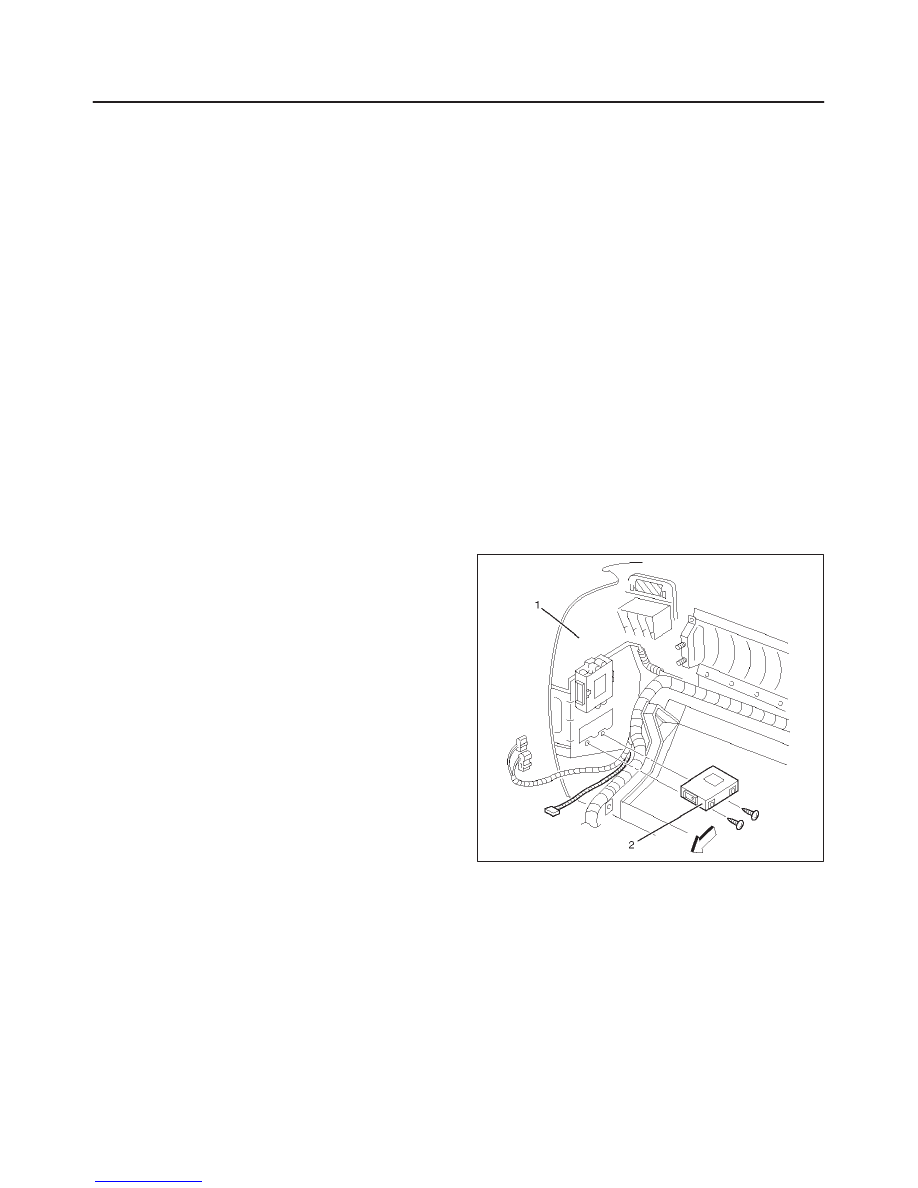

Anti–Theft & Keyless Entry Control-
ler

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel assembly (1).

f

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the anti–theft & keyless entry controller (2).

f

Disconnect the connector.

f

Remove two fixing screws.

826RW007

Installation

To install, follow the removal steps in the reverse order.

SECURITY AND LOCKS

8H–13

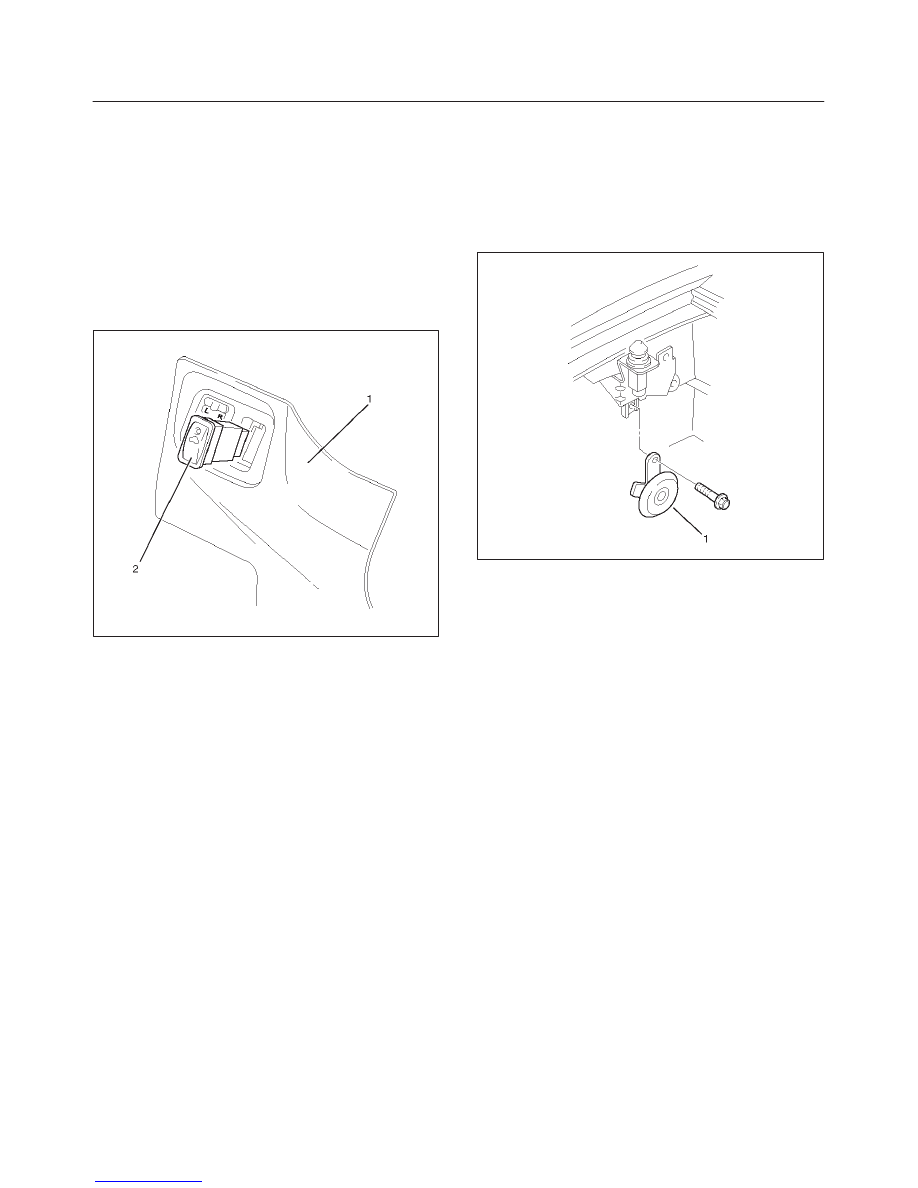

Anti–Theft Indicator

Removal

1. Disconnect the battery ground cable.
2. Remove the instrument panel driver lower cover

assembly (1).

f

Refer to the Instrument Panel Assembly in Body
Structure section.

3. Remove the anti–theft indicator (2).

f

To remove the indicator, push the lock from the back
side of the instrument panel driver lower cover
assembly.

826RW008

Installation

To install, follow the removal steps in the reverse order.

Anti–Theft Horn

Removal

1. Disconnect the battery ground cable.
2. Remove the anti–theft horn (1).

f

Disconnect the connector.

f

Remove a fixing bolt.

828RW001

Installation

To install, follow the removal steps in the reverse order.

8H–14 SECURITY AND LOCKS

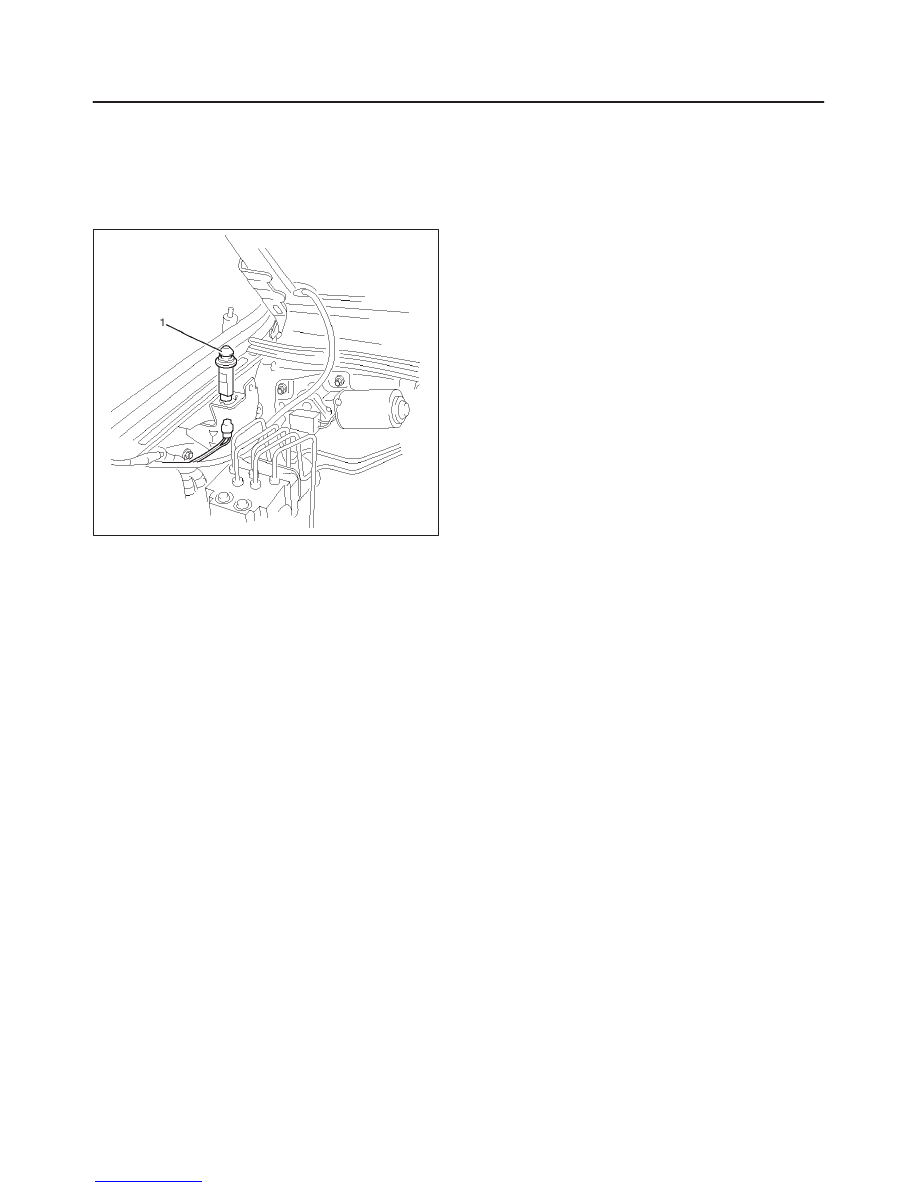

Engine Hood Switch

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove the engine hood switch (1).

828RW002

Installation

To install, follow the removal steps in the reverse order.

Anti–theft & Keyless Entry Control
Unit/Transmitter Replacement

Anti–theft & Keyless Entry Control Unit
Replacement

1. Remove and install the control unit.

f

Refer to Anti–theft & Keyless Entry Control Unit
Removal and Installation in this section.

2. Register ID code.

f

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Replacement

1. Prepare a new transmitter.
2. Regiter ID code.

f

Refer to ID Code Registration in this section.

3. Check that the keyless entry system works normally.

Transmitter Battery Replacement

1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.
