LIGHTING SYSTEM

8A–3

Headlight Adjustment

Preparation

Place the unloaded vehicle on a level surface and check
to see if the inflation pressure of the tires is correct, the
lenses are clean, and the battery is sufficiently charged.
Adjust the aim with the headlight tester, if necessary.
When adjusting, follow the procedure of the tester
manufacture’s.

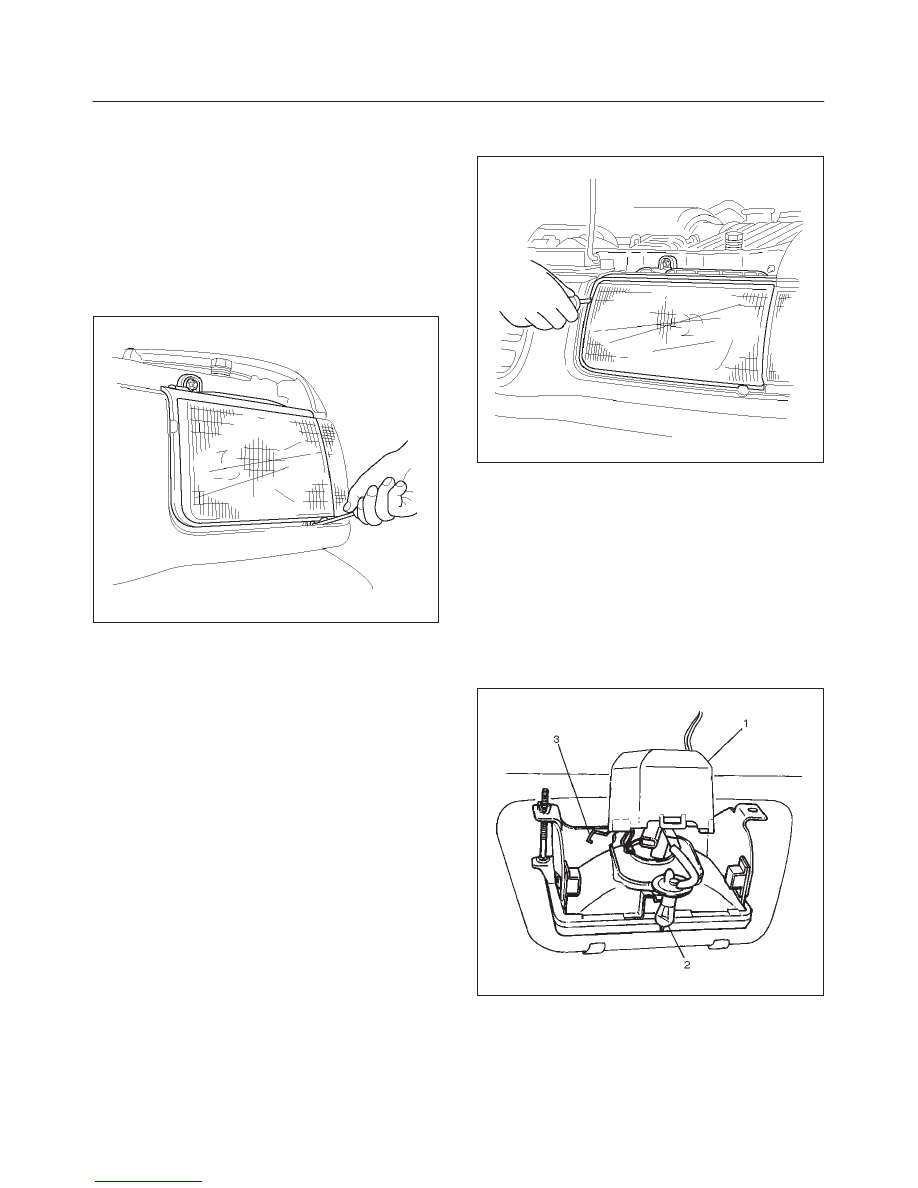

Vertical Adjustment

Use a screwdriver for vertical adjustment.

825RW064

Horizontal Adjustment

Use a screwdriver for horizontal adjustment.

825RW066

Fog Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the fog light bulb (2).

f

Open the rear cover (1).

f

Remove the dust cover.

f

Disconnect the bulb connector.

f

Remove the clip (3).

801RW002

Installation

To install, follow the removal steps in the reverse order.

8A–4

LIGHTING SYSTEM

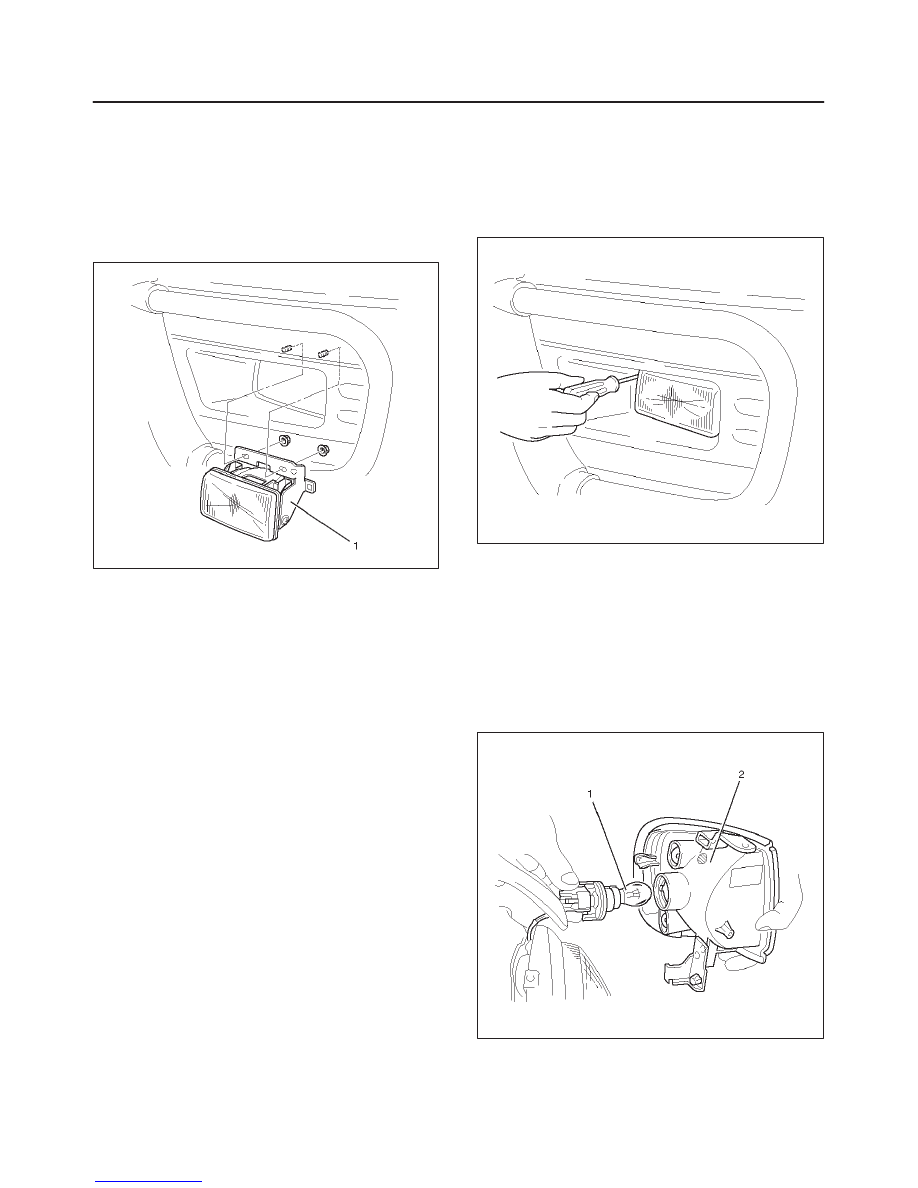

Fog Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the fog light assembly (1).

f

Disconnect the connector.

f

Remove two nuts from the bracket.

825RW092

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the fog light, be sure to
adjust the fog light aim.

Fog Light Adjustment

Vertical Adjustment

Turn the adjusting screw with a screwdriver to adjust the
aim of the fog light vertically.

825RW065

Side Marker Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the radiator grille.

f

Refer to Engine Hood and Fender in section.

3. Remove the front combination light (2).

f

Remove three screws.

4. Remove the bulb (1).

f

Remove the side marker light socket by turning it
counterclockwise.

f

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW067

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–5

Front Combination Light Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the side combination light.

f

Refer to Side Marker Light Bulb in this section.

3. Disconnect the connector.

Installation

To install, follow the removal steps in the reverse order.

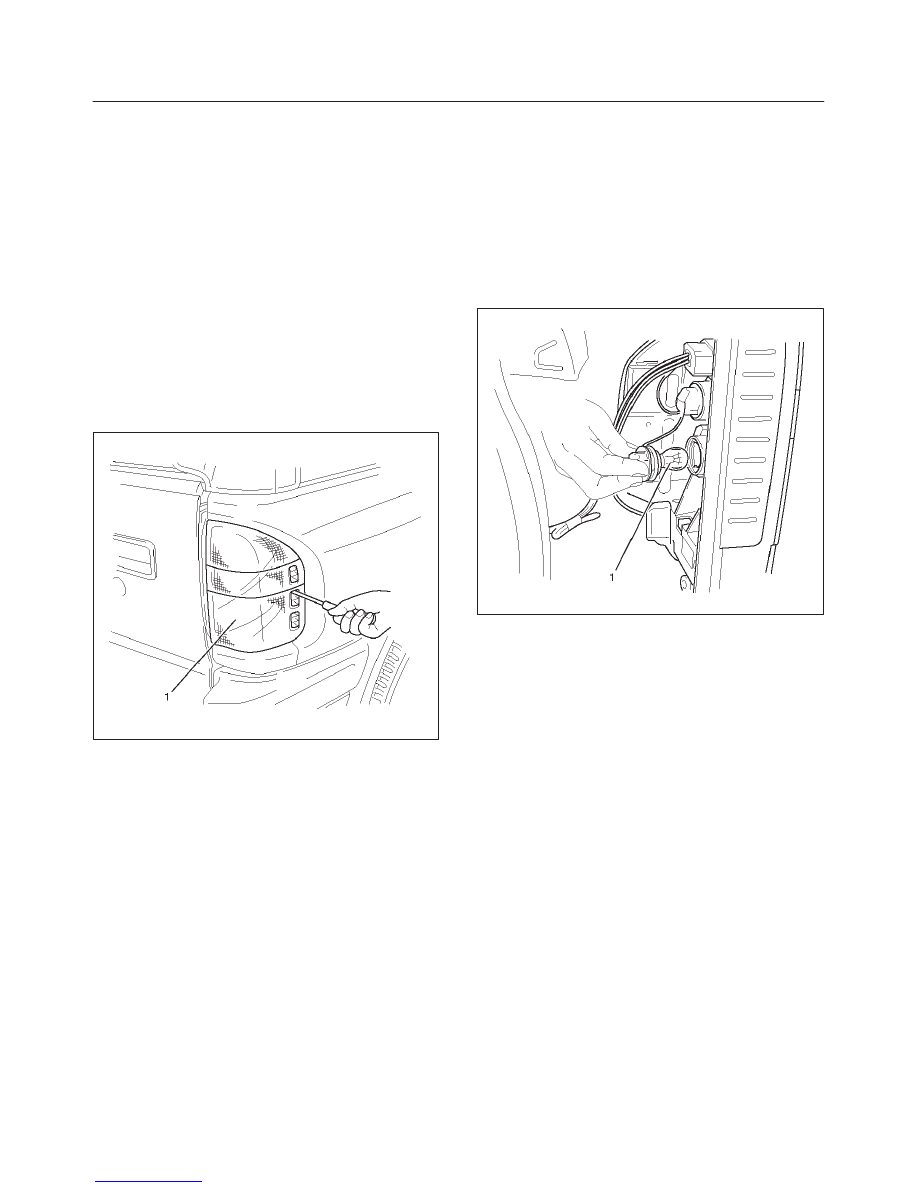

Taillight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly (1).

f

Remove three screws.

3. Pull out the rear combination light assembly to ward

you.

825RW068

4. Remove the bulb (1).

f

Remove the taillight socket by turning it
counterclockwise.

f

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW069

Installation

To install, follow the removal steps in the reverse order.

8A–6

LIGHTING SYSTEM

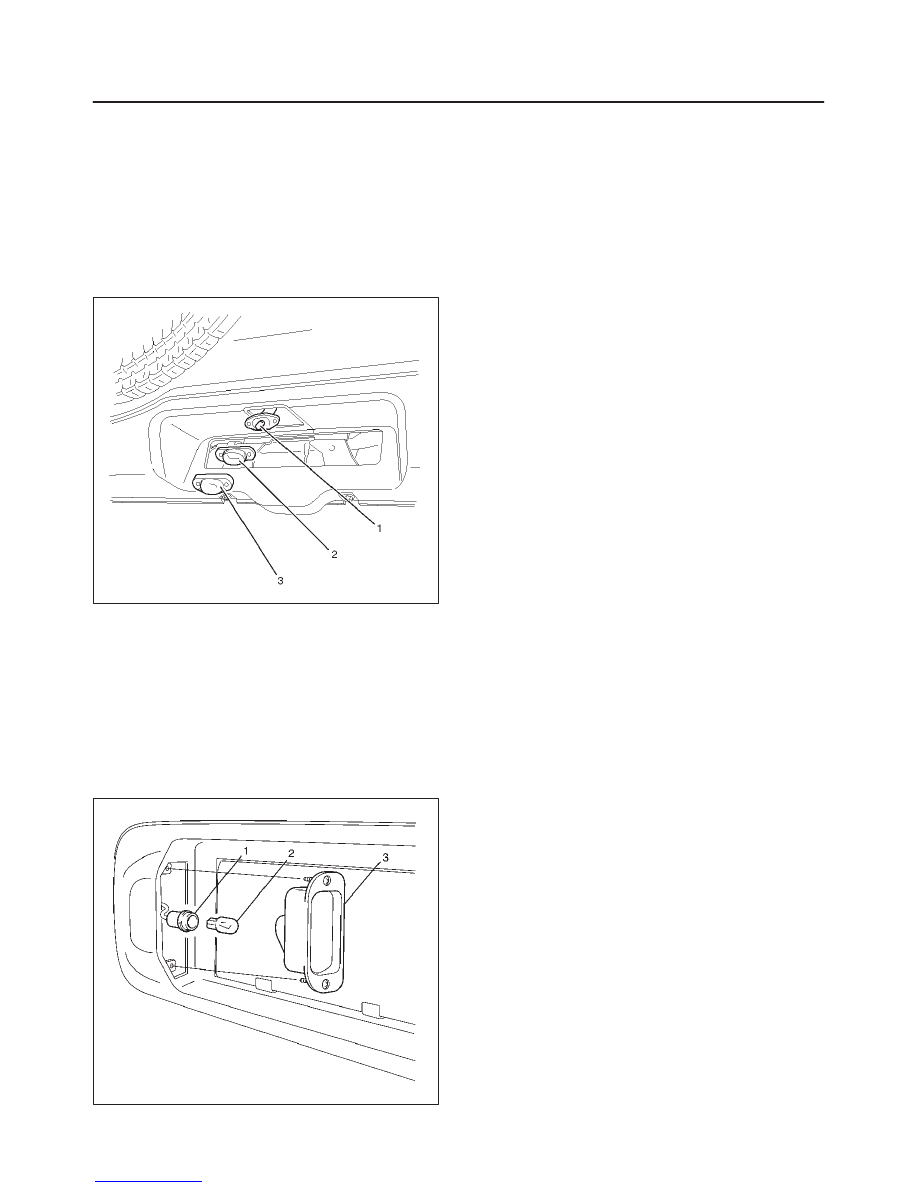

License Plate Light Bulb (Bumper Type)

Removal

1. Disconnect the battery ground cable.
2. Remove the lens cover (3).

f

Remove two screws.

3. Remove the lens (2).
4. Remove the bulb (1).

f

Pull out the bulb from the socket.

825RW070

Installation

To install, follow the removal steps in the reverse order.

License Plate Light Bulb (Tailgate Type)

Removal

1. Disconnect the battery ground cable.
2. Remove the lens cover (3).

f

Remove two screws.

3. Remove the bulb (2).

f

Pull out the bulb from the socket (1).

803RW014

Installation

To install, follow the removal steps in the reverse order.
