LIGHTING SYSTEM

8A–7

Stoplight Bulb

Removal and Installation

Refer to Taillight Bulb in this section.

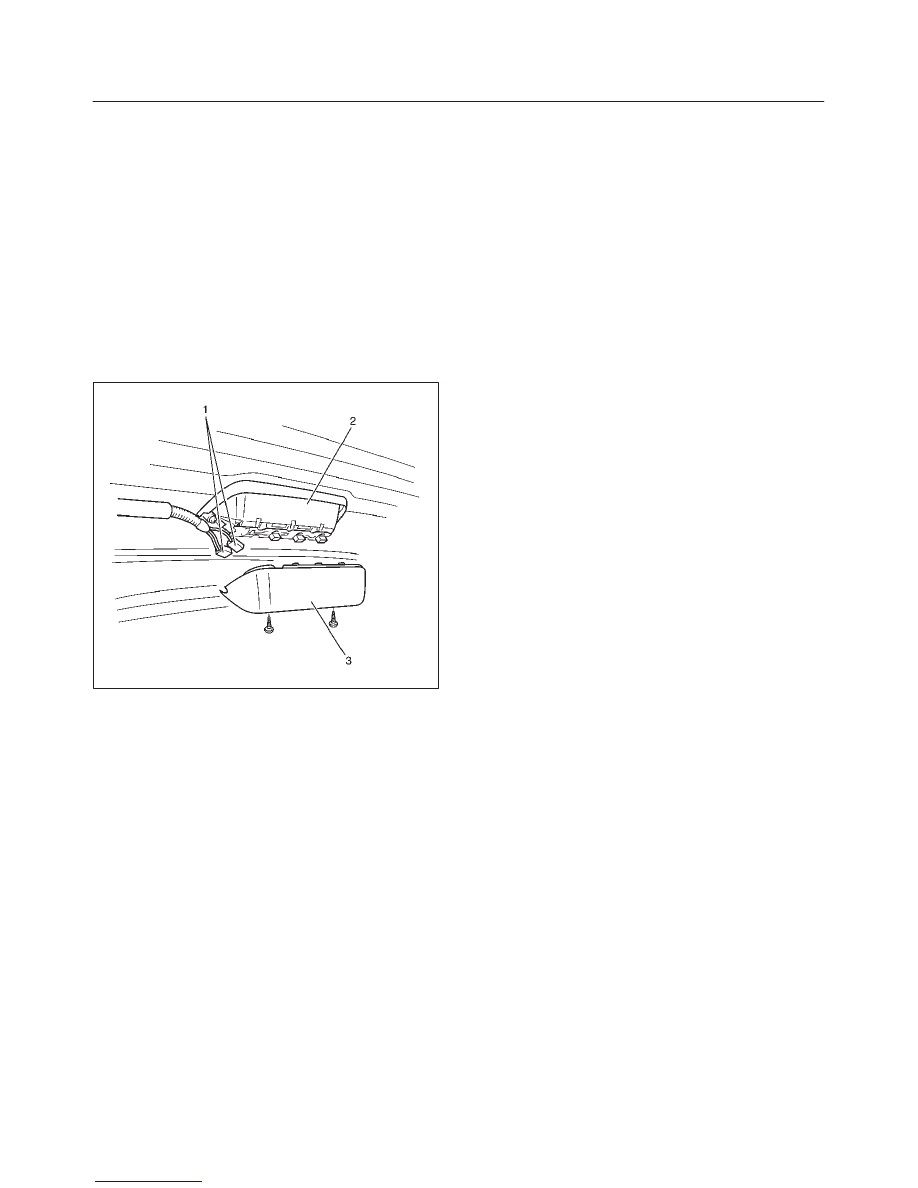

High Mounted Stoplight Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the high mount stoplight assembly (2).

f

Remove the cover (3).

f

Disconnect the connectors (1).

f

Remove two screws.

803RX001

Installation

To install, follow the removal steps in the reverse order.

8A–8

LIGHTING SYSTEM

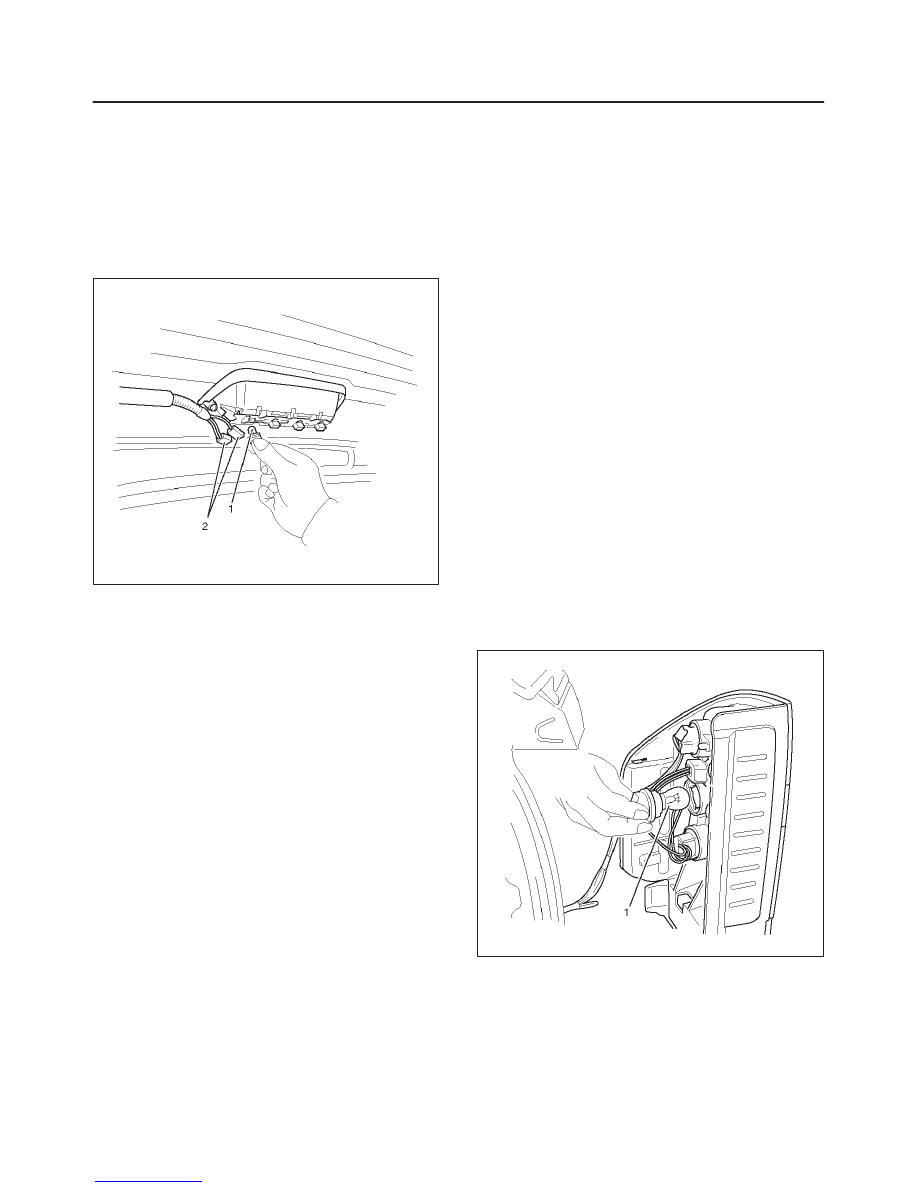

High Mounted Stoplight Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the cover.
3. Disconnect the connectors (2).
4. Remove the bulb (1).

f

Remove the socket by turning it counterclockwise.

825RW071

Installation

To install, follow the removal steps in the reverse order.

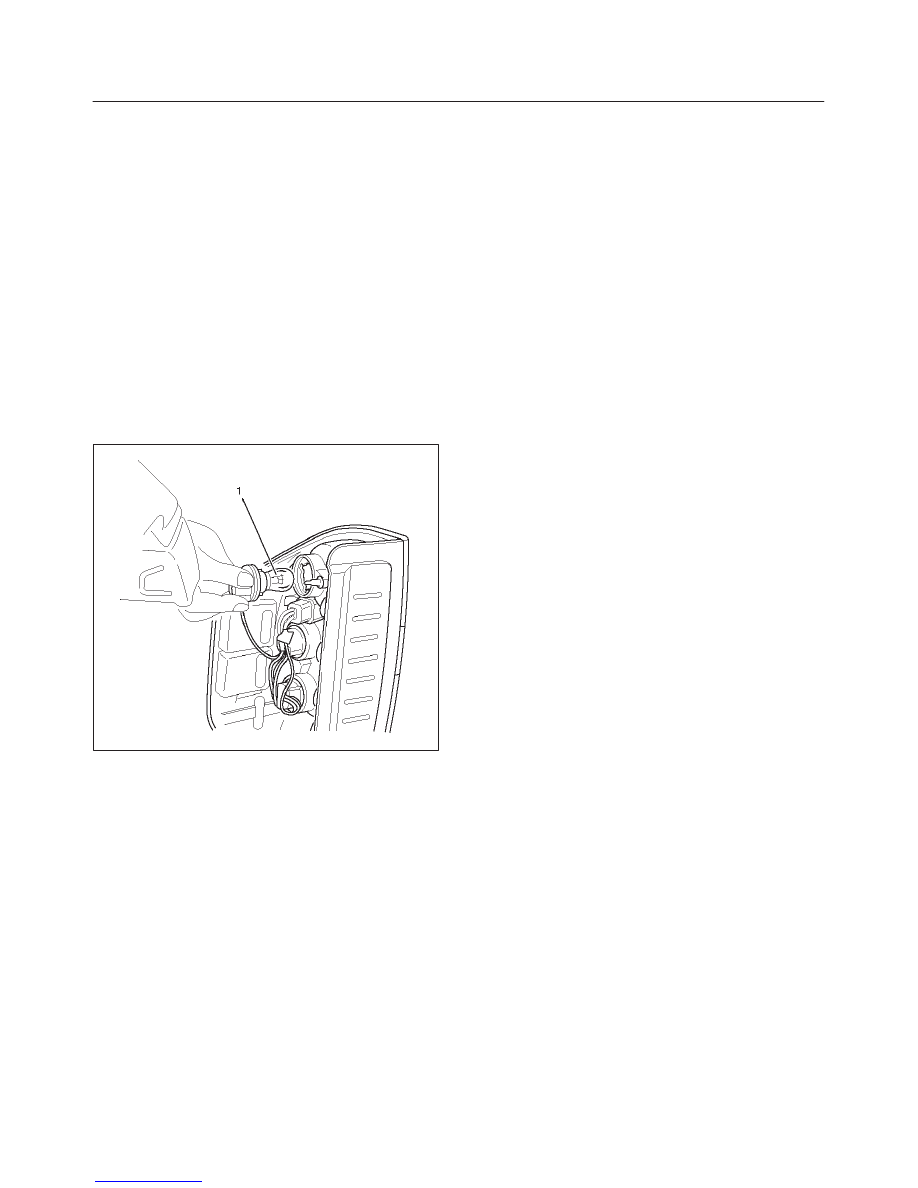

Backup Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

f

Refer to the Taillight Bulb removal step 2 in this
section.

3. Remove the bulb (1).

f

Remove the backup light socket by turning it
counterclockwise.

f

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW073

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–9

Front Turn Signal Light Bulb

Removal and Installation

Refer to Side Marker Light Bulb in this section.

Rear Turn Signal Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

f

Refer to the Taillight Bulb removal step in this
section.

3. Remove the bulb (1).

f

Remove the rear turn signal light socket by turning it
counterclockwise.

f

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW074

Installation

To install, follow the removal steps in the reverse order.

8A–10

LIGHTING SYSTEM

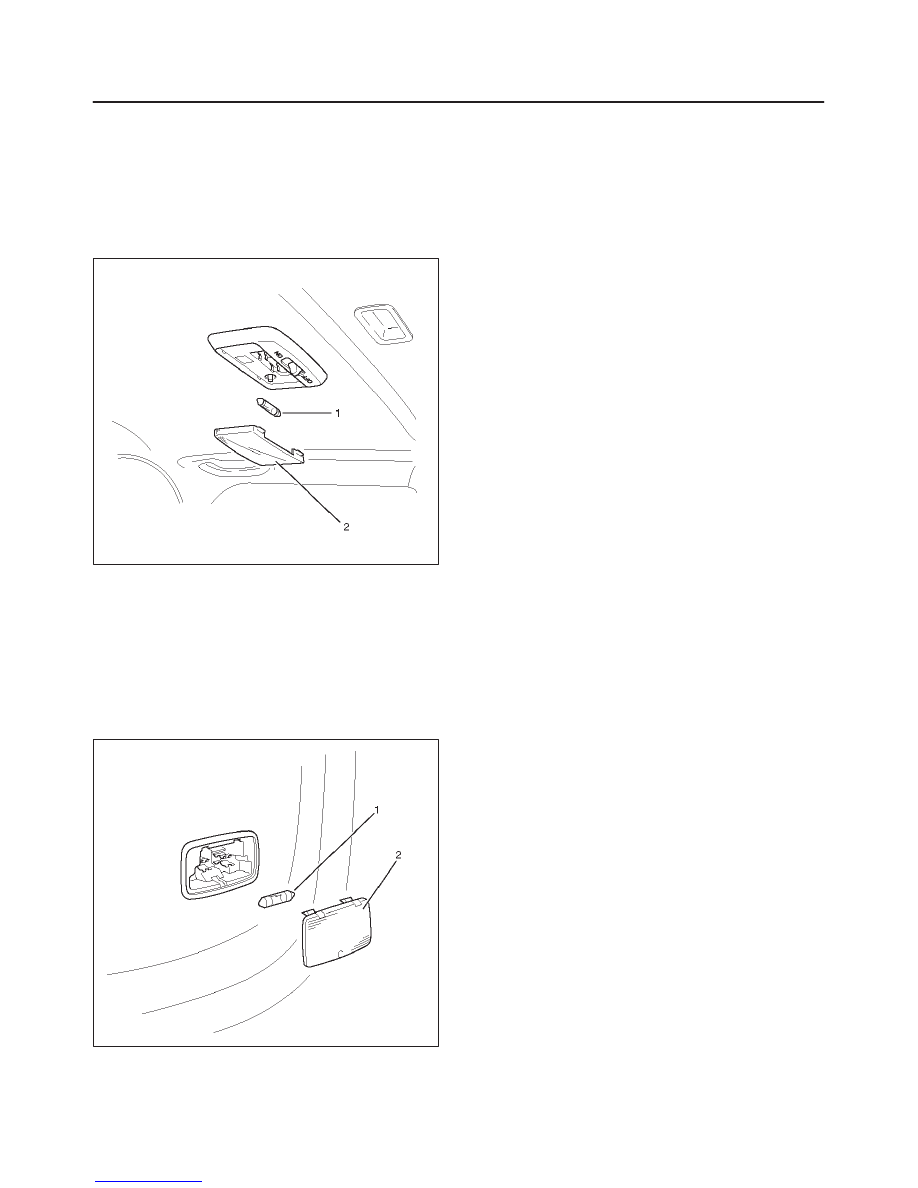

Dome Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

f

Pull out the bulb.

825RW075

Installation

To install, follow the removal steps in the reverse order.

Courtesy Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

f

Pull out the bulb.

825RW076

Installation

To install, follow the removal steps in the reverse order.
