CLUTCH

7C–35

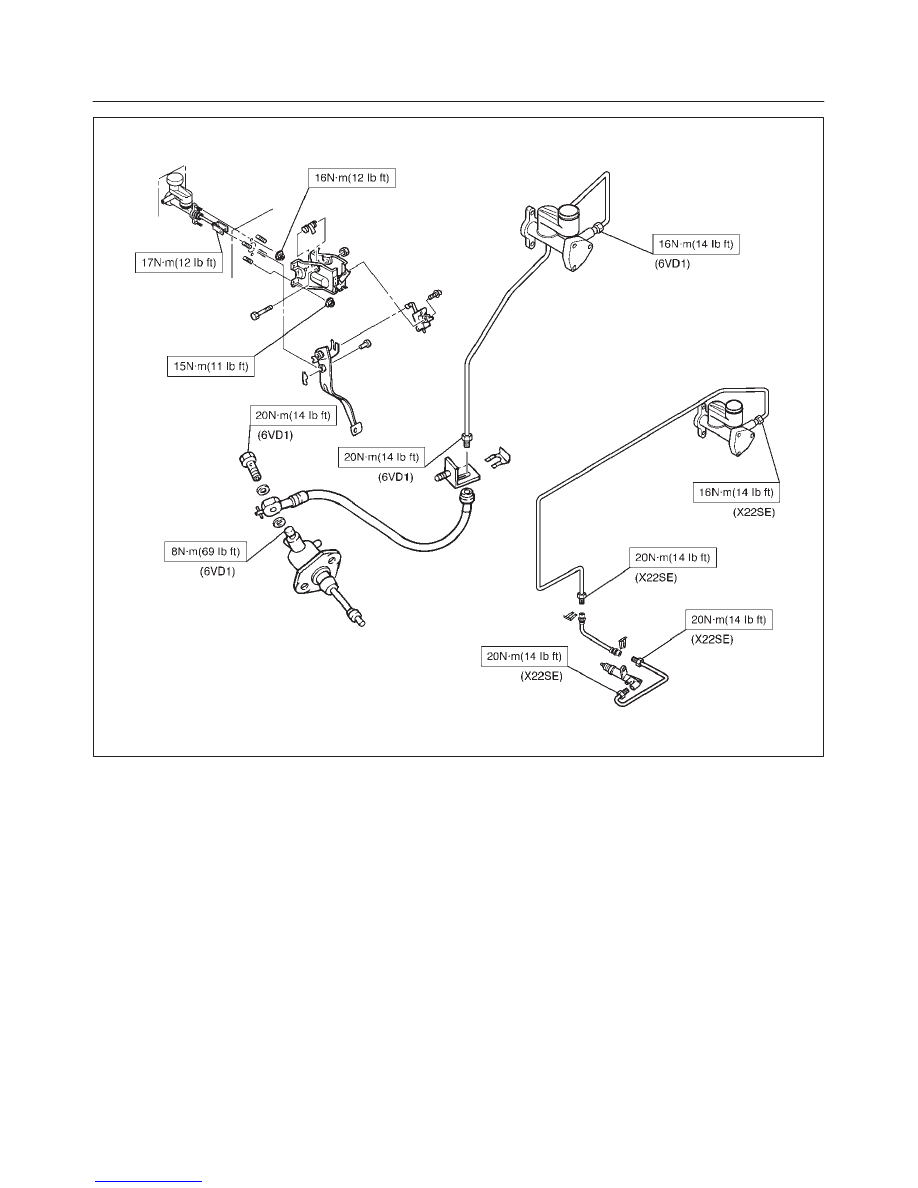

205RX001

7C–36

CLUTCH

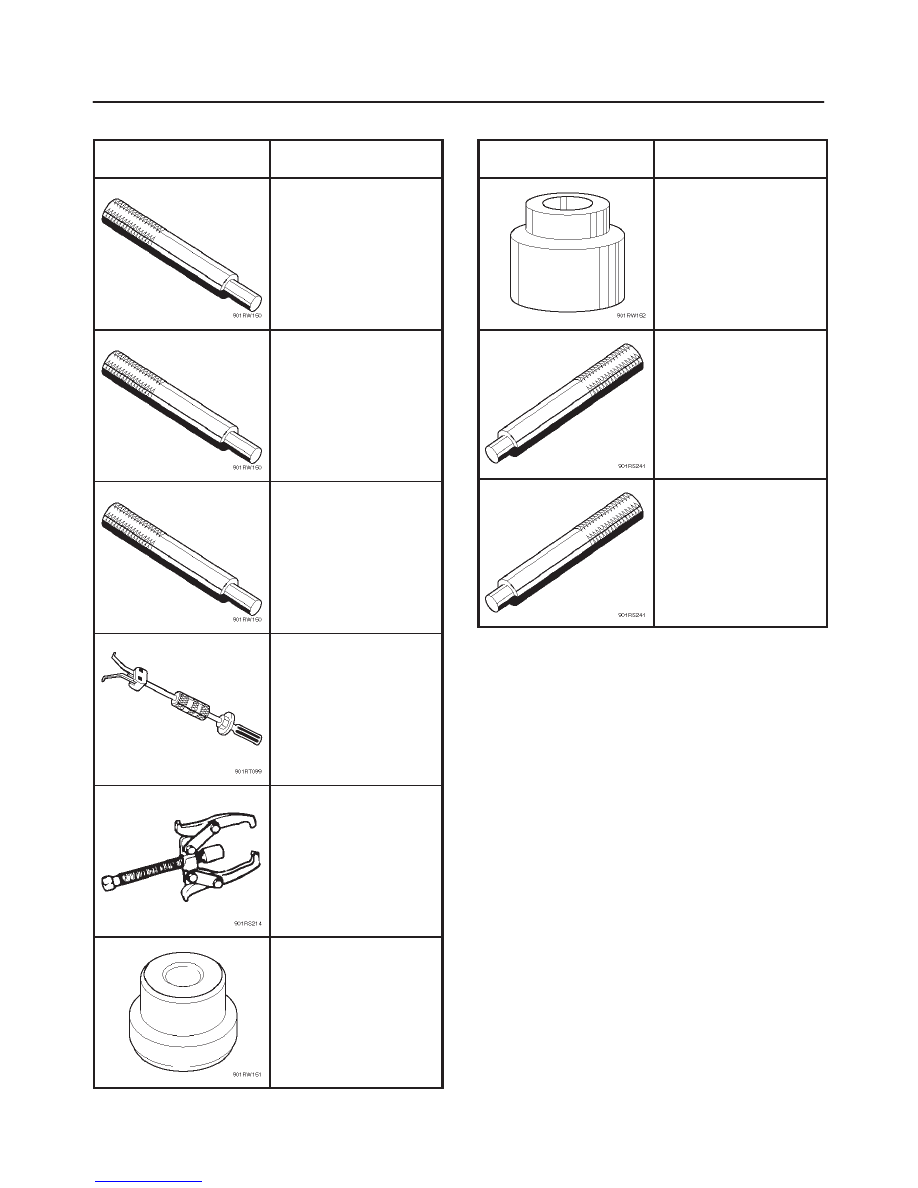

Special Tools

ILLUSTRATION

PART NO.

PART NAME

J–24547

Driven plate aligner

(6VD1)

J–33169

Driven plate aligner

(X22SE TREMEC)

J–42877

Driven plate aligner

(X22SE MUA)

J–5822 and J–23907

Pilot bearing remover

and Sliding hammer

J–22888

Bearing puller

J–2241–11

Adapter

ILLUSTRATION

PART NO.

PART NAME

J–26516–A

Crankshaft pilot bearing

installer (6VD1)

J–1522

Crankshaft pilot bearing

installer (X22SE)

J–8092

Driver handle

LIGHTING SYSTEM

8A–1

RODEO

BODY AND ACCESSORIES

LIGHTING SYSTEM

CONTENTS

Service Precaution

8A–1

. . . . . . . . . . . . . . . . . . . . . .

Headlight Bulb

8A–2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Headlight Assembly

8A–2

. . . . . . . . . . . . . . . . . . . . .

Headlight Adjustment

8A–3

. . . . . . . . . . . . . . . . . .

Fog Light Bulb

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . .

Fog Light Assembly

8A–4

. . . . . . . . . . . . . . . . . . . . .

Fog Light Adjustment

8A–4

. . . . . . . . . . . . . . . . . .

Side Marker Light Bulb

8A–4

. . . . . . . . . . . . . . . . . . .

Front Combination Light Assembly

8A–5

. . . . . . . .

Taillight Bulb

8A–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

License Plate Light Bulb (Bumper Type)

8A–6

. . . .

License Plate Light Bulb (Tailgate Type)

8A–6

. . . .

Stoplight Bulb

8A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . .

High Mounted Stoplight Assembly

8A–7

. . . . . . . . .

High Mounted Stoplight Bulb

8A–8

. . . . . . . . . . . . . .

Backup Light Bulb

8A–8

. . . . . . . . . . . . . . . . . . . . . . .

Front Turn Signal Light Bulb

8A–9

. . . . . . . . . . . . . .

Rear Turn Signal Light Bulb

8A–9

. . . . . . . . . . . . . .

Dome Light Bulb

8A–10

. . . . . . . . . . . . . . . . . . . . . . . .

Courtesy Light Bulb

8A–10

. . . . . . . . . . . . . . . . . . . . . .

Spotlight Bulb

8A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Luggage Room Light Bulb

8A–11

. . . . . . . . . . . . . . . .

HVAC Bezel Illumination Light Bulb

8A–12

. . . . . . . .

Shift Lever Illumination Light Bulb (A/T)

8A–12

. . . .

Vanity Mirror Illumination Light Bulb

8A–13

. . . . . . . .

Starter Switch

8A–13

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Lighting Switch (Combination Switch)

8A–14

. . . . . .

Dimmer·Passing Switch
 (Combination Switch)

8A–14

. . . . . . . . . . . . . . . . . . .

Door Switch

8A–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Defogger Switch

8A–15

. . . . . . . . . . . . . . . . . . .

Key Remind Switch (Starter Switch)

8A–16

. . . . . . .

Hazard Warning Light Switch

8A–16

. . . . . . . . . . . . .

Stoplight Switch

8A–16

. . . . . . . . . . . . . . . . . . . . . . . . .

Backup Light Switch (M/T)

8A–17

. . . . . . . . . . . . . . . .

Turn Signal Light Switch
 (Combination Switch)

8A–17

. . . . . . . . . . . . . . . . . . .

Illumination Controller

8A–17

. . . . . . . . . . . . . . . . . . . .

Light and Bulb Specifications

8A–18

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

8A–2

LIGHTING SYSTEM

Headlight Bulb

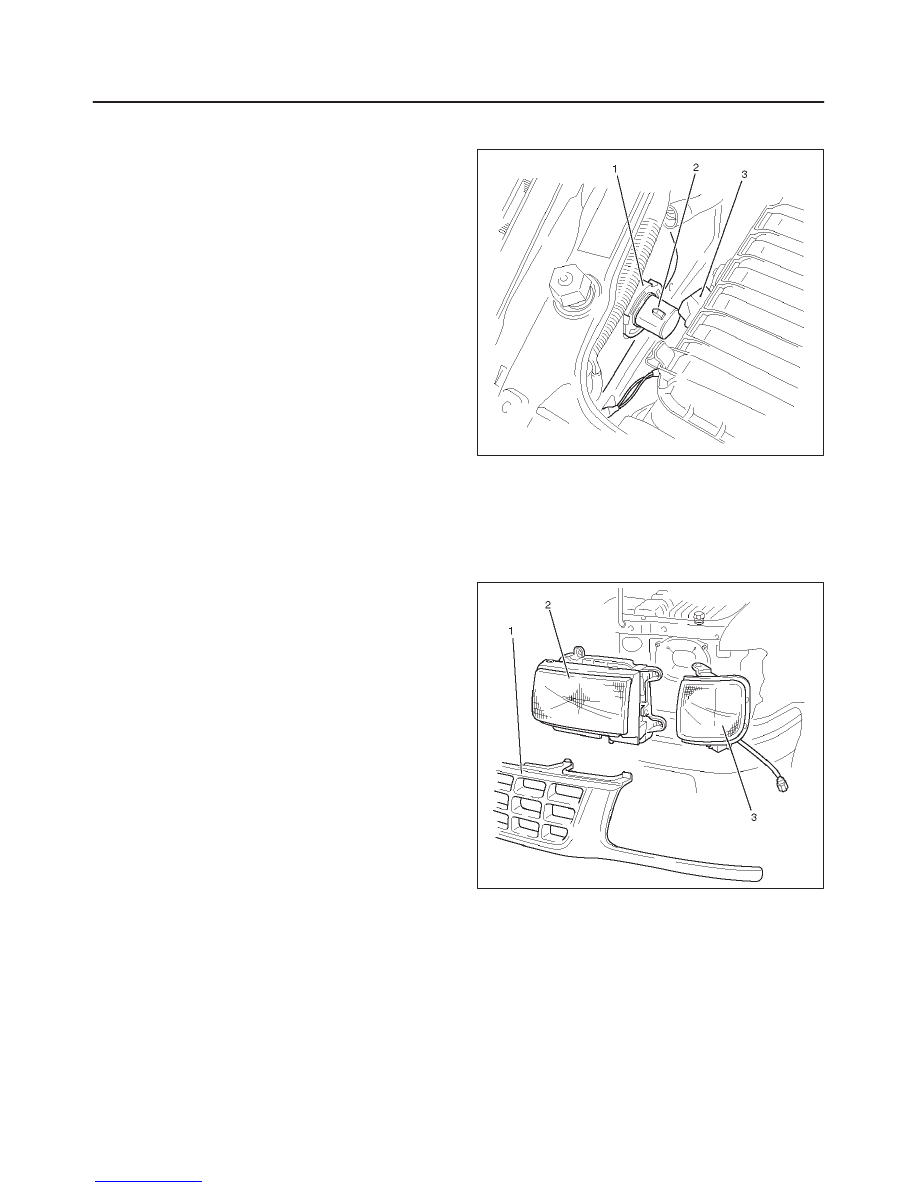

Removal

1. Disconnect the battery ground cable.
2. Remove the headlight bulb (2).

f

Disconnect the connector (3).

f

Release the socket retaining ring (1).

CAUTION: The  halogen light bulb produces heat
and temperature rises high, therefore, if the glass
surface is contaminated it will be burnt by heat
leaving stains which will not come out. This may
reduce the illuminating power or damage the bulb
due to thermal deformation during evaporation. In
order to prevent this problem, do not touch the glass
surface with your fingers.

825RW062

Installation

To install, follow the removal steps in the reverse order.

Headlight Assembly

Removal

1. Disconnect the battery ground cable.
2. Remove the radiator grille (1).

f

Remove eight clips and a screw.

3. Remove the side marker light (3).

f

Remove three screws.

f

Disconnect the connector.

4. Remove the headlight assembly (2).

f

Disconnect the connector.

f

Remove four screws.

825RW063

Installation

To install, follow the removal steps in the reverse order.

CAUTION: After installing the headlight, be sure to
adjust the headlight aim.
