7B–8

MANUAL TRANSMISSION

Transmission (MUA)

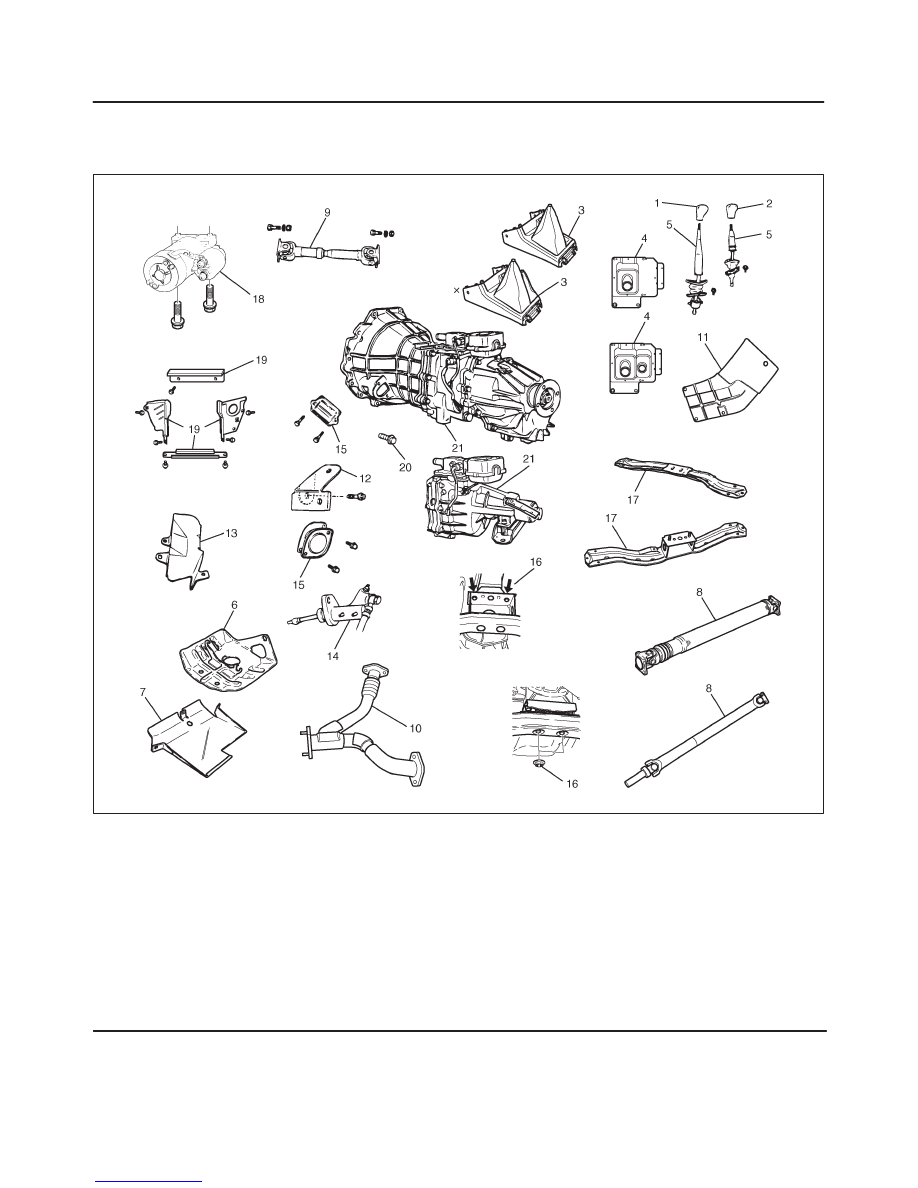

Disassembled View

220RW040

Legend

(1) Gear Control Lever Knob
(2) Transfer Control Lever Knob
(3) Center Console
(4) Grommet Assembly
(5) Gear Control Lever and Transfer Control Lever
(6) Transfer Protector
(7) Fairing Plate
(8) Rear Propeller Shaft
(9) Front Propeller Shaft

(10) Center Exhaust Pipe

(11) Fuel Pipe Heat Protector

(12) Harness Clamp
(13) Harness Heat Protector
(14) Slave Cylinder
(15) Dust Cover
(16) Rear Mount Nut
(17) Third Crossmember
(18) Starter
(19) Flywheel Undercover
(20) Transmission Retaining Nut and Bolt
(21) Transmission

MANUAL TRANSMISSION

7B–9

Removal

NOTE: Befor removing transmission assembly(4X4)
from vehicle, change the transfar mode to 2WD using the
4WD push button on dash panel.

1. Disconnect battery ground cable.
2. Remove gear control lever knob(1).
3. Remove transfer control lever knob(2) (4X4).

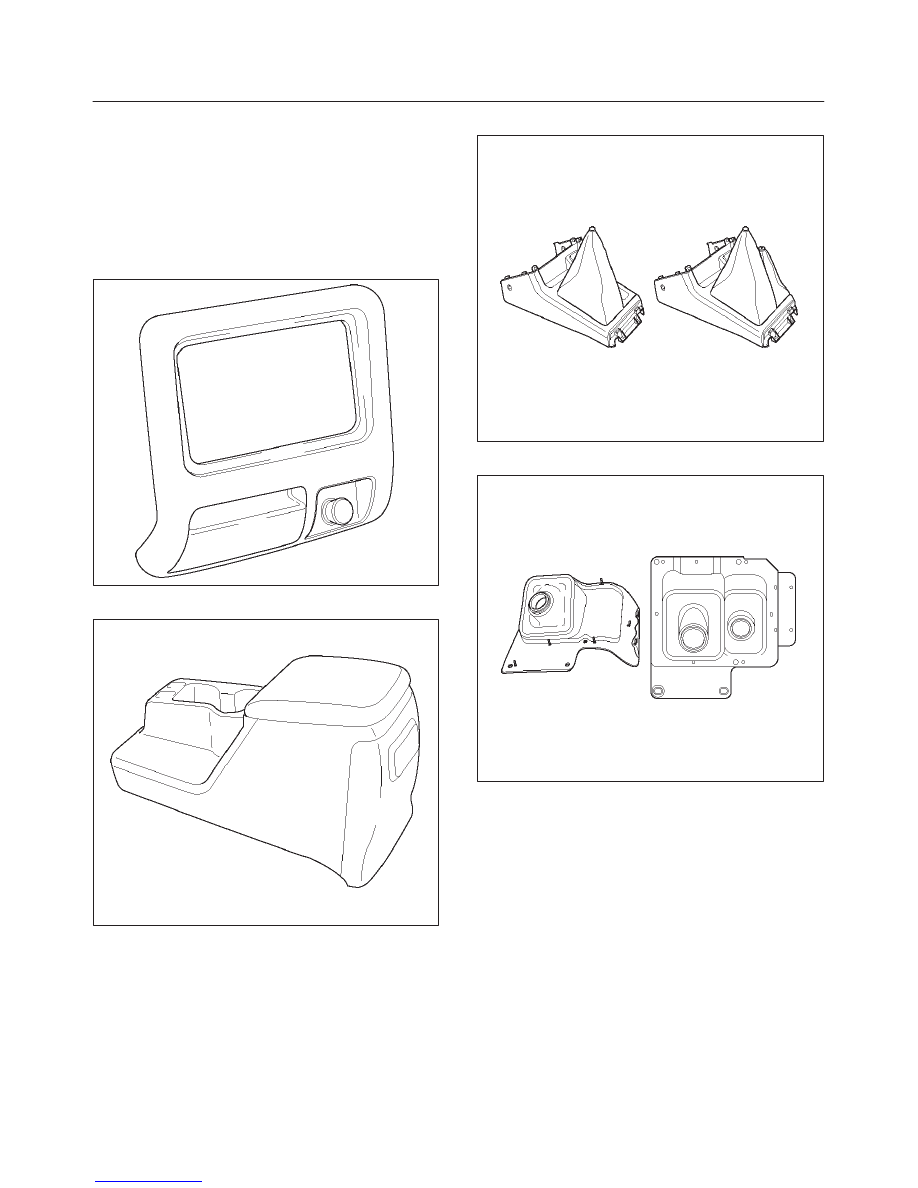

4. Remove lower cluster assembly.

740RW021

5. Remove rear console.

256RW005

6. Remove center console(3).

F07RW023

7. Remove grommet assembly(4).

262RW027

7B–10

MANUAL TRANSMISSION

8. Remove gear control lever(5) and transfer control

lever(5) (4X4).

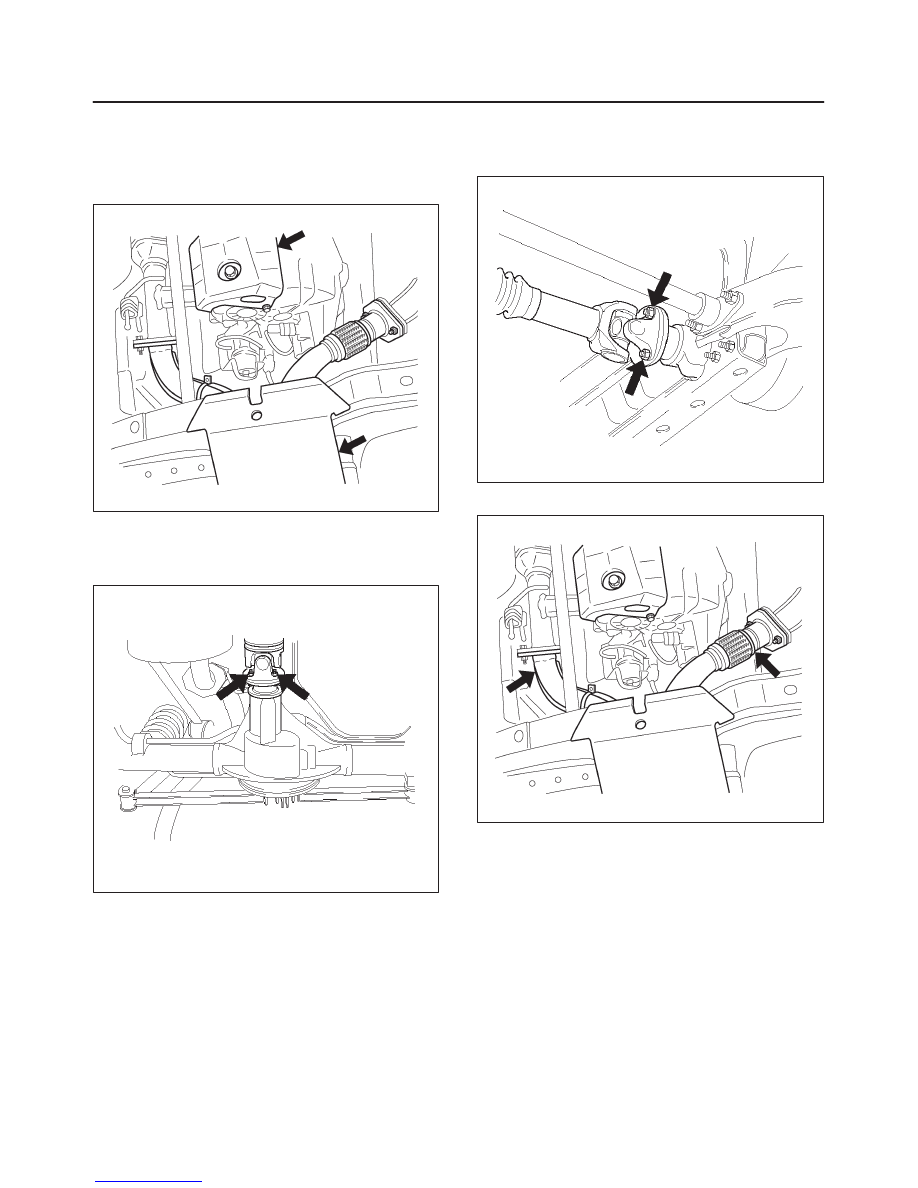

9. Raise and support vehicle with suitable stands.

Remove transfer protector(6) (4X4) and fairing
plate(7).

150RW006

10. Remove rear propeller shaft(8).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

401RW008

11. Remove front propeller shaft(9) (4X4).

NOTE: Apply alignment marks on the flange at both front
and rear sides.

401RW007

12. Remove center exhaust pipe(10) (6VD1 engine).

150RW008

MANUAL TRANSMISSION

7B–11

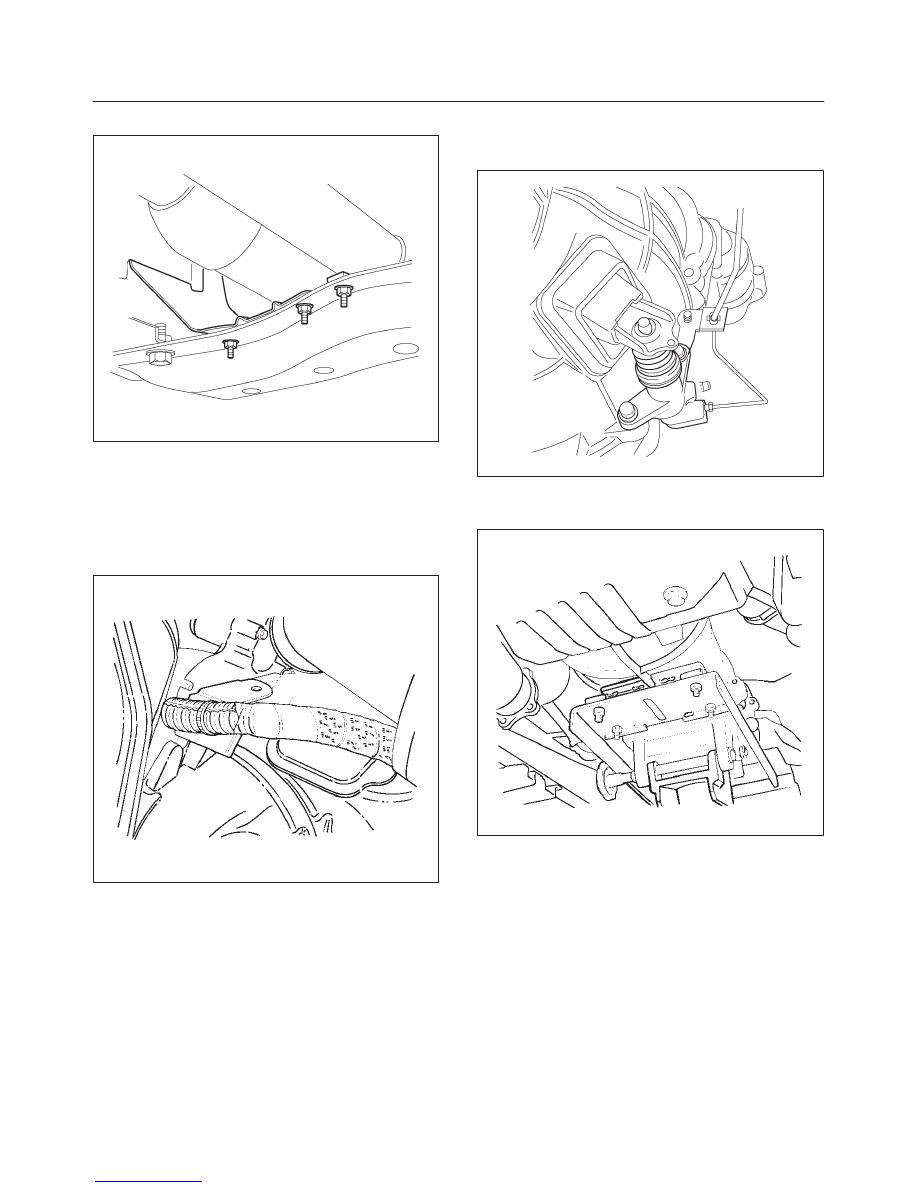

13. Remove fuel pipe heat protector(11) and clip.

141RW004

14. Disconnect transmission harness connectors and

clip.
Connector: Transfer switch (4X4), 2–4 actuator
(4X4), speed sensor, back up switch 1–2 and 3–4
indicator switch.

15. Remove transmission harness clamps(12)  from the

transmission case and bracket.

220RS028

16. Remove harness heat protector(13) (6VD1 engine).
17. Remove slave cylinder(14) and flexible hose fixing

bracket (X22SE engine).

205RW001

18. Remove dust covers(15) (6VD1 engine).
19. Support transmission with a transmission jack.

220RS001
