7B–4
MANUAL TRANSMISSION

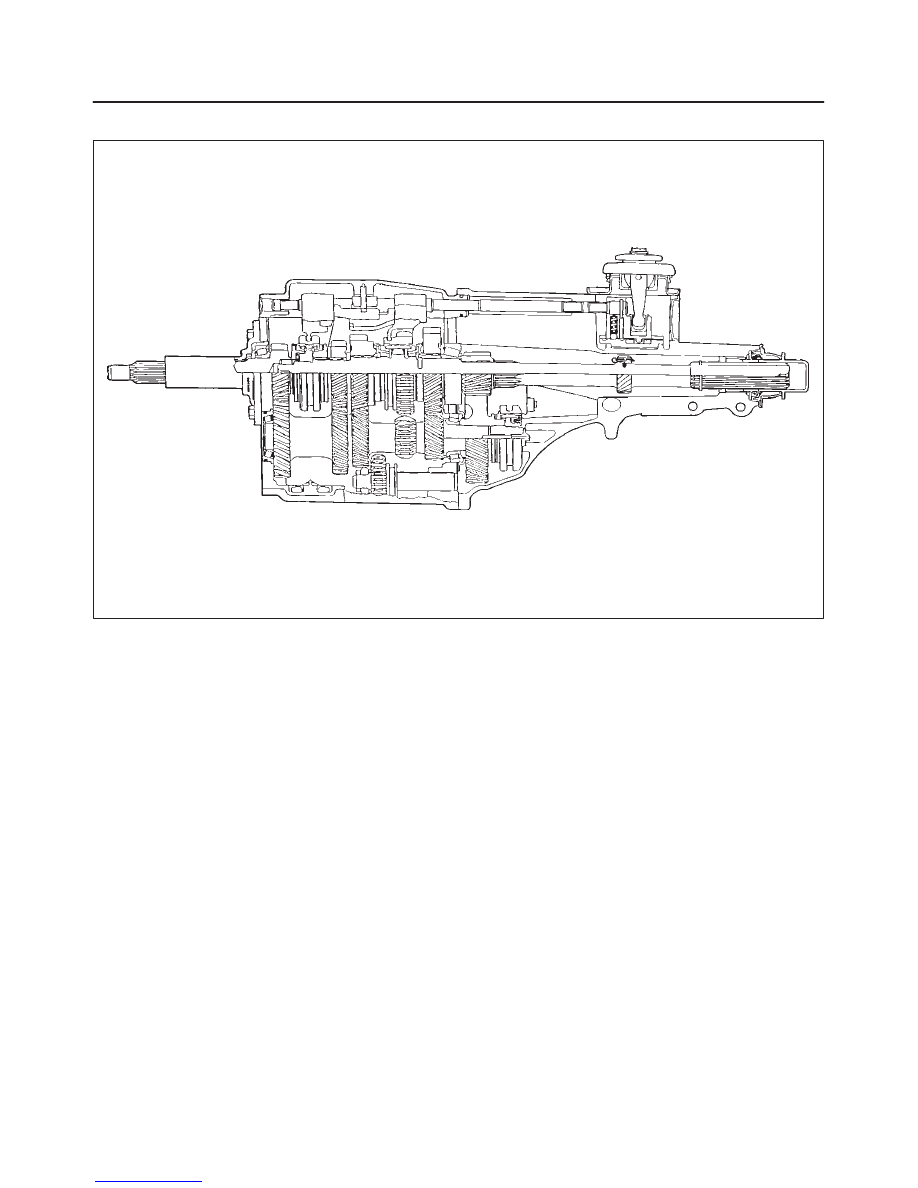

TREMEC T5R Transmission
A07RS031

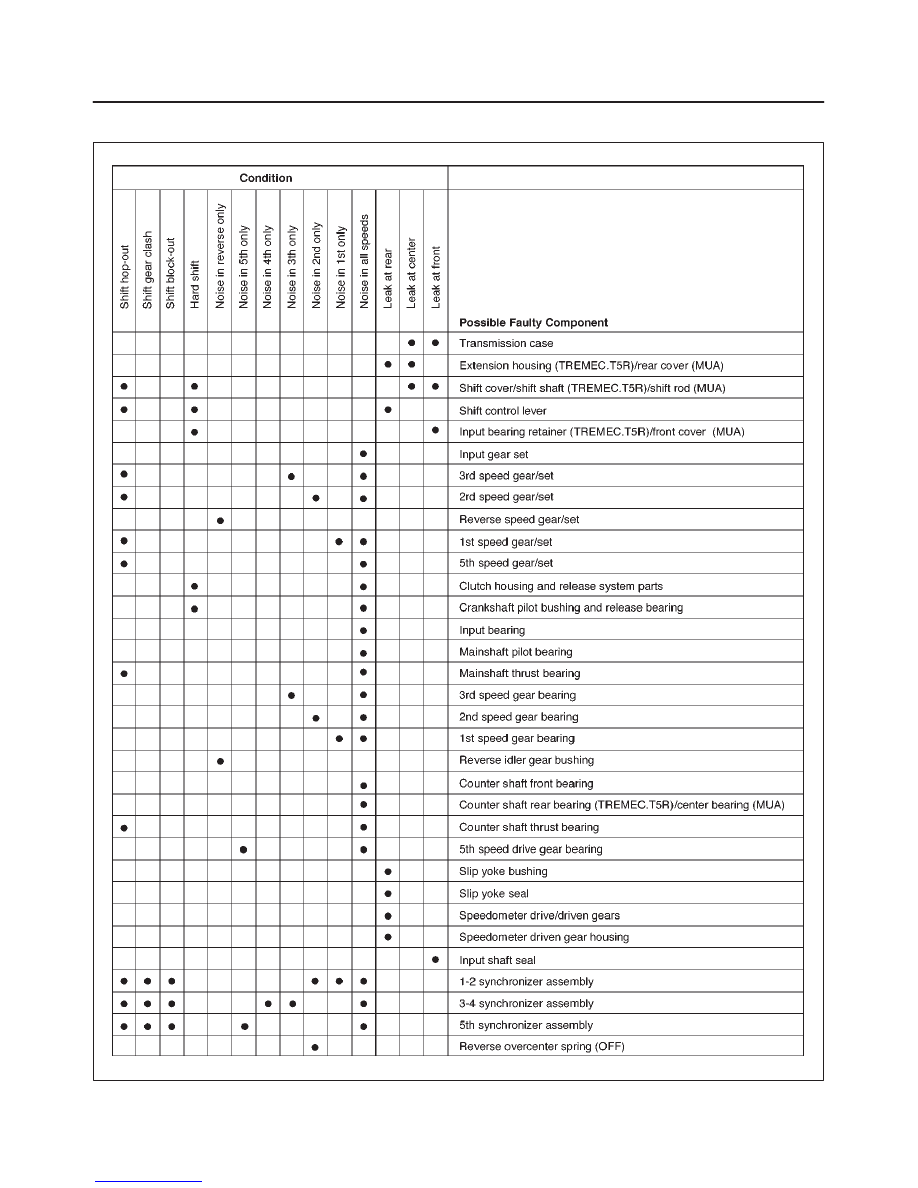

The TREMEC T5R (77 mm 5 speed) is a constant mesh
transmission, synchronized in all speeds except reverse.
The main components are:
1. Input shaft gear.
f
An integral shaft is splined to engage with the clutch
driven plate.
f
The gear drives the countergear.
f
A tapered roller bearing supports the shaft in case.
2. Countershaft gear.
f
The countershaft gear is one unit for constant
rotation with the input shaft gear.
f
Tapered roller bearings support the countershaft
gear in the case.
f
Thrust washer limits the play of the countershaft
gear.
f
An extra gear is mounted to the countershaft gear
for 5th speed.
3. Mainshaft.
f
The drive gears rotate freely on the mainshaft and
are in constant mesh with countershaft gear.
f
Key-type synchronizers engage the gears.
f
The 1st and 2nd synchronizer hub is machined in
place.
f
A tapered roller bearing supports the mainshaft in
the rear of the case.
f
Roller bearings support the mainshaft
independently in the input shaft gear.
f
The input shaft gear and mainshaft are engaged by
a synchronizer for direct drive in top gear.
f
Thrust washers limit the play of the mainshaft.
4. Reverse idler gear.
f
The idler gear drives the mainshaft in reverse.
f
The idler gear is supported on its own shaft.
f
A reverse brake feature brakes the countershaft
gear in the reverse shift sequence.
5. Shift lever.
f

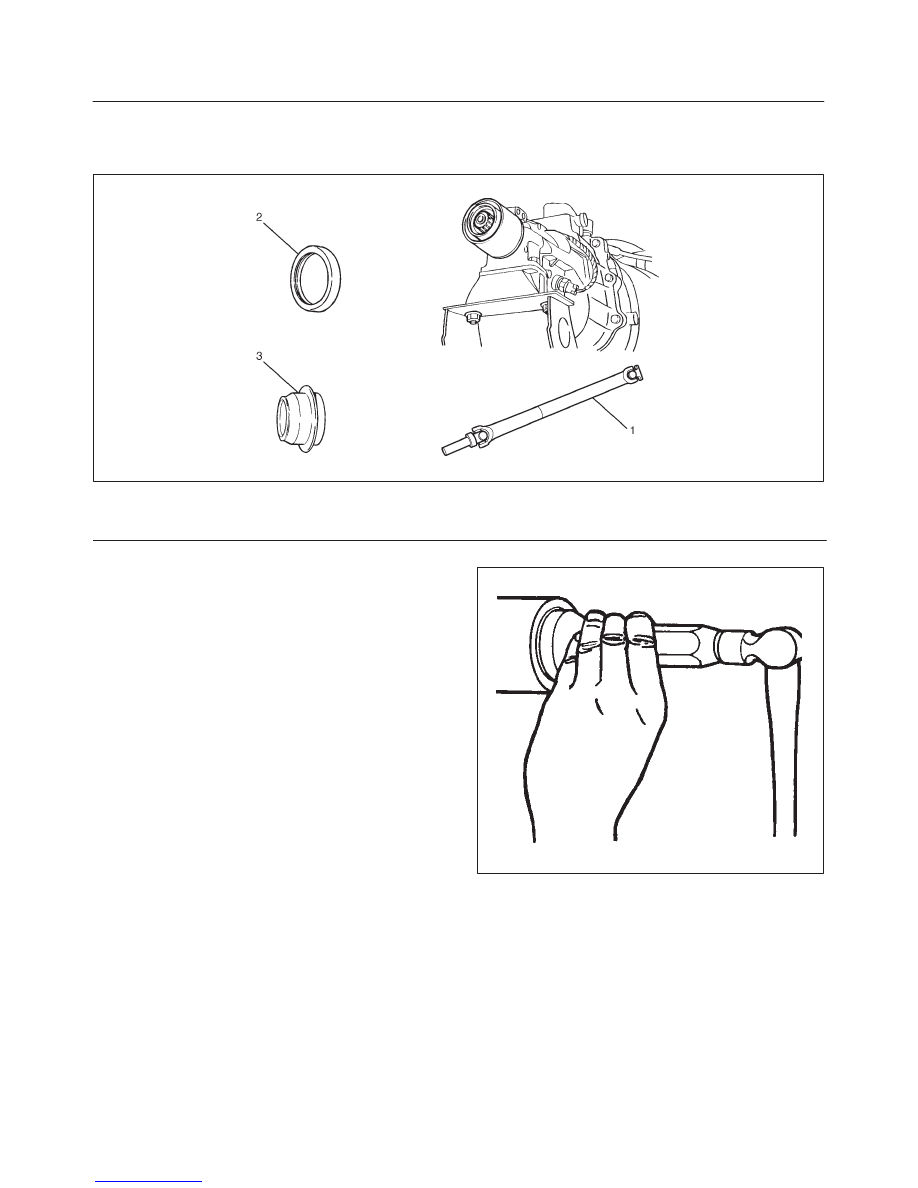

The shift lever is mounted on the extension housing
and holds the offset lever.
f
The shift lever moves the shaft which is mounted in
the transmission top cover.
f
Shift forks mounted on shaft move the
synchronizers to engage the gears.
f
A pin-type interlock blocks the other forks when one
is moved.
