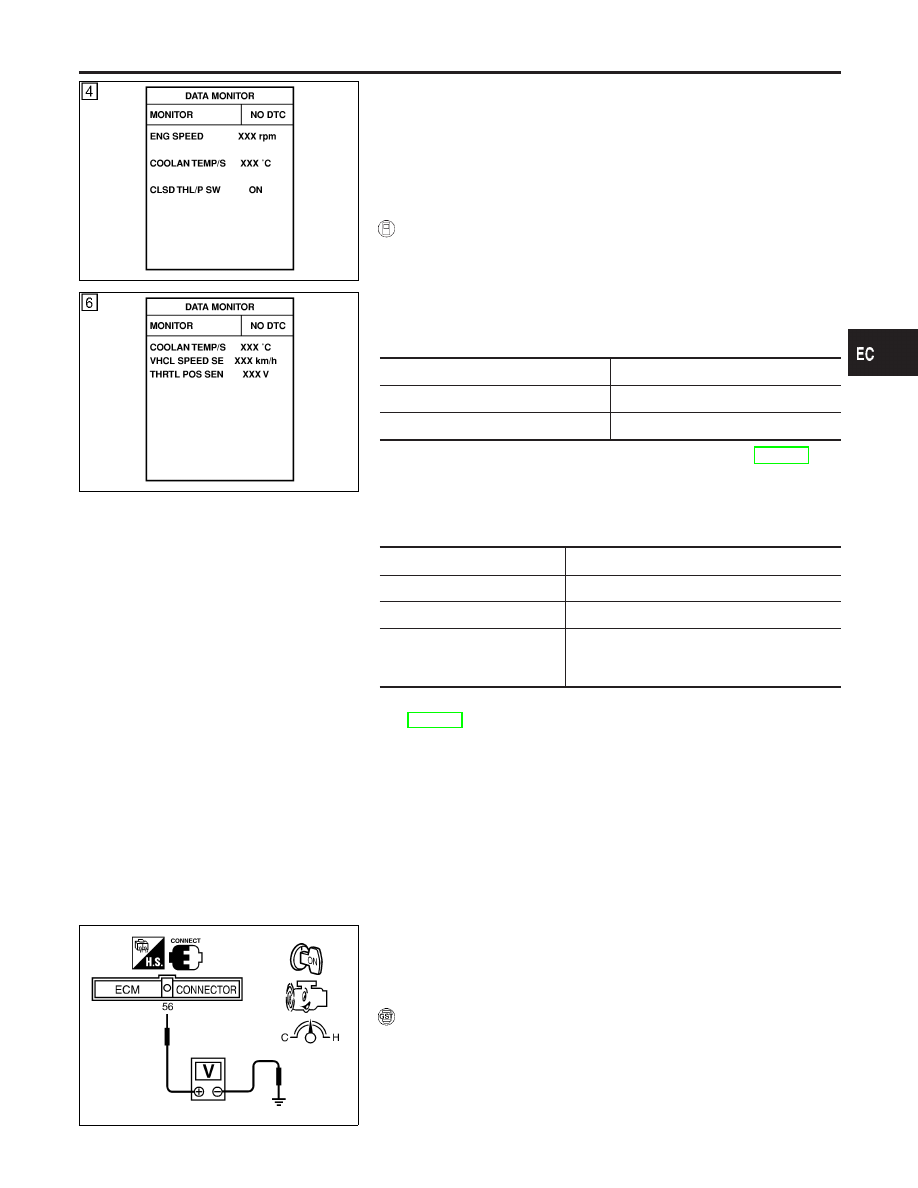

SEF197Y
SEF198Y
DTC Confirmation Procedure
NHEC0260
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously conducted,
always turn ignition switch “OFF” and wait at least 10 seconds
before conducting the next test.
WITH CONSULT-II
NHEC0260S01
1)
Start engine and warm it up to normal operating temperature.
2)
Turn ignition switch “OFF”, wait at least 10 seconds and then
start engine.
3)
Select “CLSD THL/P SW” in “DATA MONITOR” mode.
If “CLSD THL/P SW” is not available, go to step 5.
4)
Check the signal under the following conditions.
Condition
Signal indication
Throttle valve: Idle position
ON
Throttle valve: Slightly open
OFF
If the result is NG, go to “Diagnostic Procedure”, EC-442.
If OK, go to following step.
5)
Select “DATA MONITOR” mode with CONSULT-II.
6)
Drive the vehicle for at least 5 consecutive seconds under the
following condition.
THRTL POS SEN
More than 2.5V
VHCL SPEED SE
More than 4 km/h (2 MPH)
Selector lever
Suitable position
Driving location
Driving vehicle uphill (Increased engine load)
will help maintain the driving conditions
required for this test.
7)
If 1st trip DTC is detected, go to “Diagnostic Procedure”,
EC-442.
SEF345X
Overall Function Check
NHEC0261
Use this procedure to check the overall function of the closed
throttle position switch circuit. During this check, a 1st trip DTC
might not be confirmed.
WITH GST
NHEC0261S01
1)
Start engine and warm it up to normal operating temperature.
2)
Check the voltage between ECM terminal 56 (Closed throttle
position switch signal) and ground under the following condi-
tions.
At idle: Battery voltage
