Infiniti I30 (A33). Manual

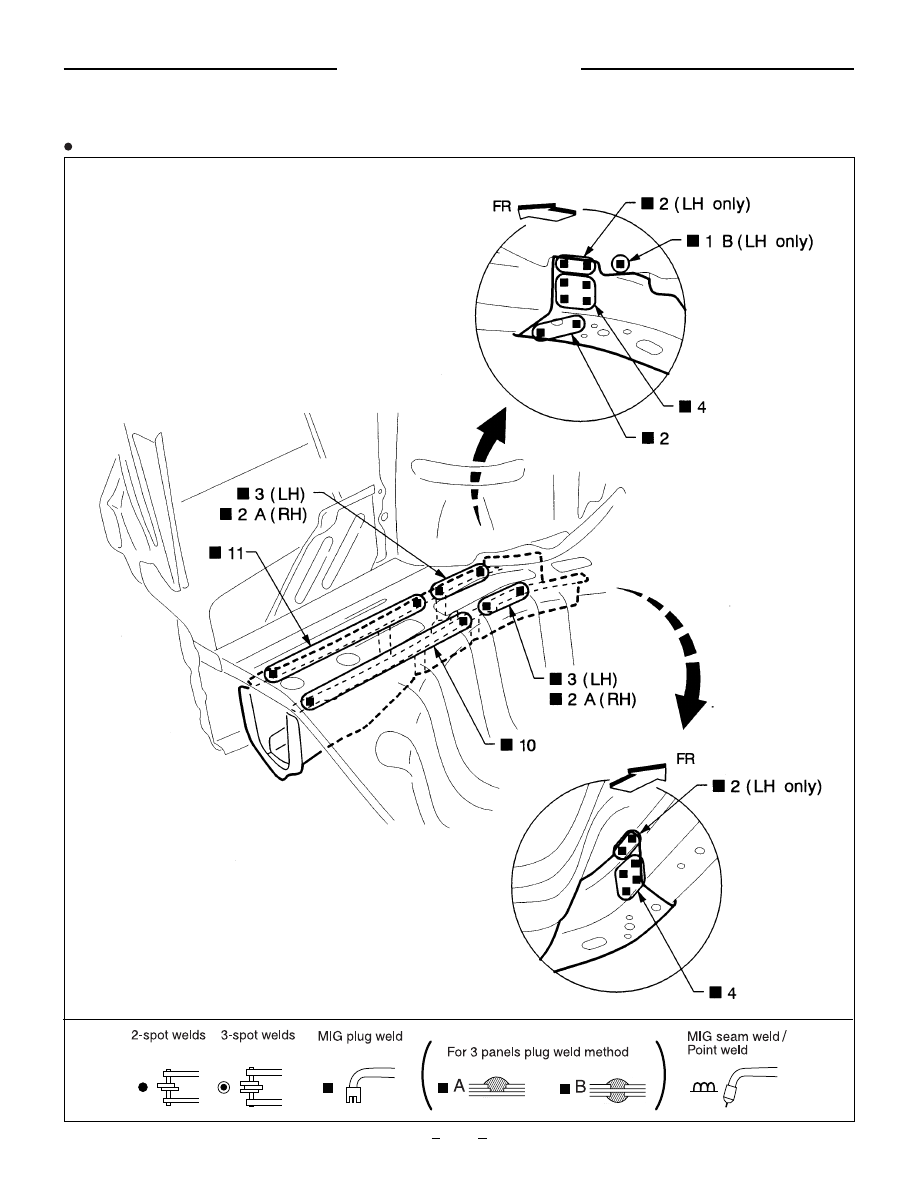

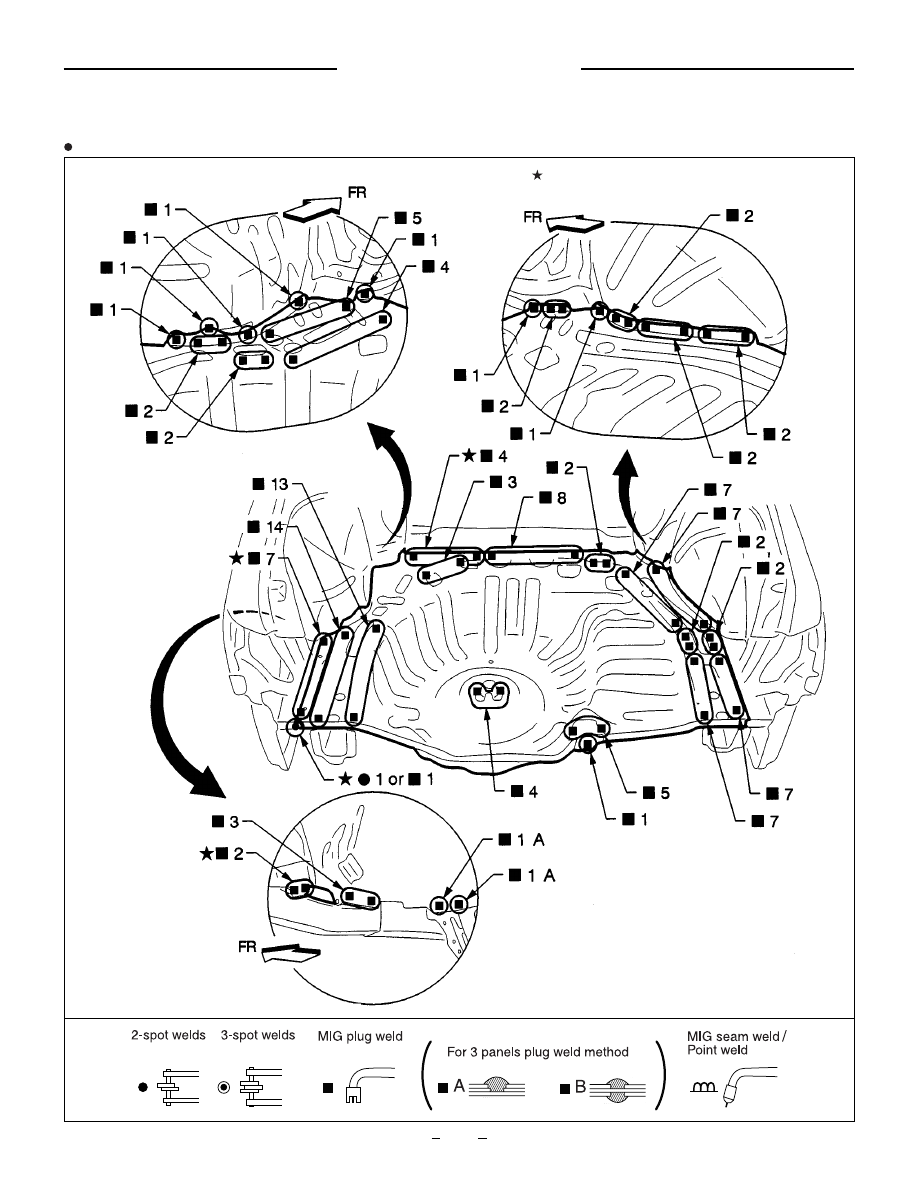

REPLACEMENT NOTES

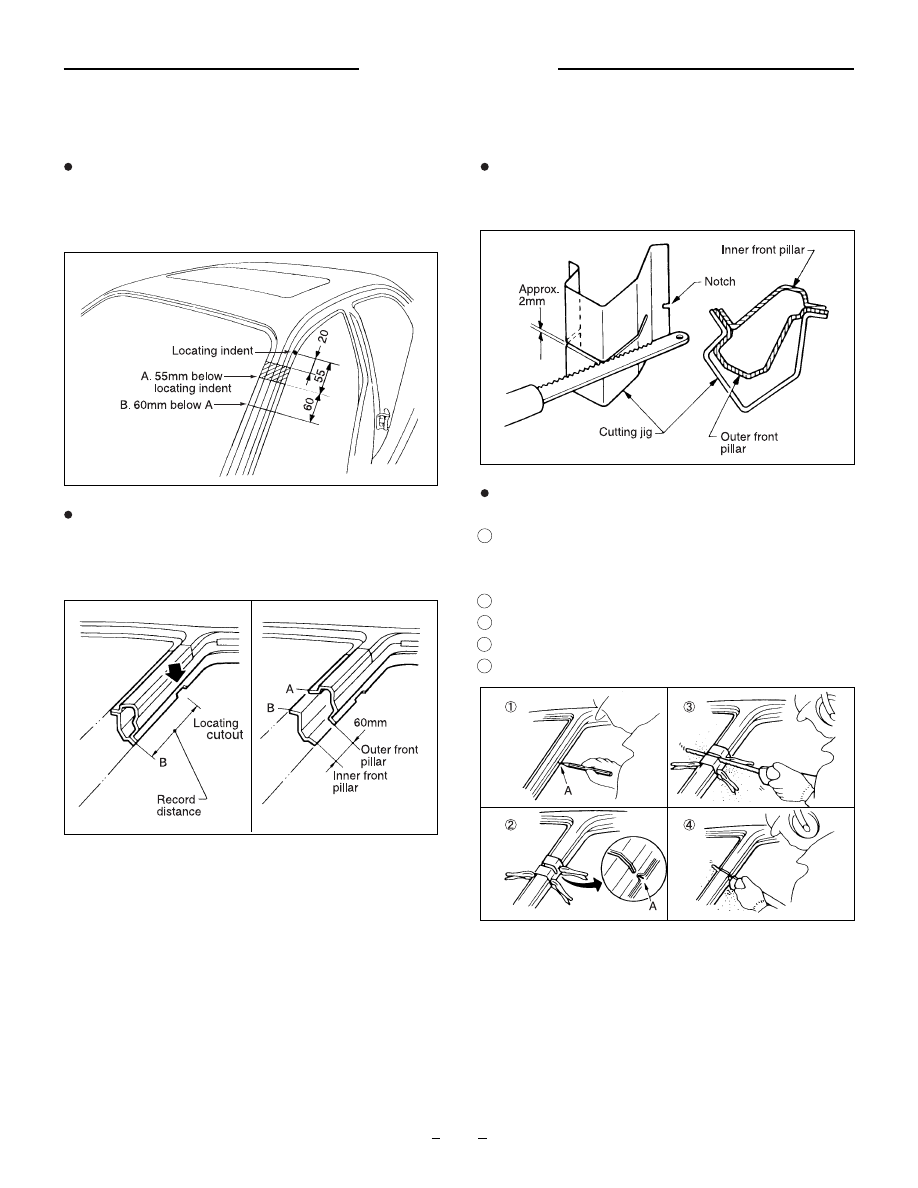

Front Pillar

Front pillar butt joint can be determined anywhere within

shaded area as shown in the figure.

The best location for the butt joint is at position A due

to the construction of the vehicle.

Using locating indent, measure and locate outer front

pillar butt joint A as shown.Measure and locate inner

front pillar butt joint B 60mm below A. Use the same

distances when cutting service part.

Prepare a cutting jig to make outer pillar easier to cut.

Also, this will permit service part to be accurately cut

at joint position.

An example of cutting operation using a cutting jig is

as follows:

Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

Align cutting line with notch on jig. Clamp jig to pillar.

Cut outer pillar along groove of jig. (At position A)

Remove jig and cut remaining portions.

Cut inner pillar at position B in same manner.
