REPLACEMENT OPERATIONS

33

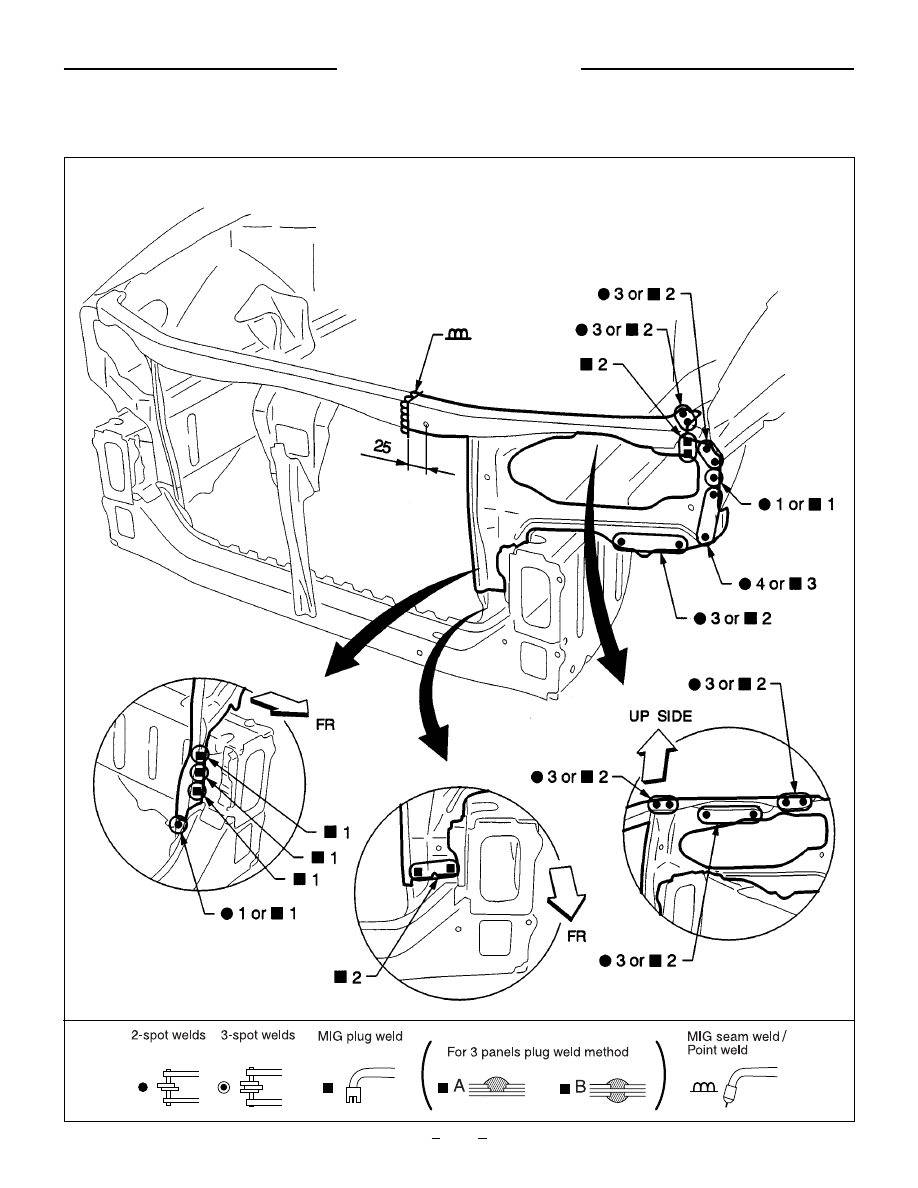

Radiator Core Support (Partial Replacement)

Service Joint

Unit: mm

REPLACEMENT OPERATIONS

34

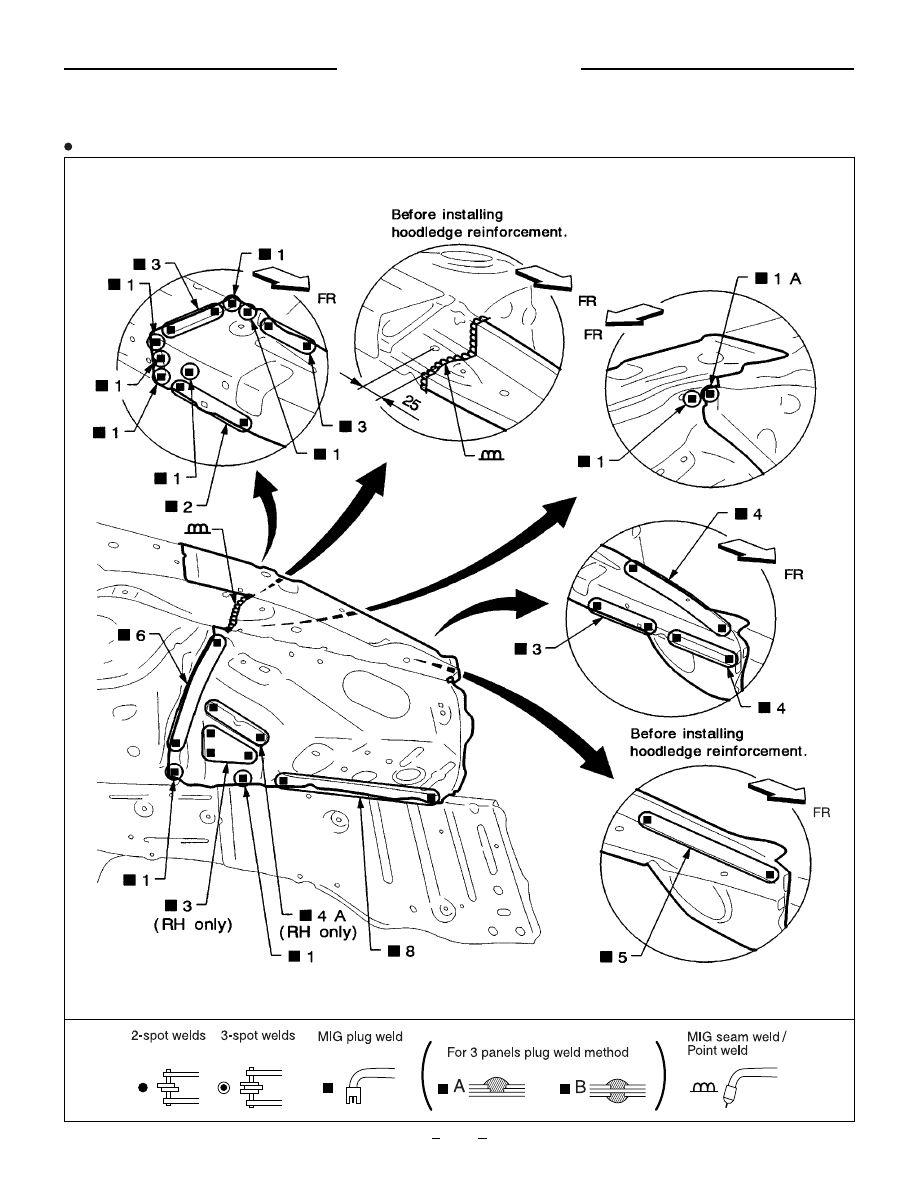

Hoodledge

Service Joint

 Work after radiator core support has been removed.

Unit: mm

REPLACEMENT OPERATIONS

35

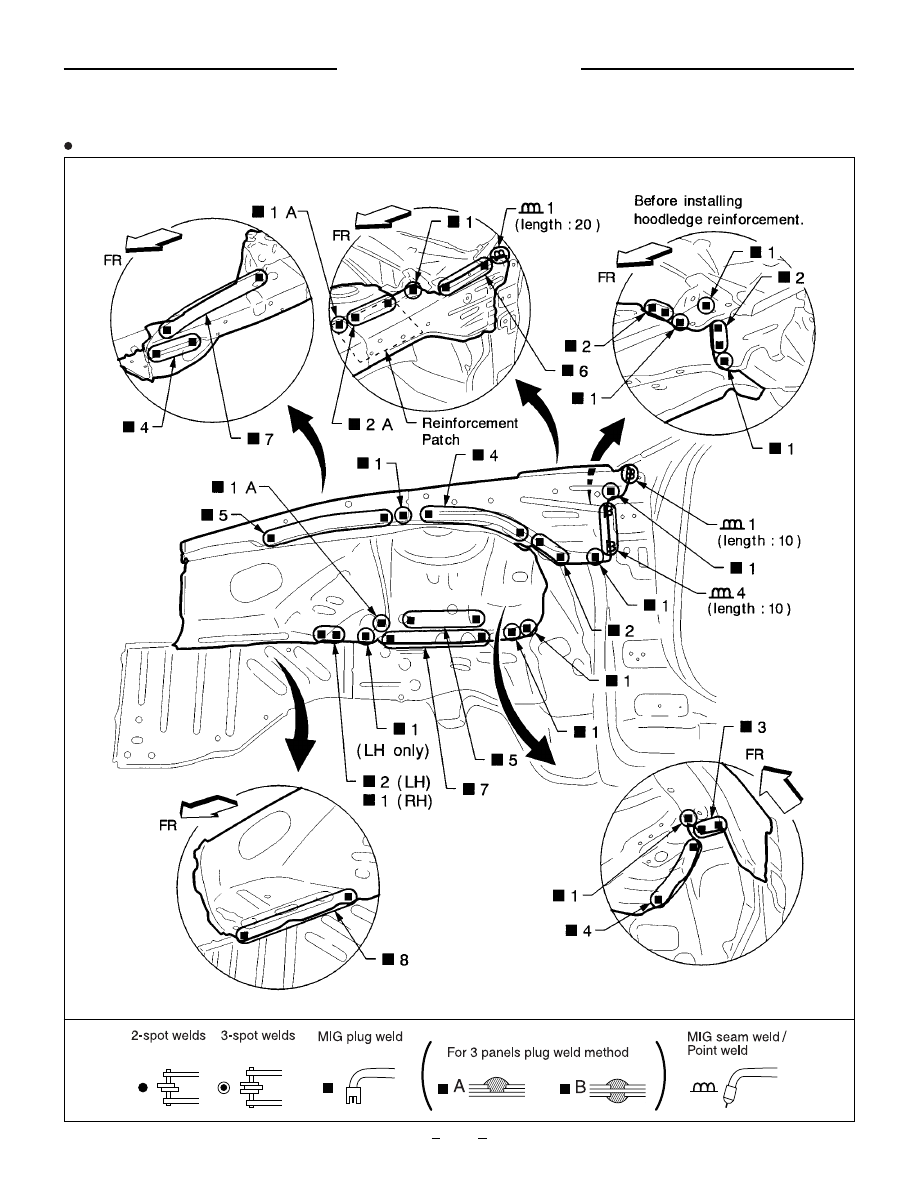

Hoodledge (Partial Replacement)

Service Joint
(This figure shows right side hoodledge)

 Work after radiator core support has been removed.

Unit: mm

REPLACEMENT OPERATIONS

36

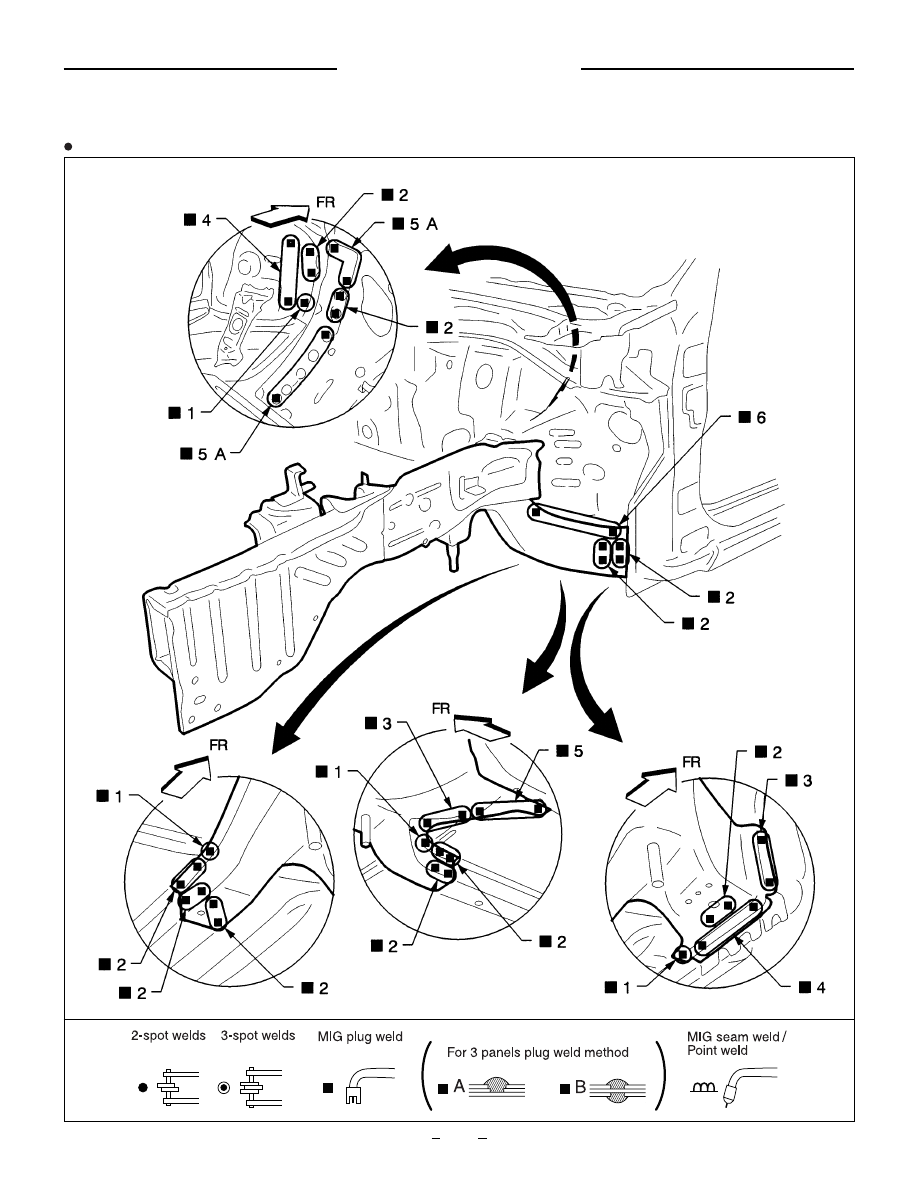

Front Side Member

Service Joint

 Work after hoodledge and radiator core support have been removed.
