Infiniti I30 (A33). Manual - part 153

REPLACEMENT OPERATIONS

37

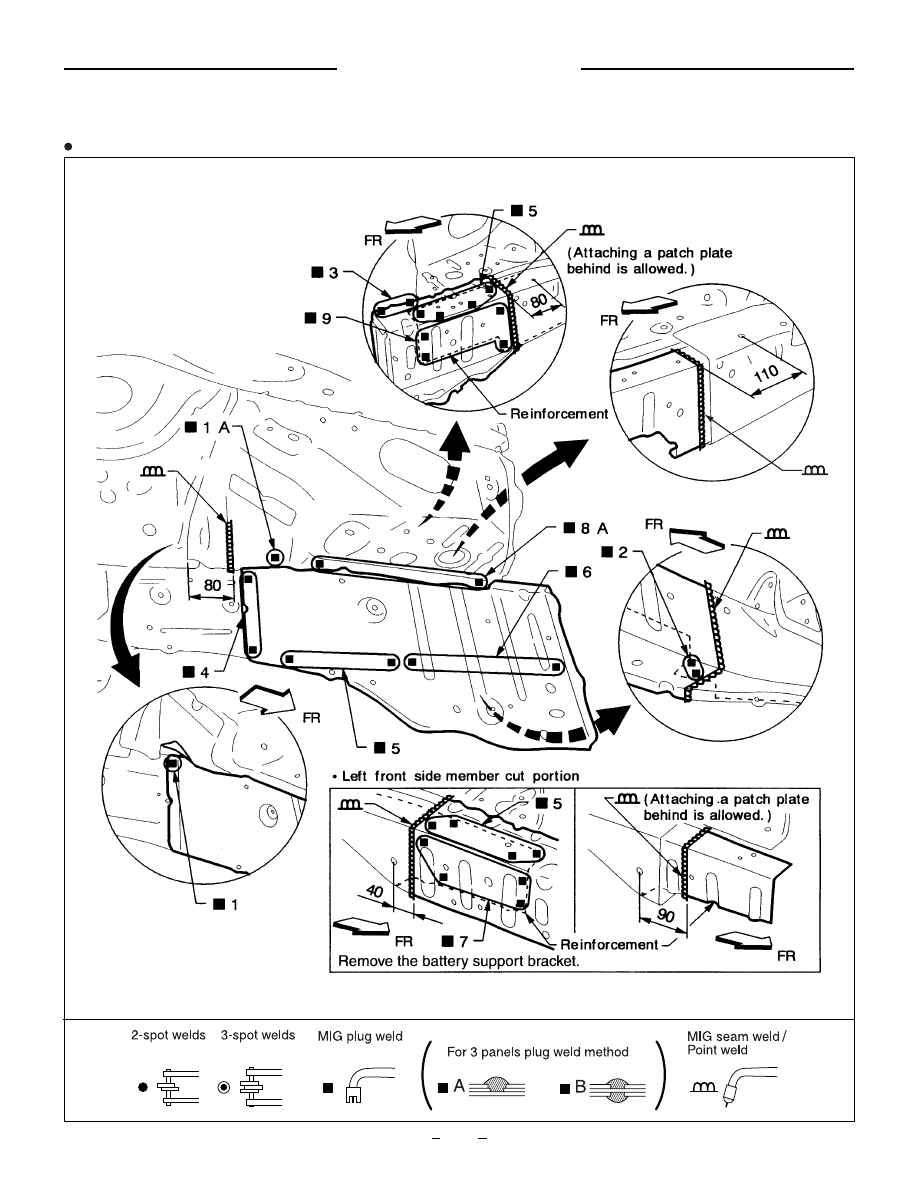

Front Side Member (Partial Replacement)

Service Joint (This figure shows right front side member)

 Work after radiator core support has been removed.

Unit: mm

REPLACEMENT OPERATIONS

38

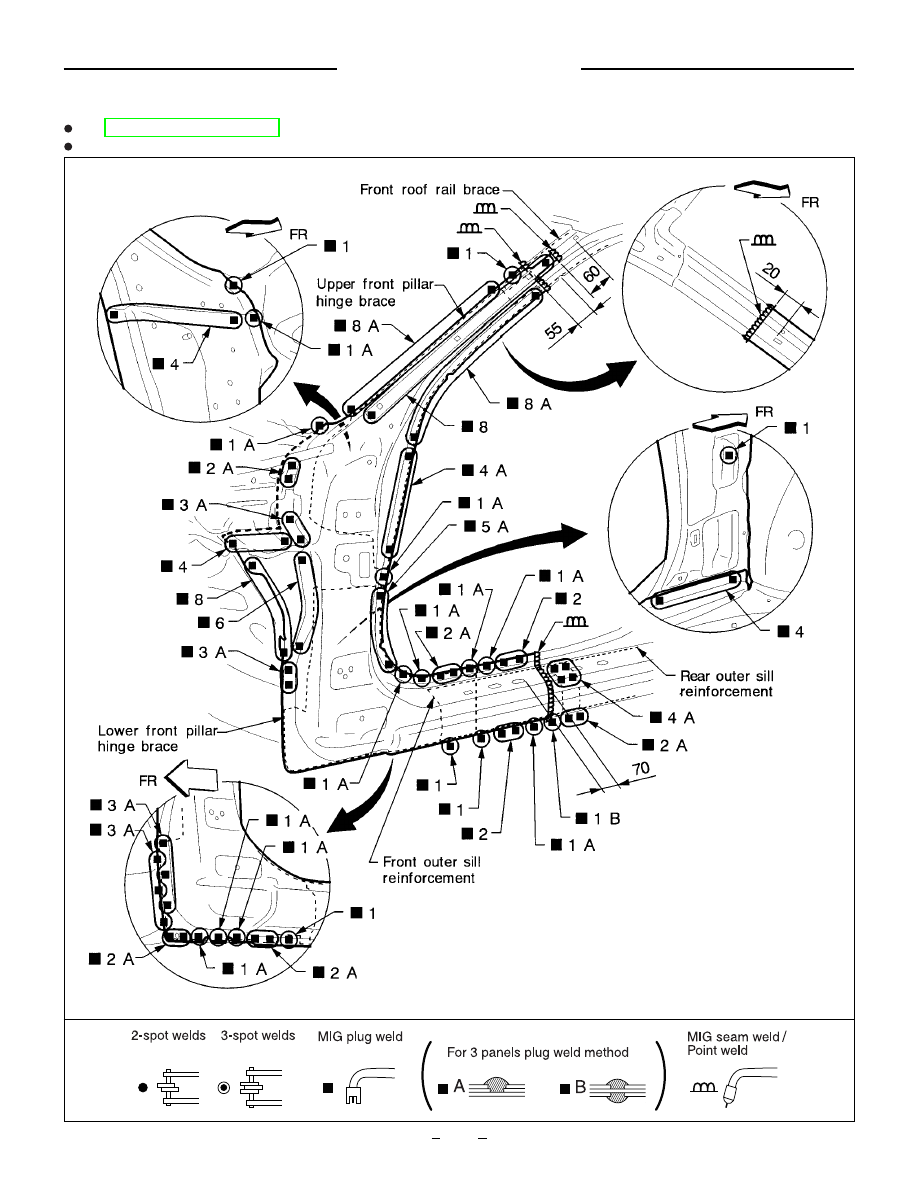

Front Pillar

Service Joint

 See REPLACEMENT NOTES.
 Work after hoodledge reinforcement has been removed.

Unit: mm

REPLACEMENT OPERATIONS

39

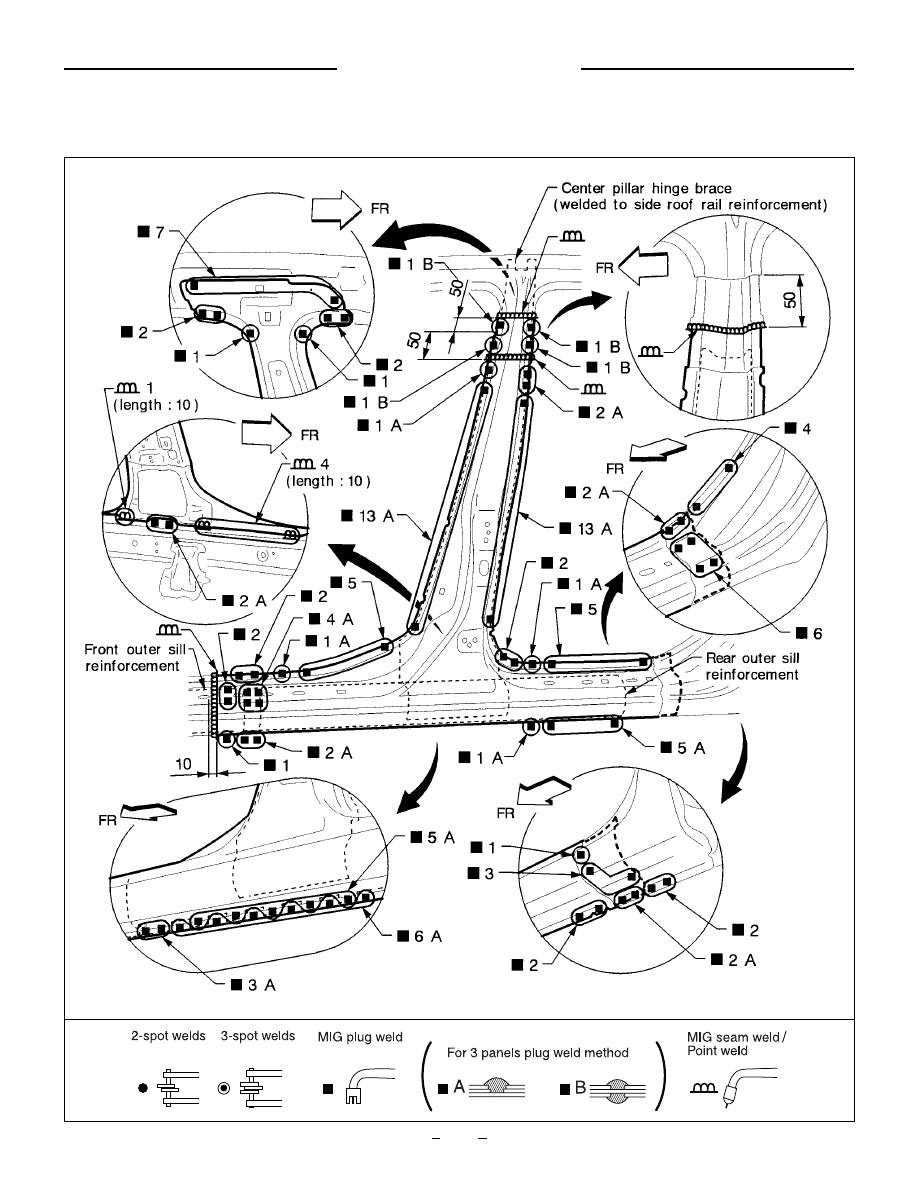

Center Pillar

Service Joint

Unit: mm

REPLACEMENT OPERATIONS

40

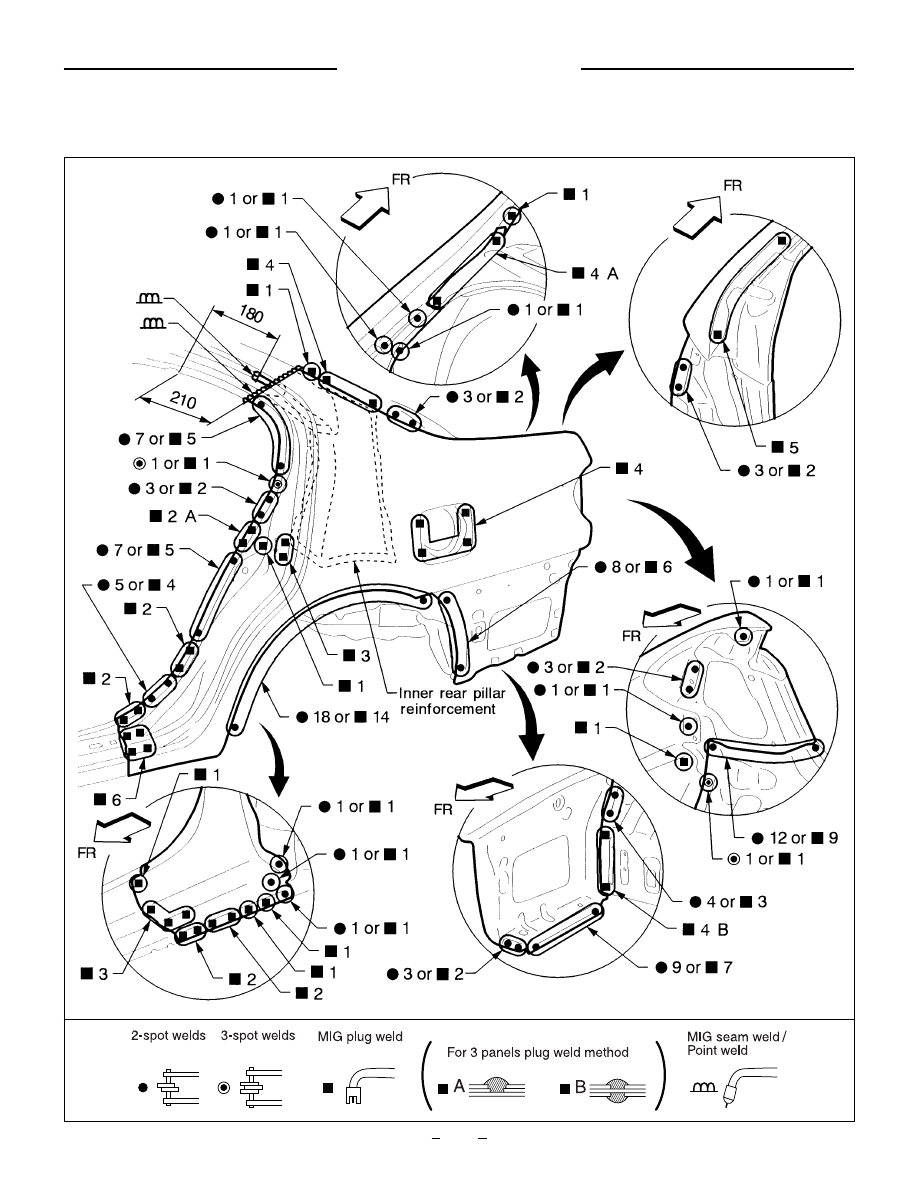

Rear Fender

Service Joint

Unit: mm
