Adjustment .................................................................50
Removal.....................................................................50
Trouble Diagnoses.....................................................54

DIAGNOSTIC TABLE

................................................54

WIND DEFLECTOR

.................................................54

ADJUSTMENT

.........................................................55

DRAIN HOSES

........................................................56

WEATHERSTRIP

.....................................................56

LINK AND WIRE ASSEMBLY

....................................57

IDX

WINDSHIELD AND WINDOWS ....................................58

Removal and Installation ...........................................58

REMOVAL

...............................................................58

INSTALLATION

........................................................58

WINDSHIELD

..........................................................59

DOOR MIRROR .............................................................60

Removal and Installation ...........................................60

REAR VIEW MIRROR ...................................................61

Removal and Installation ...........................................61

REMOVAL

...............................................................61

INSTALLATION

........................................................61

BODY (ALIGNMENT) ....................................................62

Alignment ...................................................................62

ENGINE COMPARTMENT

........................................63

UNDERBODY

..........................................................65

CONTENTS

(Cont’d)

BT-2

Service Notice

NHBT0001

When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.

Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil
or damage them.

Apply sealing compound where necessary when installing parts.

When applying sealing compound, be careful that the sealing compound does not protrude from parts.

When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NHBT0002

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to INFINITI I30 is as follows (The composition var-
ies according to optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, crash zone sensor, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring
harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified with yellow harness connector (and with
yellow harness protector or yellow insulation tape before the harness connectors).

IDX

PRECAUTIONS

Service Notice

BT-3

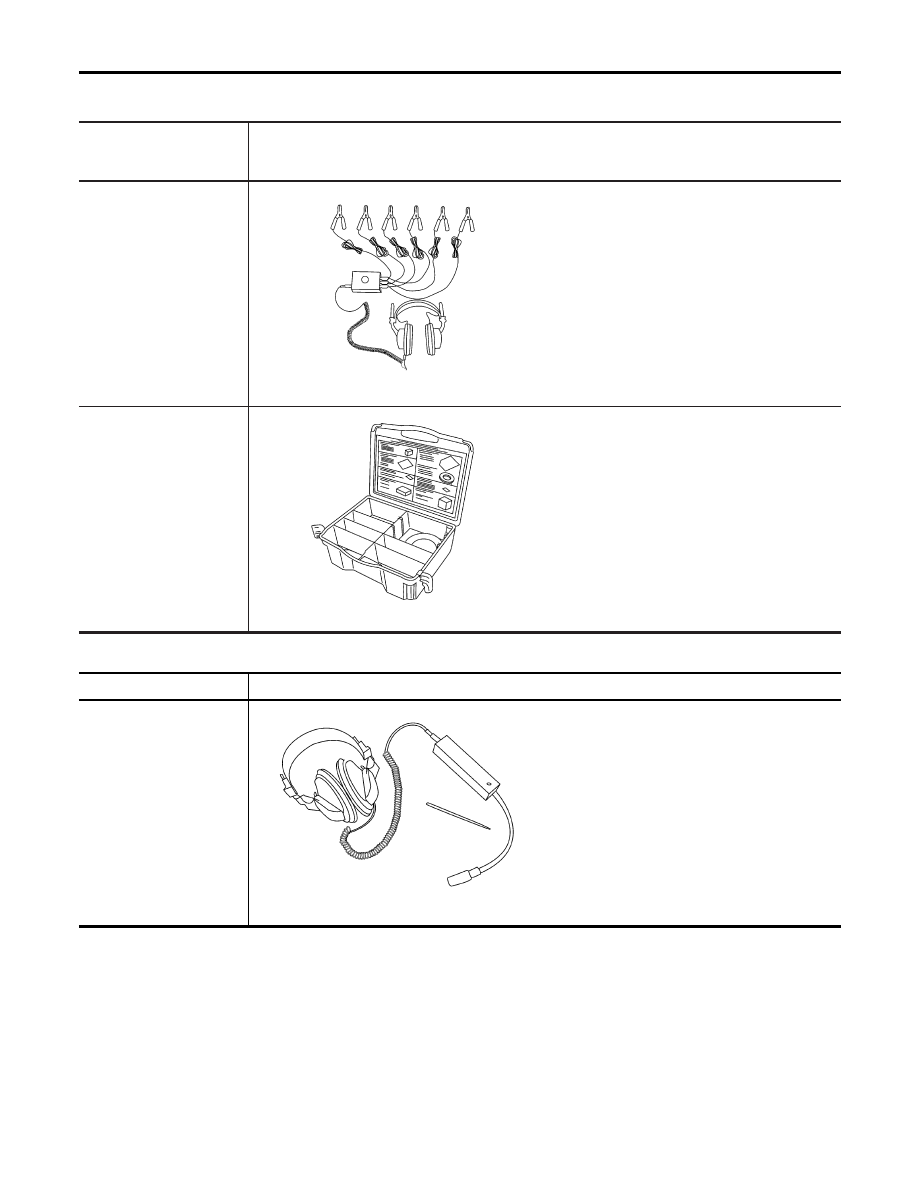

Special Service Tools

NHBT0027

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

SBT839

Locating the noise

—

(J-43980)
Nissan Squeak and Rattle
kit

SBT840

Repairing the cause of noise

Commercial Service Tools

NHBT0028

Tool name

Description

Engine ear

SBT841

Locating the noise

PREPARATION

Special Service Tools

BT-4
