DTC work support item

Description

Check item

4TH GR FNCTN P0734

Following items for “A/T 4th gear function (P0734)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Shift solenoid valve B

I

Overrun clutch solenoid valve

I

Line pressure solenoid valve

I

Each clutch

I

Hydraulic control circuit

TCC S/V FNCTN P0744

Following items for “A/T TCC S/V function (lock-up) (P0744)”
can be confirmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Torque converter clutch sole-
noid valve

I

Each clutch

I

Hydraulic control circuit

Diagnostic Procedure Without CONSULT-II

NHAT0023

OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)

NHAT0023S01

Refer to EC-103, “Generic Scan Tool (GST)”.

OBD-II SELF-DIAGNOSTIC PROCEDURE (NO

TOOLS)

NHAT0023S02

Refer to EC-82, “Malfunction Indicator Lamp (MIL)”.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-49

TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)

NHAT0023S03

1

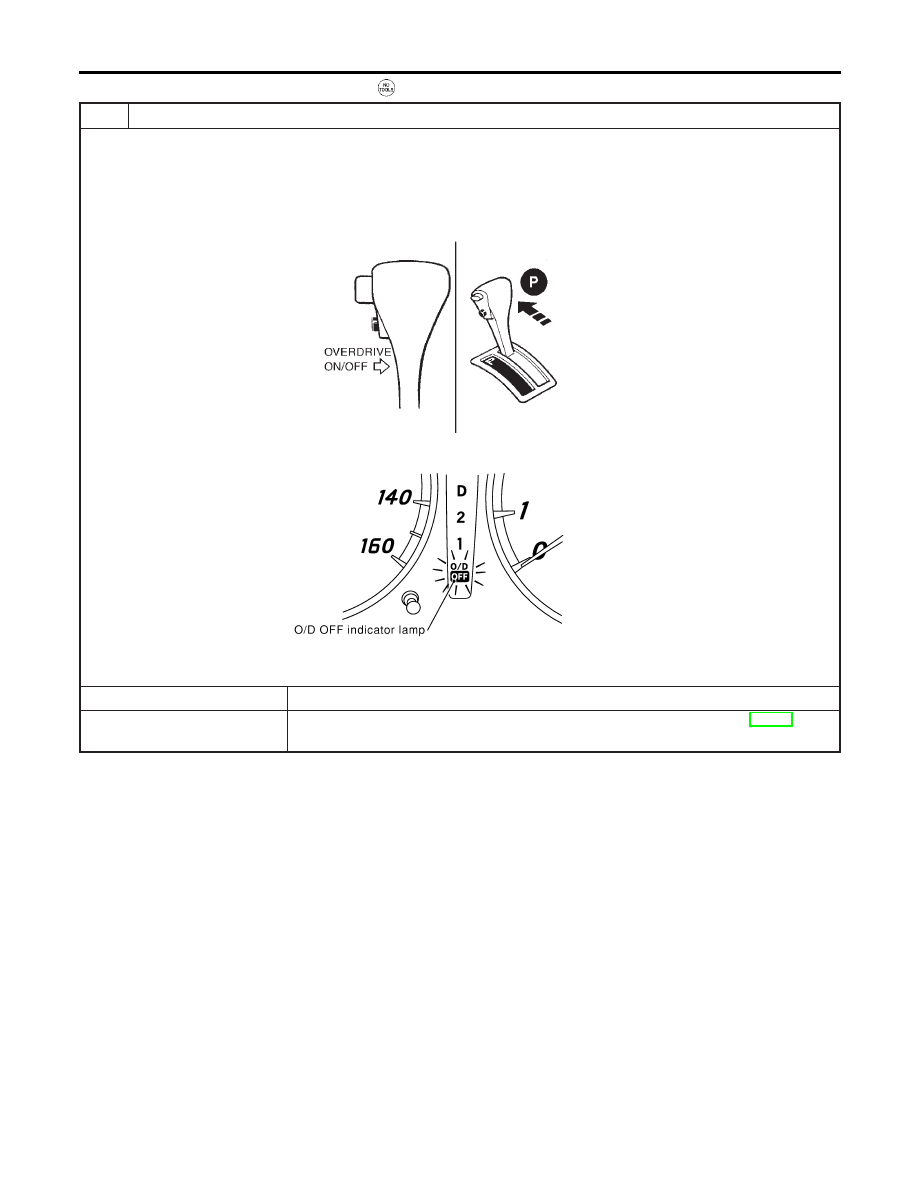

CHECK O/D OFF INDICATOR LAMP

1. Move selector lever to P position.

Start engine and warm it up to normal engine operating temperature.

2. Turn ignition switch to OFF position.
3. Wait 5 seconds.
4. Turn ignition switch to ON position.

(Do not start engine.)

SAT967I

5. Does O/D OFF indicator lamp come on for about 2 seconds?

SAT598J

Yes or No

Yes

©

GO TO 2.

No

©

Stop procedure. Perform “1. O/D OFF Indicator Lamp Does Not Come On”, AT-219
before proceeding.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-50

2

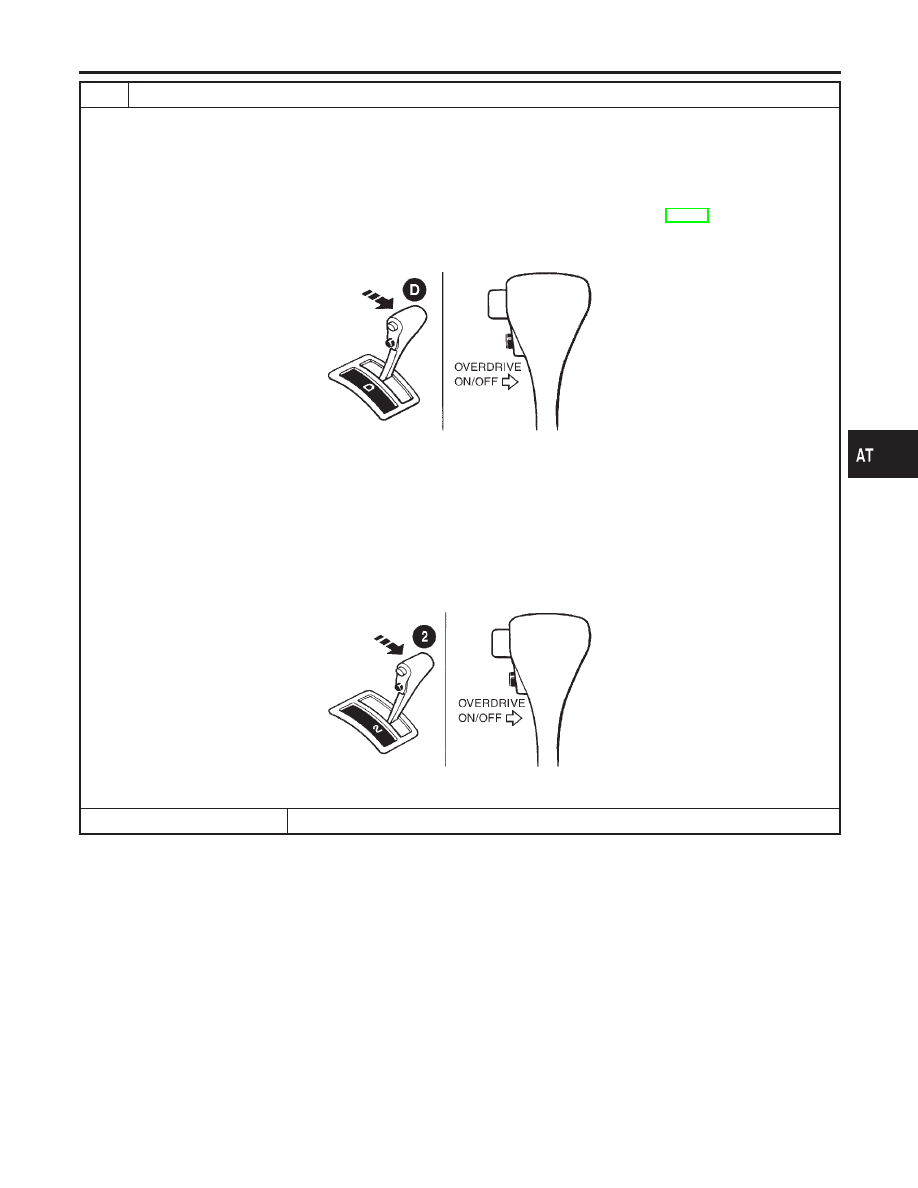

JUDGEMENT PROCEDURE STEP 1

1. Turn ignition switch to OFF position.
2. Turn ignition switch to ACC position.
3. Move selector lever from P to D position.
4. Turn ignition switch to ON position.

(Do not start engine.)

5. Depress and hold overdrive control switch in OFF position (the O/D OFF indicator lamp will be ON) until directed to

release the switch. (If O/D OFF indicator lamp does not come on, refer to “Step 3 and 4” on AT-261).

6. Turn ignition switch to OFF position.

SAT968I

7. Turn ignition switch to ON position (Do not start engine.)
8. Release the overdrive control switch (the O/D OFF indicator lamp will be OFF).
9. Wait 2 seconds.
10. Move selector lever to 2 position.
11. Depress and release overdrive control switch in ON position until next step is completed (the O/D OFF indicator lamp

will be ON).

12. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be OFF) until directed to release the

switch.

SAT969I

©

GO TO 3.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-51

3

JUDGEMENT PROCEDURE STEP 2

1. Move selector lever to 1 position.
2. Release the overdrive control switch.
3. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be ON).
4. Depress and release the overdrive control switch (the O/D OFF indicator lamp will be OFF).
5. Depress and hold the overdrive control switch (the O/D OFF indicator lamp will be ON) until directed to release the

switch.

6. Depress accelerator pedal fully and release it.
7. Release the overdrive control switch (the O/D OFF indicator lamp will begin to flash ON and OFF).

SAT970I

©

GO TO 4.

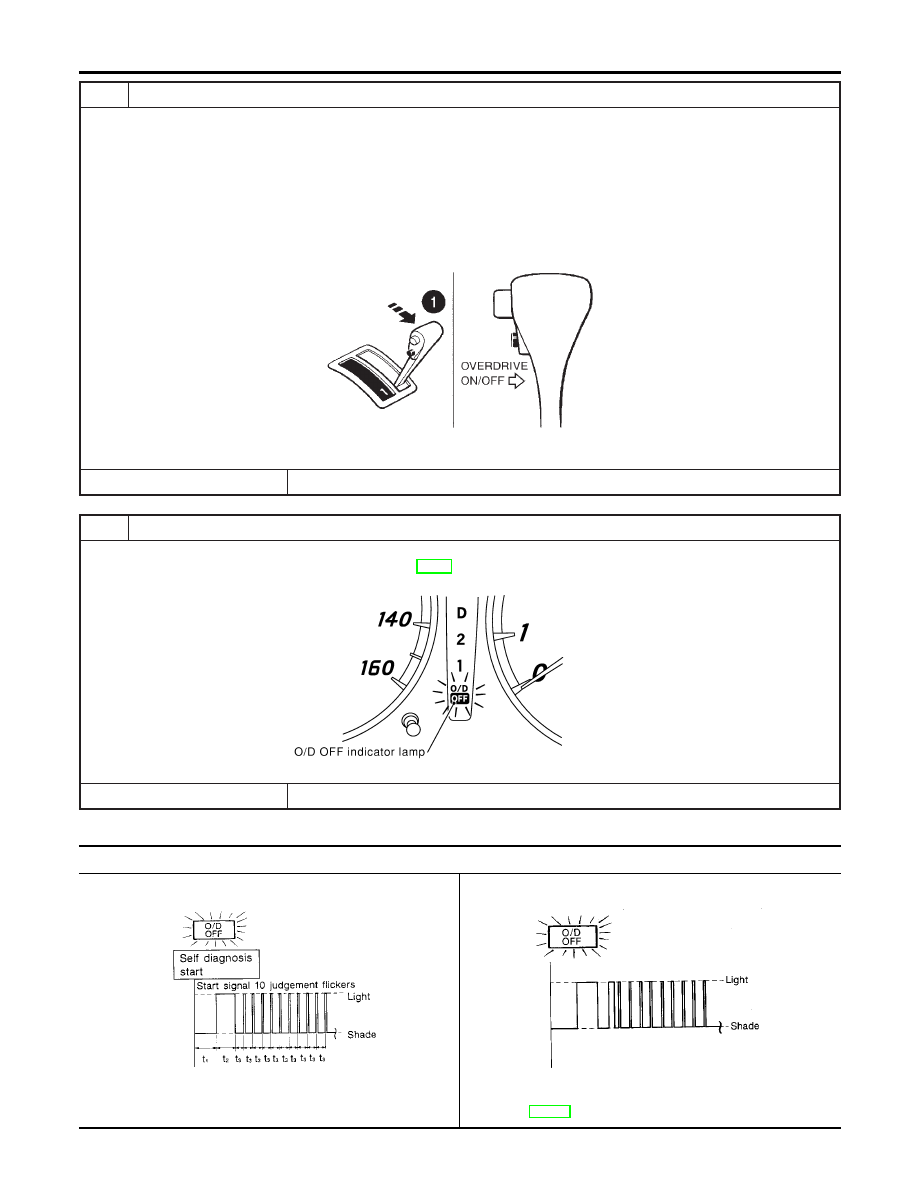

4

CHECK SELF-DIAGNOSTIC CODE

Check O/D OFF indicator lamp.
Refer to JUDGEMENT OF SELF-DIAGNOSIS CODE, AT-52.

SAT598J

©

DIAGNOSIS END

JUDGEMENT OF SELF-DIAGNOSIS CODE

NHAT0023S04

O/D OFF indicator lamp:

All judgement flickers are the same.

SAT436F

All circuits that can be confirmed by self-diagnosis are OK.

1st judgement flicker is longer than others.

SAT437F

Revolution sensor circuit is short-circuited or disconnected.

Go to VEHICLE SPEED SENSOR·A/T (REVOLUTION

SENSOR), AT-114.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

Diagnostic Procedure Without CONSULT-II (Cont’d)

AT-52
