Infiniti I30 (A33). Manual - part 12





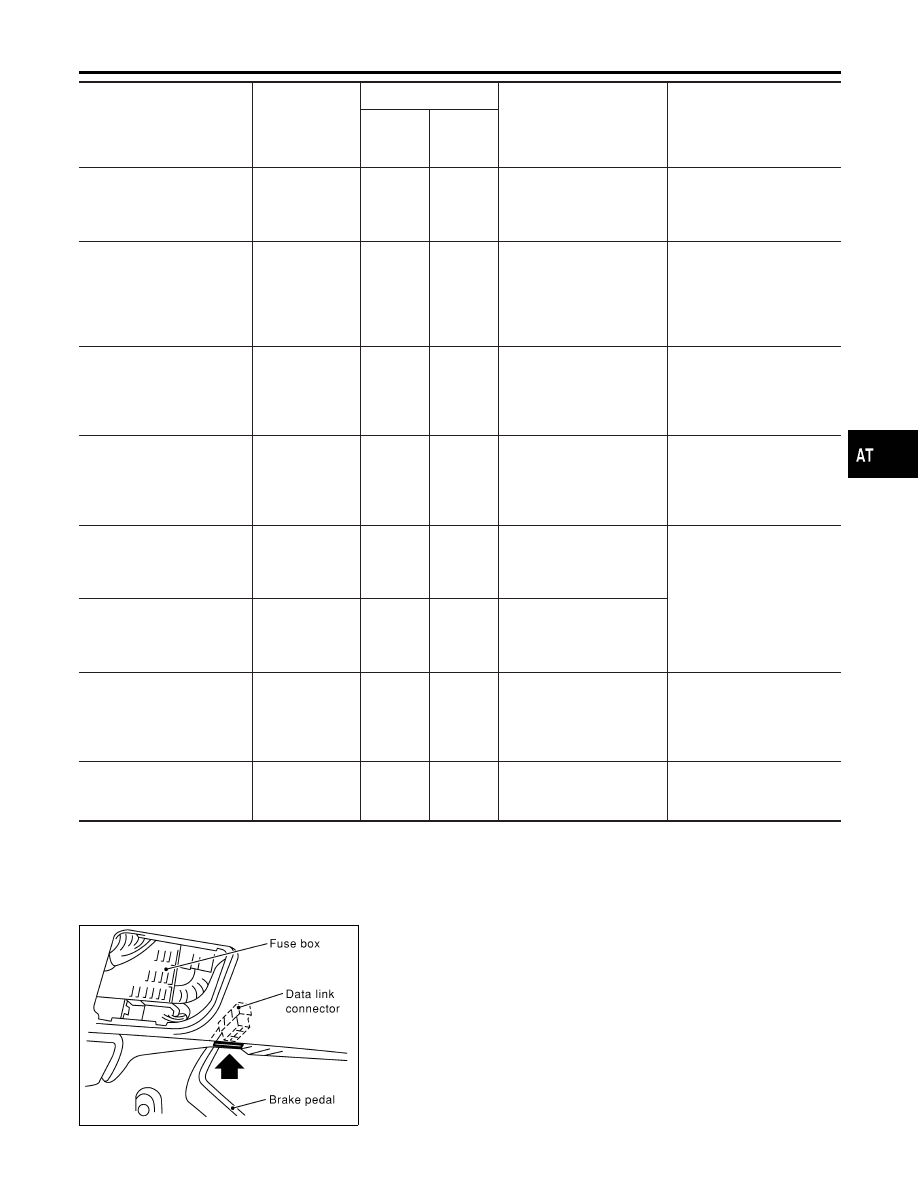

Item

Display

Monitor item

Description

Remarks

TCM
Input

signals

Main

signals

Throttle position

THROTTLE
POSI
[/8]

X

I

Throttle position data,
used for computation by
TCM, is displayed.

I

A specific value used for
control is displayed if fail-
safe is activated due to
error.

Stop lamp switch

BRAKE SW
[ON/OFF]

X

I

ON/OFF status is dis-
played.
ON ... Brake pedal is
depressed.
OFF ... Brake pedal is
released.

Line pressure duty

LINE PRES DTY
[%]

X

I

Control value of line
pressure solenoid valve,
computed by TCM from
each input signal, is dis-
played.

Torque converter clutch
solenoid valve duty

TCC S/V DUTY
[%]

X

I

Control value of torque
converter clutch solenoid
valve, computed by TCM
from each input signal, is
displayed.

Shift solenoid valve A

SHIFT S/V A
[ON/OFF]

X

I

Control value of shift
solenoid valve A, com-
puted by TCM from each
input signal, is displayed.

Control value of solenoid is
displayed even if solenoid
circuit is disconnected.
The OFF signal is dis-
played if solenoid circuit is
shorted.

Shift solenoid valve B

SHIFT S/V B
[ON/OFF]

X

I

Control value of shift
solenoid valve B, com-
puted by TCM from each
input signal, is displayed.

Overrun clutch solenoid
valve

OVERRUN/C
S/V
[ON/OFF]

X

I

Control value of overrun
clutch solenoid valve
computed by TCM from
each input signal is dis-
played.

Self-diagnosis display lamp
(O/D OFF indicator lamp)

SELF-D DP LMP
[ON/OFF]

X

I

Control status of O/D
OFF indicator lamp is
displayed.

X: Applicable
—: Not applicable

SAT585J

DTC WORK SUPPORT MODE WITH CONSULT-II

NHAT0022S04

CONSULT-II Setting Procedure

NHAT0022S0401

1.

Turn ignition switch OFF.

2.

Connect CONSULT-II to Data link connector, which is located
in left side dash panel.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-45

SAT586J

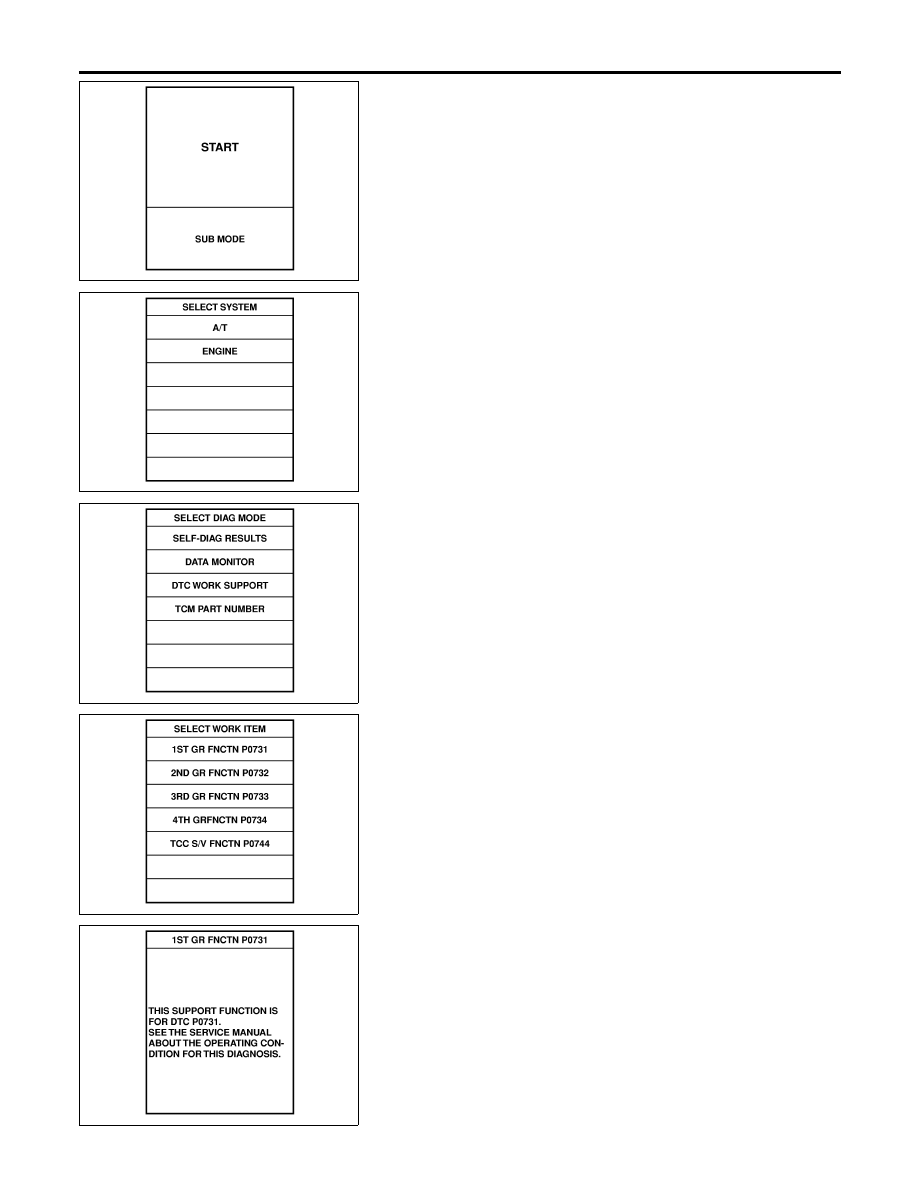

3.

Turn ignition switch ON.

4.

Touch “START”.

SAT014K

5.

Touch “A/T”.

SAT971J

6.

Touch “DTC WORK SUPPORT”.

SAT018K

7.

Touch select item menu (1ST, 2ND, etc.).

SAT589J

8.

Touch “START”.

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-46

SAT019K

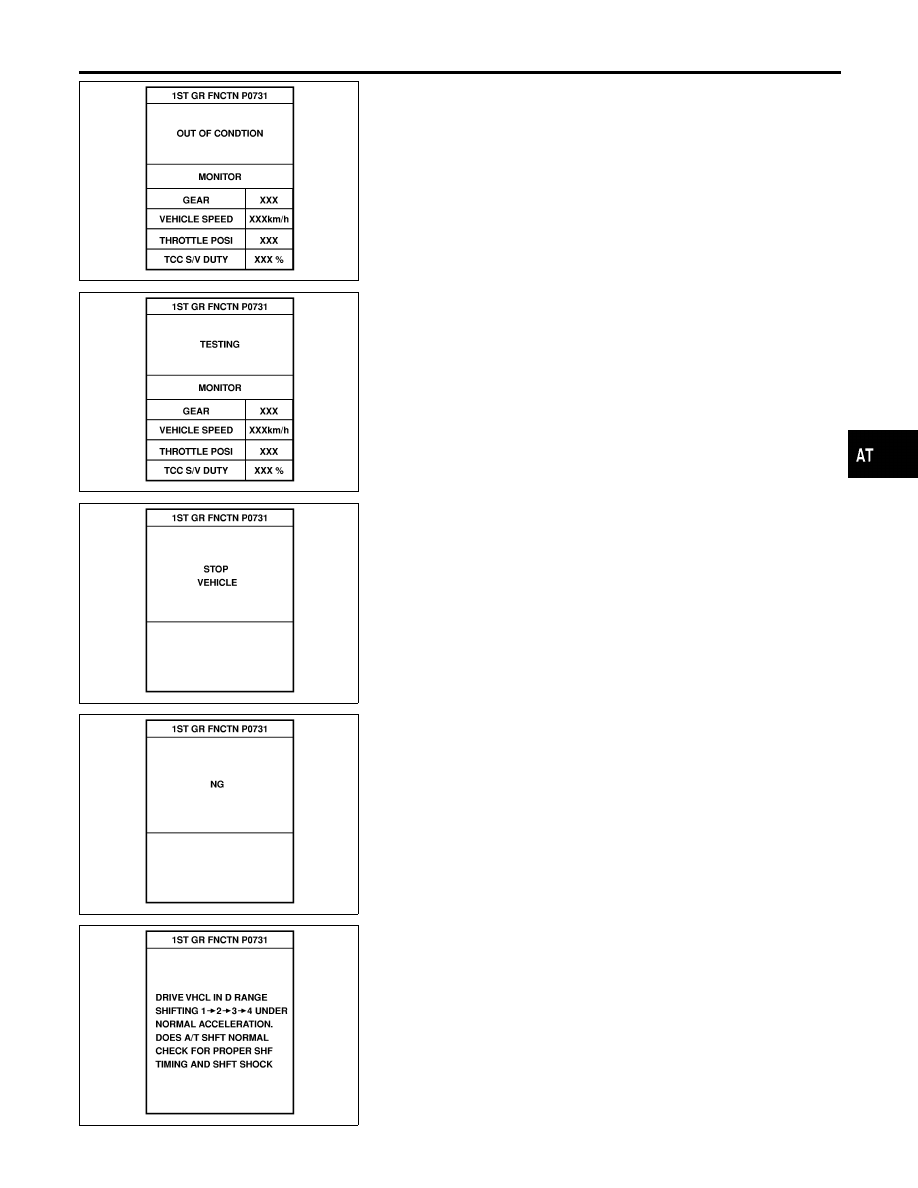

9.

Perform driving test according to “DTC CONFIRMATION PRO-
CEDURE” in “TROUBLE DIAGNOSIS FOR DTC”.

SAT591J

I

When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.

SAT592J

SAT593J

10. Stop vehicle. If “NG” appears on the screen, malfunction may

exist. Go to “DIAGNOSTIC PROCEDURE”.

SAT594J

11. Perform test drive to check gear shift feeling in accordance

with instructions displayed.

GI

MA

EM

LC

EC

FE

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-47

SAT595J

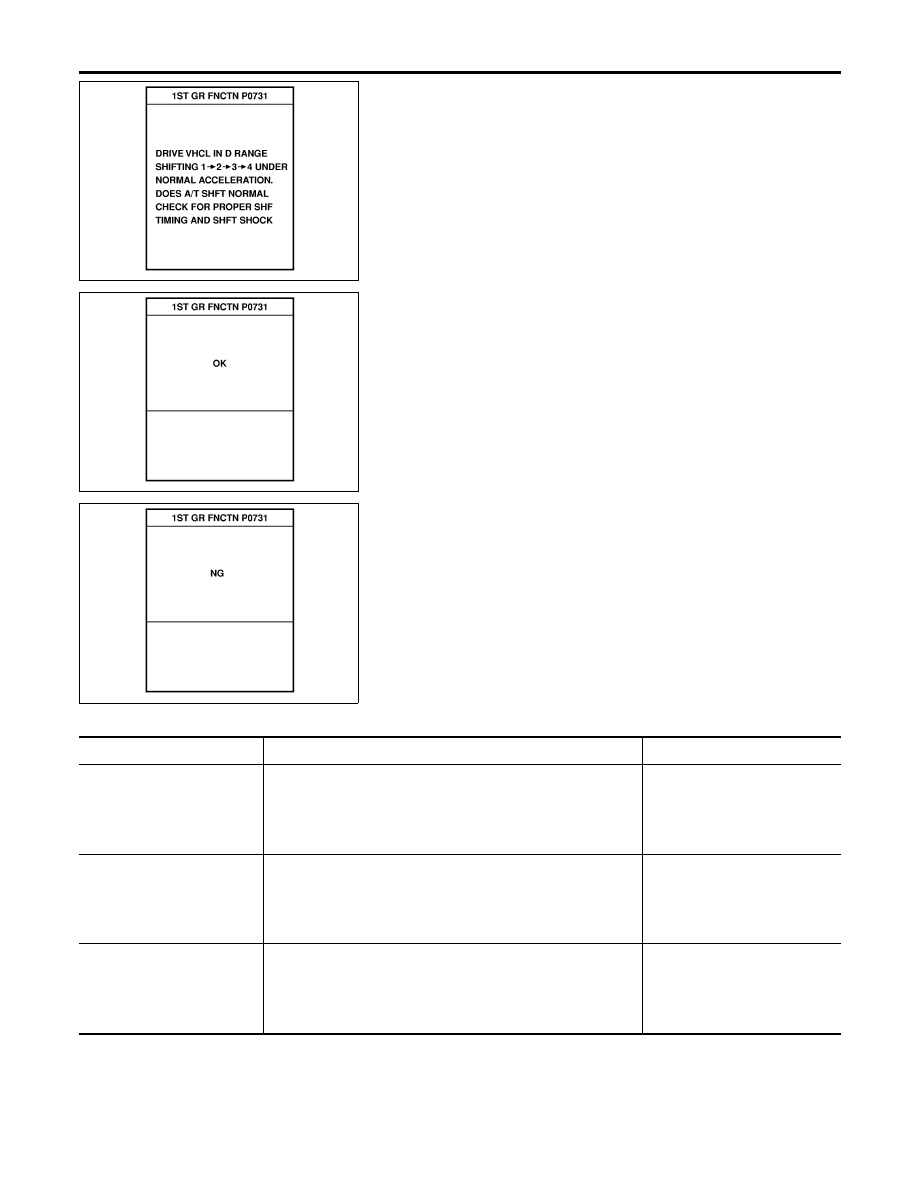

12. Touch “YES” or “NO”.

SAT596J

SAT593J

13. CONSULT-II procedure ended.

If “NG” appears on the screen, a malfunction may exist. Go to
“DIAGNOSTIC PROCEDURE”.

DTC WORK SUPPORT MODE

NHAT0022S05

DTC work support item

Description

Check item

1ST GR FNCTN P0731

Following items for “A/T 1st gear function (P0731)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Shift solenoid valve B

I

Each clutch

I

Hydraulic control circuit

2ND GR FNCTN P0732

Following items for “A/T 2nd gear function (P0732)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve B

I

Each clutch

I

Hydraulic control circuit

3RD GR FNCTN P0733

Following items for “A/T 3rd gear function (P0733)” can be con-
firmed.

I

Self-diagnosis status (whether the diagnosis is being con-
ducted or not)

I

Self-diagnosis result (OK or NG)

I

Shift solenoid valve A

I

Each clutch

I

Hydraulic control circuit

ON BOARD DIAGNOSTIC SYSTEM DESCRIPTION

CONSULT-II (Cont’d)

AT-48
