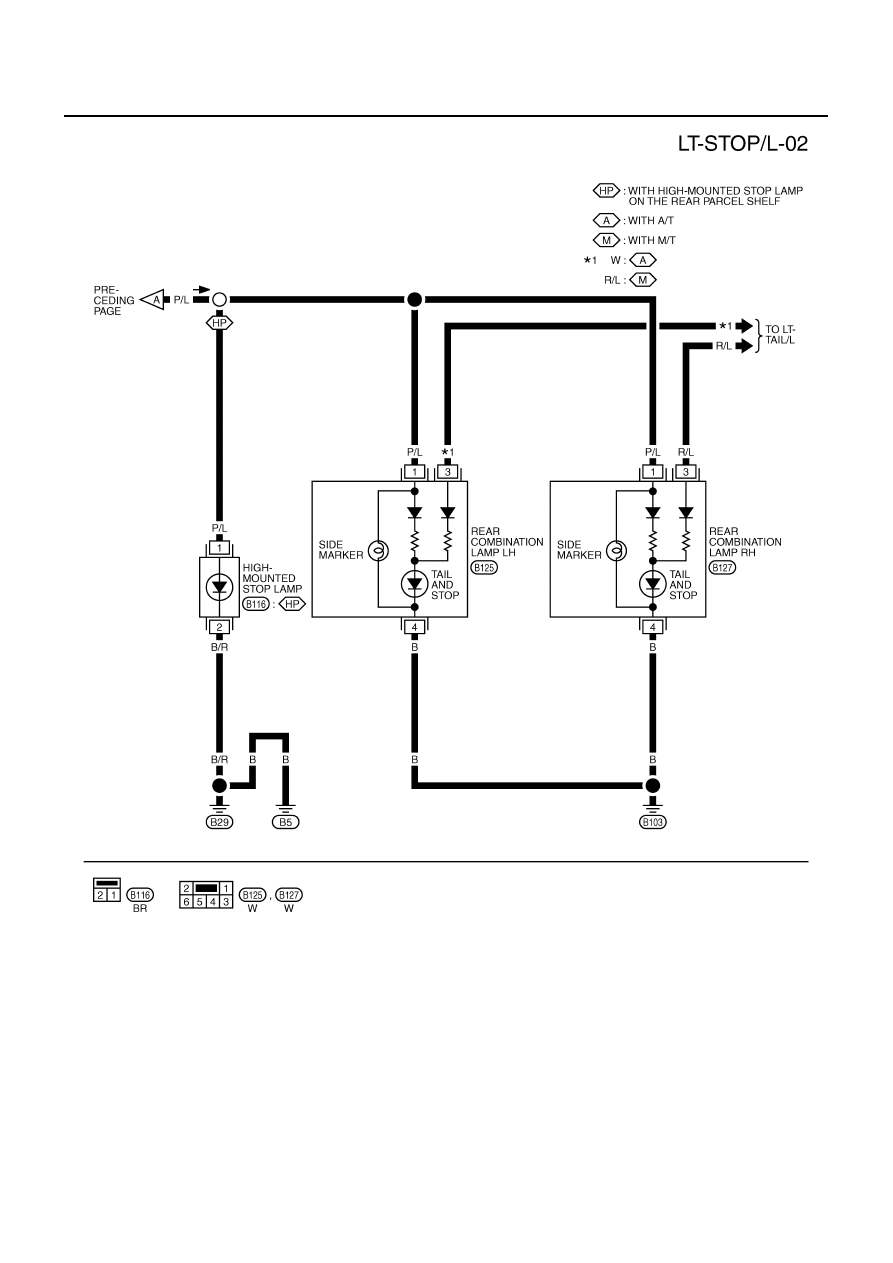

STOP LAMP

LT-105

C

D

E

F

G

H

I

J

L

M

A

B

LT

Bulb Replacement of High-Mounted Stop Lamp

NKS000IM

WITH REAR SPOILER

1.

Remove high-mounted stop lamp. Refer to

LT-105, "REMOVAL (WITH REAR SPOILER)"

 .

2.

Replace together with high-mounted stop lamp.

3.

Installation is the reverse order of removal.

WITHOUT REAR SPOILER

1.

Remove high-mounted stop lamp. Refer to

LT-105, "REMOVAL (WITHOUT REAR SPOILER)"

 .

2.

Replace together with high-mounted stop lamp.

3.

Installation is the reverse order of removal.

Bulb Replacement of Rear Combination Lamp (Stop Lamp)

NKS000IN

Refer to

LT-126, "Bulb Replacement"

 .

Removal and Installation of High-Mounted Stop Lamp

NKS000IO

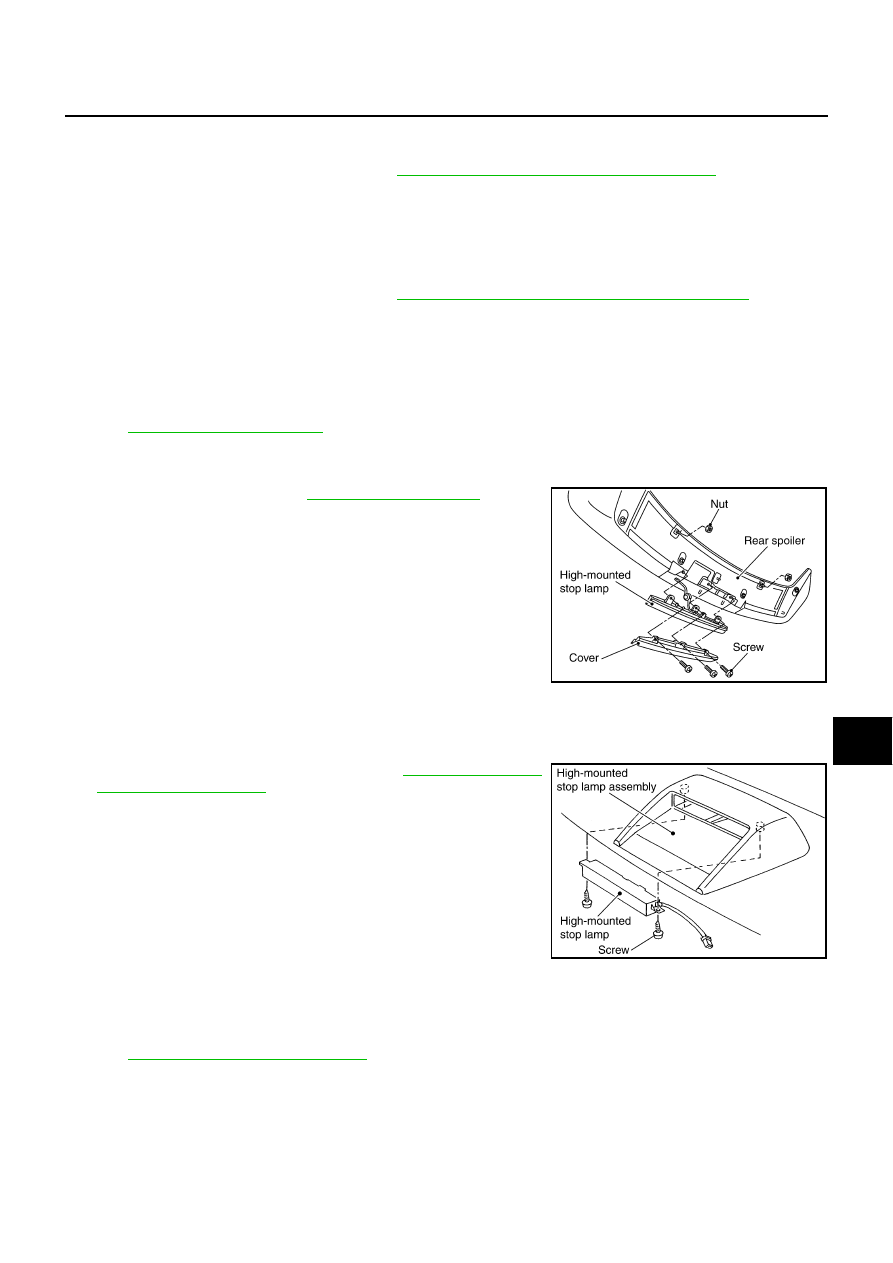

REMOVAL (WITH REAR SPOILER)

1.

Remove rear spoiler. Refer to

EI-27, "REAR SPOILER"

 .

2.

Remove screws and remove high-mounted stop lamp from rear
spoiler.

3.

Disconnect high-mounted stop lamp connector.

INSTALLATION

Installation is the reverse order of removal.

REMOVAL (WITHOUT REAR SPOILER)

1.

Remove rear parcel shelf finisher. Refer to

EI-33, "REAR PAR-

CEL SHELF FINISHER"

 .

2.

Remove screws and remove high-mounted stop lamp from rear
parcel shelf finisher.

3.

Disconnect high-mounted stop lamp connector.

INSTALLATION

Installation is the reverse order of removal.

Removal and Installation of Rear Combination Lamp (Stop Lamp)

NKS000IP

Refer to

LT-126, "Removal and Installation"

 .

High-mounted stop lamp

: LED

High-mounted stop lamp

: LED

PKIA2399E

PKIA2400E

LT-106

BACK-UP LAMP

BACK-UP LAMP

PFP:26550

Wiring Diagram — BACK/L —

NKS000IS

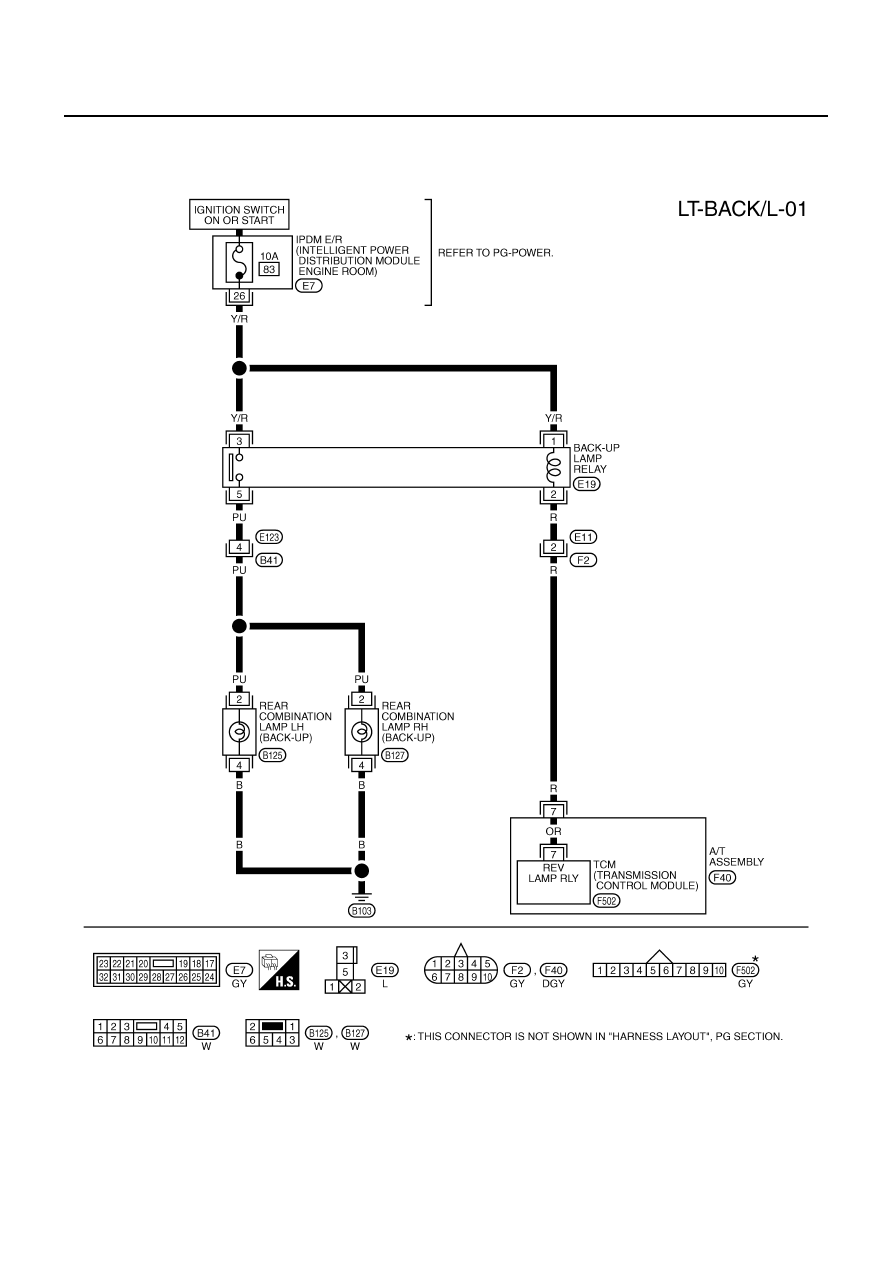

A/T MODELS

TKWM2208E

BACK-UP LAMP

LT-107

C

D

E

F

G

H

I

J

L

M

A

B

LT

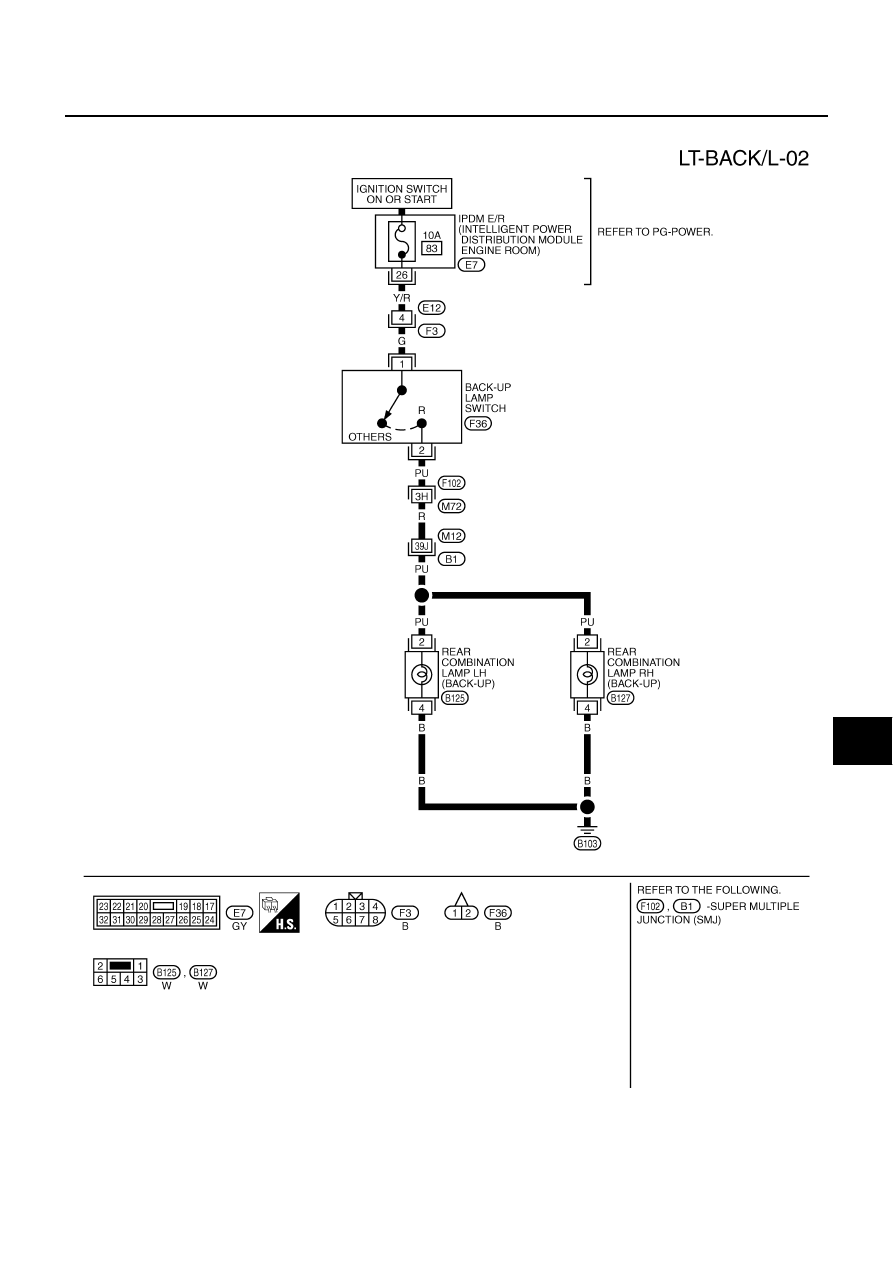

M/T MODELS

TKWM4923E
