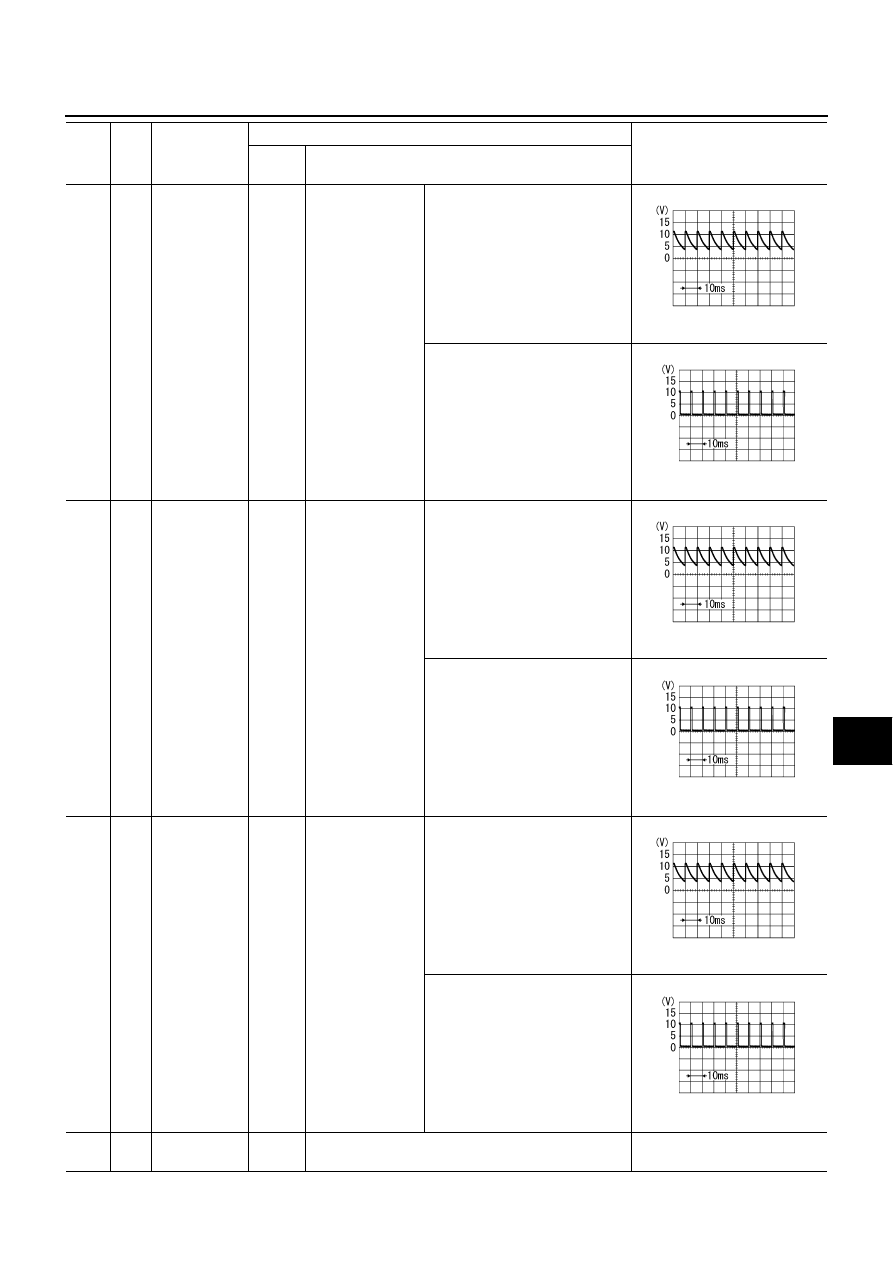

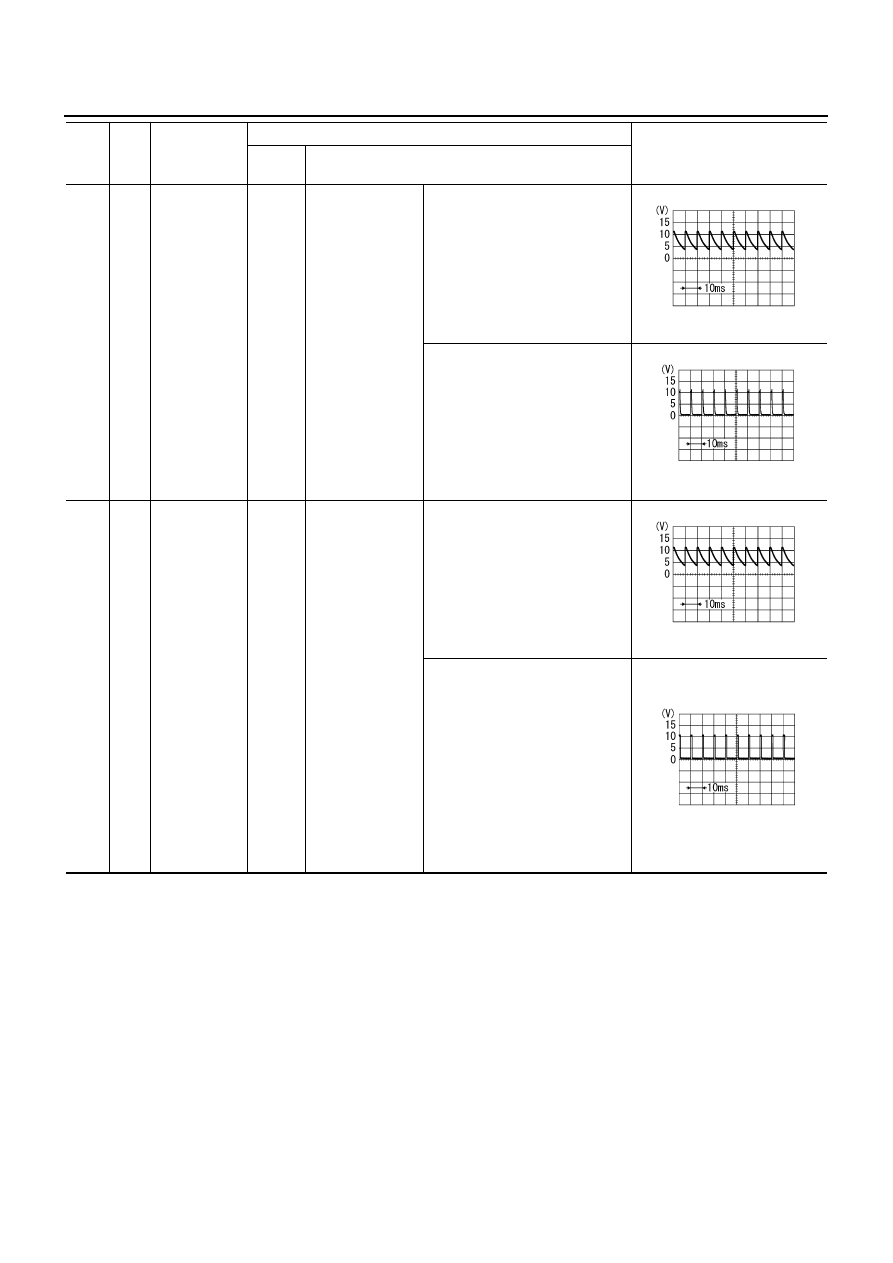

COMBINATION SWITCH

32

GY

Combination
switch output 5

ON

Lighting, turn,
wiper switch

OFF
(Wiper intermittent dial position 4)

Approx. 7.2 V

Any of the conditions below

●

Front fog lamp switch (Operates
only front fog lamp switch)

●

Wiper intermittent dial position 1

●

Wiper intermittent dial position 2

●

Wiper intermittent dial position 6

●

Wiper intermittent dial position 7

Approx. 1.0 V

33

L

Combination
switch output 4

ON

Lighting, turn,
wiper switch

OFF
(Wiper intermittent dial position 4)

Approx. 7.2 V

Any of the conditions below

●

Lighting switch AUTO (Wiper
dial position 4)

●

Lighting switch 1ST (The same
result with lighting switch 2ND)
(Wiper intermittent dial position
4)

●

Rear wiper switch INT

●

Wiper intermittent dial position 1

●

Wiper intermittent dial position 5

●

Wiper intermittent dial position 6

Approx. 1.2 V

Ter-

minal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

PKIB4960J

PKIB4956J

PKIB4960J

PKIB4958J

COMBINATION SWITCH

LT-97

C

D

E

F

G

H

I

J

L

M

A

B

LT

34

PU

Combination
switch output 3

ON

Lighting, turn,
wiper switch

OFF

Approx. 7.2 V

Any of the conditions below

●

Lighting switch 2ND

●

Lighting switch HI beam
(Operates only HI beam switch)

●

Wiper intermittent dial position 1

●

Wiper intermittent dial position 2

●

Wiper intermittent dial position 3

Approx. 1.2 V

35

Y/R

Combination
switch output 2

ON

Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)

OFF

Approx. 7.2 V

Any of the conditions below

●

Lighting switch 2ND

●

Lighting switch PASSING
(Operates only PASSING
switch)

●

Front wiper switch INT

●

Front wiper switch HI

Approx. 1.2 V

36

Y

Combination
switch output 1

ON

Lighting, turn,
wiper switch
(Wiper intermit-
tent dial position 4)

OFF

Approx. 7.2 V

Any of the conditions below

●

Turn signal switch to right

●

Turn signal switch to left

●

Front wiper switch MIST

●

Front wiper switch LO

●

Front washer switch

Approx. 1.2 V

38

W/L

Ignition switch
(ON)

ON

—

Battery voltage

Ter-

minal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

PKIB4960J

PKIB4958J

PKIB4960J

PKIB4958J

PKIB4960J

PKIB4958J

LT-98

COMBINATION SWITCH

39

L

CAN

−



H

—

—

—

40

P

CAN

−



L

—

—

—

42

GY

Battery power
supply

OFF

—

Battery voltage

52

B

Ground

ON

—

Approx. 0 V

55

W/R

Battery power
supply

OFF

—

Battery voltage

Ter-

minal

No.

Wire

color

Signal name

Measuring condition

Reference value

Ignition

switch

Operation or condition

COMBINATION SWITCH

LT-99

C

D

E

F

G

H

I

J

L

M

A

B

LT

CONSULT-II Function (BCM)

NKS002P3

CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.

CONSULT-II BASIC OPERATION

Refer to

GI-37, "CONSULT-II Start Procedure"

 .

DATA MONITOR
Operation Procedure

1.

Touch “COMB SW” on “SELECT TEST ITEM” screen.

2.

Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.

3.

Touch either “ALL SIGNALS” or “SELECTION FROM MENU” on “SELECT MONITOR ITEM” screen.

4.

When “SELECTION FROM MENU” is selected, touch items to be monitored. When “ALL SIGNALS” is
selected, all signals will be monitored.

5.

Touch “START”.

6.

Touch “RECORD” while monitoring, then the status of monitored item can be recorded. To stop recording,
touch “STOP”.

Display Item List

BCM diagnosis part

Diagnosis mode

Description

COMB SW

DATA MONITOR

Displays BCM input data in real time.

ALL SIGNALS

Monitors all the signals.

SELECTION FROM MENU

Selects item and monitor them.

Monitor item name

Contents

TURN SIGNAL R

“ON/OFF”

Displays status (turn signal switch right position: ON/other: OFF) of turn RH switch judged
from the turn signal switch signal.

TURN SIGNAL L

“ON/OFF”

Displays status (turn signal switch left position: ON/other: OFF) of turn LH switch judged from
the turn signal switch signal.

HI BEAM SW

“ON/OFF”

Displays status (lighting switch high beam position: ON/other: OFF) of high beam switch
judged from the lighting switch signal.

HEAD LAMP SW 1

“ON/OFF”

Displays status (lighting switch 2ND position: ON/other: OFF) of headlamp 1 switch judged
from the lighting switch signal.

HEAD LAMP SW 2

“ON/OFF”

Displays status (lighting switch 2ND position: ON/other: OFF) of headlamp 2 switch judged
from the lighting switch signal.

LIGHT SW 1ST

“ON/OFF”

Displays status (lighting switch 1ST or 2ND position: ON/other: OFF) of lighting switch 1ST
position switch judged from the lighting switch signal.

PASSING SW

“ON/OFF”

Displays status (lighting switch passing position: ON/other: OFF) of passing switch judged
from the lighting switch signal.

AUTO LIGHT SW

“ON/OFF”

Displays status (lighting switch AUTO position: ON/other: OFF) of auto light switch position
judged from the lighting switch signal.

FR FOG SW

“ON/OFF”

Displays status (lighting switch front fog lamp ON position: ON/others: OFF) of front fog lamp
switch judged from the lighting switch signal.

RR FOG SW

 NOTE

“ON/OFF”

—

FR WIPER HI

“ON/OFF”

Displays status (front wiper switch high position: ON/other: OFF) of front wiper high switch
judged from the wiper switch signal.

FR WIPER LOW

“ON/OFF”

Displays status (front wiper switch low position: ON/other: OFF) of front wiper low switch
judged from the wiper switch signal.

FR WIPER INT

“ON/OFF”

Displays status (front wiper switch intermittent position: ON/other: OFF) of front wiper intermit-
tent switch judged from the wiper switch signal.

FR WASHER SW

“ON/OFF”

Displays status (front washer switch ON position: ON/other: OFF) of front washer switch
judged from the wiper switch signal.

INT VOLUME

“1 - 7”

Displays status (wiper intermittent dial position setting 1-7) of intermittent volume switch
judged from the wiper switch signal.
