Infiniti G35 (V35). Manual - part 605

LT-100

COMBINATION SWITCH

NOTE:
This item is displayed, but cannot be monitored.

Combination Switch Inspection

NKS002P4

1.

SYSTEM CHECK

Referring to table below, check which system malfunctioning switch belongs to.

>> Check the system to which malfunctioning switch belongs, and GO TO 2.

2.

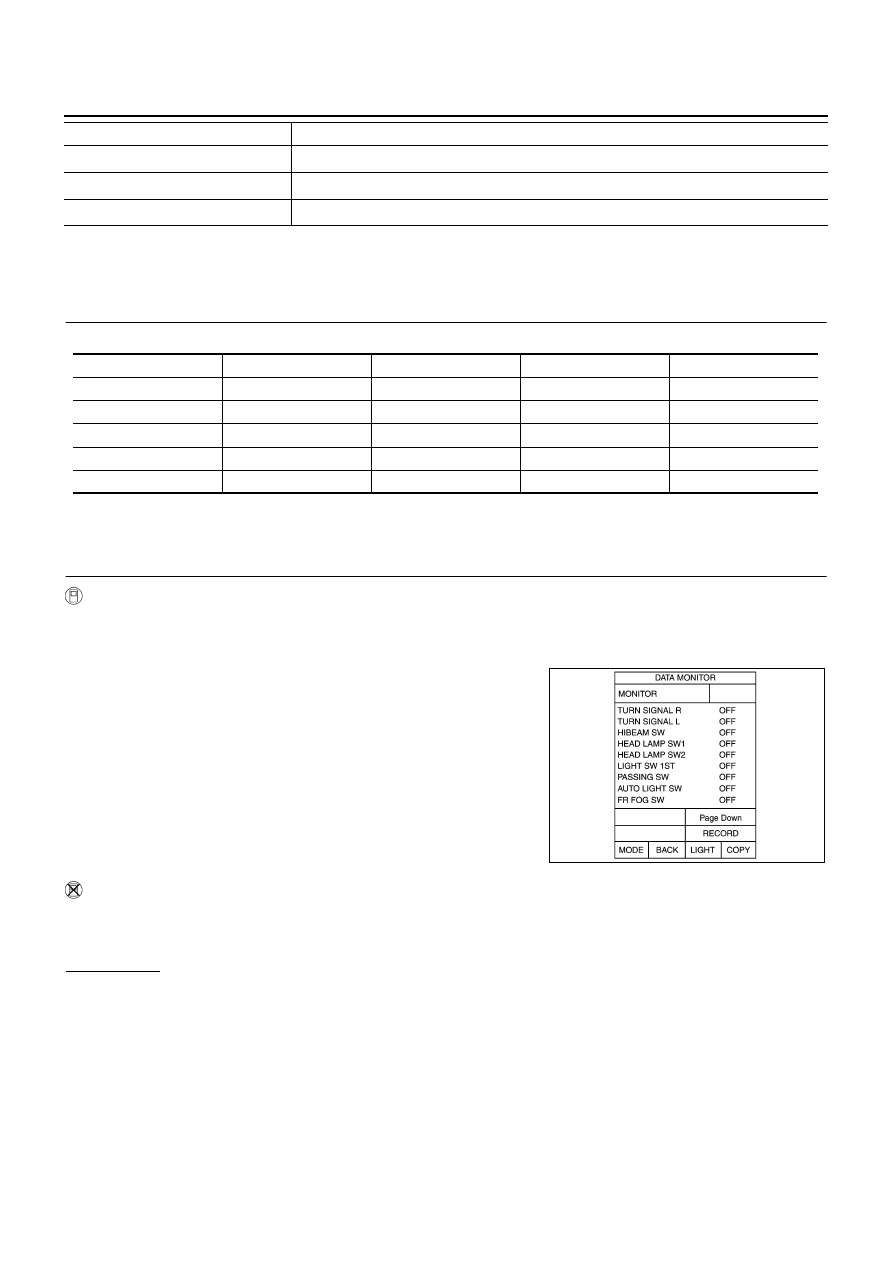

SYSTEM CHECK

With CONSULT-II

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.

1.

Connect CONSULT-II, and select “COMB SW” on “SELECT
TEST ITEM” screen.

2.

Select “DATA MONITOR”.

3.

Select “START”, and confirm that other switches in malfunction-
ing system operate normally.
Example: When the auto light switch is malfunctioning, confirm
that “FRONT WIPER LOW” and “FRONT WIPER INT” in system
3, to which the auto light switch belongs, turn ON-OFF normally.

Without CONSULT-II

Operating combination switch, and confirm that other switches in malfunctioning system operate normally.
Example: When the auto light switch is malfunctioning, confirm that FRONT WIPER LOW and FRONT WIPER
INT in system 3, to which the auto light switch belongs, operate normally.

Check results

Other switches in malfunctioning system operate normally.>>Replace lighting switch or wiper switch.
Other switches in malfunctioning system do not operate normally.>>GO TO 3.

RR WIPER ON

 NOTE

“OFF”

—

RR WIPER INT

NOTE

“OFF”

—

RR WASHER SW

 NOTE

“OFF”

—

Monitor item name

Contents

System  1

System  2

System  3

System  4

System  5

—

FR WASHER

FR WIPER LO

TURN LH

TURN RH

FR WIPER HI

—

FR WIPER INT

PASSING

HEAD LAMP1

INT VOLUME 1

RR WASHER

—

HEAD LAMP2

HI BEAM

RR WIPER INT

INT VOLUME 3

AUTO LIGHT

—

LIGHT SW 1ST

INT VOLUME 2

RR WIPER ON

—

FR FOG

—

PKIA7602E

COMBINATION SWITCH

LT-101

C

D

E

F

G

H

I

J

L

M

A

B

LT

3.

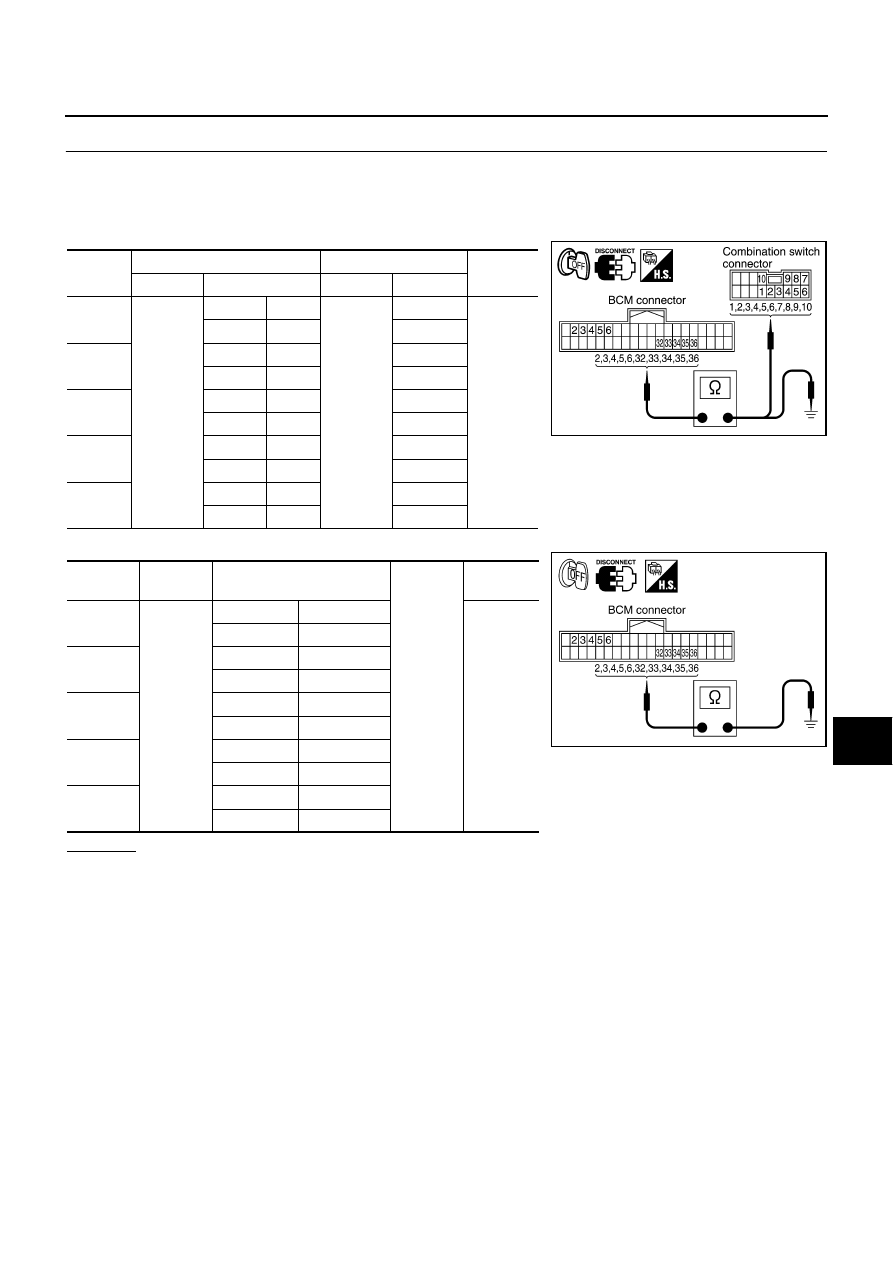

CHECK HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and combination switch connector.

3.

Check for continuity between BCM harness connector of the suspect system and the corresponding com-
bination switch harness connector.

4.

Check for continuity between BCM harness connector in suspect malfunctioning system and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Check harness between BCM and combination switch for open or short circuit.

Suspect

system

BCM

Combination switch

Continuity

Connector

Terminal

Connector

Terminal

1

M1

Input 1

6

M29

6

Yes

Output 1

36

1

2

Input 2

5

7

Output 2

35

2

3

Input 3

4

10

Output 3

34

3

4

Input 4

3

9

Output 4

33

4

5

Input 5

2

8

Output 5

32

5

Suspect

system

BCM

connector

Terminal

Continuity

1

M1

Input 1

6

Ground

No

Output 1

36

2

Input 2

5

Output 2

35

3

Input 3

4

Output 3

34

4

Input 4

3

Output 4

33

5

Input 5

2

Output 5

32

PKIA7235E

PKIA7506E

LT-102

COMBINATION SWITCH

4.

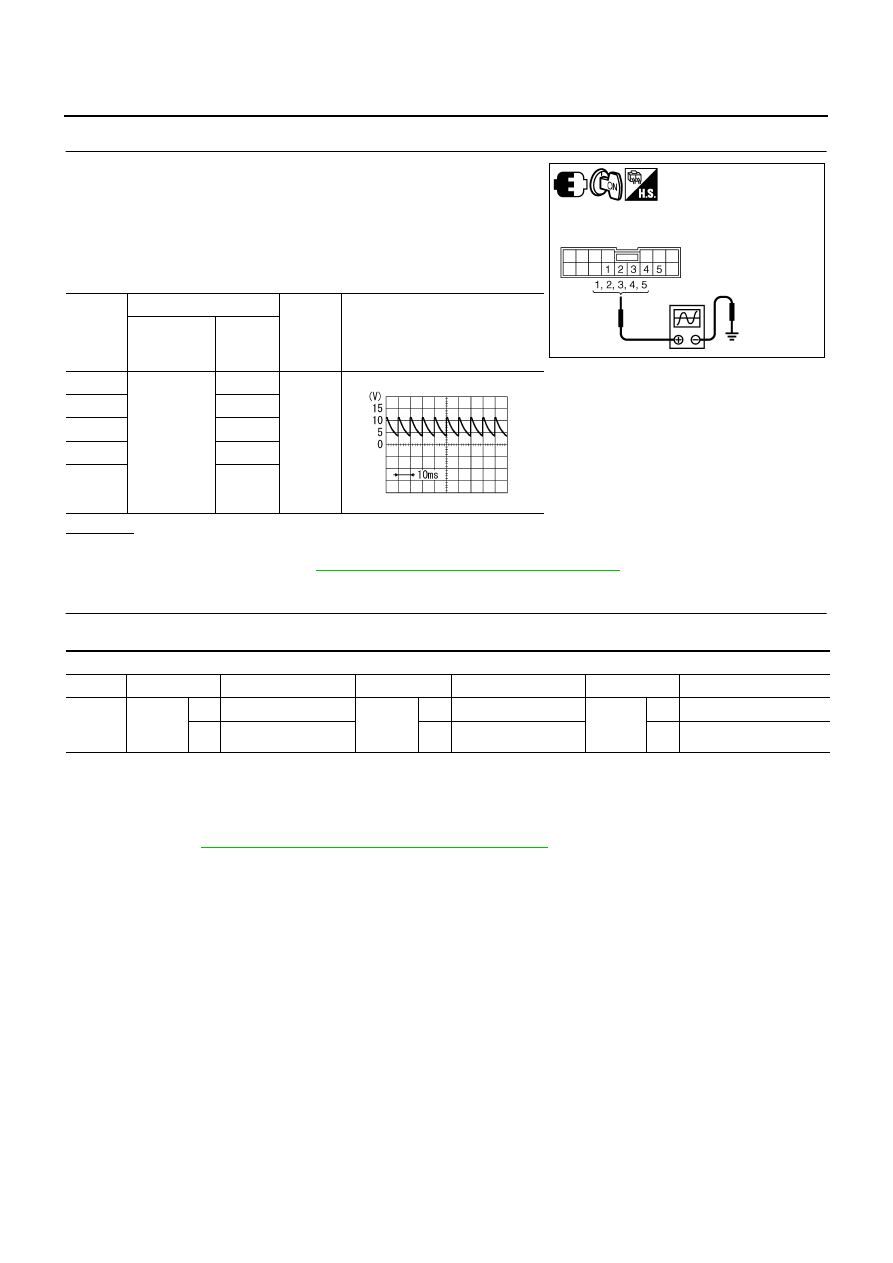

CHECK BCM OUTPUT TERMINAL

1.

Turn lighting switch and wiper switch OFF position.

2.

Set wiper dial position 4.

3.

Connect BCM connector and combination switch connector.

4.

Turn ignition switch ON.

5.

Check BCM output terminal voltage waveform of suspect mal-
functioning system.

OK or NG

OK

>> Open circuit in combination switch, GO TO 5.

NG

>> Replace BCM. Refer to

BCS-16, "Removal and Installation of BCM"

 .

5.

CHECK COMBINATION SWITCH

Referring to table below, perform combination switch inspection.

>> INSPECTION END

Removal and Installation

NKS002P5

For details, refer to

LT-91, "LIGHTING AND TURN SIGNAL SWITCH"

 .

Suspect

system

(+)

(

−

)

Reference value

Combination

switch

connector

Terminal

1

M29

1

Ground

2

2

3

3

4

4

5

5

PKIC1020E

PKIB4960J

Procedure

1

2

3

4

5

6

7

Replace

lighting

switch

Confirm
check
results

OK

INSPECTION END

Confirm
check
results

OK

INSPECTION END

Confirm
check
results

OK

INSPECTION END

NG

Replace wiper switch

NG

Replace switch base

NG

Confirm symptom again

STOP LAMP

LT-103

C

D

E

F

G

H

I

J

L

M

A

B

LT

STOP LAMP

PFP:26550

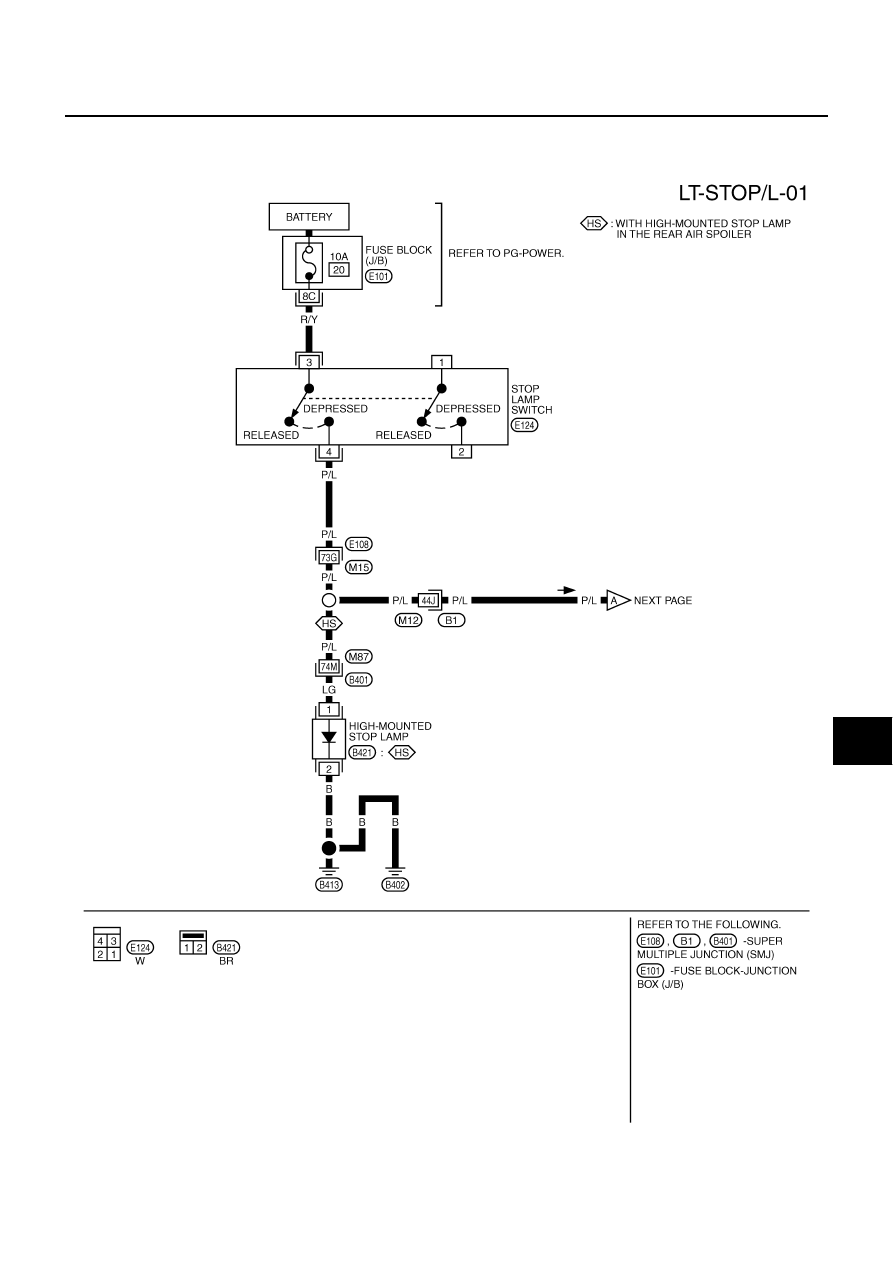

Wiring Diagram — STOP/L —
