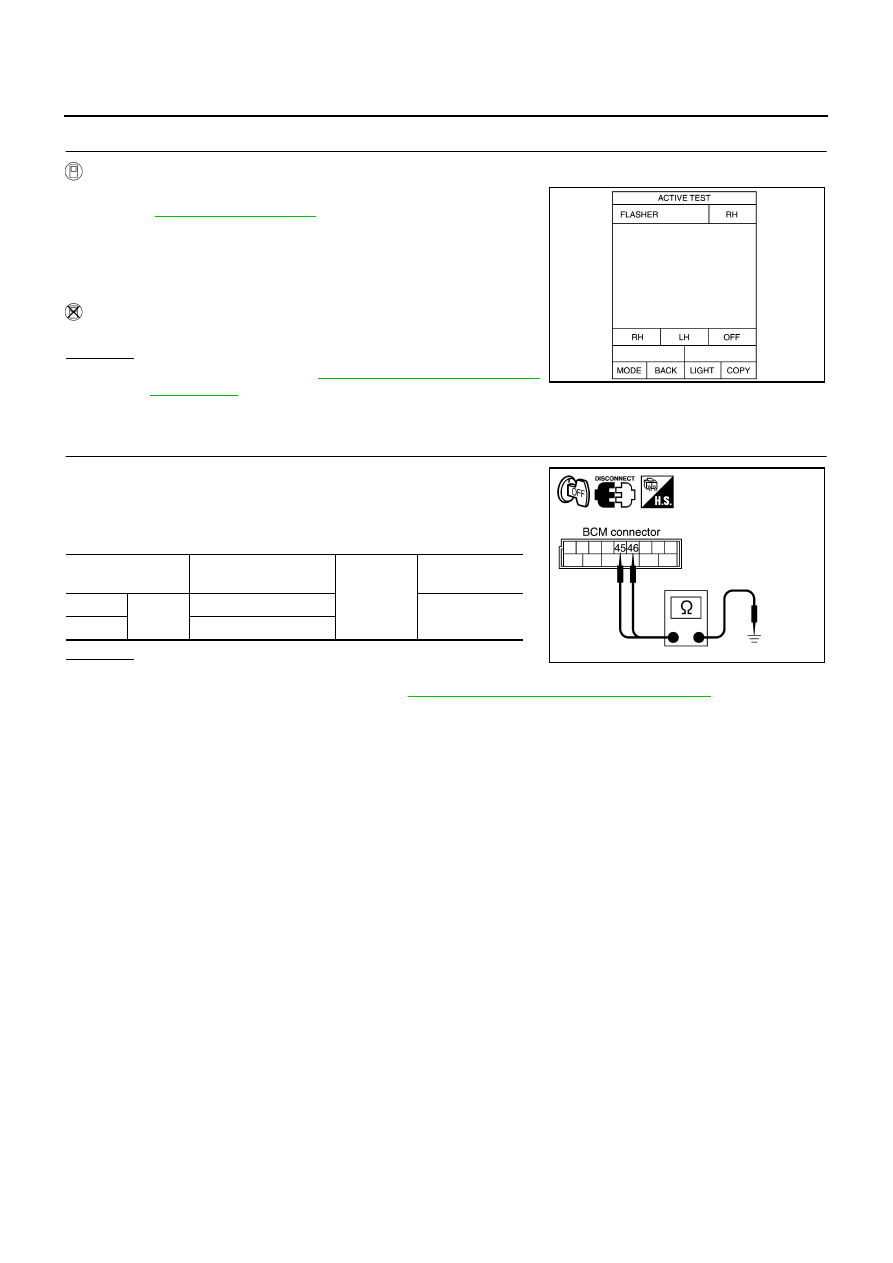

LT-88

TURN SIGNAL AND HAZARD WARNING LAMPS

3.

ACTIVE TEST

With CONSULT-II

1.

Select “BCM” on CONSULT-II. Select “FLASHER” active test.
Refer to

LT-87, "ACTIVE TEST"

 .

2.

Touch “RH” or “LH” screen.

3.

Make sure turn signal lamp RH and LH operates.

Without CONSULT-II

GO TO 4.
OK or NG

OK

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

NG

>> GO TO 4.

4.

CHECK SHORT CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and all turn signal lamp connectors.

3.

Check continuity (short circuit) between BCM harness connector
and ground.

OK or NG

OK

>> Replace BCM if turn signal lamps does not work after

setting the connector again. Refer to

BCS-16, "Removal and Installation of BCM"

 .

NG

>> Repair harness or connector.

Turn signal lamp should operate.

PKIA7749E

BCM

connector

Terminal

Ground

Continuity

RH

M2

46

No

LH

45

PKIA6289E

TURN SIGNAL AND HAZARD WARNING LAMPS

LT-89

C

D

E

F

G

H

I

J

L

M

A

B

LT

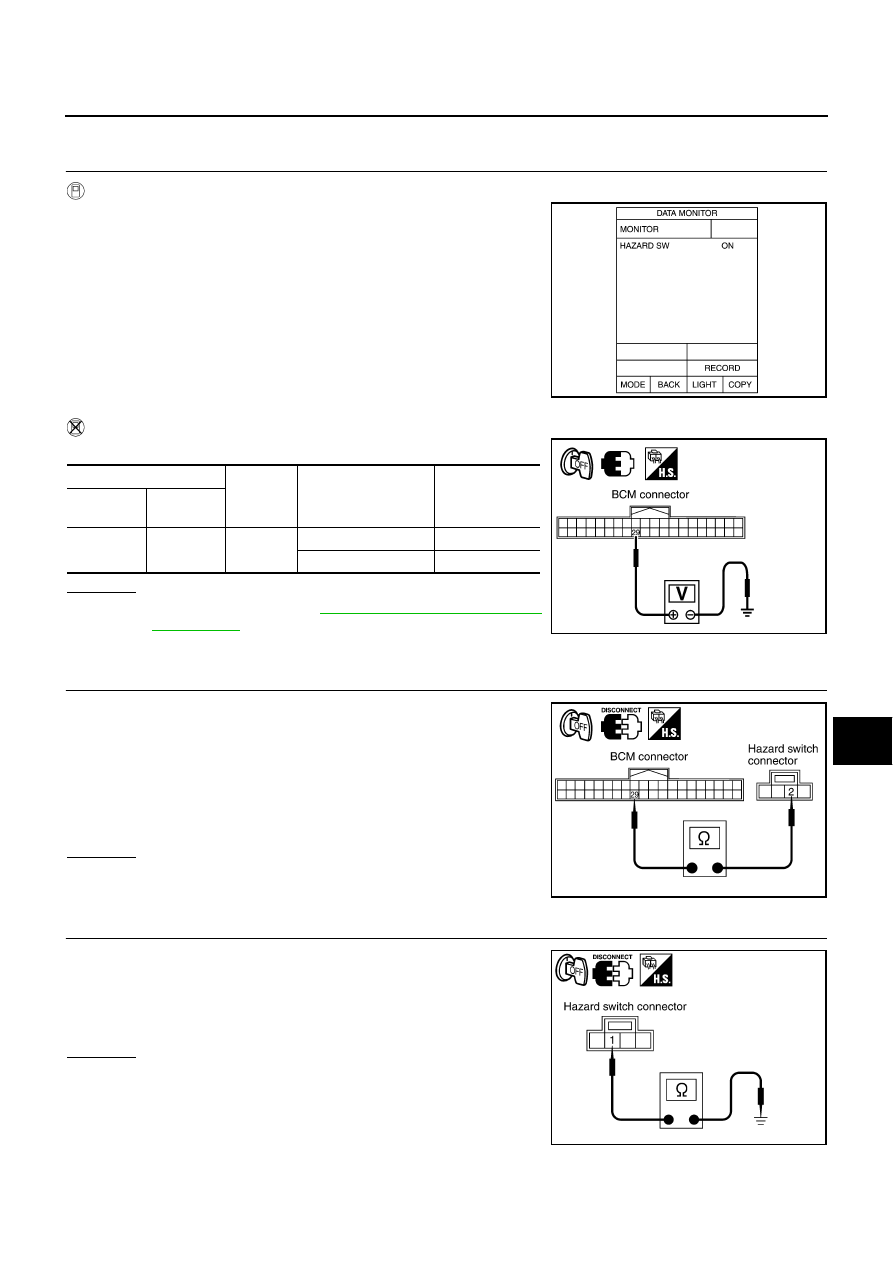

Hazard Warning Lamp Does Not Operate But Turn Signal Lamp Operates

NKS002OX

1.

CHECK HAZARD SWITCH INPUT SIGNAL

With CONSULT-II

Select “BCM” on CONSULT-II. With “FLASHER” data monitor, make
sure “HAZARD SW” turns ON-OFF linked with operation of hazard
switch.

Without CONSULT-II

Check voltage between BCM harness connector and ground.

OK or NG

OK

>> Replace BCM. Refer to

BCS-16, "Removal and Installa-

tion of BCM"

 .

NG

>> GO TO 2.

2.

CHECK HAZARD SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and hazard switch connector.

3.

Check continuity BCM harness connector M1 terminal 29 and
hazard switch harness connector M282

*1

 , M46

*2

  terminal 2.

*1: with A/T, *2: with M/T
OK or NG

OK

>> GO TO 3.

NG

>> Repair harness or connector.

3.

CHECK HAZARD SWITCH GROUND

Check continuity hazard switch harness connector M282

*1

 , M46

*2

terminal 1 and ground.

*1: with A/T, *2: with M/T

OK or NG

OK

>> GO TO 4.

NG

>> Repair harness or connector.

When hazard switch is ON
position

: HAZARD SW ON

PKIA7601E

(+)

(

−

)

Condition

Voltage

BCM

connector

Terminal

M1

29

Ground

Hazard switch is ON

Approx. 0 V

Hazard switch is OFF

Battery voltage

PKIB6809E

29 – 2

: Continuity should exist.

PKIA7018E

1 – Ground

: Continuity should exist.

SKIA8972E

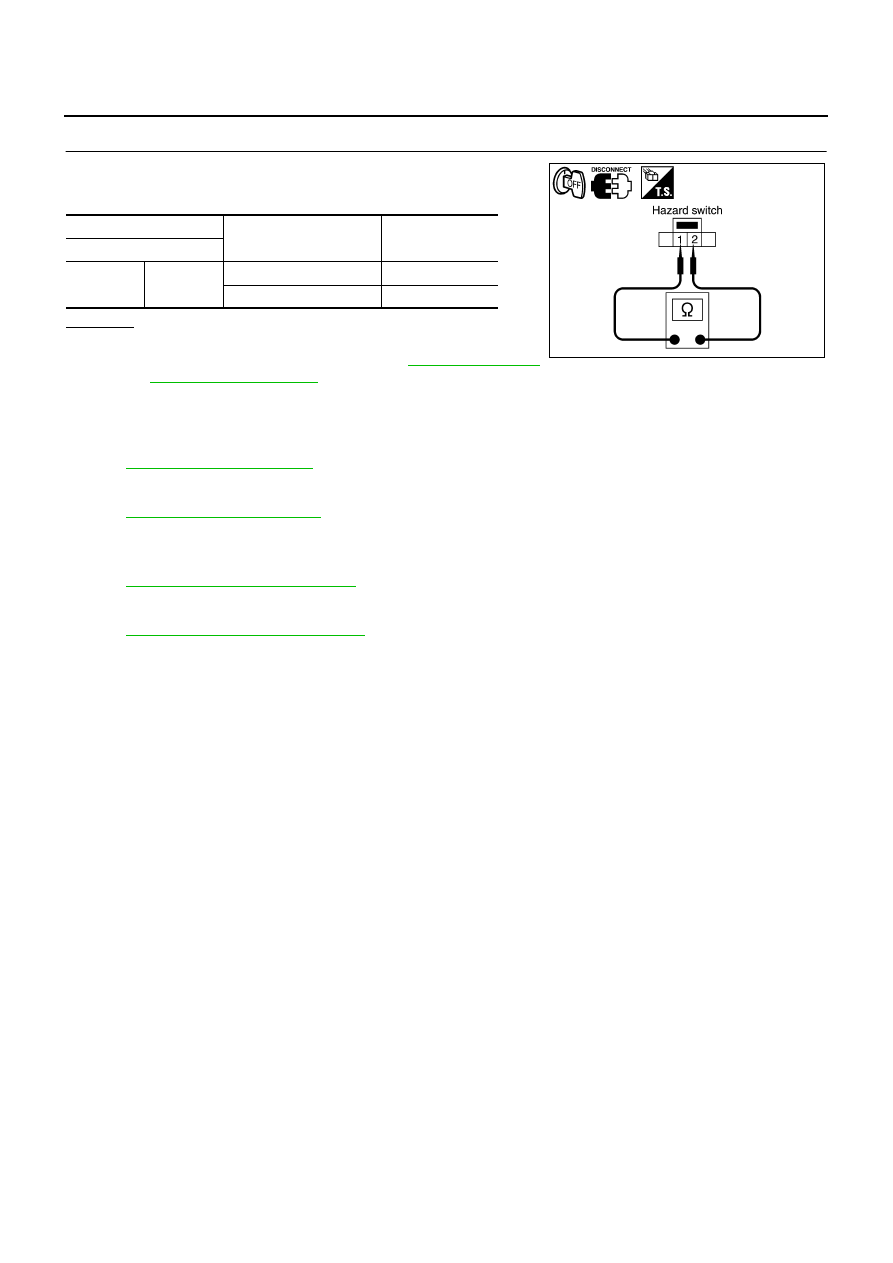

LT-90

TURN SIGNAL AND HAZARD WARNING LAMPS

4.

CHECK HAZARD SWITCH

1.

Disconnect hazard switch connector.

2.

Check continuity hazard switch terminals.

OK or NG

OK

>> Replace BCM if turn signal lamps does not work after

setting the connector again. Refer to

BCS-16, "Removal

and Installation of BCM"

 .

NG

>> Replace hazard switch.

Bulb Replacement

NKS002OZ

FRONT TURN SIGNAL LAMP

Refer to

LT-30, "Bulb Replacement"

 .

REAR TURN SIGNAL LAMP

Refer to

LT-126, "Bulb Replacement"

 .

Removal and Installation

NKS002P0

FRONT TURN SIGNAL LAMP

Refer to

LT-32, "Removal and Installation"

 .

REAR TURN SIGNAL LAMP

Refer to

LT-126, "Removal and Installation"

 .

Hazard switch

Condition

Continuity

Terminal

1

2

Hazard switch is ON

Yes

Hazard switch is OFF

No

PKIA4601E

LIGHTING AND TURN SIGNAL SWITCH

LT-91

C

D

E

F

G

H

I

J

L

M

A

B

LT

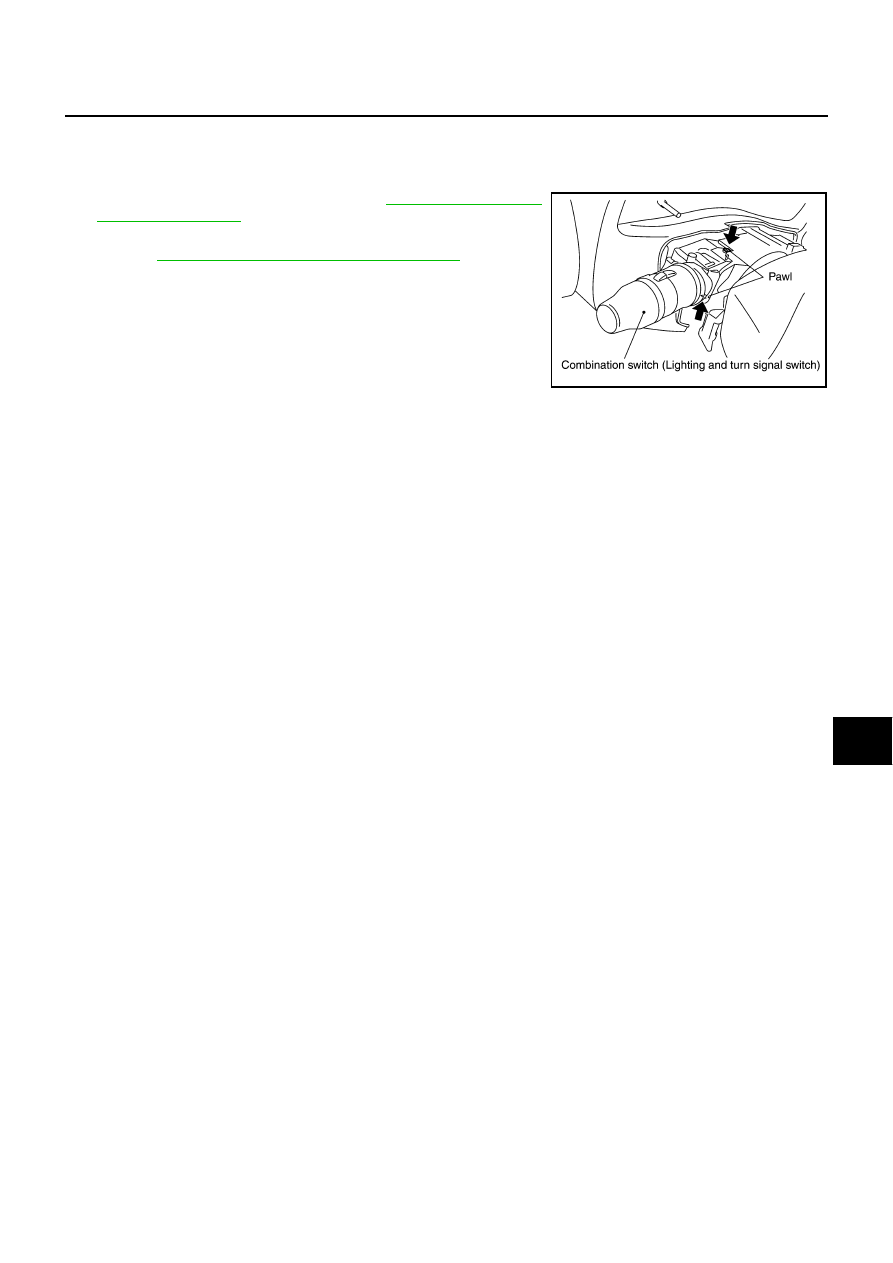

LIGHTING AND TURN SIGNAL SWITCH

PFP:25540

Removal and Installation

NKS000ID

REMOVAL

1.

Remove steering column cover. Refer to

IP-10, "INSTRUMENT

PANEL ASSEMBLY"

 .

2.

Remove mounting bolts of cluster lid A and combination meter.
Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

While pressing pawls in direction as shown in the figure, pull
lighting and turn signal switch toward driver door and disconnect
from the base.

4.

Disconnect lighting and turn signal switch connector.

INSTALLATION

Installation is the reverse order of removal.

PKIB6102E
