DTC U1000 CAN COMMUNICATION LINE

AT-99

D

E

F

G

H

I

J

K

L

M

A

B

AT

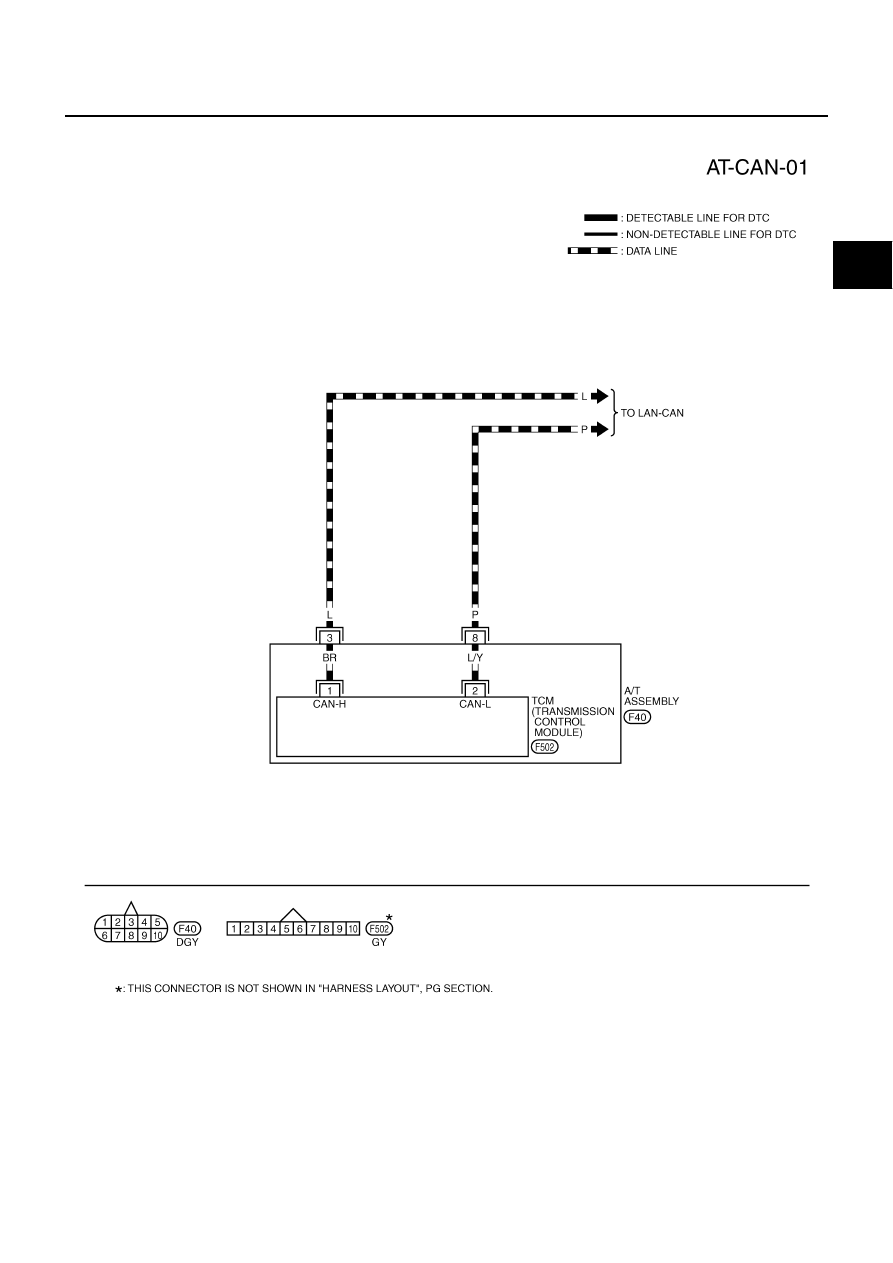

Wiring Diagram — AT — CAN

NCS000CC

TCWM0407E

AT-100

DTC U1000 CAN COMMUNICATION LINE

TCM terminals and data are reference value. Measured between each terminal and ground.

Diagnostic Procedure

NCS000CD

1.

CHECK CAN COMMUNICATION CIRCUIT

 With CONSULT-II

1.

Turn ignition switch ON and start engine.

2.

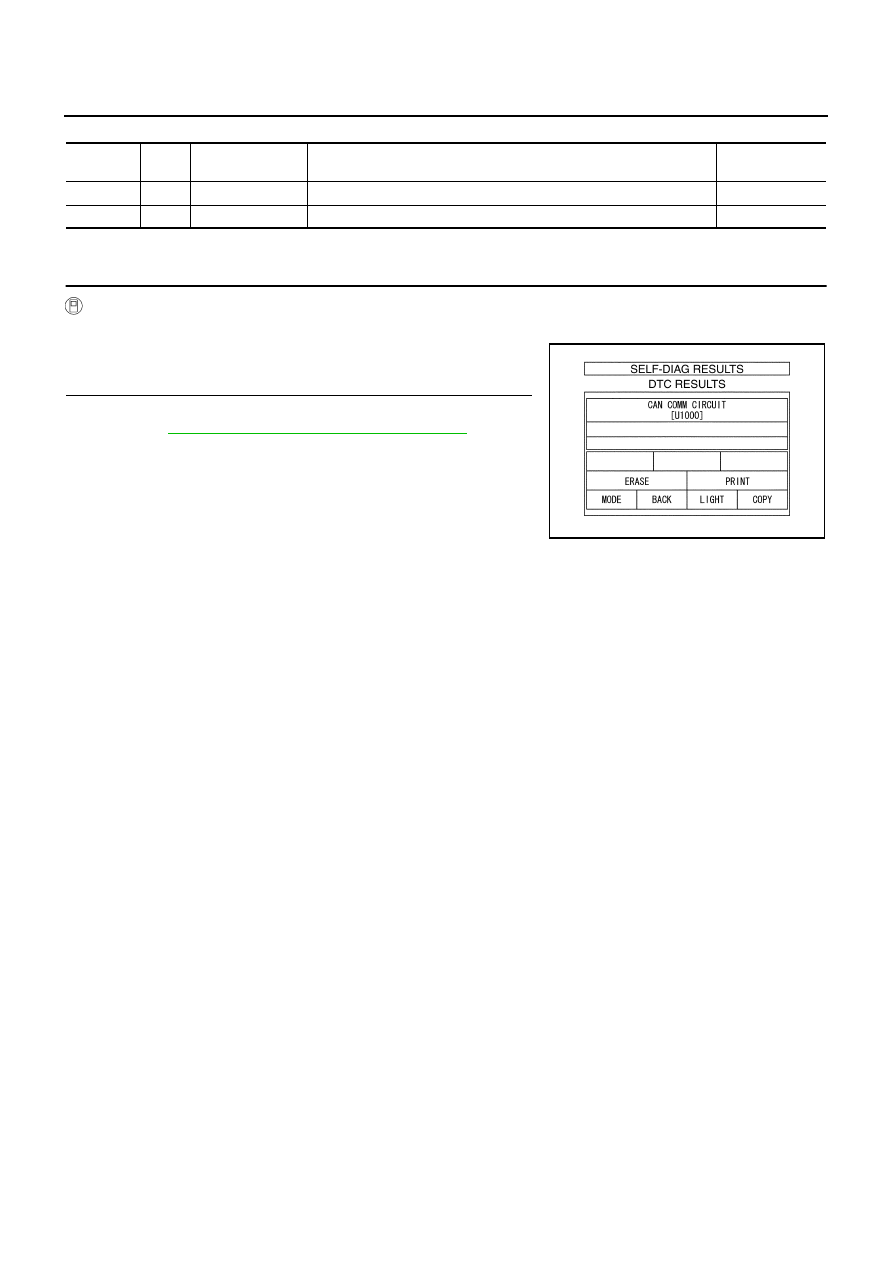

Select “SELF-DIAG RESULTS” mode for “A/T” with CONSULT-
II.

Is any malfunction of the “U1000 CAN COMM CIRCUIT” indicated?

YES

>> Print out CONSULT-II screen, go to LAN section. Refer

to

LAN-47, "CAN System Specification Chart"

 .

NO

>> INSPECTION END

Terminal

Wire

color

Item

Condition

Data (Approx.)

3

L

CAN-H

–

–

8

P

CAN-L

–

–

PCIA0061E

DTC P0615 START SIGNAL CIRCUIT

AT-101

D

E

F

G

H

I

J

K

L

M

A

B

AT

DTC P0615 START SIGNAL CIRCUIT

PFP:25230

Description

NCS000CE

Prohibits cranking other at “P” or “N” position.

CONSULT-II Reference Value

NCS000CF

On Board Diagnosis Logic

NCS000CG

●

This is not an OBD-II self-diagnostic item.

●

Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II or 14th judgment flicker with-
out CONSULT-II is detected when starter relay is switched ON other than at “P” or “N” position. (Or when
switched OFF at “P” or “N” position).

Possible Cause

NCS000CH

●

Harness or connectors.
(Starter relay and TCM circuit is open or shorted.)

●

Starter relay circuit.

DTC Confirmation Procedure

NCS000CI

CAUTION:

Always drive vehicle at a safe speed.

NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-II

1.

Turn ignition switch ON.

2.

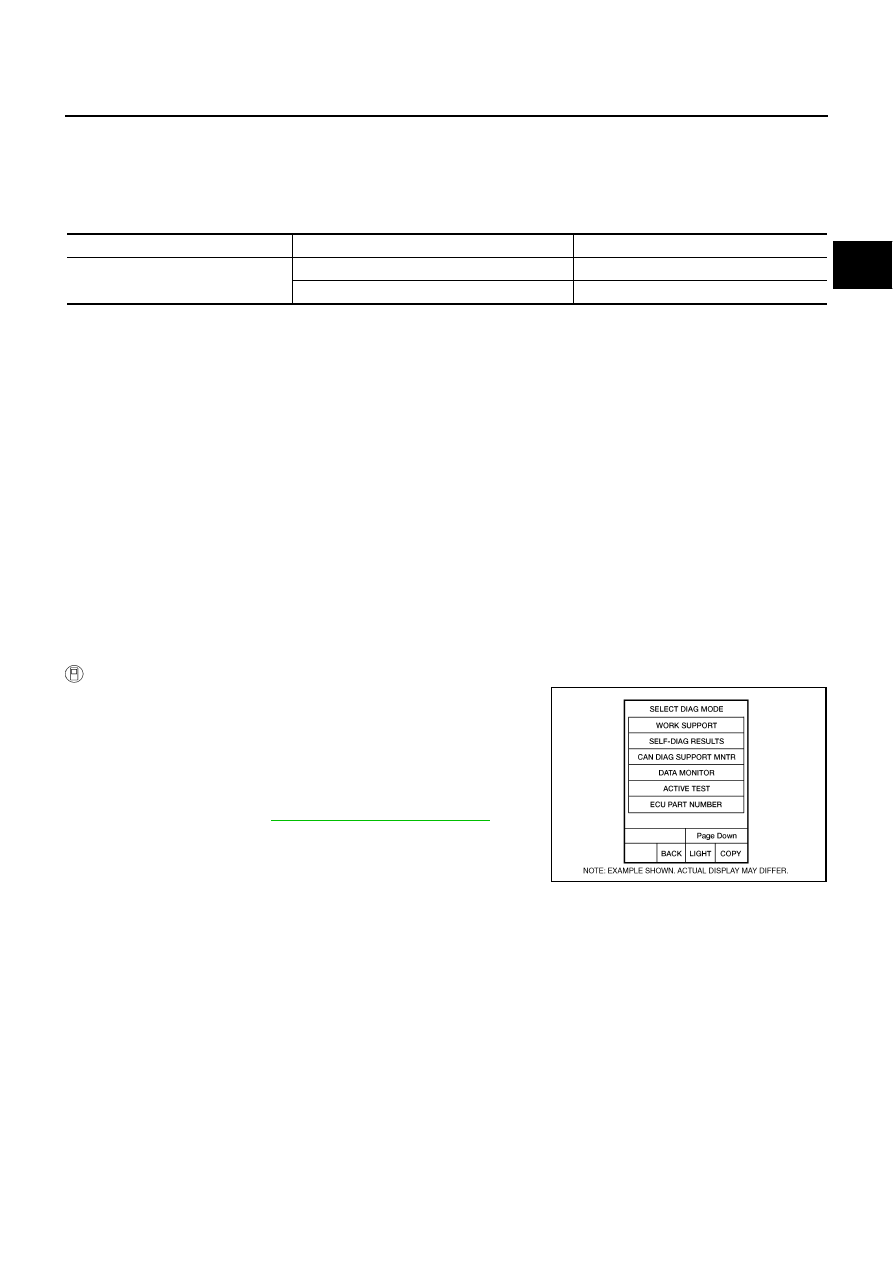

Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.

3.

Start the engine.

4.

Vehicle start for at least 2 consecutive seconds.

5.

If DTC is detected, go to

AT-103, "Diagnostic Procedure"

 .

Item name

Condition

Display value

STARTER RELAY

Selector lever in “N” and “P” positions.

ON

Selector lever in other positions.

OFF

BCIA0031E

AT-102

DTC P0615 START SIGNAL CIRCUIT

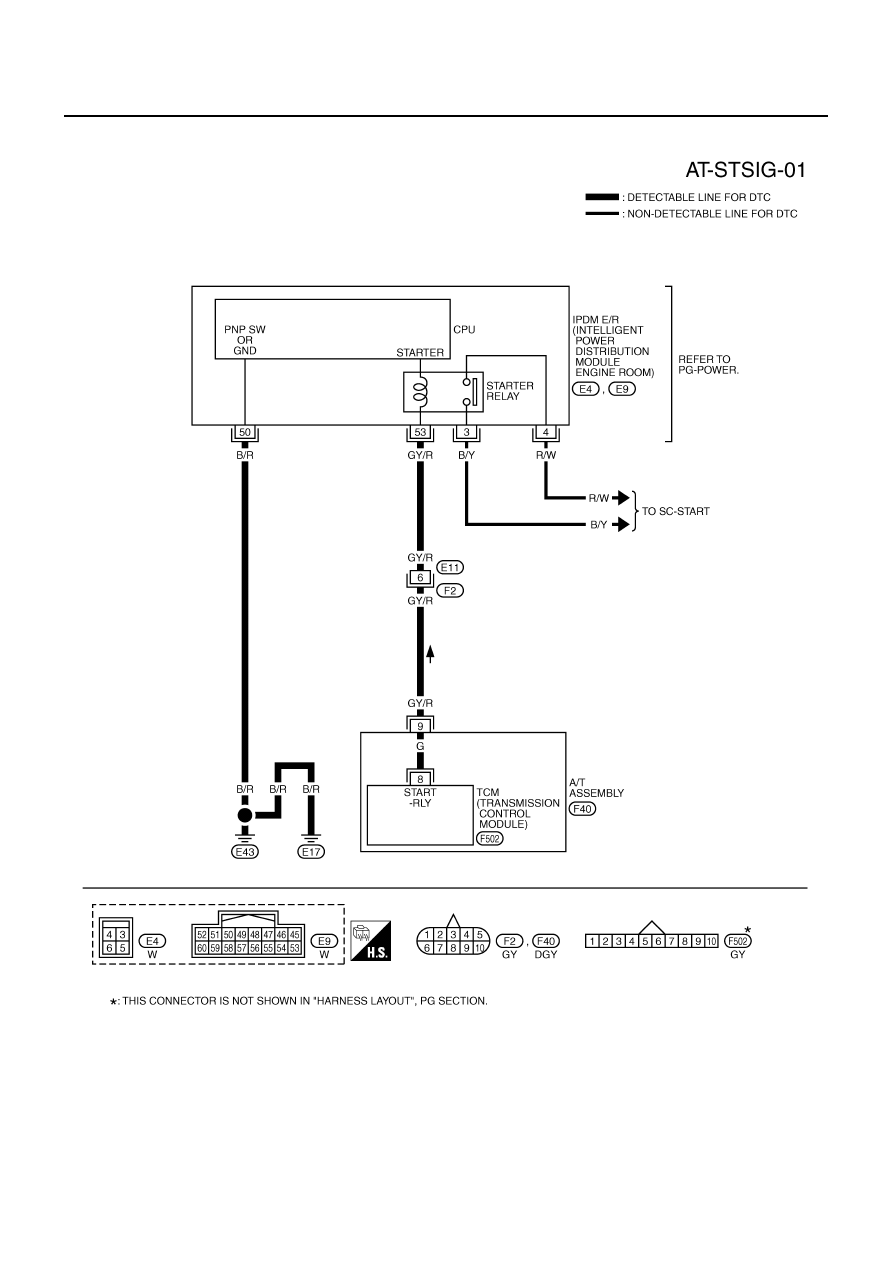

Wiring Diagram — AT — STSIG

NCS000CJ

TCWM0408E
