TROUBLE DIAGNOSIS

AT-91

D

E

F

G

H

I

J

K

L

M

A

B

AT

ASCD-OD CUT (ON/OFF)

—

—

ASCD-CRUISE (ON/OFF)

—

—

ABS SIGNAL (ON/OFF)

—

—

ACC OD CUT (ON/OFF)

—

—

Not mounted but displayed.

ACC SIGNAL (ON/OFF)

—

—

TCS GR/P KEEP (ON/OFF)

—

—

TCS SIGNAL 2 (ON/OFF)

—

—

TCS SIGNAL 1 (ON/OFF)

—

—

TCC SOLENOID (A)

—

X

LINE PRES SOL (A)

—

X

I/C SOLENOID (A)

—

X

FR/B SOLENOID (A)

—

X

D/C SOLENOID (A)

—

X

HLR/C SOL (A)

—

X

ON OFF SOL (ON/OFF)

—

—

LC/B solenoid

TCC SOL MON (A)

—

—

L/P SOL MON (A)

—

—

I/C SOL MON (A)

—

—

FR/B SOL MON (A)

—

—

D/C SOL MON (A)

—

—

HLR/C SOL MON (A)

—

—

ON OFF SOL MON (ON/OFF)

—

—

LC/B solenoid

P POSI IND (ON/OFF)

—

—

R POSI IND (ON/OFF)

—

—

N POSI IND (ON/OFF)

—

—

D POSI IND (ON/OFF)

—

—

4TH POSI IND (ON/OFF)

—

—

3RD POSI IND (ON/OFF)

—

—

2ND POSI IND (ON/OFF)

—

—

1ST POSI IND (ON/OFF)

—

—

MANU MODE IND (ON/OFF)

—

—

POWER M LAMP (ON/OFF)

—

—

F-SAFE IND/L (ON/OFF)

—

—

ATF WARN LAMP (ON/OFF)

—

—

Not mounted but displayed.

BACK-UP LAMP (ON/OFF)

—

—

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU INPUT

SIGNALS

MAIN SIG-

NALS

SELEC-

TION FROM

MENU

AT-92

TROUBLE DIAGNOSIS

STARTER RELAY (ON/OFF)

—

—

PNP SW3 MON (ON/OFF)

—

—

C/V CLB ID1

—

—

C/V CLB ID2

—

—

C/V CLB ID3

—

—

UNIT CLB ID1

—

—

UNIT CLB ID2

—

—

UNIT CLB ID3

—

—

TRGT GR RATIO

—

—

TRGT PRES TCC (kPa)

—

—

TRGT PRES L/P (kPa)

—

—

TRGT PRES I/C (kPa)

—

—

TRGT PRE FR/B (kPa)

—

—

TRGT PRES D/C (kPa)

—

—

TRG PRE HLR/C (kPa)

—

—

SHIFT PATTERN

—

—

DRV CST JUDGE

—

—

START RLY MON

—

—

NEXT GR POSI

—

—

SHIFT MODE

—

—

MANU GR POSI

—

—

VEHICLE SPEED (km/h)

—

X

Vehicle speed recognized by the TCM.

Voltage (V)

—

—

Displays the value measured by the voltage
probe.

Frequency (Hz)

—

—

The value measured by the pulse probe is
displayed.

DUTY-HI (high) (%)

—

—

DUTY-LOW (low) (%)

—

—

PLS WIDTH-HI (ms)

—

—

PLS WIDTH-LOW (ms)

—

—

Monitored item (Unit)

Monitor Item Selection

Remarks

ECU INPUT

SIGNALS

MAIN SIG-

NALS

SELEC-

TION FROM

MENU

TROUBLE DIAGNOSIS

AT-93

D

E

F

G

H

I

J

K

L

M

A

B

AT

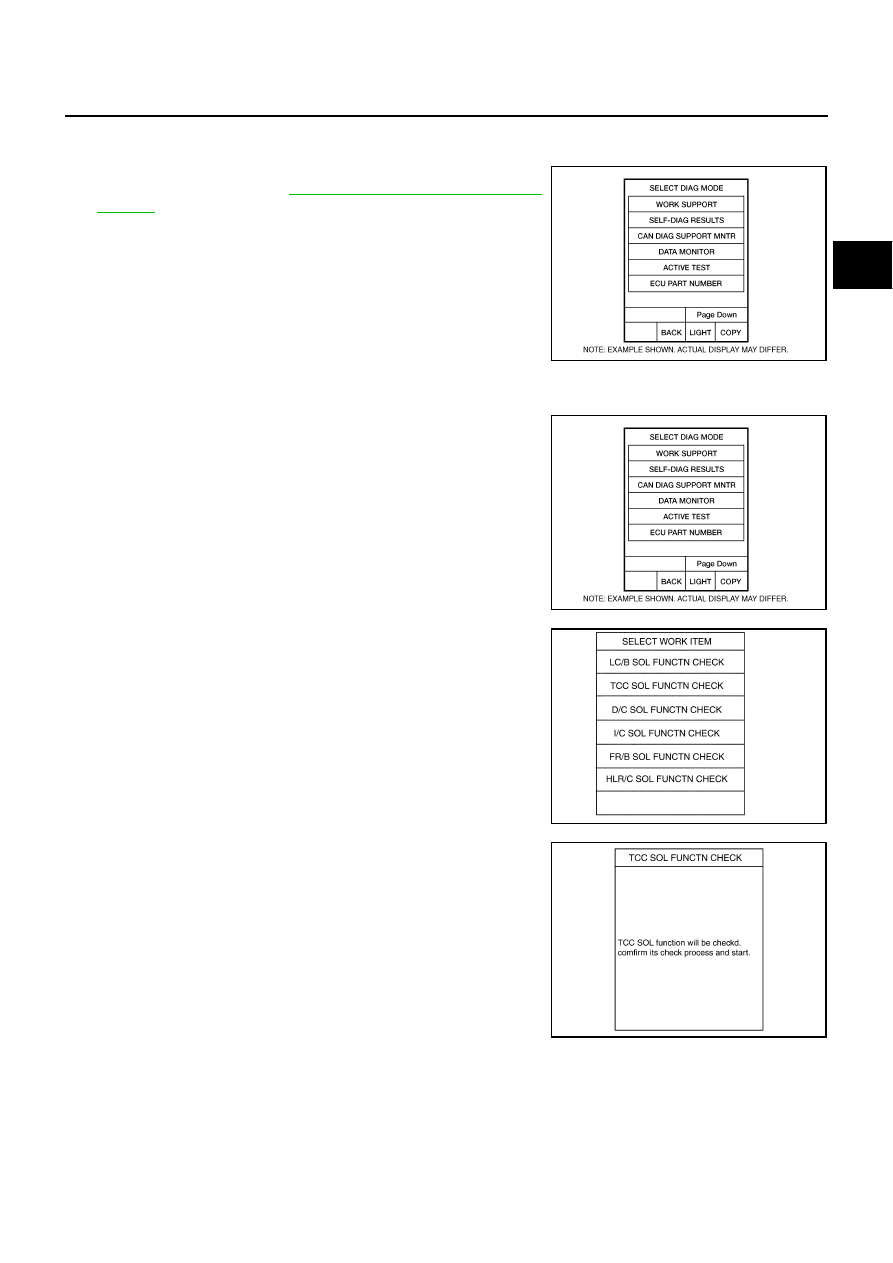

CAN DIAGNOSTIC SUPPORT MONITOR MODE
Operation Procedure

1.

Touch “CAN DAIG SUPPORT MNTR” on “SELECT DIAG
MODE” screen. Refer to

LAN-44, "CAN Diagnostic Support

Monitor"

 .

DTC WORK SUPPORT MODE
Operation Procedure

1.

Touch “DTC WORK SUPPORT” on “SELECT DIAG MODE”
screen.

2.

Touch select item menu.

3.

Touch “START”.

BCIA0031E

BCIA0031E

SCIA0512E

SCIA5159E

AT-94

TROUBLE DIAGNOSIS

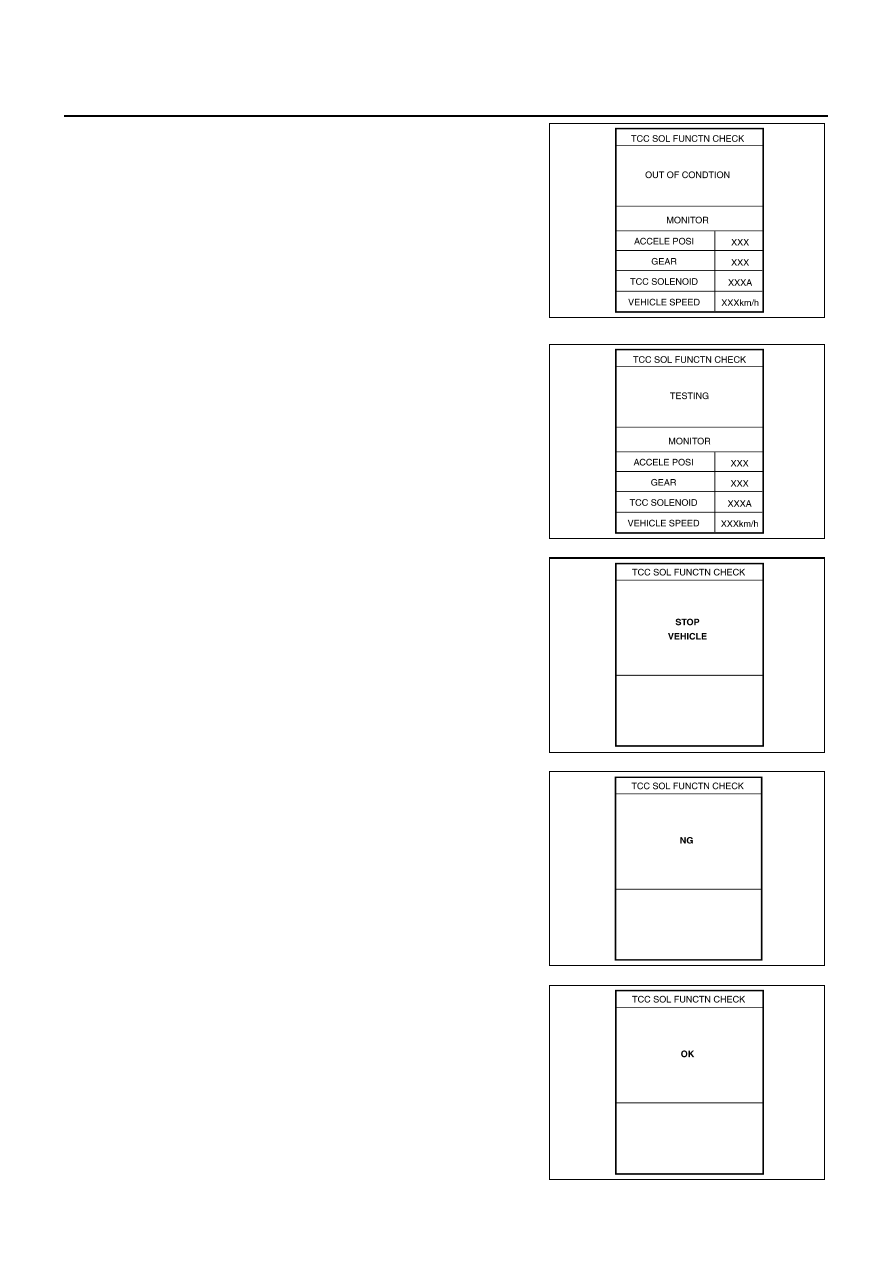

4.

Perform driving test according to “DTC Confirmation Procedure”
in “TROUBLE DIAGNOSIS FOR DTC”.

●

When testing conditions are satisfied, CONSULT-II screen
changes from “OUT OF CONDITION” to “TESTING”.

5.

Stop vehicle.

●

If “NG” appears on the screen, malfunction may exist. Go to
“Diagnostic Procedure”.

6.

Perform test drive to check gear shift feeling in accordance with
instructions displayed.

7.

Touch “YES” or “NO”.

8.

CONSULT-II procedure is ended.

SCIA5160E

SCIA5161E

SCIA5164E

SCIA5162E

SCIA5163E
