Driving Your Vehicle

6-56

Do not let your parking brake freeze

Under some conditions your parking

brake can freeze in the engaged position.

This is most likely to happen when there

is an accumulation of snow or ice around

or near the rear brakes or if the brakes

are wet. When there is the risk that your

parking brake may freeze, temporarily

apply it with the gear in P (Park). Also,

block the rear wheels in advance, so the

vehicle may not roll. Then, release the

parking brake.

Do not let ice and snow accumulate

underneath

Under some conditions, snow and ice

can build up under the fenders and

interfere with the steering. When driving

in such conditions during the severe

winter, you should check underneath

the vehicle on a regular basis, to ensure

that the front wheels and the steering

components is unblocked.

Carry emergency equipment

In accordance with weather conditions,

you should carry appropriate emergency

equipment, while driving. Some of the

items you may want to carry include tire

chains, tow straps or chains, flashlight,

emergency flares, sand, shovel, jumper

cables, window scraper, gloves, ground

cloth, coveralls, blanket, etc.

Do not place objects or materials in the

engine compartment

Putting objects or materials in the engine

compartment may cause an engine

failure or combustion, because they may

block the engine cooling. Such damage

will not be covered by the manufacturer’s

warranty.

Drive your vehicle when water vapor

condenses and accumulates inside the

exhaust pipes

When the vehicle is stopped for a

long time in winter while the engine is

running, water vapor may condense and

accumulate inside the exhaust pipes.

Water in the exhaust pipes may cause

noise, etc., but it is drained driving at

medium to high speed.

6-57

If you are considering towing with your

vehicle, be sure to take extra precautions

while driving. Only experienced drivers

should consider towing. Plan your trip

accordingly as vehicle speed limits for

vehicles towing trailers may be different.

Always follow posted speed limits for

vehicles towing with trailers.
Remember that trailering is different

than just driving your vehicle by

itself. Trailering means changes in

handling, durability, and fuel economy.

Successful, safe trailering requires

correct equipment, and it has to be used

properly. Damage to your vehicle caused

by improper trailer towing is not covered

by your vehicle manufacturer’s warranty.
This section contains many time-tested,

important trailering tips and safety

rules. Many of these are important for

your safety and that of your passengers.

Please read this section carefully before

you pull a trailer.

WARNING

Take the following precautions:

If you don’t use the correct

equipment and/or drive improperly,

you can lose control of the vehicle

when you are pulling a trailer. For

example, if the trailer is too heavy,

the braking performance may be

reduced. You and your passengers

could be seriously or fatally injured.

Pull a trailer only if you have followed

all the steps in this section.

Before towing, make sure the

total trailer weight, GCW (Gross

Combination Weight), GVW (Gross

Vehicle Weight), GAW (Gross Axle

Weight) and trailer tongue load are

all within the limits.

TRAILER TOWING

Driving Your Vehicle

6-58

If you Decide to Pull a Trailer

Here are some important points if you

decide to pull a trailer:

Consider using a sway control. You

can ask a trailer hitch dealer about

sway control.

Do not do any towing with your

vehicle during its first 1,200 miles

(2,000 km) in order to allow the

engine to properly break in. Failure to

heed this caution may result in serious

engine or transmission damage.

When towing a trailer, consult an

authorized HYUNDAI dealer for

further information on additional

requirements such as a towing kit, etc.

Always drive your vehicle at a

moderate speed (less than 60 mph

(100 km/h)) or posted towing speed

limit.

On a long uphill grade, do not exceed

45 mph (70 km/h) or the posted

towing speed limit, whichever is

lower.

Carefully observe the weight and load

limits provided in the following pages.

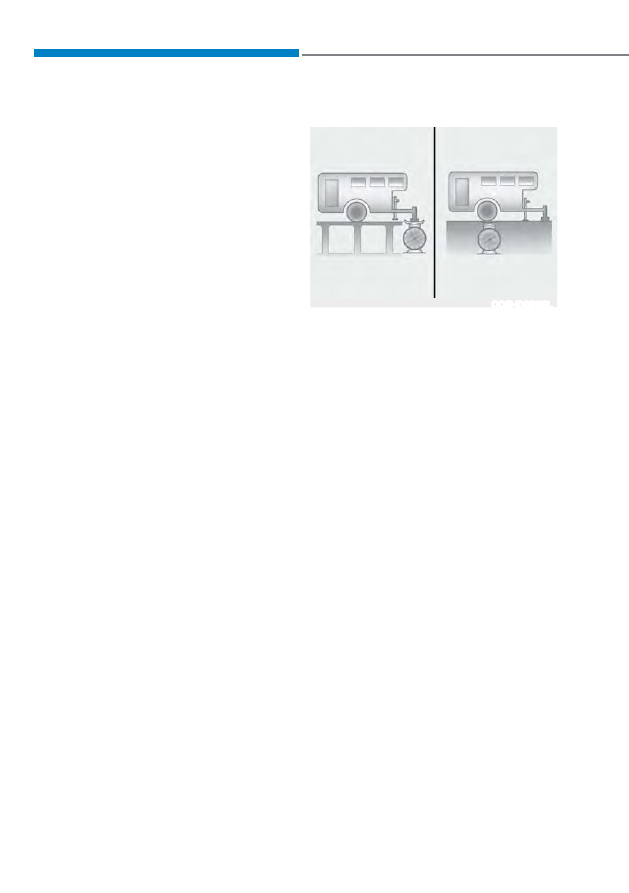

Trailer weight

Tongue Load

Total Trailer Weight

OOSH069129L

What is the maximum safe weight of a

trailer? It should never weigh more than

the maximum trailer weight with trailer

brakes. But even that can be too heavy.

It depends on how you plan to use your

trailer. For example, speed, altitude,

road grades, outside temperature and

how often your vehicle is used to pull a

trailer are all important. The ideal trailer

weight can also depend on any special

equipment that you have on your vehicle.

6-59

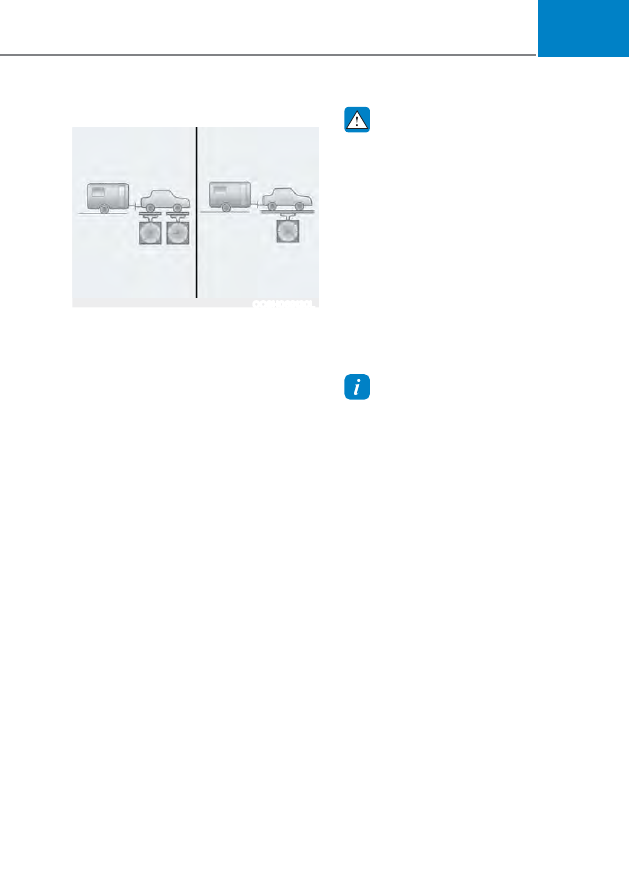

Tongue load

Gross Axle Weight

Gross Vehicle Weight

OOSH069130L

The tongue load is an important weight

to measure because it affects the

total Gross Vehicle Weight (GVW) of

your vehicle. The trailer tongue should

weigh a maximum of 10% of the total

loaded trailer weight, within the limits

of the maximum trailer tongue load

permissible.
After you’ve loaded your trailer,

weigh the trailer and then the tongue,

separately, to see if the weights are

proper. If they aren’t, you may be able

to correct them simply by moving some

items around in the trailer.

WARNING

Take the following precautions:

Never load a trailer with more weight

in the rear than in the front. The front

should be loaded with approximately

60% of the total trailer load; the rear

should be loaded with approximately

40% of the total trailer load.

Never exceed the maximum weight

limits of the trailer or trailer towing

equipment. Improper loading can

result in damage to your vehicle and/

or personal injury. Check weights

and loading at a commercial scale or

highway patrol office equipped with

scales.

Information

With increasing altitude the engine
performance decreases. From 3,280 feet
above sea level and for every 3,280 feet
thereafter 10% of vehicle/trailer weight
(trailer weighter + gross vehicle weight)
must be deducted.

6-61

Trailer Towing Equipment

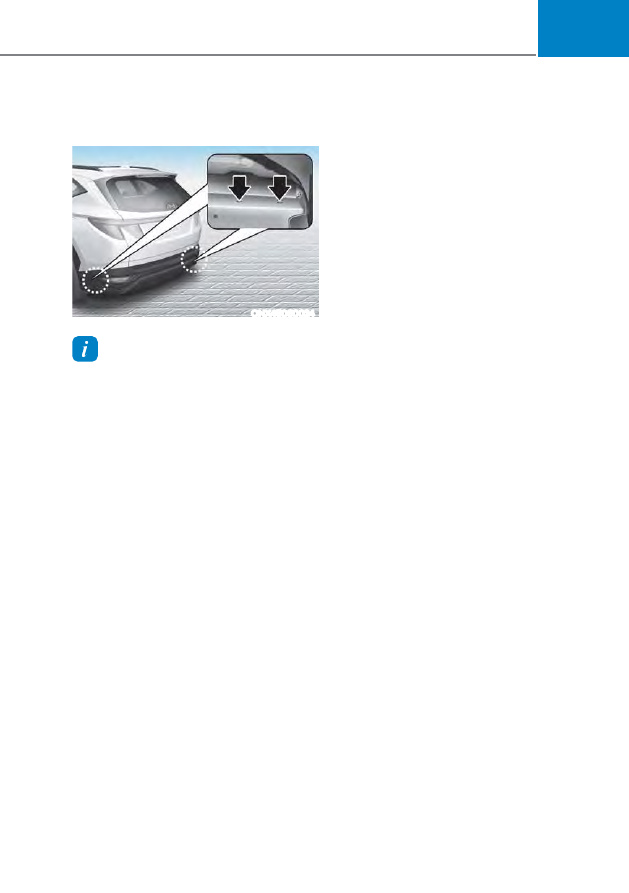

Hitches

ONX4E060024

Information

The mounting hole for hitches are located
on both sides of the underbody behind the
rear tires.

It’s important to have the correct hitch

equipment. Crosswinds, large trucks

going by, and rough roads are a few

reasons why you’ll need the right hitch.

Here are some rules to follow:

Do you have to make any holes in

the body of your vehicle when you

install a trailer hitch? If you do, then

be sure to seal the holes later when

you remove the hitch. If you don’t seal

them, carbon monoxide (CO) from

your exhaust can get into your vehicle,

as well as dirt and water.

The bumpers on your vehicle are not

intended for hitches. Do not attach

rental hitches or other bumper-type

hitches to them. Use only a frame-

mounted hitch that does not attach to

the bumper.

Any part of the rear number plate or

lighting devices of the vehicle must

not be obscured by the mechanical

coupling device.
If the rear number plate and/or

lighting devices can be obscured

partially by any part of the mechanical

coupling device, mechanical coupling

devices that can not be easily

removed or repositioned without use

of any tools, except an easily operated

(for example, an effort not exceeding

20Nm) release key which is supplied

by the manufacturer of the coupling

device, are not permitted for use.
Please note that the mechanical

coupling device that is fitted and

not in use must always be removed

or repositioned if the rear number

plate and/or rear lighting devices

are obscured by any part of the

mechanical coupling device.

A HYUNDAI trailer hitch accessory is

available at an authorized HYUNDAI

dealer.

Driving Your Vehicle

6-62

Safety chains

You should always attach chains between

your vehicle and your trailer.
Instructions about safety chains may

be provided by the hitch manufacturer

or trailer manufacturer. Follow the

manufacturer’s recommendation for

attaching safety chains. Always leave just

enough slack so you can turn with your

trailer. And, never allow safety chains to

drag on the ground.

Trailer brakes

If your trailer is equipped with a braking

system, make sure it conforms to

your country’s regulations and that

it is properly installed and operating

correctly.
If your trailer weighs more than the

maximum trailer weight without trailer

brakes loaded, then it needs its own

brakes and they must be adequate. Be

sure to read and follow the instructions

for the trailer brakes so you’ll be able

to install, adjust and maintain them

properly. Be sure not to modify your

vehicle’s brake system.

WARNING

Do not use a trailer with its own brakes

unless you are absolutely certain that

you have properly set up the brake

system. This is not a task for amateurs.

Use an experienced, competent trailer

shop for this work.

Driving with a Trailer

Towing a trailer requires a certain

amount of experience. Before setting

out for the open road, you must get to

know your trailer. Acquaint yourself with

the feel of handling and braking with the

added weight of the trailer. And always

keep in mind that the vehicle you are

driving is now longer and not nearly as

responsive as your vehicle is by itself.
Before you start, check the trailer hitch

and platform, safety chains, electrical

connector(s), lights, tires and brakes.
During your trip, occasionally check

to be sure that the load is secure, and

that the lights and trailer brakes are still

working.

Distance

Stay at least twice as far behind the

vehicle ahead as you would when driving

your vehicle without a trailer. This can

help you avoid situations that require

heavy braking and sudden turns.

Passing

You will need more passing distance up

ahead when you’re towing a trailer. And,

because of the increased vehicle length,

you’ll need to go much farther beyond

the passed vehicle before you can return

to your lane.

6-63

Backing up

Hold the bottom of the steering wheel

with one hand. Then, to move the trailer

to the left, move your hand to the left. To

move the trailer to the right, move your

hand to the right. Always back up slowly

and, if possible, have someone guide

you.

Making turns

When you’re turning with a trailer, make

wider turns than normal. Do this so your

trailer won’t strike soft shoulders, curbs,

road signs, trees, or other objects. Avoid

jerky or sudden maneuvers. Signal well in

advance.

Turn signals

When you tow a trailer, your vehicle has

to have a different turn signal flasher and

extra wiring. The green arrows on your

instrument panel will flash whenever you

signal a turn or lane change. Properly

connected, the trailer lights will also flash

to alert other drivers you’re about to turn,

change lanes, or stop.
When towing a trailer, the green arrows

on your instrument panel will flash for

turns even if the bulbs on the trailer

are burned out. Thus, you may think

drivers behind you are seeing your

signals when, in fact, they are not. It’s

important to check occasionally to be

sure the trailer bulbs are still working.

You must also check the lights every time

you disconnect and then reconnect the

wires.

WARNING

Do not connect a trailer lighting system

directly to your vehicle’s lighting

system. Use an approved trailer wiring

harness. Failure to do so could result

in damage to the vehicle electrical

system and/or personal injury. Consult

an authorized HYUNDAI dealer for

assistance.

Driving on hills

Reduce speed and shift to a lower gear

before you start down a long or steep

downgrade. If you don’t shift down, you

might have to use your brakes so much

that they would get overheated and may

not operate efficiently.
On a long uphill grade, shift down and

reduce your speed to around 45 mph (70

km/h) to reduce the possibility of engine

and transmission overheating.
If your trailer weighs more than the

maximum trailer weight without trailer

brakes and you have a automatic

transmission, you should drive in D

(Drive) when towing a trailer.
Operating your vehicle in D (Drive)

when towing a trailer will minimize heat

build-up and extend the life of your

transmission.

Driving Your Vehicle

6-64

NOTICE

To prevent engine and/or transmission

overheating:

When towing a trailer on steep

grades (in excess of 6%) pay close

attention to the engine coolant

temperature gauge to ensure the

engine does not overheat. If the

needle of the coolant temperature

gauge moves towards “H” (HOT),

pull over and stop as soon as it is

safe to do so, and allow the engine

to idle until it cools down. You may

proceed once the engine has cooled

sufficiently.

If you tow a trailer with the maximum

gross vehicle weight and maximum

trailer weight, it can cause the

engine or transmission to overheat.

When driving in such conditions,

allow the engine to idle until it cools

down. You may proceed once the

engine or transmission has cooled

sufficiently.

When towing a trailer, your vehicle

speed may be much slower than the

general flow of traffic, especially

when climbing an uphill grade. Use

the right hand lane when towing a

trailer on an uphill grade. Choose

your vehicle speed according to the

maximum posted speed limit for

vehicles with trailers, the steepness

of the grade, and your trailer weight.

Parking on hills

Generally, if you have a trailer attached

to your vehicle, you should not park your

vehicle on a hill.

However, if you ever have to park your

trailer on a hill, here’s how to do it:
1. Pull the vehicle into the parking space.

Turn the steering wheel in the

direction of the curb (right if headed

down hill, left if headed up hill).

2. Shift the gear to P (Park).
3. Set the parking brake and shut off the

vehicle.

4. Place wheel chocks under the trailer

wheels on the down hill side of the

wheels.

5. Start the vehicle, hold the brakes, shift

to neutral, release the parking brake

and slowly release the brakes until the

trailer chocks absorb the load.

6. Reapply the brakes and parking

brakes.

7. Shift the gear to P (Park) when the

vehicle is parked on a uphill grade and

in R (Reverse) on a downhill.

8. Shut off the vehicle and release the

vehicle brakes but leave the parking

brake set.

WARNING

To prevent serious or fatal injury:

Do not get out of the vehicle without

the parking brake firmly set. If you

have left the engine running, the

vehicle can move suddenly. You and

others could be seriously or fatally

injured.

Do not apply the accelerator pedal to

hold the vehicle on an uphill.

6-65

Driving the vehicle after it has been

parked on a hill

1. With the gear in P (Park), apply your

brakes and hold the brake pedal down

while you:

Start your engine;

Shift into gear; and

Release the parking brake.

2. Slowly remove your foot from the

brake pedal.

3. Drive slowly until the trailer is clear of

the chocks.

4. Stop and have someone pick up and

store the chocks.

Maintenance when Towing a

Trailer

Your vehicle will need service more

often when you regularly pull a trailer.

Important items to pay particular

attention to include engine oil,

transmission fluid, axle lubricant and

cooling system fluid. Brake condition

is another important item to frequently

check. If you’re trailering, it’s a good

idea to review these items before

you start your trip. Don’t forget to

also maintain your trailer and hitch.

Follow the maintenance schedule that

accompanied your trailer and check it

periodically. Preferably, conduct the

check at the start of each day’s driving.

Most importantly, all hitch nuts and bolts

should be tight.

NOTICE

To prevent vehicle damage:

Due to higher load during trailer

usage, overheating might occur on

hot days or during uphill driving.

If the coolant gauge indicates

over-heating, switch off the air

conditioner and stop the vehicle in a

safe area to cool down the engine.

Do not switch off the engine while

the coolant gauge indicates over-

heating.
(Keep the engine idle to cool down

the engine)

When towing check transmission

fluid more frequently.

If your vehicle is not equipped with

an air conditioner, you should install

a condenser fan to improve engine

performance when towing a trailer.

Driving Your Vehicle

6-66

VEHICLE WEIGHT

Two labels on your driver’s door sill

show how much weight your vehicle

was designed to carry: the Tire and

Loading Information Label and the

Certification Label.
Before loading your vehicle,

familiarize yourself with the

following terms for determining

your vehicle’s weight ratings, from

the vehicle’s specifications and the

Certification Label:

Base Curb Weight

This is the weight of the vehicle

including a full tank of fuel and

all standard equipment. It does

not include passengers, cargo, or

optional equipment.

Vehicle Curb Weight

This is the weight of your new

vehicle when you picked it up from

your dealer plus any aftermarket

equipment.

Cargo Weight

This figure includes all weight added

to the Base Curb Weight, including

cargo and optional equipment.

GAW (Gross Axle Weight)

This is the total weight placed on

each axle (front and rear) - including

vehicle curb weight and all payload.

GAWR (Gross Axle Weight Rating)

This is the maximum allowable

weight that can be carried by a single

axle (front or rear). These numbers

are shown on the Certification Label.

The total load on each axle must

never exceed its GAWR.

GVW (Gross Vehicle Weight)

This is the Base Curb Weight

plus actual Cargo Weight plus

passengers.

GVWR (Gross Vehicle Weight

Rating)

This is the maximum allowable

weight of the fully loaded vehicle

(including all options, equipment,

passengers and cargo). The GVWR

is shown on the Certification Label

located on the driver’s door sill.

6-67

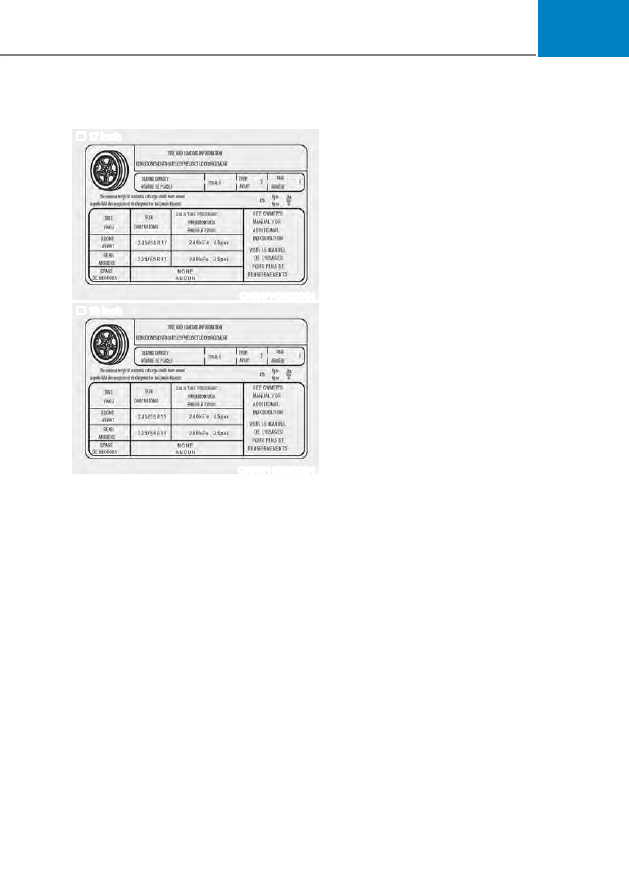

The Loading Information Label

17 inch

ONX4PH062001N

19 inch

ONX4PH062002N

The label located on the driver’s door

sill gives the original tire size, cold

tire pressures recommended for your

vehicle, the number of people that

can be in your vehicle and vehicle

capacity weight.

Vehicle capacity weight

5 persons : 926 lbs. (420 kg)
Vehicle capacity weight is the

maximum combined weight of

occupants and cargo. If your

vehicle is equipped with a trailer,

the combined weight includes the

tongue load.

Seating capacity

Total : 5 persons (Front seat : 2

persons, Rear seat : 3 persons)
Seating capacity is the maximum

number of occupants including

a driver, your vehicle may carry.

However, the seating capacity may

be reduced based upon the weight

of all of the occupants, and the

weight of the cargo being carried or

towed. Do not overload the vehicle

as there is a limit to the total weight,

or load limit including occupants and

cargo, the vehicle can carry.

Towing capacity

With brake system: 2,000 lbs.

(907 kg)
Without brake system: 1,653 lbs.

(750 kg)
Towing capacity is the maximum

trailer weight including its cargo

weight, your vehicle can tow.

Cargo capacity

The cargo capacity of your vehicle

will increase or decrease depending

on the weight and the number of

occupants and the tongue load,

if your vehicle is equipped with a

trailer.

Driving Your Vehicle

6-68

Steps for determining correct load

limit

1. Locate the statement "The

combined weight of occupants

and cargo should never exceed

XXX kg or XXX lbs." on your

vehicle's placard.

2. Determine the combined weight

of the driver and passengers that

will be riding in your vehicle.

3. Subtract the combined weight of

the driver and passengers from

XXX kg or XXX lbs.

4. The resulting figure equals

the available amount of cargo

and luggage load capacity. For

example, if the "XXX" amount

equals 1400 lbs. and there will

be five 150 lb passengers in your

vehicle, the amount of available

cargo and luggage load capacity

is 650 lbs. (1400 - 750 (5 x 150) =

650 lbs.)

5. Determine the combined weight

of luggage and cargo being

loaded on the vehicle. That

weight may not safely exceed the

available cargo and luggage load

capacity calculated in Step 4.

6. If your vehicle will be towing a

trailer, load from your trailer will

be transferred to your vehicle.

Consult this manual to determine

how this reduces the available

cargo and luggage load capacity

of your vehicle.

WARNING

Do not overload the vehicle as

there is a limit to the total weight,

or load limit, including occupants

and cargo, the vehicle can carry.

Overloading can shorten the life

of the vehicle. If the GVWR or

the GAWR is exceeded, parts on

the vehicle can be break, and it

can change the handling of your

vehicle. These could cause you

to lose control and result in an

accident.

6-69

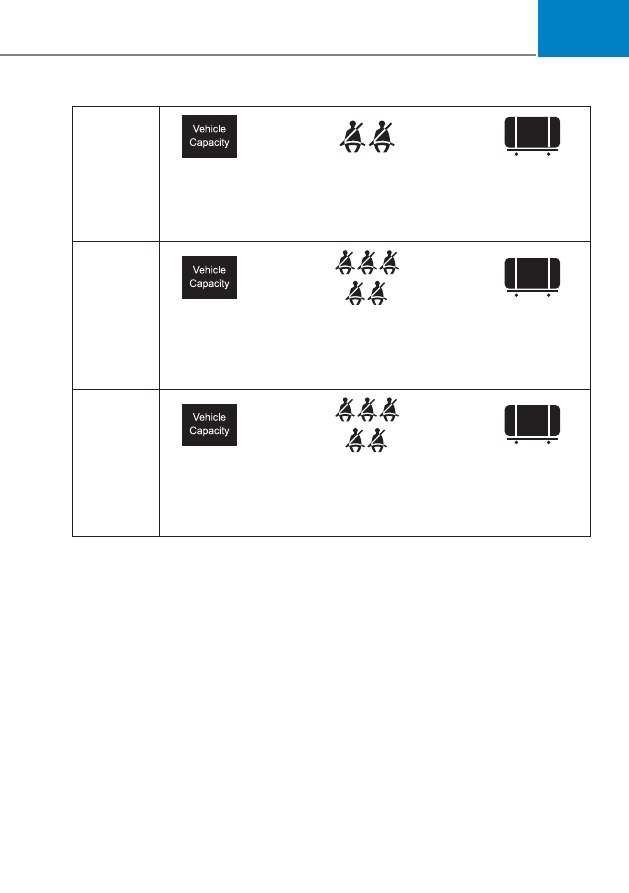

Example 1

Maximum

Load

(1400 lbs.)

(635 kg)

Passenger Weight

(150 lbs. × 2 = 300 lbs.)

(68 kg × 2 = 136 kg)

Cargo Weight

(1100 lbs.)

(499 kg)

Example 2

Maximum

Load

(1400 lbs.)

(635 kg)

Passenger Weight

(150 lbs. × 5 = 750 lbs.)

(68 kg × 5 = 340 kg)

Cargo Weight

(650 lbs.)

(295 kg)

Example 3

Maximum

Load

(1400 lbs.)

(635 kg)

Passenger Weight

(172 lbs. × 5 = 860 lbs.)

(78 kg × 5 = 390 kg)

Cargo Weight

(540 lbs.)

(245 kg)

Driving Your Vehicle

6-70

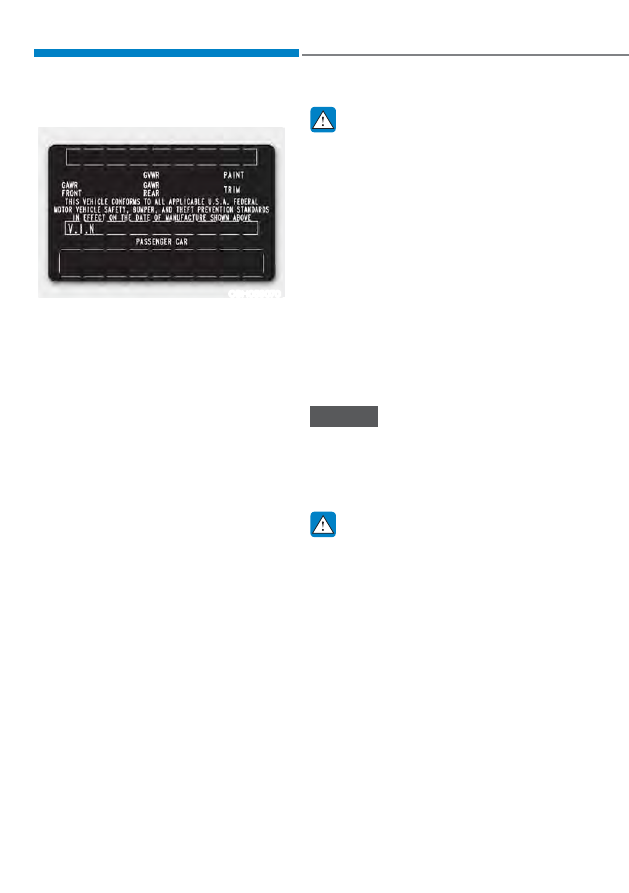

Certification label

OBH059070

The certification label is located on

the driver's door sill at the center

pillar and shows the maximum

allowable weight of the fully loaded

vehicle. This is called the GVWR

(Gross Vehicle Weight Rating). The

GVWR includes the weight of the

vehicle, all occupants, fuel and

cargo.
This label also tells you the maximum

weight that can be supported by the

front and rear axles, called Gross

Axle Weight Rating (GAWR).
The total weight of the vehicle,

including all occupants, accessories,

cargo, and trailer tongue load must

not exceed the Gross Vehicle Weight

Rating (GVWR) or the Gross Axle

Weight Rating (GAWR). To find out

the actual loads on your front and

rear axles, you need to go to a weigh

station and weigh your vehicle. Be

sure to spread out your load equally

on both sides of the centerline.

WARNING

Overloading

Never exceed the GVWR for your

vehicle, the GAWR for either the

front or rear axle and vehicle

capacity weight. Exceeding these

ratings can affect your vehicle's

handling and braking ability, and

cause an accident.

Do not overload your vehicle.

Overloading your vehicle can

cause heat buildup in your

vehicle's tires and possible

tire failure, increased stopping

distances and poor vehicle

handling-all of which may result

in a crash.

NOTICE

Overloading your vehicle may cause

damage. Repairs would not be

covered by your warranty. Do not

overload your vehicle.

WARNING

If you carry items inside your

vehicle (for example, suitcases,

tools, packages, or anything else),

they are moving as fast as the

vehicle. If you have to stop or turn

quickly, or if there is a crash, the

items will keep going and can cause

an injury if they strike the driver or a

passenger.

Put items in the cargo area of

your vehicle. Try to spread the

weight evenly.

Do not stack items like suitcases

inside the vehicle above the tops

of the seats.

Do not leave an unsecured child

restraint in your vehicle.

When you carry something inside

the vehicle, secure it.

Driving Safety

Forward Collision–Avoidance Assist (FCA) (Front view camera only) .................... 7-2

Forward Collision–Avoidance Assist (FCA) (Sensor fusion) ...................................7-15

Lane Keeping Assist (LKA) ....................................................................................... 7-32

Blind-Spot Collision-Avoidance Assist (BCA) ......................................................... 7-38

Safe Exit Warning (SEW) .......................................................................................... 7-52

Manual Speed Limit Assist (MSLA) .........................................................................7-58

Intelligent Speed Limit Assist (ISLA) ........................................................................7-61

Driver Attention Warning (DAW) .............................................................................7-66

Blind-Spot View Monitor (BVM) ...............................................................................7-72

Driving Convenience

Cruise Control (CC) ...................................................................................................7-74

Smart Cruise Control (SCC)..................................................................................... 7-78

Navigation-based Smart Cruise Control (NSCC) ...................................................7-95

Lane Following Assist (LFA) ....................................................................................7-102

Highway Driving Assist (HDA) ............................................................................... 7-106

Parking Safety

Rear View Monitor (RVM) ........................................................................................7-113

Surround View Monitor (SVM) ............................................................................... 7-116

Rear Cross-Traffic Collision-Avoidance Assist (RCCA) .........................................7-122

Reverse Parking Distance Warning (PDW) ............................................................7-134

Forward/Reverse Parking Distance Warning (PDW) ...........................................7-138

Reverse Parking Collision-Avoidance Assist (PCA) ..............................................7-143

Parking Convenience

Remote Smart Parking Assist (RSPA) .....................................................................7-151

Declaration of Conformity ...........................................................................................7-164

7. Driver Assistance System

Due to the infotainment software version, the description of each function of the driver assistance

system may differ from the owner's manual. In this case, for detailed information on updates, scan

the QR code in the separately supplied simple manual.

Driver Assistance System

7-2

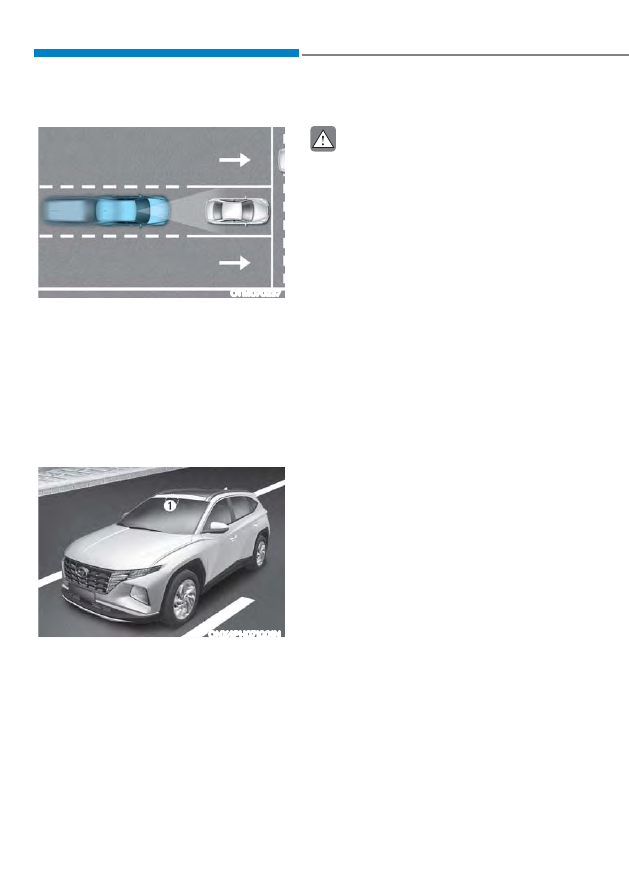

OTM070237

Forward Collision-Avoidance Assist

detects a vehicle, a pedestrian, or a

cyclist ahead on the road and may warn

you of a possible collision with a warning

message on the instrument cluster and a

warning sound. Also, Forward Collision-

Avoidance Assist may assist with braking

your vehicle to help reduce collision

speed or avoid a collision.

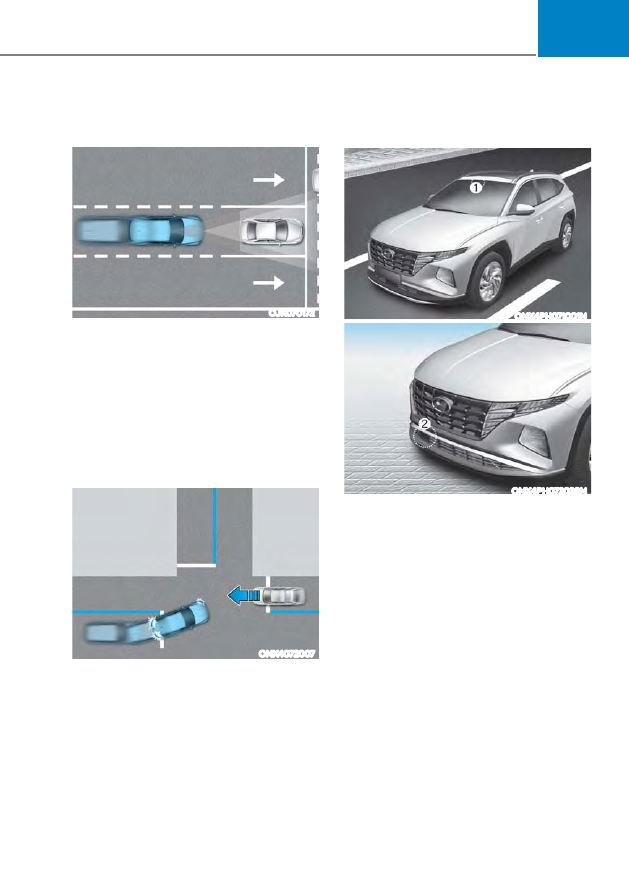

Detecting sensor

ONX4PH071001N

[1] : Front view camera

Refer to the picture above for the

detailed location of the detecting sensor.

CAUTION

Take the following precautions to

maintain optimal performance of the

detecting sensor:

Never disassemble the detecting

sensor or sensor assembly, or apply

any impact on it.

If the detecting sensor have been

replaced or repaired, have your

vehicle inspected by an authorized

HYUNDAI dealer.

Never install any accessories or

stickers on the front windshield, or

tint the front windshield.

Exercise extreme caution to keep the

front view camera dry.

Never place any reflective objects

(for example, white paper, mirror)

over the dashboard.

Do not place any objects near the

front windshield or install any

accessories on the front windshield

as it can affect the performance

of the defogging and defrosting

function of the climate control

system, which may prevent the

Driver assistance systems from

operating.

)25:$5'&2//,6,21Ǚ$92,'$1&($66,67ǣ)&$Ǥ

ǣ)52179,(:&$0(5$21/<Ǥǣ,)(48,33('Ǥ

7-3

Forward Collision-Avoidance

Assist Settings

Setting features

OTM070090N

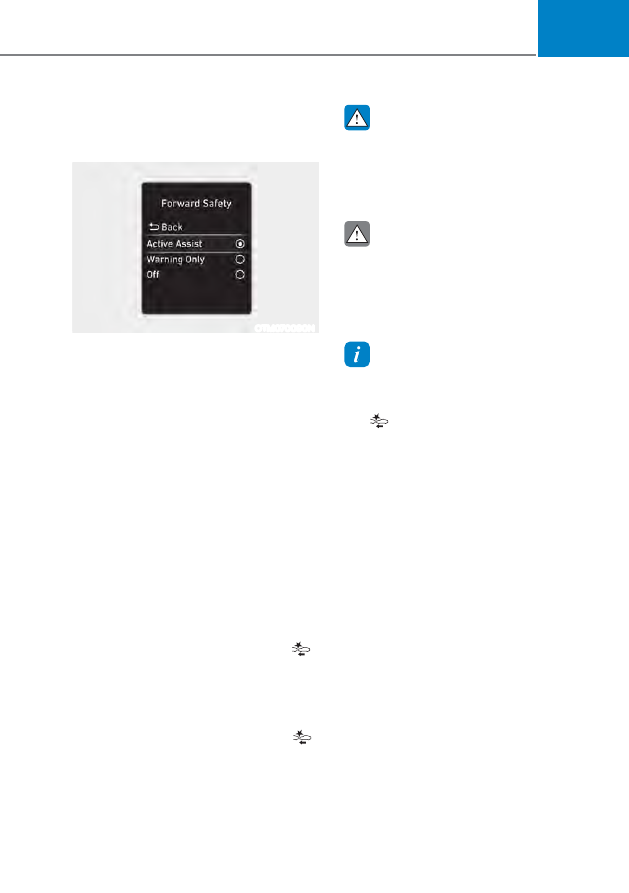

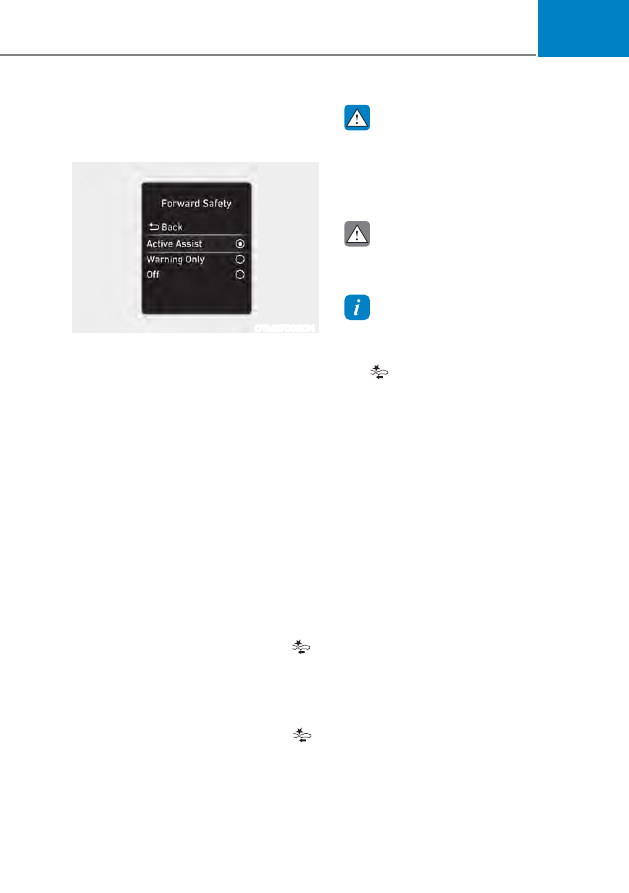

Forward Safety

With the engine on, select or deselect

œ'ULYHU$VVLVWDQFHƟ)RUZDUG6DIHW\ŔIURP

the Settings menu to set whether or not

to use each function.

,Iœ$FWLYH$VVLVWŔLVVHOHFWHG)RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking assist

will be applied depending on the

collision risk.

,Iœ:DUQLQJ2QO\ŔLVVHOHFWHG)RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking will

not be assisted. The driver must apply

the brake pedal if necessary.

,Iœ2IIŔLVVHOHFWHG)RUZDUG&ROOLVLRQ

Avoidance Assist will turn off. The

warning light will illuminate on the

cluster.

The driver can monitor Forward

Collision-Avoidance Assist ON/OFF

status from the Settings menu. If the

warning light remains ON when Forward

Collision-Avoidance Assist is ON, have

the vehicle inspected by an HYUNDAI

dealer.

WARNING

When the engine is restarted, Forward

Collision-Avoidance Assist will always

turn on. However, if ‘Off’ is selected, the

driver should always be aware of the

surroundings and drive safely.

CAUTION

If ‘Warning Only’ is selected, braking is

not assisted.

Information

Forward Collision-Avoidance Assist
will turn off when ESC is turned off by
pressing and holding the ESC OFF button.
The

warning light will illuminate on

the cluster.

Driver Assistance System

7-4

OTM070140N

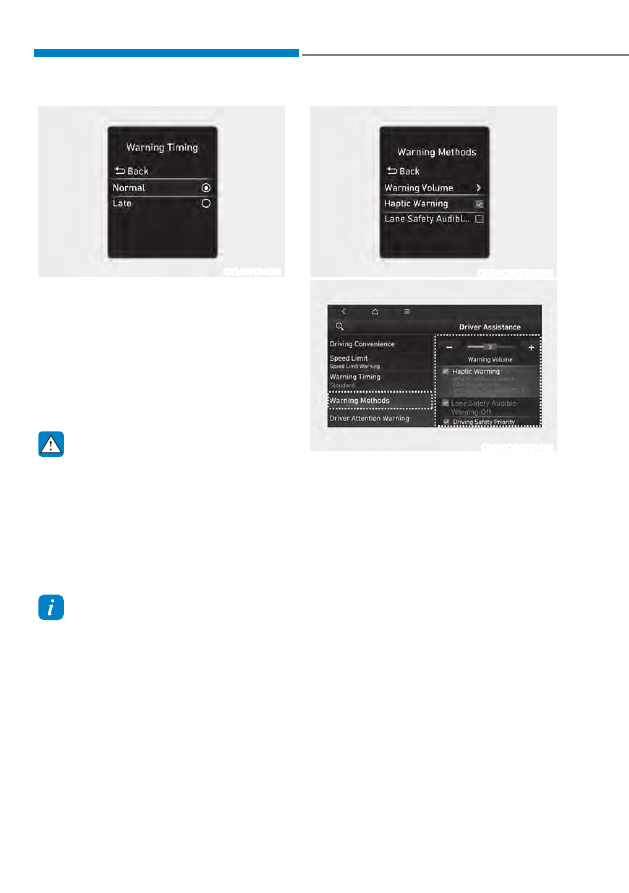

Warning Timing

With the ignition switch ON, go to ‘User

6HWWLQJVƟ'ULYHU$VVLVWDQFHƟ:DUQLQJ
7LPLQJIRUFOXVWHUW\SHŔRUœ6HWXSƟ
9HKLFOHƟ'ULYHU$VVLVWDQFHƟ:DUQLQJ
7LPLQJIRULQIRWDLQPHQWV\VWHPW\SHŔ

from the Settings menu to change the

initial warning activation time. Warning

Timing is set to Normal at the factory.

WARNING

Even though ‘Normal’ is selected for

Warning Timing if the vehicle ahead

of you suddenly stops, the initial

warning activation time may seem

late.

Select ‘Late’ for Warning Timing

when traffic is light and your vehicle

speed is slow.

Information

When the engine is restarted, the Warning
Timing maintains its last setting.

ONX4OB073097N

ONX4OB073141N

Warning Methods

The Warning Methods can be set with

WKHYHKLFOHRQ6HOHFWœ8VHU6HWWLQJVƟ
'ULYHU$VVLVWDQFHƟ:DUQLQJ0HWKRGVŔ

from the settings menu in the instrument

FOXVWHURUœ6HWXSƟ9HKLFOHƟ'ULYHU
$VVLVWDQFHƟ:DUQLQJ0HWKRGVŔIURP

the settings menu in the infotainment

system to change the following settings.

Warning Volume

: Adjusts the volume

of the warning sound.
Even if you set the warning volume

WRœ2IIŔRUœŔWKHZDUQLQJVRXQGZLOO
VRXQGDWWKHYROXPHVHWWRœ/RZŔRUœŔ

(if equipped)

Haptic Warning

: Activate the steering

wheel vibration warning. (if equipped)

Driving Safety Priority

: Lowers all

other audio volumes when the Driving

Safety system sounds a warning. (for

infotainment system type)

7-5

Information

If you change the Warning Methods, it
can be applied to each function of the
driver assistance system. Please check
and change it in each function.

If the vehicle is restarted, Warning
Methods will maintain the last setting.

The setting menu may not exist based
on vehicle specification.

If you turn off the haptic warning when
the warning volume is ‘Off’ or ‘0’, the
warning volume will turn on and will
be set to ‘Medium’ or ‘2’.

If you set the warning volume to ‘Off’
or ‘0’ when the haptic warning is off,
the haptic warning will turn on.

Forward Collision-Avoidance

Assist Operation

Warning and control

Forward Collision-Avoidance Assist is

to help warn and control the vehicle

depending on collision risk level:

œ&ROOLVLRQ:DUQLQJŔœ(PHUJHQF\%UDNLQJŔ

and ‘Stopping vehicle and ending brake

FRQWUROŔ

ONX4072103N

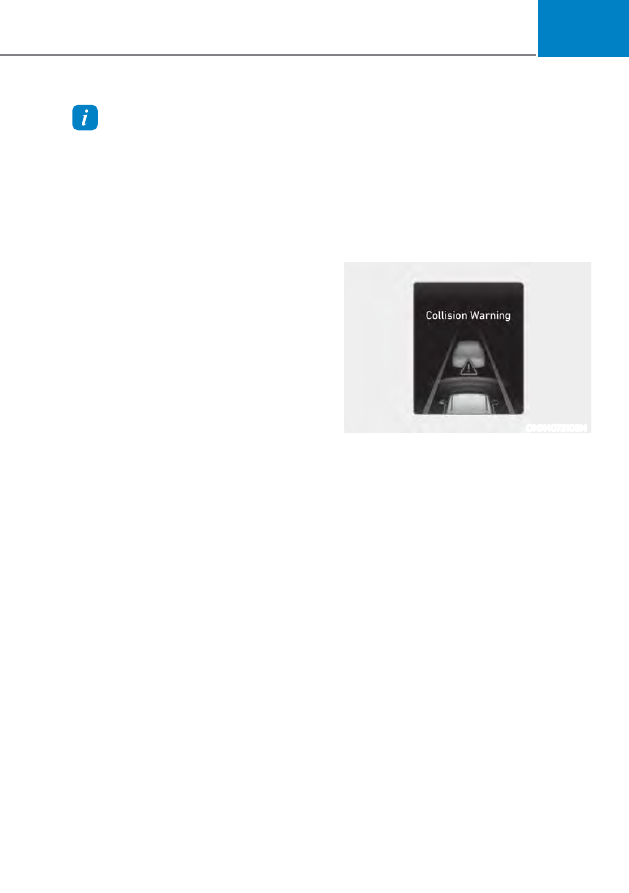

Collision Warning

To warn the driver of a collision, the

œ&ROOLVLRQ:DUQLQJŔZDUQLQJPHVVDJH

will appear on the cluster and an

audible warning sound and haptic

feedback of the steering wheel (if

equipped).

If a vehicle is detected in front,

the function will operate when

your vehicle speed is between

approximately 6~112 mph (10~180

km/h).

If a pedestrian or cyclist is detected

in front, the function will operate

when your vehicle speed is between

approximately 6~49 mph (10~80

km/h).

ś ,Iœ$FWLYH$VVLVWŔLVVHOHFWHGEUDNLQJ

may be assisted.

Driver Assistance System

7-6

ONX4E070002

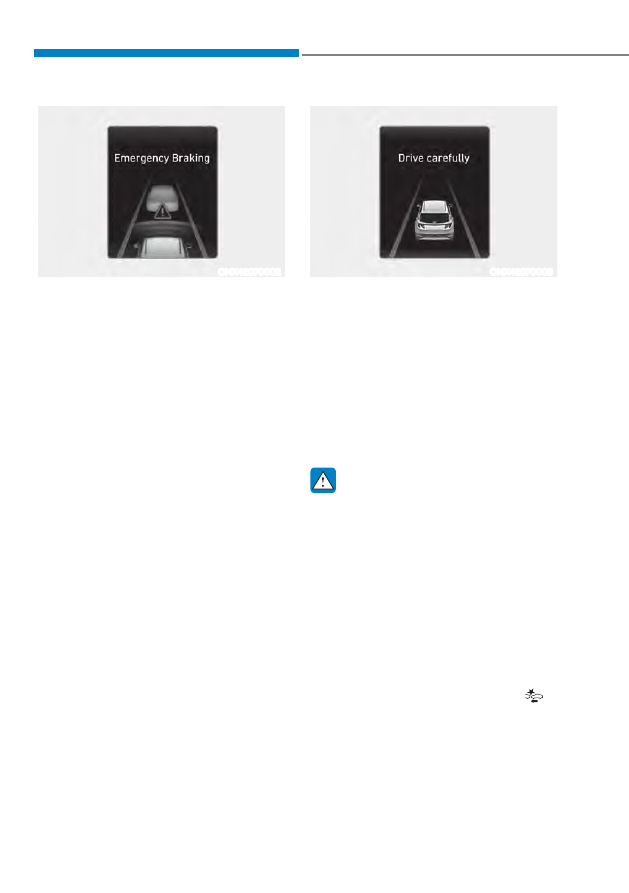

Emergency Braking

To warn the driver that emergency

braking will occur, the ‘Emergency

%UDNLQJŔZDUQLQJPHVVDJHZLOODSSHDU

on the cluster and an audible warning

sound and haptic feedback of the

steering wheel (if equipped).

If a vehicle is detected in front,

the function will operate when

your vehicle speed is between

approximately 6~37 mph (10~60

km/h).

If a pedestrian or cyclist is detected

in front, the function will operate

when your vehicle speed is between

approximately 6~37 mph (10~60

km/h).

In an emergency braking situation,

braking is assisted with strong braking

power by the function to help prevent

a collision with the vehicle, pedestrian

or cyclist ahead.

ONX4E070003

Stopping vehicle and ending brake control

When the vehicle is stopped due

to emergency braking, the ‘Drive

FDUHIXOO\ŔZDUQLQJPHVVDJHZLOO

appear on the cluster.
For your safety, the driver should

depress the brake pedal immediately

and check the surroundings.

Brake control will end after the vehicle

is stopped by emergency braking for

approximately 2 seconds.

WARNING

Take the following precautions when

using Forward Collision-Avoidance

Assist:

For your safety, only change the

Settings after parking the vehicle at a

safe location.

With ‘Active Assist’ or ‘Warning Only’

selected, when ESC is turned off by

pressing and holding the ESC OFF

button, Forward Collision-Avoidance

Assist will turn off automatically.

In this case, Forward Collision-

Avoidance Assist cannot be set

from the Settings menu and the

warning light will illuminate on the

cluster which is normal. If ESC is

turned on by pressing the ESC OFF

button, Forward Collision-Avoidance

Assist will maintain the last setting.

Forward Collision-Avoidance Assist

does not operate in all situations and

cannot avoid all collisions.

7-7

The driver has the responsibility to

control the vehicle. Do not solely

depend on Forward Collision-

Avoidance Assist. Rather, maintain

a safe braking distance, and, if

necessary, depress the brake pedal

to reduce driving speed or to stop

the vehicle.

Never deliberately operate Forward

Collision-Avoidance Assist on people,

objects, etc. It may cause serious

injury or death.

Forward Collision-Avoidance

Assist may not operate if the driver

depresses the brake pedal to avoid

collision.

Depending on the road and driving

conditions, Forward Collision-

Avoidance Assist may warn the driver

late or may not warn the driver.

During Forward Collision-Avoidance

Assist operation, the vehicle may

stop suddenly injuring passengers

and shifting loose objects. Always

have the seat belt on and keep loose

objects secured.

If any other system’s warning

message is displayed or audible

warning is generated, Forward

Collision-Avoidance Assist warning

message may not be displayed

and audible warning may not be

generated.

You may not hear the warning sound

of Forward Collision-Avoidance

Assist if the surroundings are noisy.

Forward Collision-Avoidance

Assist may turn off or may not

operate properly or may operate

unnecessarily depending on the road

conditions and the surroundings.

WARNING

Even if there is a problem with

Forward Collision-Avoidance

Assist, the vehicle’s basic braking

performance will operate normally.

During emergency braking, braking

control by Forward Collision-

Avoidance Assist will automatically

cancel when the driver excessively

depresses the accelerator pedal or

sharply steers the vehicle.

CAUTION

Depending on the condition of the

vehicle, pedestrian and cyclist in front

and the surroundings, the speed range

to operate Forward Collision-Avoidance

Assist may reduce. Forward Collision-

Avoidance Assist may only warn the

driver, or it may not operate.

Information

In a situation where collision is
imminent, braking may be assisted by
Forward Collision-Avoidance Assist
when braking is insufficient by the
driver.

The images and colors in the
instrument cluster may differ
depending on the cluster type or theme
selected from the instrument cluster.

Driver Assistance System

7-8

Forward Collision-Avoidance

Assist Malfunction and

Limitations

Forward Collision-Avoidance Assist

malfunction

OTM070094N

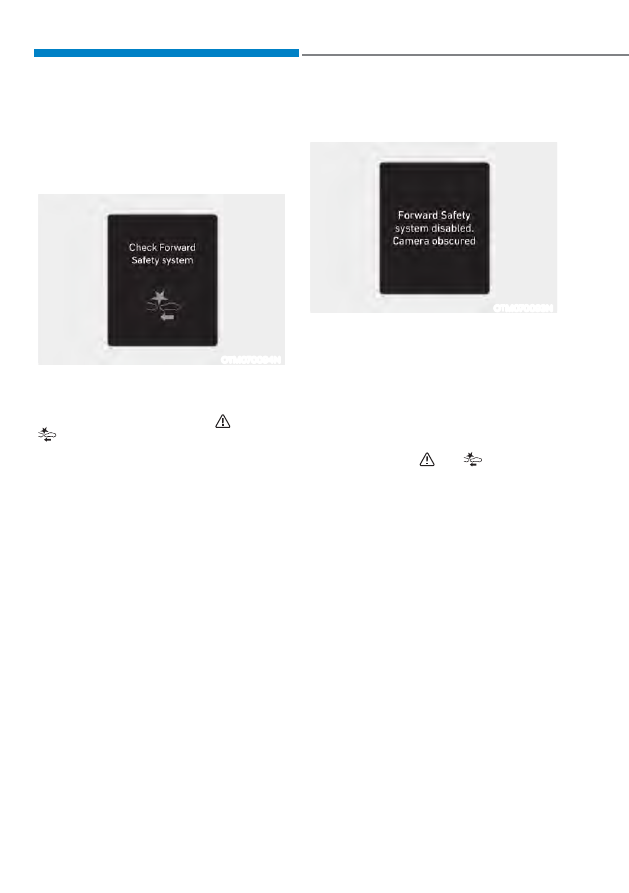

When Forward Collision-Avoidance

Assist is not working properly, the ‘Check

)RUZDUG6DIHW\V\VWHPVŔZDUQLQJ

message will appear, and the and

warning lights will illuminate on the

cluster. Have the vehicle inspected by an

authorized HYUNDAI dealer.

Forward Collision-Avoidance Assist

disabled

OTM070093N

When the front windshield where the

front view camera is located or the

sensor is covered with foreign material,

such as snow or rain, it can reduce the

detecting performance and temporarily

limit or disable Forward Collision-

Avoidance Assist.
If this occurs the ‘Forward Safety system

GLVDEOHG&DPHUDREVFXUHGŔZDUQLQJ

message, and the and

warning

lights will illuminate on the cluster.
Forward Collision-Avoidance Assist will

operate normally when such snow, rain

or foreign material is removed.
If Forward Collision-Avoidance Assist

does not operate normally after

obstruction (snow, rain, or foreign

material) is removed, have the vehicle

inspected by an authorized HYUNDAI

dealer.

7-9

WARNING

Even though the warning message or

warning light does not appear on the

cluster, Forward Collision-Avoidance

Assist may not properly operate.

Forward Collision-Avoidance Assist

may not properly operate in an area

(for example, open terrain), where

any substance are not detected after

turning ON the engine.

If the engine is turned off and

restarted while the camera is

blocked or malfunctioned, the

condition is maintained. Therefore,

Forward Collision-Avoidance Assist

may not operate properly.

Limitations of Forward Collision-

Avoidance Assist

Forward Collision-Avoidance Assist may

not operate normally, or it may operate

unexpectedly under the following

circumstances:

The detecting sensor or the

surroundings are contaminated or

damaged

The temperature around the front

view camera is high or low

The camera lens is contaminated due

to tinted, filmed or coated windshield,

damaged glass, or foreign material

(sticker, bug, etc.) on the glass

Moisture is not removed or frozen on

the windshield

Washer fluid is continuously sprayed,

or the wiper is on

Driving in heavy rain or snow, or thick

fog

The field of view of the front view

camera is obstructed by sun glare

Street light or light from an oncoming

vehicle is reflected on the wet road

surface, such as a puddle on the road

An object is placed on the dashboard

Your vehicle is being towed

The surrounding is very bright

The surrounding is very dark, such as

in a tunnel, etc.

The brightness changes suddenly, for

example when entering or exiting a

tunnel

The brightness outside is low, and the

headlights are not on or are not bright

Driving through steam, smoke or

shadow

Only part of the vehicle, pedestrian or

cyclist is detected

The vehicle in front is a bus, heavy

truck, truck with an unusually shaped

luggage, trailer, etc.

The vehicle in front has no tail lights,

tail lights are located unusually, etc.

The brightness outside is low, and the

tail lamps are not on or are not bright

The rear of the front vehicle is small

or the vehicle does not look normal,

such as when the vehicle is tilted,

overturned, or the side of the vehicle

is visible, etc.

ś 7KHIURQWYHKLFOHŔVJURXQGFOHDUDQFHLV

low or high

A vehicle, pedestrian or cyclist

suddenly cuts in front

The vehicle in front is detected late

The vehicle in front is suddenly

blocked by an obstacle

The vehicle in front suddenly changes

lane or suddenly reduces speed

The vehicle in front is bent out of

shape

The vehicle in front is covered with

snow

Driver Assistance System

7-10

You are departing or returning to the

lane

Unstable driving

You are on a roundabout and the

vehicle in front is not detected

You are continuously driving in a circle

The vehicle in front has an unusual

shape

The vehicle in front is driving uphill or

downhill

The pedestrian or cyclist is not

fully detected, for example, if the

pedestrian is leaning over or is not

fully walking upright

The pedestrian or cyclist is wearing

clothing or equipment that makes it

difficult to detect

OADAS044

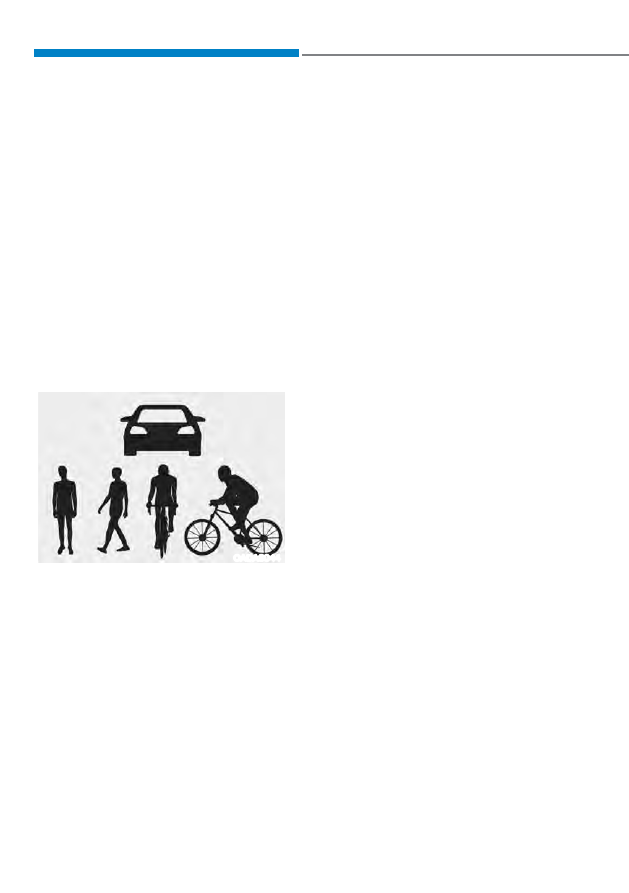

The illustration above shows the image

the front view camera is capable of as a

vehicle, pedestrian and cyclist.

The pedestrian or cyclist in front is

moving very quickly

The pedestrian or cyclist in front is

short or is posing a low posture

The pedestrian or cyclist in front has

impaired mobility

The pedestrian or cyclist in front is

moving intersected with the driving

direction

There is a group of pedestrians,

cyclists or a large crowd in front

The pedestrian or cyclist is wearing

clothing that easily blends into the

background, making it difficult to

detect

The pedestrian or cyclist is difficult to

distinguish from the similar shaped

structure in the surroundings

You are driving by a pedestrian,

cyclist, traffic signs, structures, etc.

near the intersection

Driving in a parking lot

Driving through a tollgate,

construction area, unpaved road,

partial paved road, uneven road,

speed bumps, etc.

Driving through a roadside with trees

or streetlights

The adverse road conditions cause

excessive vehicle vibrations while

driving

Your vehicle height is low or high

due to heavy loads, abnormal tire

pressure, etc.

Driving through a narrow road where

trees or grass are overgrown

There is interference by

electromagnetic waves, such as

driving in an area with strong radio

waves or electrical noise

7-11

WARNING

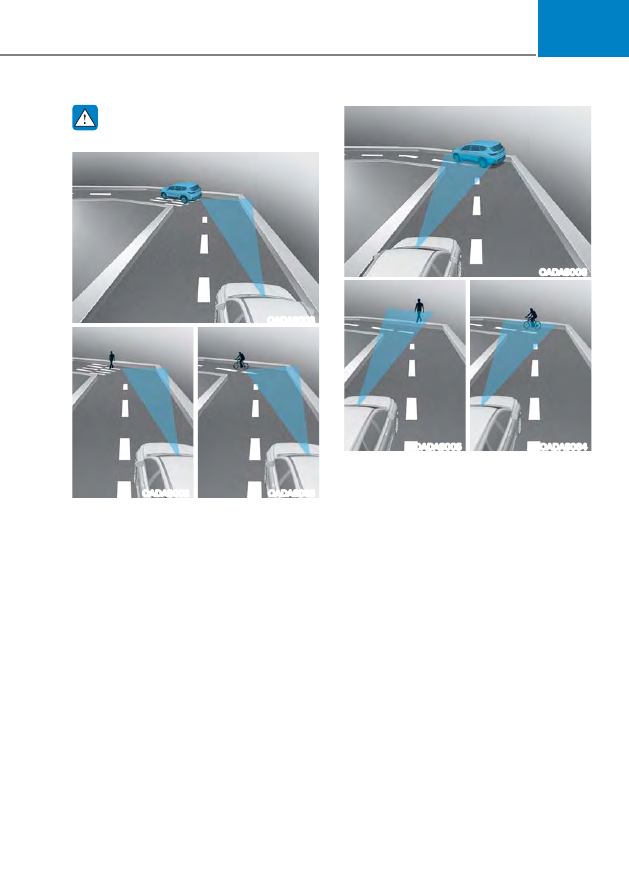

Driving on a curved road

OADAS003

OADAS002

OADAS063

Forward Collision-Avoidance Assist

may not detect other vehicles

or pedestrians in front of you on

curved roads adversely affecting the

performance of the sensors. This may

result in no warning or braking assist

when necessary.
When driving on a curved road,

you must maintain a safe braking

distance, and if necessary, steer the

vehicle and depress the brake pedal

to reduce your driving speed in order

to maintain a safe distance.

OADAS006

OADAS005

OADAS064

Forward Collision-Avoidance Assist

may detect a vehicle, pedestrian or

cyclist in the next lane or outside the

lane when driving on a curved road.
If this occurs, Forward Collision-

Avoidance Assist may unnecessarily

warn the driver and control the

brake. Always check the traffic

conditions around the vehicle.

Driver Assistance System

7-12

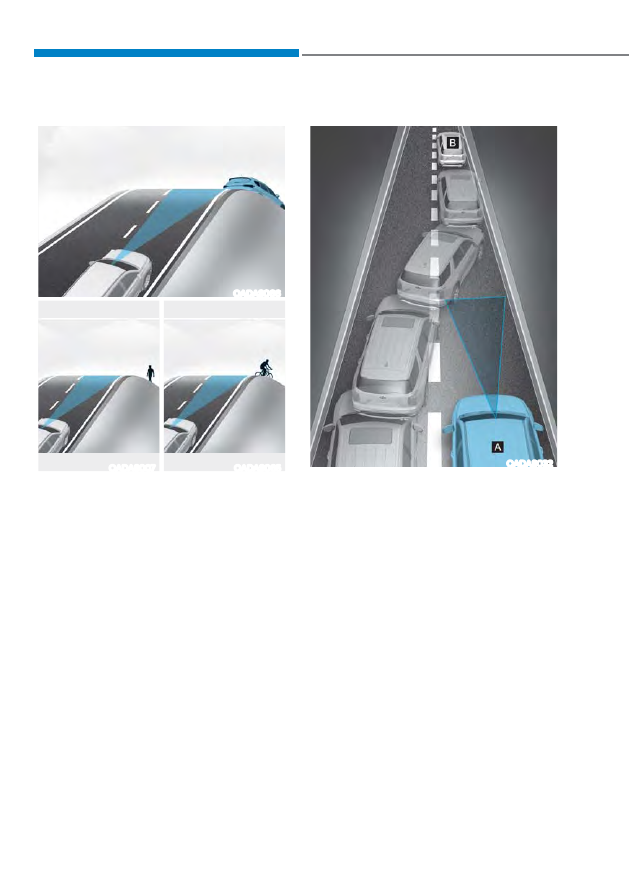

Driving on an inclined road

OADAS066

OADAS007

OADAS065

Forward Collision-Avoidance Assist

may not detect other vehicles,

pedestrians or cyclists in front of

you while driving uphill or downhill

adversely affecting the performance

of the sensors.
This may result in unnecessary

warning or braking assist, or no

warning or braking assist when

necessary.
Also, vehicle speed may rapidly

decrease when a vehicle, pedestrian

or cyclist ahead is suddenly

detected.
Always have your eyes on the road

while driving uphill or downhill and

if necessary, steer the vehicle and

depress the brake pedal to reduce

your driving speed in order to

maintain a safe distance.

Changing lanes

OADAS032

[A] : Your vehicle, [B] : Lane changing vehicle

When a vehicle moves into your lane

from an adjacent lane, it cannot

be detected by the sensor until it

is in the sensor's detection range.

Forward Collision-Avoidance Assist

may not immediately detect the

vehicle when the vehicle changes

lanes abruptly. In this case, you must

maintain a safe braking distance,

and if necessary, steer the vehicle

and depress the brake pedal to

reduce your driving speed in order to

maintain a safe distance.

7-13

OADAS033

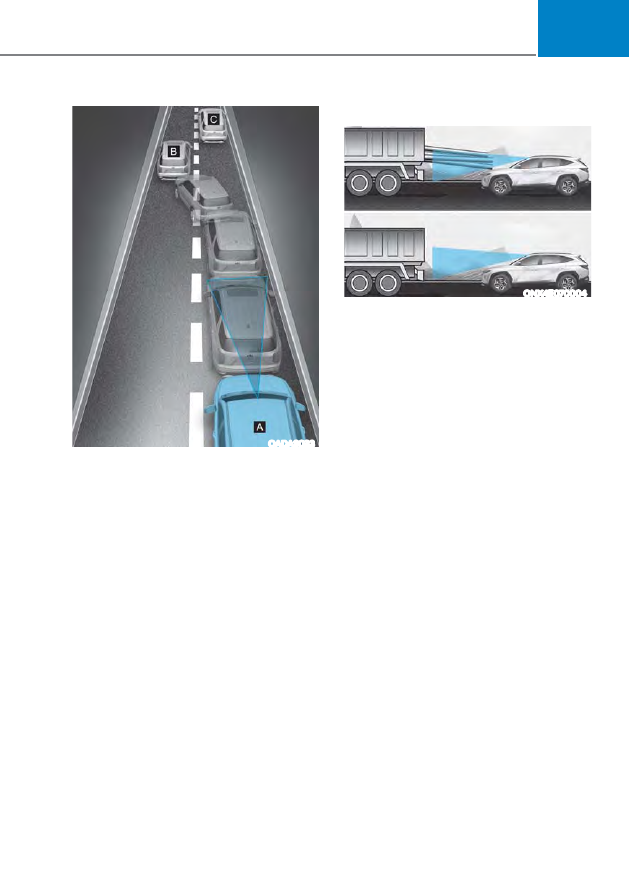

[A] : Your vehicle, [B] : Lane changing vehicle,
[C] : Same lane vehicle

When a vehicle in front of you

merges out of the lane, Forward

Collision-Avoidance Assist may not

immediately detect the vehicle that

is now in front of you.
In this case, you must maintain a safe

braking distance, and if necessary,

steer the vehicle and depress the

brake pedal to reduce your driving

speed in order to maintain a safe

distance.

Detecting vehicle

ONX4E070004

If the vehicle in front of you has

cargo that extends rearward from

the cab, or when the vehicle in front

of you has higher ground clearance,

additional special attention is

required. Forward Collision-

Avoidance Assist may not be able

to detect the cargo extending from

the vehicle. In these instances,

you must maintain a safe braking

distance from the rearmost object,

and if necessary, steer the vehicle

and depress the brake pedal to

reduce your driving speed in order to

maintain distance.

Driver Assistance System

7-14

WARNING

When you are towing a trailer or

another vehicle, turn off Forward

Collision-Avoidance Assist for safety

reasons.

Forward Collision-Avoidance Assist

may operate if objects that are

similar in shape or characteristics to

vehicles, pedestrians and cyclists are

detected.

Forward Collision-Avoidance Assist

does not operate on bicycles,

motorcycles, or smaller wheeled

objects, such as luggage bags,

shopping carts, or strollers.

Forward Collision-Avoidance

Assist may not operate normally if

interfered by strong electromagnetic

waves.

Forward Collision-Avoidance Assist

may not operate for 15 seconds after

the vehicle is started, or the front

view camera is initialized.

7-15

)25:$5'&2//,6,21Ǚ$92,'$1&($66,67ǣ)&$Ǥǣ6(1625
)86,21Ǥǣ,)(48,33('Ǥ

Basic function

OJK070172

Forward Collision-Avoidance Assist

detects a vehicle, a pedestrian, or a

cyclist ahead on the road and may warn

you of a possible collision with a warning

message on the instrument cluster and a

warning sound. Also, Forward Collision-

Avoidance Assist may assist with braking

your vehicle to help reduce collision

speed or avoid a collision.

Junction Turning function

ONX4072007

Junction Turning function will help avoid

a collision with an oncoming vehicle in

an adjacent lane when turning left at

a crossroad with the turn signal on by

applying emergency braking.

Detecting sensor

ONX4PH071001N

ONX4PH072028N

[1]: Front view camera, [2]: Front radar

Refer to the picture above for the

detailed location of the detecting

sensors.

Driver Assistance System

7-16

CAUTION

Take the following precautions to

maintain optimal performance of the

detecting sensor:

Never disassemble the detecting

sensor or sensor assembly, or apply

any impact on it.

If the detecting sensors have been

replaced or repaired, have the

vehicle inspected by an authorized

HYUNDAI dealer.

Never install any accessories or

stickers on the front windshield, or

tint the front windshield.

Exercise extreme caution to keep the

front view camera dry.

Never place any reflective objects

(for example, white paper, mirror)

over the dashboard.

Do not place any objects near the

front windshield or install any

accessories on the front windshield

as it can affect the performance

of the defogging and defrosting

function of the climate control

system, which may prevent the

Driver Assistance systems from

operating.

Do not apply license plate frame or

objects, such as a bumper sticker,

film or a bumper guard, near the

front radar cover.

Always keep the front radar and

cover clean and free of dirt and

debris.
Use only a soft cloth to wash the

vehicle. Do not spray pressurized

water directly on the sensor or

sensor cover.

If unnecessary force has been

applied to the radar or around the

radar, Forward Collision-Avoidance

Assist may not properly operate even

though a warning message does

not appear on the cluster. Have the

vehicle inspected by an authorized

HYUNDAI dealer.

Use only genuine parts to repair or

replace a damaged front radar cover.

Do not apply paint to the front radar

cover.

7-17

Forward Collision-Avoidance

Assist Settings

Setting features

OTM070090N

Forward Safety

With the engine on, select or deselect

œ'ULYHU$VVLVWDQFHƟ)RUZDUG6DIHW\ŔIURP

the Settings menu to set whether or not

to use each function.

,Iœ$FWLYH$VVLVWŔLVVHOHFWHG)RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking assist

will be applied depending on the

collision risk.

,Iœ:DUQLQJ2QO\ŔLVVHOHFWHG)RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking will

not be assisted. The driver must apply

the brake pedal if necessary.

,Iœ2IIŔLVVHOHFWHG)RUZDUG&ROOLVLRQ

Avoidance Assist will turn off. The

warning light will illuminate on the

cluster.

The driver can monitor Forward

Collision-Avoidance Assist ON/OFF

status from the Settings menu. If the

warning light remains ON when Forward

Collision-Avoidance Assist is ON, have

the vehicle inspected by an authorized

HYUNDAI dealer.

WARNING

When the engine is restarted, Forward

Collision-Avoidance Assist will always

turn on. However, if ‘Off’ is selected, the

driver should always be aware of the

surroundings and drive safely.

CAUTION

If ‘Warning Only’ is selected, braking

is not assisted.

The settings for Forward Safety

include ‘Basic function’ and ‘Junction

Turning’ (if equipped).

Information

Forward Collision-Avoidance Assist
will turn off when ESC is turned off by
pressing and holding the ESC OFF button.
The

warning light will illuminate on

the cluster.

Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english - page 14
