Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english

Convenience Features

5-30

Remote key

OIG046001

To lock the doors, press the Door Lock

button (1) on the remote key.
To unlock the doors, press the Door

Unlock button (2) on the remote key.
Once the doors are unlocked, they may

be opened by pulling the door handle.
When closing the door, push the door by

hand. Make sure that doors are closed

securely.

Smart key

ODN8059001

Touch Sensor Door Handle (if equipped):

To Lock the Doors

While having the Smart Key in your

possession, touch the outer part of the

door handle on or near the handle detent

for about 1 second or until you hear the

door locks actuate.

To Unlock the Doors

Press the Door Unlock button on your

Smart Key or, with the Smart Key in your

possession, simply grab the door handle

inside portion to activate the unlock door

touch sensor to unlock the doors.
When closing the door, use enough

force to make sure the doors are closed

securely.

Information

In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

5-31

Operating Door Unlocks from

Inside the Vehicle

With the door inside handle

ONX4050004

Driver door & Passenger door

If the inner door handle is pulled when

the door is locked, the door will unlock

and open.

Rear Door - Two Pull Operation

If the inner door handle is pulled once

when the door is locked, the door will

unlock. If the inner door handle is pulled

once more, the door will open.

If any door is opened, the doors will not

lock even though the central door lock

switch is pressed.

Information

If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

Operate the other door locks and
handles.

Lower a front window and use the
mechanical key to unlock the door from
outside.

With the door lock/unlock switch

Driver’s door

ONX4050005

Passenger’s door

OCN7050083N

When pressing the ( ) portion (1) on

the switch, all vehicle doors will lock.

- If any door is opened, the doors

will not lock even though the lock

button (1) of the driver door lock

switch is pressed.

- If any door is opened, the doors will

not lock even though the central

door lock switch (1) is pressed.

When pressing the ( ) portion (2)

on the switch, all vehicle doors will

unlock.

All Doors Locked LED Indicator (3)
When all vehicle doors are locked, the

indicating lights on the driver’s door

and passenger’s door will turn on. If

any door is unlocked, the indicator will

turn off.

Convenience Features

5-32

WARNING

The doors should always be fully

closed and locked while the

vehicle is in motion. If the doors

are unlocked, the risk of being

thrown from the vehicle in a crash is

increased.

Do not pull the inner door handle of

the driver’s or passenger’s door while

the vehicle is moving.

WARNING

Do not leave the elderly, children or

animals unattended in your vehicle. An

enclosed vehicle can become extremely

hot, causing death or serious injury

to the elderly, unattended children

or animals who cannot escape from

the vehicle. Children might operate

features of the vehicle that could injure

them, or they could encounter other

harm, possibly from someone gaining

entry to the vehicle.

WARNING

Always secure your vehicle.
Leaving your vehicle unlocked increases

the potential risk to you or others from

someone hiding in your vehicle.
To secure your vehicle, while

depressing the brake, shift the gear

to the P (Park) position, engage the

parking brake, and press the Engine

Start/Stop button to the OFF position,

close all windows, lock all doors, and

always take the key with you.

CAUTION

Opening a door when something is

approaching may cause damage or

injury. Be careful when opening doors

and watch for vehicles, motorcycles,

bicycles or pedestrians approaching the

vehicle in the path of the door.

WARNING

Do not remain in your vehicle for long

periods of time during inclement

weather or in extreme temperature

conditions (cold or hot). Doing so may

risk possible injury or even death. Do

not lock the vehicle from the outside

when someone is in the vehicle.

In case of an emergency

ONX4050074

If the electrical power door lock switch

is not operating (for example, dead car

battery) the only way to lock the door(s)

is with the mechanical key from the

outside key hole.

Doors without an outside key hole can be

locked as follows:
1. Open the door.
2. Insert the key into the emergency

door lock hole and turn the key

horizontally to lock.

3. Close the door securely.

Information

If the electrical power to door lock switch
is not operating (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.

5-33

Auto Door Lock/Unlock Features

Impact sensing door unlock system

All doors will be automatically unlocked

when an impact causes the air bags to

deploy.

Child-protector Rear Door Locks

ONX4E050006

The child safety lock is provided to help

prevent children seated in the rear from

accidentally opening the rear doors. The

rear door safety locks should be used

whenever children are in the vehicle.
The child safety lock is located on the

edge of each rear door. When the child

safety lock is in the lock position, the

rear door will not open if the inner door

handle is pulled.
To lock the child safety lock, insert a

small flat blade tool (like a screwdriver or

similar) (1) into the slot and turn it to the

lock position as shown.
To allow a rear door to be opened from

inside the vehicle (2), unlock the child

safety lock.

WARNING

If children accidently open the rear

doors while the vehicle is in motion,

they could fall out of the vehicle. The

rear door safety locks should always

be used whenever children are in the

vehicle.

Convenience Features

5-34

7+()7ǘ$/$506<67(0

This system helps to protect your vehicle

and valuables. The horn will sound and

the hazard warning lights will blink

continuously if any of the following

occur:

- A door is opened without using the

smart key.

- The liftgate is opened without using

the smart key.

- The engine hood is opened.
The alarm continues for 30 seconds, then

the system resets. To turn off the alarm,

unlock the doors with the smart key.
The Theft Alarm System automatically

sets 30 seconds after you lock the

doors and the liftgate. For the system to

activate, you must lock the doors and

the liftgate from outside the vehicle with

the smart key or by touching the touch

sensor on the outside of the door handle

with the smart key in your possession.
The hazard warning lights will blink and

the chime will sound once to indicate the

system is armed.
Once the security system is set, opening

any door, the liftgate, or the hood

without using the smart key will cause

the alarm to activate.
The Theft Alarm System will not set if the

hood, the liftgate, or any door is not fully

closed. If the system will not set, check

the hood, the liftgate, or the doors are

fully closed.
Do not attempt to alter this system or

add other devices to it.

Information

Do not lock the doors until all
passengers have left the vehicle. If the
remaining passenger leaves the vehicle
when the system is armed, the alarm
will be activated.

If the vehicle is not disarmed with the
smart key, open the doors by using the
mechanical key and start the engine by
directly pressing the Engine Start/Stop
button with the smart key.

If the system is disarmed by unlocking
the vehicle, but neither a door or the
liftgate is opened within 30 seconds, the
doors will relock and the system will
rearm automatically.

5-35

Rear Occupant Alert is provided to

prevent a driver from leaving a vehicle

with the rear passenger left in the

vehicle.

System Setting

To use Rear Occupant Alert, it must be

enabled from the Settings menu in the

infotainment system screen. Select:

6HWXSƟ9HKLFOH6HWWLQJVƟ
&RQYHQLHQFHƟ5HDU2FFXSDQW$OHUW

For more details, refer to the separately

supplied Infotainment manual with

your vehicle.

System Operation

First alert
When you turn off the engine and

open the driver’s door after opening

and closing the rear door or liftgate,

the ‘Check rear seats’ warning

message appears on the cluster.

Second alert
After the first alert, the second alert

operates when any movement is

detected in the vehicle after the

driver’s door is closed and all the

doors are locked. The horn will sound

for approximately 25 seconds. If

the system continues to detect a

movement, the alert operates up to 8

times.
Unlock the doors with the smart key

to stop the alert.

The system detects movement in the

vehicle for 8 hours after the door is

locked.

The second alert is activated only after

the prior activation of the first alert.

System Precautions

Make sure that all the windows are

closed. If the window is open, the

alert may operate by the sensor

detecting an unintended movement

(for example, wind or bugs).

Cluster

Steering wheel

OTMH030009N

OCN7050079

If you do not want to use Rear

Occupant Alert, press the OK button

on the steering wheel when the first

alert is displayed on the cluster. Doing

so will deactivate the second alert one

time.

An alert can occur if there is an impact

on the roof.

If boxes or objects are stacked in the

vehicle, the system may not detect

the boxes or objects. Or, the alert may

operate if the boxes or objects fall off.

The sensor may not operate normally

if the sensor is blocked with foreign

substances.

The alert may operate if movement

in the driver or passenger seat is

detected.

The alert may operate with the doors

locked due to car wash or surrounding

vibration or noise.

If the vehicle is started remotely (if

equipped with Remote Start), inside

movement detection will stop.

5($52&&83$17$/(57ǣ52$Ǥǣ,)(48,33('Ǥ

Convenience Features

5-36

WARNING

Even if your vehicle is equipped with

Rear Occupant Alert, always make sure

to check the rear seat before you leave

the vehicle.
Rear Occupant Alert may not operate

when:

Movement does not continue for

a certain period of time or the

movement is small.

The rear passenger is covered with

an object such as a blanket.

Always be cautious of the

passenger’s safety as the detection

function and second alert may

not operate depending on the

surrounding environment and

certain conditions.

5-37

ONX4050007

The IMS, or Integrated Memory System,

for the driver’s seat is equipped on some

models. This feature allows the driver

to store and recall the following position

settings with a simple button operation:

Driver’s seat position

WARNING

Never attempt to operate the

integrated memory system while the

vehicle is moving.
This could result in loss of control, and

an accident causing death, serious

injury, or property damage.

Information

If the battery terminal (For plug-in
hybrid vehicle) or the battery connector
(For hybrid vehicle) is disconnected,
the memory settings will be erased.

If the Integrated Memory System does
not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.

Storing Memory Positions

1. Make sure that the vehicle is in the

ON position and the vehicle speed is

below 1.8 mph (3 km/h).

2. Adjust the driver’s seat to the desired

fore/aft position, seat height, and

reclining position. Adjust the driver to

the desired position.

3. Press the SET button. The system

will beep once and notify you ‘Press

button to save settings’ on the cluster

LCD display.

4. Press one of the memory buttons (1

or 2) within 4 seconds. The system

will beep twice when the memory has

been successfully stored.

5. ‘Driver 1 (or 2) settings saved’ will

appear on the cluster LCD display. The

message appears only for the driver’s

seat position memory setting.

,17(*5$7('0(025<6<67(0ǣ,)(48,33('Ǥ

Convenience Features

5-38

Recalling Memory Positions

1. Make sure that the vehicle is in the

ON position and the vehicle speed is

below 1.8 mph (3 km/h).

2. Press the desired button (1 or 2). The

system will beep once and the driver’s

seat position will be automatically

adjusted to the stored positions.

3. ‘Driver 1 (or 2) settings applied’ will

appear on the cluster LCD display.

Information

Note that while the memory settings
are being recalled, if you press the
SET button or the corresponding IMS
memory button (1 or 2) for which the
settings are being recalled, the IMS will
temporarily deactivate. If you select
the alternate IMS memory button (1 or
2), the IMS will activate according to
the settings of the alternate button.

For example, if you press the SET
button or the number 1 button with the
number 1 setting in operation, the IMS
will temporarily deactivate.

If you press the number 2 button, then
the IMS memory settings according to
number 2 will activate.

If you adjust the driver seat settings
or side mirror settings while the IMS
is recalling the stored positions, the
memory settings will not be applied.

Resetting the System

Follow the below procedures to reset the

Integrated Memory System (IMS) if it is

not operating properly:

Resetting the Integrated Memory

System (IMS)

1. Make sure that the vehicle is in Park

(P) and the engine is ON. Open the

driver’s door.

2. Adjust the driver’s seat and seatback

angle to the most forward positions.

3. Press the SET button and push

forward the driver’s seat switch

simultaneously (about two seconds).

4. Release the SET button and the

driver’s seat switch when a beep

sounds.

5-39

While resetting integrated memory

system

1. Resetting starts with a notification

sound.

2. The driver’s seat and seatback is

adjusted to the rearward position with

the notification sound.

3. The driver’s seat and seatback is

re-adjusted to the default position

(central position) with the notification

sound.

However, in the following cases, the

resetting procedure and the notification

sound may stop.

The memory button is pressed.

The seat control switch is operated.

The gear is shifted out of P (Park).

The driving speed exceeds

2 mph (3 km/h).

The driver’s door is closed.

NOTICE

While integrated memory system

is being reset, if the resetting

and notification sound stops

incompletely, restart the resetting

procedure again.

Before performing the IMS memory

reset operation, make sure there are

no objects on or around the driver’s

seat.

Seat Easy Access Operation (if

equipped)

The system will move the driver’s seat

automatically as follows:

Vehicles equipped with Driver’s Power

Seat and Smart Key

- The driver’s seat will move rearward

when the Engine Start/Stop button

is pressed to turn the engine OFF.

- The driver’s seat will move forward

when the Engine Start/Stop button

is pressed to the ACC or engine

START position.

Note that Seat Easy Access operation

may be limited when the driver’s seat

position setting is already close to the

maximum rearward travel position.
You can enable or disable the Seat Easy

Access feature in the User Settings menu

on the LCD display or the navigation

infotainment screen on some models.

œ&RQYHQLHQFHƟ6HDW(DV\$FFHVVƟ2II

Normal/Extended’.

For more details, refer to “LCD Display”

In chapter 4.

CAUTION

The driver should be aware and be

cautious to avoid injury or damage

when using this feature if there are

objects or passengers in the driver’s

side rear seat or seat floor.
In case of emergency or to stop

movement of the front seat when the

Seat Easy Access is operating, press the

SET button or any of the driver’s seat

control switches.

Convenience Features

5-40

Motor Driven Power Steering

(MDPS)

The Motor Driven Power Steering (MDPS)

assists you with steering the vehicle. If

the vehicle is turned off or if the power

steering system becomes inoperative,

you may still steer the vehicle, but it will

require increased steering effort.
Should you notice any change in the

effort required to steer during normal

vehicle operation, have the system

checked by an authorized HYUNDAI

dealer.

CAUTION

If Electric Power Steering does not

operate normally, the

warning light

and the message ‘Check motor driven

power steering’ will illuminate on the

instrument cluster. You may steer the

vehicle, but it will require increased

steering efforts. Take the vehicle to an

authorized HYUNDAI dealer and have

the system checked as soon as possible.

Information

The following symptoms may occur during
normal vehicle operation:

The steering effort may be high
immediately after pressing the Engine
Start/Stop button to the ON position.

This happens as the system performs
the MDPS system diagnostics. When
the diagnostics are completed, the
steering wheel effort will return to its
normal condition.

When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.

A click noise may be heard from the
MDPS relay after the Engine Start/Stop
button is in the ON or OFF position.

Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.

When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.

When the vehicle is stationary, if you
turn the steering wheel all the way
to the left or right continuously, the
steering wheel effort increases. This
is not a system malfunction. As time
passes, the steering wheel effort will
return to its normal condition.

When an error is detected from MDPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

STEERING WHEEL

5-41

Tilt / Telescopic Steering

When adjusting the steering wheel to a

comfortable position, adjust the steering

wheel so that it points toward your chest,

not toward your face. Make sure you can

see the instrument cluster warning lights

and gauges. After adjusting, push the

steering wheel both up and down to be

certain it is locked in position.
Always adjust the position of the steering

wheel before driving.

WARNING

NEVER adjust the steering wheel while

driving. This may cause loss of vehicle

control resulting in an accident.

ONX4050070

To adjust the steering wheel angle and

height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the

desired angle (2) and distance

forward/back (3).

3. Pull up the lock-release lever to lock

the steering wheel in place.

CAUTION

While adjusting the steering wheel

angle and height, please do not push

or pull it hard since the fixture can be

damaged.

Information

Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, readjust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.

Heated Steering Wheel

(if equipped)

ONX4050008

When the ignition switch is in the ON

position or when the engine is running,

press the heated steering wheel button

to warm the steering wheel.
The indicator on the button will

illuminate.
To turn the heated steering wheel off,

press the button again. The indicator on

the button will turn off.

Convenience Features

5-42

Auto Comfort Control for Driver (if

equipped)

- The Automatic Comfort Control

feature can control the steering

wheel heater operation according

to the ambient temperature and

the set climate control temperature

while the engine is running.
If the heated steering wheel switch

is pressed while the Automatic

Comfort Control feature is

operating, then the heated steering

wheel operation will be controlled

manually.
The Auto Comfort Control feature is

enabled from the Vehicle Settings

menu on the infotainment system

screen.

- The heated steering wheel defaults

to the OFF position whenever the

ignition switch is ON. However, if

the Auto Comfort Control function

is ON, the heated steering wheel

will turn on and off depending on

the ambient temperature and the

set climate control temperature.

For more details, refer to the separately

supplied Infotainment manual with

your vehicle.

Information

The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.

NOTICE

Do not install any cover or accessory

on the steering wheel. This cover or

accessory could cause damage to the

heated steering wheel system.

Horn

OCN7050016

To sound the horn, press the area

indicated by the horn symbol on your

steering wheel (see illustration). The

horn will operate only when this area is

pressed.

NOTICE

Do not strike the horn severely to

operate it, or hit it with your fist. Do not

press on the horn with a sharp-pointed

object.

5-43

Inside Rearview Mirror

Before driving your vehicle, check to

see that your inside rearview mirror is

properly positioned. Adjust the rearview

mirror so that the view through the rear

window is properly centered.

WARNING

Make sure your line of sight is not

obstructed. Do not place objects in the

rear seat, cargo area, or behind the rear

head restraint which could interfere

with your vision through the rear

window.

WARNING

To prevent serious injury during an

accident or deployment of the air bag,

do not modify the rearview mirror and

do not install a wide mirror.

WARNING

NEVER adjust the mirror while driving.

This may cause loss of vehicle control

resulting in an accident.

NOTICE

When cleaning the mirror, use a paper

towel or similar material dampened

with glass cleaner. Do not spray glass

cleaner directly on the mirror as this

may cause the liquid cleaner to enter

the mirror housing.

Day/night rearview mirror (if

equipped)

ODN8059025L

[A] : Day, [B] : Night

Make this adjustment before you start

driving and while the day/night lever is in

the day position.
Pull the day/night lever towards you to

reduce glare from the headlights of the

vehicles behind you during night driving.
Remember that you lose some rearview

clarity in the night position.

0,55256

Convenience Features

5-44

Electrochromic Mirror (if equipped)

ODN8059023L

The electrochromic rearview mirror

automatically controls the glare from the

headlight of the vehicle behind you in

nighttime or low light driving conditions.
When the engine is running, the glare is

automatically controlled by the sensor

mounted in the rearview mirror. The

sensor detects the light level around the

vehicle, and automatically adjusts to

control the headlight glare from vehicles

behind you.
Whenever the transmission is shifted to

R (Reverse), the mirror will automatically

go to the brightest setting in order to

improve the driver’s view behind the

vehicle.

Electrochromic Mirror with

Homelink System (if equipped)

Your vehicle may be equipped with

a Gentex Automatic-Dimming Mirror

with an Integrated HomeLink® Wireless

Control System.
During nighttime driving, this feature

will automatically detect and reduce

rearview mirror glare. The HomeLink®

Universal Transceiver allows you to

activate your garage door(s), electric

gate, home lighting, etc.

ODN8A059135

(1)  HomeLink Channel 1
(2)  HomeLink Channel 2
(3)  HomeLink Channel 3
(4)  Garage Door Opener Status Indicator:

Closing or Closed

(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator:

Opening or Opened

(7) HomeLink User Interface Indicator

5-45

Integrated HomeLink

Wireless Control

System

The HomeLink® Wireless Control System

provides a convenient way to replace

up to three hand held radio-frequency

transmitters used to activate compatible

devices such as gate operators, garage

door openers, entry door locks, security

systems, and home lighting.

NOTICE

HomeLink® operates while the ignition

switch is in the ACC or ON position

for safety reasons. It is to prevent

unintentional security problems from

happening when the vehicle is parked

outside the garage.

WARNING

Before programming HomeLink® to a

garage door opener or gate operator,

make sure people and objects are out

of the way of the device to prevent

potential harm or damage. Do not

use the HomeLink® with any garage

door opener that lacks the safety

stop and reverse features required

by U.S. federal safety standards (this

includes any garage door opener model

manufactured before April 1, 1982).

A garage door that cannot detect an

object - signaling the door to stop and

reverse - does not meet current U.S.

federal safety standards. Using a garage

door opener without these features

increases the risk of serious injury or

death.
For more information, contact

HomeLink® at www.homelink.com, or

call Home-Link customer support at

1-800-355-3515.
It is also recommended that a new

battery be replaced in the handheld

transmitter of the device being trained

to HomeLink® for quicker training and

accurate transmission of the radio

frequency.

Convenience Features

5-46

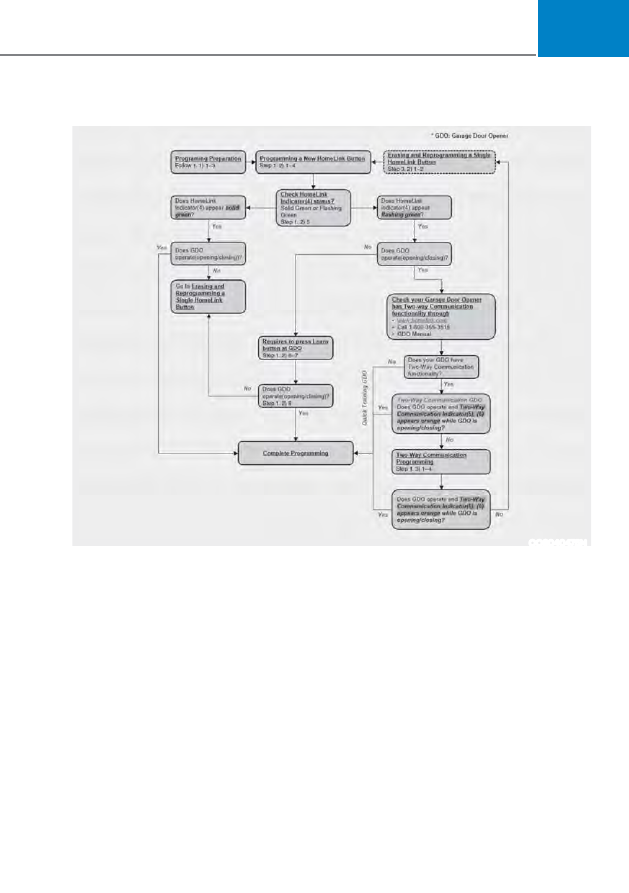

1. Programming HomeLink

The following steps show how to

program HomeLink. If you have any

questions or are having difficulty

programming your HomeLink buttons,

refer to the HomeLink website or call the

HomeLink customer support toll-free

number. Do this before going back to the

dealer who sold you the car.

Visit the HomeLink website at: www.

homelink.com. Then at the top of the

page, choose your vehicle make. Then

watch the You Tube video, and/or

access additional website information.

If you choose to access the website

via your cell phone, scan the QR code.

Or call HomeLink customer support

at 1-800-355-3515 (Please have the

vehicle make/model and the opener

device make/model readily available.)

1) Programming

Preparation

ODN8H050340N

1. When programming a garage door

opener, it is advised to park the

vehicle outside of the garage.

2. It is recommended that a new battery

be placed in the handheld transmitter

of the device being programmed to

HomeLink for quicker training and

accurate transmission of the radio-

frequency signal.

3. Place the ignition switch to the ACC

(Accessory) position for programming

of HomeLink.

2) Programming a New HomeLink®

ODN8H050136N

1. Press and release the HomeLink

button (1), (2) or (3), you would like

to program. The HomeLink indicator

light (7) will flash orange slowly (if

not, perform the steps of “Erasing

HomeLink Buttons” section, and start

over).

5-47

ODN8H050339N

2. Position the garage door opener

remote 1 – 3 inches (2 – 8cm) away

from the HoleLink buttons.

3. While the HomeLink indicator light (7)

is flashing orange, press and hold the

hand-held remote button. Continue

pressing the handheld remote button

until the HomeLink indicator light (7)

changes from orange to green. You

may now release the handheld remote

button.

4. Wait until your garage door comes

to a complete stop, regardless of

position, before proceeding to the

next steps.

5. Press and release the HomeLink

button you are programming and

observe the indicator light.

If the indicator light remains solid

green, your device should operate

when the HomeLink button is

pressed. At this point, if your device

operates, programming is complete.

If the indicator light rapidly

flashes green, firmly press, hold

for two seconds and release the

HomeLink button up to three times

in a row slowly to complete the

programming process. Do not press

the HomeLink button rapidly. At

this point if your device operates,

programming is complete. If the

device does not operate, continue

with step 6.

6. At the garage door opener motor,

(security gate motor, etc.) locate the

“Learn”, “Smart”, “Set” or “Program”

button. This can usually be found

where the hanging antenna wire is

attached to the motor-head unit (see

the device’s manual to identify this

button). The name and color of the

button may vary by manufacturer.

ODL3A040504

A ladder and/or second person may

simplify the following steps.

7. Firmly press and release the “Learn”,

“Smart”, “Set” or “Program” button.

You now have up to 30 seconds in

which to complete the next step.

8. Return to the vehicle and firmly press,

hold for two seconds and release,

the HomeLink button up to three

times in a row slowly. Do not press

the HomeLink button rapidly. As soon

as you see the garage door start to

move, stop pressing any buttons

until a few seconds after the garage

door has come to a complete stop,

regardless of position. At this point,

programming is complete and your

device should operate when the

HomeLink button is pressed and

released.

Convenience Features

5-48

Two-Way

Communication

Programming (For select garage door

openers)

If your garage door opener has the

‘myQ’ logo on its side, your opener

likely has Two-Way Communication

capability. HomeLink has the capability

to establish Two-Way Communication

with your garage door opener. HomeLink

can receive and display “closing”

or “opening” status messages from

compatible garage door openers. At

any time, Home-Link can also recall

and display the last recorded status

communicated by the garage door

opener to indicate your garage door

being “closed” or “opened”.
To check if your garage door opener is

compatible with this feature, refer to

www.homelink.com/compatible/Two-

way-Communication. If your garage

door opener has this functionality, AND

the Two-Way Communication indicators

(4), (6) in the mirror appear while the

garage door is opening/closing, then

no further steps are needed. Two-Way

Communication Programming is already

complete. However, if your garage door

opener has this functionality, AND the

Two-Way Communication indicators (4),

(6) in the mirror DO NOT appear while

the garage door is opening/closing, use

the following instructions to enable this

functionality.
1. In your vehicle, press and hold the

programmed HomeLink button for 2

seconds, then release. Confirm that

the garage door is moving. AFTER it

stops, you will have one minute to

complete the following steps:

A ladder and/or second person may

simplify the following steps.

2. On your garage door opener in your

garage, locate the “Learn” button

(usually near where the hanging

antenna wire is attached to the garage

door opener). If there is difficulty

locating this button, reference the

device’s owner’s manual.

3. Press and release the “Learn” button.
4. A light on your garage door opener

may flash, and your Two-Way

Communication indicators (4), (6) in

your vehicle may flash, confirming

completion of the process.

5. Return to the vehicle and firmly

press and release the programmed

HomeLink button to activate

your garage door. The Two-Way

Communication indicators (4), (6)

flash in orange when the door is

moving. Do not make any additional

button presses until AFTER the garage

door has come to a complete stop.

6. Your Two-Way Communication

programming is now complete.

Information

If your garage door opener has Two-
Way Communication functionality,
it is possible for HomeLink to stop
functioning the garage door shortly
after initial programming, IF the Two-
Way Communication Programming
wasn’t properly completed. This
usually happens after the first 10 times
a programmed HomeLink button is
pressed. If you experience this, completing
the “Programming a New HomeLink
Button” and “Two-Way Communication
Programming” will restore door
operation.

5-49

4) Canadian Programming

Canadian radio-frequency laws require

transmitter remote signals to “time-

out” (or quit) after a couple seconds of

transmission, which may not be long

enough for HomeLink to pick up the signal

during programming.
If you live in Canada or you are having

difficulties programming a gate operator

or garage door opener by using the

programming procedures, replace

“Programming a New HomeLink Button”

step 3 with the following:
While the HomeLink indicator light (7) is

flashing orange, press and release (“cycle”)

your device’s handheld remote every two

seconds until the HomeLink indicator light

(7) changes from orange to green. You may

now release the hand-held remote button.

Then proceed with “Programming a New

HomeLink Button” step 4.

2. Operating HomeLink

1) Operating

HomeLink®

ODN8H050136N

1. Press and release the desired

programmed HomeLink button (1, 2

or 3).

Information

The HomeLink indicator (7) should
light green, solid or flashing, and your
programmed device should operate.

If your device does not operate, the
HomeLink programming was not
successful, and you’ll need to reprogram
the button.

2) Two-Way Communication Display

Behavior

ODN8A059139

1. Press and release one of the

programmed HomeLink buttons (1, 2

or 3).

Convenience Features

5-50

ODN8H050341N

2. The indicator (4) and (6) operates as

below, if your garage door opener

has Two-Way Communication

functionality.

If the indicator (4) flashes in Orange,

it indicates that the garage door is

“Closing”.

The indicator (4) turns solid green

once the garage door has closed.

If the indicator (6) flashes in Orange,

it indicates that the garage door is

“Opening”.

The indicator (6) turns solid green

once the garage door has fully

opened.

If the indicator (4) or (6) does not

turn to green, it indicates that the

last status of garage door was not

received properly. The HomeLink

mirror tries to receive the last known

status of the garage door for a few

seconds.

3) Recalling Garage Door Status

HomeLink mirror with Two-Way

Communication provides a way to view

the last stored message from the garage

door opener. In order to recall the last

known status of the last activated device,

press the buttons “1 and 2” OR “2 and 3”

simultaneously.

If the indicator (4) appears solid

Green, it indicates that the last

activated device was “closed”

properly.

If the indicator (6) appears solid

Green, it indicates that the last

activated device was “open” properly.

3. Erasing HomeLink® Buttons

1) Erasing and Reprogramming a Single

HomeLink® Button:

1. Press and hold the desired HomeLink

button you want to re-program. DO

NOT release the button.

2. The HomeLink indicator light (7) will

illuminate solid green. Release the

button as soon as the HomeLink

indicator light (7) begins to flash

orange, usually about 20 seconds.

3. Proceed with the steps in the

“Programming a New HomeLink

Button” section.

Information

If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.

5-51

2) The following instructions will erase

ALL HomeLink® programming from

ALL buttons:

ODN8H050138N

1. Press and hold the buttons (1) and (3)

simultaneously.

2. The HomeLink indicator light (7) will

illuminate solid Orange for about 10

seconds.

3. Release the buttons once the

HomeLink indicator light (7) changes

to Green and flashes rapidly.

4. Now all three HomeLink buttons

(1), (2) and (3) are cleared of any

programming.

Information

HomeLink

and the HomeLink

House

logo are registered trademarks of Gentex
Corporation.

The myQ logo is a registered trademark of
The Chamberlain Group, Inc.

FCC (USA) and ISED (Canada)

This device complies with FCC rules

part 15 and Innovation, Science, and

Economic Development Canada RSS-

210. Operation is subject to the following

two conditions: (1) This device may not

cause harmful interference, and (2) This

device must accept any interference that

may be received including interference

that may cause undesired operation.

WARNING: The transmitter has been

tested and complies with FCC and

ISED rules. Changes or modifications

not expressly approved by the party

responsible for compliance could void

the user’s authority to operate the

device.
This equipment complies with FCC

and ISED radiation exposure limits set

forth for an uncontrolled environment.

End Users must follow the specific

operating instructions for satisfying RF

exposure compliance. This transmitter

must be at least 20cm from the user and

must not be co-located or operating in

conjunction with any other antenna or

transmitter.

Convenience Features

5-52

FCC (Htats-Unis) et ISED (Canada)

Cet appareil est conforme aux

règlements de la FCC, section 15, et

au CNR-210 d’Innovation, Sciences et

Dhveloppement économique Canada. Le

fonctionnement est assujetti aux deux

conditions suivantes : (1) cet appareil ne

doit pas causer d’interférences nuisibles

et (2) cet appareil doit accepter toute

interférence reçue, y compris celle qui

pourrait entraîner un dysfonctionnement.

MISE EN GARDE : L’émetteur a subi des

tests et est conforme aux règlements de

la FCC et d’ISDE. Les changements ou

modifications non approuvés explicitement

par la partie responsable de la conformité

pourraient rendre caduque l’autorisation de

l’utilisateur de se servir du dispositif.
Cet appareil est conforme aux limites

d’exposition aux radiations de la FCC et

d’ISDE établies pour un environnement

non contrôlé. Les utilisateurs finaux doivent

respecter les instructions d’utilisation

spécifiques pour satisfaire aux exigences

de conformité aux expositions de RF.

L’émetteur doit se trouver à 20 cm au

minimum de l’utilisateur et ne doit pas

être situé au même endroit que tout autre

émetteur ou antenne ni fonctionner avec

un autre émetteur ou antenne.

Méjico

La operación de este equipo está sujeta

a las siguientes dos condiciones: (1) es

posible que este equipo o dispositivo

pueda no causar interferencia dañina, y

(2) este dispositivo o dispositivos deben

aceptar cualquier interferencia, que

incluye la interferencia que puede causar

su operación no deseada.

Convenience Features

5-54

Side View Mirrors

ONX4050009

Your vehicle is equipped with both left-

hand and right-hand side view mirrors.

The mirrors can be adjusted remotely

with the mirror adjustment control

switch. The side view mirrors can be

folded manually to help prevent damage

when going through an automatic car

wash or when passing through a narrow

street.
The right side view mirror is convex.

Objects seen in the mirror are closer than

they appear.
Use the inside rear view mirror or look

back directly to determine the actual

distance of other vehicles prior to

changing lanes.
Make sure to adjust the side view mirrors

to your desired position before you begin

driving.

WARNING

Do not adjust or fold the side view

mirrors while driving. This may cause

loss of vehicle control resulting in an

accident.

NOTICE

Do not scrape ice off the mirror face;

this may damage the surface of the

glass.

If the mirror is jammed with ice, do

not adjust the mirror by force. Use

an approved de-icer (not radiator

antifreeze) spray, or a sponge or soft

cloth with very warm water, or move

the vehicle to a warm place and

allow the ice to melt.

Do not clean the mirror with harsh

abrasives, fuel or other petroleum

based cleaning products.

5-55

Adjusting the side view mirrors

ONX4050010

1. Move the lever (1) either to the L (left

side) or R (right side) to select the side

view mirror you would like to adjust.

2. Use the mirror adjustment control (2)

to position the selected mirror up,

down, left or right.

3. After adjustment, move the lever (1)

to the middle to prevent inadvertent

adjustment.

Folding the side view mirror

ONX4E050009

To fold the side view mirror, grasp the

housing of the mirror and then fold it

toward the rear of the vehicle.

5-57

Power Windows

The ignition switch must be in the ON

position to be able to raise or lower

the windows. Each door has a Power

Window switch to control that door’s

window. The driver has a Power Window

Lock switch which can block the

operation of rear passenger windows.

The power windows will operate for

about 3 minutes after the ignition is

turned OFF or if the ignition is placed

in the ACC position, as long as the front

doors remain closed.
If the front doors are opened, battery

power is turned OFF and the Power

Windows will not operate.

Window opening and closing

OCN7050082

To open:
Press the window switch down to the

first detent position (5). Release the

switch when you want the window to

stop.

To close:
Pull the window switch up to the first

detent position (5). Release the window

switch when you want the window to

stop.

Auto down window

Pressing the power window switch

momentarily to the second detent

position (6) completely lowers the

window even when the switch is

released.
To stop the window at the desired

position while the window is in

operation, pull up or press down and

release the switch.

Auto up/down window (if equipped)

Pressing or pulling up the power window

switch momentarily to the second

detent position (6) completely lowers or

lifts the window even when the switch

is released. To stop the window at the

desired position while the window is in

operation, pull up or press down and

release the switch.

Resetting the power windows

If the power windows do not operate

normally, the automatic power window

system must be reset as follows:
1. Press the ignition switch to the ON

position.

2. Close the window and continue

pulling up on the power window

switch for at least one second.

If the power windows do not operate

properly after resetting, have the system

be inspected by an authorized HYUNDAI

dealer.

WARNING

The automatic reverse feature doesn’t

activate while resetting the power

window system. Make sure body parts

or other objects are safely out of the

way before closing the windows toavoid

injuries or vehicle damage.

Convenience Features

5-58

Automatic reverse

OCN7050026

If a window senses any obstacle while it

is closing automatically, it will stop and

lower approximately 12 in. (30 cm) to

allow the object to be cleared.
If the window detects the resistance

while the power window switch is

pulled up continuously, the window

will stop upward movement then lower

approximately 1 in. (2.5 cm).
If the power window switch is pulled

up continuously again within 5 seconds

after the window is lowered by the

automatic window reverse feature,

the automatic window reverse will not

operate.

Information

The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.

NOTICE

Do not install any accessories on the

windows. The automatic reverse

feature may not operate.

WARNING

Make sure body parts or other objects

are safely out of the way before closing

the windows to avoid injuries or vehicle

damage.
Objects less than 0.16 in. (4 mm) in

diameter caught between the window

glass and the upper window channel

may not be detected by the automatic

reverse window and the window will

not stop and reverse direction.

Power window lock button

OCN7050027

The driver can disable the power window

switches on the rear passenger doors by

pressing the power window lock button.
When the power window lock button is

pressed:

The driver’s master control can

operate all the power windows.

The front passenger’s control can

operate the front passenger’s power

window.

The rear passenger’s control cannot

operate the rear passengers’ power

window.

If the power window lock button is

operated, rear passenger cannot open

the rear door (if equipped with the

Electronic Child Safety Lock System).

For more details, refer to “Electronic

Child Safety Lock System” system in this

chapter.

5-59

WARNING

Do not allow children to play with the

power windows. Keep the driver’s

door power window lock button in the

LOCK position. Serious injury or death

can result from unintentional window

operation by a child.

NOTICE

To prevent possible damage to the

power window system, do not open

or close two windows or more at the

same time. This will also ensure the

longevity of the fuse.

Never try to operate the main

switch on the driver’s door and the

individual door window switch in

opposite directions at the same time.

If this is done, the window will stop

and cannot be opened or closed.

Remote window opening function

(if equipped)

Type A

ONX4050079N

Type B

ONX4050082N

You can still control the window

movement with the engine turned off.

Hold the Door Unlock button (1) for

more than 3 seconds. The window

moves down after the doors are

unlocked, as long as you press the

door unlock button. The window

movement stops when you release

the door lock button.

Convenience Features

5-60

WARNING

If you stay on the function after

operating the Remote window opening

function, it is likely to cause a theft.

In addition, please use caution there

might be a malfunction due to the

inflow of water while raining.

Information

The remote window opening function
may abruptly stop when you move
away from your vehicle during
operation. Stay in close proximity
to your vehicle while monitoring the
window movement.

One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will continue to
operate. Thus, you should check that all
windows are opened.

Please be aware that the doors unlock
when using the remote window opening
function.

5-61

If your vehicle is equipped with a

sunroof, you can slide or tilt your sunroof

with the sunroof switch located on the

overhead console.

ONX4H050005N

The sunroof can only be operated when

the Engine Start/Stop button is in the ON

or START position.
The sunroof can be operated for

approximately 3 minutes after the

ignition switch or Engine Start/Stop

button is in the ACC or LOCK/OFF

position. However, if the front door is

open, the sunroof cannot be operated

even within the 3 minutes period.

WARNING

Adjust the sunroof or sunshade when

your vehicle stops. Adjusting the

sunroof while driving could result

in loss of control and an accident

that may cause injury, or property

damage.

Do not leave the engine running

and the key in your vehicle with

unsupervised children. Unattended

children could operate the sunroof,

which could result in serious injury.

Do not sit on the top of the vehicle. It

may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof

bars are installed on the vehicle or

when there is luggage on the roof.

Power Sunshade

ONX4C051005

Use the power sunshade to block direct

sunlight coming through the sunroof

glass.

- Push the sunroof switch rearward to

the first detent position, the power

sunshade automatically slides open.

- Push the sunroof switch forward to

the first detent position, the power

sunshade automatically closes.

However, if the sunroof glass is open,

the glass will close first.

To stop the power sunshade at any point,

push the sunroof switch in any direction.

NOTICE

Do not pull or push the power sunshade

by hand as such action may damage

the power sunshade or cause it to

malfunction.

Information

Wrinkles formed on the power sunshade
are normal due to material characteristic.

3$125$0,&681522)ǣ,)(48,33('Ǥ

Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english - page 9
