Instrument Cluster

4-24

Press brake pedal to start engine (if

equipped)

This message is displayed if the Engine

Start/Stop button changes to the ACC

position twice by pressing the button

repeatedly without depressing the brake

pedal.
You can start the vehicle by depressing

the brake pedal and then pressing the

Engine Start/Stop button.

Key not in vehicle (if equipped)

This message is displayed if the smart

key is not in the vehicle when you press

the Engine Start/ Stop button.
When attempting to start the vehicle,

always have the smart key with you.

Key not detected (if equipped)

This message is displayed if the smart

key is not detected when you press the

Engine Start/Stop button.

Press START button again (if

equipped)

This message is displayed if you were

unable to start the vehicle when the

Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine

by pressing the Engine Start/ Stop button

again.
If the warning message appears each

time you press the Engine Start/Stop

button, have the vehicle inspected by an

authorized HYUNDAI dealer.

Press START button with key (if

equipped)

This message is displayed if you press

the Engine Start/Stop button while the

warning message “Key not detected” is

displayed.
At this time, the immobilizer indicator

light blinks.

Check BRAKE SWITCH fuse (if

equipped)

This message is displayed if the brake

switch fuse is disconnected.
You need to replace the fuse with a new

one before starting the engine.
If that is not possible, you can start the

engine by pressing the Engine Start/

Stop button for 10 seconds in the ACC

position.

Shift to P to start engine

This message is displayed if you try to

start the engine in any other position

except P (Park).

Information

For your safety, we recommend that you
start the engine with the gear shifted to P
(Park).

12V battery discharging due to

additional electrical devices (if

equipped)

This message is displayed if the 12V

battery voltage is weak due to any

non-factory electrical accessories (ex.

dashboard camera) while parking. Be

careful that the battery is not discharged.
If the message appears after removing

the non-factory electrical accessories,

have the vehicle inspected by an

authorized HYUNDAI dealer.

4-25

Door, Hood, Liftgate open indicator

ONX4040009

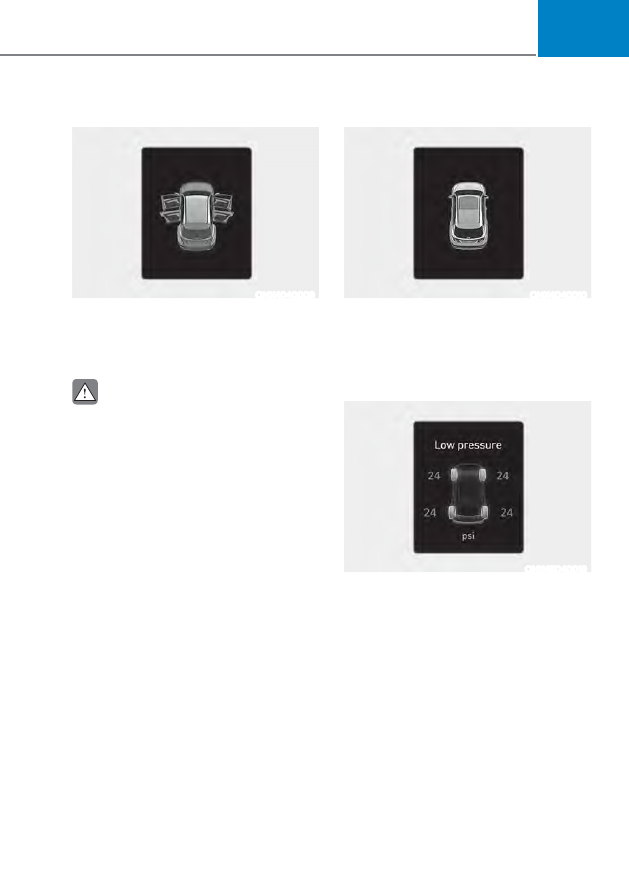

This warning is displayed if any door or

the hood or the liftgate is left open. The

warning will indicate which door is open

in the display.

CAUTION

Before driving the vehicle, you should

confirm that the door, hood and liftgate

are fully closed. Also, check there is no

door/hood/liftgate open warning light

or message displayed on the instrument

cluster.

Sunroof open indicator (if equipped)

ONX4040010

This warning is displayed if you turn off

the engine when the sunroof is open.
Close the sunroof securely before leaving

your vehicle.

Low pressure

ONX4E040019

This warning message is displayed if the

tire pressure is low. The corresponding

tire on the vehicle will be illuminated.

For more details, refer to “Tire Pressure

Monitoring System (TPMS)” section in

chapter 8.

Instrument Cluster

4-26

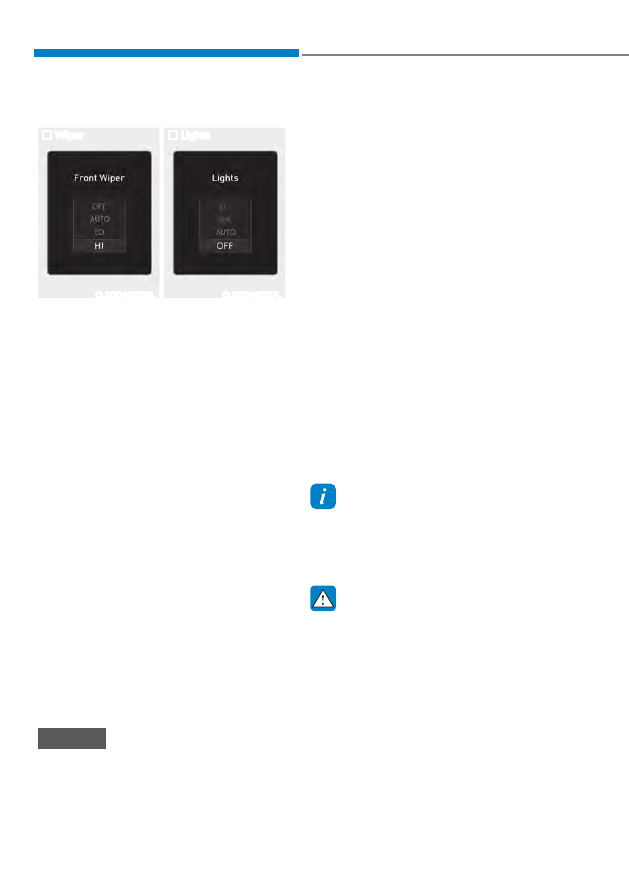

Wiper/Lights display

Wiper

Lights

OJX1049008L

OJX1049007L

This indicator displays which wiper

speed is selected using the wiper

control.

This indicator displays which exterior

light is selected using the lighting

control.

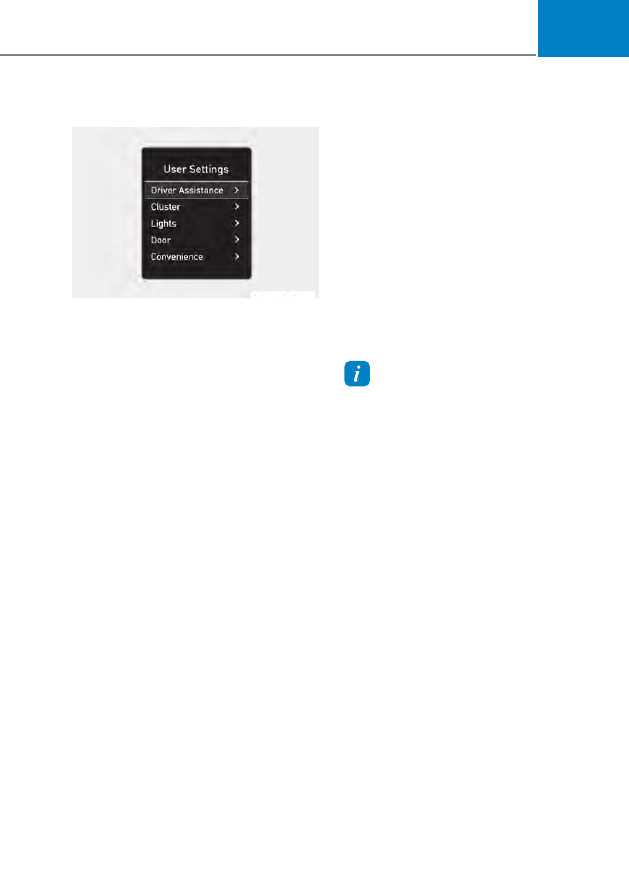

You can activate or deactivate Wiper/

Lights display function from the User

Settings menu in the cluster LCD display.

6HWXSƟ8VHUVHWWLQJVƟ&OXVWHUƟ

Wiper/Lights display

Low washer fluid (if equipped)

This message is displayed if the washer

fluid level in the reservoir is nearly empty.
Have the washer fluid reservoir refilled.

Low fuel

This message is displayed if the fuel tank

is almost out of fuel.
When this message is displayed, the low

fuel level warning light in the cluster will

come on.
It is recommended to look for the nearest

fueling station and refuel as soon as

possible.

NOTICE

Do not drive the vehicle with low fuel.

Hybrid battery damage may occur

when the fuel tank is completely empty.

Engine has overheated

This message is displayed when the

engine coolant temperature is above

248°F (120°C). This means that the

engine is overheated and may be

damaged.

If your vehicle is overheated, refer to

“Overheating” section in chapter 8.

Low engine oil

This warning message is displayed when

the engine oil level should be checked.
If this warning message is displayed,

check the engine oil level as soon as

possible and add engine oil as required.
Slowly pour the recommended oil little

by little into a funnel.
Use only the specified engine oil. (Refer

to "Recommended Lubricants and

Capacities“ section in chapter 2.)
Do not overfill the engine oil. Make sure

the oil level is not above F (Full) mark on

the dipstick.

Information

After adding engine oil, if you travel
approximately 18~37 miles (30~60 km)
after the engine warms up, the warning
message should disappear.

WARNING

When the engine oil level warning

message appears, it is necessary to

check if you have replaced the Engine

oil according to the maintenance

schedule in chapter 9. If it has not been

checked and followed, the engine oil

must be replaced first.

Check headlight (if equipped)

This message is displayed if the

headlights are not operating properly. A

headlight bulb may need to be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

4-27

Check turn signal (if equipped)

This message is displayed if the turn

signal lamps are not operating properly.

A lamp may need to be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check brake light (if equipped)

This message is displayed if the stop

lamps are not operating properly. A lamp

may need to be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check headlight LED (if equipped)

This message is displayed if there is a

problem with the LED headlight. Have

the vehicle inspected by an authorized

HYUNDAI dealer.

Ready to start driving

This message is displayed when the

vehicle is ready to be driven.

Check regenerative brakes

This message is displayed when the brake

performance is low or the regenerative

brake does not work properly due to a

failure in the brake system.
If this occurs, it may take longer for the

brake pedal to operate and the braking

distance may become longer.

Stop vehicle and check brakes

This message is displayed when a failure

occurs in the brake system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

Check Hybrid system

This message is displayed when there

is a problem with the hybrid system.

Refrain from driving when the warning

message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Stop safely and check Hybrid system

This message is displayed when there is

a problem with the hybrid system. The

“

” indicator will blink and a warning

chime will sound until the problem is

solved. Refrain from driving when the

warning message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Check Hybrid system. Do not start

engine

This message is displayed when the

hybrid battery power (SOC) level is low.

A warning chime will sound until the

problem is solved. Refrain from driving

when the warning message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Instrument Cluster

4-28

Stop safely and check power supply

This message is displayed when a failure

occurs in the power supply system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

Check virtual engine sound system

This message is displayed when there is

a problem with the Virtual Engine Sound

System (VESS).
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Refill inverter coolant

This message is displayed when the

inverter coolant is nearly empty.
You should refill the inverter coolant.

Park with engine On to charge

battery

This message is displayed when the

hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe

location and wait until the hybrid battery

is charged.

Start engine to avoid battery

discharge

This message is displayed to inform the

driver the 12V battery may be discharged

if the ignition switch is in ON position

(without the

indicator ON).

Set the vehicle to the ready (

) mode

to prevent the 12V battery from being

discharged.

4-29

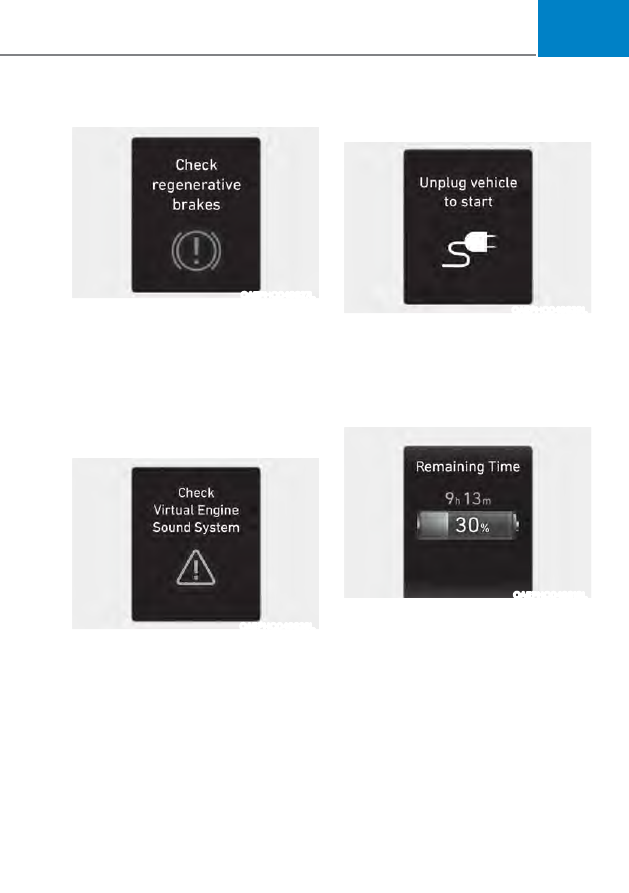

Check regenerative brakes

OAEPHQ049827L

This message is displayed when

the brake performance is low or the

regenerative brake does not work

properly due to a failure in the brake

system.
In this case, it may take longer for the

brake pedal to operate and the braking

distance may become longer.

Check virtual engine sound system

OAEPHQ049828L

This message is displayed when there is

a problem with the Virtual Engine Sound

System (VESS).
In this case, have your vehicle inspected

by an authorized HYUNDAI dealer.

Unplug vehicle to start (Plug-in

hybrid vehicle)

OAEPHQ049829L

This message is displayed when you

start the engine without unplugging the

charging cable. Unplug the charging

cable, and then start the vehicle.

Remaining time (Plug-in hybrid

vehicle)

OAEPHQ049818L

This message is displayed to notify

the remaining time to fully charge the

battery.

Instrument Cluster

4-30

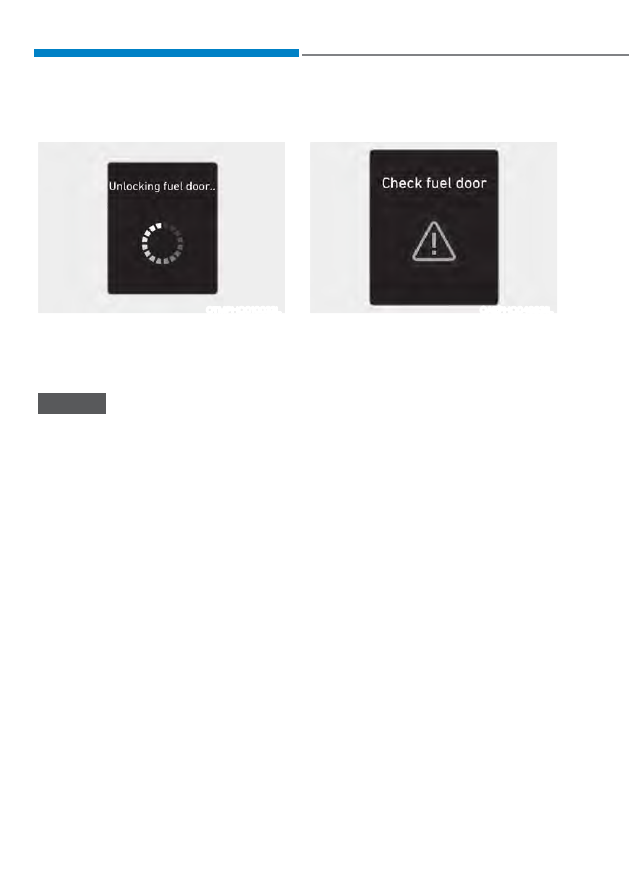

Wait until fuel door unlocks (Plug-in

hybrid vehicle)

OTMPHQ010032L

This message is displayed when you

attempt to unlock the fuel filler door with

the fuel tank pressurized. Wait until the

fuel tank is depressurized.

NOTICE

It may take up to 20 seconds to

unlock fuel filler door.

If the fuel filler door does not open

because ice has formed around it,

tap lightly or push on the door to

break the ice and release the door.

Do not pry on the door. If necessary,

spray around the door with an

approved de-icer fluid (do not use

radiator anti-freeze) or move the

vehicle to a warm place and allow

the ice to melt.

Check fuel door (Plug-in hybrid

vehicle)

OAEPHQ049831L

The message is displayed when the fuel

filler door is open while in driving or an

abnormality has occurred.

4-31

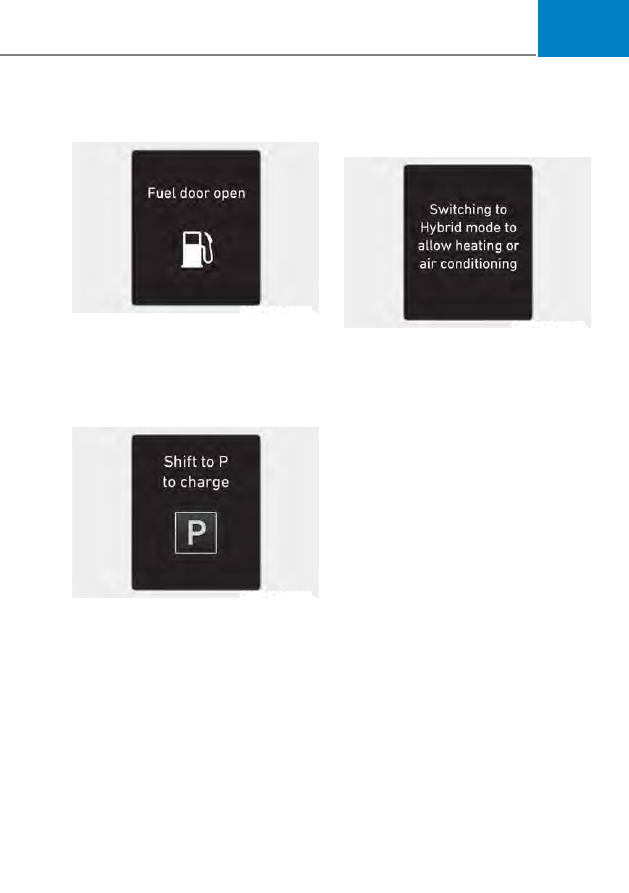

Fuel door open (Plug-in hybrid

vehicle)

OAEPHQ049832L

This message is displayed when thefuel

filler door opens after the fuel tank

is depressurized. If this message is

displayed, you can refuel the fuel tank.

Shift to P to charge (Plug-in hybrid

vehicle)

OAEPHQ049833L

This message is displayed when the

charging connector is plugged with the

shift button in R (Reverse), N (Neutral)

or D (Drive). Move the shift button to P

(Park) and re-start the charging process.

Switching to Hybrid mode to allow

heating or air conditioning (Plug-in

hybrid vehicle)

OAEPHQ049842L

This message is displayed when the

vehicle automatically switches to

HEV mode to allow heating or air

conditioning. It is when the coolant

temperature is low (below -14°C) and the

driver turns on the heating or cooling

system.
If the coolant temperature gets higher

than -14°C or the driver turns off the

heating or cooling system the vehicle

returns to its default (EV) mode.

Instrument Cluster

4-32

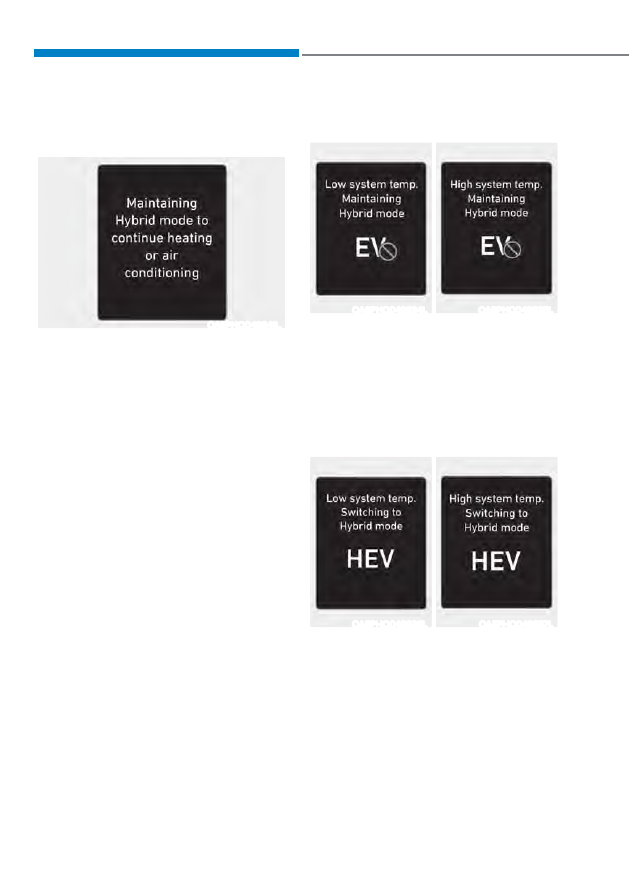

Maintaining Hybrid mode to allow

heating or air conditioning (Plug-in

hybrid vehicle)

OAEPHQ049841L

This message is displayed when the

vehicle maintains the HEV mode to allow

heating or air conditioning. The mode

does not change when the driver presses

the [HEV] button to switch from the HEV

mode to EV mode while the heating and

cooling system is on and the coolant

temperature is below -14°C.

Low/High System Temp. Maintaining

Hybrid mode (Plug-in hybrid vehicle)

OAEPHQ049834L

OAEPHQ049835L

This message is displayed when the

temperature of the high-voltage

(hybrid) battery is too low or too high.

This warning message is to protect the

battery and the hybrid system.

Low/High System Temp. Switching

to Hybrid mode (Plug-in hybrid

vehicle)

OAEPHQ049836L

OAEPHQ049837L

This message is displayed when the

temperature of the high-voltage (hybrid)

battery is too low or high. This warning

message is to protect the battery and the

hybrid system.

4-33

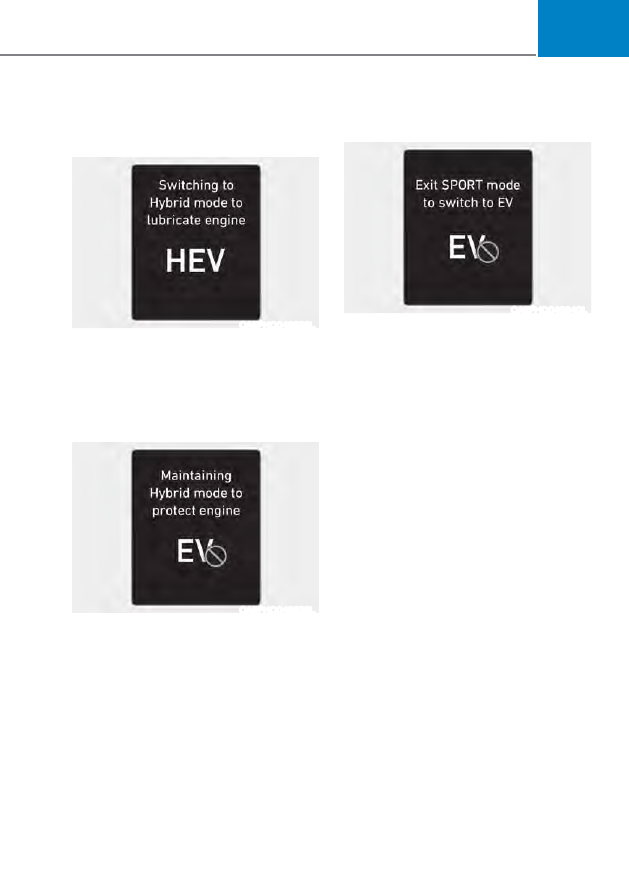

Switching to Hybrid mode to

lubricate engine (Plug-in hybrid

vehicle)

OAEPHQ049838L

This message is displayed when the

vehicle is automatically switched to the

HEV mode to lubricate engine while the

ignition switch is in the ON position.

Maintaining Hybrid mode to protect

engine (Plug-in hybrid vehicle)

OAEPHQ049839L

This message is displayed when

the [HEV] button is pressed but it is

impossible to switch from the HEV mode

to EV mode due to engine lubrication.

Exit SPORT mode to switch to EV

(Plug-in hybrid vehicle)

OAEPHQ049840L

This message is displayed when [HEV]

button is pressed but it is impossible to

switch from the HEV mode to EV mode

because the SPORT mode is engaged.

4-35

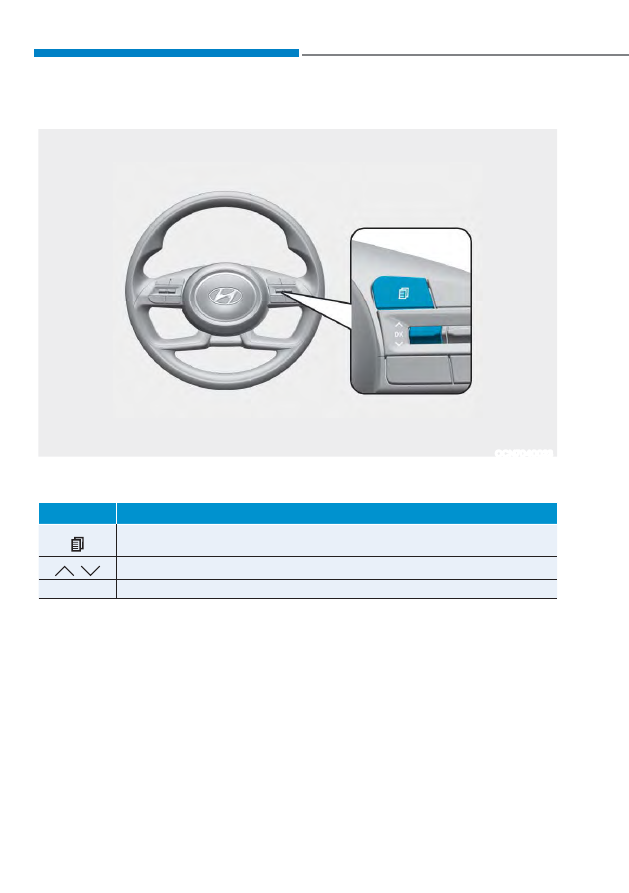

View Modes

Modes

Symbol

Explanation

Trip

Computer

This mode displays driving information such as the

tripmeter, fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.

Turn By Turn

(TBT)

This mode displays the state of the navigation.

Driving Assist

This mode displays the state of :

- Driver Attention Warning

- Driving force distribution (AWD)

For more information, refer to "Lane Keeping Assist (LKA)",

"Driver Attention Warning (DAW)", "Smart Cruise Control

(SCC)", "Highway Driving Assist (HDA)" in chapter 7 and

"All Wheel Drive (AWD)" in chapter 6.

User Settings

In this mode, you can change settings of the doors, lamps,

etc.

Warning

This mode displays warning messages related to the lamp

malfunction, etc.

This mode displays information related to the tire pressure

(TPMS), the state of driving force distribution.

The information provided may differ depending on which functions are applicable

to your vehicle.

4-36

Instrument Cluster

Trip computer mode

OTMA060011

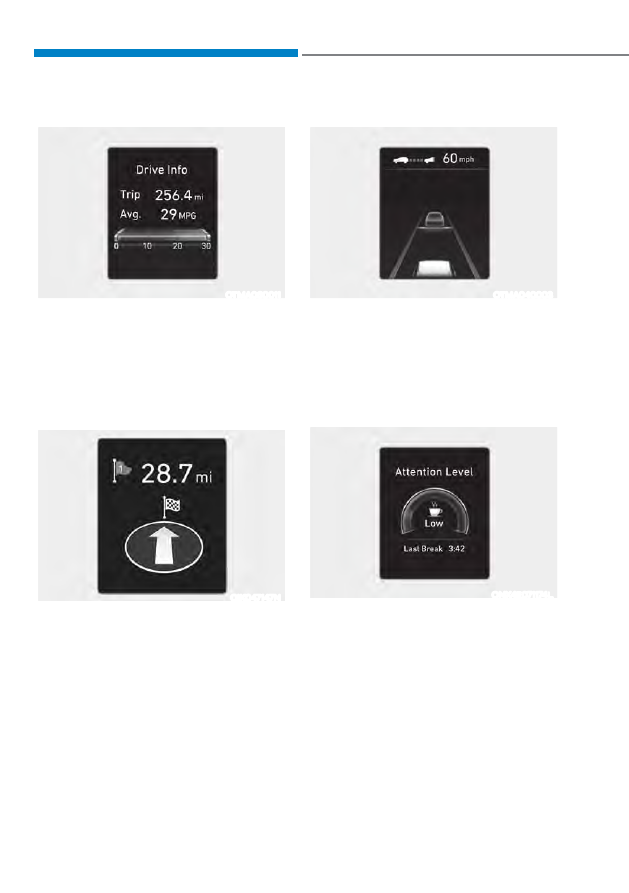

The trip computer mode displays

information related to vehicle driving

parameters including fuel economy,

tripmeter information and vehicle speed.

For more details, refer to “Trip

Computer” section in this chapter.

Turn By Turn (TBT) mode

OIK047147N

This mode displays the state of the

navigation.

Driving Assist mode

OTMA040003

LKA/SCC/LFA/HDA

This mode displays the state of Lane

Keeping Assist, Smart Cruise Control,

Lane Following Assist and Highway

Driving Assist

For more details, refer to each function

information in chapter 7.

ONX4E071174L

Driver Attention Warning

This mode displays the state of Driver

Attention Warning.

For more details, refer to “Driver

Attention Warning (DAW)” in chapter 7.

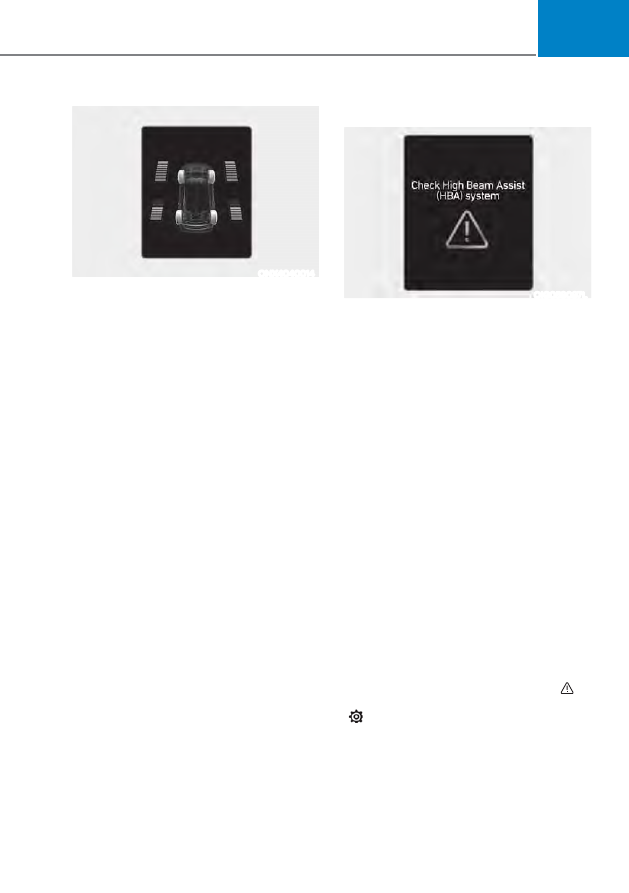

4-37

ONX4040014

Driving force distribution (AWD)

This mode displays information related to

AWD driving force.
If the vehicle is in AWD lock state, this

mode is not displayed.

For detailed information, refer to the

"Four Wheel Drive" in the chapter 6.

Master warning group

OIG059097L

This warning light informs the driver the

following situations.

- Forward Collision-Avoidance Assist

malfunction

- Forward Collision-Avoidance Assist

radar blocked

- Blind-Spot Collision-Avoidance Assist

malfunction (if equipped)

- Blind-Spot Collision-Avoidance Assist

radar blocked (if equipped)

- LED headlight malfunction

(if equipped)

- High Beam Assist malfunction

(if equipped)

- Smart Cruise Control malfunction (if

equipped)

- Smart Cruise Control radar blocked (if

equipped)

- Tire Pressure Monitoring System

(TPMS) malfunction

The Master Warning Light illuminates

if one or more of the above warning

situations occur.
At this time, a Master Warning icon ( )

will appear beside the User Settings icon

( ), on the LCD display.
If the warning situation is solved, the

master warning light will be turned

off and the Master Warning icon will

disappear.

Instrument Cluster

4-38

ONX4E040023

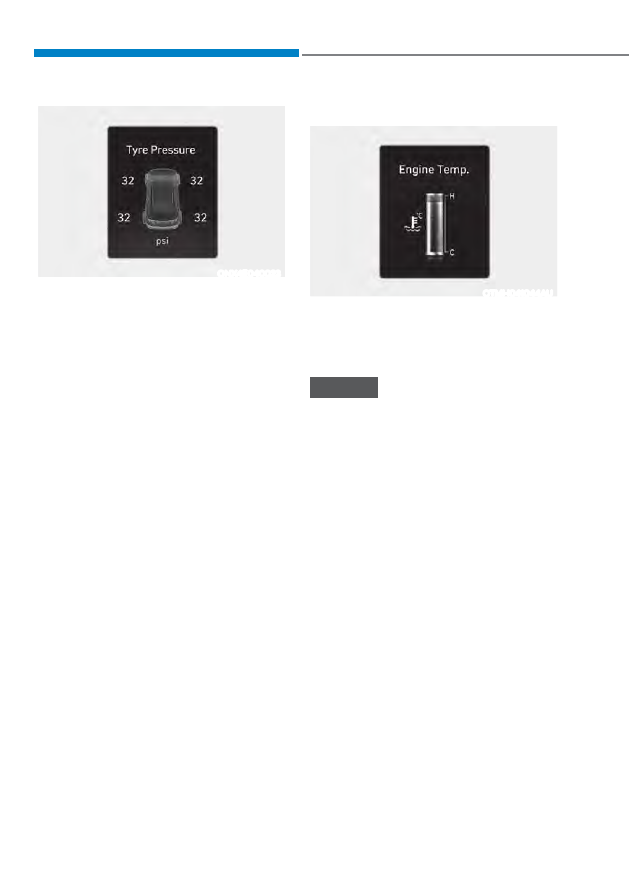

Tire Pressure

This mode displays information related to

Tire Pressure.

For more details, refer to "Tire Pressure

Monitoring System (TPMS)" in chapter

Engine coolant temperature

OTMH041044AU

This engine coolant temperature gauge

display shows the temperature of the

engine coolant when the engine is

running.

NOTICE

When the gauge indicator gets out of

the normal range, toward the "H(Hot)"

position, it indicates overheating of the

engine. It may damage the engine.
Do not continue driving with the

overheated engine.
For more details, refer to "If the Engine

Overheats" section in the chapter 8.

4-39

User settings mode

ONX4E040026

In this mode, you can change the

settings of the instrument cluster, doors,

lamps, etc.
1. Driver Assistance
2. ECO vehicle
3. Cluster
4. Lights
5. Door
6. Convenience
7. ECO vehicle
8. Units
9. Reset

The information provided may differ

depending on which functions are

applicable to your vehicle.

Shift to P to edit settings

This warning message appears if you try

to adjust the User Settings while driving.
For your safety, change the User Settings

after parking the vehicle, applying the

parking brake and pressing the P (Park)

button.

Quick guide help

This mode provides quick guides for the

systems in the User Settings mode.
Select an item, press and hold the OK

button.

For more details, about each system,

refer to this Owner’s Manual.

Information

When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

Instrument Cluster

4-40

1. Driver Assistance

Items

Explanation

Speed Limit

(If equipped)

To adjust the Speed Limit fuction.

Speed Limit Offset

Speed Limit Assist / Speed Limit Warning / Off

For more details, refer to "Intelligent Speed Limit Assist (ISLA)" in chapter

Warning

Timing

To adjust the warning volume of the driver assistance system.

Normal / Late

Warning

Methods

To adjust or set the Warning Methods of the driver assistance system.

Warning Volume: High / Medium / Low

Haptic Warning: On/Off

Lane Safety Audible Warning Off: On/Off

Driver

Attention

Warning

Leading Vehicle Departure Alert

To activate or deactivate the Leading Vehicle Departure Alert.

Inattentive Driving Warning

To alert the driver's inattentive driving.

For more details, refer to "Driver attention Warning (DAW)" in chapter 7.

Forward

Safety

To adjust Forward Collision-Avoidance Assist

Active Assist / Warning Only / Off

For more details, refer to the "Forward Collision-Avoidance Assist (FCA)"

in chapter 7.

Lane Safety

To adjust Lane Keeping Assist

Assist / Warning Only / Off

For more details, refer to "Lane Keeping Assist (LKA)" in chapter 7.

Blind-Spot

Safety

Safe Exit Warning

To activate or deactivate Safe Exit Warning.

For more details, refer to "Safe Exit Warning (SEW)" in chapter 7.

Active Assist / Warning Only / Off

Parking

Safety

Parking Distance Warning Auto On

To activate or deactivate Parking Distance Warning Auto On.

For more details, refer to "Forward/Reverse Parking Distance Warning

(PDW)" in chapter 7.

Rear Cross-Traffic Safety

To activate or deactivate Reverse Parking Collision-Avoidance Assist.

For more details, refer to "Rear Cross-Traffic Collision-Avoidance Assist

(RCCA)" in chapter 7.

The information provided may differ depending on which functions are applicable

to your vehicle.

4-41

2. ECO vehicle

Items

Explanation

Utility Mode

To activate or deactivate the Utility Mode.
* Utility Mode: This is a mode for using electricity from high

voltage battery. (not possible to drive) It's useful while

camping, etc.

Green Zone EV Drive

To activate or deactivate the Green Zone EV Drive.
* Green Zone EV Drive : When user select "Green Zone Drive",

vehicle drives with EV mode as much as possible for protect

atmospheric environment. (based on map info - School

zone, park, indoor parking lots, etc.)

Coasting Guide

Enable Coasting Guide : On/Off
To inform driver when taking foot off from accelerator pedal

by getting information from Navigation system.

Sound
To adjust the sound of coasting guide.

Start Coasting

Early/Normal/Late
To select options when Coasting Pop-up is displayed.

Eco Coasting

To activate or deactivate the Eco Coasting.

Lock Charging Cable

To set the charging cable locking mode.

ś:KLOHFKDUJLQJ$OZD\V'RQRWORFN

AUX. BATTERY SAVER+

To activate or deactivate the Aux. Battery Saver+ function.
When activated, the high voltage battery is used to keep the

12V battery charged.

Instrument Cluster

4-42

3. Cluster

Items

Explanation

Reset fuel

economy

At vehicle start

After refueling

Manually

To reset the fuel economy displayed.

Wiper/Lights

Display

To activate or deactivate the Wiper/ Light mode.

When activated, the LCD display shows the selected Wiper/Light mode

whenever you changed the mode.

Traffic Signs To set the traffic signs displayed.

Cluster Voice

Guidance

Volume

To adjust the cluster voice guidance volume.

Icy Road

Warning

To activate or deactivate the icy road warning.

Theme

Selection

You can select the theme of the cluster.

Type A Cluster : Theme A / Theme B / Theme C

Type B Cluster : Link to Drive Mode /CLASSIC A/CLASSIC B/CLASSIC C/

CUBE

4. Lights

Items

Explanation

Illumination To adjust the illumination level.

Level 1~20

One Touch

Turn Signal

Off : The one touch turn signal function will be deactivated.

3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when

the turn signal lever is moved slightly.

For more details, refer to “Lighting” in chapter 5.

Ambient

Light

Brightness

(if equipped)

Off

Level 1/2/3/4

Ambient

Light Color

(if equipped)

Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/Orchid Green/

Freesia Yellow/ Sunrise Red/Aurora Purple/Lightening Violet

Headlight

Delay

To activate or deactivate the headlight delay function.

For more details, refer to "Lighting" in chapter 5.

High Beam

Assist

To activate or deactivate High Beam Assist function.

For more details, refer to "High Beam Assist (HBA)" in chapter 5.

The information provided may differ depending on which functions are applicable

to your vehicle.

4-43

5. Door

Items

Explanation

Automatically

Lock

Enable on Shift : All doors will be automatically locked if the gear is

shifted from the P (Park) position to the R (Reverse), N (Neutral), or D

(Drive) position. (Only when the engine is running.)

Enable on Speed : All doors will be automatically locked when the vehicle

speed exceeds 15km/h (9.3mph).

Off : The auto door lock operation will be deactivated.

Automatically

Unlock

On Shift to P: All doors will be automatically unlocked if the gear is shifted

to the P (Park) position. (Only when the engine is running.)

On key out/On vehicle off : All doors will be automatically unlocked when

the ignition key is removed from the ignition switch or the Engine Start/

Stop button is set to the OFF position.

Off : The auto door unlock operation will be canceled.

Two Press

Unlock

To Activate or deactivate Two Press Unlock function.

Power

Liftgate

If this item is checked, the power liftgate function will be activated.

For more details, refer to "Power Liftgate" in chapter 5.

Power

Liftgate

Opening

Speed

To adjust the power liftgate speed.

Fast/Normal

For more details, refer to "Power Liftgate" in chapter 5.

Power

Liftgate

Opening

Height

To adjust the power liftgate Opening Height.

Full Open/Level 3/Level 2/Level 1/User Height Setting

Liftgate Auto

Smart

Liftgate

To activate or deactivate the smart liftgate.

For more details, refer to "Smart Liftgate" in chapter 5.

The information provided may differ depending on which functions are applicable

to your vehicle.

Instrument Cluster

4-44

6. Convenience

Items

Explanation

Seat Easy

Access

Off : The seat easy access function is deactivated.

Normal/Extended : When you turn off the engine, the driver's seat will

automatically move rearward short (Normal) or long (Extended) for you to

enter or exit the vehicle more comfortably.

For more details, refer to "Driver Position Memory System" in chapter 5.

Rear

Occupant

Alert

To activate or deactivate the Rear Occupant Alert.

For more details, refer to "Rear Occupant Alert (ROA) system" in chapter

Welcome

Mirror/Light

On door unlock : The outside rearview mirrors are unfolded and the

welcome light turns on automatically when the doors are unlocked.

On driver approach : The outside rearview mirrors are unfolded and the

welcome light turns on automatically when the vehicle is approached

with the smart key.

For more details, refer to ''Welcome System'' in chapter 5."

Wireless

Charging

System

To activate or deactivate the wireless charging system in the front seat.

For more details, refer to "Wireless cellular phone charging system" in

chapter 5.

Auto Rear

Wiper (in R)

To activate or deactivate the Auto Rear Wiper function.

If you move the gear from D to R when the front wiper operates, the rear

wiper will operate automatically. Then, if you move the gear from R to D,

the rear wiper will stop."

Advanced

Anti-Theft

To activate or deactivate the Advanced Anti-Theft function.

Service

Interval

Service Interval

To activate or deactivate the service interval function.

Adjust Interval

If the service interval menu is activated, you may adjust the time and

distance.

Reset

To reset the service interval.

The information provided may differ depending on which functions are applicable

to your vehicle.

4-45

7. Units

Items

Explanation

Speed Unit

To select the speed unit. (km/h, MPH)

Temperature

Unit

To select the temperature unit. (°C,°F)

Fuel

Economy

Unit

To select the fuel economy unit. (km/L, L/100km, MPG)

Tire Pressure

Unit

To select the tire pressure unit. (psi, kPa, bar)

8. Reset

The information provided may differ depending on which functions are applicable

to your vehicle.

Instrument Cluster

4-46

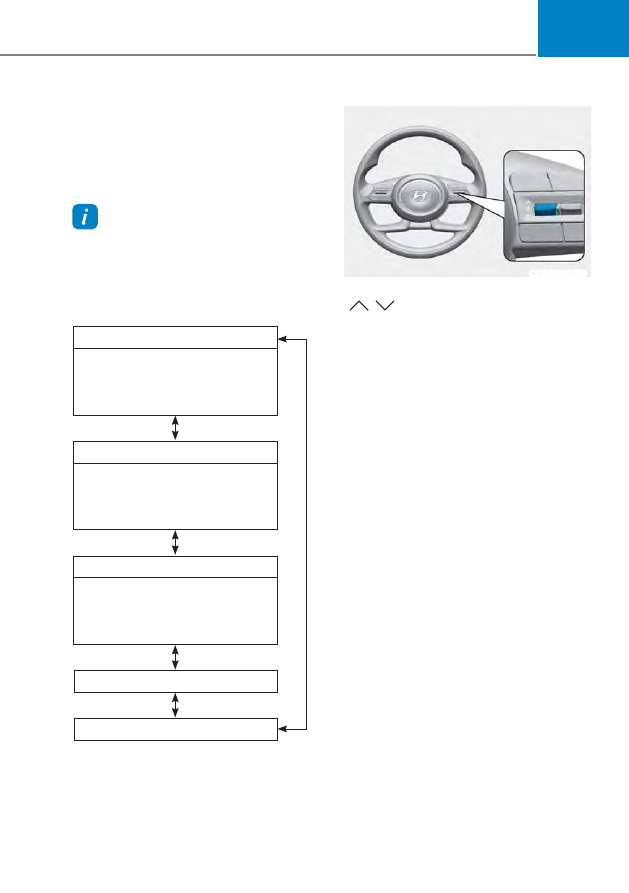

Trip Computer (4.2-inch) - Hybrid

Vehicle

The trip computer is a microcomputer-

controlled driver information system that

displays information related to driving.

Information

Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery
connector is disconnected.

Trip modes

Since refueling

ś7ULSGLVWDQFH
ś$YHUDJH)XHO(FRQRP\
ś,QVWDQW)XHO(FRQRP\

Drive Info

ś7ULSGLVWDQFH
ś$YHUDJH)XHO(FRQRP\
ś,QVWDQW)XHO(FRQRP\

Accumulated Info

ś7ULSGLVWDQFH
ś$YHUDJH)XHO(FRQRP\
ś,QVWDQW)XHO(FRQRP\

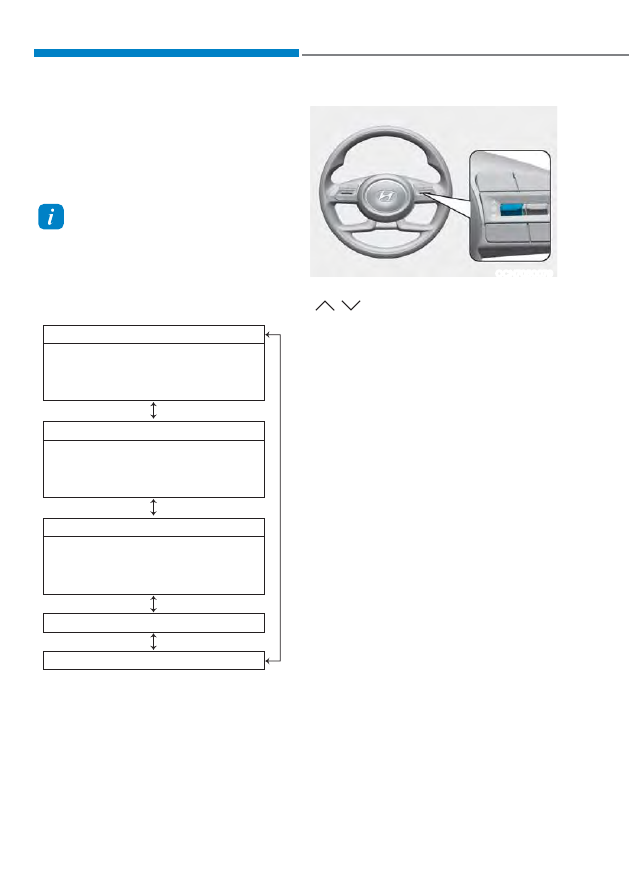

Energy flow

Digital Speedometer

OCN7050079

To change the trip mode, toggle the

" switch on the steering wheel

Manual reset
To clear the average fuel economy

manually, press the OK switch on the

steering wheel for more than 1 second

when the Average Fuel Economy is

displayed.

Automatic reset
To automatically reset the average

fuel economy, select between ‘After

Ignition’ or ‘After Refueling’ from

the Settings menu in the instrument

cluster.

- After Ignition: When the engine has

been OFF for 3 minutes or longer

the average fuel economy will reset

automatically.

- After Refueling: The average fuel

economy will reset automatically

after adding 6 liters (1.6 gallons) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

4-47

OTMA040004

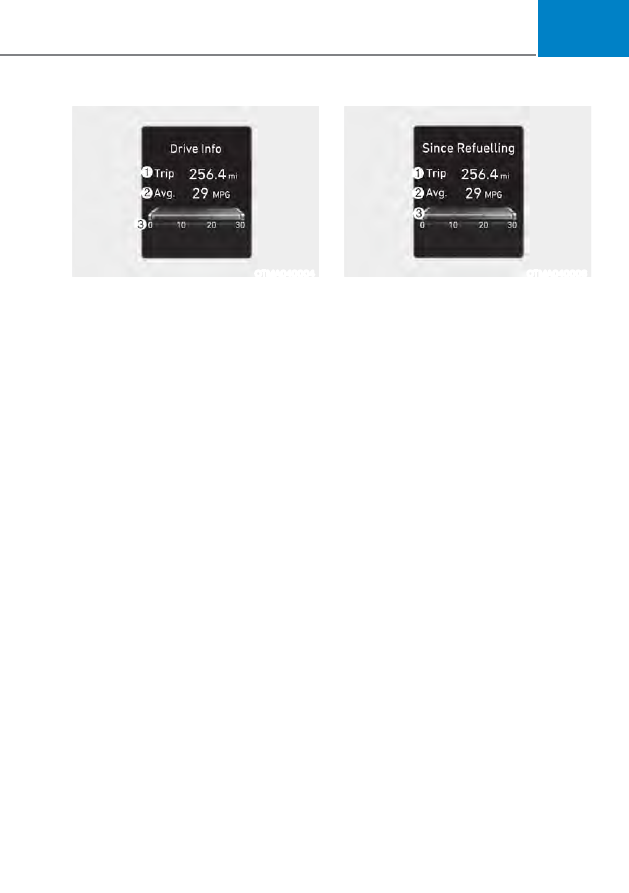

Drive info

Trip distance (1), average fuel economy

(2), and instant fuel economy (3) are

displayed.
The information is combined for each

ignition cycle. However, when the engine

has been OFF, the Drive Info screen will

reset.
To reset manually, press the OK switch

on the steering wheel for more than 1

second when ‘Drive Info’ is displayed.

OTMA040006

Since refuel(l)ing

Trip distance (1), average fuel economy

(2), and instant fuel economy (3) after the

vehicle has been refueled are displayed.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Since Refueling’ is

displayed.

Instrument Cluster

4-48

OTMA040009

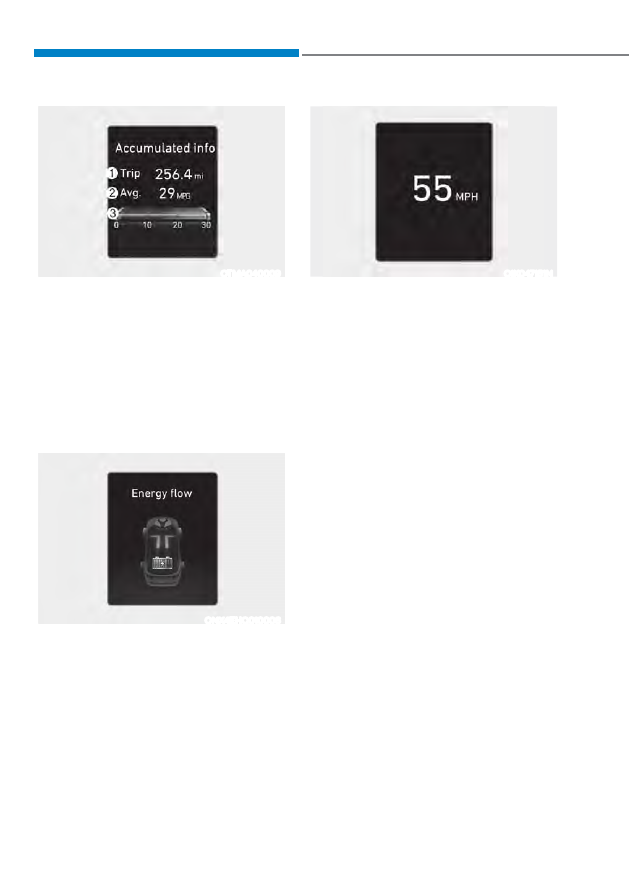

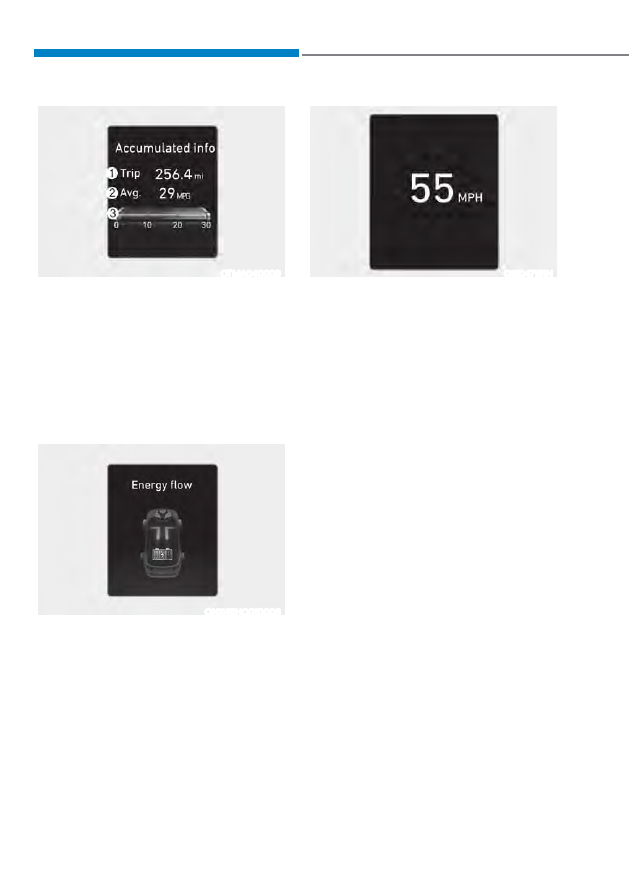

Accumulated info

Accumulated trip distance (1), average

fuel economy (2), and instant fuel

economy (3) are displayed.
The information is accumulated starting

from the last reset.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Accumulated Info’ is

displayed.

ONX4EHQ010006

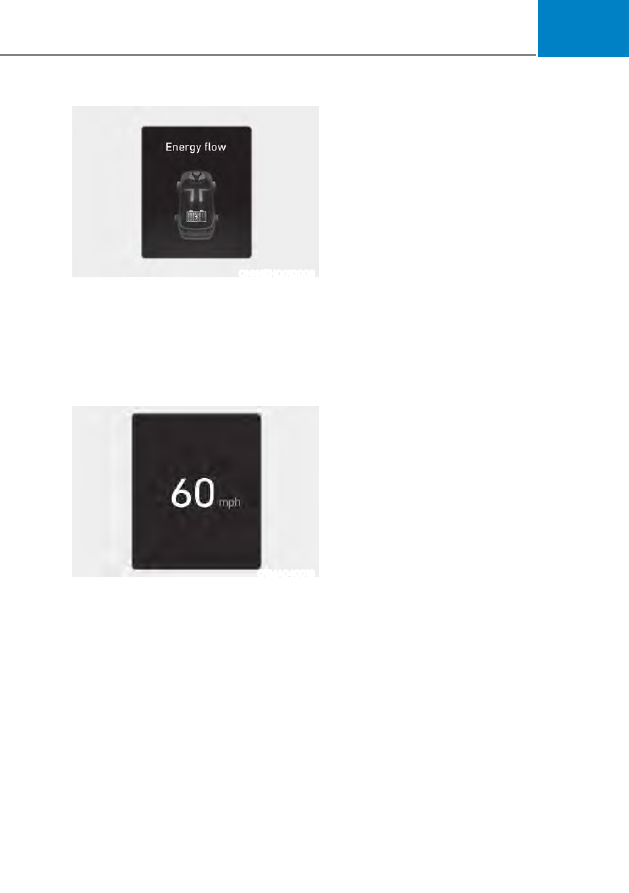

Energy flow

The hybrid system informs the drivers its

energy flow in various operating modes.

While driving, the current energy flow is

specified in 11 modes.

For more details, refer to the "Hybrid

system'' in chapter 1.

OIK047151N

Digital speedometer

Digital speedometer display shows the

speed of the vehicle.

4-49

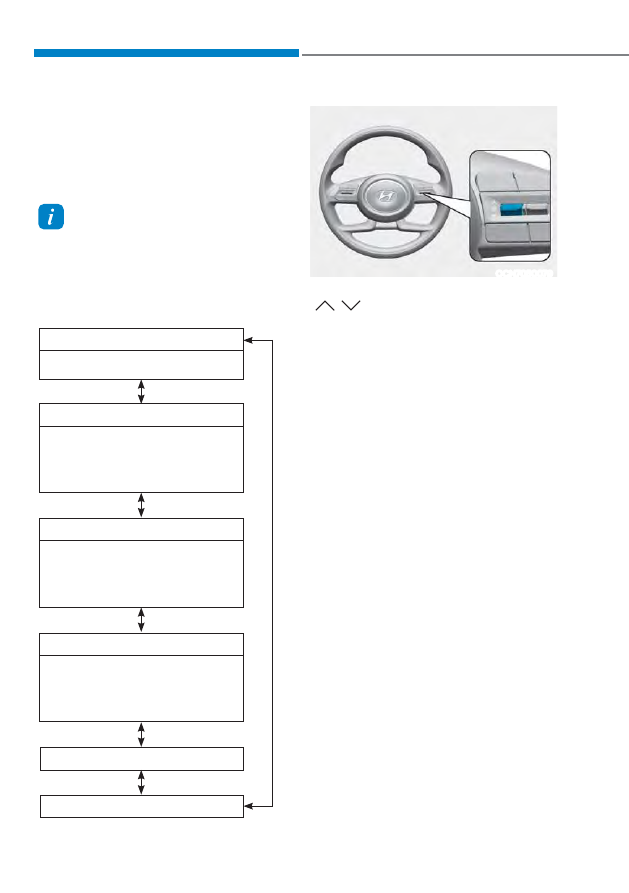

Trip Computer (10.25-inch) -

Hybrid Vehicle

The trip computer is a microcomputer-

controlled driver information system that

displays information related to driving.

Information

Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery
connector is disconnected.

Trip modes

Trip distance

Average Fuel Economy

Instant Fuel Economy

Accumulated Info

Trip distance

Average Fuel Economy

Instant Fuel Economy

Since refuelling

Energy flow

Digital speedometer

Trip distance

Average Fuel Economy

Instant Fuel Economy

Drive Info

OCN7050079

To change the trip mode, toggle the

" switch on the steering wheel

Manual reset
To clear the average fuel economy

manually, press the OK switch on the

steering wheel for more than 1 second

when the Average Fuel Economy is

displayed.

Automatic reset
To automatically reset the average

fuel economy, select between ‘After

Ignition’ or ‘After Refueling’ from

the Settings menu in the instrument

cluster.

- After Ignition: When the engine has

been OFF for 3 minutes or longer

the average fuel economy will reset

automatically.

- After Refueling: The average fuel

economy will reset automatically

after adding 1.6 gallons (6 liters) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

For 10.25-inch instrument cluster, you

can check the fuel economy in the

center bottom of the cluster.

Instrument Cluster

4-50

OTMA040012

Drive info

Trip distance (1), average fuel economy

(2), and total driving time (3) are

displayed.
The information is combined for each

ignition cycle. However, when the engine

has been OFF for 3 minutes or longer the

Drive Info screen will reset.
To reset manually, press the OK switch

on the steering wheel for more than 1

second when ‘Drive Info’ is displayed.

OTMA040014

Since refuel(l)ing

Trip distance (1), average fuel economy

(2), and total driving time (3) after the

vehicle has been refueled are displayed.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Since Refueling’ is

displayed.

OTMA040016

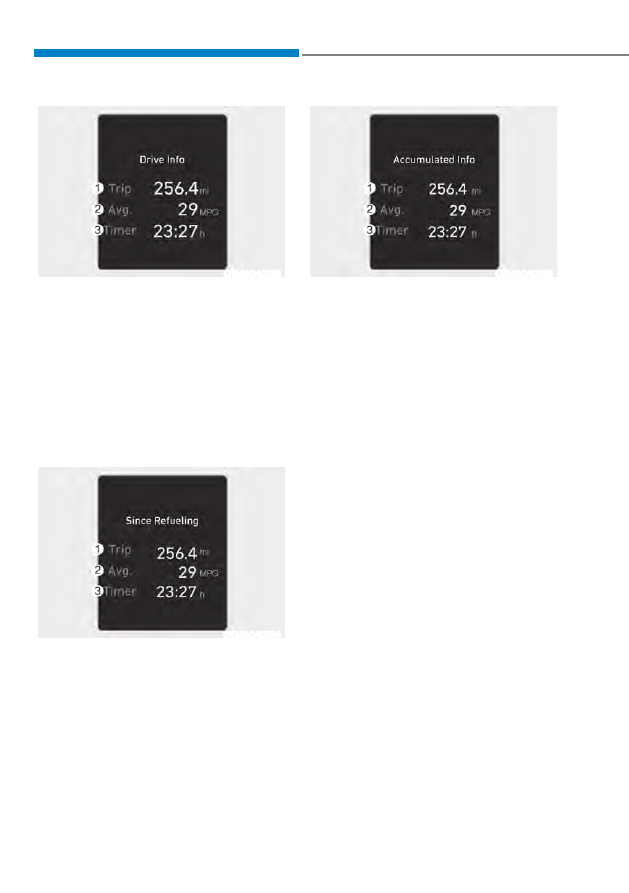

Accumulated info

Accumulated trip distance (1), average

fuel economy (2), and total driving time

(3) are displayed.
The information is accumulated starting

from the last reset.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Accumulated Info’ is

displayed.

Instrument Cluster

4-52

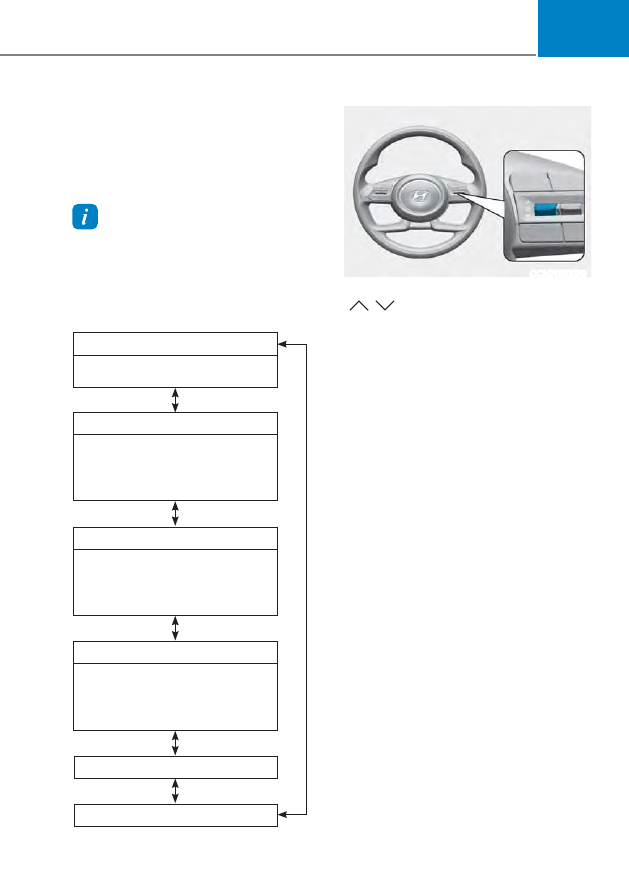

Trip Computer (4.2-inch) - Plug-

in Hybrid Vehicle

The trip computer is a microcomputer-

controlled driver information system that

displays information related to driving.

Information

Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.

Trip modes

Trip distance

Average Fuel Economy

Instant Fuel Economy

Accumulated Info

Trip distance

Average Fuel Economy

Instant Fuel Economy

Since refuelling

Energy flow

Digital speedometer

Trip distance

Average Fuel Economy

Instant Fuel Economy

Drive Info

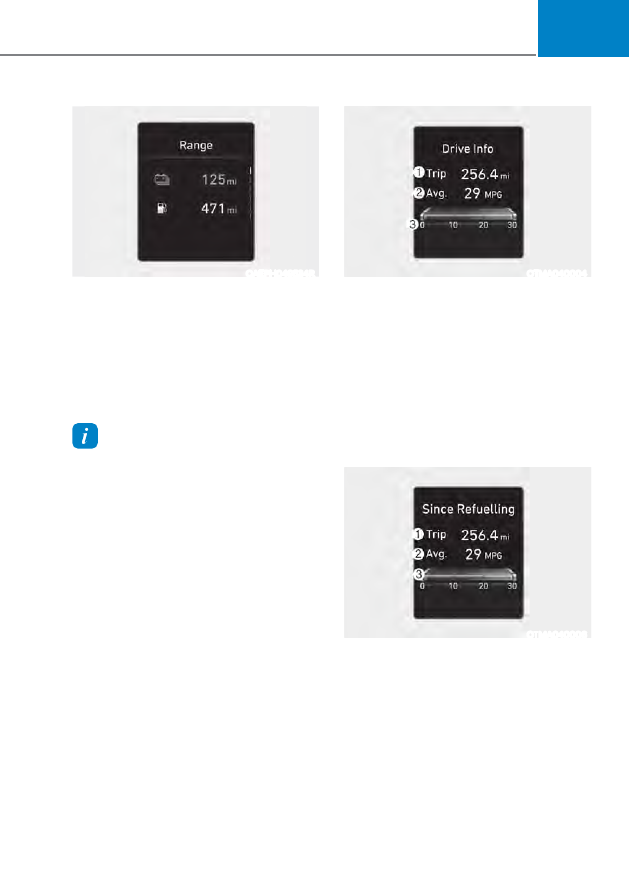

Electric/Gasoline

Range

OCN7050079

To change the trip mode, toggle the

" switch on the steering wheel

Manual reset
To clear the average fuel economy

manually, press the OK switch on the

steering wheel for more than 1 second

when the Average Fuel Economy is

displayed.

Automatic reset
To automatically reset the average

fuel economy, select between ‘After

Ignition’ or ‘After Refueling’ from

the Settings menu in the instrument

cluster.

- After Ignition: When the engine has

been OFF for 3 minutes or longer

the average fuel economy will reset

automatically.

- After Refueling: The average fuel

economy will reset automatically

after adding 6 liters (1.6 gallons) of

fuel or more and after driving speed

exceeds 1 mph (1 km/h).

4-53

OAEPH049534R

Range

The range is the estimated distance the

vehicle can be driven with the remaining

fuel in the fuel tank (Gasoline/Petrol) and

high-voltage (hybrid) battery (Electric).
If the estimated distance is below 1 mile

(1 km), the trip computer will display

“---” as the range.

Information

If the vehicle is not on level ground or
the battery power has been interrupted,
the range function may not operate
correctly.

The range may differ from the actual
driving distance as it is an estimate of
the available driving distance.

The trip computer may not register
additional fuel if less than 2 gallon (6
liters) of fuel are added to the vehicle.

The range may vary significantly based
on driving conditions, driving habits,
and condition of the vehicle.

OTMA040004

Drive info

Trip distance (1), average fuel economy

(2), and instant fuel economy (3) are

displayed.
The information is combined for each

ignition cycle. However, when the engine

has been OFF for 3 minutes or longer the

Drive Info screen will reset.
To reset manually, press the OK switch

on the steering wheel for more than 1

second when ‘Drive Info’ is displayed.

OTMA040006

Since refuel(l)ing

Trip distance (1), average fuel economy

(2), and instant fuel economy (3) after the

vehicle has been refueled are displayed.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Since Refueling’ is

displayed.

Instrument Cluster

4-54

OTMA040009

Accumulated info

Accumulated trip distance (1), average

fuel economy (2), and instant fuel

economy (3) are displayed.
The information is accumulated starting

from the last reset.
To reset manually, press the OK switch

on the steering wheel for more than

1 second when ‘Accumulated Info’ is

displayed.

ONX4EHQ010006

Energy flow

The hybrid system informs the drivers its

energy flow in various operating modes.

While driving, the current energy flow is

specified in 11 modes.

For more details, refer to the "Hybrid

system'' in chapter 1.

OIK047151N

Digital speedometer

Digital speedometer display shows the

speed of the vehicle.

4-55

Trip Computer (10.25-inch) -

Plug-in Hybrid Vehicle

The trip computer is a microcomputer-

controlled driver information system that

displays information related to driving.

Information

Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.

Trip modes

Trip distance

Average Fuel Economy

Instant Fuel Economy

Accumulated Info

Trip distance

Average Fuel Economy

Instant Fuel Economy

Since refuelling

Energy flow

Digital speedometer

Trip distance

Average Fuel Economy

Instant Fuel Economy

Drive Info

Electric/Gasoline

Range

OCN7050079

To change the trip mode, toggle the

" switch on the steering wheel

Manual reset
To clear the average fuel economy

manually, press the OK switch on the

steering wheel for more than 1 second

when the Average Fuel Economy is

displayed.

Automatic reset
To automatically reset the average

fuel economy, select between ‘After

Ignition’ or ‘After Refueling’ from

the Settings menu in the instrument

cluster.

- After Ignition: When the engine has

been OFF for 3 minutes or longer

the average fuel economy will reset

automatically.

- After Refueling: The average fuel

economy will reset automatically

after adding 6 liters (1.6 gallons) of

fuel or more and after driving speed

exceeds 1 km/h (1 mph).

For 10.25-inch instrument cluster, you

can check the fuel economy in the

center bottom of the cluster.

Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english - page 7
