Hyundai Ioniq 6 (2024 year). Manual in english - page 3

Convenience Features

Door Locks

Operating Door Unlocks from

Outside the Vehicle (Electric

type)

Operating Door Unlocks from

if equipped

Outside the Vehicle (Manual

type)

Smart key

Smart key

Approach unlock system

The outside door handle will slide out and

the doors will unlock when the driver

approaches the vehicle possessing the

smart key.

The driver can activate/deactivate the

“Approach unlock” system on the

infotainment system.

To activate Approach unlock system for

only the driver’s seat, select Settings >

Vehicle > Door > Unlock all doors in the

infotainment system.

B5002803

To activate Approach unlock system,

select Settings > Vehicle > Door >

Activate approach unlock in the

infotainment system. The outside door

handle will slide out and the door will

1

unlock when the driver approaches the

vehicle possessing the smart key. If

Approaching unlock system is

deactivated, the door handle will not slide

2

out even when the driver approaches to

the vehicle with the smart key. To unlock

doors when Approach unlock system is

B5002802

deactivated, touch the lock/unlock

Push the button on the front outside door

sensor(engraved part) on the handle.

handle (the engraved part) while carrying

the smart key with you, all doors will

unlock.

The hazard warning lights will blink twice

and chime also sounds twice.

Once the doors are unlocked, when press

the front of the door handle (1) then rear

of the door handle will pop out (2).

Pull the outside door handle to open the

door.

B5002801

5-22

5

B5002802_1

B5002802_2

• When the 'Approach unlock' is

• When the 'Approach unlock' is

activated:

deactivated: The handle does not slide

out even when you approach with the

- If you approach (within 40 in. (1 m))

smart key in possession. The doors are

the driver or front passenger’s door

unlocked if you press the outside

handle possessing the smart key, the

handle as the handles slide out.

outside door handles slide out and

the doors are unlocked. In this case,

• The doors will lock automatically and

Hazard Warning Flasher blinks twice

the handles will slide in after 30

and chime also sounds twice.

seconds unless a door is opened.

- After first approach, the vehicle tries

Information

detecting the smart key every 5

seconds and if the key is not

In emergency situations, such as battery

detected, the doors will lock

is dead, the outside electric door handle

automatically and the handles will

can still be operated in a way that the

slide in.

outside manual door handle operate.

B5002804

5-23

Convenience Features

Operating Door Locks from

Operating Door Locks from

Outside the Vehicle (Manual

Outside the Vehicle (Electric

type)

type)

if equipped

Smart key

Smart key

B5000204

Push the button on the front outside door

ONE1051013

handle (the engraved part) while carrying

When all doors are closed, touch the

the smart key with you, all doors will lock.

touch sensor on the front outside door

The hazard warning lights will blink and

handle (the engraved part) while carrying

chime also sounds once.

the smart key with you, outside door

handle will return and doors will be

Push the door to close.

locked.

The hazard warning lights will blink and

chime also sounds once.

NOTICE

• If the door is locked/unlocked multiple

times in rapid succession with the

smart key, door lock button or door lock

switch, the system may stop operating

temporarily in order to protect the

circuit. Also, the “Approach unlock”

system may not operate. Try operation

after a sufficient time in case the

system does not operate due to

multiple operations.

• “Approach unlock” system is not

operated continuously. Retry after a

certain period of time when all the

doors are closed.

5-24

5

Mechanical key

Information

•

In cold and wet climates, door lock and

door mechanisms may not work

properly due to freezing conditions.

•

If the door is locked/unlocked multiple

times in rapid succession with either

the vehicle key or door lock switch, the

system may stop operating temporarily

in order to protect the circuit and

prevent damage to system

components.

•

When washing the vehicle

B5002903

- Self vehicle wash

Keep the door locked with the

outside door handle closed.

To keep the door unlocked, push

back the outside door handle by

hand. This function prevents the door

handle from being damaged, and the

door handle pops out again when the

unlock button is pressed.

- Auto vehicle wash

B5002904

Keep the door locked with the

outside door handle closed.

Turn the knob (2) of the mechanical key

after removing the key protector (1).

If the smart key is not in the vehicle,

turn off the vehicle and stay the smart

Press the front part (3) of the door handle

key away at least 78 in. (2 m) from the

to pull out the rear part of the door

vehicle to prevent the outside door

handle. While keep pressing the front part

handle operates.

of the door handle, insert the mechanical

key (4) to the lock.

To lock the door, turn the key toward the

Digital key

front (left side) of the vehicle. To unlock,

if equipped

turn the key toward the rear (right side) of

the vehicle.

For more information, refer to the

"Hyundai Digital Key" section in this

NOTICE

chapter to lock or unlock the door from

outside vehicle with digital key.

Do not apply excessive force on the door

Pull the outside door handle to open the

and door handle. It may damage the door

door after unlocking the door. Push the

and door handle.

door to close.

The mechanical key only locks/unlocks

the driver’s door handle. For more

information, refer to the "In case of an

emergency" section in this chapter.

5-25

Convenience Features

Information

WARNING

When the door handle or the keyhole

• Always close and lock the doors while

freeze and do not open, lightly tap or

the vehicle is moving. If the doors are

indirectly warm (for example, hand

unlocked, the risk of being thrown from

temperature) the keyhole.

the vehicle in a collision increases.

Since the smart key and the mechanical

• Do not pull the inner door handle of the

key are separated, always carry the

driver’s or passenger’s door while the

mechanical key in case the vehicle

vehicle is moving.

battery and the smart key battery are

discharged.

WARNING

In case of an emergency

Do not leave the elderly, children, or

animals unattended in your vehicle. An

enclosed vehicle can become extremely

hot and the elderly, unattended children

or animals who cannot escape the vehicle

may be seriously injured or killed.

WARNING

Always park your vehicle properly.

Depress the brake pedal, change the gear

B5003103

to P (Park), apply the parking brake, press

the Start/Stop button to the OFF position,

Doors without an outside key hole can be

close all windows, lock all doors, and

locked as follows:

always take the keys with you.

1. Open the door.

2. The using a small flat blade tool (like a

screwdriver or similar), insert into the

emergency door lock hole and turn to

WARNING

the lock position.

Be careful when opening doors and

3. Close the door securely.

watch for vehicles, motorcycles, bicycles,

or pedestrians approaching the vehicle to

Information

prevent serious injury or death.

If the electrical power to door lock switch

is not operating (for example, discharged

vehicle battery) and the trunk is closed,

Information

you cannot open the trunk until power is

To exit the vehicle if the power door lock

restored.

does not function:

• Operate the door unlock feature

repeatedly (both electronic and

manual) while simultaneously pulling

on the door handle.

5-26

5

• Operate the other door locks and

With the central door lock switch

handles.

• Lower the driver’s front window and

use the mechanical key to unlock the

door from outside.

2

Operating Door Lock/Unlock

from Inside the Vehicle

1

With the inside door handle

B5003102

The central door lock switch is located on

the center console. The lock switch is

indicated by a symbol. The unlock

switch is indicated by a symbol.

When the lock switch (1) is pressed, all the

vehicle doors will lock.

When the unlock switch (2) is pressed

(door indicator light ON), all the vehicle

doors will unlock.

B5003101

If any door is opened, the doors will not

lock even though the central door lock

Front door

button (1) is pressed.

If the inner door handle is pulled when the

door is locked, the door is unlocked and

NOTICE

opened.

If the smart key is in the vehicle and the

front door is opened, the central door lock

Rear door - Two pull operation

button (1) cannot lock the doors.

If the inner door handle is pulled once

when the door is locked, the door is

unlocked. If the inner door handle is

Automatic Door Lock and

pulled once more, the door is opened.

Unlock Features

Your vehicle is equipped with features

that will automatically lock or unlock your

vehicle based on settings you select in the

infotainment system.

Auto Lock Enable on speed

When this feature is set in the

infotainment system, all the doors will be

locked automatically when the vehicle

exceeds 9 mph (15 km/h).

5-27

Convenience Features

Auto Lock Enable on shift

Child-Protector Rear Door

When this feature is set in the

Locks

infotainment system, all the doors will be

locked automatically when the vehicle is

shifted out of P (Park) while the vehicle is

running.

Auto Unlock Enable on shift to P

When this feature is set in the

infotainment system, all the doors will be

unlocked automatically when the vehicle

1

is shifted back into P (Park) while the

vehicle is running.

B5003601

The child safety lock is provided to help

Auto Unlock Enable at Vehicle Off

prevent children seated in the rear from

When this feature is set in the

accidentally opening the rear doors. The

infotainment system, all the doors will be

rear door safety locks should be used

unlocked automatically when the vehicle

whenever children are in the vehicle.

is turned off.

The child safety lock is located on the

edge of each rear door. When the child

Information

safety lock is in the lock position, the rear

The infotainment system may change

door will not open if the inner door handle

after software updates. For more

is pulled.

information, refer to the user's manual

To lock the child safety lock, insert a small

provided in the infotainment system and

flat blade tool (like a screwdriver or

the quick reference guide.

similar) (1) into the slot and turn it to the

lock position as shown.

To allow a rear door to be opened from

Additional unlock safety feature

inside the vehicle, unlock the child safety

airbag deployment

lock.

As an additional safety feature, all doors

will be automatically unlocked when an

WARNING

impact causes the airbags to deploy.

Never allow children to open the rear

doors while the vehicle is moving. They

may fall out of the vehicle. Be sure to use

the rear door safety locks whenever

children are in the vehicle.

5-28

Convenience Features

Rear Occupant Alert

Information

(ROA)

• The second alert is activated only after

if equipped

the prior activation of the first alert.

• Rear Occupant Alert also activates

Rear Occupant Alert is provided to

when movement is detected in the

prevent a driver from leaving a vehicle

cargo area.

with the rear passenger left in the vehicle.

• The second alert activates only when

the sensor is equipped in the vehicle.

System Setting

To use Rear Occupant Alert, it can be

System precautions

enabled from the Settings menu in the

infotainment system.

• Make sure that all the windows are

closed. If the window is open, the alert

Select Setup > Vehicle > Convenience >

may occur when the sensor has

Rear Occupant Alert.

detected any movement (for example,

wind or bugs).

Information

Sensor

The infotainment system may change

after software updates. For more

information, refer to the user’s manual

provided in the infotainment system and

the quick reference guide.

System Operation

• First alert

When you turn off the vehicle and open

the driver’s door after opening and

closing the rear door or trunk, the

B5003803

"Check rear seats for passengers and

• If you do not want to use Rear

belongings" warning message appears

Occupant Alert, press the 'OK' switch

on the instrument cluster.

on the steering wheel when the first

alert appears and the second alert is

• Second alert (if the sensor equipped)

deactivated once.

After the first alert, the second alert

Instrument cluster

operates when any movement is

detected in the vehicle after the driver’s

door is closed and all the doors are

locked. The horn sounds about 25

$IFDL SFBS TFBUT

GPS QBTTFOHFST

seconds. If the system continues to

PS CFMPOHJOHT

detect a movement, the alert operates

up to 8 times.

Unlock the doors with the smart key to

stop the alert.

"MBSN 0GG

• The system detects movement in the

vehicle for 10 minutes after the door is

locked.

OJX1059019L

5-30

5

Steering wheel

WARNING

Even if your vehicle is equipped with Rear

Occupant Alert (ROA), always check the

rear seat before you leave the vehicle.

Rear Occupant Alert (ROA) may not

operate when:

•

Movement does not continue for a

certain period of time or the movement

is small.

•

The detection signal is weak because

B5003802

the signal is obscured by seat or CRS

• If the vehicle is started remotely (if

(for example, child is restrained in the

equipped with Remote Start), inside

forward-facing CRS).

movement detection stops.

•

A child is not seated in a child restraint

• The alert may occur if any movement is

system.

detected in the driver's or passenger's

•

Movement is detected in areas other

seat.

than the rear seats.

• If all doors are locked with a passenger

•

The rear passenger is covered with a

in the vehicle, the alert may occur.

fabric made of metallic substance such

• The alert may occur if there is an impact

as a blanket.

on the vehicle.

•

The sensor is dirty or blocked with

• If boxes or objects are stacked in the

foreign substances.

vehicle, the system may not detect

•

An animal at the rear seat is not large

passengers. The alert may occur if the

enough to be detected by the sensor or

boxes or objects fall off or move

there is hardly any movement.

• The alert may occur with the doors

•

Attaching objects or modifying the

locked if the vehicle is pushed or

interior ceiling, or the interior ceiling is

shaken, or washed, or if there is

deformed or damaged.

sufficient external vibration or noise.

•

There are electronic interference

• The alert may occur when there are

around the vehicle.

metallic or liquid objects in the vehicle.

•

The external environment and other

conditions are detected.

5-31

5

• Motor noise may be heard when the

Steering Wheel

vehicle is at a stop or at a low driving

speed.

Motor Driven Power Steering

• When you operate the steering wheel in

low temperatures, abnormal noise may

(MDPS)

occur. If the temperature rises, the

The system assists you with steering the

noise will disappear. This is a normal

vehicle. If the vehicle is turned off or if the

condition.

power steering system becomes

• When an error is detected from MDPS,

inoperative, you may still steer the

the steering effort assist function will

vehicle, but it will require increased

not be activated in order to prevent

steering effort.

fatal accidents. Instrument cluster

If you notice any change in the effort

warning lights may be on or the

required to steer during normal vehicle

steering effort may be high. If these

operation, have the system inspected by

symptoms occur, drive the vehicle to a

an authorized HYUNDAI dealer.

safe area as soon as it is safe to do so.

Have the system inspected by an

CAUTION

authorized HYUNDAI dealer as soon as

If Motor Driven Power Steering does not

possible.

operate normally, the warning light and

the message 'Check motor driven power

steering' will illuminate on the instrument

Tilt/Telescopic Steering

cluster. You may steer the vehicle, but it

When adjusting the steering wheel to a

will require increased steering efforts.

comfortable position, adjust the steering

Take the vehicle to an authorized

wheel so that it points toward your chest,

HYUNDAI dealer and have the system

not toward your face. Make sure you can

inspected as soon as possible.

see the instrument cluster warning lights

and gauges. After adjusting, push the

steering wheel both up and down to be

certain it is locked in position.

Information

Always adjust the position of the steering

During normal vehicle operation:

wheel before driving.

• The steering effort may be high

immediately after pressing the

WARNING

Start/Stop button to the ON position.

NEVER adjust the steering wheel while

This happens as the system performs

driving. This may cause loss of vehicle

the MDPS system diagnostics. When

control resulting in an accident.

the diagnostics are completed, the

steering wheel effort will return to its

normal condition.

NOTICE

• When the 12 V battery voltage is low,

you might have to put more steering

While adjusting the steering wheel

effort. However, it is a temporary

height, please do not push or pull it hard

condition so that it will return to normal

since the fixture can be damaged.

condition after charging the battery.

• A click noise may be heard from the

MDPS relay after the Start/Stop button

is in the ON or OFF position.

5-35

Convenience Features

Manual adjustment

Horn

2

3

1

B5006301

B5006501

To adjust the steering wheel angle and

To sound the horn, press the area

height:

indicated by the horn symbol on your

steering wheel (see illustration). The horn

1. Pull down the lock-release lever (1).

will operate only when this area is

2. Adjust the steering wheel to the desired

pressed.

angle (2) and distance forward/back

(3).

NOTICE

3. Pull up the lock-release lever to lock the

Do not strike the horn severely or hit it

steering wheel in place.

with your fist. Do not press on the horn

with a sharp-pointed object.

Information

Sometimes the lock-release lever may

not engage completely. Pull down on the

Heated Steering Wheel

lock-release lever, readjust the steering

if equipped

wheel again, and then pull back up on the

Infotainment system

lock-release lever to lock the steering

wheel in place.

ONE1031085L

While the vehicle is running, touch

Heating/Ventilation icon in the

infotainment system.

5-36

5

Climate control panel

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system

and the quick reference guide.

• The heated steering wheel defaults to

the OFF position whenever the

Start/Stop button is pressed to the ON

B5006402

position. However, if the Auto. Controls

Press

in the front climate control

That Use Climate Control Settings

panel.

function is ON, the heated steering

wheel will turn on and off depending on

the outside temperature.

NOTICE

•

Do not install any cover or accessories

on the steering wheel to prevent

damage to the steering wheel heater

system.

•

Do not strike the steering wheel surface

with a sharp-pointed object. This may

damage the heating element in the

ONE1051216L

steering wheel.

While the vehicle is running, touch the

•

Do not clean the steering wheel surface

heated steering wheel icon to warm the

using the following products.

steering wheel.

- Organic solvents such as thinner,

• To warm the steering wheel, touch the

alcohol and gasoline

heated steering wheel icon in the

Heating/Ventilation seats.

- Chemical products such as leather

cleaner, coating agent, and wax

• Auto. Controls That Use Climate

Control Settings (for driver’s seat)

The heated steering wheel

automatically controls the steering

wheel temperature depending on the

ambient temperature when the vehicle

is running.

To use this function, it must be enabled

from the Settings menu in the

infotainment system.

Select Setup > Vehicle > Seat >

Warmer/Ventilation Features > Link to

Climate Settings for Auto-Adjustment

> Steering Wheel Warmer.

5-37

Convenience Features

Day/night rearview mirror

Mirrors

if equipped

Inside Rearview Mirror

Before driving your vehicle, check to see

that your inside rearview mirror is

properly positioned. Adjust the rearview

mirror so that the view through the rear

window is properly centered.

WARNING

Make sure your line of sight is not

obstructed. Do not place objects on the

B5006901

rear seat or in the cargo area that may

Make this adjustment before you start

interfere with your vision through the rear

driving and while the day/night lever is in

window.

the day position.

Pull the day/night lever towards you to

reduce glare from the headlights of the

WARNING

vehicles behind you during night driving.

To prevent serious injury during an

Remember that you lose some rearview

accident or deployment of the airbag, do

clarity in the night position.

not modify the rearview mirror and do not

install a wide mirror.

Electric Chromic Mirror (ECM)

if equipped

WARNING

NEVER adjust the mirror while driving.

This may cause loss of vehicle control

resulting in an accident.

NOTICE

When cleaning the mirror, use a paper

towel or similar material dampened with

glass cleaner. Do not spray glass cleaner

B5006902

[A] Indicator

directly on the mirror as this may cause

the liquid cleaner to enter the mirror

Some vehicles come equipped with an

housing.

electrochromic mirror that helps control

glare while driving at night or under low

light driving conditions.

5-38

5

When the vehicle is running, the glare is

Automatic-Dimming Night Vision Safety™

automatically controlled by the sensor

(NVS^®) Mirror

mounted in the rearview mirror. The

if equipped

sensor detects the light level around the

The NVS® Mirror automatically reduces

vehicle, and automatically adjusts to

glare by monitoring light levels in the

control the headlight glare from vehicles

front and the rear of the vehicle. Any

behind you.

object that obstructs either light sensor

Whenever the gear is shifted to R

will degrade the automatic dimming

(Reverse), the mirror will automatically go

control feature.

to the brightest setting in order to

For more information regarding NVS®

improve the driver’s view behind the

mirrors and other applications, please

vehicle.

refer to the Gentex website:

www.gentex.com

Electrochromic mirror (ECM) with

Your mirror will automatically dim upon

HomeLink® system

detecting glare from the vehicles

if equipped

traveling behind you.

Your vehicle may be equipped with a

The mirror defaults to the ON position

Gentex Automatic-Dimming Mirror with

each time the vehicle is started.

an Integrated HomeLink® Wireless

Control System.

Integrated HomeLink^® Wireless Control

During nighttime driving, this feature will

System

automatically detect and reduce rearview

The HomeLink® Wireless Control System

mirror glare. The HomeLink® Universal

provides a convenient way to replace up

Transceiver allows you to activate your

to three hand-held radio-frequency

garage door(s), electric gate, home

transmitters used to activate compatible

lighting, etc.

devices such as gate operators, garage

door openers, entry door locks, security

systems, and home lighting.

NOTICE

HomeLink® operates while the Start/Stop

button is in the ACC or ON position for

safety reasons. It is to prevent

unintentional security problems from

happening when the vehicle is parked

outside the garage.

ONE1051261N

(1) HomeLink Channel 1

(2) HomeLink Channel 2

(3) HomeLink Channel 3

(4) Garage Door Opener Status Indicator:

Closing or Closed

(5) HomeLink Operation Indicator

(6) Garage Door Opener Status Indicator:

Opening or Opened

(7) HomeLink User Interface Indicator

5-39

Convenience Features

• Or, call HomeLink customer support at

WARNING

1-800-355-3515 (Please have the

Before programming HomeLink® to a

vehicle make/model AND the opener

garage door opener or gate operator,

device make/model readily available.)

make sure people and objects are out of

1) Programming Preparation

the way of the device to prevent potential

harm or damage. Do not use the

HomeLink® with any garage door opener

that lacks the safety stop and reverse

features required by U.S. federal safety

standards (this includes any garage door

opener model manufactured before April

1, 1982). A garage door that cannot detect

an object-signaling the door to stop and

reverse-does not meet current U.S.

federal safety standards. Using a garage

door opener without these features

ONE1051262N

increases the risk of serious injury or

1. When programming a garage door

death.

opener, it is advised to park the vehicle

For more information, contact

outside of the garage.

HomeLink® at www.homelink.com, or call

2. It is recommended that a new battery

Home-Link customer support at

be placed in the hand-held transmitter

1-800-355-3515.

of the device being programmed to

It is also recommended that a new battery

HomeLink for quicker training and

be replaced in the hand-held transmitter

accurate transmission of the

of the device being trained to HomeLink®

radio-frequency signal.

for quicker training and accurate

3. Press the Start/Stop button to the ACC

transmission of the radio frequency.

(Accessory) position for programming

of HomeLink.

1. Programming HomeLink^®

2) Programming a New HomeLink®

The following steps show how to program

HomeLink. If you have any questions or

are having difficulty programming your

HomeLink buttons, refer to the HomeLink

website or call the HomeLink customer

support toll-free number. Do this, before

going back to the dealer who sold you the

vehicle.

• Visit the HomeLink website at:

www.homelink.com. Then at the top of

the page, choose your vehicle make.

ONE1051263N

Then watch the You Tube video, and/or

access additional website information.

1. Press and release the HomeLink button

(1), (2) or (3), you would like to program.

• If you choose to access the website via

The HomeLink indicator light (7) will

your cell phone, scan the QR code.

flash orange slowly (if not, perform the

steps of “Erasing HomeLink Buttons”

section, and start over).

5-40

5

6. At the garage door opener motor,

(security gate motor, etc.) locate the

'Learn', 'Smart', 'Set' or 'Program'

button. This can usually be found where

the hanging antenna wire is attached to

the motor-head unit (see the device’s

manual to identify this button). The

name and color of the button may vary

by manufacturer.

ONE1051264N

2. Position the garage door opener

remote 1-3 in. (2-8 cm) away from the

HomeLink buttons.

3. While the HomeLink indicator light (7) is

flashing orange, press and hold the

hand-held remote button. Continue

pressing the hand-held remote button

until the HomeLink indicator light (7)

light changes from orange to green.

You may now release the hand-held

ODL3A040504

remote button.

• A ladder and/or second person may

4. Wait until your garage door comes to a

simplify the following steps.

complete stop, regardless of position,

7. Firmly press and release the 'Learn',

before proceeding to the next steps.

'Smart', 'Set' or 'Program' button. You

5. Press and release the HomeLink button

now have up to 30 seconds in which to

you are programming and observe the

complete the next step.

indicator light.

8.Return to the vehicle and firmly press,

• If the indicator light remains solid

hold for two seconds and release, the

green, your device should operate

HomeLink button up to three times in a

when the HomeLink button is

row slowly. Do not press the HomeLink

pressed. At this point, if your device

button rapidly. As soon as you see the

operates, programming is complete.

garage door start to move, stop

pressing any buttons until a few

• If the indicator light rapidly flashes

seconds after the garage door has

green, firmly press, hold for two

come to a complete stop, regardless of

seconds and release the HomeLink

position. At this point, programming is

button up to three times in a row

complete and your device should

slowly to complete the programming

operate when the HomeLink button is

process. Do not press the HomeLink

pressed and released.

button rapidly. At this point if your

device operates, programming is

complete. If the device does not

operate, continue with step 6.

5-41

5

4) Canadian Programming

Information

Canadian radio-frequency laws require

transmitter remote signals to “time-out”

The HomeLink indicator (7) should light

(or quit) after a couple seconds of

green, solid or flashing, and your

transmission, which may not be long

programmed device should operate.

enough for HomeLink to pick up the

If your device does not operate, the

signal during programming.

HomeLink programming was not

If you live in Canada or you are having

successful, and you’ll need to reprogram

difficulties programming a gate operator

the button.

or garage door opener by using the

programming procedures, replace

“Programming a New HomeLink Button”

2) Two-Way Communication Display

step 3 with the following:

Behavior

While the HomeLink indicator light (7) is

flashing orange, press and release

(“cycle”) your device’s hand-held remote

every two seconds until the HomeLink

indicator light (7) changes from orange to

green. You may now release the

hand-held remote button. Then proceed

with “Programming a New HomeLink

Button” step 4.

2. Operating HomeLink^®

ONE1051265N

1) Operating HomeLink®

1. Press and release one of the

programmed HomeLink buttons (1, 2 or

3).

ONE1051263N

1. Press and release the desired

programmed HomeLink button (1, 2 or

ONE1051266N

3).

2. The indicator (4) and (6) operates as

below, if your garage door opener has

Two-Way Communication

functionality.

• If the indicator (4) flashes in Orange,

it indicates that the garage door is

“Closing”.

5-43

Convenience Features

• The indicator (4) turns solid green

Information

once the garage door has closed.

• If the indicator (6) flashes in Orange,

If you do not complete the

it indicates that the garage door is

re-programming of a new device to the

“Opening”.

button, it will revert to the previously

stored programming.

• The indicator (6) turns solid green

once the garage door has fully

opened.

2) The following instructions will erase

• If the indicator (4) or (6) does not turn

ALL HomeLink® programming from ALL

to green, it indicates that the last

buttons:

status of garage door was not

received properly. The HomeLink

mirror tries to receive the last known

status of the garage door for a few

seconds.

3) Recalling Garage Door Status

HomeLink mirror with Two-Way

Communication provides a way to view

the last stored message from the garage

door opener. In order to recall the last

known status of the last activated device,

press the buttons “1 and 2” or “2 and 3”

ONE1051267N

simultaneously.

1. Press and hold the buttons (1) and (3)

• If the indicator (4) appears solid Green,

simultaneously

it indicates that the last activated

2. The HomeLink indicator light (7) will

device was “closed” properly.

illuminate solid Orange for about 10

• If the indicator (6) appears solid Green,

seconds

it indicates that the last activated

3. Release the buttons once the

device was “open” properly.

HomeLink indicator light (7) changes to

Green and flashes rapidly

3. Erasing HomeLink® Buttons

4. Now all three HomeLink buttons (1), (2)

1) Erasing and Reprogramming a Single

and (3) are cleared of any programming

HomeLink® Button:

1. Press and hold the desired HomeLink

Information

button you want to re-program. DO

HomeLink® and the HomeLink® House

NOT release the button.

logo are registered trademarks of Gentex

2. The HomeLink indicator light (7) will

Corporation.

illuminate solid green. Release the

The myQ logo is a registered trademark of

button as soon as the HomeLink

The Chamberlain Group, Inc.

indicator light (7) begins to flash

orange, usually about 20 seconds.

3. Proceed with the steps in the

“Programming a New HomeLink

Button” section.

5-44

Convenience Features

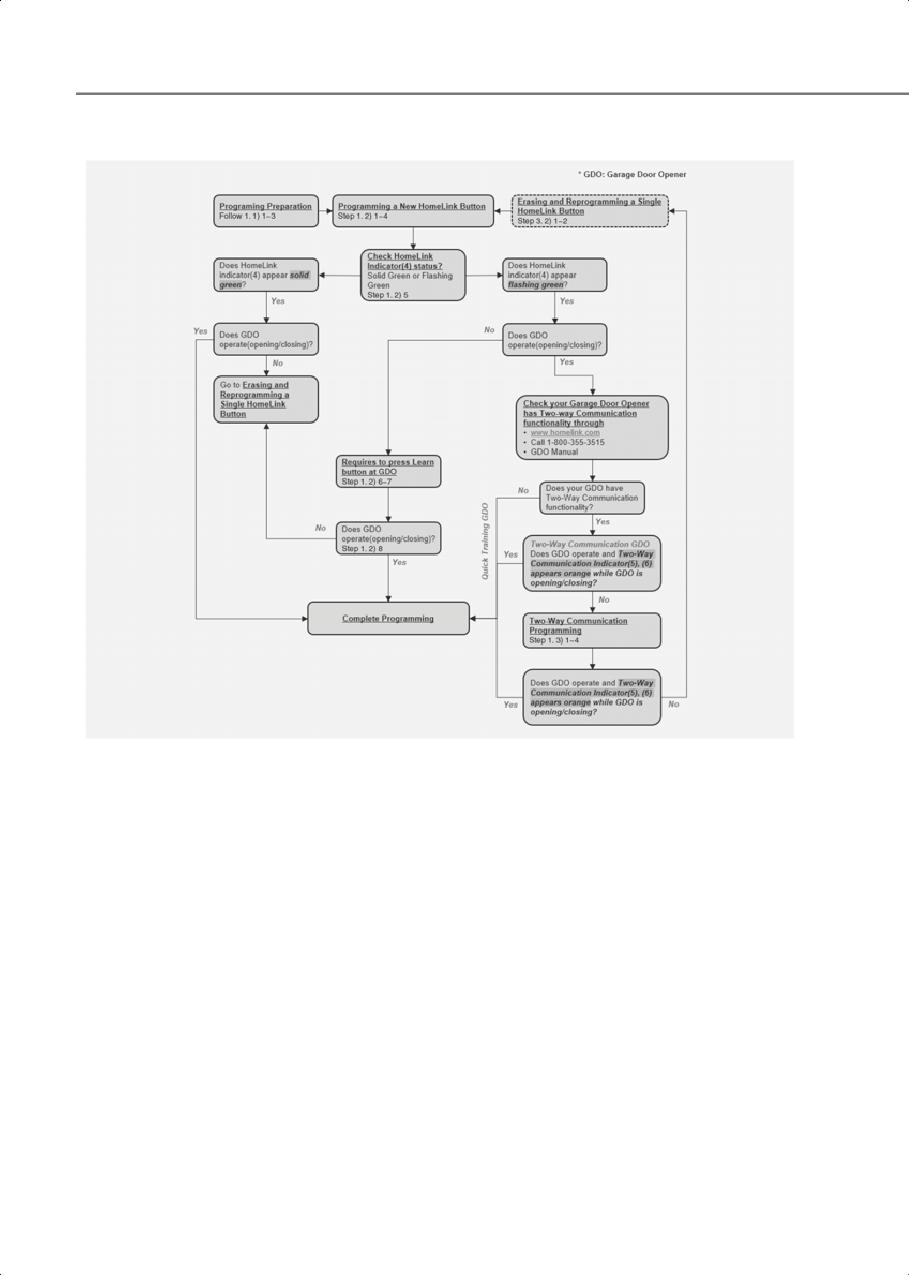

HomeLink 5 Programing Flow Chart

OOS040475N

5-46

5

Side View Mirrors

NOTICE

• Do not scrape ice off the mirror face.

This may damage the surface of the

glass.

• If the mirror is jammed with ice, do not

adjust the mirror by force. Use an

approved de-icer (not radiator

antifreeze) spray, or a sponge or soft

cloth with very warm water, or move

the vehicle to a warm place and allow

the ice to melt.

B5007001

• Do not clean the mirror with harsh

Your vehicle is equipped with both

abrasives, fuel, or other petroleum

left-hand and right-hand side view

based cleaning products.

mirrors. The mirrors can be adjusted

remotely with mirror adjustment control

switch. Adjust the side view mirrors to

Adjusting the side view mirrors

your desired position before driving. The

side view mirrors can be folded manually

to help prevent damage when going

through an automatic car wash or when

1

passing through a narrow street.

Make sure to adjust the side view mirrors

to your desired position before you begin

2

driving.

WARNING

The right side view mirror is convex.

Objects seen in the mirror are closer than

B5007002

they appear.

Adjusting the side view mirrors:

Use the side view mirror or turn your head

1. When the Start/Stop button is in the

and look to determine the actual distance

ACC, ON or START position, move

of other vehicles prior to changing lanes.

either the L (Left side) or R (Right side)

button (1) to select the side view mirror

you would like to adjust.

2. Use the mirror adjustment control

WARNING

switch (2) to position the selected

Do not adjust or fold the side view mirrors

mirror up, down, left or right.

while driving. This may cause loss of

3. After adjustment, move the lever (1) to

vehicle control resulting in a collision.

the middle to prevent unintended

adjustment.

5-47

Convenience Features

• Enable on driver approach

NOTICE

If Setup > Vehicle > Lights > Welcome

• The mirrors stop moving when they

Mirror/Light > Enable on Driver

reach the maximum adjusting angles,

Approach is selected from the Settings

but the motor continues to operate

menu in the infotainment system, the

while the switch is pressed. Do not

mirror will unfold when the vehicle is

press the switch longer than necessary,

approached with the smart key in

because this can damage the motor.

possession.

• Do not attempt to adjust the side view

mirrors by hand, because this can

Information

damage the motor.

The infotainment system may change

after software updates. For more

information, refer to the user's manual

Folding the side view mirrors

provided in the infotainment system and

the quick reference guide.

NOTICE

For your safety, the side view mirrors

cannot be folded automatically when

driving at a speed of 9 mph (15 km/h) or

faster.

B5007003

NOTICE

Folding button

The electric type side view mirror

Press the button to fold or unfold the side

operates even though the Start/Stop

view mirrors.

button is in the OFF position. However, to

prevent unnecessary battery discharge,

Infotainment system setting

do not adjust the mirrors longer than

necessary while the vehicle is turned off

• Enable on door unlock

(

indicator off).

If Setup > Vehicle > Lights > Welcome

Mirror/Light > Enable on Door Unlock

is selected from the Settings menu in

the infotainment system,

NOTICE

• The mirror will fold or unfold when the

Do not fold the electric type side view

door is locked or unlocked by the smart

mirror by hand. It could cause motor

key.

failure.

• The mirror will fold or unfold when the

door is locked or unlocked by the touch

sensor or button on the outside door

handle.

5-48

5

Reverse Parking Aid

Reverse parking aid user settings

mode

if equipped

You may change the angle of the side

view mirror if it is difficult to see the rear

view with the basic downward mirror

angle provided when reversing.

When the vehicle is first delivered, the set

downward angle of the left and right side

view mirror are different to ensure driver

visibility.

1. Make sure the vehicle is stopped.

2. Depress the brake pedal and shift the

gear to R (Reverse). When L (Left) or R

B5007004

(Right) lever is selected, both side view

When the gear is shifted to the R

mirror angle will move downward to the

(Reverse) position, the side view lever(s)

basic set position.

will rotate downwards to aid with driving

3. Move either L or R lever to select the

in reverse.

side view mirror you would like to

The state of the side view mirror lever (1)

adjust. Then press “ ,

,

,

” switch

determines whether or not the mirrors

to adjust the side view mirror to the

will move:

desired angle.

How it works

4. After adjusting the angle to save the

• Left/Right: When either the L (Left) or R

adjusted side view mirror angle, shift

(Right) lever is selected, both side view

the gear to another position other than

mirrors will move.

R (Reverse), or change the L and R

levers to the neutral position (L and R

• Neutral: When neither switch is

levers are not selected).

selected, the side view mirrors will not

move.

5. Set the other side view mirror following

the above procedure 1 to 4.

The side view mirrors will automatically

revert to their original positions if any of

Resetting reverse parking aid user settings

the following occur:

mode

• The Start/Stop button is pressed to

To change the side view mirror angle back

either the OFF position or the ACC

to the basic angle, shift the gear to R

position.

(Reverse), and adjust the mirror angle

• The gear is shifted to any position

higher than when the gear is in P (Park), N

except R (Reverse).

(Neutral) and D (Drive).

• The side view mirror adjustment button

is not selected.

NOTICE

When changing the angle of both side

view mirrors, it is recommended to

change the angle one side at a time

following the procedure 1 to 4.

5-49

Convenience Features

Windows

1

2

6

5

3

4

5

6

7

3

4

A5008101

(1) Driver’s door power window switch

(2) Front passenger’s door power window switch

(3) Rear door (left) power window switch

(4) Rear door (right) power window switch

(5) Window opening and closing

(6) Automatic power window

(7) Power window lock switch

5-50

5

Power Windows

Auto up/down window

The Start/Stop button must be in the ON

Pressing the power window switch

position to be able to raise or lower the

momentarily to the second detent

windows. The front door window power

position (6) completely lowers or lifts the

window switch is located on the center

window even when the switch is released.

console along with the power window

To stop the window at the desired

lock button which can block the

position while the window is in operation,

operation of rear passenger windows. The

pull up or press down and release the

power window switch for the rear door

switch.

windows are on the rear doors. The power

WARNING

windows will operate for about 3 minutes

after the Start/Stop button is in the ACC

• Do not leave the vehicle turned on (

or OFF position. However, if the front

indicator on) and the key in your vehicle

doors are opened, the power windows

with unsupervised children.

will not operate even within the 3 minute

Unattended children could operate the

period.

window, which could result in serious

injury.

Window opening and closing

• Do not extend your head, arms, body

parts or objects outside the window

while driving.

6

5

Resetting the power windows

If the power windows do not operate

normally, the automatic power window

system must be reset as follows:

5

1. Press the Start/Stop button to the ON

6

position.

2. Close the window and continue pulling

B5008201

up on the power window switch for at

To open:

least one second.

Press the window switch down to the first

If the power windows do not operate

detent position (5). Release the switch

properly after resetting, have the system

when you want the window to stop.

inspected by an authorized HYUNDAI

To close:

dealer.

Pull the window switch up to the first

WARNING

detent position (5). Release the window

switch when you want the window to

The automatic reverse feature doesn’t

stop.

activate while resetting the power

window system.

5-51

Convenience Features

Automatic reverse

Power window lock button

B5008202

B5008203

If a window senses any obstacle while it is

The driver can disable the power window

closing automatically, it will stop and

switches on the rear passenger doors by

lower about 12 in. (30 cm) to allow the

pressing the power window lock button.

object to be cleared.

When the power window lock button is

If the window detects the resistance

pressed:

while the power window switch is pulled

• The driver’s master control can operate

up continuously, the window will stop

all the power windows.

upward movement then lower about 1 in.

• The front passenger’s control can

(2.5 cm).

operate the front passenger’s power

If the power window switch is pulled up

window.

continuously again within 5 seconds after

• The rear passenger’s control cannot

the window is lowered by the automatic

operate the rear passengers’ power

window reverse feature, the automatic

window.

window reverse will not operate.

WARNING

Information

Do not allow children to play with the

The automatic reverse feature is only

power windows. Keep the driver’s door

active when the “Auto Up” feature is used

power window lock button in the LOCK

by fully pulling up the switch to the

position. Serious injury or death can result

second detent.

from unintentional window operation by

a child.

WARNING

Make sure body parts or other objects are

NOTICE

safely out of the way before closing the

• To prevent possible damage to the

windows to avoid injuries or vehicle

power window system, do not open or

damage.

close two windows or more at the same

Objects less than 0.16 in. (4 mm) in

time. This will also ensure the longevity

diameter caught between the window

of the fuse.

glass and the upper window channel may

not be detected by the automatic reverse

window and the window will not stop and

reverse direction.

5-52

5

• Never try to operate the main switch on

Information

the driver’s door and the individual

door window switch in opposite

• The remote window opening function

directions at the same time. If this is

will be operated only with the Safety

done, the window will stop and cannot

Power Windows equipped.

be opened or closed.

• The remote window opening function

may abruptly stop when you move

away from your vehicle during

Remote window opening function

operation. Stay in close proximity from

if equipped

your vehicle, while monitoring the

Type A

window movement.

• Please be aware that the doors unlock

when the windows are opened using

the remote window open function.

1

B5008301

Type B

1

B5008302

Press and hold the Door Unlock (1) button

on the smart key for more than 3 seconds

and the windows move down after the

doors are unlocked. Window movement

stops when you release the door unlock

button.

5-53

Convenience Features

Power sunshade

Wide Sunroof

if equipped

If your vehicle is equipped with a sunroof,

you can slide or tilt your sunroof with the

sunroof switch located on the overhead

console.

B5027401

Use the power sunshade to block direct

sunlight coming through the sunroof

glass.

• Push the sunroof switch rearward to the

first detent position, the power

B5027301

sunshade automatically slides open.

The sunroof can only be operated when

• Push the sunroof switch forward to the

the Start/Stop button is in the ON or

first detent position, the power

START position.

sunshade automatically closes.

The sunroof can be operated for about 3

However, if the sunroof glass is open,

minutes after the Start/Stop button is in

the glass will close first.

the ACC or OFF position. However, if the

To stop the power sunshade at any point,

front door is open, the sunroof cannot be

push the sunroof switch in any direction.

operated even within the 3 minute period.

NOTICE

WARNING

Do not pull or push the power sunshade

• Adjust the sunroof or sunshade when

by hand as such action may damage the

your vehicle stops. This could result in

power sunshade or cause it to

loss of control and an accident that may

malfunction.

cause injury, or property damage.

• Do not leave the vehicle running and

the key in your vehicle with

unsupervised children. Unattended

Information

children could operate the sunroof,

Wrinkles formed on the power sunshade

which could result in serious injury.

are normal due to material characteristic.

• Do not sit on the top of the vehicle. It

may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof

bars are installed on the vehicle or when

there is luggage on the roof.

5-54

5

Tilt open/close

• Push the sunroof switch forward or

rearward to the second detent position,

the power sunshade and sunroof glass

operate automatically (auto slide

feature). To stop the sunroof

movement at any point, push the

sunroof switch in any direction.

Automatic reversal

B5027501

• Push the sunroof switch upward, the

sunroof glass tilts open. However, if the

power sunshade is closed, the

sunshade will open first.

• Push the sunroof switch upward or

forward when the sunroof glass is tilt

opened, the sunroof glass

automatically closes.

B5027701

To stop the sunroof movement at any

If the power sunshade or sunroof glass

point, push the sunroof switch in any

senses any obstacle while it is closing

direction.

automatically, it will reverse direction

then stop at a certain position.

The auto reverse function may not work if

Slide open/close

an object thin or soft is caught between

the sliding power sunshade or sunroof

glass and sunroof sash.

WARNING

• Make sure heads, hands, arms or any

other body parts or objects are out of

the way before operating the sunroof.

Body parts or objects may get caught

causing injuries or vehicle damage.

• Never deliberately use your body parts

B5027601

to test the automatic reversal function.

The power sunshade or sunroof glass

• Push the sunroof switch rearward to the

may reverse direction, but there is a risk

first detent position, the sunroof glass

of injury.

opens. However, if the power sunshade

is closed, the power sunshade will open

first.

Push the sunroof switch forward to the

first detent position, the sunroof glass

closes. However, if the sunroof glass is

closed, the power sunshade will close.

5-55

Convenience Features

Resetting the sunroof

NOTICE

•

Do not continue to push the sunroof

switch after the sunroof is fully opened,

closed, or tilted. Damage to the sunroof

motor could occur.

•

Continuous operations such as slide

open/close, tilt open/close, etc., may

cause the motor or sunroof system to

malfunction.

•

Regularly remove any accumulated

dust on the sunroof rail.

B5027801

•

Dust accumulated between the sunroof

In some circumstances resetting the

and roof panel can make noise Open

sunroof operation may need to be

the sunroof and remove dust regularly

performed. Some instances where

using a clean cloth.

resetting the sunroof may be required

•

Do not try to open the sunroof when the

include:

temperature is below freezing or when

• When the 12 V battery is either

the sunroof is covered with snow or ice.

disconnected or discharged

The sunroof may not work properly and

may break if opened by force.

• When the sunroof fuse is replaced

•

Do not open or drive with the sunroof

• If the sunroof one-touch AUTO

glass open immediately after rain or

OPEN/CLOSE operation is not

washing the vehicle. Water may wet the

functioning properly

interior of the vehicle.

Sunroof resetting procedure:

•

Do not extend any luggage outside the

1. It is recommended to perform the reset

sunroof while driving. Vehicle damage

procedure with the vehicle running.

may occur if the vehicle suddenly

Start the vehicle in P (Park).

stops.

2. Make sure the power sunshade and

sunroof glass are in the fully closed

position. If the power sunshade and

WARNING

sunroof glass are open, push the switch

forward until the power sunshade and

Do not extend your head, arms, body

sunroof glass are fully closed.

parts or objects outside the sunroof while

3. Release the switch when the power

driving. Injuries may occur if the vehicle

sunshade and sunroof glass are fully

suddenly stops.

closed.

4. Push the switch forward until the power

sunshade and sunroof glass move

slightly. Then release the switch.

5. Once again push and hold the sunroof

switch forward until the power

sunshade and sunroof glass slide open

and close. Do not release the switch

until the operation is completed.

5-56

5

If you release the switch during

Hood

operation, start the procedure again

from step 2.

Opening the Hood

Information

If the sunroof is not reset after the vehicle

battery is disconnected or discharged, or

the sunroof fuse is blown, the sunroof

may not operate normally.

Sunroof open warning

B5010001

1. Park the vehicle and apply the parking

brake.

2. Pull the release lever to unlatch the

hood. The hood pops open slightly.

B5027901

If the driver turns off the vehicle when the

sunroof is not fully closed, the warning

chime will sound for several seconds and

the sunroof open warning will appear on

the cluster display. Close the sunroof

securely when leaving your vehicle.

CAUTION

B5010002

Make sure the sunroof is closed fully

3. Go to the front of the vehicle, raise the

when leaving your vehicle. If the sunroof

hood slightly, push to the left the

is left open, rain or snow may wet the

secondary hood release lever (1) inside

interior of the vehicle. Also, leaving the

of the hood center and lift the hood (2).

sunroof open when the vehicle is

unattended may invite theft.

5-57

Convenience Features

Closing the Hood

Front Trunk

1. Before closing the hood, check in and

around the motor compartment to

ensure the following:

Opening the Front Trunk

• Any tools or other loose objects have

been removed.

• All glove, rags, or other combustible

material have been removed.

• All filler caps are tightly and correctly

installed

2. Lower the hood until it is about 12 in. (30

cm) above the closed position and then

let it drop.

3. Check the hood has locked properly. If

the hood is raised slightly, open it again

B5010702

and drop it from a little higher. Check

Opening the hood reveals the front trunk

again.

and you can store your belongings.

WARNING

Information

• Before closing the hood, ensure all

Front trunk weight limit: 25 lbs. (10 kg)

obstructions are removed from around

The front trunk’s weight limit depends on

the hood opening. The hood will rise up

the specifications.

or move down automatically if the

height is not firmly adjusted. Be aware

of the damage caused by the

unintended hood movements.

WARNING

• Always double check to make sure that

• NEVER make an attempt to get inside

the hood is firmly latched before driving

the front trunk. It will cause a fatal

away. Check there is no hood open

injury.

warning light or message displayed on

• Before closing the hood, ensure all

the instrument cluster. Driving with the

obstructions are removed from around

hood open may cause a total loss of

the hood opening. The hood will rise up

visibility, resulting in a collision.

or move down automatically if the

• Do not move the vehicle with the hood

height is not firmly adjusted. Be aware

raised. It may block your vision and may

of the damage caused by the

result in a collision.

unintended hood movements.

• Never store cigarette lighters, propane

cylinders, or other

flammable/explosive materials in the

vehicle. These items may catch fire

and/or explode if the vehicle is exposed

to hot temperatures for extended

periods.

5-58

5

Power Trunk

CAUTION

•

Do not exceed the luggage volume

capacity of the front trunk. The

Power Trunk Operating

overweighted front trunk can be

Conditions

severely damaged.

The power trunk operates when vehicle

•

Do not store the fragile objects in the

speed is below 1.8 mph (3 km/h).

front trunk.

•

ALWAYS keep the front trunk cover

WARNING

closed securely while driving. Items

• Never leave children or animals

inside your vehicle are moving as fast

unattended in your vehicle. Children

as the vehicle. If you have to stop or

may operate the power trunk. Doing so

turn quickly, or if there is a crash, the

can result in injury to themselves or

items can be damaged.

others and can damage the vehicle.

•

Do not spray water in the front trunk.

Vehicle driving system may get

• Make sure there are no people or

damaged since the front trunk is

objects and enough space around the

located at the center of motor

trunk before operating the power trunk

compartment.

or smart trunk prior to use. Serious

injury, damage to the vehicle or

•

Be careful when you store any liquid in

damage to surrounding objects (for

the front trunk. If liquid leak outside the

example, walls, ceilings, vehicles, etc.)

front trunk, it will cause damage to the

may result if contact with the trunk

electric devices in the motor

occurs.

compartment.

• Make sure there are no people or

•

Do not press the front trunk cover or

objects around the trunk before

place the objects on the front trunk

operating the power trunk. Wait until

cover. It may be deformed or damaged.

the trunk is opened fully and stopped

•

When closing the front trunk cover, be

before loading or unloading cargo from

careful not to touch objects inside the

the vehicle.

trunk. Loaded objects or the front trunk

may be deformed or damaged and the

front trunk cover may be opened during

NOTICE

driving due to poor closing, resulting in

joints and damage.

• Do not close or open the power trunk

manually. This may cause damage to

the power trunk. If it is necessary to

NOTICE

close or open the power trunk manually

when the battery is discharged or

To avoid possible theft, do not leave

disconnected, do not apply excessive

valuables in the storage compartments.

force.

• Do not operate the power trunk more

than 10 times continuously when the

vehicle is turned off (

indicator off)

is off. Use the power trunk with the

vehicle turned on (

indicator on)

when the power trunk is used

repeatedly to prevent battery

discharge.

5-59

Convenience Features

•

Do not leave the trunk open for a long

Operating the Power Trunk

period of time. This may drain the

battery.

Power trunk open button (Smart

•

Do not modify or repair any part of the

key)

power trunk by yourself. Contact an

authorized HYUNDAI dealer.

•

Do not operate the power trunk under

the following conditions. The power

trunk may not operate properly.

- One side of the vehicle is lifted to

inspect the vehicle or change a tire

- Parking on an uneven road such as a

slope, etc.

•

Close the trunk completely and lock all

doors and trunk using the central door

lock button before using an automatic

B5011101

car wash.

When the trunk is closed, press the power

trunk open button for 1.5 second. The

•

Do not spray high pressure water

trunk will open with a warning sound.

directly on the power trunk outside

open/close button. The trunk may open

While the trunk is opening, press the

unintentionally.

button to stop power trunk operation.

Power trunk open/close button

(Instrument panel)

Information

•

In cold and wet climates, the outside

power trunk open button may not work

properly due to freezing conditions. If

this occurs, remove the ice before

using the outside power trunk

open/close button or use the power

trunk open/close button on the smart

key or the instrument panel.

•

If you leave the smart key in the trunk

and close the trunk, a warning will

sound for about 5 seconds. If this

B5011102

occurs, open the trunk by pressing the

When the trunk is closed, press the power

power trunk open button on the outside

trunk open/close button. The power trunk

of the trunk.

will open with a warning sound.

•

If there are obstacles such as snow on

While the trunk is opening, press the

the trunk, the trunk may not open

button to stop power trunk operation.

automatically. After removing the

obstacle, try to open it again.

When the trunk is opened, press and hold

the trunk open/close button to close the

•

Be careful where there is an incline, as

power trunk. If you release the button

the trunk lid may drop slightly when it is

while the trunk is closing, power trunk

stopped before it fully opens.

operation will stop with a warning sound

for 5 seconds.

5-60

5

Power trunk open button (Outside

Power trunk lock button (Inside the

the power trunk)

power trunk)

B5011103

B5011105

When the trunk is closed, press the power

Press the power trunk lock button while

trunk open button to open the trunk.

carrying the smart key. The power trunk

will close and lock with a warning sound.

If the vehicle is locked, press the power

Additionally, all doors will lock. The trunk

trunk open button with the smart key in

will close and lock, and all doors will lock

your possession.

only when the vehicle is off or all doors

While the trunk is opening, press the

are closed.

button to stop power trunk operation.

Switching the power trunk from

Power trunk close button (Inside the

manual to automatic

power trunk)

If you apply over a certain amount of

power manually when the trunk is

opened, the power trunk system detects

the direction and closes or opens

automatically.

• The power trunk fully opens when the

trunk is raised.

• The power trunk closes completely

when the trunk is lowered.

Information

B5011104

The power trunk may not operate

Press the power trunk close button. The

properly if the trunk is not opened above

trunk will close with a warning sound.

a certain height.

While the trunk is closing, press the

button to stop power trunk operation.

5-61

Convenience Features

Automatic reverse

Resetting the Power Trunk

During power trunk operation if the

To reset the power trunk:

power trunk senses any obstacle, the

1. With the vehicle is turned off or on (

trunk will stop or will fully open. The

indicator off or on), put the gear in P

automatic reverse feature may not

(Park).

operate properly, or it may operate

unexpectedly under the following

2. While Pressing the power trunk close

circumstances:

inner button, press the power trunk

open outer button for more than 3

• The automatic reverse feature may not

seconds. A chime will sound.

detect the resistance if the detected

resistance is below a certain level, or if

3. Slowly close the trunk manually.

the trunk is almost fully closed near the

4. Press the power trunk open outer

latched position.

button. The trunk will open with a

• The automatic reverse feature may

chime sound.

operate if a strong impact is applied

Wait until the trunk fully opens to

with no obstructions placed.

complete resetting. If the trunk stops

before it is fully open, resetting cannot

WARNING

be completed.

Never intentionally place any object or

Information

part of your body in the path of the power

trunk to make sure the automatic reverse

• If the power trunk is not reset after the

feature operates. Serious injury, or

vehicle battery is disconnected or

damage to the vehicle or object may

discharged, or the power trunk fuse is

occur.

blown, the power trunk may not

operate normally.

• If the power trunk does not operate

properly after the above procedure,

Information

have the system inspected by an

The power trunk may stop operating if the

authorized HYUNDAI dealer.

automatic reverse feature operates more

than two times while attempting to open

or close the trunk. If this occurs, carefully

open or close the trunk manually, and

then after 30 seconds try to operate the

power trunk automatically again.

5-62

5

Emergency Trunk Safety

WARNING

Release

• You and your passengers must be

aware of the location of the Emergency

Trunk Safety Release lever in this

vehicle and how to open the trunk in

case you are accidentally locked in the

trunk.

• NEVER allow anyone to occupy the

trunk of the vehicle at any time.

• Use the release lever for emergencies

only.

B5011701

• Inside the trunk

NOTICE

Your vehicle is equipped with an

Be careful not to scratch or lose the cover

emergency trunk safety release lever

when removing it.

located inside the trunk. When

someone is inadvertently locked in the

trunk, the trunk can be opened by

moving the lever in the direction of the

Information

arrow and pushing the trunk lid to open.

The cable is firmly fixed so it may hard to

pull. Therefore, please use a tool such as a

screwdriver to assist in pulling the loop

for the emergency release.

1

2

B5011702

• Inside the vehicle

Follow the below procedure to open

the power trunk manually when the

battery is discharged or when there is a

problem with the vehicle:

1. Remove the cable cover (1) under the

rear seat using a small flat blade tool

(like a screwdriver or similar).

2. Pull the cable loop (2) all the way out.

The power trunk unlocks.

3. Push the trunk lid to open.

5-63

Convenience Features

• The smart key is in the vehicle.

Smart Trunk

• The vehicle is on charge.

if equipped

1. Settings

To use smart trunk, it must be enabled

from the Settings menu in the

infotainment system.

Select Setup > Vehicle > Door > Smart

Trunk.

Information

The infotainment system may change

B5012501

after software updates. For more

On a vehicle equipped with a smart key,

information, refer to the user's manual

the trunk can be opened with hands-free

provided in the infotainment system

activation using the smart trunk system.

and the quick reference guide.

Using Smart Trunk

2. Detect and Alert

The hands-free smart trunk system can

The smart trunk detecting area extends

used when:

about 20-40 in. (50-100 cm) behind the

vehicle. If you are positioned in the

• The smart trunk option is enabled in the

detecting area and are carrying the

Settings menu in the infotainment

smart key, the hazard warning lights

system.

blink and the chime sounds before

• The smart trunk is activated 15 seconds

opening.

after all the doors are closed and

locked.

Information

• The smart trunk opens when the smart

If you unintentionally enter the

key is detected in the area behind the

detecting area and the hazard warning

vehicle for 3 seconds.

lights and chime starts, move away

• When disconnecting the charging

from the vehicle with the smart key.

connector, the smart trunk is activated.

The trunk remains closed.

Information

3. Automatic opening

The smart trunk does not operate when:

After the hazard warning lights blink

• A door is not locked or closed.

and the chime sounds 6 times, the

• The smart key is detected within 15

smart trunk opens.

seconds from when the doors were

closed and locked.

• The smart key is detected within 15

seconds after the doors are closed and

locked, and within 60 in. (1.5 m) from

the front door handles. (for vehicles

equipped with Welcome Mirror).

5-64

5

Deactivating smart trunk

Detecting area

Type A

_ JO

B5012901

B5012801

•

The smart trunk detecting area extends

Type B

about 20-40 in. (50-100 cm) behind the

vehicle. If you are positioned in the

detecting area and are carrying the

smart key, the hazard warning lights

will blink and the chime will sound for

about 3 seconds to alert you that the

trunk will open.

•

The alert stops once the smart key is

moved outside of the detecting area

within the 3 second period.

Information

B5012802

1. Door lock

•

Smart trunk may not operate properly if

any of the following occur:

2. Door unlock

- The smart key is close to a radio

3. Trunk open/close

transmitter such as a radio station or

4. Panic

an airport which can interfere with

If you press any button on the smart key

normal operation of the transmitter.

during the Detect and Alert stage, the

- The smart key is near a mobile two

smart trunk is deactivated.

way radio system or a mobile phone.

Using the smart key:

- Another vehicle’s smart key is being

• If you press the door unlock button, the

operated close to your vehicle.

smart trunk is deactivated temporarily.

- The temperature drops below zero

If you do not open any door for 30

degree.

seconds, the smart trunk is activated

•

Smart trunk detecting area may change

again.

when:

• If you press the trunk open button for

- The vehicle is parked on an incline or

more than 1 second, the trunk opens.

slope.

• The smart trunk is still activated if you

- One side of the vehicle is raised or

press the door lock button or trunk

lowered relative to the opposite side.

open/close button as long as the smart

trunk is not in the Detect and Alert

stage.

5-65

Convenience Features

•

After closed the charging door, be sure

Electric Charging Door

to check the warning light is off.

•

After charging the vehicle, close the

charging inlet by the charging inlet

cover properly. If the charging inlet

cover is closed improperly, the

charging inlet and the charging door

can be damaged.

•

Do not pry on the charging door while

the charging door is opening. The

charging door may stop moving. Also,

the electrical mechanism of the

charging door and its related parts can

B5013501

be severely damaged.

The driver can open and close the

•

While washing the vehicle, do not spray

charging door with the following

a high pressure water to the charging

methods:

door directly. The high pressure can

• When the shift gear is in P (Park), push

damage the charging door.

the charging door to open/close

• Push the Close button located inner

part of the charging door

CAUTION

• Use the Voice Recognition

•

The charging door opens sideways.

NOTICE

Check the surrounding while the

charging door is open or close. Be

• If the charging door does not open

aware of your head or limbs from being

because ice has formed around it, tap

hit or stuck to the charging door.

lightly or push on the door to break the

•

Do not hold the hinge to prevent

ice and release the door. If necessary,

damaging the charging door and

use hand temperature to melt down the

causing other accidents.

ice or move the vehicle to a warm place

and allow the ice to melt. Do not pry on

the charging door or use unauthorized

tools to open the charging door.

• After closing the charging door, push

the door again to ensure that the

charging door is completely closed.

• Make sure that the charging door is

closed before driving the vehicle. If the

charging door is opened, mechanical

parts of the charging door can be

damaged.

5-66

5

Head-up Display

Information

if equipped

• The charging door automatically closes

when:

- The charging connector is

disconnected

- The door is opened and the charging

connector is not connected for a

certain period of time

- The gear is not in P (Park)

• After replacing battery (12 V), open and

close the charging door once to check

that the charging door automatic

opening mechanism is functioning

B5014101

properly.

The Head-up display is an optional

For more information, refer to the

feature that allows the driver to view

“Charging Your Electric Vehicle” section

information projected onto a transparent

in chapter 1.

screen while still keeping your eyes safely

on the road ahead while driving.

Head-up Display Settings

B5014201

• Head-up display can be enabled from

the Settings menu in the infotainment

system.

Select Setup > Vehicle > Head-Up

Display > Enable Head-Up Display.

• After turning on the Head-up display,

you can change the settings of ‘Display

Control’ and ‘Content Selection’ of the

Head-Up Display.

5-67

Convenience Features

Precautions while Using the

Information

Head-up Display

The infotainment system may change

•

It may sometimes be difficult to read

after software updates. For more

information on the Head-up display in

information, refer to the user's manual

the following situations.

provided in the infotainment system and

the quick reference guide.

- The driver is improperly positioned in

the driver’s seat

- The driver wears polarizing-filter

Head-up Display Information

sunglasses

- An object is located above the

head-up display cover

- The vehicle is driven on a wet road

1

GU

/BNZBOH 4USFFU

- Any improper lighting accessory is

installed inside the vehicle, or there is

2

5

incoming light from outside of the

7

11

6

vehicle

8

10

- The driver wears glasses

NQI

9

4

3

- The driver wears contact lenses

When it is difficult to read the head-up

B5014301

display information, adjust the image

1. Turn by Turn (TBT) navigation

position or brightness level from the

2. Traffic

Settings menu in the infotainment

system.

3. Speedometer

•

Since the information displayed on the

4. SCC set speed

head-up display partially overlaps with

5. SCC vehicle distance

the road ahead, you may feel fatigue

6.Lane Following Assist

and discomfort while driving. If you feel

tired or uncomfortable, adjust the

7. Lane Safety

image, and if the symptoms persist,

8.Blind-Spot Safety

turn off the head-up display before

9.Highway Auto Speed Change

driving.

10.Highway Driving Assist

•

For your safety, make sure to stop the

11.Surrounding vehicle (if equipped)

vehicle before adjusting the settings.

•

Do not tint the front windshield glass or

add other types of metallic coating.

Otherwise, the head-up display image

may be invisible.

•

Do not place any accessories on the

dashboard or attach any objects on the

windshield glass.

5-68

5

• When replacing the front windshield

Over-The-Air Software

glass, replace it with a windshield glass

designed for head-up display

Update

operation. Otherwise, duplicated

if equipped

images may be displayed on the

windshield glass.

The Over-The-Air software update

feature allows you to wirelessly update

WARNING

software to the latest version. Using this

feature, you can keep your vehicle system

• The warning information of Blind-Spot

up to date with the latest software.

Safety on the Head-Up Display are

supplemental. Do not solely depend on

them to change lanes. Always take a

Downloading Software

look around before changing lanes.

The latest software can be downloaded

The driving route guidance display in

automatically while driving. After the

the augmented reality mode is an

latest software has been successfully

auxiliary function. Be sure to check the

downloaded, you will receive a

navigation screen together.

notification on your phone or the vehicle

• ALWAYS pay attention on the road

screen that the software update and

while driving when the Head-up display

ready to install.

is on.

Approving Software Update

Information

Head-up display includes GPL, LGPL, MPL

and other open source license software.

All license notices including related

source code are provided at

http://www.mobis.co.kr/opensource/list.

do.

1

2

If the driver requests on-board software

open source code via

MOBIS_OSSrequest@mobis.co.kr within

B5015301

3 years after buying this product, a

CD-ROM or other storage device will be

After the vehicle is turned off, the vehicle

sent with the minimum cost covering

system will allow you to start the update.

storage device cost and delivery cost.

• To start the update, press 'Start' (1).

• To postpone the update, press 'Later'

(2).

5-69

Convenience Features

Preparing Software Update

Updating Software

If you press the 'Start' button on the

screen, the vehicle will begin installing

the update automatically. The following

conditions must be satisfied:

• The vehicle must be off.

• The gear must be in P (Park).

• The Electronic Parking Brake (EPB)

must be applied.

• The exterior lights must be turned off.

• The hood must be closed.

B5015401

• The battery must be sufficient.

You can see the progress of the update on

• The systems to be updated must not be

the screen.

running.

After the update is complete, you will

receive a notification on your phone or

Information

the vehicle screen that the software

The battery and system status are

update is complete.

automatically checked by the vehicle.

Information

The screen turns off automatically after 3

minutes to save the battery. If the screen

turns off automatically, you can check the

update progress by pressing the

Start/Stop button.

Information

• After the update starts, you can exit the

vehicle.

• The OTA software update feature is

B5015302

only available for HYUNDAI Connected

• To update immediately, press 'Update

Services users.

Now'.

• The update details may vary depending

• To cancel the update, press 'Cancel

on the installed software version.

Update'.

• Check the notice for the OTA software

update on the HYUNDAI brand web.

• If the update fails, the update recovery

will automatically proceed. If you want

to retry the software update, even after

a successful recovery, contact an

authorized HYUNDAI Call Center.

• If the update or recovery fails, contact

an authorized HYUNDAI Call Center.

5-70

Convenience Features

Lighting

Exterior Lights

Lighting control

AUTO

To operate the lights, turn the knob at the

end of the control lever to one of the

following positions:

1

B5015602

AUTO headlight

The parking light and headlight will be

turned ON or OFF automatically

depending on the amount of daylight as

measured by the ambient light sensor (1)

at the upper end of the windshield glass.

Even with the AUTO headlight feature in

operation, it is recommended to manually

B5015601

turn ON the headlights when driving at

1. OFF

night or in a fog, driving in the rain, or

2. AUTO headlight

when you enter dark areas, such as

tunnels and parking facilities.

3. Parking light

4. Headlight

NOTICE

• Do not cover or spill anything on the

Daytime Running Light (DRL)

sensor (1) located at the upper end of

The Daytime Running Lights (DRL) can

the windshield glass.

make it easier for others to see the front

• Do not clean the sensor using a window

of your vehicle during the day, especially

cleaner, the cleanser may leave a light

after dawn and before sunset.

film which could interfere with sensor

The DRL system will turn the dedicated

operation.

light OFF when:

• If your vehicle window is tinted or other

• The headlights are ON.

types of metallic coating are on the

• The parking brake is applied.

front windshield, the AUTO headlight

• The vehicle is turned off.

system may not work properly.

5-72

5

High beam operation

B5015603

B5015702

Parking light (

)

To turn on the high beam headlight, push

The parking light, license plate light and

the lever away from you. The lever will

instrument panel lamp are turned ON.

return to its original position.

The high beam indicator will light when

the headlight high beams are switched

on.

To turn off the high beam headlight, pull

the lever towards you. The low beams will

turn on.

B5015604

Headlight (

)

The headlight, parking light, license plate

light and instrument panel lamp are

turned ON.

B5015701

Information

To flash the high beam headlight, pull the

The Start/Stop button must be in the ON

lever towards you, then release the lever.

position to turn on the headlight.

The high beams will remain ON as long as

you hold the lever towards you.

5-73

Convenience Features

Turn signals and lane change signals

Battery saver function

To prevent the battery from being

discharging, the system automatically

turns off the parking lights when the

driver turns the vehicle off and opens the

driver’s door.

To keep the lights on when the vehicle is

turned off:

1. Open the driver’s door.

2. Turn the parking lights OFF and ON

again using the headlight switch.

B5015801

To signal a turn, push down on the lever

Headlight delay function

for a left turn or up for a right turn in

If the Start/Stop button is in the ACC

position (A).

position or the OFF position with the

If an indicator stays on and does not flash

headlights ON, the headlights (and/or

or if it flashes abnormally, one of the turn

Parking lights) remain on for about 5

signal bulbs may be burned out and will

minutes. However, if the driver’s door is

require replacement.

opened and closed, the headlights are

turned off after 15 seconds. Also, with the

One touch turn signal

vehicle off if the driver’s door is opened

and closed, the headlights (and/or

To use One Touch Turn Signal push the

Parking lights) are turned off after 15

turn signal lever up or down to position

seconds.

(B) and then release it.

The headlights (and/or Parking lights) can

The lane change signals will blink 3, 5 or 7

be turned off by pressing the lock button

times.

on the smart key twice or turning the

You can enable the One Touch Turn

headlight switch to the OFF or AUTO

Signal function or choose the number of

position.

blinking by selecting Setup > Vehicle >

You can enable the headlight delay

Lights> One Touch Turn Signal (or

function by selecting Setup > Vehicle >

One-touch indicator) > 3 flashes/5

Lights > Headlight Delay (or Headlight

flashes/7 flashes/Off in the infotainment

time-out) in the infotainment system.

system.

Information

Information

The infotainment system may change

The infotainment system may change

after software updates. For more

after software updates. For more

information, refer to the user's manual

information, refer to the user's manual

provided in the infotainment system and

provided in the infotainment system and

the quick reference guide.

the quick reference guide.

5-74

5

NOTICE

Information

If the driver exits the vehicle through

The infotainment system may change

another door besides the driver door, the

after software updates. For more

battery saver function does not operate

information, refer to the user's manual

and the headlight delay function does not

provided in the infotainment system and

turn OFF automatically. This may cause

the quick reference guide.

the battery to discharge. To avoid battery

discharge, turn OFF the headlights

manually from the headlight switch

Headlight and parking light

before exiting the vehicle.

When the light switch is ON, and all the

doors (and trunk) are closed and locked,

the headlight and parking light will turn

Welcome system

on for about 15 seconds if the door unlock

if equipped

button is pressed on the smart key. Note

that if the light switch is in the AUTO

position, the headlight and parking light

will turn on only when it is dark outside.

Select Setup > Vehicle > Lights >

Headlight Delay (or Headlight time-out)

from the Settings menu to turn on this

function.

Interior light

When the interior light switch is in the

position and all doors (and trunk) are

B5016301

closed and locked, the room lamp will

Welcome system helps keep the driver

come on for 30 seconds if any of the

visible by turning on vehicle lights when

below is performed.

the driver approaches the vehicle.

• When the door unlock button is pressed

on the smart key.

Door handle light

• When you put your hand in the outside

When all the doors (and trunk) are closed

door handle while carrying the Smart

and locked, the door handle light will turn

key.

on for about 15 seconds if any of the

At this time, if you press the door lock

below is performed.

button on the smart key the lights will turn

When the door unlock button is pressed

off immediately.

on the smart key.

When you put your hand in the outside

door handle with the smart key in

possession. If Setup > Vehicle > Lights >

Welcome Mirror/ Light > Enable on

Driver Approach is selected from the

Settings menu in the infotainment

system, the lights will turn on when the

vehicle is approached with the smart key

in possession.

5-75

Convenience Features

Door lamp (

):

Interior Lights

The front or rear room lamps come on

when the front or rear doors are opened.

WARNING

When doors are unlocked by the smart

Do not use the interior lights when driving

key, the front and rear lights come on for

in the dark. The interior lights may

about 30 seconds as long as any door is

obscure your view and cause an accident.

not opened. The front and rear room

lamps go out gradually after about 30

seconds when the door is closed.

However, if the Start/Stop button is in the

NOTICE

ON position or all doors are locked, the

Do not use the interior lights for extended

front and rear lights will turn off. If a door

periods when the vehicle is turned off or

is opened with the Start/Stop button in

the battery will discharge.

the ACC position or the OFF position, the

front and rear lights will stay on for about

10 minutes.

Interior Light AUTO cut

The interior lights will automatically go off

Room lamp (

):

about 20 minutes after the vehicle is

Press the button to turn ON the room

turned off and the doors are closed. If a

lamp for the front/rear seats.

door is opened, the light will go off 25

minutes after the vehicle is turned off. If

the doors are locked by the smart key and

Mood lamp (

):

the vehicle enters the armed stage of the

if equipped

theft alarm system, the lights will go off

Press the button to turn On the mood

five seconds later.

lamp. Press again to turn the lamp off.

Front lamps

Rear lamps

Room lamp

B5017701

B5017801

Front map lamp (

):

Press the button to turn the lamp on or

off.

Touch either icons to turn the map lamp

on or off. This light produces a spot beam

for convenient use as a map lamp at night

or as a personal light for the driver and the

front passenger.

5-76

5

Vanity Mirror Lamp

Mood Lamp

Dashboard mood lamp

B5018501

B5018701

Push the switch to turn the lamp on or off.

Door mood lamp

•

:

The lamp will turn on if this button is

pressed.

•

:

The lamp will turn off if this button is

pressed.

NOTICE

Always have the switch in the off position

when the vanity mirror lamp is not in use.

If the sunvisor is closed without the light

B5018702

off, it may discharge the battery or

• To set the brightness and color of the

damage the sunvisor.

mood lamp, select Setup > Vehicle >

Lights > Ambient Light in the

infotainment system.

Glove Box Lamp

• When driving at night or under low light

driving conditions, the sensors detect

the light level around the vehicle and

automatically adjust the brightness of

the mood light. To set the automatic

brightness adjustment turn on/off,

select Setup > Vehicle > Lights >

Ambient Light > Dimmed in Dark.

B5018601

Opening the glove box comes on the

lamp.

When the glove box is not closed

completely, the lamp may keep coming

on.

5-77

Convenience Features

•

When you select Setup > Vehicle >

• When the driver gets into the vehicle,

Lights > Ambient Light > Link to Drive

the mood lamp on the dashboard turns

Mode in the infotainment system, the

on in sequence in conjunction with the

driver's and front passenger’s mood

welcome animation on the instrument

lamps are set in color in conjunction

panel. When getting off, the mood lamp

with the drive mode. In the case of the

on the dashboard turns off one after

rear seat, if the 'Link to Drive Mode'

another in conjunction with the

function is selected while the

good-bye animation on the instrument

speed-linked interior lighting is not

panel.

selected, the rear seat mood lamp

• When the vehicle is drivable (the

changes color in conjunction with the

instrument panel

indicator is on),

drive mode.

the dashboard mood lamp turns on.

•

When you select Setup > Vehicle >

However, the mood lamp does not turn

Lights > Ambient Light > Link to Speed

on when using the utility mode.

Alert in the infotainment system, the

driver's and front passenger's mood

lamps change to red and blink when the

Front Trunk Lamp

vehicle speed exceeds the speed limit.

The lamp illuminates when the hood

In the case of the rear seat, when the

opens. The lamp keeps coming on when

'Sync Lighting with Speed' function is

the hood is not completely closed.

set, the mood lamp does not turn on

even if the Link to Speed Alert function

is set, but the mood lamp changes to

red and blink when the vehicle speed

exceeds the speed limit.

•

When you select Setup > Vehicle >

Lights > Ambient Light > Sync Lighting

with Speed in the infotainment system,

the brightness of the driver's and front

passenger's mood lamps changes

according to the speed. In the case of

the rear seat, when the 'Sync Lighting

B5019401

with Speed' function is selected, the

mood lamp is turned on only in the ‘P’

NOTICE

(park). However, if the 'Link to Speed

Make sure it is fully closed after closing

Alert' function is selected, the rear seat

the hood. If it is left open without starting

mood lamp will also blink in red when

vehicle, the lamp comes on and the

the vehicle speed exceeds the speed

battery may be discharged.

limit.

•

After selecting Setup > Vehicle > Lights

> Ambient Light > Link to Voice

Recognition in the infotainment

system, when the voice recognition

button on the steering wheel is

pressed, the length of the dashboard's

mood lamp lighting changes according

to the volume of the user's voice and

the pitch of the vehicle guidance voice.

5-78

5

Luggage Compartment Lamp

High Beam Assist (HBA)

The lamp turns on when the trunk is open.

B5016701

B5019402

High Beam Assist automatically controls

the headlights between high beam and

NOTICE

low beam depending on the detected

Make sure it is fully closed after closing

ambient light, such as an oncoming

the trunk. If it is left open without starting

vehicle or leading vehicle.

vehicle, the lamp comes on and the

battery may be discharged.

Detecting sensor

1

B5016702

(1) front view camera

The front view camera is used as a

detecting sensor to detect ambient light

and brightness while driving.

Refer to the illustration above for the

detailed location of the detecting sensor.

5-79

Convenience Features

NOTICE

High Beam Assist Operation

• Always keep the front view camera in

Display and control

good condition to maintain optimal

performance of High Beam Assist.

• After selecting 'High Beam Assist' in

the Settings menu, High Beam Assist

• For more information on the

will operate by following the procedure

precautions of the front view camera,

below.

refer to the “Forward

Collision-Avoidance Assist (FCA)”

- Place the headlight switch in the

section in chapter 7.

AUTO position and push the

headlight lever towards the

instrument cluster. The High Beam

Assist (

) indicator light will

High Beam Assist Settings

illuminate on the instrument cluster

and High Beam Assist will be

Setting features

enabled.

- When High Beam Assist is enabled,

high beam will turn on when vehicle

speed is above 25 mph (40 km/h).

When vehicle speed is below 15 mph

(25 km/h), high beam will turn off and

the High Beam Assist (

) indicator

will be displayed in white on the

instrument cluster.

- The High Beam (

) indicator light will

illuminate on the instrument cluster

when high beam is on.

ONE1051248L

• When High Beam Assist is operating, if

With the Start/Stop button in the ON

the headlight lever or switch is used,

position, select Setup > Vehicle > High

High Beam Assist operates as follow:

Beam Assist from the Settings menu to

- If the headlight lever is pulled

turn on High Beam Assist and deselect to

towards you when the high beam is

turn off the function.

off, the high beam will turn on

without High Beam Assist canceled.

WARNING

When you let go of the headlight

For your safety, change the Settings after

lever, the lever will move to the

parking the vehicle at a safe location.

middle and the high beam will turn

off.

- If the headlight lever is pulled

towards you when the high beam is

on by High Beam Assist, low beam

will turn on and the function will turn

off.

- If the headlight switch is placed from

AUTO to another position

(headlight/position/off), High Beam

Assist will turn off and the

corresponding light will turn on.

5-80

5

• When High Beam Assist is operating,

Limitations of High Beam Assist

high beam switches to low beam if any

High Beam Assist may not work properly

of the following conditions occur:

in the following situations:

- When the headlight of an oncoming

•

Light from an oncoming or front vehicle

vehicle is detected.

is not detected because of light

- When the tail light of a vehicle in front

damage, or because it is hidden from

is detected.

sight, etc.

- When the headlight or tail light of a

•

Headlight of an oncoming or front

motorcycle or a bicycle is detected.

vehicle is covered with dust, snow or

water.

- When the surrounding ambient light

is bright enough that high beams are

•

A front vehicle’s headlights are off, but

not required.

the fog lights are on, etc.

- When streetlights or other lights are

•

There is a light that has a similar shape

detected.

as a vehicle’s light.

•

Headlights have been damaged or not

Information

repaired properly.

The images and colors in the instrument

•

Headlights are not aimed properly.

cluster may differ depending on the

•

Driving on a narrow curved road, rough

cluster type or theme selected from the

road, uphill or downhill.

settings menu.

•

Vehicle in front is partially visible on a

crossroad or curved road.

High Beam Assist Malfunction

•

There is a traffic light, reflecting sign,

flashing sign or mirror ahead.

and Limitations

•

There is a temporary reflector or flash

ahead (construction area).

High Beam Assist malfunction

•

The road conditions are bad such as

being wet, iced or covered with snow.

•

A vehicle suddenly appears from a

$IFDL

curve.

)JHI #FBN "TTJTU

TZTUFN

•

The vehicle is tilted from a flat tire or is

being towed.

•

Light from an oncoming or front vehicle

is not detected due to obstacles in the

air such as exhaust fume, smoke, fog,

snow, or water spay or blizzard on the

road, or fogging in the light, etc.

OJK050059L

When High Beam Assist is not working

Information

properly, the ‘Check High Beam Assist

For more information on the limitations of

system’ warning message will appear and

the Front View Camera, refer to the

warning light will illuminate on the

“Forward Collision-Avoidance Assist

instrument cluster. Have the function

(FCA)” section in chapter 7.

inspected by an authorized HYUNDAI

dealer.

5-81

Convenience Features

Wipers And Washers

WARNING

•

At times, High Beam Assist may not

work properly. High Beam Assist is for

your convenience only. It is the

MIST

responsibility of the driver for safe

driving practices and always check the

OFF

road conditions for your safety.

INT/AUTO*

•

When High Beam Assist does not

operate properly, change the headlight

LO

position manually between high beam

and low beam.

HI

•

When starting up or initializing the front

camera (rebooting, etc.), the High

B5019601

Beam Assist function may not work for

A. Wiper speed control

about 15 seconds.

• MIST - Single wipe

• OFF - Off

• INT - Intermittent wipe

AUTO* - Auto control wipe

• LO - Low wiper speed

• HI - High wiper speed

B. Intermittent wipe time

adjustment/Auto control wipe time

adjustment*

C. Wash with brief wipes

*: if equipped

5-82

5

Front Windshield Wipers

AUTO (Automatic) control

Operates as follows when the Start/Stop

button is in the ON position.

MIST:

For a single wiping cycle, push the lever

upward (or downward) and release. The

wipers will operate continuously if the

lever is held in this position.

OFF:

Wiper is not in operation.

INT:

B5019603

Wiper operates intermittently at the same

The rain sensor located on the upper end

wiping intervals. To vary the speed

of the windshield glass senses the

setting, turn the speed control knob (B).

amount of rainfall and controls the wiping

AUTO:

cycle for the proper interval.

The rain sensor located on the upper end

The wiper operation time will be

of the windshield glass senses the

automatically controlled depends on

amount of rainfall and controls the wiping

rainfall.

cycle for the proper interval. The more it

When the rain stops, the wiper stops.

rains, the faster the wiper operates. When

To vary the sensitivity setting, turn the

the rain stops, the wiper stops. To vary the

sensitivity control knob.

speed setting, turn the speed control

knob.

If the wiper switch is set in AUTO mode

when the Start/Stop button is in the ON

LO:

position, the wiper will operate once to

The wiper runs at a lower speed.

perform a self-check of the system. Set

HI:

the wiper to the OFF position when the

The wiper runs at a higher speed.

wiper is not in use.

Information

WARNING

If there is heavy accumulation of snow or

To avoid personal injury from the

ice on the windshield, defrost the

windshield wipers, when the vehicle is

windshield for about 10 minutes, or until

running and the windshield wiper switch

the snow and/or ice is removed before

is placed in the AUTO mode:

using the windshield wipers to ensure

• Do not touch the upper end of the

proper operation.

windshield glass facing the rain sensor.

If you do not remove the snow and/or ice

• Do not wipe the upper end of the

before using the wiper and washer, it may

windshield glass with a damp or wet

damage the wiper and washer system.

cloth.

• Do not put pressure on the windshield

glass.

5-83

Convenience Features

Recirculating air when washer fluid

NOTICE

is used

• When washing the vehicle, set the

When washer fluid is used, in order to

wiper switch in the OFF position to stop

reduce any objectionable scent of the

the auto wiper operation. The wiper

washer fluid from entering the cabin,

may operate and be damaged if the

recirculation mode and air conditioning

switch is set in the AUTO mode while

are automatically activated depending on

washing the vehicle.

the outside temperature. If you select

• Do not remove the sensor cover

fresh mode while the function is

located on the upper end of the

operating, the function will resume after a

passenger side windshield glass.

certain amount of time. It may not work in

Damage to system components could

some conditions such as cold weather or

occur and may not be covered by your

vehicle off.

vehicle warranty.

For more information, refer to the

• Because of using a photo sensor,

“Climate Control Additional Features”

temporary malfunction could occur

section in this chapter.

according to sudden ambient light

change made by stone and dust while

WARNING

driving.

When the outside temperature is below

freezing, ALWAYS warm the windshield

using the defroster to help prevent the

Front Windshield Washers

washer fluid from freezing on the

windshield and obscuring your vision

which could result in an accident and

serious injury or death.

NOTICE

• To prevent possible damage to the

washer pump, do not operate the

washer when the fluid reservoir is

empty.

B5019701

• To prevent possible damage to the

In the OFF position, pull the lever gently

wipers or windshield, do not operate

toward you to spray washer fluid on the

the wipers when the windshield is dry.

windshield and to run the wipers 1-3

• To prevent damage to the wiper arms

cycles. The spray and wiper operation will

and other components, do not attempt

continue until you release the lever. If the

to move the wipers manually.

washer does not work, you may need to

• To prevent possible damage to the

add washer fluid to the washer fluid

wipers and washer system, use

reservoir.

anti-freezing washer fluids in the winter

season or cold weather.

5-84

5

Automatic Climate Control System

Climate control panel

A5019801

Infotainment System (Climate)

16

1

2

5

6

15

14

17

12

8

13

A5019802

The actual shape for the climate control panel and infotainment system may differ from the illustration.

(1) Driver’s temperature control

(2) Passenger’s temperature control

(3) Display the air flow direction

(4) View climate infotainment system

(5) AUTO (automatic control)

(6) Mode selection button

(7) Fan speed up

(8) Fan speed down/OFF

(9) Front windshield defroster

(10)Rear windshield defroster

(11) Air intake control

(12)Driver only mode

(13)A/C (air conditioning) ON/OFF

(14)Heating ON/OFF

5-85

5

Climate

Automatic Temperature

Climate control panel

Control Mode

1. Press 'AUTO' icon or touch the 'AUTO'

icon in the infotainment system to

select the fan speed (level 1-3).

Climate control panel

B5019802

Touch 'CLIMATE' icon to view the climate

information in the infotainment system.

Infotainment System

B5019901

Infotainment system

ONE1051249L

To view the climate information screen,

select 'Climate' in the main infotainment

B5019902

system when the vehicle is ON.

5-87

Convenience Features

2. Adjust the temperature with the

Select Setup > General > Unit >

temperature control icon.

Temperature Unit > °C/°F from the

Settings menu in the infotainment

Fan

system.

AUTO

Climate

Level

Speed

Indicator

Information

Level

3

HIGH

1-8

2

MEDIUM

1-6

B5019903

Manual Temperature Control

Mode

The heating and cooling system can be

1

LOW

1-4

controlled manually by selecting

functions other than 'AUTO'. In this case,

the system works sequentially according

The fan speed level only can be changed

to the order of the functions selected.

manually.

When selecting any other functions

The following systems can be

except 'AUTO' while using automatic

respectively adjusted while the AUTO

operation, the functions not selected will

climate control is on. When those systems

be controlled automatically.

are adjusted, AUTO indicator lights will

1. Start the vehicle.

turn off.

2. Set the mode to the desired position.

• Fan speed level

To improve the effectiveness of heating

• A/C (Air condition)

and cooling, select the mode according

• Mode selection

to the following:

• Front windshield defroster (When

• Heating:

defroster is turned off, AUTO indicator

• Cooling:

light will illuminate)

3. Set the temperature control to the

For your convenience and to improve the

desired value.

efficiency of the climate control, use the

AUTO button and set the temperature to

4. Set the air intake control to Fresh or

72 °F (22 °C).

Recirculation mode.

To change the temperature unit from °C

5. Set the fan speed control to the desired

to °F or °F to °C:

speed.

6. If air conditioning is desired, turn the air

conditioning system on.

7. Select 'AUTO' to revert back to full

automatic control of the system.

5-88
