Emergency Situations

8-4

Before Jump Starting

This vehicle does not have a regular 12 V

battery that needs periodic replacement.

It is lithium ion type integrated into the

HEV high voltage battery. The vehicle has

a 12 V battery protection system that cuts

12 V battery from vehicle draw to prevent

full discharge.

Using the 12 V battery reset switch

OCN7HQ010003N

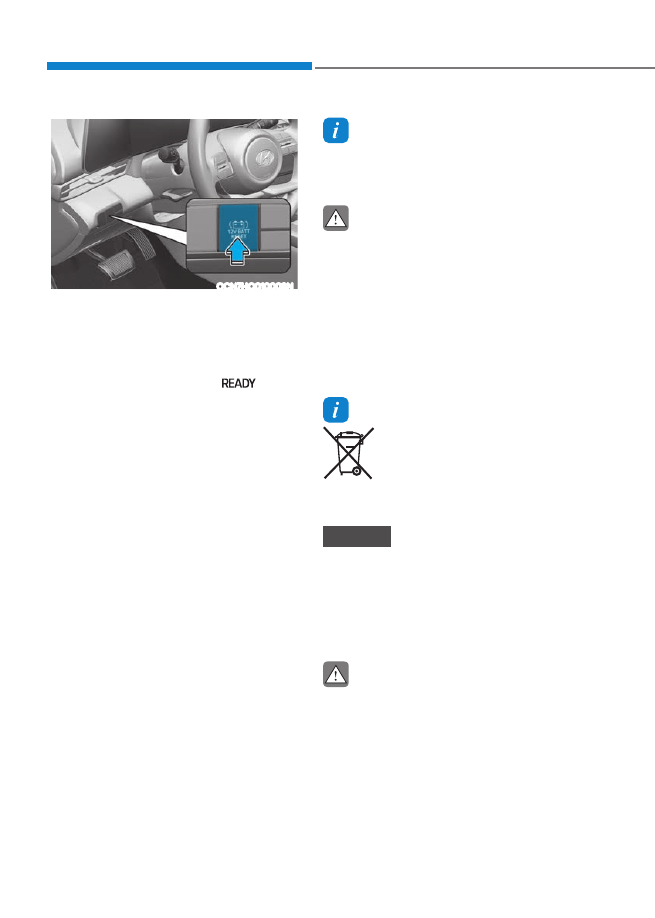

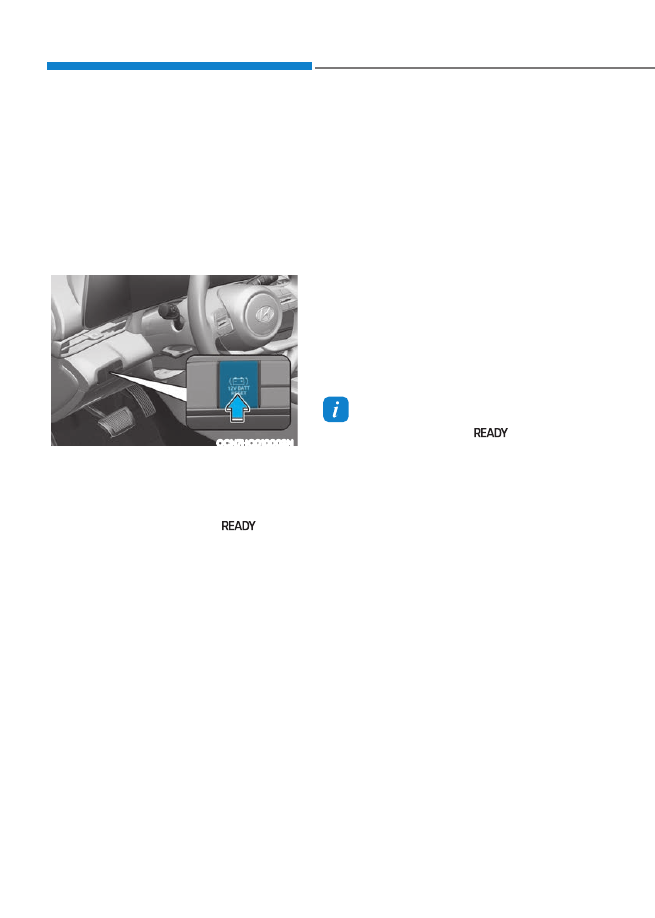

1. Press the 12 V Battery Reset switch to

reconnect the 12 V battery.

2. Start the vehicle within 15 seconds of

pressing the 12 V Battery Reset switch.

3. After starting the vehicle (

indicator on), operate the vehicle

safely outdoors in ready mode

stopped and/or drive it for 30 minutes

total to charge the 12 V battery fully.

If you do not start the vehicle

immediately after pressing the 12 V

Battery Reset switch, the power of 12 V

battery is automatically disconnected

after few seconds to save the 12 V battery

from additional discharge. If the 12 V

battery is disconnected prior to starting

the vehicle, press the 12 V Battery Reset

switch again and then immediately start

the vehicle as explained.
Repeated use of the 12 V Battery Reset

switch without a sufficient engine

ON cycle (30 Min+) may cause over

discharge of the 12 V battery, which will

prevent the vehicle from starting. If the

12 V battery is over discharged to a point

that the reset does not work, try to jump-

start the vehicle.

Information

After starting the vehicle (

indicator

on), the 12 V battery is being charged

whether the engine is running or not.

Although there is no engine sound, it is

unnecessary to depress the accelerator

pedal.

The following items may need to be reset

after the battery has been discharged or

the battery has been disconnected.

See chapter 4 and 5 for:

•

Power Windows

•

Trip Computer

•

Climate Control System

•

Clock

•

Audio System

•

Sunroof

IF THE 12 V BATTERY IS DISCHARGED

8-5

NOTICE

External power source using 12 V

battery
The use of external power accessories

may reduce performance and function

of the vehicle. Especially, the use of

dash cameras may shut off the power of

the vehicle prior to the dash camera’s

automatic shut-down.
If the power of the vehicle is shut off,

start the vehicle as explained. (refer to

“Using the 12 V Battery Reset Switch”)

Jump Starting

In the event vehicle still does not have a

functional 12 V battery (check if interior

lights will not turn on) then you can try

a jump start to the engine compartment

jumper terminals using a 12 V booster

pack or jumper cables from another

vehicle’s 12 V battery according to the

following instructions.

CAUTION

Jump starting can be dangerous if

done incorrectly. Follow the jump

starting procedure in this section to

avoid serious injury or damage to

your vehicle. If in doubt about how to

properly jump start your vehicle, we

strongly recommend that you have a

service technician or towing service do

it for you.

1. Position the vehicles close enough

that the jumper cables will reach, but

do not allow the vehicles to touch.
Avoid fans or any moving parts in the

engine compartment at all times, even

when the vehicles are turned off.

2. Turn off all electrical devices such as

radios, lights, air conditioning, etc.

Put the vehicles in P (Park) and set the

parking brake. Turn both vehicles OFF.

OCN7H073001

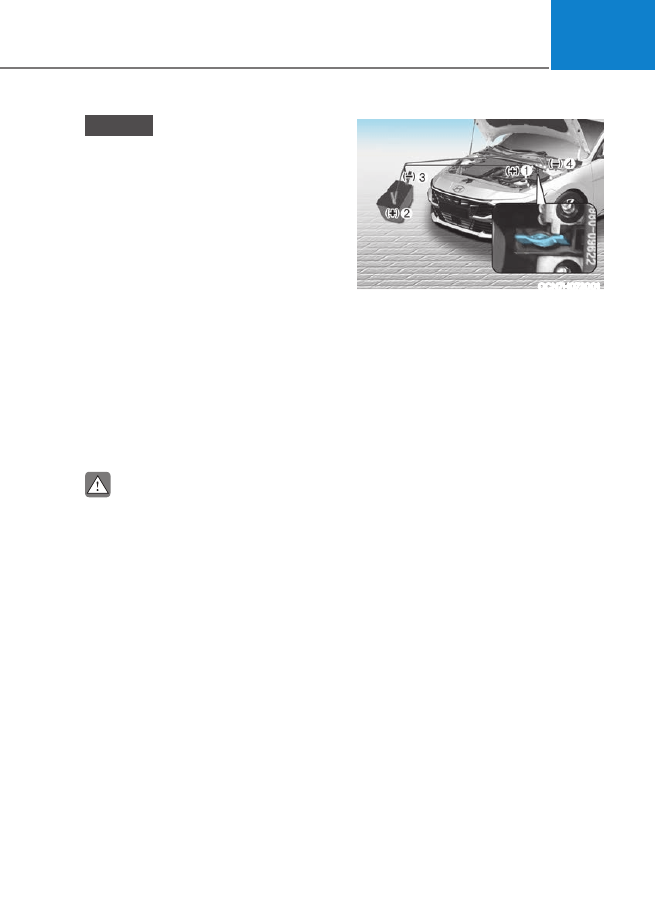

3. Connect the jumper cables in

the exact sequence shown in the

illustration. First connect one jumper

cable to the red, charging terminal

inside the engine compartment fuse

panel (1).

4. Connect the other end of the jumper

cable to the red, positive (+) battery/

jumper terminal of the assisting

vehicle (2).

5. Connect the second jumper cable to

the black, negative (-) battery/chassis

ground of the assisting vehicle (3).

6. Connect the other end of the second

jumper cable to the black, negative (-)

chassis ground of your vehicle (4).
Do not allow the jumper cables to

contact anything except the correct

battery or jumper terminals or the

correct ground. Do not lean over the

battery when making connections.

Emergency Situations

8-6

OCN7HQ010003N

7. Press the 12 V Battery Reset switch.
8. Start the engine of the assisting

vehicle and let it run for a few

minutes.

9. Start your vehicle as soon as possible.

After starting the vehicle (

indicator on), operate the vehicle

safely outdoors in ready mode

stopped and/or drive it for 30 minutes

total to charge the 12 V battery fully.

If your vehicle will not start after a few

attempts, it probably requires service.

In this event please seek qualified

assistance. If the cause of your battery

discharging is not apparent, have your

vehicle checked by an authorized

HYUNDAI dealer.

Disconnect the jumper cables in the

exact reverse order you connected them:
1. Disconnect the jumper cable from the

black, negative (-) chassis ground of

your vehicle (4).

2. Disconnect the other end of the

jumper cable from the black, negative

(-) battery/chassis ground of the

assisting vehicle (3).

3. Disconnect the second jumper cable

from the red, positive (+) battery/

jumper terminal of the assisting

vehicle (2).

4. Disconnect the other end of

the jumper cable from the red,

charging terminal inside the engine

compartment fuse panel (1).

Information

The voltage range of the charger should be

13.3~14 V and its current range should be

less than 60 A. (13.8 V is recommended).

CAUTION

•

The use of an improper charger

with a voltage and current range

higher than specified may cause

overheating and damage to the 12 V

battery.

•

The use of an incorrect charger will

lead to a power shut-off to save the

12 V battery. Stop using the incorrect

charger once the power of the

vehicle is shut off.

Information

An inappropriately disposed

battery can be harmful to

the environment and human

health. Dispose of the battery

according to your local law(s) or

regulations.

NOTICE

To prevent damage to your vehicle:

•

Only use a 12 V power supply (battery

or jumper system) to jump start your

vehicle.

•

Do not attempt to jump start your

vehicle by push-starting.

CAUTION

Do not jump start another vehicle with

your hybrid vehicle. Jump starting

another vehicle will damage the hybrid

vehicle’s 12 V battery (lithium ion type).

8-7

If your temperature gauge indicates

overheating, you experience a loss of

power, or hear loud pinging or knocking,

the engine may be overheating. If this

happens, you should:
1. Pull off the road and stop as soon as it

is safe to do so.

2. Shift the gear to P (Park) and set the

parking brake

3. Turn off the air conditioner.
4. When the coolant or hot steams gush

out of the reservoir, stop the engine

and call an authorized HYUNDAI

dealer for assistance. If the coolant

does not flow out, leave the engine

compartment opened, while running

the engine. Check the coolant

temperature gauge on the instrument

cluster and turn off the engine to

make sure the coolant temperature is

sufficiently cooled down.

5. Cool down the engine sufficiently

and check the coolant level. When it

is insufficient, check its connection

with the radiator, the heater hose,

and the water pump for any leakage.

When there is no leakage, add the

coolant. However, if the problems

persists, such as the coolant leakages,

the cooling-fan malfunction or the

water pump drive belt damages,

immediately stop the engine, and

have your vehicle checked by an

authorized HYUNDAI dealer.

•

You should mix antifreeze and water in

a proper ratio to make coolant. If the

antifreeze ratio is too high or low, it

may cause overheating due to the lack

of cooling function.
(Refer to the Mix Ratio in “Checking

the coolant level” in chapter 9.)

•

If overheating happens repeatedly,

have your vehicle to be checked by an

authorized HYUNDAI dealer.

WARNING

While the engine is running,

keep hands, clothing and tools

away from the moving parts

such as the cooling fan and

drive belt to prevent serious

injury.

IF THE ENGINE OVERHEATS

Emergency Situations

8-10

Tire Pressure Monitoring System

WARNING

Over-inflation or under-inflation can

reduce tire life, adversely affect vehicle

handling, and lead to sudden tire failure

that may cause loss of vehicle control

resulting in an accident.

Each tire, including the spare (if

provided), should be checked monthly

when cold and inflated to the inflation

pressure recommended by the vehicle

manufacturer on the vehicle placard

or tire inflation pressure label. (If your

vehicle has tires of a different size than

the size indicated on the vehicle placard

or tire inflation pressure label, you should

determine the proper tire inflation

pressure for those tires.)
As an added safety feature, your

vehicle has been equipped with a tire

pressure monitoring system (TPMS)

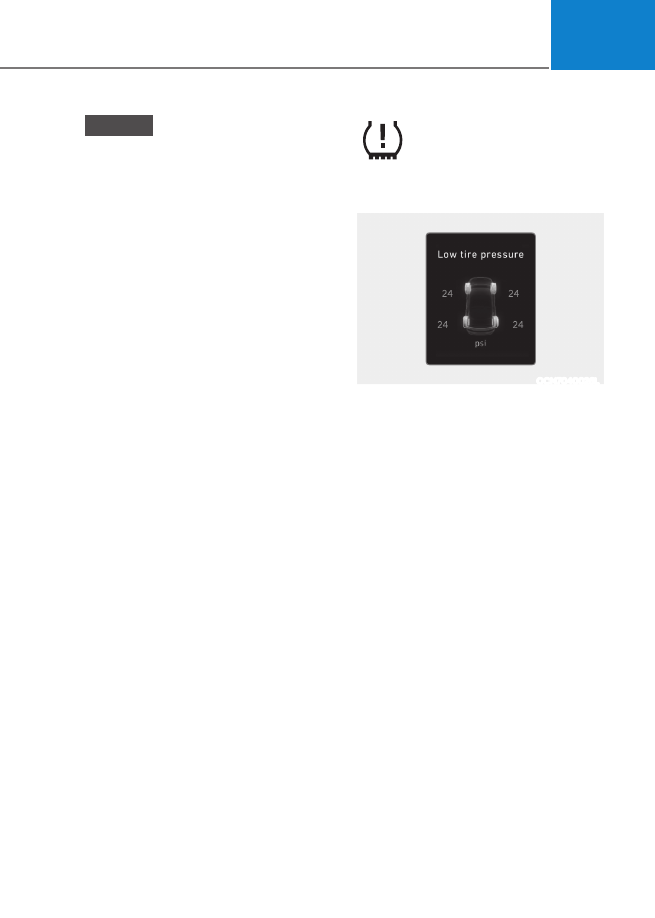

that illuminates a low tire pressure

telltale when one or more of your tires is

significantly under-inflated. Accordingly,

when the low tire pressure telltale

illuminates, you should stop and check

your tires as soon as possible, and inflate

them to the proper pressure. Driving on

a significantly underinflated tire causes

the tire to overheat and can lead to tire

failure.
Under-inflation also reduces fuel

efficiency and tire tread life, and may

affect the vehicle’s handling and

stopping ability.

Please note that the TPMS is not a

substitute for proper tire maintenance,

and it is the driver’s responsibility to

maintain correct tire pressure, even if

under-inflation has not reached the level

to trigger illumination of the TPMS low

tire pressure telltale.
Your vehicle has also been equipped with

a TPMS malfunction indicator to indicate

when the system is not operating

properly. The TPMS malfunction

indicator is combined with the low

tire pressure telltale. When the system

detects a malfunction, the telltale will

flash for approximately one minute and

then remain continuously illuminated.

This sequence will continue upon

subsequent vehicle start-ups as long as

the malfunction exists.
When the malfunction indicator is

illuminated, the system may not be able

to detect or signal low tire pressure as

intended. TPMS malfunctions may occur

for a variety of reasons, including the

installation of replacement or alternate

tires or wheels on the vehicle that

prevent the TPMS from functioning

properly.
Always check the TPMS malfunction

telltale after replacing one or more tires

or wheels on your vehicle to ensure that

the replacement or alternate tires and

wheels allow the TPMS to continue to

function properly.

Emergency Situations

8-12

If either telltale illuminates, immediately

reduce your speed, avoid hard cornering

and anticipate increased stopping

distances. You should stop and check

your tires as soon as possible. Inflate the

tires to the proper pressure as indicated

on the vehicle’s placard or tire inflation

pressure label located on the driver’s

side center pillar outer panel.
If you cannot reach a service station or

if the tire cannot hold the newly added

air, replace the low pressure tire with the

spare tire.
The Low Tire Pressure Telltale will remain

on and the TPMS Malfunction Indicator

may blink for one minute and then

remain illuminated (when the vehicle

is driven approximately 10 minutes at

speed above 15.5 mph (25km/h)) until

you have the low pressure tire repaired

and replaced on the vehicle.

Information

The spare tire is not equipped with a tire

pressure sensor.

CAUTION

In winter or cold weather, the Low Tire

Pressure Telltale may be illuminated if

the tire pressure was adjusted to the

recommended tire inflation pressure

in warm weather. It does not mean

your TPMS is malfunctioning because

the decreased temperature leads to a

proportional lowering of tire pressure.
When you drive your vehicle from a

warm area to a cold area or from a cold

area to a warm area, or the outside

temperature is greatly higher or lower,

you should check the tire inflation

pressure and adjust the tires to the

recommended tire inflation pressure.

WARNING

Low pressure damage
Significantly low tire pressure makes

the vehicle unstable and can contribute

to loss of vehicle control and increased

braking distances.
Continued driving on low pressure tires

can cause the tires to overheat and fail.

8-13

TPMS (Tire Pressure

Monitoring System)

Malfunction Indicator

The TPMS Malfunction Indicator

will illuminate after it blinks for

approximately one minute when there

is a problem with the Tire Pressure

Monitoring System.
Have the system checked by an

authorized HYUNDAI dealer.

NOTICE

If there is a malfunction with the TPMS,

the Low Tire Pressure Position Telltale

will not be displayed even though the

vehicle has an under-inflated tire.

NOTICE

The TPMS Malfunction Indicator may

illuminate after blinking for one minute

if the vehicle is near electric power

supply cables or radio transmitters

such as police stations, government

and public offices, broadcasting

stations, military installations, airports,

transmitting towers, etc.
Additionally, the TPMS Malfunction

Indicator may illuminate if snow chains

are used or electronic devices such as

computers, chargers, remote starters,

navigation, etc. This may interfere with

normal operation of the TPMS.

Changing a Tire with TPMS

If you have a flat tire, the Low Tire

Pressure and Position telltales will come

on. Have the flat tire repaired by an

authorized HYUNDAI dealer as soon as

possible or replace the flat tire with the

spare tire.

NOTICE

It is recommended that you do not use a

puncture-repairing agent not approved

by a HYUNDAI dealer to repair and/or

inflate a low pressure tire. Tire sealant

not approved by a HYUNDAI dealer may

damage the tire pressure sensor.

The spare tire (if equipped) does not

come with a tire pressure monitoring

sensor. When the low pressure tire or

the flat tire is replaced with the spare

tire, the Low Tire Pressure Telltale will

remain on. Also, the TPMS Malfunction

Indicator will illuminate after blinking

for one minute if the vehicle is driven

at speed above 15.5 mph (25km/h) for

approximately 10 minutes.
Once the original tire equipped with

a tire pressure monitoring sensor is

reinflated to the recommended pressure

and reinstalled on the vehicle, the

Low Tire Pressure Telltale and TPMS

Malfunction Indicator will go off within a

few minutes of driving.
If the indicators do not extinguish after a

few minutes, please visit an authorized

HYUNDAI dealer.

Emergency Situations

8-14

Each wheel is equipped with a tire

pressure sensor mounted inside the tire

behind the valve stem (except for the

spare tire). You must use TPMS specific

wheels. Always have your tires serviced

by an authorized HYUNDAI dealer.
You may not be able to identify a tire

with low pressure by simply looking at it.

Always use a good quality tire pressure

gauge to measure the tire’s inflation

pressure. Please note that a tire that is

hot (from being driven) will have a higher

pressure measurement than a tire that is

cold.
A cold tire means the vehicle has been

sitting for 3 hours and driven for less

than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring

the inflation pressure. Always be sure

the tire is cold before inflating to the

recommended pressure.

WARNING

•

The TPMS cannot alert you to severe

and sudden tire damage caused by

external factors such as nails or road

debris.

•

If you feel any vehicle instability,

immediately take your foot off

the accelerator, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

WARNING

Tampering with, modifying, or disabling

the Tire Pressure Monitoring System

(TPMS) components may interfere

with the system’s ability to warn the

driver of low tire pressure conditions

and/or TPMS malfunctions. Tampering

with, modifying, or disabling the Tire

Pressure Monitoring System (TPMS)

components may void the warranty for

that portion of the vehicle.

Information

This device complies with Part 15 of the

FCC rules.

Operation is subject to the following three

conditions:

This device may not cause harmful

interference.

This device must accept any

interference received, including

interference that may cause undesired

operation.

Changes or modifications not expressly

approved by the party responsible

for compliance could void the user’s

authority to operate the equipment.

8-15

OCN7083098

For safe operation, carefully read and

follow the instructions in this manual

before use.

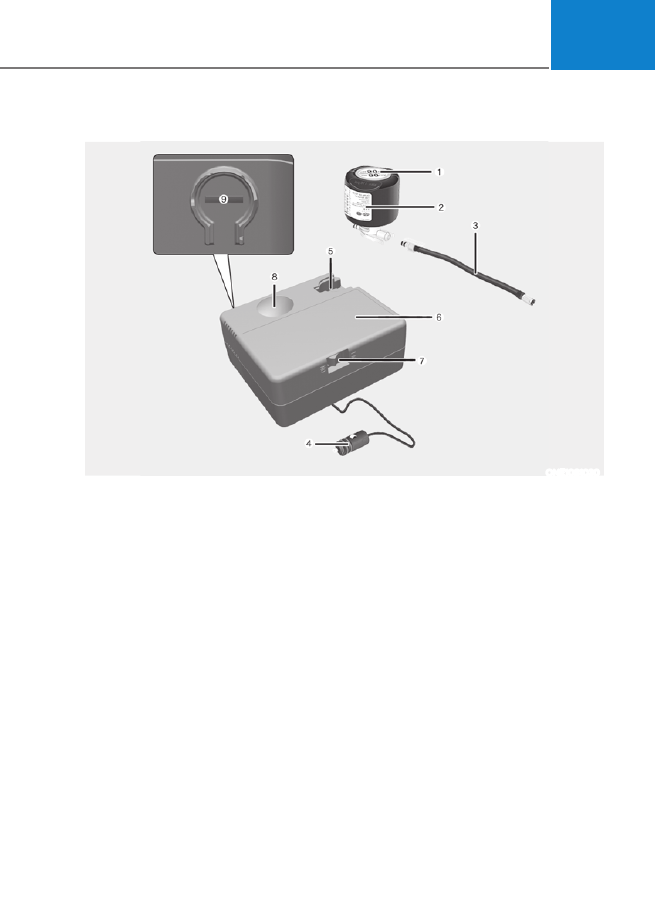

(1) Compressor
(2) Sealant bottle
The Tire Mobility Kit is a temporary fix to

the tire and have the tire inspected by an

authorized HYUNDAI dealer as soon as

possible.

CAUTION

When two or more tires are flat, do not

use the tire mobility kit because the

sealant provided with the Tire Mobility

Kit must be used for only one flat tire.

WARNING

Do not use the Tire Mobility Kit to repair

punctures in the tire walls. This can

result in an accident due to tire failure.

WARNING

Have your tire repaired as soon as

possible. The tire may lose air pressure

at any time after inflating with the Tire

Mobility Kit.

Introduction

With the Tire Mobility Kit you stay mobile

even after experiencing a tire puncture.
The compressor and sealing compound

system effectively and comfortably seals

most punctures in a passenger car tire

caused by nails or similar objects and

reinflates the tire.
After you ensure that the tire is properly

sealed you can drive cautiously on the

tire (distance up to 120 miles (200 km))

at a max. speed of 50 mph (80 km/h) in

order to reach a service station or tire

dealer for the tire replacement.
It is possible that some tires, especially

with larger punctures or damage to the

sidewall, cannot be sealed completely.
Air pressure loss in the tire may adversely

affect tire performance.
For this reason, you should avoid abrupt

steering or other driving maneuvers,

especially if the vehicle is heavily loaded

or if a trailer is in use.
The Tire Mobility Kit is not designed

or intended as a permanent tire repair

method and is to be used for one tire

only.
This instruction shows you step by step

how to temporarily seal the puncture

simply and reliably.
Read the section “Notes on the safe use

of the Tire Mobility Kit”.

WARNING

Do not use the TMK if a tire is severely

damaged by driving run flat or with

insufficient air pressure.
Only punctured areas located within the

tread region of the tire can be sealed

using the TMK.

IF YOU HAVE A FLAT TIRE (WITH TIRE MOBILITY KIT,

IF EQUIPPED)

Emergency Situations

8-16

Notes on the safe use of the Tire

Mobility Kit

•

Park your car at the side of the road

so that you can work with the Tire

Mobility Kit away from moving traffic.

•

To be sure your vehicle will not move,

even when you’re on fairly level

ground, always set your parking brake.

•

Only use the Tire Mobility Kit for

sealing/inflation passenger car tires.

Only punctured areas located within

the tread region of the tire can be

sealed using the tire mobility kit.

•

Do not use on motorcycles, bicycles

or any other type of tires.

•

When the tire and wheel are

damaged, do not use Tire Mobility Kit

for your safety.

•

Use of the Tire Mobility Kit may not be

effective for tire damage larger than

approximately 16 inch (4 mm).
Please contact the nearest HYUNDAI

dealer if the tire cannot be made

roadworthy with the Tire Mobility Kit.

•

Do not use the Tire Mobility Kit if a tire

is severely damaged by driving run flat

or with insufficient air pressure.

•

Do not remove any foreign objects

such as nails or screws that have

penetrated the tire.

•

Provided the car is outdoors, leave the

engine running. Otherwise operating

the compressor may eventually drain

the car battery.

•

Never leave the Tire Mobility Kit

unattended while it is being used.

•

Do not leave the compressor running

for more than 10 minutes at a time or

it may overheat.

•

Do not use the Tire Mobility Kit if the

ambient temperature is below -22°F

(-30°C).

•

In case of skin contact with the

sealant, wash the area thoroughly

with plenty of water. If the irritation

persists, seek medical attention.

•

In case of eye contact with the

sealant, flush your eyes for at least 15

minutes. If the irritation persists, seek

medical attention.

•

In case of swallowing the sealant,

rinse the mouth and drink plenty of

water. However, never give anything

to an unconscious person and seek

medical attention immediately.

•

Long time exposure to the sealant

may cause damage to bodily tissue

such as kidney, etc.

Emergency Situations

8-18

WARNING

Expired sealant
Do not use the Tire sealant after the

sealant has expired (for example, past

the expiration date on the sealant

container). This can increase the risk of

tire failure.

WARNING

Sealant

•

Keep out of reach of children.

•

Avoid contact with eyes.

•

Do not swallow.

Using the Tire Mobility Kit

WARNING

OCN7070006

Detach the speed restriction label (1)

from the sealant bottle (2), and place

it in a highly visible place inside the

vehicle such as on the steering wheel to

remind the driver not to drive too fast.

CAUTION

If only the tire pressure needs to be

adjusted, refer to “How to Adjust Tire

Pressure” in this chapter. Before using

the Tire Mobility Kit, be fully aware of

the explanation on the sealant.

OIGH079021

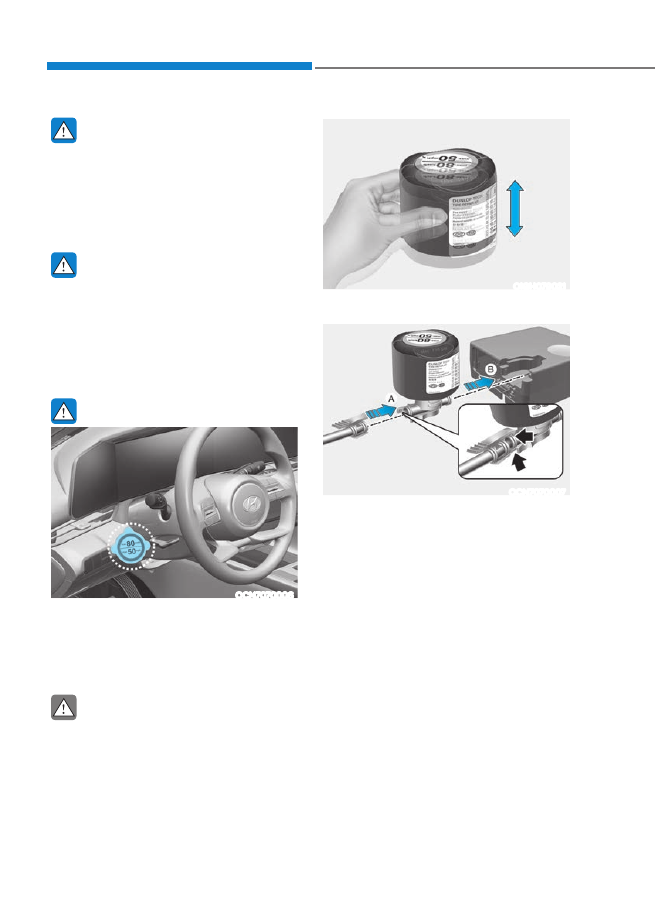

1. Shake the sealant bottle (2).

OCN7070007

2. Connect the filling hose (3) to the

sealant bottle (2) in the direction of

(A) and connect the sealant bottle

to the sealant bottle holder (5) in the

direction of (B).

3. Ensure that the compressor is

switched OFF.

8-19

OCN7083105L

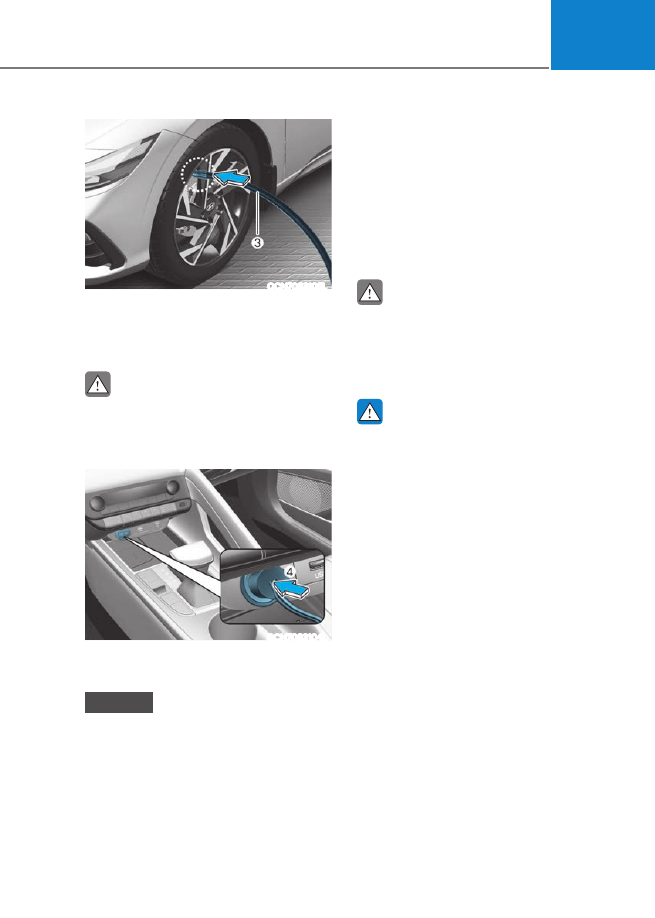

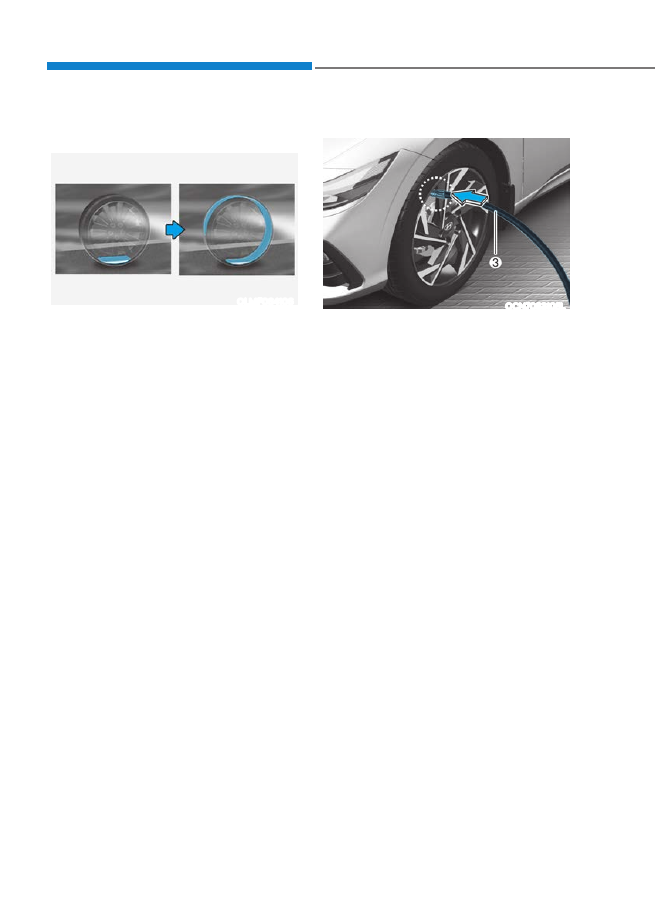

4. Unscrew the valve cap from the valve

of the defective wheel and screw the

filling hose (3) of the sealant bottle

onto the valve.

CAUTION

Securely install the sealant filling hose

to the valve. If not, sealant may flow

backward, possibly clogging the filling

hose.

OCN7083104L

5. Plug the compressor power cord (4)

into the vehicle power outlet.

NOTICE

Only use the front passenger side

power outlet when connecting the

power cord.

6. With the ignition switch in the ON

position, switch on the compressor

and let it run for approximately 5~7

minutes to fill the sealant up to proper

pressure. (refer to the Tire and Wheels,

chapter 2.) The inflation pressure of

the tire after filling is unimportant and

will be checked/corrected later. Be

careful not to overinflate the tire and

stay away from the tire when filling it.

CAUTION

Tire pressure
Do not attempt to drive your vehicle if

the tire pressure is below 200 kPa (29

psi). This could result in an accident due

to sudden tire failure.

WARNING

Carbon monoxide
Do not leave your vehicle running in

a poorly ventilated area for extended

periods of time. Carbon monoxide

poisoning and suffocation can occur.

7. Switch off the compressor.
8. Detach the hoses from the sealant

bottle connector and from the tire

valve.

Emergency Situations

8-20

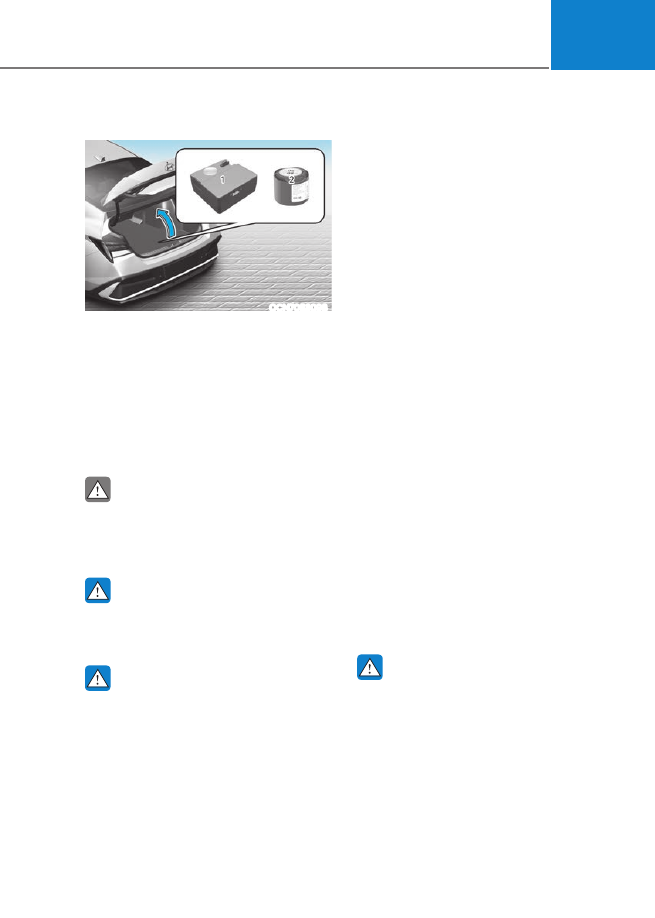

Return the Tire Mobility Kit to its storage

location in the vehicle.

OLMF064106

9. Immediately drive approximately

4~6 mi. (7~10 km or, about 10min) to

evenly distribute the sealant in the

tire.

Do not exceed a speed of 50 mph (80

km/h). If possible, do not fall below a

speed of 12 mph (20 km/h).
While driving, if you experience any

unusual vibration, ride disturbance or

noise, reduce your speed and drive with

caution until you can safely pull off of the

side of the road.

Call for road side service or towing.

OCN7083105L

10. After driving approximately 4~6 mi.

(7~10 km or about 10 min), stop at a

safety location.

11. Connect the filling hose (3) of the

compressor directly to the tire valve.

12. Connect between compressor and the

vehicle power outlet using the cable

and connectors.

13. Adjust the tire inflation pressure to

the recommended tire inflation. With

the ignition switched on, proceed as

follows.

- To increase the inflation pressure:

Switch on the compressor. To

check the current inflation pressure

setting, briefly switch off the

compressor.

- To reduce the inflation pressure:

Press the button (9) on the

compressor.

8-21

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

will overheat and may be damaged.

Information

The pressure gauge may show higher than

actual reading when the compressor is

running. To get an accurate tire pressure,

the compressor needs to be turned off.

CAUTION

If the inflation pressure is not

maintained, drive the vehicle a second

time, refer to step 9.
Then repeat steps 10 to 13.
Use of the TMK may be ineffectual for

tire damage larger than approximately

0.16 in. (4 mm).
Contact an authorized HYUNDAI dealer

if the tire cannot be made roadworthy

with the Tire Mobility Kit.

WARNING

The tire inflation pressure must be at

least 32 psi (220 kPa). If it is not, do not

continue driving.
Call for road side service or towing.

CAUTION

Tire pressure sensor (if equipped with

TPMS)
The sealant on the tire pressure sensor

and wheel should be removed when

you replace the tire with a new one and

inspect the tire pressure sensors. Get

this done at an authorized HYUNDAI

dealer.

Information

When reinstalling the repaired or replaced

tire and wheel on the vehicle, tighten

the wheel lug nut to 79~94 lbf·ft (11~13

kgf·m).

Emergency Situations

8-22

How to Adjust Tire Pressure

OCN7083105L

1. Park your vehicle in a safe location.
2. Connect the filling hose (3) of the

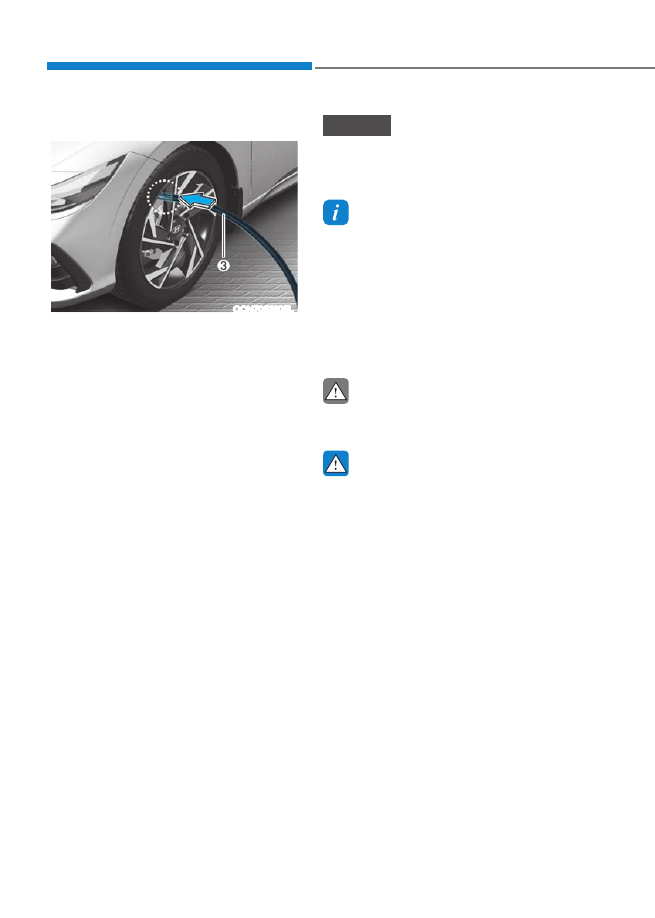

compressor directly to the tire valve.

3. Plug the compressor power cord into

the vehicle power outlet.

4. Adjust the tire inflation pressure to

the recommended tire inflation. With

the ignition switched on, proceed as

follows.

- To increase the inflation pressure:

Switch on the compressor. To

check the current inflation pressure

setting, briefly switch off the

compressor.

- To reduce the inflation pressure:

Press the button (9) on the

compressor.

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

will overheat and may be damaged.

Information

•

The pressure gauge may show

higher than actual reading when the

compressor is running. To get an

accurate tire reading, the compressor

needs to be turned off.

•

When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel lug nut to 79~94 lbf·ft

(11~13 kgf·m).

CAUTION

Do not use the sealant when the tire

pressure only needs to be adjusted.

WARNING

The tire inflation pressure must be at

least 32 psi (220 kPa). If it is not, do not

continue driving.
Call for road side service or towing.

8-23

TOWING

Towing Service

OCN7H083022L

If emergency towing is necessary, have it

done by an authorized HYUNDAI dealer

or a commercial tow-truck service.
Proper lifting and towing procedures

are necessary to prevent damage to

the vehicle. The use of wheel dollies or

flatbed is recommended.

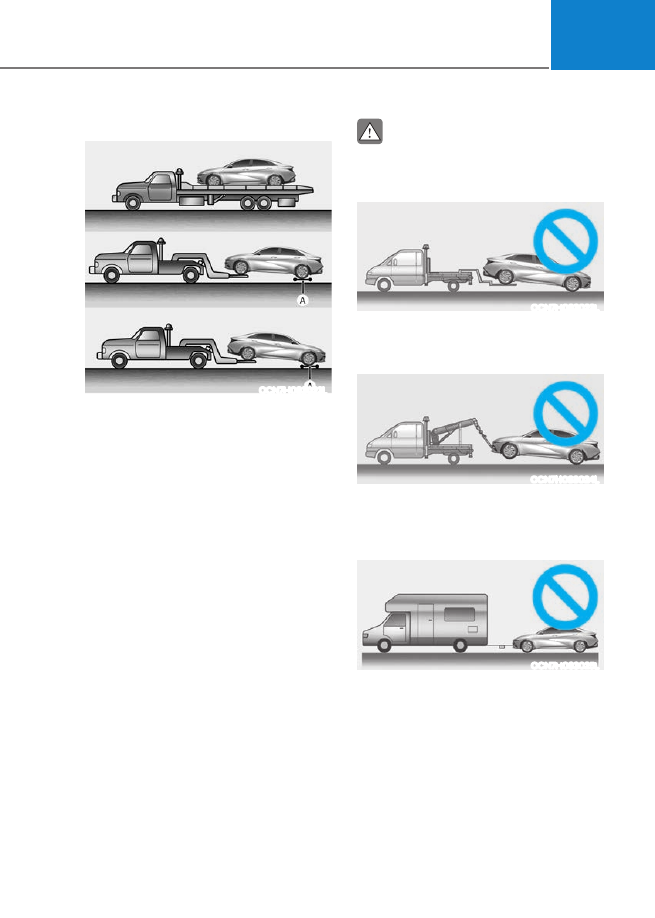

It is acceptable to tow the vehicle with

the rear wheels on the ground (without

dollies) and the front wheels off the

ground.
If any of the loaded wheels or suspension

components are damaged or the vehicle

is being towed with the front wheels on

the ground, use a towing dolly under the

front wheels.
When being towed by a commercial tow

truck and wheel dollies are not used,

the front of the vehicle should always be

lifted, not the rear.

CAUTION

•

Do not tow the vehicle with the front

wheels on the ground as this may

cause damage to the vehicle.

OCN7H083023L

•

Do not tow with sling-type

equipment. Use a wheel lift or

flatbed equipment.

OCN7H083024L

•

Do not tow the vehicle with four

wheels in contact with the ground if

it is the vehicle equipped with dual

clutch transmission.

OCN7H083025L

Otherwise, the transmission will be

seriously damaged. Also, make sure

not to tow the vehicle connecting it

with other vehicles including camper

vans.

Emergency Situations

8-24

WARNING

If your vehicle is equipped with a

rollover sensor, place the ignition

switch in the LOCK/OFF or ACC position

when the vehicle is being towed.

The side impact and curtain air bag

may deploy if the sensor detects the

situation as a rollover.

When towing your vehicle in an

emergency without wheel dollies:
1. Place the ignition switch in the ACC

position.

2. Place the shift lever in N (Neutral).
3. Release the parking brake.

CAUTION

Failure to place the shift lever in N

(Neutral) when being towed with the

front wheels on the ground can cause

internal damage to the transmission.

Emergency Towing

If towing is necessary, have it done by

an authorized HYUNDAI dealer or a

commercial tow truck service.

Removable Towing Hook

OCN7H083010

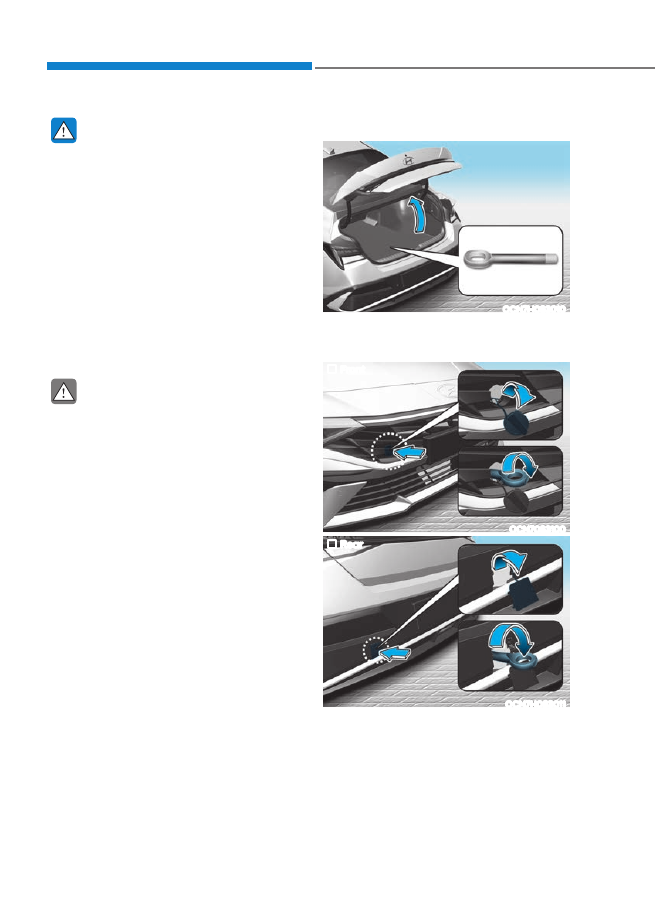

1. Open the trunk, and remove the

towing hook from the tool case.

Front

OCN7083100

Rear

OCN7H083011

2. Remove the hole cover by pressing

the lower part of the cover on the

bumper.

3. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

4. Remove the towing hook and install

the cover after use.

8-25

Emergency Towing

Front

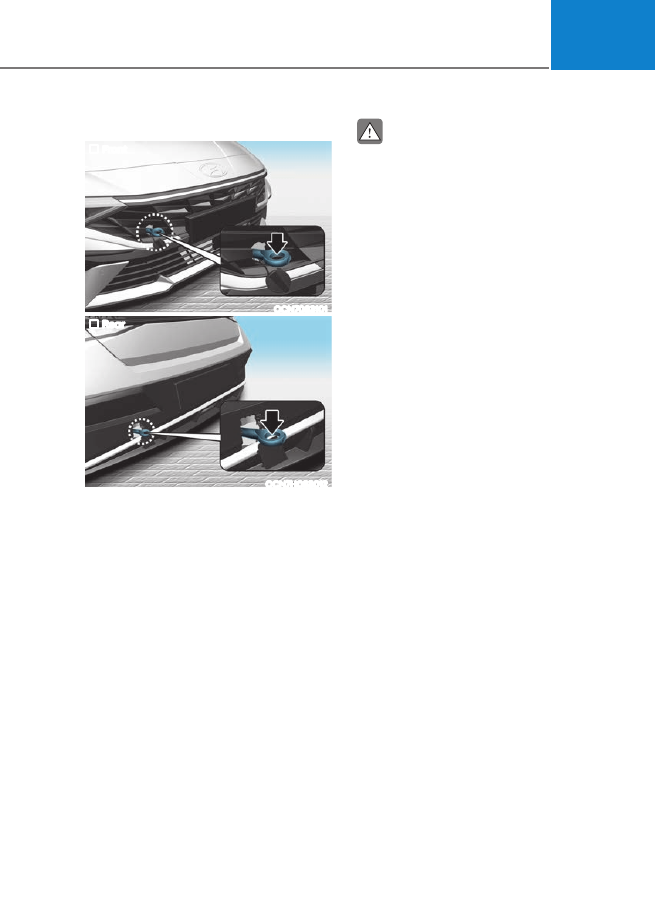

OCN7083101

Rear

OCN7H083012

If towing is necessary, have it done by

an authorized HYUNDAI dealer or a

commercial tow truck service.
If towing service is not available in

an emergency, your vehicle may be

temporarily towed using a cable or chain

secured to the emergency towing hook

at the front (or rear) of the vehicle.
Use extreme caution when towing the

vehicle with a cable or chain. A driver

must be in the vehicle to steer it and

operate the brakes.
Towing in this manner may be done

only on hard-surfaced roads for a short

distance and at low speeds. Also, the

wheels, axles, power train, steering and

brakes must all be in good condition.

CAUTION

The driver must be in the vehicle for

steering and braking operations when

the vehicle is being towed. Passengers

other than the driver must not be in the

vehicle.

Always follow these emergency towing

precautions:

•

Place the ignition switch in the ACC

position so the steering wheel is not

locked.

•

Place the shift lever in N (Neutral).

•

Release the parking brake.

•

Depress the brake pedal with more

force than normal since you will have

reduced braking performance.

•

More steering effort will be required

because the power steering system

will be disabled.

•

Use a vehicle heavier than your own to

tow your vehicle.

•

The drivers of both vehicles should

communicate with each other

frequently.

•

Before emergency towing, check that

the hook is not broken or damaged.

•

Fasten the towing cable or chain

securely to the hook.

•

Do not jerk the hook. Apply steady

and even force.

Emergency Situations

8-26

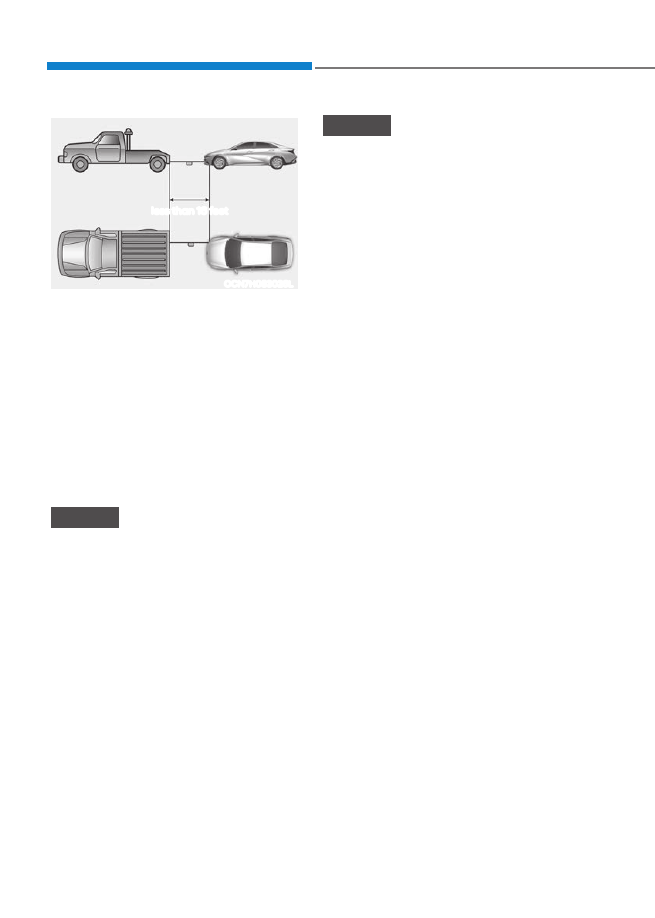

less than 16 feet

OCN7H083026L

•

Use a towing cable or chain less than

16 ft. (5 m) long. Attach a white or red

cloth (about 12 in. (30 cm) wide) in the

middle of the cable or chain for easy

visibility.

•

Drive carefully so the towing cable or

chain remains tight during towing.

•

Before towing, check the Dual clutch

transmission for fluid leaks under

your vehicle. If the Dual clutch

transmission fluid is leaking, flatbed

equipment or a towing dolly must be

used.

NOTICE

Accelerate or decelerate the vehicle

in a slow and gradual manner while

maintaining tension on the tow rope

or chain to start or drive the vehicle,

otherwise tow hooks and the vehicle

may be damaged.

NOTICE

To avoid damage to your vehicle and

vehicle components when towing:

•

Always pull straight ahead when

using the towing hooks. Do not pull

from the side or at a vertical angle.

•

Do not use the towing hooks to pull

a vehicle out of mud, sand or other

conditions from which the vehicle

cannot be driven out under its own

power.

•

Limit the vehicle speed to 10mph

(15km/h) and drive less than 1 mile

(1.5 km) when towing to avoid serious

damage to Dual clutch transmission.

•

The Dual clutch transmission vehicle

can be towed to a normal vehicle

only without oil leakage. Check

for oil leaks. Towing the vehicle

with oil leakage may damage the

transmission.

Maintenance

9-4

You should exercise the utmost care

to prevent damage to your vehicle and

injury to yourself whenever performing

any maintenance or inspection

procedures.
Have your vehicle maintained and

repaired by an authorized HYUNDAI

dealer. An authorized HYUNDAI dealer

meets HYUNDAI’s high service quality

standards and receives technical support

from HYUNDAI in order to provide you

with a high level of service satisfaction.

Owner’s Responsibility

Maintenance service and record

retention are the owner’s responsibility.
You should retain documents that show

proper maintenance has been performed

on your vehicle in accordance with

the scheduled maintenance service

charts shown on the following pages.

You need this information to establish

your compliance with the servicing

and maintenance requirements of your

vehicle warranties.
Detailed warranty information is

provided in your Owner’s Handbook &

Warranty Information booklet.
Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

Owner Maintenance Precautions

Inadequate, incomplete or insufficient

servicing may result in operational

problems with your vehicle that could

lead to vehicle damage, an accident, or

personal injury. This chapter provides

instructions only for the maintenance

items that are easy to perform. Several

procedures can be done only by an

authorized HYUNDAI dealer with special

tools.
Your vehicle should not be modified

in any way. Such modifications may

adversely affect the performance, safety

or durability of your vehicle and may, in

addition, violate conditions of the limited

warranties covering the vehicle.
Certain modifications may also be in

violation of regulations established by

the U.S. Department of Transportation

and other federal or state agencies.

NOTICE

Improper owner maintenance during

the warranty period may affect

warranty coverage. For details, read

the separate Owner’s Handbook &

Warranty Information booklet provided

with the vehicle. If you’re unsure about

any service or maintenance procedure,

have it done by an authorized HYUNDAI

dealer.

MAINTENANCE SERVICES

9-5

WARNING

Performing maintenance work on a

vehicle can be dangerous. If you lack

sufficient knowledge and experience or

the proper tools and equipment to do

the work, have it done by an authorized

HYUNDAI dealer.
ALWAYS follow these precautions for

performing maintenance work:

•

Park your vehicle on level ground,

move the shift lever into the P (Park)

position, place the ignition switch in

the LOCK/OFF position.

•

Block the tires (front and back) to

prevent the vehicle from moving.
Remove loose clothing or jewelry

that can become entangled in

moving parts.

•

If you must run the engine during

maintenance, do so in an outdoor

area or in an area with plenty of

ventilation.

•

Keep flames, sparks, or smoking

materials away from the battery and

fuel-related parts.

The following lists are vehicle checks and

inspections that should be performed

by the owner or an authorized HYUNDAI

dealer at the frequencies indicated to

help ensure safe, dependable operation

of your vehicle.
Any adverse conditions should be

brought to the attention of your dealer as

soon as possible.
These Owner Maintenance vehicle

checks are generally not covered by

warranties and you may be charged for

labor, parts and lubricants used.

Owner Maintenance Schedule

When you stop for fuel:

•

Check the coolant level in the engine

coolant reservoir.

•

Check the windshield washer fluid

level.

•

Check the for low or under-inflated

tires.

•

Check the radiator and condenser.

•

Check if the front of the radiator and

condenser are clean and not blocked

with leaves, dirt or insects etc. If any

of the above parts are extremely dirty

or you are not sure of their condition,

have you contact an authorized

HYUNDAI dealer.

WARNING

Be careful when checking your engine

coolant level when the engine is hot.

This may result in coolant being blown

out of the opening and cause serious

burns and other injuries.

OWNER MAINTENANCE

Maintenance

9-6

While operating your vehicle:

•

Note any changes in the sound of the

exhaust or any smell of exhaust fumes

in the vehicle.

•

Check for vibrations in the steering

wheel. Notice if there is any increased

steering effort or looseness in the

steering wheel, or change in its

straight-ahead position.

•

Notice if your vehicle constantly turns

slightly or “pulls” to one side when

traveling on smooth, level road.

•

When stopping, listen and check for

unusual sounds, pulling to one side,

increased brake pedal travel or “hard-

to-push” brake pedal.

•

If any slipping or changes in the

operation of your transmission occurs,

check the transmission fluid level.

•

Check the dual clutch transmission P

(Park) function.

•

Check the parking brake.

•

Check for fluid leaks under your

vehicle (water dripping from the air

conditioning system during or after

use is normal).

At least monthly:

•

Check coolant level in the engine

coolant reservoir.

•

Check the operation of all exterior

lights, including the brake lights, turn

signals and hazard warning flashers.

•

Check the inflation pressures of all

tires including the spare for tires that

are worn, show uneven wear, or are

damaged.

•

Check for loose wheel lug nuts.

At least twice a year:

(for example, every Spring and

Autumn)

•

Check radiator, heater and air

conditioning hoses for leaks or

damage.

•

Check windshield washer spray and

wiper operation. Clean wiper blades

with a clean cloth dampened with

washer a fluid.

•

Check headlight alignment.

•

Check muffler, exhaust pipes, shields

and clamps.

•

Check the seat belts for wear and

function.

At least once a year:

•

Clean body and door drain holes.

•

Lubricate door hinges and hood

hinges.

•

Lubricate door and hood locks and

latches.

•

Lubricate door rubber weather strips.

•

Lubricate door checker.

•

Check the air conditioning system.

•

Inspect and lubricate dual clutch

transmission linkage and controls.

•

Clean the battery and terminals.

•

Check the brake fluid level.

9-7

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of

the following conditions apply. If any of the following conditions apply, you must follow

the Maintenance Under Severe Usage Conditions.

•

Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature

of less than 5 miles (16 km) in freezing temperature.

•

Extensive engine idling or low speed driving for long distances.

•

Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads.

•

Driving in areas using salt or other corrosive materials or in very cold weather.

•

Driving in heavy dust condition.

•

Driving in heavy traffic area.

•

Driving on uphill, downhill, or mountain roads repeatedly.

•

Using for towing or camping, and driving with loading on the roof.

•

Driving as a patrol car, taxi, other commercial use of vehicle towing.

•

Frequently driving under high speed or rapid acceleration.

•

Frequently driving in stop-and-go conditions.

•

Engine oil usage which is not recommended(Mineral type, Semi-synthetic, Lower

grade spec, etc.)

NOTICE

After driving more than 10 years or 100,000 miles, use severe maintenance schedule.

SCHEDULED MAINTENANCE SERVICES

Maintenance

9-8

ormal M

ain

tenanc

e Schedule

The f

ollo

wing main

tenance services mus

t be perf

ormed t

o ensur

e good emission con

ol and perf

ormance.

Keep r

eceip

ts f

or all v

ehicle emission services t

o pr

ect y

our w

arr

. Wher

e bo

th mileage and time ar

e sho

wn, the fr

equenc

y o

service is de

termined b

y whiche

ver occur

s fir

st.

MAINTENANCE

INTER

VALS

MAINTENANCE ITEM

Number o

f mon

ths or driving dis

tanc

e, whiche

ver c

omes fir

ths

108

120

132

144

156

168

180

Miles x 1,000

104

112

120

Km x 1,000

104

117

130

143

156

169

182

195

Engine oil and engine oil filt

*1 *2

eplace e

very 8,

000 miles (13,

000 km

) or 12 mon

Fuel additiv

Air cleaner filt

I : Inspect and if necessary

, adjus

t, corr

ect, clean or r

eplace.

R : R

eplace or change.

*1 :

Check the engine oil le

vel and leak e

very 500 km (350 miles

) or be

for

e s

tarting a long trip.

*2 :

er add an

y additiv

es t

o the engine oil. E

ngine oil additiv

es can change the pr

operties o

f engine oil and ma

y cause serious

engine f

ailur

*3 :

If good quality gasolines or equiv

alen

ts including fuel additiv

es is no

t a

vailable, one bo

ttle o

f additiv

e is r

ecommended.

dditiv

es ar

e a

vailable fr

om y

our authoriz

ed HYUND

AI dealer along with in

forma

tion on ho

w t

o use them. Do no

t mix o

ther

additiv

es.

As it is normal f

or engine oil t

o be consumed during driving, the amoun

t o

f engine oil should be check

ed r

egularly

The r

eplacemen

t c

ycle o

f engine oil is se

t b

y the period which the perf

ormance o

f our r

ecommended engine oil is

main

tained. So if r

ecommended engine oil is no

t used, a r

eplacemen

t is r

equir

ed as indica

ted se

ver

e usage condition.

9-9

ormal M

ain

tenanc

e Schedule

MAINTENANCE

INTER

VALS

MAINTENANCE ITEM

Number o

f mon

ths or driving dis

tanc

e, whiche

ver c

omes fir

ths

108

120

132

144

156

168

180

Miles x 1,000

104

112

120

Km x 1,000

104

117

130

143

156

169

182

195

Spark plugs

eplace e

very 96,

000 miles (156,

000 km

)

Vapor hose and fuel filler cap

Fuel tank air filt

Fuel lines, hoses and connection

HSG (Hybrid S

tart

er & Gener

) belt

Inspect e

very 8,

000 miles (12,

000 km

) or 12 mon

ths,

and r

eplace e

very 64

,000 miles (104

,000 km

) or 48 mon

ths.

I : Inspect and if necessary

, adjus

t, corr

ect, clean or r

eplace.

R : R

eplace or change.

*4 :

For y

our con

venience, it can be r

eplaced prior t

o it’

s in

terv

al when y

ou do main

tenance o

f o

ther it

ems.

*5 :

Inspect HSG belt f

or e

vidence o

f cuts, cr

ock

s, e

xcessiv

e w

ear or oil sa

tur

ation and r

eplace if necessary

. If driv

e belt noise

occurr

ed, r

eadjus

t driv

e belt t

ension be

for

e r

eplace.

Fuel filt

er :

The fuel filt

er is consider

ed t

o be main

tenance fr

ee but periodic inspection is r

ecommended f

or this main

tenance

schedule depends on fuel quality

. If ther

e ar

e some importan

t ma

s lik

e fuel flo

w r

triction, sur

ging, loss o

f po

har

d s

tarting pr

oblem e

tc., place the fuel filt

er immedia

tely r

egar

dless o

f main

tenance schedule and consult with an

authoriz

ed HYUND

AI dealer f

or de

tails.

Hyundai Elantra Hybrid (2024 year). Manual in english - page 15
