Hyundai Palisade (2024 year). Manual in english

6-17

To stay in N (Neutral) when vehicle is

OFF

B0252EU03

B0252KO04

If you want to stay in N (Neutral) after the

engine is OFF (in the ACC state), do the

following.
1. Turn off Auto Hold and release

Electronic Parking Brake when the

engine is running.

2. Press the shift button to N (neutral)

while depressing the brake pedal.

3. When you take your foot off the brake

pedal, the message ‘Press and hold the

OK button on the steering wheel to stay

in Neutral’ will appear on the cluster

LCD display.

4. Press and hold the OK button (A) on the

steering wheel for more than 1 second.

5. When the message ‘Vehicle will stay in

(N). Change gear to cancel’ appears on

the cluster LCD display, press the

ignition switch or Engine Start/Stop

button while depressing the brake

pedal.
If you wish to cancel, change gear to P

(Park), D (Drive) or R (Reverse), or N

(Neutral) will stay engaged when the

vehicle is Off.
Also, if you open the driver's door, the

gear will automatically shift to P (Park)

and the ignition switch or Engine

Start/Stop button will change to the

LOCK/OFF position.

NOTICE

With the gear in N (Neutral) the ignition

switch or Engine Start/Stop button will be

in the ACC position. In the ACC position,

the doors cannot be locked. The battery

may discharge if left in the ACC position

for a long time.

CarManuals2.com

Driving Your Vehicle

6-18

D (Drive)

This is the normal driving position.
The transmission will automatically shift

through an 8-gear sequence, providing

the best fuel economy and power.
For extra power when passing another

vehicle or driving uphill, depress the

accelerator pedal further until you feel

the transmission downshift to a lower

gear.

B0252EU08

To shift the gear D (Drive), press the D

button while depressing the brake pedal.
When the vehicle is stopped in the D

(Drive) position, if you open the driver's

door with the seat belt unfastened, the

gear will automatically shift to P (Park).
However, if the vehicle is in motion, the

gear may not automatically shift to P

(Park) to prevent automatic transmission

damage.

NOTICE

Always come to a complete stop before

shifting into D (Drive).

CAUTION

When you start after stopping on a steep

incline, even if the gear is in D (Drive), if

you do not depress the accelerator or

brake pedal, the vehicle may roll

backwards, which can cause an accident.

When the battery is discharged

You cannot shift gears, when the battery

is discharged.
In emergencies, do the following to shift

the gear to N (Neutral) on a level ground.
1. Connect the battery cables from

another vehicle or from a another

battery to the jump-starting terminals

inside the engine compartment.
For more details, refer to “Jump

Starting” section in chapter 8.

2. Release the Electronic Parking Brake

with the ignition switch or Engine

Start/Stop button in the ON position.

3. Shift the gear to the N (Neutral)

position. Refer to the “To stay in N

(Neutral) when vehicle is OFF” in this

chapter.

Information

In situations when the gear needs to be

shifted from P (Park) to N (Neutral) when

the ignition switch or Engine Start/Stop

button is in the OFF position, refer to the

“To stay in N (Neutral) when vehicle is

OFF” in this chapter.

Shift-lock system

For your safety, the automatic

transmission has a shift-lock system

which prevents shifting the transmission

from P (Park) into R (Reverse) or D (Drive)

unless the brake pedal is depressed.
To shift from P (Park) or N (Neutral) into R

(Reverse) or D (Drive):
1. Depress and hold the brake pedal.
2. Start the engine.
3. Shift gear while depressing the brake

pedal.

CarManuals2.com

6-19

if equipped

Ignition key interlock system

The ignition key cannot be removed

unless the shift button is in the P (Park)

position.

Parking

Always come to a complete stop and

continue to depress the brake pedal.
Shift the gear to P (Park), apply the

parking brake, and place the ignition

switch or press the Engine Start/Stop

button to the OFF position.
Take the Key with you when leaving the

vehicle.

WARNING

• When you stay in the vehicle with the

engine running, be careful not to

depress the accelerator pedal for a long

period of time. The engine or exhaust

system may overheat and start a fire.

• The exhaust gas and the exhaust

system are very hot. Keep away from

the exhaust system components.

• Do not stop or park over flammable

materials, such as dry grass, paper or

leaves. They may ignite and cause a

fire.

LCD Display Messages

(Cluster)

Press brake pedal to change gear

B0253EU02

This message is displayed when the brake

pedal is not depressed while shifting the

gear.
Depress the brake pedal and then shift

the gear.

Shift to P after stopping

B0253EU03

This message is displayed when the gear

is shifted to P (Park) while the vehicle is

moving.
Stop the vehicle before shifting to P

(Park).

CarManuals2.com

Driving Your Vehicle

6-20

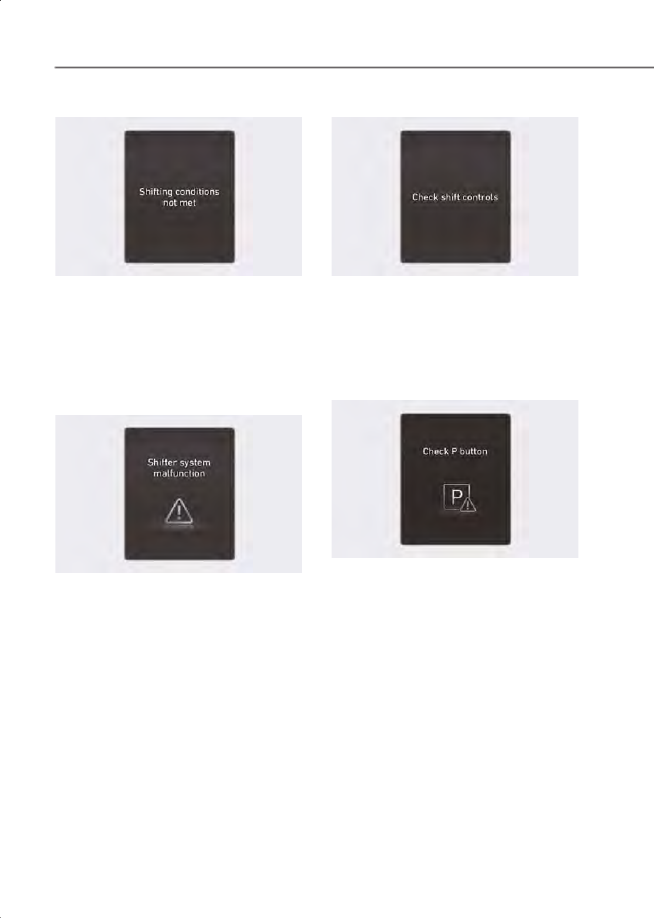

Shifting conditions not met

B0253EU01

This message is displayed when engine

RPM is too high, or when driving speed is

too fast to shift the gear.
Decrease vehicle speed or slow down

before shifting the gear.

Shifter system malfunction

B0253EU10

This message is displayed when the

transmission or the shift button does not

properly operate in the P (Park) position.
Immediately have the vehicle inspected

by an authorized HYUNDAI dealer.

Check shift controls

B0253EU09

This message is displayed when there is a

malfunction with the shift button.
Immediately have the vehicle inspected

by an authorized HYUNDAI dealer.

Check P button

B0253EU14

This message is displayed when there is a

problem with the P button.
Immediately have the vehicle inspected

by an authorized HYUNDAI dealer.

CarManuals2.com

6-21

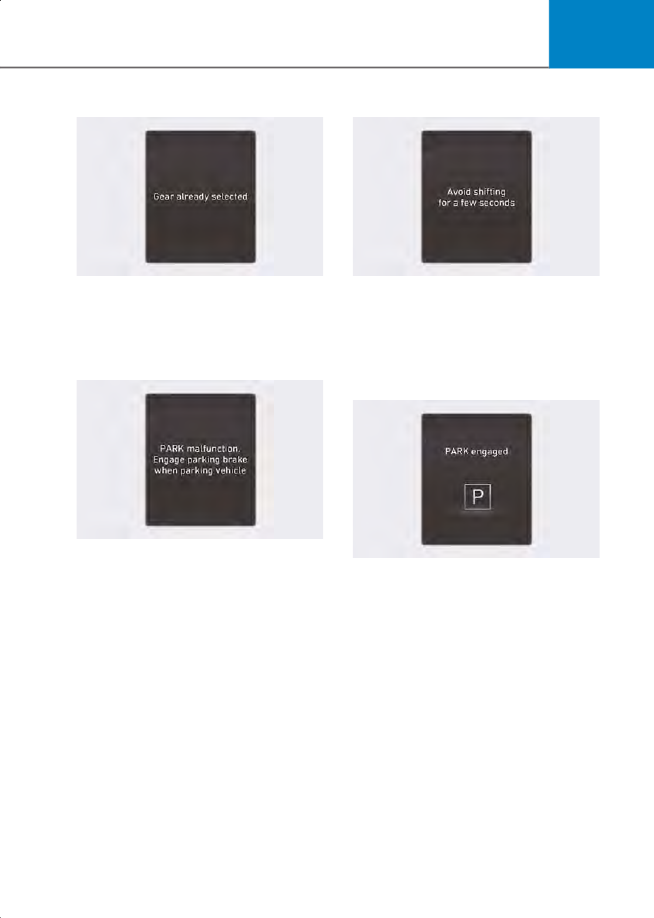

Gear already selected

B0253EU07

This message is displayed when pushing

the current shift button again.

PARK malfunction. Engage parking

brake when parking vehicle

B0253EU11

This message is displayed when there is a

with the Parking brake. Immediately have

the vehicle inspected by an authorized

HYUNDAI dealer.

Avoid shifting for a few seconds

B0253EU12

This message is displayed when pressing

the transmission buttons frequently.
Press the transmission button after a few

seconds.

PARK engaged

B0253EU04

This message is displayed when the P

(PARK) position is engaged.
Make sure that the vehicle is completely

stopped before shifting to P (Park).

CarManuals2.com

Driving Your Vehicle

6-22

if equipped

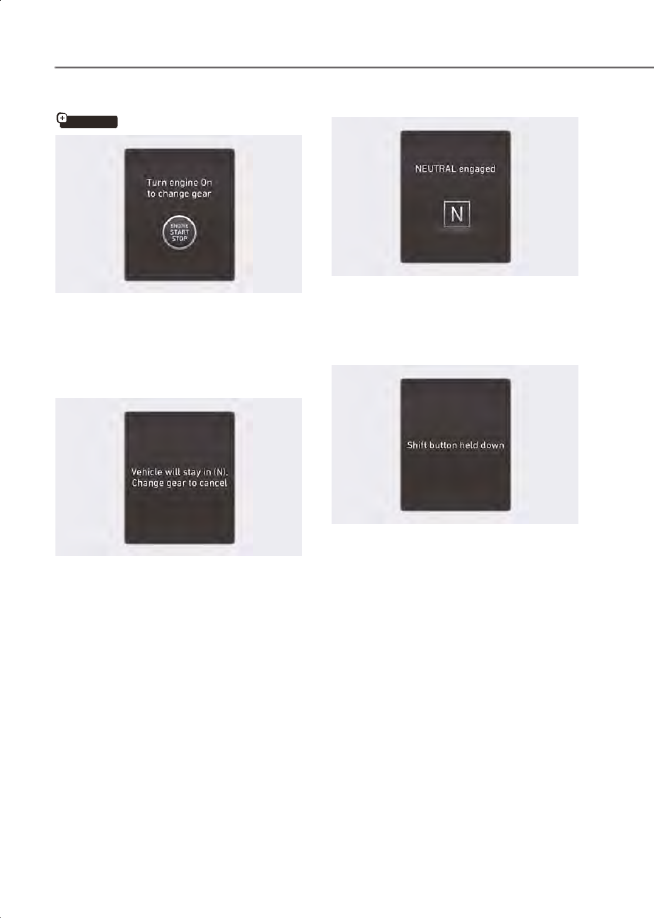

Turn engine On to change gear

B0253EU13

The message is displayed when the

engine is off or battery level is low.

Vehicle will stay in (N). Change gear

to cancel

B0253EU05

This message is displayed when pushing

the “OK” button on the steering wheel

after the message ‘Press and hold the OK

button on the steering wheel to stay in

Neutral’ appears on the cluster LCD

display. The gear stays in N (Neutral)

position after turning off the engine.

NEUTRAL engaged

B0253EU06

This message is displayed when the N

(Neutral) position is engaged.

Shift button held down

B0253EU08

When the shift button is pressed

continuously or the shift button does not

properly operate. Clean the surroundings

of gear shift button.
Immediately have the vehicle inspected

by an authorized HYUNDAI dealer.

CarManuals2.com

6-23

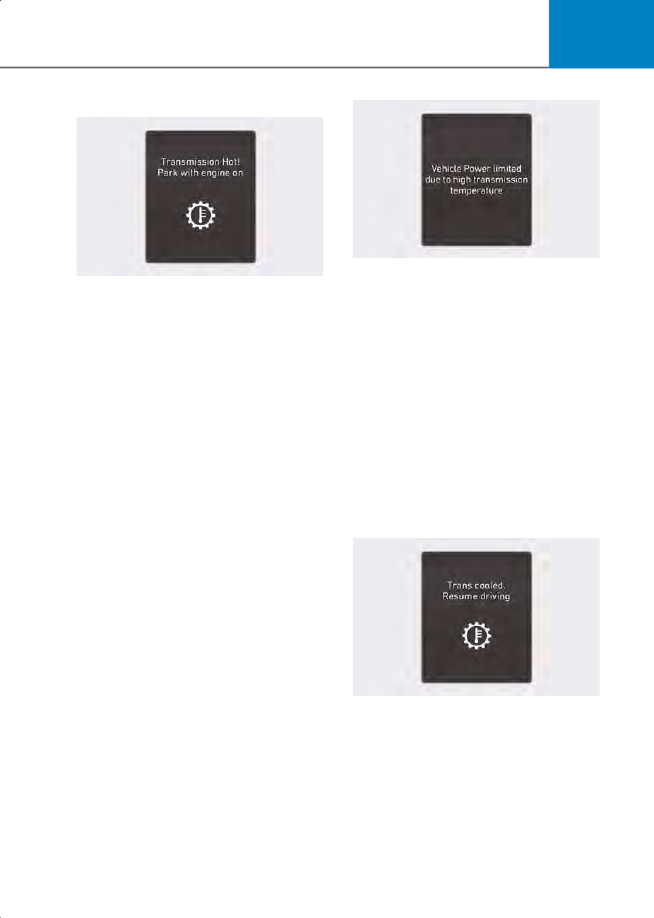

Transmission overheated warning

B0253EU15

Transmission Hot! Park with engine on

Repeated sudden acceleration and quick

start may overheat the transmission. If

the transmission is overheated, the self

protection mode alarms the driver with an

audible sound warning message.
Move the vehicle to a safe location and

shift the gear to ‘P’ (parking), and stop the

vehicle with the engine on. Wait until the

transmission is sufficiently cooled down.

B0253EU16

Vehicle Power limited due to high

transmission temperature

If you continue to drive with overheated

transmission, the above warning

message is displayed and self-protection

mode restricts the power output of the

vehicle.
• Move the vehicle to a safe location and

shift the gear to P (Park), and stop the

vehicle with the engine on. Wait until

the transmission is sufficiently cooled

down.

• If the above message is continuously

displayed, we recommend that you

contact an authorized authorized

HYUNDAI dealer.

B0253EU17

Trans cooled. Resume driving

This message is displayed when the

vehicle is safe to drive.

CarManuals2.com

Driving Your Vehicle

6-24

Paddle Shifter (Manual Shift

Mode)

B0254KO01

The paddle shifter is available when the

gear is in the D (Drive) position.
Pull the [+] or [-] paddle shifter once to

shift up or down one gear and the system

changes from automatic shift mode to

manual shift mode.
To change back to automatic shift mode

from manual shift mode, do one of the

followings:
• Pull and hold the [+] paddle shifter.
• Push the shift button D (Drive).
The manual shift mode also changes back

to automatic shift mode in one of

following situations:
• When the accelerator pedal is gently

depressed for more than 6 seconds

while driving.

• When the vehicle speed decreases

below 4 mph (7 km/h).

Information

If the [+] and [-] paddle shifters are pulled

at the same time, gear shift may not

occur.

Good Driving Practices

• Never shift the gear from P (Park) or N

(Neutral) to any other position with the

accelerator pedal depressed.

• Never shift the gear into P (Park) when

the vehicle is in motion.
Be sure the vehicle is completely

stopped before you attempt to shift

into R (Reverse) or D (Drive).

• Do not shift the gear to N (Neutral)

when driving. If the gear is shifted to N

(Neutral) while driving, the vehicle

loses the ability to provide engine

braking. Doing so may increase the risk

of an accident.
Also, shifting the gear back to D (Drive)

while the vehicle is moving may

severely damage the transmission.

• When driving uphill or downhill, always

shift to D (Drive) for driving forward or

shift to R (Reverse) for driving

rearwards. After selecting D (Drive) or R

(Reverse), check the gear position

indicated on the cluster before driving.

If the vehicle moves in the opposite

direction of the selected gear, the

engine may turn off and affect braking

performance that may lead to a serious

accident.

• Do not drive with your foot resting on

the brake pedal. Even light, but

consistent pedal pressure can result in

the brakes overheating, brake wear and

possibly even brake failure.

• When driving in manual mode, slow

down before shifting to a lower gear.

Otherwise, the lower gear may not be

engaged if the engine RPMs are outside

of the allowable range.

• Always apply the parking brake when

leaving the vehicle. Do not depend on

placing the transmission in P (Park) to

keep the vehicle from moving.

CarManuals2.com

6-25

• Exercise extreme caution when driving

on a slippery surface. Be especially

careful when braking, accelerating or

shifting gears. On a slippery surface, an

abrupt change in vehicle speed can

cause the drive wheels to lose traction

and may cause loss of vehicle control

resulting in an accident.

• Optimum vehicle performance and

economy is obtained by smoothly

depressing and releasing the

accelerator.

WARNING

To reduce the risk of SERIOUS INJURY or

DEATH:
• ALWAYS wear your seat belt. In a

collision, an unbelted occupant is

significantly more likely to be seriously

injured or killed than a properly belted

occupant.

• Avoid high speeds when cornering or

turning.

• Do not make quick steering wheel

movements, such as sharp lane

changes or fast, sharp turns.

• The risk of rollover is greatly increased

if you lose control of your vehicle at

highway speeds.

• Loss of control often occurs if two or

more wheels drop off the roadway and

the driver over steers to reenter the

roadway.

• In the event your vehicle leaves the

roadway, do not steer sharply. Instead,

slow down before pulling back into the

travel lanes.

• HYUNDAI recommends you follow all

posted speed limits.

Braking System

Power-Assist Brakes

Your vehicle has power-assisted brakes

that adjust automatically through normal

usage.
If the engine is not running or is turned off

while driving, the power assist for the

brakes will not work. You can still stop

your vehicle by applying greater force to

the brake pedal than typical. The stopping

distance, however, will be longer than

with power brakes.
When the engine is not running, the

reserve brake power is partially depleted

each time the brake pedal is applied. Do

not pump the brake pedal when the

power assist has been interrupted.

WARNING

Take the following precautions:
• Do not drive with your foot resting on

the brake pedal. This will create

abnormal high brake temperatures,

excessive brake lining and pad wear,

and increased stopping distances.

• When descending down a long or steep

hill, use the paddle shifter and manually

downshift to a lower gear in order to

control your speed without using the

brake pedal excessively. Applying the

brakes continuously will cause the

brakes to overheat and could result in a

temporary loss of braking performance.

CarManuals2.com

Driving Your Vehicle

6-26

• Wet brakes may impair the vehicle's

ability to safely slow down; the vehicle

may also pull to one side when the

brakes are applied. Applying the brakes

lightly will indicate whether they have

been affected in this way. Always test

your brakes in this fashion after driving

through deep water. To dry the brakes,

lightly tap the brake pedal to heat up

the brakes while maintaining a safe

forward speed until brake performance

returns to normal. Avoid driving at high

speeds until the brakes function

correctly.

Disc Brakes Wear Indicator

When your brake pads are worn and new

pads are required, you will hear a high

pitched warning sound from your front or

rear brakes. You may hear this sound

come and go or it may occur whenever

you depress the brake pedal.
Note that some driving conditions or

climates may cause a brake squeal when

you first apply (or lightly apply) the

brakes. This is normal and does not

indicate a problem with your brakes.

NOTICE

To avoid costly brake repairs, do not

continue to drive with worn brake pads.

Information

Always replace brake pads as complete

front or rear axle sets.

Electronic Parking Brake (EPB)

Applying the parking brake

B0260EU01

To apply EPB (Electronic Parking Brake):

1. Depress and hold the brake pedal.
2. Pull up the EPB switch.
Make sure the Parking Brake warning light

comes on.

EPB (Electronic Parking Brake) may be

automatically applied when:

• Requested by other systems
• The driver turns the vehicle off while

Auto Hold is operating.

Emergency braking

If there is a problem with the brake pedal

while driving, emergency braking is

possible by pulling up and holding the

EPB switch. Braking is possible only while

you are holding the EPB switch. However,

braking distance will be longer than

normal.

WARNING

To reduce the risk of SERIOUS INJURY or

DEATH, do not operate the EPB while the

vehicle is moving except in an emergency

situation. It could damage the brake

system and lead to an accident.

CarManuals2.com

6-27

Information

During emergency braking, the Parking

Brake warning light will illuminate to

indicate that the system is operating.

NOTICE

If you continuously notice a noise or

burning smell when the EPB is used for

emergency braking, have the system

checked by an authorized HYUNDAI

dealer.

Releasing the parking brake

B0260EU02

To release EPB (Electronic Parking

Brake):

1. Place the ignition switch or press the

Engine Start/Stop button to the ON or

START position.

2. Press the EPB switch while depressing

the brake pedal.

Make sure the Parking Brake warning light

goes off.

To release EPB (Electronic Parking Brake)

automatically:

• Gear in P (Park)

With the engine running depress the

brake pedal and shift out of P (Park) to

R (Reverse) or D (Drive).

• Gear in N (Neutral)

With the engine running depress the

brake pedal and shift out of N (Neutral)

to R (Reverse) or D (Drive).

• Satisfy the following conditions
1. Ensure seat belts are fastened and the

doors, hood and liftgate are closed.

2. With the engine running, depress the

brake pedal and shift out of P (Park) to

R (Reverse), D (Drive) or Manual shift

mode.

3. Depress the accelerator pedal.

Make sure the Parking Brake warning

light goes off.

Information

• For your safety, you can engage EPB

even though the ignition switch is in the

LOCK/OFF position (only if battery

power is available), but you cannot

release it.

• For your safety, depress the brake

pedal and release the parking brake

manually with the EPB switch when you

drive downhill or when backing up the

vehicle.

NOTICE

• If the Parking Brake warning light is still

on even though the EPB has been

released, have the system checked by

an authorized HYUNDAI dealer.

• Do not drive your vehicle with EPB

applied. It may cause excessive brake

pad and brake rotor wear.

CarManuals2.com

Driving Your Vehicle

6-28

Warning messages

B0260EU04

To release EPB, fasten seatbelt and close

door, hood and liftgate

• If you try to drive with EPB applied, a

warning will sound and a message will

appear.

• If the driver's seat belt is unfastened

and the engine hood or liftgate is

opened, a warning will sound and a

message will appear.

• If there is a problem with the vehicle, a

warning may sound and a message may

appear.

If the situation occurs, depress the brake

pedal and release EPB by pressing the

EPB switch.

WARNING

• Whenever leaving the vehicle or

parking, always come to a complete

stop and continue to depress the brake

pedal.
Shift the gear into P (Park), pull the EPB

switch, and place the ignition switch or

press the Engine Start/Stop button to

the OFF position. Take the Key with you

when leaving the vehicle.
Vehicles not fully engaged in P (Park)

with the parking brake set are at risk for

moving inadvertently and causing

injury to yourself or others.

• NEVER allow anyone who is unfamiliar

with the vehicle to touch the EPB

switch. If EPB is released

unintentionally, serious injury may

occur.

• Only release EPB when you are seated

inside the vehicle with your foot firmly

on the brake pedal.

NOTICE

• Do not apply the accelerator pedal

while the parking brake is engaged. If

you depress the accelerator pedal with

EPB engaged, a warning will sound and

a message will appear. Damage to the

parking brake may occur.

• Driving with the parking brake on can

overheat the braking system and cause

premature wear or damage to brake

parts. Make sure EPB is released and

the Parking Brake warning light is off

before driving.

Information

• A clicking sound may be heard while

operating or releasing the EPB. These

conditions are normal and indicate that

EPB is functioning properly.

• When leaving your keys with a parking

attendant or assistant, make sure to

inform him/her how to operate EPB.

CarManuals2.com

6-29

B0261EU05

AUTO HOLD turning Off! Press brake

pedal

When the conversion from Auto Hold to

EPB is not working properly a warning will

sound and a message will appear.

B0261EU04

Parking brake automatically engaged

When EPB is applied while Auto Hold is

activated, a warning will sound and a

message will appear.

EPB malfunction

Electronic Parking Brake (EPB) warning

light illuminates if the ignition switch

placed or Engine Start/Stop button is

pressed to the ON position and goes off in

approximately 3 seconds if the system is

operating normally.
If the EPB warning light remains on,

comes on while driving, or does not come

on when the ignition switch or Engine

Start/Stop button is placed to the ON

position, this indicates that the EPB may

have malfunctioned.
If this occurs, have the system checked

by an authorized HYUNDAI dealer.
The EPB warning light may illuminate

when the ESC indicator comes on to

indicate that ESC is not working properly,

but it does not indicate a malfunction of

EPB.

NOTICE

• If the EPB warning light is still on, have

the system checked by an authorized

HYUNDAI dealer.

• If the Parking Brake warning light does

not illuminate or blinks even though the

EPB switch was pulled up, EPB may not

be applied.

• If the Parking Brake warning light blinks

when the EPB warning light is on, press

the switch, and then pull it up. Repeat

this one more time. If the EPB warning

does not go off, have the system

checked by an authorized HYUNDAI

dealer.

CarManuals2.com

Driving Your Vehicle

6-30

Parking brake warning light

C0087KO03

Check the Parking Brake warning light by

pressing the Engine Stop/Start button to

the ON position.
This light will be illuminated when the

parking brake is applied with the ignition

switch or Engine Stop/Start button in the

START or ON position.
Before driving, be sure the parking brake

is released and the Parking Brake warning

light is OFF.
If the Parking Brake warning light remains

on after the parking brake is released

while the engine is running, there may be

a malfunction in the brake system.

Immediate attention is necessary.
If at all possible, cease driving the vehicle

immediately. If that is not possible, use

extreme caution while operating the

vehicle and only continue to drive the

vehicle until you can reach a safe

location.

When the EPB (Electronic Parking Brake)

does not release

If the EPB does not release normally,

contact an authorized HYUNDAI dealer by

loading the vehicle on a flatbed tow truck

and have the system checked.

Auto Hold

Auto Hold helps maintain the vehicle in a

standstill even though the brake pedal is

not depressed after the driver brings the

vehicle to a complete stop by depressing

the brake pedal.

Information

The Auto Hold On or Off setting is

maintained when the vehicle is turned off.

When the vehicle is restarted the last

setting for Auto Hold is applied.

To apply:

B0261KO01

(1) : White
1. With the driver's door and engine hood

closed, depress the brake pedal and

then press the AUTO HOLD switch. The

white AUTO HOLD indicator will come

on and the system will be in the standby

position.

CarManuals2.com

6-31

B0261KO02

(1) : White
(2) : Green
2. When you stop the vehicle completely

by depressing the brake pedal, Auto

Hold maintains the brake pressure to

hold the vehicle stationary. The

indicator changes from white to green.

3. The vehicle will remain stationary even

if you release the brake pedal.

4. If EPB is applied, Auto Hold will be

released.

To release:

If you depress the accelerator pedal with

the gear in D (Drive), R (Reverse) or

Manual shift mode, the Auto Hold will be

released automatically and the vehicle

will start to move. The AUTO HOLD

indicator changes from green to white.

WARNING

When Auto Hold is automatically released

by depressing the accelerator pedal,

always take a look around your vehicle.
Slowly depress the accelerator pedal for a

smooth start.

To cancel:

B0261KO03

(1) : Light off
1. Depress and hold the brake pedal.
2. Press the AUTO HOLD switch.
The AUTO HOLD indicator will turn off.

WARNING

To prevent, unexpected and sudden

vehicle movement, ALWAYS press your

foot on the brake pedal to cancel the Auto

Hold before you:
• Drive downhill.
• Drive the vehicle in R (Reverse).
• Park the vehicle.

Information

• The Auto Hold does not operate when:

- The driver's door is opened
- The engine hood is opened
- The gear is in P (Park)
- EPB is applied

CarManuals2.com

Driving Your Vehicle

6-32

• For your safety, the Auto Hold

automatically switches to EPB when:
- The driver's door is opened
- The engine hood is opened
- The vehicle is in a standstill for more

than 10 minutes

- The vehicle is standing on a steep

slope

- The vehicle moved several times
In these cases, the Parking Brake

warning light comes on, the AUTO

HOLD indicator changes from green to

white, and a warning sound and a

message will appear to inform you that

EPB has been automatically engaged.

Before driving off again, depress the

brake pedal, check the surrounding

area near your vehicle and release the

parking brake manually with the EPB

switch.

• While operating Auto Hold, you may

hear mechanical noise. However, it is

normal operating noise.

NOTICE

If the AUTO HOLD indicator changes to

yellow, Auto Hold is not working properly.

Contact an authorized HYUNDAI dealer.

WARNING

• Depress the accelerator pedal slowly

when you start the vehicle.

• For your safety, cancel Auto Hold when

you drive downhill, back up the vehicle

or park the vehicle.

NOTICE

If there is a malfunction with the driver's

door or engine hood open detection

system, Auto Hold may not work properly.
Contact an authorized HYUNDAI dealer.

Warning messages

B0261EU04

Parking brake automatically engaged

When EPB is applied while Auto Hold is

activated, a warning will sound and a

message will appear.

B0261EU05

AUTO HOLD turning Off! Press brake

pedal

When the conversion from Auto Hold to

EPB is not working properly a warning will

sound and a message will appear.
When this message is displayed, Auto

Hold and EPB may not operate. For your

safety, depress the brake pedal.

CarManuals2.com

6-33

B0261EU06

Press brake pedal to deactivate AUTO

HOLD

If you did not apply the brake pedal when

you release Auto Hold by pressing the

AUTO HOLD switch, a warning will sound

and a message will appear.

B0261EU07

AUTO HOLD conditions not met.Close

door and hood.

When you press the AUTO HOLD switch, if

the driver's door and engine hood are not

closed, a warning will sound and a

message will appear on the cluster LCD

display.
Press the AUTO HOLD switch after closing

the driver's door and hood.

Anti-Lock Brake System (ABS)

WARNING

Anti-Lock Braking System (ABS) or

Electronic Stability Control (ESC) system

will not prevent accidents due to

improper or dangerous driving

maneuvers. Even though vehicle control

is improved during emergency braking,

always maintain a safe distance between

you and objects ahead of you. Vehicle

speeds should always be reduced during

extreme road conditions. The braking

distance for vehicles equipped with ABS

or ESC may be longer than for those

without these systems in the following

road conditions.
Drive your vehicle at reduced speeds

during the following conditions:
• Rough, gravel or snow-covered roads.
• On roads where the road surface is

pitted or has different surface height.

• Tire chains are installed on your vehicle.
The safety features of ABS or ESC

equipped vehicle should not be tested by

high speed driving or cornering. This

could endanger the safety of yourself or

others.

ABS is an electronic braking system that

helps prevent a braking skid. ABS allows

the driver to steer and brake at the same

time.

CarManuals2.com

Driving Your Vehicle

6-34

Using ABS

To obtain the maximum benefit from your

ABS in an emergency situation, do not

attempt to modulate your brake pressure

and do not try to pump your brakes.

Depress your brake pedal as hard as

possible.
When you apply your brakes under

conditions which may lock the wheels,

you may hear sounds from the brakes, or

feel a corresponding sensation in the

brake pedal. This is normal and it means

your ABS is active.
ABS does not reduce the time or distance

it takes to stop the vehicle.
Always maintain a safe distance from the

vehicle in front of you.
ABS will not prevent a skid that results

from sudden changes in direction, such

as trying to take a corner too fast or

making a sudden lane change. Always

drive at a safe speed for the road and

weather conditions.
ABS cannot prevent a loss of stability.

Always steer moderately when braking

hard. Severe or sharp steering wheel

movement can still cause your vehicle to

veer into oncoming traffic or off the road.
On loose or uneven road surfaces,

operation of the anti-lock brake system

may result in a longer stopping distance

than for vehicles equipped with a

conventional brake system.
The ABS (

) warning light will stay on for

several seconds after the ignition switch

or Engine Start/Stop button is in the ON

position.
During that time, ABS will go through

self-diagnosis and the light will go off if

everything is normal. If the light stays on,

you may have a problem with your ABS.

Contact an authorized HYUNDAI dealer as

soon as possible.

WARNING

If the ABS (

) warning light is on and

stays on, you may have a problem with

the ABS. Your power brakes will work

normally. To reduce the risk of serious

injury or death, contact your authorized

HYUNDAI dealer as soon as possible.

NOTICE

When you drive on a road having poor

traction, such as an icy road, and apply

your brakes continuously, ABS will be
active continuously and the ABS (

)

warning light may illuminate. Pull your

vehicle over to a safe place and turn the

vehicle off.
Restart the vehicle. If the ABS warning

light is off, then your ABS system is

normal.
Otherwise, you may have a problem with

your ABS system. Contact an authorized

HYUNDAI dealer as soon as possible.

Information

When you jump start your vehicle

because of a drained battery, the ABS
(

) warning light may turn on at the

same time. This happens because of the

low battery voltage. It does not mean

your ABS is malfunctioning. Have the

battery recharged before driving the

vehicle.

CarManuals2.com

6-35

Electronic Stability Control

(ESC)

B0263EU01

Electronic Stability Control helps to

stabilize the vehicle during cornering

maneuvers.
ESC checks where you are steering and

where the vehicle is actually going. ESC

applies braking pressure to any one of the

vehicle's brakes and intervenes in the

engine management system to assist the

driver with keeping the vehicle on the

intended path. It is not a substitute for

safe driving practices. Always adjust your

speed and driving to the road conditions.

WARNING

Never drive too fast for the road

conditions when cornering. ESC will not

prevent accidents.
Excessive speed in turns, abrupt

maneuvers, and hydroplaning on wet

surfaces can result in severe accidents.

ESC operation

ESC ON condition

When the ignition switch or Engine

Start/Stop button is in the ON position,

ESC and the ESC OFF indicator lights

illuminate for approximately three

seconds. After both lights go off, ESC is

enabled.

When operating

C0087KO26

When ESC is in operation, the ESC

indicator light blinks:
• When you apply your brakes under

conditions which may lock the wheels,

you may hear sounds from the brakes,

or feel a corresponding sensation in the

brake pedal. This is normal and it means

your ESC is active.

• When ESC activates, the engine may

not respond to the accelerator as it

does under routine conditions.

• When moving out of the mud or driving

on a slippery road, the engine RPM

(revolutions per minute) may not

increase even if you press the

accelerator pedal deeply. This is to

maintain the stability and traction of

the vehicle and does not indicate a

problem.

CarManuals2.com

Driving Your Vehicle

6-36

ESC OFF condition

C0087KO27

To cancel ESC operation:
• State 1
Press the ESC OFF button briefly. The ESC

OFF indicator light and/or message

‘Traction and Stability Control limited’ will

illuminate. In this state, the traction

control function of ESC (engine

management) is disabled, but the brake

control function of ESC (braking

management) still operates.
• State 2
Press and hold the ESC OFF button

continuously for more than 3 seconds.

The ESC OFF indicator light and/or

message 'Traction and Stability Control

disabled' illuminates and a warning chime

sounds. In this state, both the traction

control function of ESC (engine

management) and the brake control

function of ESC (braking management)

are disabled.
If the ignition switch or Engine Start/Stop

button is placed to the LOCK/OFF

position when ESC is off, ESC remains off.

Upon restarting the vehicle, ESC will

automatically turn on again.

Indicator lights

ESC indicator light (blinks)

C0087KO26

ESC OFF indicator light (comes on)

C0087KO27

When the ignition switch is placed to the

ON position, the ESC indicator light

illuminates, then goes off if the ESC

system is operating normally.
The ESC indicator light blinks whenever

ESC is operating.
If the ESC indicator light stays on, your

vehicle may have a malfunction with the

ESC system. When this warning light

illuminates, have the vehicle checked by

an authorized HYUNDAI dealer as soon as

possible.
The ESC OFF indicator light comes on

when ESC is turned off.

WARNING

When ESC is blinking, this indicates ESC is

active:
Drive slowly and NEVER attempt to

accelerate. NEVER turn ESC off while the

ESC indicator light is blinking or you may

lose control of the vehicle resulting in an

accident.

NOTICE

Driving with wheels and tires with

different sizes may cause the ESC system

to malfunction. Before replacing tires,

make sure all four tires and wheels are the

same size. Never drive the vehicle with

different sized wheels and tires installed.

CarManuals2.com

6-37

ESC OFF usage

When Driving

The ESC OFF mode should only be used

briefly to help free the vehicle if stuck in

snow or mud, by temporarily stopping

operation of ESC, to maintain wheel

torque.
To turn ESC off while driving, press the

ESC OFF button while driving on a flat

road surface.

NOTICE

To prevent damage to the transmission:
• Do not allow wheel(s) of one axle to

spin excessively while the ESC, ABS,

and Parking Brake warning lights are

displayed. The repairs would not be

covered by the vehicle warranty.

Reduce engine power and do not spin

the wheel(s) excessively while these

lights are displayed.

• When operating the vehicle on a

dynamometer, make sure ESC is turned

off (ESC OFF light illuminated).

Information

Turning ESC off does not affect ABS or

standard brake system operation.

Vehicle Stability Management

(VSM)

Vehicle Stability Management is a

function of the Electronic Stability

Control (ESC) system. It helps the vehicle

stay stable when accelerating or braking

suddenly on wet, slippery and rough

roads where traction over the four tires

can suddenly become uneven.

WARNING

Take the following precautions when

using Vehicle Stability Management:
• ALWAYS check the speed and the

distance to the vehicle ahead. VSM is

not a substitute for safe driving

practices.

• Never drive too fast for the road

conditions. VSM will not prevent

accidents. Excessive speed in bad

weather, on slippery and uneven roads

can result in severe accidents.

VSM operation

When operating

When you apply your brakes under

conditions which may activate ESC, you

may hear sounds from the brakes, or feel

a corresponding sensation in the brake

pedal. This is normal and it means your

VSM is active.

Information

VSM does not operate when:
• Driving on a banked road such as

gradient or incline.

• Driving in reverse.
• The ESC OFF indicator light is on.
• The MDPS (Motor Driven Power

Steering) warning light (

) is on or

blinks.

CarManuals2.com

Driving Your Vehicle

6-38

VSM OFF condition

To cancel VSM operation, press the ESC
OFF button. ESC OFF (

) indicator light

will illuminate.
To turn on VSM, press the ESC OFF button

again. The ESC OFF indicator light will go

out.

WARNING

If the ESC ( ) indicator light or MDPS
( ) warning light stays illuminated or

blinks, your vehicle may have a

malfunction with the VSM system. When

the warning light illuminates have the

vehicle checked by an authorized

HYUNDAI dealer as soon as possible.

NOTICE

Driving with wheels and tires with

different sizes may cause the VSM system

to malfunction. Before replacing tires,

make sure all four tires and wheels are the

same size. Never drive the vehicle with

different sized tires and wheels installed.

Hill-Start Assist Control (HAC)

Hill-Start Assist Control helps prevent the

vehicle from rolling backwards when

starting a vehicle from a stop on a hill. The

system operates the brakes automatically

for approximately 2 seconds (maximum

of 5 seconds when the accelerator pedal

is slightly depressed during HAC

operation) and releases the brake after 2

seconds or when the accelerator pedal is

depressed.

WARNING

Always be ready to depress the

accelerator pedal when starting off an

incline. Hill-Start Assist Control activates

only for approximately 2 seconds

(maximum of 5 seconds when the

accelerator pedal is slightly depressed

during HAC operation).

Information

• Hill-Start Assist Control does not

operate when the gear is shifted to P

(Park) or N (Neutral).

• Hill-Start Assist Control activates even

when the ESC (Electronic Stability

Control) is off. However, it does not

activate, when ESC does not operate

normally.

CarManuals2.com

6-39

Trailer Stability Assist (TSA)

Trailer stability assist is operated as a

vehicle stability control system. The

Trailer stability assist system stabilizes

the vehicle and trailer when the trailer

sways or oscillates. There are various

reasons making vehicle sway and

oscillate. In most case it happens at high

speed however, if the trailer is affected by

crosswinds, buffeting, and improper

overloading, it may also be a risk of sway.
Factors of swaying such as:
• High speed
• Strong crosswinds
• Improper overloading
• Sudden controlling of steering wheel
• Uneven road
Trailer stability assist system

continuously analyzes the vehicle and

trailer instability. When the Trailer

stability assist system detects some sway,

the brakes are applied automatically to

stabilize the vehicle on the front wheel.

However, if it is not enough to stabilize,

the brakes are applied on all wheels

automatically and engine power is

properly reduced. When the vehicle is

stable from swaying, trailer stability assist

system does not operate.

Brake Assistant System (BAS)

The Brake Assistant System provides

additional pressure when the brake pedal

is momentarily and strongly depressed in

a situation sudden braking is required

while driving.
The Brake Assistant System reduces the

time for ABS (Anti-Lock Brake System)

control to enter and consequently

reduces the braking distance, by

providing additional pressure up to the

point of ABS intervention.

BAS operation

• When the vehicle speed is more than 19

mph (30 km/h) and the ABS control is

not entered.

• When the brake pedal is depressed

strongly over a certain level.

• When the friction of the road surface is

above a certain level.

BAS operation off

• The vehicle speed is below 6 mph (10

km/h).

• The brake pedal is depressed over a

certain conditions.

• The friction of the road surface is below

a certain level.

WARNING

The system may not operate depending

on driver's driving habit, the degree to

which the brake pedal is depressed and

the road surface condition.

CarManuals2.com

Driving Your Vehicle

6-40

Downhill Brake Control (DBC)

B1000KO01

Downhill Brake Control assists the driver

to descend down a steep hill without

having to depress the brake pedal.
The system automatically applies the

brakes to maintain vehicle speed below a

certain speed and allows the driver to

concentrate on steering the vehicle down

hill.
The system is turned off whenever the

engine is turned off.
Press the button to turn on the system

and press the button again to turn it off.

System operation

Mode

Indicator

Description

Standby

Green light on

Press the Downhill Brake Control button when vehicle

speed is under 37 mph (60 km/h). Downhill Brake

Control will turn on and enter the standby mode. The

system does not turn on if vehicle speed is over 37 mph

(60 km/h).

Activated

Green light blink

In the standby mode, Downhill Brake Control will

activate under the following conditions
• hill is steep enough.
• The brake pedal or accelerator pedal is not depressed.
• Vehicle speed is within 2-25 mph (4-40 km/h) range

(within 2-5 mph (4-8 km/h) when reversing).

Within the activation speed range 2-25 mph (4-40km/h),

the driver can control the vehicle speed by depressing

the brake pedal or accelerator pedal.

Deactivated

Green light off

Downhill Brake Control will turn off under the following

conditions:
• The Downhill Brake Control button is pressed again.
• Vehicle speed is over 37 mph (60 km/h)

Green light on

Downhill Brake Control will be deactivated but maintain

the standby mode under the following conditions:
• The hill is not steep enough.
• Vehicle speed is between 18-37 mph (30-60 km/h).

System

malfunction

Yellow light on

The yellow warning light illuminates when the system

may have malfunctioned or may not work properly

during activation. If this occurs, Downhill Brake Control

is deactivated. Have the system be inspected by an

authorized HYUNDAI dealer as soon as possible.

CarManuals2.com

6-41

B1000EU03

Downhill Brake Control disabled. Control

vehicle speed (manually)

When Downhill Brake Control is not

working properly this warning message

will appear on the cluster LCD display and

you will hear a warning sound. If this

occurs, control vehicle speed by

depressing the brake pedal.

WARNING

Always turn off Downhill Brake Control on

normal roads. The system might activate

inadvertently from the standby mode

when driving through speed bumps or

making sharp curves.

Information

• Downhill Brake Control may not

deactivate on steep inclines even

though the brake pedal or accelerator

pedal is depressed.

• Downhill Brake Control may not always

maintain vehicle speed at a certain

speed.

• Downhill Brake Control does not

operate when:
- The gear is in P (Park).
- ESC is activated.

• Noise or vibration may occur from the

brakes when Downhill Brake Control is

activated.

• The rear stop light comes on when

Downhill Brake Control is activated.

Good Braking Practices

WARNING

Whenever leaving the vehicle or parking,

always come to a complete stop and

continue to depress the brake pedal. Shift

the gear to the P (Park) position, then

apply the parking brake, and place the

ignition switch or press the Engine

Start/Stop button to the LOCK/OFF

position.
Vehicles parked with the parking brake

not applied or not fully engaged may roll

inadvertently and may cause injury to the

driver and others. ALWAYS apply the

parking brake before exiting the vehicle.

Wet brakes can be dangerous! The brakes

may get wet if the vehicle is driven

through standing water or if it is washed.

Your vehicle will not stop as quickly if the

brakes are wet. Wet brakes may cause the

vehicle to pull to one side.
To dry the brakes, apply the brakes lightly

until the braking action returns to normal.

If the braking action does not return to

normal, stop as soon as it is safe to do so

and call an authorized HYUNDAI dealer

for assistance.
DO NOT drive with your foot resting on

the brake pedal. Even light, but constant

pedal pressure can result in the brakes

overheating, brake wear, and possibly

even brake failure.
If a tire goes flat while you are driving,

apply the brakes gently and keep the

vehicle pointed straight ahead while you

slow down. When you are moving slowly

enough for it to be safe to do so, pull off

the road and stop in a safe location.
Keep your foot firmly on the brake pedal

when the vehicle is stopped to prevent

the vehicle from rolling forward.

CarManuals2.com

Driving Your Vehicle

6-42

if equipped

All Wheel Drive (AWD)

All Wheel Drive (AWD) delivers engine

power to front and rear wheels for

maximum traction. AWD is useful when

extra traction is required, such as when

driving on, muddy, wet, or snow-covered

roads.

WARNING

To reduce the risk of SERIOUS INJURY or

DEATH:
• Avoid high speeds when cornering or

turning.

• Do not make quick steering wheel

movements, such as sharp lane

changes or fast, sharp turns.

• The risk of a rollover is greatly increased

if you lose control of your vehicle at

highway speeds.

• Loss of control often occurs if two or

more wheels drop off the roadway and

the driver over steers to reenter the

roadway.

• In the event your vehicle leaves the

roadway, do not steer sharply. Instead,

slow down before pulling back into the

travel lanes.

NOTICE

• Do not drive in water if the level is

higher than the bottom of the vehicle.

• Check your brake condition once you

are out of mud or water. Depress the

brake pedal several times as you move

slowly until you feel normal braking

return.

• Shorten your scheduled maintenance

interval if you drive in off-road

conditions such as sand, mud or water

(see “Maintenance Under Severe Usage

Conditions” section in chapter 9).

• Always wash your vehicle thoroughly

after off road use, especially the

bottom of the vehicle.

• Be sure to equip all four tires with the

correct size and type.

• Make sure that a full time AWD vehicle

is towed by a flat bed tow truck.

All Wheel Drive (AWD)

Operation

Auto AWD mode (Normal diving)

If the AWD system determines there is a

need for four wheel drive, the engine's

driving power is distributed to all four

wheels automatically.

if equipped

Multi terrain mode

In the multi terrain mode, four-wheel

drive, engine, transmission, braking is

controlled to achieve optimal driving

performance depending on the mode

selected (SNOW/MUD/SAND).

CarManuals2.com

6-43

AWD Operation

All Wheel Drive (AWD) mode selection

When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is

delivered entirely to the front wheels. This shock is not a mechanical failure.

Transfer mode

Selection mode

Description

AWD AUTO

(Normal

diving)

In the AWD AUTO mode, under normal operating

conditions, the vehicle operates similar to

conventional 2WD vehicles. If the system determines

there is a need for four wheel drive, the engine's

driving power is distributed to all four wheels

automatically.
Use this mode when driving on normal roads.If you

select the “Driving force distribution” in the cluster,

Driving force distribution (AWD) state is displayed.

SNOW

In this mode, the vehicle can start stably by properly

distributing the driving force of the vehicle on

slippery roads such as snowy roads. And you can

drive safely by suppressing wheel slip.

AWD LOCK

• The main goal of AWD Lock mode is to allow a driver

to maximize the vehicle's traction under extreme

driving conditions such as unpaved off-road, sandy

roads, and muddy roads.

• AWD Lock mode is in operation only when a vehicle

travels at 25 mph (40 km/h) or less. When traveling

at 25 mph (40 km/h) or faster, the mode will switch

to AWD Auto. When traveling at 20 mph (30 km/h) or

less, the mode will switch back to AWD Lock.

• Press the AWD Lock mode switch again to switch

back to AWD Auto.

CarManuals2.com

Driving Your Vehicle

6-44

For safe AWD operation

Before driving

• Make sure all passengers are wearing

seat belts.

• Sit upright and closer to the steering

wheel than usual. Adjust the steering

wheel to a position comfortable for you

to drive.

Driving on snow-covered or icy roads

• Start off slowly by applying the

accelerator pedal gently.

• Use snow tires or tire chains.
• Keep sufficient distance between your

vehicle and the vehicle in front of you.

• Apply engine braking during

deceleration by using the paddle shifter

(manual shift mode) and manually

selecting a lower gear.

• Avoid speeding, rapid acceleration,

sudden brake applications, and sharp

turns to prevent skids.

Information

When using Snow Tires, mount them on

all four wheels.
When using tire chains, install them on

the rear tires. However, driving speed

must be below 20 mph (30 km/h) and

minimize the driving distance.

High-speed or long-term driving with tire

chains installed may malfunction or

damage the AWD system.
For more details on Snow Tires and Tire

Chains, refer to “Winter Driving” section

later in this chapter.

Driving in sand or mud

• Maintain slow and constant speed.
• Use tire chains driving in mud if

necessary.

• Keep sufficient distance between your

vehicle and the vehicle in front of you.

• Reduce vehicle speed and always

check the road condition.

• Avoid speeding, rapid acceleration,

sudden brake applications, and sharp

turns to prevent getting stuck.

NOTICE

When the vehicle is stuck in snow, sand or

mud, place a nonslip material under the

drive wheels to provide traction OR slowly

spin the wheels in forward and reverse

directions which causes a rocking motion

that may free the vehicle.
However, avoid running the engine

continuously at high RPM, doing so may

damage the AWD system.

Driving up or down hills

• Driving uphill

- Before starting off, check if it is

possible to drive uphill.

- Drive as straight as possible.

• Driving downhill

- Do not change gear while driving

downhill. Select gear before driving

downhill.

- Drive slowly using engine braking

while driving downhill.

- Drive straight as possible.

WARNING

Exercise extreme caution driving up or

down steep hills. The vehicle may flip over

depending on the grade, terrain, water

and mud conditions.

CarManuals2.com

6-45

WARNING

Do not drive across the contour of steep

hills. A slight change in the wheel angle

can destabilize the vehicle, or a stable

vehicle may lose stability if the vehicle

stops its forward motion. Your vehicle

may roll over and lead to a serious injury

or death.

Driving through water

• Try to avoid driving in deep standing

water. It may stall your engine and clog

your exhaust pipes.

• If you need to drive in water, stop your

vehicle, set the vehicle in AWD LOCK

mode and drive under 5 mph (8 km/h).

• Do not change gear while driving in

water.

CAUTION

Always drive slowly in water. If you drive

too fast, water may get into the engine

compartment and wet the ignition system

causing your vehicle to suddenly stop.

Additional driving conditions

• Become familiar with the off-road

conditions before driving.

• Always pay attention when driving

off-road and avoid dangerous areas.

• Drive slowly when driving in heavy

wind.

• Reduce vehicle speed when cornering.

The center of gravity of AWD vehicles is

higher than conventional 2WD vehicles,

making them more likely to roll over

when you rapidly turn corners.

• Always hold the steering wheel firmly

when you are driving off-road.

WARNING

Do not grab the inside of the steering

wheel when you are driving off-road. You

may hurt your arm by a sudden steering

maneuver or from steering wheel

rebound due to an impact with objects on

the ground. You could lose control of the

steering wheel which may lead to serious

injury or death.

Emergency Precautions

Tires

When replacing tires, be sure to equip all

four tires with the same size, type, tread

patterns, brand and load-carrying

capacity.

WARNING

Do not use tire and wheel with different

size and type from the one originally

installed on your vehicle. It can affect the

safety and performance of your vehicle,

which could lead to steering failure or

rollover causing serious injury.

In an emergency situation, a compact

spare tire (if equipped) or Tire Mobility Kit

(if equipped) may be used. But, do not use

the compact spare tire continuously.

Repair or replace the original tire as soon

as possible to avoid failure of the

differential or AWD system.

CarManuals2.com

Driving Your Vehicle

6-46

WARNING

B0271EU01

Never start or run the engine while an

AWD vehicle is raised on a jack. The

vehicle can slip or roll off of a jack causing

serious injury or death to you or those

nearby.

Towing

AWD vehicles must be towed with a

wheel lift and dollies or flatbed

equipment with all the wheels off the

ground. For more details, refer to

“Towing” section in chapter 8.

Vehicle inspection

• If the vehicle needs to be operated on a

vehicle lift do not attempt to stop any of

the four wheels from turning. This could

damage the AWD system.

• Never engage the parking brake while

running the engine on vehicle lift. This

may damage the AWD system.

Dynamometer testing

An AWD vehicle must be tested on a

special four wheel chassis dynamometer.

B0274EU01

[A] : Roll tester (Speedometer)

[B] : Temporary free roller

An AWD vehicle should not be tested on a

2WD roll tester. If a 2WD roll tester must

be used, perform the following

procedure:
1. Check the tire pressures recommended

for your vehicle.

2. Place the rear wheels on the roll tester

for a speedometer test as shown in the

illustration.

3. Release the parking brake.
4. Place the front wheels on the

temporary free roller as shown in the

illustration.

WARNING

Keep away from the front of the vehicle

while the vehicle is in gear on the

dynamometer. The vehicle can jump

forward and cause serious injury or death.

AWD malfunction

If the AWD ( ) warning light stays on the

instrument cluster, your vehicle may have

a malfunction with the AWD system.
When the AWD warning light ( )

illuminates, have the vehicle be checked

by an authorized HYUNDAI dealer as soon

as possible.

CarManuals2.com

6-47

if equipped

Idle Stop And Go (ISG)

Idle Stop and Go helps reduce fuel

consumption by automatically shutting

down the engine, when the vehicle is at a

standstill (for example, red stop light,

stop sign, and traffic jam) subject to

certain prerequisite conditions being

satisfied as listed below.
The engine is automatically started upon

satisfying the starting conditions.
ISG system is always active, when the

engine is running.

Information

When the engine is automatically started

by ISG system, warning lights (for

example, ABS, ESC, ESC OFF, MDPS, and

parking brake warning light) may

illuminate for a few seconds due to low

battery voltage.
However, it does not indicate a

malfunction with ISG system.

ISG System Operation

Prerequisite for activation

ISG system operates in the following

situations.
• The driver's seatbelt is fastened
• The driver's door and hood are closed
• The brake vacuum pressure is adequate
• The battery sensor is activated and the

battery is sufficiently charged

• Outside temperature is not too low or

too high

• The vehicle is driven over a constant

speed and stops

• The climate control system satisfies the

conditions

• The vehicle is sufficiently warmed up
• ISG related parts are working properly

• The incline is gradual
• The steering wheel is turned less than

180 degrees and then the vehicle stops

Information

ISG system is not activated, when the

prerequisites to activate the ISG system

are unsatisfied.

Auto stop

When ISG is on the engine will be stopped

automatically when both of the following

occurs:
1. Vehicle speed decreases to 0 mph (0

km/h) full stop condition.

2. Brake pedal is depressed and gear is in

D (Drive) or N (Neutral).

The Auto Stop ( ) indicator illuminates in

green on the instrument cluster, when the

engine stops.

Information

Idle stop cannot reoccur again until the

vehicle speed goes above 3 mph (5 km/h)

and then returns again to the automatic

stop conditions as previously mentioned.

In the Auto Stop mode, if the engine hood

is opened, ISG system will be deactivated.
When the system is deactivated, a

message ‘Auto Stop is Off. Shift to P or N

to start engine manually’ appears on the

cluster LCD display with a warning sound.
If this occurs, depress the brake pedal and

restart the engine manually.

CarManuals2.com

Driving Your Vehicle

6-48

Auto start

When the engine stops automatically by

ISG, the engine will restart if one of the

following is done.
• Release the brake pedal.
• When Auto Hold is activated, take your

foot off the brake pedal and then

depress the accelerator pedal.

• While depressing the brake pedal, shift

the gear from N (Neutral) or D (Drive) to

R (Reverse) or P (Park).

• While depressing the brake pedal, shift

the gear from N (Neutral) to D (Drive).

The green Auto Stop ( ) indicator

changes to white Auto Stop indicator on

the instrument cluster, when the engine is

restarted.

LCD display messages

The messages are displayed on the

instrument cluster to help use ISG

system.

B0284EU01

Auto Stop is Off. Shift to P or N and start

engine manually

When the system is deactivated, a

message will appear on the cluster LCD

display with a warning sound in the

following situations.
• When the engine hood is opened.
• When ISG system is not working

normally.

If this occurs, depress the brake pedal and

restart the engine manually. For your

safety, restart the vehicle in the P (Park)

position.

CarManuals2.com

Hyundai Palisade (2024 year). Manual in english - page 11
