Hyundai Palisade (2024 year). Manual in english

5-111

OFF mode

B9025EU03

B9025EU04

Press the OFF button to turn the rear

climate control system off.

Mode selection

B9025EU05

You can select the direction of the air flow

through the ventilation system.
You can adjust the front climate control

system for heating or cooling to

passengers on 2nd row seats. The air flow

is directed from the floor.

WLX2-507

: Air flow is directed toward the upper

body from the rear headliner.

WLX2-508

: Air flow is directed toward the upper

body and the floor.

WLX2-509

: Air flow is directed toward the floor.

CarManuals2.com

Convenience Features

5-112

Rear vents on the headliner

B0204KO17

The rear passengers can adjust the direction of air flow from the rear vents on the

headliner.
If you operate the rear climate control with rear vents closed, a noise may sound. When

operating the rear climate control, open two or more rear vents.

Diffusion

lever (A)

Direction

thumbwheel (B)

Description

Open

(

)

The air is delivered widely toward the

surroundings of rear passengers. However, the

fan speed may be decreased.

Open

(

)

Open

The air is delivered widely toward the rear

passengers and surrounding of rear passengers.

(

)

Open

The air is only delivered toward the rear

passengers.

CarManuals2.com

5-113

System Operation

Cooling / Ventilation

1. Select the Face Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the

desired position.

4. Set the fan speed control to the desired

speed.

Heating

1. Select the Floor Level

mode.

2. Set the air intake control to fresh mode.
3. Set the temperature control to the

desired position.

4. Set the fan speed control to the desired

speed.

5. If desired, turn the air conditioning ON

with the temperature control knob set

to heat in order to dehumidify the air

before it enters into the cabin.

If the windshield fogs up, select the Floor
& Defrost

mode or press the Front

Defrost

mode.

Operation Tips

• To keep dust or unpleasant fumes from

entering the vehicle through the

ventilation system, temporarily set the

air intake control to recirculation mode.

Return the control to fresh mode when

the unpleasant air outside has

diminished. This will help keep the

driver alert and comfortable.

• To h1elp prevent the inside of the

windshield from fogging, set the air

intake control to fresh mode and fan

speed to the desired position, turn on

the air conditioning system, and adjust

the temperature control to the desired

temperature.

CarManuals2.com

Convenience Features

5-114

Air conditioning

Your HYUNDAI vehicle air conditioning

system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level mode.
4. Set the air intake control to

Recirculation mode temporarily to

allow the cabin to cool quickly. When

the desired temperature in the cabin is

reached, change the air intake control

back to Fresh mode.

5. Adjust the fan speed control and

temperature control to maintain

maximum comfort.

When maximum cooling is desired, set

the temperature control to the MAX A/C

position, then set the fan speed control to

the highest setting.

NOTICE

When using the air conditioning system,

monitor the engine temperature gauge

closely while driving up hills or in heavy

traffic when outside temperatures are

high. Air conditioning system operation

when climbing a steep grade or in high

outside ambient temperatures can cause

engine overheating.
Continue to use the fan, but turn the air

conditioning system off if the engine

temperature gauge indicates engine

overheating.

Air conditioning system operation tips

• If the vehicle has been parked in direct

sunlight during hot weather, open the

windows for a short time to let the hot

air inside the vehicle escape.

• After sufficient cooling has been

achieved, switch back from

recirculation mode to fresh mode.

• To help reduce moisture inside of the

windows on rainy or humid days,

decrease the humidity inside the

vehicle by operating the air

conditioning system with the windows

and sunroof closed.

• Use the air conditioning system every

month only for a few minutes to ensure

maximum system performance.

• If you operate air conditioner

excessively, the difference between the

temperature of the outside air and that

of the windshield could cause the outer

surface of the windshield to fog up,

causing loss of visibility. In this case, set

the mode selection knob or button to

the position and fan speed control to

the lower speed.

CarManuals2.com

5-115

System Maintenance

Cabin air filter

OIK047401L

[A] : Outside air

[B] : Recirculated air

[C] : Climate control air filter

[D] : Blower

[E] : Evaporator core

[F] : Heater core

The cabin air filter is installed behind the

glove box. It filters the dust or other

pollutants that enter the vehicle through

the heating and air conditioning system.
Have the cabin air filter replaced by an

authorized HYUNDAI dealer according to

the maintenance schedule. If the vehicle

is being driven in severe conditions such

as dusty or rough roads and/or if

transporting pets or occupants smoke

inside the vehicle, then more frequent

cabin air filter inspections and changes

are required.
If the air flow rate suddenly decreases,

the system should be checked at an

authorized HYUNDAI dealer.

Checking the amount of air

conditioner refrigerant and

compressor lubricant

When the amount of refrigerant is low,

the performance of the air conditioning is

reduced. Overfilling also reduces the

performance of the air conditioning

system.
Therefore, if abnormal operation is found,

have the system inspected by an

authorized HYUNDAI dealer.

NOTICE

It is important that the correct type and

amount of oil and refrigerant is used.

Otherwise, damage to the compressor

and abnormal system operation may

occur. To prevent damage, the air

conditioning system in your vehicle

should only be serviced by trained and

certified technicians.

NOTICE

• The refrigerant system should only be

serviced by trained and certified

technicians to insure proper and safe

operation.

• The refrigerant system should be

serviced in a well-ventilated place.

• The air conditioning evaporator

(cooling coil) shall never be repaired or

replaced with one removed from a used

or salvaged vehicle and new

replacement MAC evaporators shall be

certified (and labeled) as meeting SAE

Standard J2842.

CarManuals2.com

Convenience Features

5-116

WARNING

Vehicles equipped with R-1234yf

COOL-LAB-3

Since the refrigerant is operated at very

high pressure, the air conditioning system

should only be serviced by trained and

certified technicians.
It is important that the correct type and

amount of oil and refrigerant are used.
All refrigerants should be reclaimed with

proper equipment.
Venting refrigerants directly to the

atmosphere is harmful to individuals and

environment. Failure to heed these

warnings can lead to serious injuries.

B0206KO01

Air Conditioning refrigerant label

You can find out which air conditioning

refrigerant is applied to your vehicle on

the label located in front of engine

compartment.

B0206KO02

Each symbol and specification on the air

conditioning refrigerant label is

represented as below:
(1) Classification of refrigerant
(2) Amount of refrigerant
(3) Classification of compressor lubricant
(4) Caution
(5) Flammable refrigerant
(6) To require registered technician to

service air conditioning system

CarManuals2.com

Convenience Features

5-118

Automatic Temperature

Control Mode

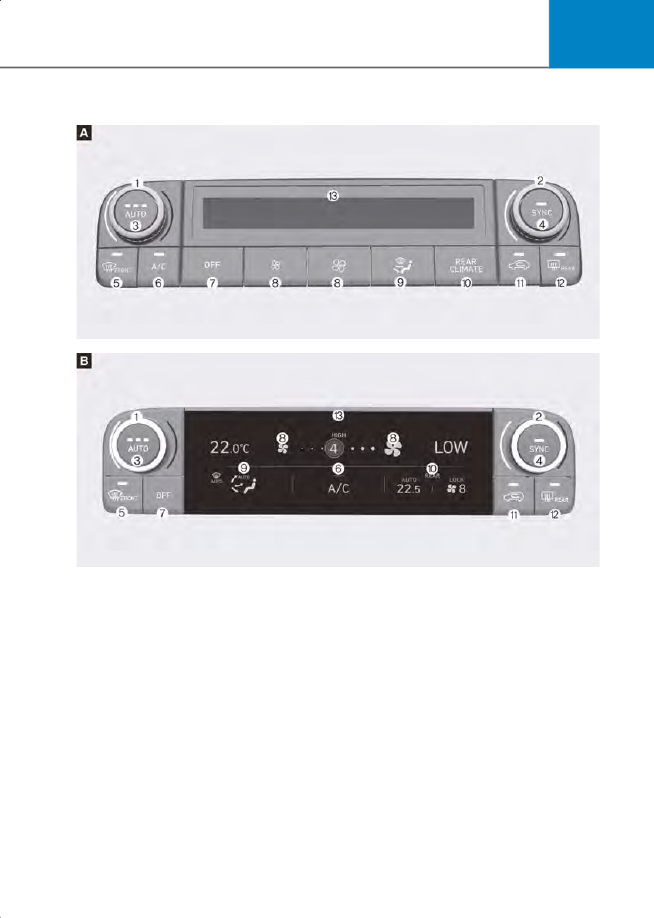

The Automatic Climate Control System is

controlled by setting the desired

temperature.
For your convenience and to improve the

efficiency of the climate control, use the

AUTO button and set the temperature to

72 °F (22 °C).

B0203EC01

1. Press the AUTO button (3).

The modes, fan speeds, air intake and

air-conditioning will be controlled

automatically by the temperature

setting you select.

B0203EC02

[A] : Driver side

[B] : Passenger side

2. To select a different set point, turn the

temperature control knob to the

desired temperature. If the

temperature is set to the lowest setting

(Lo), the air conditioning system will

operate continuously. After the interior

has cooled sufficiently, adjust the knob

to a higher temperature set point

whenever possible.

To turn the automatic operation off,

select any button of the following:
• Mode selection button
• Front windshield defroster button

(Press the button one more time to

deselect the front windshield defroster

function. The ‘AUTO’ sign will illuminate

on the information display once again.)

• Fan speed control button
• A/C button
The selected function will be controlled

manually while other functions operate

automatically.

B0203KO03

NOTICE

Never place anything near the ambient

light/solar sensor to ensure better control

of the heating and cooling system.

CarManuals2.com

5-119

Manual Temperature Control

Mode

The heating and cooling system can be

controlled manually by pushing buttons

other than the AUTO button. In this case,

the system works sequentially according

to the order of buttons selected.
When pressing any button except the

AUTO button while using automatic

operation, the functions not selected will

be controlled automatically.
1. Start the engine.
2. Set the mode to the desired position.

To improve the effectiveness of heating

and cooling, select the mode according

to the following:
• Heating:
• Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to Fresh mode.
5. Set the fan speed control to the desired

speed.

6.If air conditioning is desired, turn the air

conditioning system on.

7. Press the AUTO button to convert to full

automatic control of the system.

When starting the vehicle in cold weather

using manual temperature control,

operate the system in the following

method to improve heating.
• Turn off or lower the blower, right after

starting the engine.

• Allow the engine to warm up during this

time since the air flow from the heater

is still cold.

• After a few minutes of engine warm up,

turn on or set the fan to a higher level

and adjust the temperature setting to

hot.

CarManuals2.com

5-121

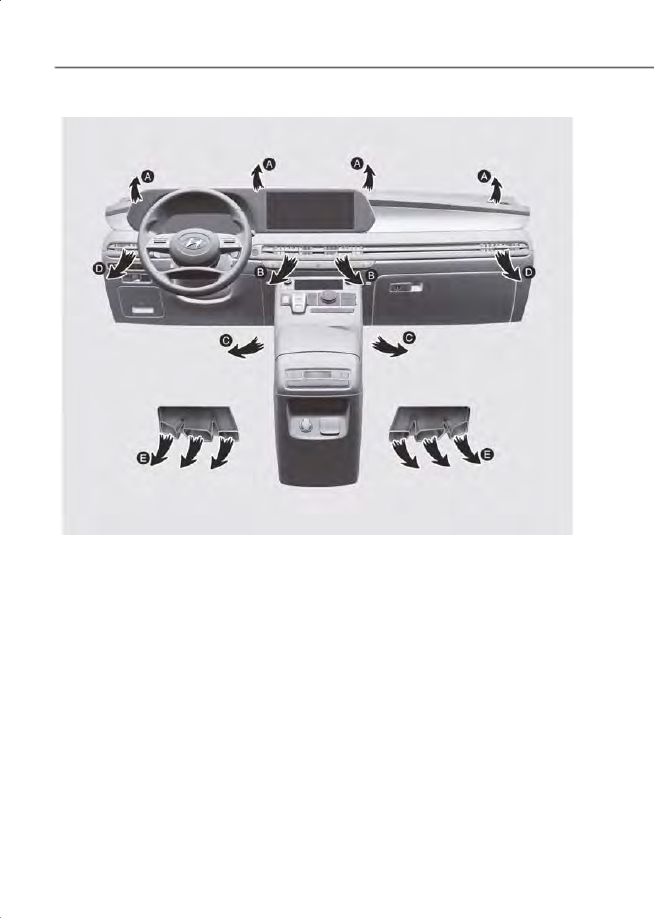

B0204EC01

B0204KO02

Face-Level (B, D)

W7-65

Air flow is directed toward the upper body

and face. Additionally, each outlet can be

controlled to direct the air discharged

from the outlet.

Bi-Level (B, C, D, E)

W7-66

Air flow is directed towards the face and

the floor.

Floor & Defrost (A, C, D, E)

W7-68

Most of the air flow is directed to the floor

and the windshield with a small amount

directed to the side window defrosters.

Floor-Level (A, C, D, E)

W7-68

Most of the air flow is directed to the

floor, with a small amount of the air being

directed to the windshield and side

window defrosters.

B0204EC03

Defrost-Level (A, D)

C9024EU01

Most of the air flow is directed to the

windshield with a small amount of air

directed to the side window defrosters.

Instrument panel vents

B0204KO04

The instrument panel vent air flow can be

directed up/down or left/right using the

vent adjustment lever.
The outlet vents can be opened or closed

separately using the vent control lever. If

you move the vent control lever the left

end, the outlet vents can be closed.

CarManuals2.com

Convenience Features

5-122

Temperature control

B0203EC02

[A] : Driver side

[B] : Passenger side

Turn the knob to the right to increase the

temperature. Turn the knob to the left to

decrease temperature.
The temperature will increase or decrease

by 1 °F/0.5 °C for each incremental

location. When set to the lowest

temperature setting, the air conditioning

will operate continuously.

B0204EC07

Adjusting the driver and passenger side

temperature equally

• Press the “SYNC” button to operate the

driver and passenger side temperature

equally.
The passenger side temperature will be

set to the same temperature as the

driver side temperature.

• Turn the driver side temperature

control knob. The driver and passenger

side temperature will be adjusted

equally.

Adjusting the driver and passenger side

temperature individually

Press the “SYNC” button again to operate

the driver and passenger side

temperature individually. The button

indicator will turn off.

Temperature conversion

If the battery has been discharged or

disconnected, the temperature mode

display will reset to Fahrenheit.
To change the temperature unit from °F

to °C or °C to °F, do one of the following:
• Infotainment system screen Go to

Setup

General

Units

Temperature Unit

• Press the AUTO button for 3 seconds

while pressing the OFF button on the

climate control unit.

The temperature unit on both the cluster

LCD display and climate control screen

will change.

CarManuals2.com

5-123

Air intake control

The air intake control button is used to

select either Fresh mode (outside air) or

Recirculation mode (cabin air).

Recirculation mode

C0204KO08

When Recirculation mode is selected, air

from the passenger compartment will be

recirculated through the system and

heated or cooled according to the

function selected.

Fresh mode

C0204KO09

When Fresh mode is selected, air enters

the vehicle from outside and is heated or

cooled according to the function

selected.

Information

Operating the system primarily in Fresh

mode is recommended. Use

Recirculation mode temporarily only

when needed.
Prolonged operation of the heater in

Recirculation mode and without the A/C

ON can cause fogging of the windshield.
In addition, prolonged use of the A/C ON

in Recirculation mode may result in

excessively dry, dehumidified air in the

cabin and may promote formation of

musty vent odor due to stagnant air.

WARNING

• Continued use of the climate control

system operation in Recirculation

mode for a prolonged period of time

may cause drowsiness to the

occupants in the cabin. This may lead to

loss of vehicle control which may lead

to an accident.

• Continued use of the climate control

system operation in Recirculation

mode with the A/C OFF may allow

humidity to increase inside the cabin.

This may cause condensation to

accumulate on the windshield and

obscure visibility.

• Do not sleep in your vehicle or remain

parked in your vehicle with the

windows up and either the heater or the

air conditioning ON for prolonged

periods of time. Doing so may increase

the levels of carbon dioxide in the cabin

which may lead to serious injury or

death.

CarManuals2.com

Convenience Features

5-124

Fan speed control

B9029EC01

B9029EU02

The fan speed can be set as desired by

pressing the fan speed control button or

icon.
More air is delivered with higher fan

speeds.
Pressing the OFF button turns off the fan.

Information

For better sound quality, fan speed may

automatically slow down for a couple of

minutes when you activate voice

recognition or hands free.

NOTICE

Operating the fan when the ignition

switch is in the ON position could cause

the battery to discharge. Operate the fan

when the engine is running.

Air conditioning

B9029EU03

B9029EU04

Push the A/C button or icon to manually

turn the system on (indicator light will

illuminate) and off.

CarManuals2.com

5-127

Fan speed control

B9029EU07

B9029EU08

1. Press the rear climate control button or

icon of the front climate control

system.

B9030EU01

2. The fan speed can be set to the desired

speed by pushing the fan speed control

button. The higher the fan speed is, the

more air is delivered. Pressing the OFF

button turns off the fan.

Temperature control

B9029EU07

B9029EU08

1. Press the rear climate control button of

the front climate control system.

B0204KO15

2. The temperature of delivered air can be

set to the desired temperature by

pushing the temperature control

button.
Pressing the Off button turns off the

fan.

CarManuals2.com

Convenience Features

5-128

AUTO mode

B9030EU02

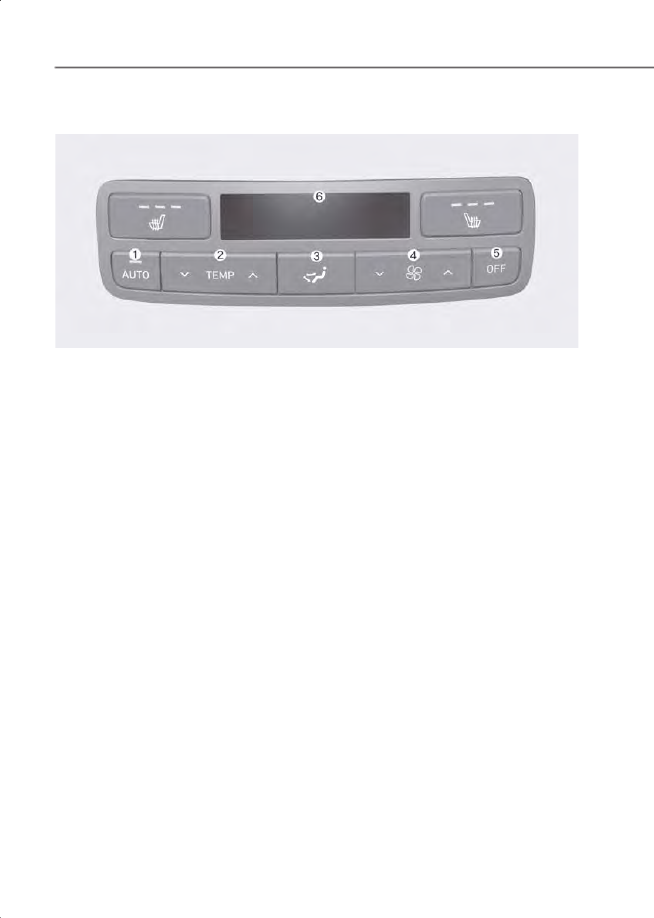

The rear automatic climate control

system is controlled by setting the

desired temperature.
1. Press the AUTO button. The modes, fan

speeds, air intake and air-conditioning

will be controlled automatically by the

temperature setting you select.

2. Press the temperature control button to

the desired temperature.

OFF mode

B9030EU04

Press the OFF button to turn the rear

climate control system off.

Mode selection

B9025EU05

B9030EU03

You can select the direction of the air flow

through the ventilation system.
You can adjust the front climate control

system for heating or cooling to

passengers on 2nd row seats. The air flow

is directed from the floor.

: Air flow is directed toward the

upper body from the rear

headliner.

: Air flow is directed toward the

upper body and the floor.

: Air flow is directed toward the

floor.

CarManuals2.com

5-129

Rear vents on the headliner

B0204KO17

The rear passengers can adjust the direction of air flow from the rear vents on the

headliner.
If you operate the rear climate control with rear vents closed, a noise may sound. When

operating the rear climate control, open two or more rear vents.

Diffusion

lever (A)

Direction

thumbwheel (B)

Description

Open

(

)

The air is delivered widely toward the

surroundings of rear passengers. However, the

fan speed may be decreased.

Open

(

)

Open

The air is delivered widely toward the rear

passengers and surrounding of rear passengers.

(

)

Open

The air is only delivered toward the rear

passengers.

CarManuals2.com

Convenience Features

5-130

System Operation

Cooling/Ventilation

1. Select the Face Level

mode.

2. Set the air intake control to fresh mode.
3. Set the temperature control to the

desired position.

4. Set the fan speed control to the desired

speed.

Heating

1. Select the Floor Level

mode.

2. Set the air intake control to fresh mode.
3. Set the temperature control to the

desired position.

4. Set the fan speed control to the desired

speed.

5. If desired, turn the air conditioning ON

with the temperature control knob set

to heat in order to dehumidify the air

before it enters into the cabin.

If the windshield fogs up, select the Floor
& Defrost

mode or press the Front

Defrost

mode.

Operation Tips

• To keep dust or unpleasant fumes from

entering the car through the ventilation

system, temporarily set the air intake

control to the recirculation mode.

Return the control to the to fresh mode

when the unpleasant air outside has

diminished. This will help keep the

driver alert and comfortable.

• To help prevent the inside of the

windshield from fogging, set the air

intake control to fresh mode and the

fan speed to the desired position, turn

on the air conditioning system, and

adjust the temperature control to the

desired temperature.

Air conditioning

Your HYUNDAI vehicle air conditioning

system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level

mode.

4. Set the air intake control to

Recirculation mode temporarily to

allow the cabin to cool quickly. When

the desired temperature in the cabin is

reached, change the air intake control

back to Fresh mode.

5. Adjust the fan speed control and

temperature control to maintain

maximum comfort.

When maximum cooling is desired, set

the temperature control to the MAX A/C

position, then set the fan speed control to

the highest setting.

NOTICE

When using the air conditioning system,

monitor the engine temperature gauge

closely while driving up hills or in heavy

traffic when outside temperatures. Air

conditioning system operation when

climbing a steep grade or in high outside

ambient temperatures can cause engine

overheating. Continue to use the fan, but

turn the air conditioning system off if the

engine temperature gauge indicates

engine overheating.

CarManuals2.com

5-131

Air conditioning system operation tips

• If the vehicle has been parked in direct

sunlight during hot weather, open the

windows for a short time to let the hot

air inside the vehicle escape.

• After sufficient cooling has been

achieved, switch back from

recirculation mode to fresh mode.

• To help reduce moisture inside of the

windows on rainy or humid days,

decrease the humidity inside the

vehicle by operating the air

conditioning system with the windows

and sunroof closed.

• Use the air conditioning system every

month only for a few minutes to ensure

maximum system performance.

• If you operate air conditioner

excessively, the difference between the

temperature of the outside air and that

of the windshield could cause the outer

surface of the windshield to fog up,

causing loss of visibility. In this case, set

the mode selection knob or button to
the

position and fan speed control

to the lower speed.

System Maintenance

Cabin air filter

OIK047401L

[A] : Outside air

[B] : Recirculated air

[C] : Climate control air filter

[D] : Blower

[E] : Evaporator core

[F] : Heater core

The cabin air filter is installed behind the

glove box. It filters the dust or other

pollutants that enter the vehicle through

the heating and air conditioning system.
Have the cabin air filter replaced by an

authorized HYUNDAI dealer according to

the maintenance schedule. If the vehicle

is being driven in severe conditions such

as dusty or rough roads and/or if

transporting pets or occupants smoke

inside the vehicle, then more frequent

cabin air filter inspections and changes

are required.
If the air flow rate suddenly decreases,

the system should be checked at an

authorized HYUNDAI dealer.

CarManuals2.com

Convenience Features

5-132

Checking the amount of air

conditioner refrigerant and

compressor lubricant

When the amount of refrigerant is low,

the performance of the air conditioning is

reduced. Overfilling also reduces the

performance of the air conditioning

system.
Therefore, if abnormal operation is found,

have the system inspected by an

authorized HYUNDAI dealer.

NOTICE

It is important that the correct type and

amount of oil and refrigerant is used.

Otherwise, damage to the compressor

and abnormal system operation may

occur. To prevent damage, the air

conditioning system in your vehicle

should only be serviced by trained and

certified technicians.

NOTICE

• The refrigerant system should only be

serviced by trained and certified

technicians to insure proper and safe

operation.

• The refrigerant system should be

serviced in a well-ventilated place.

• The air conditioning evaporator

(cooling coil) shall never be repaired or

replaced with one removed from a used

or salvaged vehicle and new

replacement MAC evaporators shall be

certified (and labeled) as meeting SAE

Standard J2842.

WARNING

Vehicles equipped with R-1234yf

COOL-LAB-3

Since the refrigerant is operated at very

high pressure, the air conditioning system

should only be serviced by trained and

certified technicians.
It is important that the correct type and

amount of oil and refrigerant are used.
All refrigerants should be reclaimed with

proper equipment.
Venting refrigerants directly to the

atmosphere is harmful to individuals and

environment. Failure to heed these

warnings can lead to serious injuries.

CarManuals2.com

Convenience Features

5-134

Windshield Defrosting

And Defogging

WARNING

Windshield heating
Do not use the

position during

cooling operation in extremely humid

weather. The difference between the

temperature of the outside air and that of

the windshield could cause the outer

surface of the windshield to fog up,

causing loss of visibility could cause an

accident resulting in serious injury or

death. In this case, set the mode selection
knob or button to the

position and fan

speed control knob or button to a lower

speed.

• For maximum defrost performance, set

the temperature control knob to the

highest temperature setting (rotated all

the way to the right) and the fan speed

control to the highest setting.

• If warm air to the floor is desired while

defrosting or defogging, set the mode

to the floor-defrost position.

• Before driving, clear all snow and ice

from the windshield, rear window, side

view mirrors, and all side windows.

• Clear all snow and ice from the hood

and air inlet in the cowl grill to improve

heater and defroster efficiency and to

reduce the probability of fogging up the

inside of the windshield.

NOTICE

If the engine temperature is still cold after

starting, then a brief engine warm up

period may be required for the vented air

flow to become warm or hot.

Manual Climate Control System

B9031EU01

To defog inside windshield

1. Select any fan speed except “0”

position.

2. Select the desired temperature.
3. Select the

position.

4. Fresh mode will be selected

automatically. Additionally, the air

conditioning will automatically operate
if the mode is selected to the

position.

Check to make sure the A/C is ON. If the

A/C ON indicator is not illuminated, press

the A/C button once to turn the air

conditioner ON.
Check to make sure the air intake control

is in Fresh mode. If the air intake control

indicator is illuminated, press the button

once to enable Fresh mode (indicator

OFF).

CarManuals2.com

5-135

B9031EU02

To defrost outside windshield

1. Set the fan speed to the highest setting

(knob rotated all the way to the right).

2. Set the temperature control to the

highest temperature setting.

3. Select the

position.

4. Fresh mode (Recirculation OFF) and

A/C ON will automatically be selected.

Automatic Temperature Control

if equipped

System

B0208KO01

To defog inside windshield

1. Select the desired fan speed.
2. Select the desired temperature.
3. Press the defroster button (

4. Fresh mode will be selected

automatically.

Check to make sure the air intake control

is in Fresh mode. If the air intake control

indicator is illuminated, press the button

once to enable Fresh mode (indicator

OFF).
If the

position is selected, the fan

speed is automatically increased.

CarManuals2.com

Convenience Features

5-136

B0209KO01

To defrost outside windshield

1. Set the fan speed to the highest

position.

2. Set the temperature to the extreme hot

(HI) position.

3. Press the defroster button (

4. The outside (fresh) air position will be

selected automatically.

If the

position is selected, lower fan

speed is adjusted to a higher fan speed.

Defogging logic

To reduce the probability of fogging up

the inside of the windshield, the air intake

or air conditioning are controlled

automatically according to certain
conditions such as

positions.

To cancel or reset the defogging logic, do

the following.

Manual climate control system

1. Turn the ignition switch to the ON

position.

2. Press the defroster button (

3. Press the air intake control button at

least 5 times within 3 seconds.

The indicator on the air intake button will

blink 3 times to indicate that the

defogging logic has been disabled.
Repeat the steps again to re-enable the

defogging logic.
If the battery has been discharged or

disconnected, it resets to the defog logic

status.

Automatic climate control system

1. Turn the ignition switch to the ON

position.

2. Press the defroster button (

3. While pressing the air conditioning

button (A/C), press the air intake

control button at least 5 times within 3

seconds.

The Automatic Climate Control

information screen will blink 3 times to

indicate that the defogging logic has

been dis-abled.
Repeat the steps again to re-enable the

defogging logic.
If the battery has been discharged or

disconnected, it resets to the defog logic

status.

CarManuals2.com

5-137

When the Auto Defogging System

operates, the indicator will illuminate.

WDH7-69

If a high amount of humidity is detected in

the vehicle, the Auto Defogging System

will be enabled. The following steps will

be performed automatically:
Step 1) The A/C button will turn ON and

the air intake or icon control will change

to Fresh mode.
Step 2) The mode will be changed to

defrost to direct airflow to the windshield.
Step 3) The fan speed will be rising up to

level 3.
If the air conditioning is off or recirculated

air position is manually selected while

Auto Defogging System is ON, the Auto

Defogging System Indicator will blink 3

times to signal that the manual operation

has been canceled.

To cancel or reset the Auto Defogging

System

Press the front windshield defroster

button for 3 seconds when the ignition

switch is in the ON position. When the

Auto Defogging System is canceled, the

ADS OFF symbol will blink 3 times and

ADS OFF will be displayed on the climate

control information screen.
When the Auto Defogging System is

reset, the ADS OFF symbol will blink 6

times without a signal.

Information

To maintain the effectiveness and

efficiency of the Auto Defogging System,

do not select Recirculation mode while

the system is operating.

NOTICE

Do not remove the sensor cover located

on the upper end of the windshield glass.
Damage to system parts could occur and

may not be covered by your vehicle

warranty.

CarManuals2.com

Convenience Features

5-138

Rear Window Defroster

NOTICE

To prevent damage to the rear window

defroster conducting elements bonded to

the inside surface of the rear window,

never use sharp instruments or window

cleaners containing abrasives to clean the

window.
If you want to defrost and defog the front

windshield, refer to the “Windshield

Defrosting And Defogging” section in this

chapter.

Rear_window_defroster

The defroster heats the window to

remove frost, fog and thin ice from the

interior and exterior of the rear window,

while the engine is running.
• To activate the rear window defroster,

press the rear window defroster button

located in the center control panel. The

indicator on the rear window defroster

button illuminates when the defroster

is ON.

• To turn off the defroster, press the rear

window defroster button again.

Information

• If there is heavy accumulation of snow

on the rear window, brush it off before

operating the rear defroster.

• The rear window defroster

automatically turns off after

approximately 20 minutes or when the

ignition switch or Engine Start/Stop

button is in the LOCK/OFF position.

Side view mirror defroster

If your vehicle is equipped with the side

view mirror defrosters, they will operate

at the same time you turn on the rear

window defroster.

CarManuals2.com

5-139

Climate Control

Additional Features

Auto Defogging System

B0200KO02

Auto defogging helps reduce the

possibility of fogging up the inside of the

windshield by automatically sensing the

moisture on inside the windshield.
The auto defogging system operates

when the heater or air conditioning is on.

Information

The auto defogging system may not

operate normally, when the outside

temperature is below 14 °F (-10 °C).

If the air conditioning is off or

recirculation mode is manually selected

while Auto Defogging System is ON, the

Auto Defogging System indicator will

blink 3 times to signal that the manual

operation has been canceled.

Turning the Auto Defogging System

On or off

Infotainment system

Auto Defogging System can be turned on

and off by selecting ‘

Setup

Vehicle

Climate

Defog/Defrost Options

Auto

Defog

’ from the infotainment system

screen.

Information

• To maintain the effectiveness and

efficiency of the Auto Defogging

System, do not select Recirculation

mode while the system is operating.

• The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system

and the quick reference guide.

NOTICE

Do not remove the sensor cover located

on the upper end of the windshield glass.
Damage to system parts could occur and

may not be covered by your vehicle

warranty.

CarManuals2.com

Convenience Features

5-140

if equipped

Auto Dehumidify

To increase cabin air quality and reduce

windshield misting, recirculation mode

switches off automatically after about 5

to 30 minutes, depending on the outside

temperature, and the air intake will

change to fresh mode.

Turning Auto Dehumidify On or off

Climate control system

To turn the Auto Dehumidify feature on or
off, select Face level (

) mode and press

the A/C button, press the air intake
control (

) button at 5 times within 3

seconds. When Auto Dehumidify is

turned on, the air intake control button

indicator will blink 6 times. When turned

off, the indicator will blink 3 times.

Infotainment system

Auto Dehumidify can be turned on and off

by selecting ‘

Setup

Vehicle

Climate

Automatic Ventilation

Auto

Dehumidify

’ from the infotainment

system screen.

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

Recirculating Air When

Washer Fluid Is Used

Recirculation mode automatically

activates to reduce any objectionable

scent of the washer fluid from entering

the cabin when the windshield washer is

used.

Turning Activate upon Washer Fluid

Use On or off

Climate control system

To turn the ‘Activate upon Washer Fluid

Use’ feature on or off, select Floor level
(

) mode, and then press the air intake

control (

) button four times within

two seconds while pressing the A/C

button or icon.
When ‘Activate upon Washer Fluid Use’ is

turned on, the air intake control button

indicator will blink 6 times. When turned

off, the indicator will blink 3 times.

Infotainment system

Activate upon Washer Fluid Use can be

turned on and off by selecting ‘

Setup

Vehicle

Climate

Recirculate Air

Activate upon Washer Fluid Use (or

Interlocking washer fluid)

’ from the

infotainment system screen.
However, in cold weather to help prevent

the windshield from fogging up, the

recirculation mode may not be selected.

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

CarManuals2.com

5-141

Sunroof Inside Air

if equipped

Recirculation

When the sunroof is opened, fresh mode

will be automatically selected. At this

time, if you press the air intake control

button, recirculation mode will be

selected but will change back to fresh

mode after 3 minutes. When the sunroof

is closed, the air intake position will return

to the original position that was selected.

Scheduled Ventilation Control

The Scheduled Ventilation Control

releases hot air in the vehicle to lower

cabin temperature before getting in the

vehicle.
Depending on the outside ambient

temperature, the blower is operated for 5

to 15 minutes while the vehicle is parked.

Turning Schedule Ventilation

Control On or Off

The Schedule Ventilation Control can be

turned on and off by selecting ‘

Setup

Vehicle

Automatic Ventilation

Scheduled Ventilation Control

’ from the

infotainment system screen. Also, the

starting time can be set within 24 hours.

Schedule Ventilation Control operates

only once when the feature is set.

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

Storage Compartment

WARNING

Never store cigarette lighters, propane

cylinders, or other flammable/explosive

materials in the vehicle. These items may

catch fire and/or explode if the vehicle is

exposed to hot temperatures for

extended periods.

WARNING

ALWAYS keep the storage compartment

covers closed securely while driving.

Items inside your vehicle are moving as

fast as the vehicle. If you have to stop or

turn quickly, or if there is a crash, the

items may fly out of the compartment and

may cause an injury if they strike the

driver or a passenger.

NOTICE

To avoid possible theft, do not leave

valuables in the storage compartments.

CarManuals2.com

Convenience Features

5-142

Center Console Storage

B0221KO01

To open:
Press the button.

Glove Box

B0222KO02

To open:
Pull the lever (1).

WARNING

ALWAYS close the glove box door after

use.
An open glove box door can cause serious

injury to the passenger in an accident,

even if the passenger is wearing a seat

belt.

Interior Features

Cup Holder

B0225KO02

[A] : Driver and passenger seat

Cups or small beverages cups may be

placed in the cup holders.
Push the button and the cover opens.

Push the buttons and the cup supporter

protrudes from the front console. Push in

the cup supporter securely after use.

CAUTION

Do not place thin objects (coin, card etc.)

on the cover. These may fall into the

inside when the cover is operated.

CarManuals2.com

Hyundai Palisade (2024 year). Manual in english - page 9
