Hyundai Palisade (2024 year). Manual in english

5-47

1) Programming Preparation

B0135EU04

1. When programming a garage door

opener, it is advised to park the vehicle

outside of the garage.

2. It is recommended that a new battery

be placed in the handheld transmitter

of the device being programmed to

HomeLink for quicker training and

accurate transmission of the

radio-frequency signal.

3. Place the ignition switch to the ACC

(Accessory) position for programming

of HomeLink.

2) Programming a New HomeLink®

B0135EU05

1. Press and release the HomeLink button

(1), (2) or (3), you would like to program.

The HomeLink indicator light (7) will

flash orange slowly (if not, perform the

steps of “Erasing HomeLink Buttons”

section, and start over).

B0135EU06

2. Position the garage door opener

remote 1 - 3 inches (2 - 8 cm) away from

the HoleLink buttons.

3. While the HomeLink indicator light (7) is

flashing orange, press and hold the

hand-held remote button. Continue

pressing the handheld remote button

until the HomeLink indicator light (7)

light changes from orange to green.

You may now release the handheld

remote button.

4. Wait until your garage door comes to a

complete stop, regardless of position,

before proceeding to the next steps.

5. Press and release the HomeLink button

you are programming and observe the

indicator light.
• If the indicator light remains solid

green, your device should operate

when the HomeLink button is

pressed. At this point, if your device

operates, programming is complete.

• If the indicator light rapidly flashes

green, firmly press, hold for two

seconds and release the HomeLink

button up to three times in a row

slowly to complete the programming

process. Do not press the HomeLink

button rapidly. At this point if your

device operates, programming is

complete. If the device does not

operate, continue with step 6.

CarManuals2.com

Convenience Features

5-48

6.At the garage door opener motor,

(security gate motor, etc.) locate the

“Learn”, “Smart”, “Set” or “Program”

button. This can usually be found where

the hanging antenna wire is attached to

the motor-head unit (see the device’s

manual to identify this button). The

name and color of the button may vary

by manufacturer.

ODL3A040504

[A] : LEARN BUTTON

* A ladder and/or second person may

simplify the following steps.

7. Firmly press and release the “Learn”,

“Smart”, “Set” or “Program” button.

You now have up to 30 seconds in

which to complete the next step.

8.Return to the vehicle and firmly press,

hold for two seconds and release, the

HomeLink button up to three times in a

row slowly. Do not press the HomeLink

button rapidly. As soon as you see the

garage door start to move, stop

pressing any buttons until a few

seconds after the garage door has

come to a complete stop, regardless of

position. At this point, programming is

complete and your device should

operate when the HomeLink button is

pressed and released.

3) Two-Way Communication

Programming (For select garage door

openers)

If your garage door opener has the ‘myQ’

logo on its side, your opener likely has

Two-Way Communication capability.

HomeLink has the capability to establish

Two-Way Communication with your

garage door opener. HomeLink can

receive and display “closing” or

“opening” status messages from

compatible garage door openers. At any

time, Home-Link can also recall and

display the last recorded status

communicated by the garage door

opener to indicate your garage door

being “closed” or “opened”.
To check if your garage door opener is

compatible with this feature, refer to

www.homelink.com/compatible/Two-w

ay-Communication. If your garage door

opener has this functionality, AND the

Two-Way Communication indicators (4),

(6) in the mirror appear while the garage

door is opening/closing, then no further

steps are needed. Two-Way

Communication Programming is already

complete. However, if your garage door

opener has this functionality, AND the

Two-Way Communication indicators (4),

(6) in the mirror DO NOT appear while the

garage door is opening/closing, use the

following instructions to enable this

functionality.
1. In your vehicle, press and hold the

programmed HomeLink button for 2

seconds, then release. Confirm that the

garage door is moving. AFTER it stops,

you will have one minute to complete

the following steps:
* A ladder and/or second person may

simplify the following steps.

2. On your garage door opener in your

garage, locate the “Learn” button

(usually near where the hanging

antenna wire is attached to the garage

door opener). If there is difficulty

locating this button, reference the

device’s owner’s manual.

CarManuals2.com

5-49

3. Press and release the “Learn” button.
4. A light on your garage door opener may

flash, and your Two-Way

Communication indicators (4), (6) in

your vehicle may flash, confirming

completion of the process.

5. Return to the vehicle and firmly press

and release the programmed

HomeLink button to activate your

garage door. The Two-Way

Communication indicators (4), (6) flash

in orange when the door is moving. Do

not make any additional button presses

until AFTER the garage door has come

to a complete stop.

6.Your Two-Way Communication

programming is now complete.

Information

If your garage door opener has Two-Way

Communication functionality, it is

possible for HomeLink to stop functioning

the garage door shortly after initial

programming, IF the Two-Way

Communication Programming wasn’t

properly completed. This usually happens

after the first 10 times a programmed

HomeLink button is pressed. If you

experience this, completing the

“Programming a New HomeLink Button”

and “Two-Way Communication

Programming” will restore door

operation.

4) Canadian Programming

Canadian radio-frequency laws require

transmitter remote signals to “time-out”

(or quit) after a couple seconds of

transmission, which may not be long

enough for HomeLink to pick up the

signal during programming.
If you live in Canada or you are having

difficulties programming a gate operator

or garage door opener by using the

programming procedures, replace

“Programming a New HomeLink Button”

step 3 with the following:
While the HomeLink indicator light (7) is

flashing orange, press and release

(“cycle”) your device’s handheld remote

every two seconds until the HomeLink

indicator light (7) changes from orange to

green. You may now release the

hand-held remote button. Then proceed

with “Programming a New HomeLink

Button” step 4.

CarManuals2.com

Convenience Features

5-50

2. Operating HomeLink

1) Operating HomeLink®

B0135EU05

1. Press and release the desired

programmed HomeLink button ((1), (2)

or (3)).

Information

The HomeLink indicator (7) should light

green, solid or flashing, and your

programmed device should operate.
If your device does not operate, the

HomeLink programming was not

successful, and you’ll need to reprogram

the button.

2) Two-Way Communication Display

Behavior

B0135EU07

1. Press and release one of the

programmed HomeLink buttons ((1), (2)

or (3)).

B0135EU08

2. The indicator (4) and (6) operates as

below, if your garage door opener has

Two-Way Communication

functionality.

• If the indicator (4) flashes in Orange, it

indicates that the garage door is

“Closing”.

• The indicator (4) turns solid green once

the garage door has closed.

• If the indicator (6) flashes in Orange, it

indicates that the garage door is

“Opening”.

• The indicator (6) turns solid green once

the garage door has fully opened.

• If the indicator (4) and (6) does not turn

to green, it indicates that the last status

of garage door was not received

properly. The HomeLink mirror tries to

receive the last known status of the

garage door for a few seconds.

3) Recalling Garage Door Status

HomeLink mirror with Two-Way

Communication provides a way to view

the last stored message from the garage

door opener. In order to recall the last

known status of the last activated device,

press the buttons “1 and 2” OR “2 and 3”

simultaneously.
• If the indicator (4) appears solid Green,

it indicates that the last activated

device was “closed” properly.

• If the indicator (6) appears solid Green,

it indicates that the last activated

device was “open” properly.

CarManuals2.com

5-51

3. Erasing HomeLink

Buttons

1) Erasing and Reprogramming a Single

HomeLink® Button:

1. Press and hold the desired HomeLink

button you want to re-program. DO

NOT release the button.

2. The HomeLink indicator light (7) will

illuminate solid green. Release the

button as soon as the HomeLink

indicator light (7) begins to flash

orange, usually about 20 seconds.

3. Proceed with the steps in the

“Programming a New HomeLink

Button” section.

Information

If you do not complete the

re-programming of a new device to the

button, it will revert to the previously

stored programming.

2) The following instructions will erase

ALL HomeLink® programming from ALL

buttons:

B0135EU09

1. Press and hold the buttons (1) and (3)

simultaneously.

2. The HomeLink indicator light (7) will

illuminate solid Orange for about 10

seconds.

3. Release the buttons once the

HomeLink indicator light (7) changes to

Green and flashes rapidly.

4. Now all three HomeLink buttons (1), (2)

and (3) are cleared of any

programming.

Information

HomeLink® and the HomeLink® House

logo are registered trademarks of Gentex

Corporation.
The myQ logo is a registered trademark of

The Chamberlain Group, Inc.

CarManuals2.com

Convenience Features

5-52

FCC (USA) and ISED (Canada)

This device complies with FCC rules part

15 and Innovation, Science, and

Economic Development Canada RSS-210.

Operation is subject to the following two

conditions: (1) This device may not cause

harmful interference, and (2) This device

must accept any interference that may be

received including interference that may

cause undesired operation. WARNING:

The transmitter has been tested and

complies with FCC and ISED rules.

Changes or modifications not expressly

approved by the party responsible for

compliance could void the user’s

authority to operate the device.
This equipment complies with FCC and

ISED radiation exposure limits set forth

for an uncontrolled environment. End

Users must follow the specific operating

instructions for satisfying RF exposure

compliance. This transmitter must be at

least 20cm from the user and must not be

co-located or operating in conjunction

with any other antenna or transmitter.

FCC (Htats-Unis) et ISED (Canada)

Cet appareil est conforme aux reglements

de la FCC, section 15, et au CNR-210

d’Innovation, Sciences et

Dhveloppement economique Canada. Le

fonctionnement est assujetti aux deux

conditions suivantes: (1) cet appareil ne

doit pas causer d’interferences nuisibles

et (2) cet appareil doit accepter toute

interference recue, y compris celle qui

pourrait entrainer un dysfonctionnement.

MISE EN GARDE: L’emetteur a subi des

tests et est conforme aux reglements de

la FCC et d’ISDE. Les changements ou

modifications non approuves

explicitement par la partie responsable de

la conformite pourraient rendre caduque

l’autorisation de l’utilisateur de se servir

du dispositif.
Cet appareil est conforme aux limites

d’exposition aux radiations de la FCC et

d’ISDE etablies pour un environnement

non controle. Les utilisateurs finaux

doivent respecter les instructions

d’utilisation specifiques pour satisfaire

aux exigences de conformite aux

expositions de RF. L’emetteur doit se

trouver a 20 cm au minimum de

l’utilisateur et ne doit pas etre situe au

meme endroit que tout autre emetteur ou

antenne ni fonctionner avec un autre

emetteur ou antenne.

Mejico

La operacion de este equipo esta sujeta a

las siguientes dos condiciones: (1) es

posible que este equipo o dispositivo

pueda no causar interferencia danina, y

(2) este dispositivo o dispositivos deben

aceptar cualquier interferencia, que

incluye la interferencia que puede causar

su operacion no deseada.

CarManuals2.com

Convenience Features

5-54

Side View Mirrors

B0136KO01

Your vehicle is equipped with both

left-hand and right-hand side view

mirrors. The mirrors can be adjusted with

the mirror adjustment control switch. The

side view mirrors can be folded to help

prevent damage when going through an

automatic car wash or when passing

through a narrow street.
The right side view mirror is convex.

Objects seen in the mirror are closer than

they appear.
Use the inside rear view mirror or look

back directly to determine the actual

distance of other vehicles prior to

changing lanes.
Make sure to adjust the side view mirrors

to your desired position before you begin

driving.

WARNING

Do not adjust or fold the side view mirrors

while driving. This may cause loss of

vehicle control resulting in an accident.

NOTICE

• Do not scrape ice off the mirror face;

this may damage the surface of the

glass.

• If the mirror is jammed with ice, do not

adjust the mirror by force. Use an

approved de-icer (not radiator

antifreeze) spray, or a sponge or soft

cloth with very warm water, or move

the vehicle to a warm place and allow

the ice to melt.

• Do not clean the mirror with harsh

abrasives, fuel or other petroleum

based cleaning products.

Adjusting the side view mirrors

B0136EU01

Adjusting the side view mirrors
1. Move the lever (1) either to the L (left

side) or R (right side) to select the side

view mirror you would like to adjust.

2. Use the mirror adjustment control

switch (2) to position the selected

mirror up, down, left or right.

3. After adjustment, move the lever (1) to

the middle to prevent inadvertent

adjustment.

NOTICE

• The mirrors stop moving when they

reach the maximum adjusting angles,

but the motor continues to operate

while the switch is placed. Do not press

the switch longer tahan necessary,

because this can damage the motor.

• Do not attempt to adjust the side view

mirrors by hand, because this can

damage the motor.

CarManuals2.com

5-55

Folding the side view mirrors

B0136EU05

To fold the side view mirror, grasp the

housing of the mirror and then fold it

toward the rear of the vehicle.

if equipped

Reverse Parking Aid

B0136EU02

When the gear is shifted to the R

(Reverse) position, the side view mirror(s)

will rotate downwards to aid with driving

in reverse.
The state of the side view mirror button (1)

determines whether or not the mirrors

will move:
How it works
• When the L or R switch (1) is selected

both side view mirrors will move.

• If the L and R switch (1) are not selected

both outer side view mirrors will not

move.

The side view mirrors will automatically

revert to their original positions if any of

the following occur:
• The ignition switch is placed to either

the LOCK/OFF position or the ACC

position.

• The gear is shifted to any position

except R (Reverse).

• The side view mirror adjustment button

is not selected.

Reverse parking aid user settings

mode

You may change the angle of the side

view mirror if it is difficult to see the rear

view with the basic downward mirror

angle provided when reversing.
When the vehicle is first delivered, the set

downward angle of the left and right side

view mirror are different to ensure driver

visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift the

gear to R (Reverse). When L (Left) or R

(Right) switch is selected, both side

view mirror angle will move downward

to the basic set position.

3. Operate either L or R switch to select

the side view mirror you would like to

adjust. Then press “ , , , ” switch

to adjust the side view mirror to the

desired angle.

4. After adjusting the angle to save the

adjusted side view mirror angle, shift

the gear to another position other than

R (Reverse), or change the L and R

buttons to the neutral position (L and R

switchs are not pressed).

5. Set the opposite side view mirror

following the above procedure 1 to 4.

CarManuals2.com

Convenience Features

5-56

Resetting reverse parking aid user settings

mode

To change the side view mirror angle back

to the basic angle, shift the gear to R

(Reverse), and adjust the mirror angle

higher than when the gear is in P (Park), N

(Neutral) and D (Drive).

NOTICE

When changing the angle of both side

view mirrors, it is recommended to

change the angle one side at a time

following the procedure 1 to 4.

if equipped

Digital Center Mirror

The Digital Center Mirror is a system that

uses the camera on the rear of the vehicle

and displays its image on the screen of

the Digital Center Mirror. The Digital

Center Mirror allows the driver to see the

rear view despite obstructions, such as

the headrest or luggage, ensuring rear

visibility.

WARNING

• Failure to follow the warnings and

instructions for proper use of the Digital

Center Mirror could result in serious

accident.
- The Digital Center Mirror is a

convenience feature but it is not a

substitute for proper vehicle

operation. The system has areas

where objects cannot be viewed.

Check the blind spot of the Digital

Center Mirror before vehicle

operation. The driver is always

responsible for safe driving.

- Do not operate the Digital Center

Mirror while driving. Doing so cannot

be a distraction and it could lose

control of your vehicle and cause an

accident or serious injury.

- Do not disassemble or modify the

Digitaal Center Mirror, the camera

unit or wirings. If you do, it may result

in accidents or fire. In case you notice

smoke or smell coming from the

Digital Center Mirror, stop using the

system immediately. Have you see an

authorized HYUNDAI dealer for

servicing.

CarManuals2.com

5-57

• Be sure to adjust the Digital Center

Mirror before driving.
- Switch the system to the

conventional rearview mirror mode

and be properly seated on the

driver’s seat. Then adjust the mirror

so as to see the rear window properly.

- Push the lever all the way to change

to digital mirror mode and adjust the

display settings. Driving without

adjusting the mirror may cause

difficulty in watching the display at

the Digital Mirror mode (camera view

mode) due to the reflection from the

surface of the mirror.

- As the range of the image display by

the Digital Center Mirror is different

from that of the optical mirror, make

sure to check this difference before

driving.

• If the Digital Center Mirror malfunction,

immediately switch the system to the

conventional rearview mirror mode.

• When strong light (for example,

sunlight or high beams from following

vehicles) enters the camera, a light

beam or a glaring light may appear on

the monitor screen of the Digital Center

Mirror. In that case, switch the system

to the conventional rearview mirror

mode appropriately.

• If the camera lens (1) is dirty, the

displayed image may not be clear. In

this case, clean it with a soft cloth

dampened with water or a swab.

B0362KO01

System component

ONE1052295N

1. Icon display area

Displays icons, adjusting Brightness &

Tilt

2. Lever

Operate to change between digital

mirror mode and optical mirror mode.

3. Menu button

Press to display the icon display area

and select the item you want to adjust

(Brightness & Tilt).

4. Select/adjust button

Press to change the setting of the item

you want to adjust.

5. Camera indicator

Indicates that the camera is operating

normally.

6. HomeLink buttons

For the operation of the “HomeLink®

Universal Transceiver”.

CarManuals2.com

Convenience Features

5-58

How to change the mode

ONE1052296

The mode can be switched when the

switch is in the ON position.
1. Pull the mode select lever to all the way

switch to the Digital Center Mirror

mode (camera view mode).
* Displays an image of the area behind

the vehicle. In this mode, camera

indicator (6) is shown.

2. Push the mode select lever to all the

way switch to the optical inside

rearview mirror mode

* Turns off the display of the Digital

Center Mirror allows it to be used as an

optical mirror.

Adjusting the mirror height

B0913EU03

The height of the rearview mirror can be

adjusted to suit your driving posture.
Change to optical mirror mode, adjusting

the rearview mirror angle by moving it up

and down.

Display settings (Digital mirror

mode)

B0913EU01

1. Press the menu button (1). The icons will

be displayed.

2. Press the menu button (1) repeatedly

and select the item you want to adjust.

Icons

Settings

Select to adjust the

brightness of the display.

Select to adjust the display

up/down.

CarManuals2.com

5-59

3. Press the button (2) or button (3) to

change the setting.
The icons will disappear if the button is

not operated for approximately 5

seconds or more.

* If the brightness of the Digital Center

Mirror is set too high, it may cause eye

strain.
Adjust the Digital Center Mirror to and

appropriate brightness. If your eyes

become tired, change to optical mirror

mode.

B0913EU04

To prevent the light sensors from

malfunctioning

To prevent the light sensors from

malfunctioning, do not touch or cover

them.

Digital mirror mode operating

condition

The START/STOP button is in the ON

position.
When the START/STOP button is changed

ignition switch LOCK/OFF or ACC

position, the image will be disappeared.

When using the Digital Center Mirror

in digital mirror mode

• When the liftgate is open, the Digital

Center Mirror image may not display

properly. Before driving, make sure the

liftgate is closed.

• If the display is difficult to see due to

reflected light, close the sunshade for

the sunroof (if equipped).

• Any of the following conditions may

occur when driving in the dark, such as

at night. None of them indicates that

the malfunction has occurred.
- Colors of objects in the displayed

image may differ their actual color.

- Depending on your physical

condition or age, it may take longer

than usual to focus on the displayed

image. In this case, change to optical

mirror mode.

- Do not let passengers stare at the

displayed image when the vehicle is

being driven, as doing so may cause

motion sickness.

CarManuals2.com

Convenience Features

5-60

When the system malfunctions

B0913EU02

If the symbol shown in the illustration is

displayed when using the Digital Center

Mirror in digital mirror mode, the system

may be malfunctioning. The symbol will

disappear in a few seconds. Operate the

lever, change to optical mirror mode and

have the vehicle inspected by an

authorized HYUNDAI dealer.

CAUTION

• To prevent the Digital Center Mirror

from malfunctioning

• Do not use detergents, such as thinner,

benzene, and alcohol to clean the

mirror. They may dis color, deteriorate

or damage the mirror surface.

• Do not remove, disassemble or modify

the mirror and camera.

• Do not allow an organic solvent, vehicle

wax, window cleaner or glass coating to

adhere to the camera. If this happens,

wipe it off as soon as possible.

• When cleaning the camera lens, wipe

the camera lens with a damp soft cloth.

• Do not strongly rub the camera lens, as

it may be scratched and will not be able

to transmit a clear image.

• Do not subject the camera to a strong

impact as this could cause a

malfunction. If this happens, we

recommend that you have the vehicle

inspected by an authorized HYUNDAI

dealer as soon as possible.

• Operating the system at the ON

position while the engine is not running

would cause discharging of the battery.

• Do not attach an antenna of wireless

device near the Digital Center Mirror.

Electric wave from wireless device may

cause disturbed image in Digital Center

Mirror.

• Do not push buttons excessively or

operating the lever roughly may cause

a system failure or the Digital Center

Mirror itself to drop.

• Never rotate the body of Digital Center

Mirror by 90° or more. It may damage

the Digital Center Mirror. Do not apply

strong shocks to the body of Digital

Center Mirror. It may cause a system

failure.

• If it is difficult to see the Digital Center

Mirror display screen because of a

strong external light, switch the mode

to the conventional rearview mirror

mode for better use.

CarManuals2.com

5-61

Digital Center Mirror error icon and solution

Symptom

Likely cause

Solution

if the high temp

icon is displayed

on the display

right side.

The Digital Center Mirror is

extremely hot. (The display

will gradually become

more dim. If the

temperature continues to

increase, the Digital Center

Mirror will turn off.)

Reducing the cabin temperature is

recommended to reduce the temperature

of the mirror. (The icon will disappear

when the mirror becomes cool.)
If the icon does not disappear even

though the mirror is cool, have the

vehicle inspected by an authorized

HYUNDAI dealer.

if the display
icon has been
switched to

which is the

display error icon

The system may be

malfunctioning.

Change to optical mirror mode and have

the vehicle inspected by an authorized

HYUNDAI dealer.

CarManuals2.com

5-63

Power Windows

The ignition switch or Engine Start/Stop

button must be in the ON position to be

able to raise or lower the windows. Each

door has a Power Window switch to

control that door’s window. The driver

has a Power Window Lock button which

can block the operation of rear passenger

windows. The power windows will

operate for approximately 3 minutes after

the ignition switch or Engine Start/Stop

button is in the ACC or LOCK/OFF

position, as long as the front doors remain

closed.
If the front doors are opened, battery

power is turned OFF and the Power

Windows will not operate.

Information

• In cold and wet climates, power

window may not work properly due to

freezing conditions.

• While driving with the rear windows

down or with the sunroof (if equipped)

opened (or partially opened), your

vehicle may demonstrate a wind

buffeting or pulsation noise. This noise

is normal and can be reduced or

eliminated by taking the following

actions. If the noise occurs with one or

both of the rear windows down,

partially lower both front windows

approximately 1 inch (2.5 cm). If you

experience the noise with the sunroof

open, slightly close the sunroof.

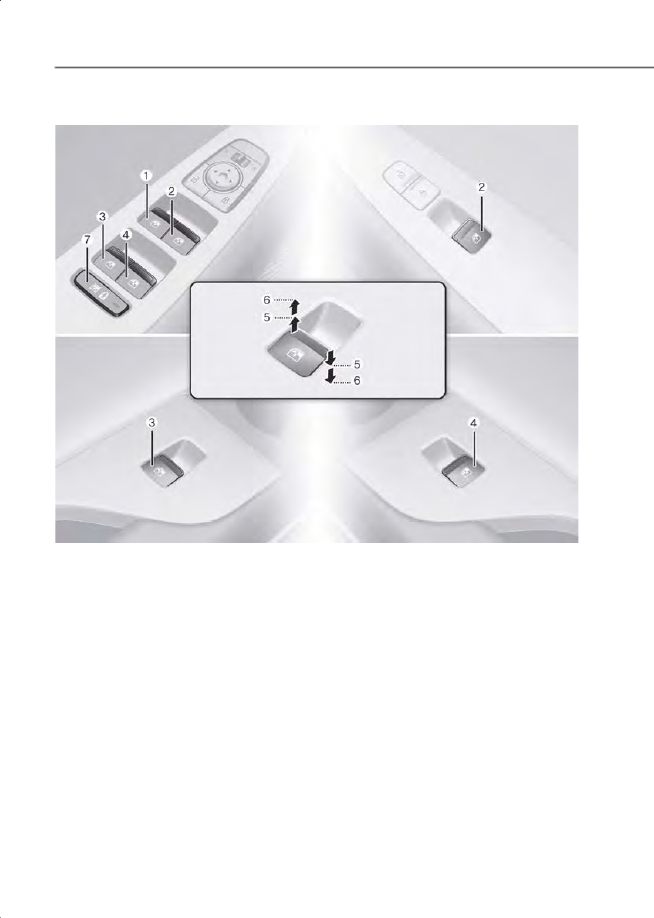

Window opening and closing

B0142KO01

To open:
Press the window switch down to the first

detent position (5). Release the switch

when you want the window to stop.
To close:
Pull the window switch up to the first

detent position (5). Release the window

switch when you want the window to

stop.

Auto up/down window

Pressing or pulling up the power window

switch momentarily to the second detent

position (6) completely lowers or lifts the

window even when the switch is released.

To stop the window at the desired

position while the window is in operation,

pull up or press down and release the

switch.

WARNING

• Do not leave the engine running and

the key in your vehicle with

unsupervised children. Unattended

children could operate the window,

which could result in serious injury.

• Do not extend your head, arms or any

other body parts or objects outside the

window while driving to avoid serious

injury.

CarManuals2.com

Convenience Features

5-64

Resetting the power windows

If the power windows do not operate

normally, the automatic power window

system must be reset as follows:
1. Place the ignition switch or Engine

Start/Stop button to the ON position.

2. Close the window and continue pulling

up on the power window switch for at

least one second.

If the power windows do not operate

properly after resetting, have the system

be inspected by an authorized HYUNDAI

dealer.

WARNING

The automatic reverse feature doesn’t

activate while resetting the power

window system.
Make sure body parts or other objects are

safely out of the way before closing the

windows to avoid injuries or vehicle

damage.

Automatic reverse

B0142KO02

If a window senses any obstacle while it is

closing automatically, it will stop and

lower approximately 12 in. (30 cm) to

allow the object to be cleared.
If the window detects the resistance

while the power window switch is pulled

up continuously, the window will stop

upward movement then lower

approximately 1 in. (2.5 cm).
If the power window switch is pulled up

continuously again within 5 seconds after

the window is lowered by the automatic

window reverse feature, the automatic

window reverse will not operate.

Information

The automatic reverse feature is only

active when the “Auto Up” feature is used

by fully pulling up the switch to the

second detent.

WARNING

Make sure body parts or other objects are

safely out of the way before closing the

windows to avoid injuries or vehicle

damage.
Objects less than 0.16 in. (4 mm) in

diameter caught between the window

glass and the upper window channel may

not be detected by the automatic reverse

window and the window will not stop and

reverse direction.

CarManuals2.com

5-65

NOTICE

Do not install any accessories on the

windows. The automatic reverse feature

may not operate.

Power window lock button

B0142KO03

The driver can disable the power window

switches on the rear passenger doors by

pressing the power window lock button.
When the power window lock button is

pressed:
• The rear passenger control will not be

able to operate the rear passenger

power window.

• Note that the front passenger control is

still able to operate the front passenger

window, and that the driver master

control can still operate all the power

windows.

WARNING

Do not allow children to play with the

power windows. Keep the driver’s door

power window lock button in the LOCK

position. Serious injury or death can result

from unintentional window operation by

a child.

NOTICE

• To prevent possible damage to the

power window system, do not open or

close two windows or more at the same

time. This will also ensure the longevity

of the fuse.

• Never try to operate the main switch on

the driver’s door and the individual

door window switch in opposite

directions at the same time. If this is

done, the window will stop and cannot

be opened or closed.

CarManuals2.com

Convenience Features

5-66

if equipped

Remote window opening function

B0143EU02

B0143EU03

B0143EU04

You can still control the window

movement with the engine turned off.
Press the Door Unlock button (1) for more

than 3 seconds. The window moves down

after the doors are unlocked, as long as

you press the door unlock button. The

window movement stops, when you

release the door unlock button.

WARNING

If you stay on the function after operating

the Remote window opening function, it

is likely to cause a theft. In addition,

please use caution there might be a

malfunction due to the inflow of water

while raining.

Information

• The remote window opening function

may abruptly stop, when you move

away from your vehicle during

operation. Stay in close proximity from

your vehicle, while monitoring the

window movement.

• One of the windows may stop

operating, when the window is

interrupted by certain force. However,

the other windows will keep operating.

Thus, you should make sure that all

windows are opened.

• Please be aware that the doors unlock

when the windows are opened using

the remote window opening function.

CarManuals2.com

5-67

if equipped

Panoramic Sunroof

If your vehicle is equipped with a sunroof,

you can slide or tilt your sunroof with the

sunroof switch located on the overhead

console.

B0903EU01

[A] : Sunroof switch

The sunroof can only be operated when

the ignition switch or Engine Start/Stop

button is in the ON or START position.
The sunroof can be operated for

approximately 3 minutes after the ignition

switch or Engine Start/Stop button is in

the ACC or LOCK/OFF position. However,

if the front door is open, the sunroof

cannot be operated even within the 3

minutes period.

WARNING

• Adjust the sunroof or sunshade when

your vehicle stops. This could result in

loss of control and an accident that may

cause injury, or property damage.

• Do not leave the engine running and

the key in your vehicle with

unsupervised children. Unattended

children could operate the sunroof,

which could result in serious injury.

• Do not sit on the top of the vehicle. It

may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof

bars are installed on the vehicle or when

there is luggage on the roof.

Power Sunshade

B0904KO01

Use the sunshade to block direct sunlight

coming through the sunroof glass.
Open or close the sunshade by hand.

NOTICE

Do not pull the sunshade up or down, or

apply excessive force as such action may

damage the sunshade or cause it to

malfunction.

Information

The sunshade opens automatically when

the sunroof glass is opened, but the

sunshade does not close automatically

when the sunroof glass is closed. Also,

only the sunshade cannot be closed when

the sunroof glass is opened.

CarManuals2.com

Convenience Features

5-68

Tilt Open/Close

B9022EU02

• Push the sunroof switch upward, the

sunroof glass tilts open.

• Push the sunroof switch forward when

the sunroof glass is tilt opened, the

sunroof glass closes.

The sunroof glass tilts open or closes

while the switch is pushed.

Information

The sunroof glass cannot slide open and

tilt open at the same time. You cannot tilt

the sunroof glass open while the sunroof

glass is slide open. Also, you cannot slide

the sunroof glass open while the sunroof

is tilt open. Slide open or tilt open the

sunroof glass when the sunroof glass is

completely closed.

Slide Open/Close

B9022EU03

• Push the sunroof switch rearward, the

sunshade and sunroof glass slide open.
Push the sunroof switch forward, only

the sunroof glass closes.

• Push the sunroof switch forward or

rearward to the first detent position,

the sunroof glass moves until the

switch is released.

• Push the sunroof switch forward or

rearward to the second detent position,

the sunroof glass operates

automatically (auto slide feature). To

stop the sunroof movement at any

point, push the sunroof switch in any

direction.

• The sunroof glass stops halfway (first

detent position) before it is fully

opened. To fully open the sunroof glass,

push the sunroof switch rearward once

more. At this time, the sunroof glass

opens only while the switch is pushed.

Information

To reduce wind noise while driving, we

recommend that you drive at the

recommended position (first detent

position) before the maximum slide open

position.

CarManuals2.com

5-69

Automatic Reversal

B0907KO01

If the sunroof glass senses any obstacle

while it is closing automatically, it will

reverse direction then stop at a certain

position.
The auto reverse function may not work if

an object thin or soft is caught between

the sliding sunroof glass and sunroof

sash.

WARNING

• Make sure heads, hands, arms or any

other body parts or objects are out of

the way before operating the sunroof.

Body parts or objects may get caught

causing injuries or vehicle damage.

• Never deliberately use your body parts

to test the automatic reversal function.

The sunroof glass may reverse

direction, but there is a risk of injury.

NOTICE

• Do not continue to push the sunroof

switch after the sunroof is fully opened,

closed, or tilted. Damage to the sunroof

motor could occur.

• Continuous operations such as slide

open/close, tilt open/close, etc. may

cause the motor or sunroof system to

malfunction.

• Regularly remove any accumulated

dust on the sunroof rail.

• Dust accumulated between the sunroof

and roof panel can make noise Open

the sunroof and remove dust regularly

using a clean cloth.

• Do not try to open the sunroof when the

temperature is below freezing or when

the sunroof is covered with snow or ice.

The sunroof may not work properly and

may break if opened by force.

• Do not open or drive with the sunroof

glass open immediately after rain or

washing the vehicle. Water may wet the

interior of the vehicle.

• Do not extend any luggage outside the

sunroof while driving. Vehicle damage

may occur if the vehicle suddenly

stops.

WARNING

Do not extend your head, arms, body

parts or objects outside the sunroof while

driving. Injuries may occur if the vehicle

suddenly stops.

CarManuals2.com

Convenience Features

5-70

Resetting the Sunroof

B9022EU04

In some circumstances resetting the

sunroof operation may need to be

performed. Some instances where

resetting the sunroof may be required

include:
• When the 12 V battery is either

disconnected or discharged

• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO

OPEN/CLOSE operation is not

functioning properly

Sunroof resetting procedure:
1. It is recommended to perform the reset

procedure with the vehicle engine

running. Start the vehicle in P (Park).

2. Make sure the power sunshade and

sunroof glass are in the fully closed

position. If the power sunshade and

sunroof glass is open, push the switch

forward until the power sunshade and

sunroof glass are fully closed.

3. Release the switch when the power

sunshade and sunroof glass are fully

closed.

4. Push the switch forward until the power

sunshade and sunroof glass move

slightly. Then release the switch.

5. Once again push and hold the sunroof

switch forward until the power

sunshade and sunroof glass slide open

and close. Do not release the switch

until the operation is completed.
If you release the switch during

operation, start the procedure again

from step 2.

Information

If the sunroof does not reset when the

vehicle battery is disconnected or

discharged, or the sunroof fuse is blown,

the sunroof may not operate normally.

Sunroof Open Warning

B0088KO02

If the driver turns off the engine when the

sunroof is not fully closed, the warning

chime will sound for several seconds and

the sunroof open warning will appear on

the cluster LCD display.
Close the sunroof securely when leaving

your vehicle.

CAUTION

Make sure the sunroof is closed fully

when leaving your vehicle. If the sunroof

is left open, rain or snow may wet the

interior of the vehicle. Also, leaving the

sunroof open when the vehicle is

unattended may invite theft.

CarManuals2.com

5-71

if equipped

Dual Sunroof

If your vehicle is equipped with a sunroof,

you can slide or tilt your sunroof with the

sunroof switch located on the overhead

console.

B0903EU02

[A] : Front

[B] : Rear

The sunroof can only be operated when

the ignition switch or Engine Start/Stop

button is in the ON or START position.
The sunroof can be operated for
approximately 30 seconds after the

ignition switch or Engine Start/Stop

button is in the ACC or LOCK/OFF

position.
However, if the front door is open, the

sunroof cannot be operated even within

the 3 minute period.

WARNING

• Adjust the sunroof or sunshade when

your vehicle stops. This could result in

loss of control and an accident that may

cause injury, or property damage.

• Do not leave the engine running and

the key in your vehicle with

unsupervised children. Unattended

children could operate the sunroof,

which could result in serious injury.

• Do not sit on the top of the vehicle. It

may cause injury or vehicle damage.

NOTICE

Do not operate the sunroof when roof

bars are installed on the vehicle or when

there is luggage on the roof.

Information

When the rear power window switches

are disabled using the power window lock

button, the rear sunroof operation switch

is also disabled. If you need to operate the

rear seat sunroof, operate the rear seat

sunroof with the front sunroof operation

switch.

Sunshade (Front)/Power sunshade

(Rear)

Use the sunshade to block direct sunlight

coming through the sunroof glass.

B0904KO01

CarManuals2.com

Convenience Features

5-72

Front

Open or close the sunshade by hand.

Information

B0904KO02

The sunshade opens automatically when

the sunroof glass is opened by pushing

the sunroof switch (A) rearward, but the

sunshade does not close automatically

when the sunroof glass is closed. Also,

only the sunshade cannot be closed when

the sun roof glass is opened.

NOTICE

Do not pull the sunshade up or down, or

apply excessive force as such action may

damage the sunshade or cause it to

malfunction.

B0904KO03

Rear

Push the power sunshade open switch

(B), the power sunshade automatically

slides open.
Push the power sunshade close switch

(B), the power sunshade automatically

closes.

NOTICE

Do not pull or push the power sunshade

by hand as such action may damage the

power sunshade or cause it to

malfunction.

Information

Wrinkles formed on the power sunshade

are normal due to material characteristic.

CarManuals2.com

5-73

Tilt open/close (Front)

B0905EU01

(1) : Tilt open
(2) : Tilt close
• Push the sunroof switch upward, the

sunroof glass tilts open.

• Push the sunroof switch forward when

the sunroof glass is tilt opened, the

sunroof glass closes.

The sunroof glass tilts open or closes

while the switch is pushed.

Slide open/close (Front/Rear)

B0906EU01

• Push the sunroof switch rearward, the

sunshade and sunroof glass slide open.
Push the sunroof switch forward, only

the sunroof glass closes.

• Push the sunroof switch forward or

rearward to the first detent position,

the sunroof glass moves until the

switch is released.

• Push the sunroof switch forward or

rearward to the second detent position,

the sunroof glass operates

automatically (auto slide feature). To

stop the sunroof movement at any

point, push the sunroof switch in any

direction.

Information

To reduce wind noise while driving, you

drive at the recommended position (first

detent position) before the maximum

slide open position.

CarManuals2.com

Convenience Features

5-74

Automatic reversal

B0907KO01

If the sunroof glass senses any obstacle

while it is closing automatically, it will

reverse direction then
The auto reverse function may not work if

an object thin or soft is caught between

the sliding sunroof glass and sunroof

sash.

WARNING

• Make sure heads, hands, arms or any

other body parts or objects are out of

the way before operating the sunroof.

Body parts or objects may get caught

causing injuries or vehicle damage.

• Never deliberately use your body parts

to test the automatic reversal function.

The sunroof glass may reverse

direction, but there is a risk of injury.

NOTICE

• Do not continue to push the sunroof

switch after the sunroof is fully opened,

closed, or tilted. Damage to the sunroof

motor could occur.

• Continuous operations such as slide

open/close, tilt open/close, etc. may

cause the motor or sunroof system to

malfunction.

• Regularly remove any accumulated

dust on the sunroof rail.

• Dust accumulated between the sunroof

and roof panel can make noise Open

the sunroof and remove dust regularly

using a clean cloth.

• Do not try to open the sunroof when the

temperature is below freezing or when

the sunroof is covered with snow or ice.

The sunroof may not work properly and

may break if opened by force.

• Do not open or drive with the sunroof

glass open immediately after rain or

washing the vehicle. Water may wet the

interior of the vehicle.

• Do not extend any luggage outside the

sunroof while driving. Vehicle damage

may occur if the vehicle suddenly

stops.

WARNING

Do not extend your head, arms, body

parts or objects outside the sunroof while

driving. Injuries may occur if the vehicle

suddenly stops.

CarManuals2.com

5-75

Resetting the sunroof

B0908EU01

B0908EU02

[A] : Front

[B] : Rear

In some circumstances resetting the

sunroof operation may need to be

performed. Some instances where

resetting the sunroof may be required

include:
• When the 12 V battery is either

disconnected or discharged

• When the sunroof fuse is replaced
• If the sunroof one-touch AUTO

OPEN/CLOSE operation is not

functioning properly

Sunroof resetting procedure:
1. It is recommended to perform the reset

procedure with the vehicle engine

running. Start the vehicle in P (Park).

2. Make sure the sunroof glass is in the

fully closed position. If the sunroof

glass is open, push the switch forward

until the sunroof glass is fully closed.

3. Release the switch when the sunroof

glass is fully closed.

4. Push the switch forward until the

sunroof glass moves slightly. Then

release the switch.

5. Once again push and hold the sunroof

switch forward until the sunroof glass

slides open and close. Do not release

the switch until the operation is

completed.
If you release the switch during

operation, start the procedure again

from step 2.

Information

If the sunroof does not reset when the

vehicle battery is disconnected or

discharged, or the sunroof fuse is blown,

the sunroof may not operate normally.

Sunroof open warning

B0088KO02

If the driver turns off the engine when the

sunroof is not fully closed, the warning

chime will sound for several seconds and

the sunroof open warning will appear on

the cluster LCD display.
Close the sunroof securely when leaving

your vehicle.

CAUTION

Make sure the sunroof is closed fully

when leaving your vehicle.
If the sunroof is left open, rain or snow

may wet the interior of the vehicle. Also,

leaving the sunroof open when the

vehicle is unattended may invite theft.

CarManuals2.com

Convenience Features

5-76

Hood

Opening the Hood

B0152KO01

1. Park the vehicle and set the parking

brake.

2. Pull the release lever to unlatch the

hood. The hood should pop open

slightly.

B0152KO02

3. Go to the front of the vehicle, raise the

hood slightly, push up the secondary

hood release lever (1) inside of the hood

center and lift the hood (2).
After the hood has been lifted halfway,

it will raise completely by itself.

Closing the Hood

1. Before closing the hood, check in and

around the engine compartment to

ensure the following:
• Any tools or other loose objects are

removed from the engine room area

or hood opening area

• All gloves, rags, or other combustible

material is removed from the engine

compartment

• All filler caps are tightly and correctly

installed

2. Lower the hood halfway (lifted

approximately 12 in. (30 cm) from the

closed position) and push down to

securely lock in place. Then double

check to be sure the hood is secure. If

the hood can be raised slightly, it is not

securely locked. Open it again and

close it with more force.

WARNING

• Before closing the hood, ensure all

obstructions are removed from around

the hood opening.

• Always double check to be sure that the

hood is firmly latched before driving

away. Check there is no hood open

warning light or message displayed on

the instrument cluster. Driving with the

hood opened may cause a total loss of

visibility, which might result in an

accident.

• Do not move the vehicle with the hood

in the raised position, as vision is

obstructed, which might result in an

accident, and the hood could fall or be

damaged.

CarManuals2.com

5-77

Liftgate

Opening the Liftgate

B0909KO01

Make sure the vehicle is in P (Park) and set

the parking brake.
Then do one of the following:
1. Unlock all doors with the Door Unlock

button on your smart key. Press the

liftgate handle button and open the

liftgate.

2. Press and hold the liftgate Open button

on the smart key to unlock the liftgate.

Then press the liftgate handle button

on the vehicle and open the liftgate.

3. With the Smart Key in your possession,

press the liftgate handle button and

open the liftgate.

Closing the Liftgate

B0910KO01

Lower the liftgate lid and press down until

it locks. To be sure the liftgate lid is

securely fastened, always check by trying

to pull it up again without pressing the

liftgate handle button.

WARNING

Always keep the liftgate completely

closed while the vehicle is in motion. If it

is left open or ajar, poisonous exhaust

gases containing carbon monoxide (CO)

may enter the vehicle and serious illness

or death may result.

NOTICE

To prevent damage to the liftgate support

struts and the attached hardware, always

close the liftgate before driving.

Information

In cold and wet climates, the liftgate lock

mechanism and the liftgate support struts

may not operate properly in extreme cold

temperatures. Use caution when

operating the liftgate in sub-zero freezing

conditions.

CarManuals2.com

Convenience Features

5-78

WARNING

B0911KO02

Do not grab or hold on to the liftgate

support struts at any time. Damage to the

liftgate support struts could result.

Deformation of the liftgate support struts

may cause vehicle damage and personal

injury may occur.

WARNING

• NEVER allow anyone to occupy the

luggage compartment of the vehicle at

any time. If the liftgate is partially or

totally latched and the person is unable

to get out, serious injury or death could

occur due to lack of ventilation, exhaust

fumes and rapid heat build-up, or

because of exposure to cold weather

conditions. The luggage compartment

is also a highly dangerous location in

the event of a crash because it is not a

protected occupant space but is a part

of the vehicle’s crush zone.

• Your vehicle should be kept locked and

keys should be kept out of the reach of

children. Parents should teach their

children about the dangers of playing in

luggage compartments.

Emergency Liftgate Safety

Release

B0914KO01

Your vehicle is equipped with the

emergency liftgate safety release lever

located on the bottom of the liftgate.
When someone is inadvertently locked in

the luggage compartment, the liftgate

can be opened by moving the lever in the

direction of the arrow and pushing the

liftgate open.

WARNING

• For emergencies, be fully aware of the

location of the emergency liftgate

safety release lever in the vehicle and

how to open the liftgate if you are

accidentally locked in the luggage

compartment.

• No one should be allowed to occupy

the luggage compartment of the

vehicle at any time. The luggage

compartment is a very dangerous

location in the event of a crash.

• Use the release lever for emergencies

only. Use with extreme caution,

especially while the vehicle is in

motion.

CarManuals2.com

Hyundai Palisade (2024 year). Manual in english - page 7
