Low tire pressure

If you cannot reach a service station or

warning light

if the tire cannot hold the newly added

air, replace the low pressure tire with the

spare tire.

Low tire pressure position and

The Low Tire Pressure Telltale will remain

tire pressure telltale

on and the TPMS Malfunction Indicator

may blink for one minute and then

remain illuminated (when the vehicle

is driven approximately 10 minutes at

speed above 15.5 mph (25 km/h)) until

you have the low pressure tire repaired

and replaced on the vehicle.

CAUTION

In winter or cold weather, the Low Tire

Pressure Telltale may be illuminated if

the tire pressure was adjusted to the

OTM080028L

recommended tire inflation pressure

When the tire pressure monitoring

in warm weather. It does not mean

system warning indicators are

your TPMS is malfunctioning because

illuminated and a warning message

the decreased temperature leads to a

displayed on the cluster LCD display,

proportional lowering of tire pressure.

one or more of your tires is significantly

When you drive your vehicle from a

under-inflated. The Low Tire Pressure

warm area to a cold area or from a cold

Position Telltale will indicate which

area to a warm area, or the outside

tire is significantly underinflated by

temperature is greatly higher or lower,

illuminating the corresponding position

you should check the tire inflation

light.

pressure and adjust the tires to the

If either telltale illuminates, immediately

recommended tire inflation pressure.

reduce your speed, avoid hard cornering

and anticipate increased stopping

distances. You should stop and check

WARNING

your tires as soon as possible. Inflate the

Low pressure damage

tires to the proper pressure as indicated

on the vehicle’s placard or tire inflation

Significantly low tire pressure makes

pressure label located on the driver’s

the vehicle unstable and can contribute

side center pillar outer panel.

to loss of vehicle control and increased

braking distances.

Continued driving on low pressure tires

can cause the tires to overheat and fail.

8-11

Emergency situations

TPMS malfunction

Changing a tire with TPMS

indicator

If you have a flat tire, the Low Tire

Pressure and Position telltales will come

The TPMS Malfunction Indicator

on. Have the flat tire repaired by an

will illuminate after it blinks for

authorized HYUNDAI dealer as soon as

approximately one minute when there

possible or replace the flat tire with the

is a problem with the Tire Pressure

spare tire.

Monitoring System.

Have the system checked by an

NOTICE

authorized HYUNDAI dealer as soon as

It is recommended that you do not

possible.

use a puncture-repairing agent not

approved by HYUNDAI dealer or the

NOTICE

equivalent specified for your vehicle to

repair and/or inflate a low pressure tire.

If there is a malfunction with the

TPMS, the individual tire pressures

Tire sealant not approved by HYUNDAI

dealer or the equivalent specified for

in the cluster LCD display will not be

available. Have the system checked by

your vehicle may damage the tire

pressure sensor.

an authorized HYUNDAI dealer as soon

as possible.

The spare tire (if equipped) does not

come with a tire pressure monitoring

NOTICE

sensor. When the low pressure tire or

The TPMS Malfunction Indicator may

the flat tire is replaced with the spare

illuminate after blinking for one minute

tire, the Low Tire Pressure Telltale will

if the vehicle is near electric power

remain on. Also, the TPMS Malfunction

supply cables or radio transmitters

Indicator will illuminate after blinking

such as police stations, government

for one minute if the vehicle is driven

and public offices, broadcasting

at speed above 15.5 mph (25 km/h) for

stations, military installations, airports,

approximately 10 minutes.

transmitting towers, etc.

Once the original wheel equipped with

Additionally, the TPMS Malfunction

a tire pressure monitoring sensor is

Indicator may illuminate if snow chains

reinflated to the recommended pressure

are used or electronic devices such as

and reinstalled on the vehicle, the

computers, chargers, remote starters,

Low Tire Pressure Telltale and TPMS

navigation, etc. This may interfere with

Malfunction Indicator will go off within a

normal operation of the TPMS.

few minutes of driving.

8-12

If the indicators do not extinguish after a

WARNING

few minutes, please visit an authorized

HYUNDAI dealer.

Tampering with, modifying, or disabling

the Tire Pressure Monitoring System

Each wheel is equipped with a tire

(TPMS) components may interfere

pressure sensor mounted inside the tire

with the system’s ability to warn the

behind the valve stem (except for the

driver of low tire pressure conditions

spare tire). You must use TPMS specific

and/or TPMS malfunctions. Tampering

wheels. It is recommended that you

with, modifying, or disabling the Tire

always have your tires serviced by an

Pressure Monitoring System (TPMS)

authorized HYUNDAI dealer.

components may void the warranty for

You may not be able to identify a tire

that portion of the vehicle.

with low pressure by simply looking at it.

Always use a good quality tire pressure

gauge to measure. Please note that a tire

Information

that is hot (from being driven) will have a

This device complies with Part 15 of the

higher pressure measurement than a tire

FCC rules.

that is cold.

Operation is subject to the following three

A cold tire means the vehicle has been

conditions:

sitting for 3 hours and driven for less

1. This device may not cause harmful

than 1 mile (1.6 km) in that 3 hour period.

interference.

Allow the tire to cool before measuring

2. This device must accept any

the inflation pressure. Always be sure

interference received, including

the tire is cold before inflating to the

interference that may cause undesired

recommended pressure.

operation.

3. Changes or modifications not expressly

WARNING

approved by the party responsible

ś The TPMS cannot alert you to severe

for compliance could void the user’s

and sudden tire damage caused by

authority to operate the equipment.

external factors such as nails or road

debris.

ś If you feel any vehicle instability,

immediately take your foot off

the accelerator, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

8-13

Emergency situations

,) <28 +$9( $ )/$7 7,5( ǣ:,7+ 63$5

( 7,5( ,) (48,33('Ǥ

Jacking instructions

WARNING

The jack is provided for emergency tire

Changing a tire can be dangerous.

changing only.

Follow the instructions in this section

when changing a tire to reduce the risk

To prevent the jack from “rattling” while

of serious injury or death.

the vehicle is in motion, store it properly.

Follow jacking instructions to reduce the

possibility of personal injury.

CAUTION

Be careful as you use the jack handle to

Removing and storing the spare

stay clear of the flat end. The flat end

tire

has sharp edges that could cause cuts.

Your spare tire is stored underneath your

vehicle, directly below the cargo area.

Jack and tools

OTMA080001

1. Jack

OTM080029L

2. Wheel lug wrench

To remove the spare tire:

1. Open the liftgate.

The jack and wheel lug wrench are stored

2. Find the plastic hex bolt cover and

in the luggage compartment under the

remove the cover with a coin or flat -

luggage box cover.

blade screwdriver.

The jack is provided for emergency tire

changing only.

8-14

OTM080030L

OTM080031L

3. Connect the socket and wheel lug nut

6. Draw out the retainer guide (1) the

wrench (A).

through the center hole of spare tire.

4. Loosen the bolt enough to lower the

spare tire.

To store the spare tire:

Turn the wrench counterclockwise

1. Lay the tire on the ground with the

until the spare tire reaches the

valve stem facing up.

ground.

2. Place the wheel under the vehicle and

5. After the spare tire reaches the

install the retainer guide and chain

ground, continue to turn the wrench

through the wheel center.

counterclockwise, and draw the spare

3. Turn the wrench clockwise until it

tire outside. Never rotate the wrench

clicks.

excessively, otherwise the spare tire

carrier may be damaged.

CAUTION

Ensure the spare tire retainer guide is

properly aligned with the center of the

spare tire to prevent the spare tire from

“rattling”.

Otherwise, it may cause the spare tire

to fall off the carrier and lead to an

accident.

8-15

Emergency situations

Changing tires

Follow these steps to change your

vehicle’s tire:

1. Park on a level, firm surface.

WARNING

2. Shift the gear to P (Park), apply the

A vehicle can slip or roll off of a jack

parking brake, and press the Engine

causing serious injury or death to you or

Start/Stop button to the OFF position.

those nearby. Take the following safety

3. Press the hazard warning flasher

precautions:

button.

Do not get under a vehicle that is

4. Remove the wheel lug wrench, jack,

supported by a jack.

jack handle, and spare tire from the

NEVER attempt to change a tire in

vehicle.

the lane of traffic. ALWAYS move the

vehicle completely off the road on

level, firm ground away from traffic

before trying to change a tire. If you

cannot find a level, firm place off

the road, call a towing service for

assistance.

Be sure to use the jack provided with

the vehicle.

ALWAYS place the jack on the

designated jacking positions on the

vehicle and NEVER on the bumpers

or any other part of the vehicle for

OTM080032L

[A] : Block

jacking support.

Do not start or run the engine while

5. Block both the front and rear of the

the vehicle is on the jack.

tire diagonally opposite of the tire you

are changing.

Do not allow anyone to remain in the

vehicle while it is on the jack.

Keep children away from the road

and the vehicle.

8-16

OTM080033L

OTM080035L

6. Loosen the wheel bolts

8. Insert the jack handle into the jack

counterclockwise one turn each in

and turn it clockwise, raising the

the order shown above, but do not

vehicle until the tire clears the ground.

remove any wheel bolts until the tire

Make sure the vehicle is stable on the

has been raised off of the ground.

jack.

9. Loosen a wheel bolt with the wheel

lug wrench and remove it with your

fingers.

Slide the wheel off the studs and lay

it flat so it cannot roll away. To put the

wheel on the hub, pick up the spare

tire, line up the holes with the studs

and slide the wheel onto them. If this

is difficult, tip the wheel slightly and

get the top hole in the wheel lined

up with the top stud. Then jiggle the

wheel back and forth until the wheel

OTM080034L

can be slid over the other studs.

Place the jack at the designated

jacking position under the frame

closest to the tire you are changing.

The jacking positions are plates

welded to the frame with two

notches. Never jack at any other

position or part of the vehicle. Doing

so may damage the side seal molding

or other parts of the vehicle.

8-17

Emergency situations

WARNING

Wheels may have sharp edges. Handle

them carefully to avoid possible severe

injury. Before putting the wheel into

place, be sure that there is nothing on

the hub or wheel (such as mud, tar,

gravel, etc.) that interferes with the

wheel from fitting solidly against the

hub.

If there is, remove it. If there is not

good contact on the mounting surface

OTM080045L

between the wheel and hub, the wheel

12. Use the wheel lug wrench to tighten

nuts could come loose and cause the

the wheel bolts in the order shown.

loss of a wheel. Loss of a wheel may

Double-check each wheel bolts until

result in loss of control of the vehicle.

they are tight. After changing tires,

This may cause serious injury or death.

have an authorized HYUNDAI dealer

tighten the wheel bolts to their proper

10. To reinstall the wheel, hold it on the

torque as soon as possible. The wheel

studs, put the wheel nuts on the studs

bolt should be tightened to 79~94

and tighten them finger tight. The

lbf.ft (11~13 kgf.m).

nuts should be installed with their

tapered small diameter ends directed

If you have a tire gauge, check the

inward. Jiggle the tire to be sure it is

tire pressure (see “Tires and Wheels”

completely seated, then tighten the

section in chapter 2 for tire pressure

nuts as much as possible with your

instructions.). If the pressure is lower or

fingers again.

higher than recommended, drive slowly

11. Lower the vehicle to the ground

to the nearest service station and adjust

by turning the wheel lug wrench

it to the recommended pressure. Always

counterclockwise.

reinstall the valve cap after checking

or adjusting tire pressure. If the cap

is not replaced, air may leak from the

tire. If you lose a valve cap, buy another

and install it as soon as possible. After

changing tires, secure the flat tire and

return the jack and tools to their proper

storage locations.

8-18

NOTICE

Use of compact spare tires

(if equipped)

Check the tire pressure as soon as

possible after installing a spare tire.

Compact spare tires are designed for

Adjust it to the recommended pressure.

emergency use only. Drive carefully on

the compact spare tire and always follow

the safety precautions.

CAUTION

Your vehicle has metric threads on the

WARNING

studs and wheel bolts. Make certain

during tire changing that the same bolts

To prevent compact spare tire failure

that were removed are reinstalled. If

and loss of control possibly resulting in

you have to replace your wheel bolts

an accident:

make sure they have metric threads to

ś Use the compact spare tire only in an

avoid damaging the studs and ensure

emergency.

the wheel is properly secured to the

ś NEVER operate your vehicle over 50

hub. Consult an authorized HYUNDAI

mph (80 km/h).

dealer for assistance.

ś Do not exceed the vehicle’s

maximum load rating or the load

WARNING

carrying capacity shown on the

Wheel studs

sidewall of the compact spare tire.

ś Do not use the compact spare tire

If the studs are damaged, they may lose

continuously. Repair or replace the

their ability to retain the wheel. This

original tire as soon as possible to

could lead to the loss of the wheel and a

avoid failure of the compact spare

collision resulting in serious injuries.

tire.

If any of the equipment such as the jack,

wheel bolts, studs, or other equipment

is damaged or in poor condition, do not

attempt to change the tire and call for

assistance.

8-19

Emergency situations

When driving with the compact spare tire

Information

mounted to your vehicle:

When the original tire and wheel are

Check the tire pressure after installing

repaired and reinstalled on the vehicle, the

the compact spare tire. The compact

wheel bolt torque must be set correctly.

spare tire should be inflated to 420

The correct wheel bolt tightening torque is

kPa (60 psi).

79~94 lbf.ft (11~13 kgf.m).

Do not take this vehicle through

an automatic car wash while the

compact spare tire is installed.

NOTICE

Do not use the compact spare tire on

To prevent damaging the compact

any other vehicle because this tire

spare tire and your vehicle:

has been designed especially for your

Drive slowly enough for the road

vehicle.

conditions to avoid all hazards, such

The compact spare tire’s tread life is

as a potholes or debris.

shorter than a regular tire. Inspect

Avoid driving over obstacles. The

your compact spare tire regularly and

compact spare tire diameter is

replace worn compact spare tires with

smaller than the diameter of a

the same size and design, mounted on

conventional tire and reduces the

the same wheel.

ground clearance approximately 25

Do not use more than one compact

mm (1 inch).

spare tire at a time.

Do not use tire chains on the

Do not tow a trailer while the compact

compact spare tire. Because of the

spare tire is installed.

smaller size, a tire chain will not fit

properly.

Do not use the compact spare tire

on any other wheels, nor should

standard tires, snow tires, wheel

covers or trim rings be used with the

compact spare wheel.

Do not suddenly accelerate or

decelerate 0

25 mph (0

40 km/h)

in any driving mode. It may cause

leakage of transfer oil.

8-20

Jack label

OOS067043

The actual Jack label in the vehicle may differ from the illustration.

For more detailed specifications, refer to the label attached to the jack.

1. Model Name

2. Maximum allowable load

3. When using the jack, set your parking brake.

4. When using the jack, stop the engine.

5. Do not get under a vehicle that is supported by a jack.

6. The designated locations under the frame

7. When supporting the vehicle, the base plate of jack must be vertical under the

lifting point.

8. Shift into Reverse gear on vehicles with manual transmission or shift the gear to the

P position on vehicles with automatic transmission.

9. The jack should be used on firm level ground.

10. Jack manufacture

11. Production date

12. Representative company and address

8-21

Emergency situations

,) <28 +$9( $ )/$7 7,5( ǣ:,7+ 7,5( 02%,/,7< .,7

,) (48,33('Ǥ

Introduction

With the Tire Mobility Kit you stay mobile

even after experiencing a tire puncture.

The compressor and sealing compound

system effectively and comfortably seals

most punctures in a passenger car tire

caused by nails or similar objects and

reinflates the tire.

After you ensure that the tire is properly

sealed you can drive cautiously on the

OTM080007

tire (distance up to 120 miles (200 km))

at a max. speed of 50 mph (80 km/h) in

For safe operation, carefully read and

order to reach a service station or tire

follow the instructions in this manual

dealer for the tire replacement.

before use.

It is possible that some tires, especially

(1) Compressor

with larger punctures or damage to the

(2) Sealant bottle

sidewall, cannot be sealed completely.

The Tire Mobility Kit is a temporary fix to

Air pressure loss in the tire may adversely

the tire and the tire should be inspected

affect tire performance.

by an authorized HYUNDAI dealer as

For this reason, you should avoid abrupt

soon as possible.

steering or other driving maneuvers,

especially if the vehicle is heavily loaded

CAUTION

or if a trailer is in use.

When two or more tires are flat, do not

The Tire Mobility Kit is not designed

use the tire mobility kit because the

or intended as a permanent tire repair

sealant provided with the Tire Mobility

method and is to be used for one tire

Kit must be used for only one flat tire.

only.

This instruction shows you step by step

how to temporarily seal the puncture

WARNING

simply and reliably.

Do not use the Tire Mobility Kit to repair

Read the section “Notes on the safe use

punctures in the tire walls. This can

of the Tire Mobility Kit”.

result in an accident due to tire failure.

WARNING

Have your tire repaired as soon as

possible. The tire may lose air pressure

at any time after inflating with the Tire

Mobility Kit.

8-22

Do not use the Tire Mobility Kit if a tire

WARNING

is severely damaged by driving run flat

Do not use the TMK if a tire is severely

or with insufficient air pressure.

damaged by driving run flat or with

Do not remove any foreign objects

insufficient air pressure.

such as nails or screws that have

Only punctured areas located within the

penetrated the tire.

tread region of the tire can be sealed

Provided the car is outdoors, leave the

using the TMK.

engine running. Otherwise operating

the compressor may eventually drain

Notes on the safe use of the Tire

the car battery.

Mobility Kit

Never leave the Tire Mobility Kit

Park your car at the side of the road

unattended while it is being used.

so that you can work with the Tire

Do not leave the compressor running

Mobility Kit away from moving traffic.

for more than 10 minutes at a time or

To be sure your vehicle will not move,

it may overheat.

even when you’re on fairly level

Do not use the Tire Mobility Kit if the

ground, always set your parking brake.

ambient temperature is below -22°F

Only use the Tire Mobility Kit for

(30°C).

sealing/inflation passenger car tires.

In case of skin contact with the

Only punctured areas located within

sealant, wash the area thoroughly

the tread region of the tire can be

with plenty of water. If the irritation

sealed using the tire mobility kit.

persists, seek medical attention.

Do not use on motorcycles, bicycles

In case of eye contact with the

or any other type of tires.

sealant, flush your eyes for at least 15

When the tire and wheel are

minutes. If the irritation persists, seek

damaged, do not use Tire Mobility Kit

medical attention.

for your safety.

In case of swallowing the sealant,

Use of the Tire Mobility Kit may not be

rinse the mouth and drink plenty of

effective for tire damage larger than

water. However, never give anything

approximately 4 mm (16 inch).

to an unconscious person and seek

Please contact the nearest HYUNDAI

medical attention immediately.

dealer if the tire cannot be made

Long time exposure to the sealant

roadworthy with the Tire Mobility Kit.

may cause damage to bodily tissue

such as kidney, etc.

8-23

WARNING

Do not use the tire sealant after the

sealant has expired (for example, past

the expiration date on the sealant

container). This can increase the risk of

tire failure.

WARNING

ś Keep out of reach of children.

ś Avoid contact with eyes.

OTM080025

ś Do not swallow.

1. Shake the sealant bottle (2).

Using the Tire Mobility Kit

WARNING

OTM080023

2. Remove the cover (A) of the sealant

bottle (2) and compressor (6).

OTM080008

Detach the speed restriction label (1)

from the sealant bottle (2), and place

it in a highly visible place inside the

vehicle such as on the steering wheel to

remind the driver not to drive too fast.

OTM080024

3. Connect the sealant bottle (2) and

compressor (6).

4. Make sure that the valve (9) for

reducing tire inflation pressure is

closed.

8-25

Emergency situations

9. With the engine running, switch

on the compressor by pressing [I]

and let it run for approximately 5~7

minutes to fill the sealant up to proper

pressure. (Refer to “Tire and Wheels”

section in chapter 2). The inflation

pressure of the tire after filling is

unimportant and will be checked/

corrected later.

Be careful not to overinflate the tire

and stay away from the tire when

OTM080009

filling it.

5. Unscrew the valve cap from the

valve of the defective and screw

CAUTION

the connection hose (3) of the

compressor and tire.

Do not attempt to drive your vehicle if

the tire pressure is below 200 kpa (29

psi). This could result in an accident due

NOTICE

to sudden tire failure.

Securely install the sealant filling hose

to the valve. If not, sealant may flow

10. Switch off the compressor.

backward, possibly clogging the filling

11. Detach the hoses from the sealant

hose.

bottle connector and from the tire

valve.

6. Make sure the compressor turns off.

Return the Tire Mobility Kit to its storage

location in the vehicle.

OTM080010

7. Connect the cable and connector (4)

to the power outlet in the vehicle.

8. Start the vehicle.

8-26

13. After driving approximately 4~6 miles

WARNING

(7~10 km or about 10 minutes), stop at

Do not leave your vehicle running in

a safe location.

a poorly ventilated area for extended

periods of time. Carbon monoxide

poisoning and suffocation can occur.

Distributing the sealant

OTM080009

14. Connect the connection hose (3) of

the compressor and tire into the tire

valve.

OOSH079022L

15. Connect cables (4) to the battery.

12. Immediately drive approximately 4~6

16. Adjust the tire inflation pressure to the

miles (7~10 km or about 10 minutes)

recommended tire inflation.

to evenly distribute the sealant in the

With the engine running, proceed as

tire.

follows.

Do not exceed a speed of 50 mph (80

- To increase the inflation pressure:

km/h). If possible, do not fall below a

speed of 12 mph (20 km/h).

Switch on the compressor.

To check the current inflation

While driving, if you experience any

pressure setting, briefly switch off

unusual vibration, ride disturbance or

the compressor.

noise, reduce your speed and drive with

caution until you can safely pull off of the

- To reduce the inflation pressure:

side of the road.

Adjust the valve (9) for reducing

Call for road side service or towing.

tire inflation pressure.

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

will overheat and may be damaged.

8-27

Emergency situations

How to adjust tire pressure

Information

1. After driving approximately 4~6 miles

The pressure gauge may show higher than

(7~10 km or about 10 minutes), stop at

actual reading when the compressor is

a safe location.

running. To get an accurate tire pressure,

the compressor needs to be turned off.

CAUTION

If the inflation pressure is not

maintained, drive the vehicle a second

time, refer to Distributing the sealant.

Then repeat steps 1 to 16.

Use of the TMK may be ineffectual for

tire damage larger than approximately

4 mm (0.16 in).

Contact an authorized HYUNDAI dealer

OTM080009

if the tire cannot be made roadworthy

2. Connect the connection hose (3) of

with the Tire Mobility Kit.

the compressor and tire into the tire

valve.

WARNING

3. Connect cables (4) to the battery.

The tire inflation pressure must be

4. Adjust the tire inflation pressure to the

recommended tire inflation.

inflated to the proper pressure (Refer to

“Tire and Wheels” section in chapter 2).

With the engine running, proceed as

If it is not, do not continue driving.

follows.

Call for road side service or towing.

- To increase the inflation pressure:

Switch on the compressor.

To check the current inflation

CAUTION

pressure setting, briefly switch off

Tire pressure sensor

the compressor.

The sealant on the tire pressure sensor

- To reduce the inflation pressure:

and wheel should be removed when

Adjust the valve (9) for reducing

you replace the tire with a new one and

tire inflation pressure.

inspect the tire pressure sensors. We

recommend that you get this done at an

authorized dealer.

NOTICE

Do not let the compressor run for more

than 10 minutes, otherwise the device

Information

will overheat and may be damaged.

When reinstalling the repaired or replaced

tire and wheel on the vehicle, tighten the

wheel bolt to 79~94 lbf.ft (11~13 kgf.m).

8-28

TOWING

Towing service

Information

The pressure gauge may show higher than

actual reading when the compressor is

running. To get an accurate tire pressure,

the compressor needs to be turned off.

WARNING

The tire inflation pressure must be

inflated to the proper pressure (Refer to

“Tire and Wheels” section in chapter 2).

If it is not, do not continue driving.

Call for road side service or towing.

CAUTION

Tire pressure sensor

The sealant on the tire pressure sensor

OTM080011L

and wheel should be removed when

[A] : Dollies

you replace the tire with a new one and

If emergency towing is necessary,

inspect the tire pressure sensors. We

we recommend having it done by

recommend that you get this done at an

an authorized HYUNDAI dealer or a

authorized dealer.

commercial tow-truck service.

Proper lifting and towing procedures

Information

are necessary to prevent damage to

When reinstalling the repaired or replaced

the vehicle. The use of wheel dollies or

tire and wheel on the vehicle, tighten the

flatbed is recommended.

wheel bolt to 79~94 lbf.ft (11~13 kgf.m).

For 2WD vehicles, it is acceptable to tow

the vehicle with the rear wheels on the

ground (without dollies) and the front

wheels off the ground.

8-29

Emergency situations

If any of the loaded wheels or suspension

When towing your vehicle in an

components are damaged or the vehicle

emergency without wheel dollies:

is being towed with the front wheels on

ś Vehicle without EPB

the ground, use a towing dolly under the

1. Place the ignition switch in the ACC

front wheels.

position.

When being towed by a commercial tow

2. Place the shift button in N (Neutral).

truck and wheel dollies are not used,

the front of the vehicle should always be

3. Release the parking brake.

lifted, not the rear.

For 4WD vehicles, it must be towed

ś Vehicle with EPB

with a wheel lift and dollies or flatbed

1. Release EPB before turning off the

equipment with all the wheels off the

engine.

ground.

2. Place the ignition switch to the OFF

position.

NOTICE

3. Change the gear to N (Neutral) while

Do not lift the vehicle by the tow fitting

pressing the brake pedal.

or body and chassis parts. Otherwise

4. Place the ignition switch to the ACC

the vehicle may be damaged.

position.

CAUTION

ś Do not tow with sling-type

Failure to shift the gear to N (Neutral)

equipment. Use wheel lift or flatbed

may cause internal damage to the

equipment.

transmission.

OTM080013

ś Do not tow the vehicle with the front

wheels on the ground as this may

cause damage to the vehicle.

OTM080014

8-30

9.Maintenance

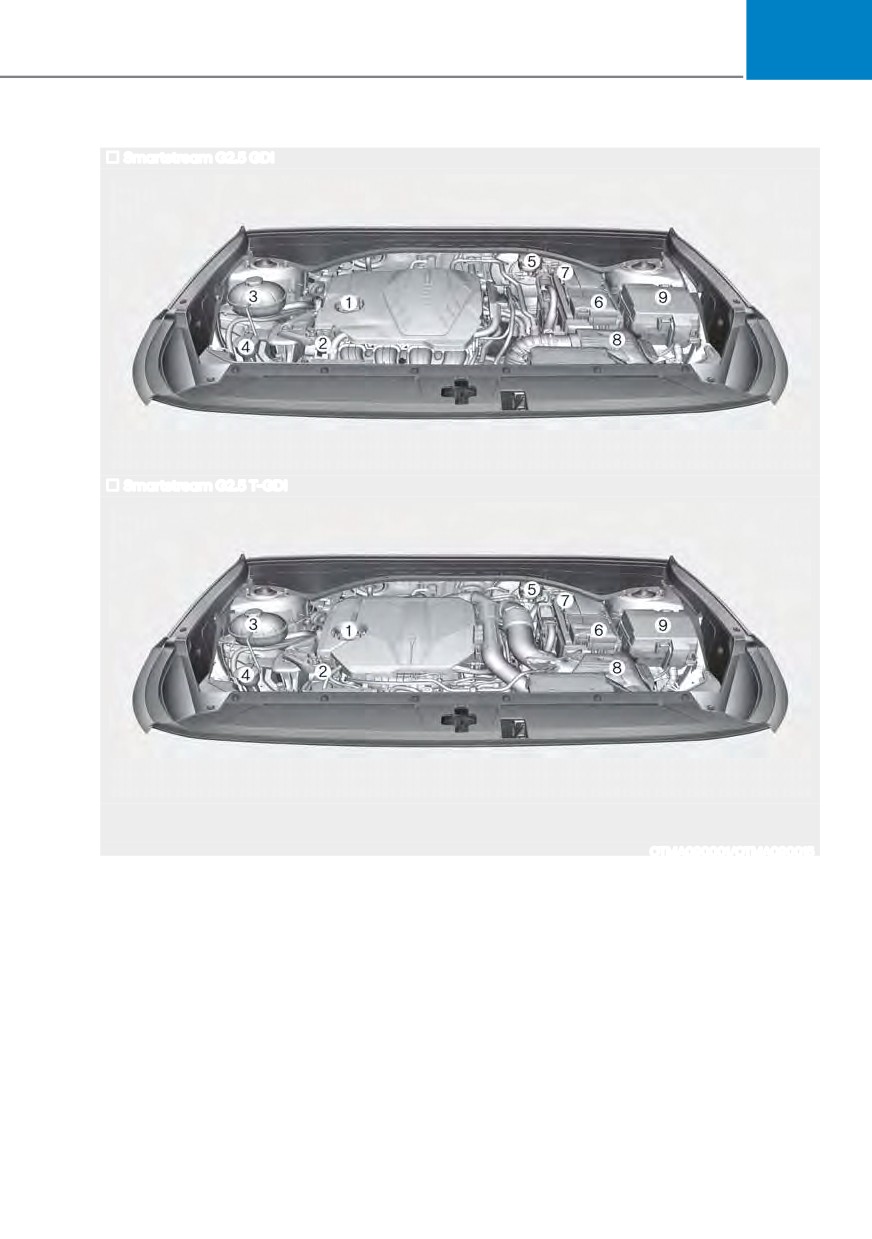

Engine compartment

9-3

Maintenance services

9-4

Owner’s responsibility

9-4

Owner maintenance precautions

9-4

Owner maintenance

9-5

Owner maintenance schedule

9-6

Scheduled maintenance services

9-7

Normal maintenance schedule

9-8

Maintenance under severe usage conditions

9-12

Explanation of scheduled maintenance items

9-14

Fuel filter (for gasoline engine)

9-14

Parking brake

9-15

Engine oil

9-16

Checking the engine oil level

9-16

Checking the engine oil and filter

9-18

Engine coolant /Liquid-cooled intercooler coolant

9-19

Checking the coolant level

9-19

Changing coolant

9-21

Brake fluid

9-22

Checking the brake fluid level

9-22

Washer fluid

9-23

Checking the washer fluid level

9-23

Air cleaner

9-24

Filter replacement

9-24

Cabin air filter

9-25

Filter inspection

9-25

Filter replacement

9-25

Wiper blades

9-26

Blade inspection

9-26

Blade replacement

9-26

Battery

9-29

For best battery service

9-30

Battery capacity label

9-31

Battery recharging

9-31

Reset items

9-32

Tires and wheels

9-33

Tire care

9-33

Recommended cold tire inflation pressures

9-33

Check tire inflation pressure

9-34

Tire rotation

9-35

Wheel alignment and tire balance

9-36

Tire replacement

9-36

Wheel replacement

9-37

Tire traction

9-37

Tire maintenance

9-37

Tire sidewall labeling

9-38

Tire Terminology and Definitions Air Pressure

9-41

All Season Tires

9-44

Snow Tires

9-44

Radial-Ply Tires

9-44

Low aspect ratio tires

9-45

Fuses

9-47

Instrument panel fuse replacement

9-48

Engine compartment panel fuse replacement

9-49

Fuse/relay panel description

9-50

Light bulbs

9-57

Headlight, position lamp, turn signal lamp, Daytime Running Light (DRL)

replacement

9-58

Side repeater lamp replacement

9-60

Rear combination lamp replacement

9-60

High mounted stop lamp replacement

9-63

License plate lamp replacement

9-64

Interior light replacement

9-64

Appearance care

9-66

Exterior care

9-66

Interior care

9-72

Emission control system

9-75

Gasoline Particulate Filter (GPF)

9-77

California perchlorate notice

9-78

Maintenance

MAINTENANCE SERVICES

You should exercise the utmost care

Owner maintenance precautions

to prevent damage to your vehicle and

Inadequate, incomplete or insufficient

injury to yourself whenever performing

servicing may result in operational

any maintenance or inspection

problems with your vehicle that could

procedures.

lead to vehicle damage, an accident, or

Have your vehicle maintained and

personal injury. This chapter provides

repaired by an authorized HYUNDAI

instructions only for the maintenance

dealer. An authorized HYUNDAI dealer

items that are easy to perform.

meets HYUNDAI’s high service quality

Your vehicle should not be modified

standards and receives technical support

in any way. Such modifications may

from HYUNDAI in order to provide you

adversely affect the performance, safety

with a high level of service satisfaction.

or durability of your vehicle and may, in

addition, violate conditions of the limited

Owner’s responsibility

warranties covering the vehicle.

Maintenance service and record

retention are the owner’s responsibility.

NOTICE

You should retain documents that show

Improper owner maintenance during

proper maintenance has been performed

the warranty period may affect

on your vehicle in accordance with

warranty coverage. For details, read the

the scheduled maintenance service

separate Owner’s Handbook & Warranty

charts shown on the following pages.

Information booklet provided with

You need this information to establish

the vehicle. If you’re unsure about any

your compliance with the servicing

servicing or maintenance procedure,

and maintenance requirements of your

have the system be serviced by an

vehicle warranties.

authorized HYUNDAI dealer.

Detailed warranty information is

provided in your Owner’s Handbook &

Warranty Information booklet.

Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

9-4

OWNER MAINTENANCE

The following lists are vehicle checks and

WARNING

inspections that should be performed

Performing maintenance work on a

by the owner or an authorized HYUNDAI

vehicle can be dangerous. If you lack

dealer at the frequencies indicated to

sufficient knowledge and experience

help ensure safe, dependable operation

or the proper tools and equipment

of your vehicle.

to do the work, have it done by an

Any adverse conditions should be

authorized HYUNDAI dealer. ALWAYS

brought to the attention of your dealer as

follow these precautions for performing

soon as possible.

maintenance work:

These Owner Maintenance vehicle

ś Park your vehicle on level ground.

checks are generally not covered by

Shift the vehicle to P (Park), apply

warranties and you may be charged for

the parking brake, and press the

labor, parts and lubricants used.

Engine Start/Stop button to the OFF

position.

ś Block the tires (front and back) to

prevent the vehicle from moving.

Remove loose clothing or jewelry

that can become entangled in

moving parts.

ś If you must run the engine during

maintenance, do so out doors or in

an area with plenty of ventilation.

ś Keep flames, sparks, or smoking

materials away from the battery and

fuel-related parts.

WARNING

Touching metal parts

Do not touch metal parts (including

strut bars) while the engine is operating

or hot. Doing so could result in serious

personal injury. Turn the engine off and

wait until the metal parts cool down

to perform maintenance work on the

vehicle.

9-5

Maintenance

Owner maintenance schedule

At least monthly:

When you stop for fuel:

ś Check coolant level in the engine

ś Check the coolant level in the engine

coolant reservoir.

coolant reservoir or the water-cooled

ś Check the operation of all exterior

intercooler coolant reservoir.

lights, including the stoplights, turn

signals and hazard warning flashers.

ś Check the windshield washer fluid

level.

ś Check the inflation pressures of all

tires including the spare for tires that

ś Check for low or under-inflated tires.

are worn, show uneven wear, or are

damaged.

WARNING

ś Check for loose wheel lug nuts.

Be careful when checking your coolant

level when the engine is hot. This may

At least twice a year: (for example,

result in coolant being blown out of the

every Spring and Autumn)

opening and cause serious burns and

ś Check radiator, heater and air

other injuries.

conditioning hoses for leaks or

damage.

While operating your vehicle:

ś Check windshield washer spray and

Note any changes in the sound of the

wiper operation. Clean wiper blades

exhaust or any smell of exhaust fumes

with a clean cloth dampened with

in the vehicle.

washer fluid.

Check for vibrations in the steering

ś Check headlight alignment.

wheel. Notice if there is any increased

ś Check muffler, exhaust pipes, shields

steering effort or looseness in the

and clamps.

steering wheel, or change in its

straight-ahead position.

ś Check the seat belts for wear and

function.

Notice if your vehicle constantly turns

slightly or “pulls” to one side when

At least once a year:

traveling on smooth, level road.

ś Clean body and door drain holes.

When stopping, listen and check for

unusual sounds, pulling to one side,

ś Lubricate door hinges and hood

increased brake pedal travel or “hard-

hinges.

to-push” brake pedal.

ś Lubricate door and hood locks and

If any slipping or changes in the

latches.

operation of your transmission occurs,

ś Lubricate door rubber weather strips.

check the transmission fluid level.

ś Check the air conditioning system.

Check the automatic transmission P

ś Inspect and lubricate automatic

(Park) function.

transmission linkage and controls.

Check the parking brake.

ś Clean the battery and terminals.

Check for fluid leaks under your

ś Check the brake fluid level.

vehicle (water dripping from the air

conditioning system during or after

use is normal).

9-6

SCHEDULED MAINTENANCE SERVICES

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of

the following conditions apply. If any of the following conditions apply, you must follow

the Maintenance Under Severe Usage Conditions.

ś Repeated driving short distance of less than 5 miles (8 km) in normal temperature or

less than 10 miles (16 km) in freezing temperature

ś Extensive engine idling or low speed driving for long distances

ś Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

ś Driving in areas using salt or other corrosive materials or in very cold weather

ś Driving in heavy dust conditions

ś Driving in heavy traffic area

ś Driving on uphill, downhill, or mountain roads repeatedly

ś Towing a trailer or using a camper, or driving with loads on the roof

ś Driving as a patrol car, taxi, other commercial use of vehicle towing

ś Frequently driving under high speed or rapid acceleration/deceleration

ś Frequently driving in stop-and-go conditions

ś Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower

grade spec, etc.)

If your vehicle is operated under the above conditions, you should inspect, replace or

refill more frequently than the following Normal Maintenance Schedule. After the periods

or distance shown in the chart, continue to follow the prescribed maintenance intervals.

Information

After driving more than 10 years or 100,000 miles, use severe maintenance schedule.

Information

ś As it is normal for engine oil to be consumed during driving, the engine oil level should

be checked on regular basis.

ś The engine oil change interval for normal operating conditions is based on the use of the

recommended engine specification. If the recommended engine oil specification is not

used, then replace the engine oil according to the maintenance schedule under severe

operating conditions.

ś The vehicle may be equipped with the Oil Life Management System that predicts engine

oil life based on the driver’s driving history and alerts the driver to change engine oil.

- If the deterioration of the engine oil increases depending on the driver’s driving

severity, the remaining oil life alert appears on the instrument cluster before the

normal engine oil replacement interval. Have the engine oil and filter changed by an

authorized HYUNDAI dealer.

- Oil Life Management System works when the recommended engine oil is used.

So, if recommended engine oil is not used, replace the engine oil according to the

maintenance schedule under severe usage conditions. Also, check the amount of engine

oil regularly as this system assumes that the engine oil is being filled normally.

- Always reset the remaining engine oil life whenever the engine oil is changed.

Otherwise, The indication of remaining Oil life in the Oil Life Management System

may not be accurate. To reset the Oil Change Reminder, select ‘RESET’ from the

infotainment system screen. Then, select ‘Yes’ when the message “Changed engine oil?

Press [Yes] to reset the oil life.” appears on the screen.

- If there is no alert until the maximum maintenance interval, have the vehicle checked

by an authorized HYUNDAI dealer.

9-7

Normal maintenance schedule

Number of months or driving distance, whichever comes first

MAINTENANCE

INTERVALS

Months

108

120

132

144

156

MAINTENANCE

Miles×1,000

104

ITEM

Km×1,000

104

117

130

143

156

169

Engine oil and engine oil filter *1 *2

At first, inspect at 48,000 miles (78,000 km) or 72 months.

Drive belts *3

After that, inspect every 8,000 miles (13,000 km) or 12 months

Fuel additives *4

Add every 8,000 miles (13,000 km) or 12 months

I : Inspect and if necessary, adjust, correct, clean or replace.

R : Replace or change.

*1 : Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter must

be replaced at every 5,000 miles (8,000 km) or 6 months as indicated for severe maintenance condition.

*2 : Check the engine oil level and leak every 350 miles (500km) or before starting a long trip.

*3 : The drive belt should be replaced when cracks occur or tension is reduced excessively.

*4 : If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your

authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.

Normal maintenance schedule

Number of months or driving distance, whichever comes first

MAINTENANCE

INTERVALS

Months

108

120

132

144

156

MAINTENANCE

Miles×1,000

104

ITEM

Km×1,000

104

117

130

143

156

169

Air cleaner filter

TGDI

Spark plugs *5

EXCEPT TGDI

Replace every 96,000 miles (156,000 km)

Vapor hose, fuel filler cap and fuel tank

Fuel tank air filter *⁶

Fuel lines, hoses and connections

I : Inspect and if necessary, adjust, correct, clean or replace.

R : Replace or change.

*5 : For your convenience, it can be replaced prior to it’s interval when you do maintenance of other items.

*6 : The fuel filter is considered to be maintenance free but periodic inspection is recommended for this maintenance schedule

depends on fuel quality. If there are some important matters like fuel flow restriction, surging, loss of power, hard starting problem

etc, replace the fuel filter immediately regardless of maintenance schedule. Consult an authorized HYUNDAI dealer for details.

Normal maintenance schedule

Number of months or driving distance, whichever comes first

MAINTENANCE

INTERVALS

Months

108

120

132

144

156

MAINTENANCE

Miles×1,000

104

ITEM

Km×1,000

104

117

130

143

156

169

Inspect coolant level for leak every day

Cooling system

At first, inspect 40,000 miles (60,000 km) or 48 months.

After that, inspect every 20,000 miles (30,000 km) or 24 months

At first, replace at 120,000 miles (200,000 km) or 120 months.

Engine coolant

After that, replace every 24,000 miles (40,000 km) or 24 months

Battery condition

Brake lines, hoses and connections

Brake pedal

Parking brake (if equipped)

Inspect every 8,000 miles (13,000 km) or 12 months,

Brake fluid

Replace every 48,000 miles (78,000 km) or 48 months

I : Inspect and if necessary, adjust, correct, clean or replace.

R : Replace or change.

Normal maintenance schedule

Number of months or driving distance, whichever comes first

MAINTENANCE

INTERVALS

Months

108

120

132

144

156

MAINTENANCE

Miles×1,000

104

ITEM

Km×1,000

104

117

130

143

156

169

Disc brakes and pads

Steering gear rack, linkage and

TGDI

boots

EXCEPT TGDI

Driveshaft and boots

Rotate Tires (includes tread wear inspection

Rotate tires every 8,000 miles (13,000 km) or 12 months

and tire pressure check)

Suspension mounting bolts

Air conditioner refrigerant

Air conditioner compressor

Cabin air filter

Automatic transmission fluid

No check, No service required

Dual clutch transmission fluid

Exhaust pipe and muffler

Front (AWD) / rear differential oil *¹

Transfer case oil (AWD)

No check, No service required

Propeller shaft

I : Inspect and if necessary, adjust, correct, clean or replace.

R : Replace or change.

*1 : Front/rear differential oil should be changed anytime, front/rear differential have been submerged in water.

Hyundai Santa Fe (2023 year). Manual in english - page 18
