Hyundai H-1 / Grand Starex (2016 year). Instruction - part 9

Features of your vehicle

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)

Front climate control

■ Type A

1. Front temperature control button (knob)

2. Rear temperature control button (knob)

3. Front fan speed control knob

4. Rear fan speed control knob/

Rear climate control selection knob*

5. Front windshield defroster button

6. Rear window defroster button

7. Mode selection button

8. Air conditioning button*

9. Air intake control button

■ Type B

* : if equipped

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045250/OTQ045251

4 76

Features of your vehicle

■ Type C

1. Front temperature control button (knob)

2. Front fan speed control knob

3. Front windshield defroster button

4. Rear window defroster button

5. Mode selection button

6. Air intake control button

■ Type D

7. Rear fan speed control knob*

8. Rear temperature control* and

mode selection knob*

* : if equipped

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

Rear climate control (if equipped)

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045252/OTQ045253/OTQ047067

4 77

Features of your vehicle

Heating and air conditioning

1. Start the engine.

2. Set the mode to the desired position.

For improving the effectiveness of

heating and cooling;

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to the outside

(fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system (if equipped)

on.

OTQ045228

4 78

Features of your vehicle

Bi-Level (B, D, C, F)

Air flow is directed towards the face and

the floor.

Floor-Level (C, F, A, D)

Most of the air flow is directed to the

floor, with a small amount of the air being

OTQ045229

directed to the windshield and side win-

OTQ047071

dow defrosters.

Mode selection

Instrument panel vents

The mode selection buttons control the

The outlet vents can be opened or closed

direction of the air flow through the venti-

separately using the horizontal thumb-

lation system.

Floor/Defrost-Level (A, C, F, D)

wheel. To close the vent, rotate it left to

Air can be directed to the floor, dash-

the maximum position. To open the vent,

board outlets, or windshield.

Most of the air flow is directed to the floor

rotate it right to the desired position.

and the windshield with a small amount

Also, you can adjust the direction of air

directed to the side window defrosters.

delivery from these vents using the vent

control lever as shown.

Face-Level (B, D)

Air flow is directed toward the upper body

and face. Additionally, each outlet can be

controlled to direct the air discharged

from the outlet.

4 79

Features of your vehicle

■ Type A

■ Type B

To change the temperature (Type A, B) :

■ Type A, B

• Press the

(red) switch to increase

temperature.

• Press the

(blue) switch to decrease

temperature.

The temperature status will be displayed

at the above switch panel as a indicator.

To change the temperature (Type C, D) :

• Turn the knob to the right for warm and

OTQ045230

hot air or left for cooler air

OTQ045232

■ Type C, D

■ Type C, D

OTQ045236

OTQ045233

Temperature control

Air intake control

The temperature control button (knob)

The air intake control is used to select

allows you to control the temperature of

the outside (fresh) air position or recircu-

the airflow in the vehicle.

lated air position.

To change the air intake control position,

press the control button.

4 80

Features of your vehicle

Type A, B

Type C, D

Recirculated air position

Recirculated air position

WARNING

With the recirculated air

With the recirculated air

•

Continue using the climate con-

position selected, air from

position selected, air from

trol system in the recirculated air

the passenger compart-

the passenger compart-

position may allow humidity to

ment will be drawn through

ment will be drawn through

increase inside the vehicle which

the heating system and

the heating system and

may fog the glass and obscure

heated or cooled according

heated or cooled according

visibility.

to the function selected.

to the function selected.

•

Do not sleep in a vehicle with the

air conditioning or heating sys-

Outside (fresh) air position

Outside (fresh) air position

tem on. It may cause serious

harm or death due to a drop in the

With the outside (fresh) air

With the outside (fresh) air

oxygen level and/or body temper-

position selected, air enters

position selected, air enters

the vehicle from outside and

ature.

the vehicle from outside and

is heated or cooled accord-

•

Continue using the climate control

is heated or cooled accord-

ing to the function selected.

system in the recirculated air posi-

ing to the function selected.

tion can cause drowsiness or

sleepiness, and loss of vehicle

✽ NOTICE

control. Set the air intake control

Prolonged operation of the heater in the

to the outside (fresh) air position

recirculated air position

(without air

as much as possible while driving.

conditioning selected) may cause fogging

of the windshield and side windows and

the air within the passenger compart-

ment may become stale.

In addition, prolonged use of the air con-

ditioning with the recirculated air posi-

tion selected will result in excessively dry

air in the passenger compartment.

4 81

Features of your vehicle

■ Type A, B

OTQ045260

OTQ045234

OTQ045261

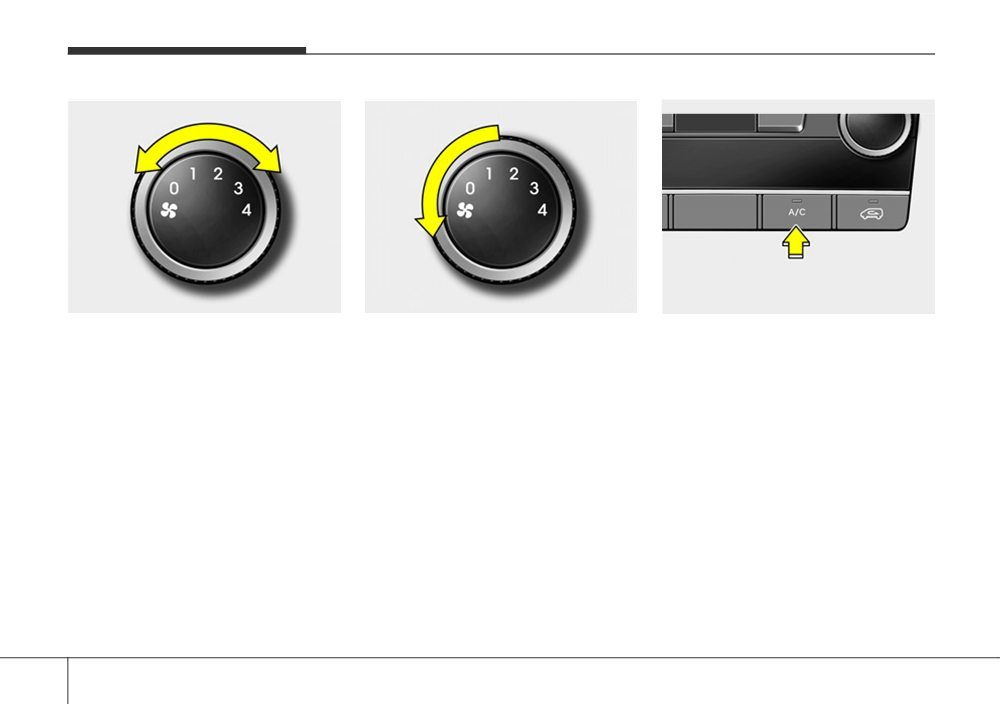

Fan speed control

To turn off the blowers

Air conditioning (if equipped)

The ignition switch must be in the ON

To turn off the blowers, turn the fan

Press the A/C button to turn the air con-

position for fan operation.

speed control knob to the "0" position.

ditioning system on (indicator light will

The fan speed control knob allows you to

illuminate). Press the button again to turn

control the fan speed of the air flowing

the air conditioning system off.

from the ventilation system. To change

the fan speed, turn the knob to the right

for higher speed or left for lower speed.

Setting the fan speed control knob to the

“0” position turns off the fan.

4 82

Features of your vehicle

In the front seat

OTQ045231

In the rear seat

OTQ047076

OTQ047077

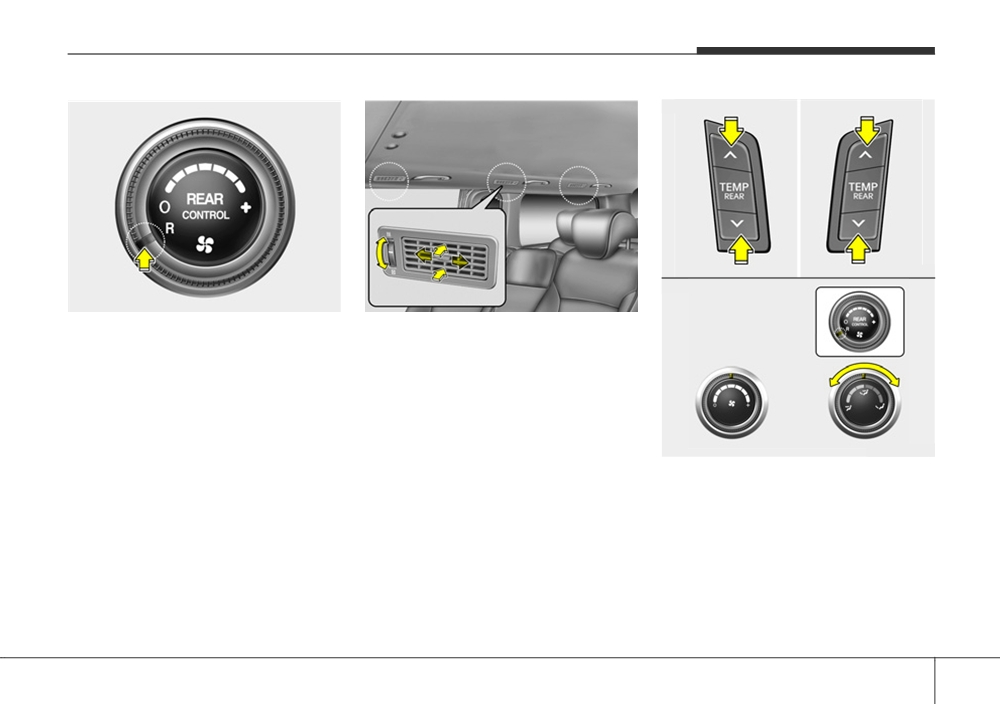

Rear heating and air conditioning

Rear vents

(Type A, B) (if equipped)

The vent can be adjusted by rotating the

thumb wheel.

The temperature, fan speed and mode of

the rear climate control system can be

controlled independently regardless of the

✽ NOTICE

front climate control system operation.

If all the vents are closed, it may cause

Turn the rear climate control selection

some noise. Always open

2 vents or

OTQ047079

knob to the “R” and set the rear tempera-

more.

ture, fan speed and mode to the desired

Rear temperature control

position.

To change the air temperature in the rear

However, the front climate control system

passenger compartment, turn the knob

should be operated together for rear air

to the right for warm and hot air or left for

conditioning;

cooler air.

1. Set the front fan speed to the desired

position.

2. Push the air conditioning button.

3. Set the rear temperature, fan speed

and mode to the desired position.

4 83

Features of your vehicle

The rear mode is selected automatically

In the front seat

System operation

by selecting the rear temperature control.

Ventilation

•

: Rear air blows from the upper

1. Set the mode to the

position.

vents on the rear side ceiling.

2. Set the air intake control to the outside

•

: Rear air blows from the upper

(fresh) air position.

vents on the rear side ceiling and

3. Set the temperature control to the

the lower vents on the floor.

desired position.

•

: Rear air blows from the lower

4. Set the fan speed control to the

vents on the floor.

desired speed.

OTQ047095

In the rear seat

Heating

1. Set the mode to the

position.

2. Set the air intake control to the outside

(fresh) air position.

3. Set the temperature control to the

desired position.

4. Set the fan speed control to the

desired speed.

5. If dehumidified heating is desired, turn

OTQ047080

the air conditioning system (if equipped)

D230203ATQ

on.

Rear fan speed control

• If the windshield fogs up, set the mode

To change the fan speed, turn the knob

to the

position.

to the right for higher speed or left for

lower speed.

To turn off the fan, turn the knob to the 0

position.

4 84

Features of your vehicle

Operation Tips

Air conditioning (if equipped)

✽ NOTICE

•

To keep dust or unpleasant fumes from

HYUNDAI Air Conditioning Systems are

•

When using the air conditioning sys-

entering the car through the ventilation

filled with environmentally friendly

tem, monitor the temperature gauge

system, temporarily set the air intake

R-134a refrigerant.

closely while driving up hills or in

control to the recirculated air position.

1. Start the engine. Push the air condi-

heavy traffic when outside tempera-

Be sure to return the control to the

tioning button.

tures are high. Air conditioning sys-

fresh air position when the irritation

2. Set the mode to the

position.

tem operation may cause engine over-

has passed to keep fresh air in the

heating. Continue to use the blower

3. Set the air intake control to the outside

vehicle. This will help keep the driver

air or recirculated air position.

fan but turn the air conditioning sys-

alert and comfortable.

tem off if the temperature gauge indi-

4. Adjust the fan speed control and tem-

•

Air for the heating/cooling system is

cates engine overheating.

perature control to maintain maximum

drawn in through the grilles just ahead

•

When opening the windows in humid

comfort.

of the windshield. Care should be

weather air conditioning may create

•

When maximum cooling is desired, set

taken that these are not blocked by

water droplets inside the vehicle.

the temperature control to the extreme

leaves, snow, ice or other obstructions.

Since excessive water droplets may

left position, then set the fan speed

•

To prevent interior fog on the wind-

cause damage to electrical equipment,

control to the highest speed.

shield, set the air intake control to the

air conditioning should only be run

fresh air position and fan speed to the

with the windows closed.

desired position, turn on the air condi-

tioning system, and adjust the temper-

Air conditioning system operation tips

ature control to desired temperature.

• If the vehicle has been parked in direct

sunlight during hot weather, open the

windows for a short time to let the hot

air inside the vehicle escape.

• To help reduce moisture inside of the

windows on rainy or humid days,

decrease the humidity inside the vehi-

cle by operating the air conditioning

system.

4 85

Features of your vehicle

✽ NOTICE

Checking the amount of air con-

Outside air

•

Replace the filter according to the

ditioner refrigerant and compres-

Maintenance Schedule.

sor lubricant

Recirculated

If the car is being driven in severe

When the amount of refrigerant is low,

air

conditions such as dusty or rough

the performance of the air conditioning is

roads, more frequent air conditioner

reduced. Overfilling also has a negative

filter inspections and changes are

impact on the air conditioning system.

required.

Therefore, we recommend that the sys-

•

When the air flow rate suddenly

tem be inspected by an authorized

Blower

decreases, we recommend that the

HYUNDAI dealer.

Heater core

system be checked by an authorized

Climate control

Evaporator

HYUNDAI dealer.

air filter

core

1LDA5047

✽ NOTICE

It is important when servicing the air

Climate control air filter

conditioning system that the correct

(if equipped)

type and amount of oil and refrigerant is

The climate control air filter installed

used. Otherwise, damage to the com-

behind the glove box filters the dust or

pressor and abnormal system operation

other pollutants that come into the vehi-

may occur.

cle from the outside through the heating

and air conditioning system. If dust or

other pollutants accumulate in the filter

WARNING

over a period of time, the air flow from the

air vents may decrease, resulting in

Improper service may cause seri-

moisture accumulation on the inside of

ous injury to the person performing

the windshield even when the outside

the service. For more detailed infor-

mation, we recommend that you

(fresh) air position is selected. If this hap-

contact an authorized HYUNDAI

pens, we recommend that the climate

control air filter be replaced by an author-

dealer.

ized HYUNDAI dealer.

4 87

Features of your vehicle

AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED)

Front climate control

■ Type A

1. Front temperature control button (knob)

2. Rear temperature control button (knob)

3. Front fan speed control knob

4. Rear fan speed control knob/

Rear climate control selection knob

5. Front windshield defroster button

6. Rear window defroster button

7. AUTO (automatic control) button

■ Type B

8. Front blower OFF button

9. Mode selection button

10. Air conditioning button

11. Air intake control button

12. A/C display

13. Rear fan speed control knob*

14. Rear temperature control* and mode

selection knob*

* : if equipped

Rear climate control (if equipped)

CAUTION

Operating the blower when the

ignition switch is in the ON posi-

tion could cause the battery to dis-

charge. Operate the blower when

the engine is running.

❈ The actual shape may differ from the illustration.

OTQ045254/OTQ045255/OTQ047067

4

88

Features of your vehicle

■ Type A

■ Type B

✽ NOTICE

•

To turn the automatic operation off,

select any button or switch of the fol-

lowing:

- Mode selection button

- Air conditioning button

- Front windshield defroster button

(Press the button one more time to

deselect the front windshield

defroster function. The 'AUTO' sign

will illuminate on the information

display once again.)

OTQ045239

OTQ045231

- Air intake control button

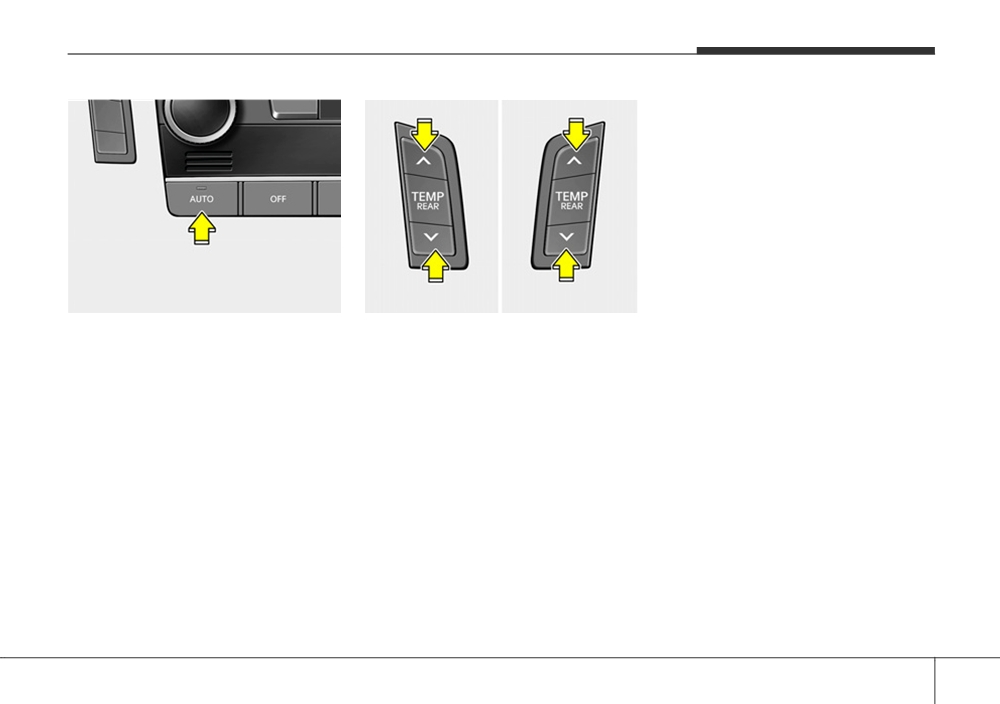

Automatic heating and air condi-

2. Set the temperature control button to

- Fan speed control switch

the desired temperature.

The selected function will be con-

tioning

trolled manually while other functions

1 Press the AUTO button.

operate automatically.

The modes, fan speeds, air intake and

•

For your convenience and to improve

air-conditioning will be controlled auto-

the effectiveness of the climate con-

matically by setting the temperature.

trol, use the AUTO button and set the

temperature to 22°C/71°F (23°C/73°F

- Except Europe).

4 89

Features of your vehicle

Manual heating and air condition-

ing

The heating and cooling system can be

controlled manually by pressing buttons

or turning knob(s) other than the AUTO

button. In this case, the system works

sequentially according to the order of

buttons or knob(s) selected.

1. Start the engine.

2. Set the mode to the desired position.

For improving the effectiveness of

heating and cooling;

OTQ046084

OTQ045263

- Heating:

✽ NOTICE

Mode selection

- Cooling:

The mode selection button controls the

Never place anything over the sensor

located on the instrument panel to

direction of the air flow through the venti-

3. Set the temperature control to the

ensure better control of the heating and

lation system.

desired position.

cooling system.

The air flow outlet port is converted as

4. Set the air intake control to the outside

follows:

(fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn the

air conditioning system on.

Refer to the illustration in the “Manual cli-

Press the AUTO button in order to con-

mate control system”.

vert to full automatic control of the sys-

tem.

4 90

Features of your vehicle

Face-Level

Floor-Level

Air flow is directed toward the upper body

Most of the air flow is directed to the

and face. Additionally, each outlet can be

floor, with a small amount of the air being

controlled to direct the air discharged

directed to the windshield and side win-

from the outlet.

dow defrosters.

Bi-Level

Floor/Defrost-Level

Air flow is directed towards the face and

Most of the air flow is directed to the floor

OTQ047071

the floor.

and the windshield with a small amount

Instrument panel vents

directed to the side window defrosters.

The outlet vents can be opened or closed

separately using the thumbwheel.

Also, you can adjust the direction of air

delivery from these vents using the vent

control lever as shown.

4 91

Features of your vehicle

■ Type A

■ Type B

Recirculated air position

With the recirculated air

position selected, air from

the passenger compart-

ment will be drawn through

the heating system and

heated or cooled according

to the function selected.

❈ According to the outside temperature if

the recirculation air position is on for a

long time, the air intake position will auto-

matically change to the outside(fresh) air

OTQ045230

OTQ045264

position to ventilate the inside air.

Temperature control

Air intake control

The temperature control button (knob)

The air intake control is used to select

Outside (fresh) air position

allows you to control the temperature of

the outside (fresh) air position or recircu-

With the outside (fresh) air

the airflow in the vehicle.

lated air position.

position selected, air enters

To change the air intake control position,

the vehicle from outside

To change the temperature :

press the control button.

and is heated or cooled

• Press the

(red) switch to increase

according to the function

temperature.

selected.

• Press the

(blue) switch to decrease

temperature.

The temperature status will be displayed

at the above switch panel as a indicator.

4 92

Content   ..  7  8  9  10   ..
