Hyundai H-1 / Grand Starex (2016 year). Instruction

Features of your vehicle

For Europe

Except Europe

WARNING - Fuel gauge

Running out of fuel can expose

vehicle occupants to danger.

You must stop and obtain addition-

al fuel as soon as possible after the

warning light comes on or when the

gauge indicator comes close to the

“E” or “0” level.

OTQ045405

OTQ045404

CAUTION

Avoid driving with a very low fuel

level. If you run out of fuel, it could

cause the engine to misfire and

result in excessive loading of the

catalytic converter.

OTQ045407

OTQ045406

Fuel gauge

On inclines or curves, the fuel gauge

The fuel gauge indicates the approxi-

pointer may fluctuate or the low fuel

mate amount of fuel remaining in the fuel

warning light may come on earlier than

tank. The fuel tank capacity is given in

usual due to the movement of fuel in the

section 9. The fuel gauge is supplement-

tank.

ed by a low fuel warning light, which will

illuminate when the fuel tank is near

empty.

4 42

Features of your vehicle

■ Type A

Left-Hand drive type

OTQ047047

Right-Hand drive type

OTQ045318

OTQ045319

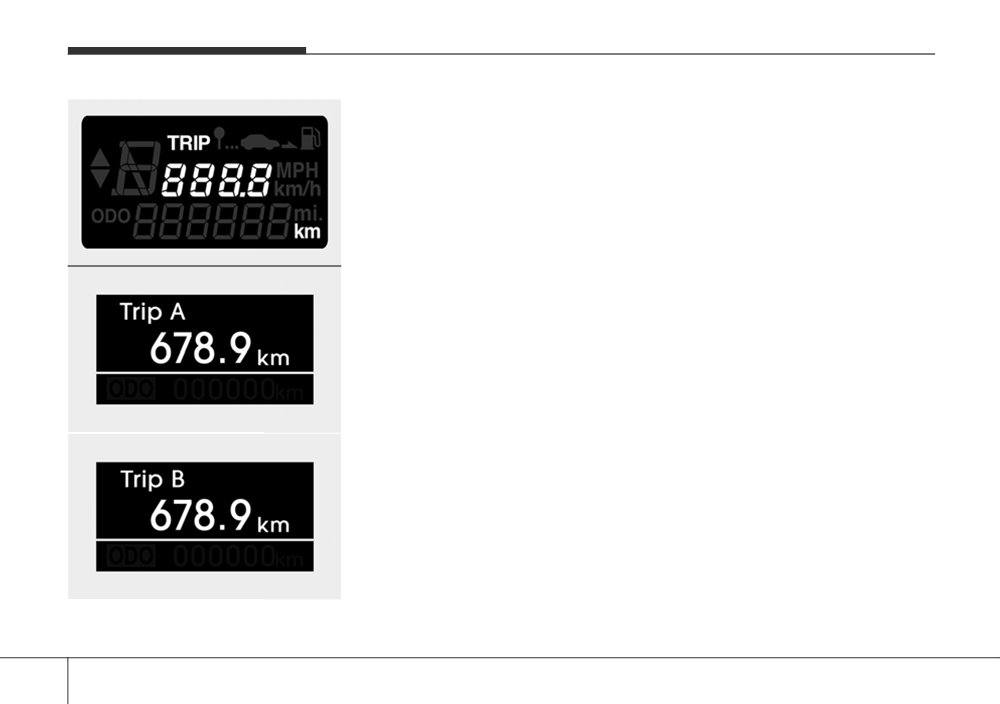

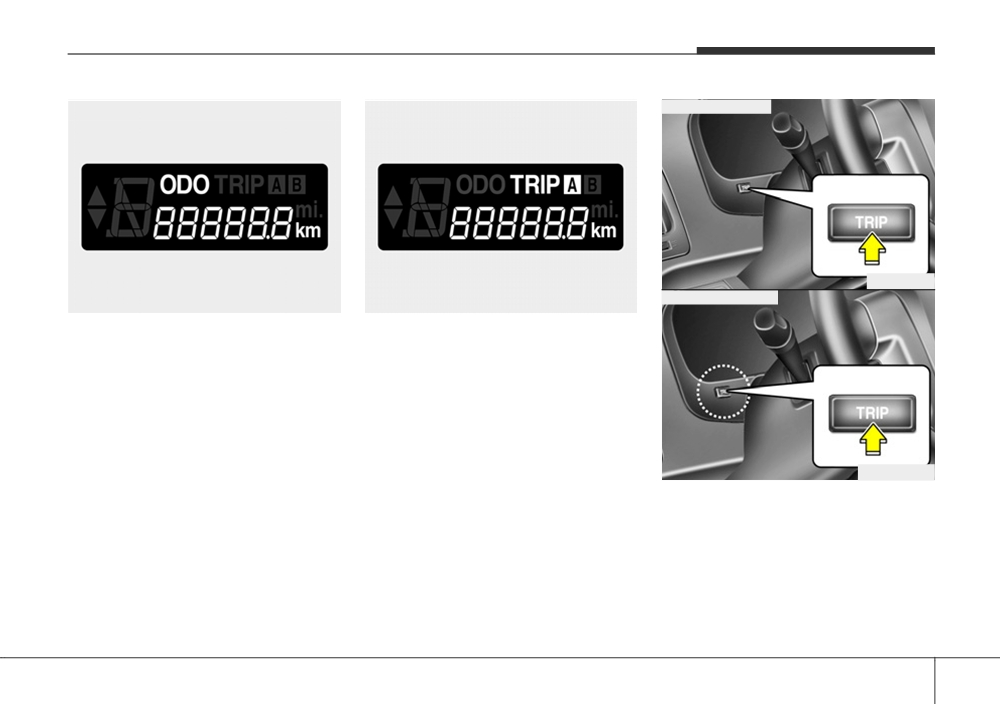

Odometer/Tripmeter

Tripmeter (km or mi)

Odometer (km or mi)

TRIP A: Tripmeter A

The odometer indicates the total dis-

TRIP B: Tripmeter B

tance the vehicle has been driven.

The tripmeter indicates the distance of

You will also find the odometer useful to

individual trips selected by the driver.

determine when periodic maintenance

should be performed.

✽ NOTICE

OTQ047047R

It is forbidden that alteration of the

Tripmeter A or B can be selected by

odometer of any vehicle with the intent

pressing the TRIP button for less than 1

to change the mileage registered on the

second.

odometer. The alteration may void your

Tripmeter A or B can be reset to 0.0 by

warranty coverage.

pressing the TRIP button for 1 second or

more, and then releasing.

4 43

Features of your vehicle

Left-Hand drive type

All stored driving information

(except

■ Type B

odometer) is reset if the battery is dis-

connected. The odometer is always dis-

played until the display is turned off.

Push the TRIP button for less than 1 sec-

ond to select distance to empty, average

speed or tripmeter function as follows :

OTQ045323

Distance to empty

■ Type C

OTQ047047

Right-Hand drive type

Average speed

Elapsed time*

OTQ045326

Tripmeter

Odometer (km or mi)

The odometer Indicates the total dis-

OTQ047047R

tance that the vehicle has been driven

D150206ATQ

Urea level*

and should be used to determine when

Trip computer (if equipped)

periodic maintenance should be per-

* : if equipped

The trip computer is a microcomputer-

formed.

controlled driver information system that

- Odometer range : 0 ~ 999999 kilome-

displays information related to driving,

ters or miles.

including distance to empty, tripmeter

and average speed on the display when

the ignition switch is in the ON position.

4 44

Features of your vehicle

■ Type B

✽ NOTICE

■ Type B

• If the vehicle is not on level ground or

the battery power has been interrupt-

ed, the “Distance to empty” function

may not operate correctly.

The trip computer may not register

additional fuel if less than 6 liters (1.6

gallons) of fuel are added to the vehicle.

• The fuel consumption and distance to

OTQ045320

empty values may vary significantly

OTQ045321

■ Type C

based on driving conditions, driving

■ Type C

habits, and condition of the vehicle.

• The distance to empty value is an esti-

mate of the available driving distance.

This value may differ from the actual

driving distance available.

OTQ045304

OTQ045324

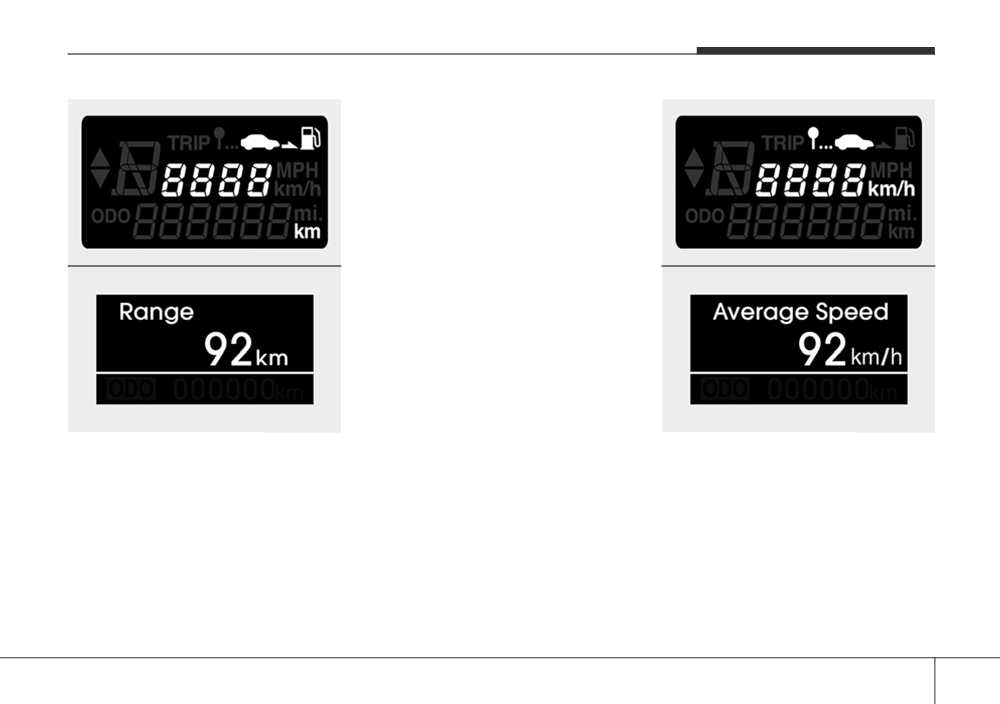

Distance to empty (km or miles)

Average speed (km/h or mph)

This mode indicates the estimated dis-

This mode calculates the average speed

tance to empty based on the current fuel

of the vehicle since the last average

in the fuel tank and the amount of fuel

speed reset.

delivered to the engine. When the remain-

Even if the vehicle is not in motion, the

ing distance is below 1 km (1 miles), “----”

average speed keeps going while the

will be displayed and the distance to

engine is running.

empty indicator will blink.

The meter's working range is from 0 to

The meter’s working range is from 1 to

999 km/h (0 to 999 mph).

9999 km (1 to 9999 miles).

Pressing the TRIP button for more than 1

second, when the average speed is

being displayed, clears the average

speed to zero (---).

4 45

Features of your vehicle

D150300AEN

D150302AEN

D150303AEN

Warnings and indicators

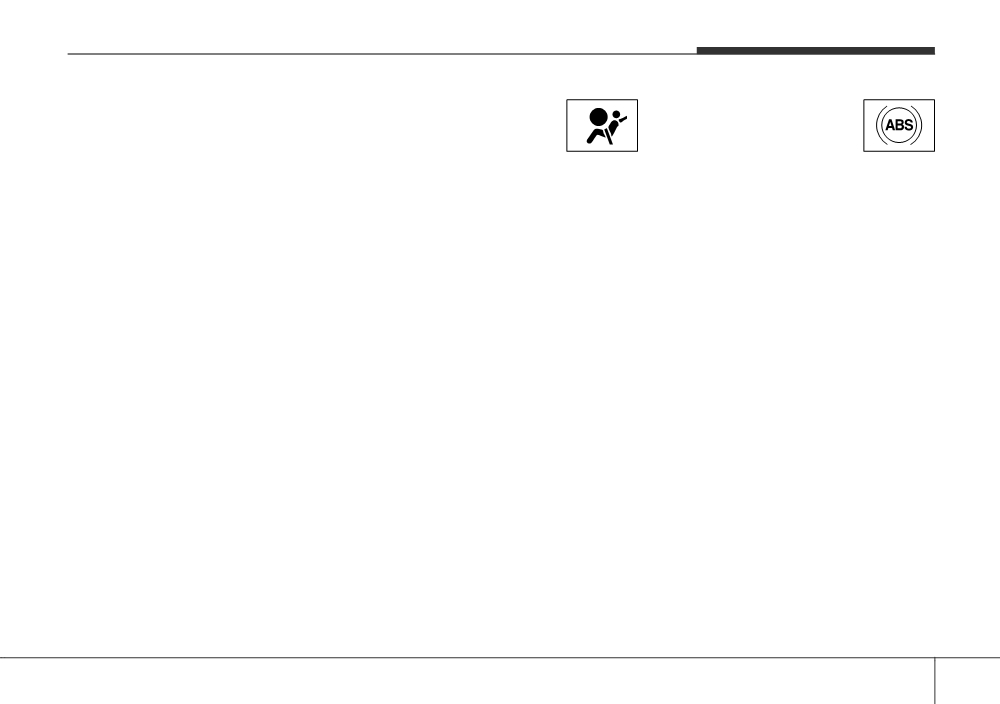

Air bag warning light

Anti-lock brake system

(if equipped)

(ABS) warning light

All warning lights are checked by turning

(if equipped)

the ignition switch ON (do not start the

engine). If any light that does not illumi-

This warning light will illuminate for

This light illuminates if the ignition switch

nate, we recommend that the system be

approximately 6 seconds each time you

is turned ON and goes off in approxi-

checked by an authorized HYUNDAI

turn the ignition switch to the ON posi-

mately 3 seconds if the system is operat-

dealer.

tion. This light also comes on when the

ing normally.

Supplemental Restraint System (SRS) is

If the ABS warning light remains on,

After starting the engine, check to make

not working properly. If the SRS air bag

comes on while driving, or does not

sure that all warning lights are off. If any

warning light does not come on, or con-

come on when the ignition switch is

are still on, this indicates a situation that

tinuously remains on after operating for

turned to the ON position, this indicates

needs attention. When releasing the

about 6 seconds when you turned the

that there may be a malfunction with the

parking brake, the brake system warning

ignition switch to the ON position or start-

ABS.

light should go off. The fuel warning light

ed the engine, or if it comes on while

will stay on if the fuel level is low.

If this occurs, we recommend that the

driving, we recommend that the system

system be checked by an authorized

be inspected by an authorized HYUNDAI

HYUNDAI dealer.

dealer.

The normal braking system will still be

operational, but without the assistance of

the anti-lock brake system.

4 47

Features of your vehicle

Electronic brake force distribution (EBD)

D150304AEN-EE

D150305AUN

system warning light

Seat belt warning

Turn signal indicator

■ Type A

■ Type B

Seat belt warning light

The blinking green arrows on the instru-

As a reminder to the driver, the seat belt

ment panel show the direction indicated

warning light will blink for approximately

by the turn signals. If the arrow comes on

6 seconds each time you turn the ignition

but does not blink, blinks more rapidly

switch ON regardless of belt fastening.

If two warning lights illuminate at the

than normal, or does not illuminate at all,

If the driver’s seat belt is unfastened after

same time while driving, your vehicle

a malfunction in the turn signal system is

may have a malfunction with the ABS

the ignition switch is ON, the seat belt

indicated. Your dealer should be consult-

and EBD system.

warning light blinks again for approxi-

ed for repairs.

In this case, your ABS and regular brake

mately 6 seconds.

system may not work normally. We rec-

D150306AUN

ommend that the system be checked by

Seat belt warning chime

High beam indicator

an authorized HYUNDAI dealer.

If the driver's seat belt is not fastened

when the ignition switch is turned ON or

if it is unfastened after the ignition switch

WARNING

is ON, the seat belt warning chime will

This indicator illuminates when the head-

If the both ABS and brake warning

sound for approximately 6 seconds. At

lights are on and in the high beam posi-

lights are on and stay on, your vehi-

this time, if the seat belt is fastened, the

tion or when the turn signal lever is pulled

cle’s brake system will not work

chime will stop at once.

into the Flash-to-Pass position.

normally during sudden braking. In

this case, avoid high speed driving

and abrupt braking. We recommend

that the system be checked by an

authorized HYUNDAI dealer.

4 48

Features of your vehicle

D150307AEN

Engine oil level warning

Engine oil pressure

CAUTION

light (Diesel engine,

warning light

If the oil pressure warning light

if equipped)

stays on while the engine is run-

This warning light indicates the engine oil

ning, serious engine damage may

When the engine oil is not enough, the

pressure is low.

result. The oil pressure warning

engine oil level warning light may be illu-

If the warning light illuminates while driv-

light comes on whenever there is

minated. If the warning light comes on,

ing:

insufficient oil pressure. In normal

check the engine oil level as soon as

operation, it should come on when

possible and add engine oil as required.

1. Drive safely to the side of the road and

the ignition switch is turned on,

Slowly pour the recommended the oil lit-

stop.

then go out when the engine is

tle by little into a funnel. (Oil refill capaci-

2. With the engine off, check the engine

started. If the oil pressure warning

ty: approximately 0.6 ~ 1.0 L)

oil level. If the level is low, add oil as

light stays on while the engine is

required.

Use only the specified engine oil. (Refer

running, there is a serious malfunc-

to "Recommended lubricants and capac-

If the warning light remains on after

tion.

ities" in section

9.) Do not overfill the

adding oil or if oil is not available, we rec-

If this happens, stop the car as

engine oil to ensure the oil level is not

ommend that you call an authorized

soon as it is safe to do so, turn off

above F mark on the dipstick.

HYUNDAI dealer.

the engine and check the oil level. If

the oil level is low, fill the engine oil

✽ NOTICE

to the proper level and start the

CAUTION

• Cycle the ignition from OFF to ON 3

engine again. If the light stays on

If the engine is not stopped imme-

times within 5 seconds, the warning

with the engine running, turn the

diately after the engine oil pressure

light will go off immediately.

engine off immediately. In any

warning light is illuminated, severe

However, when you turn off the warn-

instance where the oil light stays on

damage could result.

ing light without adding the engine oil,

when the engine is running, we rec-

the light may come on again.

ommend that the system be

• If you drive the vehicle after adding

checked by an authorized HYUNDAI

the engine oil, the warning light will

dealer.

go off within 1hour.

4 49

Features of your vehicle

Parking brake & brake fluid warning

3. Do not drive the vehicle if leaks are

CAUTION

light

found, the warning light remains on or

■ Type A

■ Type B

•

If the light comes on continuous-

the brakes do not operate properly.

ly after adding the engine oil and

We recommend that you contact an

driving the vehicle for 1 hour,we

authorized HYUNDAI dealer.

recommend that the system be

Your vehicle is equipped with dual-diago-

checked by an nearest authorized

Parking brake warning

nal braking systems. This means you still

HYUNDAI dealer.

This light is illuminated when the parking

have braking on two wheels even if one

•

Even if this light does not come

brake is applied with the ignition switch in

of the dual systems should fail. With only

on after the engine has started,

the START or ON position. The warning

one of the dual systems working, more

the engine oil should be checked

light should go off when the parking

than normal pedal travel and greater

and supplied periodically.

brake is released while engine is run-

pedal pressure are required to stop the

ning.

car. Also, the car will not stop in as short

The parking brake warning chime will

a distance with only a portion of the

sound to remind you that the parking

brake system working. If the brakes fail

brake is applied when you are driving

while you are driving, shift to a lower gear

above 10 km/h (6 mph). Always release

for additional engine braking and stop the

the parking brake before you drive.

car as soon as it is safe to do so.

To check bulb operation, check whether

the parking brake and brake fluid warning

Low brake fluid level warning

light illuminates when the ignition switch

If the warning light remains on, it may

is in the ON position.

indicate that the brake fluid level in the

reservoir is low.

If the warning light remains on:

WARNING

1. Drive carefully to the nearest safe

Driving the vehicle with a warning

location and stop your vehicle.

light on is dangerous. If the brake

2. With the engine stopped, check the

warning light remains on, we rec-

brake fluid level immediately and add

ommend that the system be

fluid as required. Then check all brake

checked by an authorized HYUNDAI

components for fluid leaks.

dealer.

4 50

Features of your vehicle

Low brake vacuum pressure warning

D150312AUN

Automatic transmission

(diesel engine only, if equipped)

Shift pattern indicator

shift indicator

If the warning light remains on, it may

(if equipped)

(if equipped, For Europe)

indicate that the brake vacuum pump has

any problem. Therefore you should avoid

The indicator displays to show the auto-

In the Sports Mode, this indicator informs

high speed driving or sudden stop, and

matic transmission shift lever selection.

which gear is desired while driving to

you should depress the brake pedal

save fuel.

deeper and harder than usual in braking.

Manual transmission shift

• Shifting up : ▲2, ▲3, ▲4, ▲5*

We recommend that the system be serv-

indicator (if equipped)

• Shifting down :

iced by an authorized HYUNDAI dealer.

▼1, ▼2, ▼3, ▼4*

* : if equipped

This indicator informs you which gear is

WARNING

desired while driving to save fuel.

For example

•

Continuous braking while driving

: Indicates that shifting up to the 3rd

on steep or long downhill may

For example

gear is desired (currently the shift

cause to descend the vacuum

: Indicates that shifting up to the 3rd

lever is in the 2nd or 1st gear).

level in brake booster for a time

gear is desired (currently the shift

: Indicates that shifting down to the

and turn on the warning light. In

lever is in the 2nd gear).

3rd gear is desired

(currently the

this case, shift down the trans-

: Indicates that shifting down to the

shift lever is in the 4th gear).

mission. If the warning light illu-

3rd gear is desired

(currently the

minate continuously, stop the

shift lever is in the 4th gear).

When the system is not working properly,

vehicle in the safe location and

the indicator is not displayed.

wait until the warning light goes

✽ NOTICE

off.

When the system is not working proper-

•

Driving the vehicle with a warn-

ly, up/down arrow indicator and gear is

ing light on is dangerous. If the

not displayed.

brake warning light remains on,

we recommend that the system

be checked by an authorized

HYUNDAI dealer.

4 51

Features of your vehicle

D150339ASA

D150315AUN

D150317AFD

O/D

O/D OFF Indicator

Tailgate open warning light

Immobilizer indicator

OFF

(if equipped)

This indicator comes on when the O/D

This warning light blinks when the tail-

This light illuminates when the immobiliz-

system is deactivated.

gate is not closed securely with the igni-

er key is inserted and turned to the ON

tion in any position.

position to start the engine.

At this time, you can start the engine. The

D150313AEN

light goes out after the engine is running.

Charging system warning

D150316AUN

If this light blinks when the ignition switch

light

Door ajar warning light

is in the ON position before starting the

engine, we recommend that the system

This warning light indicates a malfunction

be checked by an authorized HYUNDAI

of either the generator or electrical

This warning light illuminates when a

dealer.

charging system.

door is not closed securely with the igni-

If the warning light comes on while the

tion in any position.

vehicle is in motion:

1. Drive to the nearest safe location.

2. With the engine off, check the genera-

tor drive belt for looseness or break-

age.

3. If the belt is adjusted properly, a prob-

lem exists somewhere in the electrical

charging system. We recommend that

the system be checked by an author-

ized HYUNDAI dealer.

4 52

Features of your vehicle

D150318ATQ

D150320ATQ

Low fuel level warning light

Malfunction indicator (MIL)

CAUTION

(check engine light)

Prolonged driving with the Emission

Control

System Malfunction

This warning light indicates the fuel tank

This indicator light is part of the Engine

Indicator Light illuminated may

is nearly empty. When it comes on, you

Control System which monitors various

cause damage to the emission con-

should add fuel as soon as possible.

emission control system components. If

trol systems which could effect dri-

Driving with the fuel level warning light on

this light illuminates while driving, it indi-

vability and/or fuel economy.

or with the fuel level below “E” or “0” can

cates that a potential malfunction has

cause the engine to misfire and damage

been detected somewhere in the emis-

the catalytic converter.

sion control system.

CAUTION - Gasoline engine

This light will also illuminate when the

If the Emission Control System

ignition switch is turned to the ON posi-

Malfunction Indicator Light illumi-

tion, and will go out in a few seconds

nates, potential catalytic converter

after the engine is started. If it illuminates

damage is possible which could

while driving, or does not illuminate when

result in loss of engine power.

the ignition switch is turned to the ON

We recommend that the system be

position, we recommend that the system

inspected by an authorized

be checked by an authorized HYUNDAI

HYUNDAI dealer.

dealer.

Generally, your vehicle will continue to be

drivable, but we recommend that the sys-

tem be checked by an authorized

HYUNDAI dealer.

4 53

Features of your vehicle

DPF warning light

SCR warning light

(if equipped)

CAUTION - Diesel engine

(if equipped)

If the Emission Control System

Malfunction Indicator Light blinks,

some error related to the injection

The warning message is displayed, as

quantity adjustment occurs which

above, when there is a DPF problem with

above, when there is a SCR problem with

could result in loss of engine power,

your vehicle, In this case, we recommend

combustion noise and poor emis-

that the DPF system be inspected by an

that the SCR system be inspected by an

sion. We recommend that the system

authorized HYUNDAI dealer.

be inspected by an authorized

For more details, refer to the "DPF sys-

For more details, refer to the "Low Urea

HYUNDAI dealer.

tem" in chapter 7.

warning message" in chapter 7.

CAUTION - Diesel engine

(if equipped with DPF)

When the malfunction indicator

light is blinks, it may stop blinking

after driving the vehicle at more

than 60km/h (37 mph) or at more

than second gear with 1500 ~ 2500

engine rpm for a certain time (for

about 25 minutes).

If the malfunction indicator light

continues to be blinked in spite of

the procedure, we recommend that

the system be checked by an

authorized HYUNDAI dealer.

If you continue to drive with the

malfunction indicator light blinking

for a long time, the DPF system can

be damaged and fuel consumption

can be worsen.

4 54

Features of your vehicle

ESP (ESC) indicator (Electronic

✽ NOTICE

ESP (ESC) OFF indicator (if equipped)

Stability Program) (if equipped)

After reconnecting or recharging a dis-

■ Type A

■ Type B

charged battery, the ESP (ESC) indica-

■ Type A

■ Type B

tor may illuminate. In this case, turn the

ESP

steering wheel half way to the left and

OFF

ESP

right while the ignition switch is in the

ON position. Then, restart the engine

The ESP (ESC) OFF indicator will illumi-

The ESP (ESC) indicator will illuminate

after the ignition is off. If the ESP (ESC)

nate when the ignition switch is turned

when the ignition switch is turned ON,

indicator does not turn off, we recom-

ON, but should go off after approximate-

but should go off after approximately 3

mend that the system be checked by an

3 seconds. To switch to ESP (ESC)

seconds. When the ESP (ESC) is on, it

authorized HYUNDAI dealer.

OFF mode, press the ESP (ESC) OFF

monitors the driving conditions. Under

button. The ESP (ESC) OFF indicator will

normal driving conditions, the ESP

illuminate indicating the ESP (ESC) is

(ESC) indicator will remain off. When a

deactivated.

slippery or low traction condition is

encountered, the ESP (ESC) will oper-

ate, and the ESP (ESC) indicator will

blink to indicate the ESP (ESC) is oper-

ating.

But, if the ESP (ESC) system malfunc-

tions the indicator illuminates and stays

on. We recommend that the system be

checked by an authorized HYUNDAI

dealer.

4 55

Features of your vehicle

Cruise Indicator Light

Cruise SET Indicator Light

D150328AEN

(if equipped)

SET

Glow indicator

(Diesel engine)

The indicator light illuminates when the

This indicator light illuminates:

CRUISE

ignition switch is placed at the ON posi-

• When the cruise control speed is set.

tion. The engine can be started after the

preheat indicator light goes off. The illu-

This indicator light illuminates:

For more details, refer to “Cruise Control

minating time varies with the water tem-

• When the cruise control system is

System” in chapter 5.

perature, air temperature and battery

enabled.

condition.

For more details, refer to “Cruise Control

✽ NOTICE

System” in chapter 5.

If the engine was not started within 10

seconds after the preheating is complet-

ed, turn the ignition switch once more to

the LOCK position during 10 seconds,

and then to the ON position, in order to

preheat again.

CAUTION

If the preheat indicator light contin-

ues to illuminate or flash on and off

after the engine has warmed up or

while driving, we recommend that

the system be checked by an

authorized HYUNDAI dealer.

4 56

Features of your vehicle

D150329AEN

D150330AEN

D150327AUN

Fuel filter warning light

Overspeed warning

120

Key reminder warning chime

(Diesel engine)

(if equipped)

km/h

(if equipped)

If the driver’s door is opened while the

This warning light illuminates for 3 sec-

ignition key is left in the ignition switch

Overspeed warning light

onds after the ignition switch is set to the

(ACC or LOCK position), the key

If you drive with the speed of 120 km/h or

ON position and then it will go out. If it

reminder warning chime will sound. This

more, the overspeed warning light will

lights up while the engine is running, it

is to prevent you from locking your keys

blink. This is to prevent you from driving

indicates that water has accumulated

in the vehicle. The chime sounds until the

your vehicle with overspeed.

inside the fuel filter. If this happens,

key is removed from the ignition switch or

remove the water from the fuel filter. For

the driver’s door is closed.

more information, refer to “Fuel filter” in

Overspeed warning chime

section 7.

If you drive with the speed of 120 km/h or

more, the overspeed warning chime will

sound for about 5 seconds. This is to pre-

CAUTION

vent you from driving your vehicle with

When the fuel filter warning light is

overspeed.

illuminated, engine power (vehicle

speed & idle speed) may decrease.

If you keep driving with the warning

light on, you can damage your vehi-

cle's engine parts and injection sys-

tem of the Common Rail. If this

occurs, we recommend that the

system be checked by an author-

ized HYUNDAI dealer.

4 57

Features of your vehicle

Low Tire Pressure Warning

This warning light remains on after

Light (if equipped)

blinking for approximately 60 seconds or

repeats blinking and off at the intervals

of approximately 3 seconds:

•

When there is a malfunction with the

This warning light illuminates:

TPMS.

•

Once you set the ignition switch or

In this case, we recommend that you

Engine Start/Stop Button to the ON

have the vehicle inspected by an

position.

authorized HYUNDAI dealer as soon

- It illuminates for approximately 3 sec-

as possible.

onds and then goes off.

For more details, refer to

“Tire

•

When one or more of your tires are sig-

Pressure Monitoring System (TPMS)”

nificantly underinflated.

in chapter 6.

For more details, refer to “Tire Pressure

Monitoring System (TPMS)” in chapter 6.

WARNING - Safe Stopping

• The TPMS cannot alert you to

severe and sudden tire damage

caused by external factors.

• If you notice any vehicle instabili-

ty, immediately take your foot off

the accelerator pedal, apply the

brakes gradually with light force,

and slowly move to a safe posi-

tion off the road.

4 58

Hyundai H-1 / Grand Starex (2016 year). Instruction - part 7
