Hyundai H-1 / Grand Starex (2016 year). Instruction - part 6

Features of your vehicle

(Continued)

CAUTION

Use only approved portable plas-

•

Make sure to refuel your vehicle

tic fuel containers designed to

according to the "Fuel require-

carry and store gasoline.

ments" suggested in section 1.

•

Do not use cellular phones while

•

If the fuel filler cap requires

refueling. Electric current and/or

replacement, please make sure

electronic interference from cel-

that you use parts designed for

lular phones can potentially

replacement in your vehicle. An

ignite fuel vapors causing a fire.

incorrect fuel filler cap can result

•

When refueling, always shut the

in a serious malfunction of the

engine off. Sparks produced by

fuel system or emission control

electrical components related to

system. For more detailed infor-

OTQ047024G

the engine can ignite fuel vapors

mation, we recommend that you

D100500AUN

causing a fire. Once refueling is

contact an authorized HYUNDAI

Emergency fuel filer lid release

complete, check to make sure the

dealer.

filler cap and filler door are

If the fuel filler lid does not open using

•

Do not spill fuel on the exterior

securely closed, before starting

the remote fuel filler lid release, you can

surfaces of the vehicle. Any type

the engine.

open it manually. Unsnap and remove the

of fuel spilled on painted surfaces

panel in the cargo area. Pull the handle

•

DO NOT use matches or a lighter

may damage the paint.

outward slightly.

and DO NOT SMOKE or leave a lit

•

After refueling, make sure the fuel

cigarette in your vehicle while at

cap is installed securely to pre-

a gas station especially during

CAUTION

vent fuel spillage in the event of

refueling. Automotive fuel is

an accident.

Do not pull the handle excessively,

highly flammable and can, when

otherwise the luggage area trim or

ignited, result in fire.

release handle may be damaged.

•

If a fire breaks out during refuel-

ing, leave the vicinity of the vehi-

cle, and immediately contact the

manager of the gas station and

then contact the local fire depart-

ment. Follow any safety instruc-

tions they provide.

4 26

Features of your vehicle

SUNROOF (IF EQUIPPED)

Front

• In cold and wet climates, the sunroof

may not work properly due to freezing

WARNING

conditions.

•

Never adjust the sunroof or sun-

• After the vehicle is washed or in a rain-

shade while driving. This could

storm, be sure to wipe off any water that

result in loss of control and an

is on the sunroof before operating it.

accident that may cause death,

serious injury, or property dam-

age.

CAUTION - Sunroof

•

If you would like to carry items on

control button

the roof using a cross bar, do not

Do not continue to move the sun-

OTQ047025

operate the sunroof.

roof control button after the sunroof

Rear (if equipped)

•

When carrying cargo on the roof,

is fully opened, closed, or tilted.

do not load heavy items above

Damage to the motor or system

the sunroof or glass roof.

components could occur.

•

Do not allow children to operate

the sunroof.

CAUTION

Make sure the sunroof is fully

CAUTION

closed when leaving your vehicle. If

the sunroof is opened, rain or snow

Do not extend any luggage out side

may leak through the sunroof and

the sunroof while driving.

OTQ047026

wet the interior as well as cause

If your vehicle is equipped with a sunroof,

theft.

you can slide or tilt your sunroof with the

sunroof control button located on the

overhead console.

CAUTION - Sunroof motor

The sunroof can only be opened, closed,

damage

or tilted when the ignition switch is in the

To prevent damage to the sunroof,

ON position.

periodically remove any dirt that

may accumulate on the guide rail.

4 27

Features of your vehicle

Front

When you press the button over 0.5 sec-

onds, the one- touch slide function (if

equipped) operates. To stop the one-

touch slide function, press the sunroof

OPEN button (1) or the sunroof CLOSE

button (2) regardless of pressing the but-

ton (1) or (2).

To operate the rear sunroof

To open the rear sunroof, press the sun-

OTQ047025

roof OPEN button (3).

Rear (if equipped)

To close the rear sunroof, press the sun-

OTQ047030

roof CLOSE button (4).

Sunshade

When opening the sunroof, the sunshade

When you press the button over 0.5 sec-

will also open. Once the sunroof is

onds, the one- touch slide function (if

closed, the sunshade can be manually

equipped) operates. To stop the one-

closed.

touch slide function, press the sunroof

OPEN button (3) or the sunroof CLOSE

button (4) regardless of pressing the but-

CAUTION

ton (3) or (4).

Close the sunroof when driving

OTQ047026

through dusty roads. Dust may

The sunroof will stop once at the first

Sliding the sunroof

cause a malfunction of the vehicle

detent position (150mm from the second

system.

To operate the front sunroof

detent position). Press again the sunroof

To open the front sunroof, press the sun-

OPEN button (3) to open all the way. The

roof OPEN button (1).

sunroof will slide until the second detent

To close the front sunroof, press the sun-

position. Then, the sunroof operates

roof CLOSE button (2).

while pressing the button.

4 28

Features of your vehicle

❈ While driving with the sunroof in an

open, open the sunroof at the first

CAUTION - Sunroof motor

detent position. It can slightly reduce the

damage

wind buffeting or pulsation noise com-

If you try to open the sunroof when

the temperature is below freezing

pared to the second detent position.

or when the sunroof is covered with

snow or ice, the glass or the motor

could be damaged.

OTQ045029

Tilting the sunroof

(for front sunroof)

To tilt the sunroof when the sunroof com-

pletely closed, press the TILT UP but-

ton(1). When you press the TULT UP but-

ton over 0.5 seconds, the one-touch slide

function (if equipped) operates.

To close the sunroof, press the CLOSE

button (2).

4 29

Features of your vehicle

The automatic reversal function does not

work.

CAUTION

• Periodically remove any dirt that

may accumulate on the guide rail.

WARNING - Sunroof

• If you drive with the sunroof

•

Be careful that no head, hands

opened right after a car wash or

and body parts are obstructed by

rain, water may get inside the

a closing sunroof.

vehicle.

•

Do not extend the face, neck,

arms or body outside the sunroof

while driving.

•

Make sure your hands and head

WARNING - Roof cargo

OTQ047028

are safely out of the way before

Do not operate the sun roof while

Automatic reversal (for rear sunroof)

closing a sunroof.

using the roof rack to transport

•

The sunroof, which is made of

cargo. This may cause the cargo to

When you press the sunroof CLOSE but-

glass, may break if the sufficient

come loose and distract the driver.

ton (4) over 0.5 seconds, the one- touch

slide function (if equipped) operates. To

impact is applied. In this case, in

stop the one-touch slide function, press

an accident, any improperly-belt-

ed occupant may be tossed out

the sunroof OPEN button (3) or the sun-

of the vehicle through the sun-

roof CLOSE button

(4) regardless of

pressing the button (3) or (4).

roof, possibly resulting injury. To

minimize all the possible acci-

dent risk, all occupants must be

If an object or part of the body is detect-

properly belted and, in case of a

ed while the sunroof glass is closing

child, be fastened in a proper

automatically (one-touch slide function),

child restraint.

it will reverse the direction, and then

open again as regular space. However,

when the detected resistance in the sun-

roof is below average standard or you

press and hold the sunroof CLOSE but-

ton (4). It is manually operated (NO one-

touch slide function).

4 30

Features of your vehicle

STEERING WHEEL

D130100AEN

D130300AUN

✽ NOTICE

Power steering

Tilt steering (if equipped)

If the power steering drive belt breaks

Power steering uses energy from the

or if the power steering pump malfunc-

Tilt steering allows you to adjust the

engine to assist you in steering the vehi-

tions, the steering effort will greatly

steering wheel before you drive. You can

cle. If the engine is off or if the power

increase.

also raise it to give your legs more room

steering system becomes inoperative,

when you exit and enter the vehicle.

the vehicle may still be steered, but it will

✽ NOTICE

require increased steering effort.

If the vehicle is parked for extended

The steering wheel should be positioned

Should you notice any change in the

periods outside in cold weather (below -

so that it is comfortable for you to drive,

effort required to steer during normal

10°C/14°F), the power steering may

while permitting you to see the instru-

vehicle operation, we recommend that

require increased effort when the engine

ment panel warning lights and gauges.

the system be checked by an authorized

is first started. This is caused by

HYUNDAI dealer.

increased fluid viscosity due to the cold

WARNING

weather and does not indicate a mal-

• Never adjust the angle of the

function.

CAUTION

When this happens, increase the engine

steering wheel while driving. You

Never hold the steering wheel

may lose steering control and

RPM by depressing accelerator until the

against a stop (extreme right or left

cause severe personal injury,

RPM reaches 1,500 rpm then release or

turn) for more than 5 seconds with

death or accidents.

let the engine idle for two or three min-

the engine running. Holding the

utes to warm up the fluid.

• After adjusting, push the steering

steering wheel for more than 5 sec-

wheel both up and down to be

onds in either position may cause

certain it is locked in position.

damage to the power steering pump.

4 32

Features of your vehicle

OTQ047035

OTQ045257

OTQ047036

To change the steering wheel angle, pull

Heated steering wheel (if equipped)

Horn

down the lock-release lever (1), adjust

With the ignition switch in the ON posi-

To sound the horn, press the horn symbol

the steering wheel to the desired angle

tion, pressing the heated steering wheel

on your steering wheel. Check the horn

(2), then pull up the lock-release lever to

button warms the steering wheel.

regularly to be sure it operates properly.

lock the steering wheel in place. Be sure

The indicator on the button will illuminate.

to adjust the steering wheel to the

To turn the heated steering wheel off,

✽ NOTICE

desired position before driving.

press the button once again. The indica-

To sound the horn, press the area indi-

tor on the button will turn off.

cated by the horn symbol on your steer-

ing wheel (see illustration). The horn

✽ NOTICE

will operate only when this area is

The heated steering wheel will turn off

pressed.

automatically approximately 30 minutes

after the heated steering wheel is turned on.

CAUTION

Do not strike the horn severely to

CAUTION

operate it, or hit it with your fist. Do

Do not install any grip to operate the

not press on the horn with a sharp-

steering wheel. This causes damage

pointed object.

to the heated steering wheel system.

4 33

Features of your vehicle

MIRRORS

D140100BUN

D140102AUN

Inside rearview mirror

Electric chromic mirror (ECM)

(if equipped)

Adjust the rearview mirror to center on

the view through the rear window. Make

The electric rearview mirror automatical-

Night

ly controls the glare from the headlights

this adjustment before you start driving.

of the car behind you in nighttime or low

light driving conditions. The sensor

WARNING - Rear visibility

mounted in the mirror senses the light

Do not place objects in the rear

level around the vehicle, and automati-

seat or cargo area which would

cally controls the headlight glare from

interfere with your vision through

Day

vehicles behind you.

the rear window.

When the engine is running, the glare is

OTQ047037G

automatically controlled by the sensor

D140101AUN

mounted in the rearview mirror.

Day/night rearview mirror

Whenever the shift lever is shifted into

WARNING

(if equipped)

reverse (R), the mirror will automatically

Do not modify the inside mirror and

Make this adjustment before you start

go to the brightest setting in order to

do not install a wide mirror. It could

driving and while the day/night lever is in

improve the drivers view behind the vehi-

result in injury, during an accident

cle.

or deployment of the air bag.

the day position.

Pull the day/night lever toward you to

reduce glare from the headlights of vehi-

CAUTION

cles behind you during night driving.

When cleaning the mirror, use a

Remember that you lose some rearview

paper towel or similar material

clarity in the night position.

dampened with glass cleaner. Do

not spray glass cleaner directly on

the mirror as that may cause the liq-

uid cleaner to enter the mirror hous-

ing.

4 34

Features of your vehicle

WARNING - Rearview mir-

rors

•

The right outside rearview mirror

is convex. In some countries, the

left outside rearview mirror is

also convex. Objects seen in the

mirror are closer than they

appear.

•

Use your interior rearview mirror

Indicator

1

Sensor

or direct observation to deter-

mine the actual distance of fol-

OTQ027002G

OTQ047038G

lowing vehicles when changing

To operate the electric rearview mirror:

D140200AUN

lanes.

• Press the on/off button (1) to turn the

Outside rearview mirror

automatic dimming function on. The

Be sure to adjust mirror angles before

mirror indicator light will illuminate.

driving.

Press the on/off button to turn the auto-

Your vehicle is equipped with both left-

matic dimming function off. The mirror

hand and right-hand outside rearview

indicator light will turn off.

mirrors. The mirrors can be adjusted

• The mirror defaults to the ON position

remotely with the remote switch.

(if

whenever the ignition switch is turned

equipped) The mirror heads can be fold-

on.

ed back to prevent damage during an

automatic car wash or when passing in a

narrow street.

4 35

Features of your vehicle

CAUTION

CAUTION

Do not scrape ice off the mirror

•

The mirrors stop moving when

face; this may damage the surface

they reach the maximum adjust-

of the glass. If ice should restrict

ing angles, but the motor contin-

movement of the mirror, do not

ues to operate while the switch is

force the mirror for adjustment. To

depressed. Do not depress the

remove ice, use a deicer spray, or a

switch longer than necessary, the

sponge or soft cloth with very warm

motor may be damaged.

water.

•

Do not attempt to adjust the out-

side rearview mirror by hand.

Doing so may damage the parts.

OTQ047042

CAUTION

D140201AEN

If the mirror is jammed with ice, do

not adjust the mirror by force. Use

Remote control (if equipped)

an approved spray de-icer (not radi-

The electric remote control mirror switch

ator antifreeze) to release the

allows you to adjust the position of the

frozen mechanism or move the

left and right outside rearview mirrors. To

vehicle to a warm place and allow

adjust the position of either mirror, push

the ice to melt.

the switch (1) to R or L to select the right

side mirror or the left side mirror, then

press a corresponding point on the mirror

adjustment control to position the select-

WARNING

ed mirror up, down, left or right.

Do not adjust or fold the outside

After adjustment, put the switch into neu-

rearview mirrors while the vehicle

tral (center) position to prevent the inad-

is moving. This could result in loss

vertent adjustment.

of control, and an accident which

could cause death, serious injury

or property damage.

4 36

Features of your vehicle

Left-Hand drive type

Left-Hand drive type

CAUTION

• To prevent unnecessary battery

discharge, do not adjust the mir-

rors longer than necessary while

the engine is not running.

• In case of the electric type of out-

side rearview mirror, don’t fold it

by hand. It could cause the failure

of the motor.

OEN046215

OTQ047043

Right-Hand drive type

Right-Hand drive type

OEN046215/H

OTQ049043R

D140202ATQ

Electric Type (if equipped)

Folding the outside rearview mirror

To fold the outside rearview mirror,

Manual type

depress the button.

To fold the outside rearview mirror, grasp

To unfold it, depress the button again.

the housing of the mirror and then fold it

toward the rear of the vehicle.

4 37

Features of your vehicle

INSTRUMENT CLUSTER

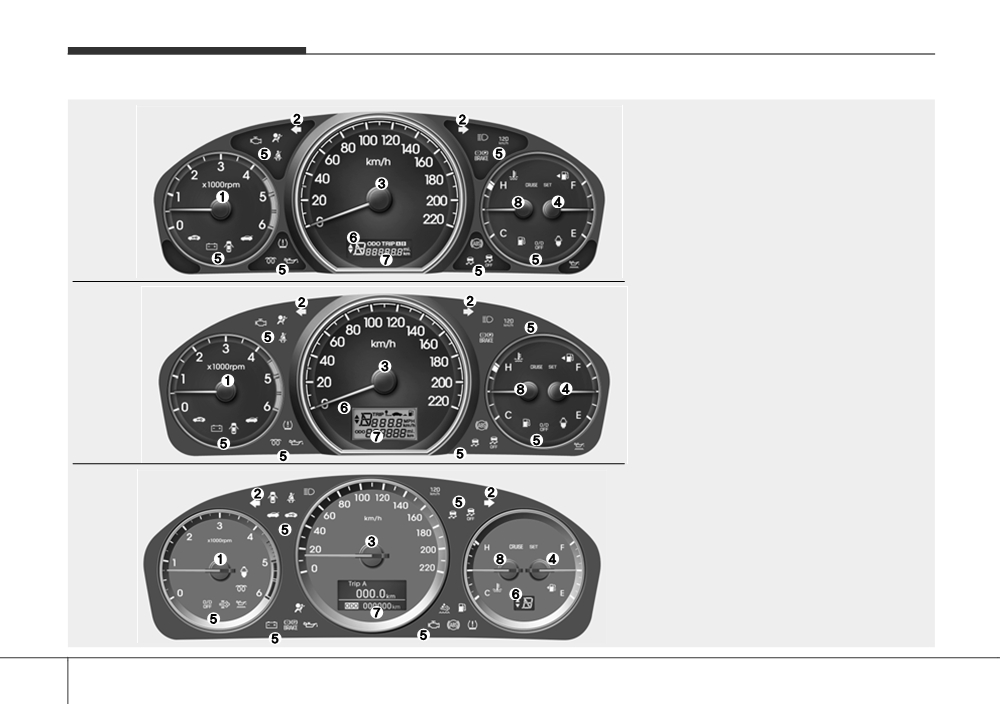

■ Type A

1. Tachometer

2. Turn signal indicators

■ Type B

3. Speedometer

4. Engine coolant temperature gauge

5. Warning and indicator lights

6. Shift position indicator

7. Odometer/Tripmeter

8. Fuel gauge

❈ The actual cluster in the vehicle may dif-

fer from the illustration.

■ Type C

OTQ045413/OTQ045412/OTQ045400

4 38

Features of your vehicle

Instrument Cluster Control

Left-Hand drive type

WARNING

Never adjust the instrument cluster

while driving. This could result in

loss of control and lead to an acci-

dent that may cause death, serious

injury, or property damage.

OTQ047046

Right-Hand drive type

OTQ047046R

Adjusting Instrument Cluster

Illumination (if equipped)

When the vehicle’s parking lights or

headlights are on, rotate the illumination

control knob to adjust the instrument

panel illumination intensity.

4 39

Features of your vehicle

km, km/h

mi, MPH

Gauges

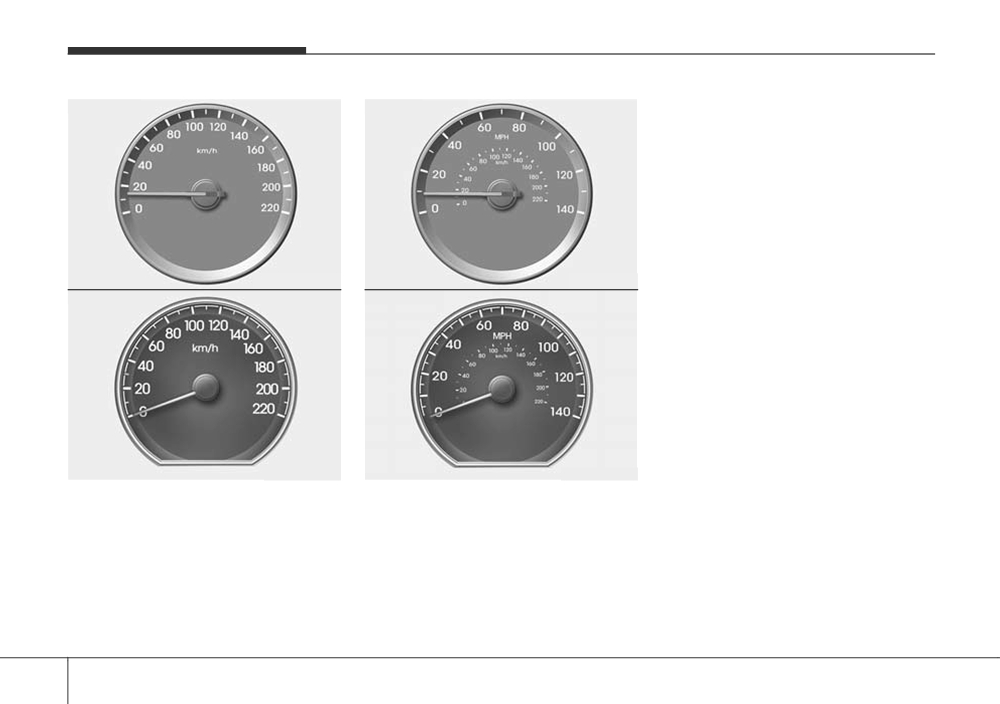

Speedometer (km or mile)

The speedometer indicates the forward

speed of the vehicle.

The speedometer is calibrated in miles

per hour and/or kilometers per hour.

OTQ045410

OTQ045411

OTQ045408

OTQ045409

4 40

Features of your vehicle

Gasoline

The tachometer indicates the approximate

D150203AUN

number of engine revolutions per minute

Engine temperature gauge

(rpm).

This gauge shows the temperature of the

Use the tachometer to select the correct

engine coolant when the ignition switch

shift points and to prevent lugging and/or

is ON.

over-revving the engine.

Do not continue driving with an overheat-

When the door is open, or if the engine is

ed engine. If your vehicle overheats, refer

not started within 1 minute, the tachometer

to “If the engine overheats” in section 6.

pointer may move slightly in ON position

OTQ045402

with the engine OFF. This movement is

Diesel

CAUTION

normal and will not affect the accuracy of

the tachometer once the engine is running.

If the gauge pointer moves beyond

the normal range area toward the

“H” or “130” position, it indicates

CAUTION

overheating that may damage the

Do not operate the engine within

engine.

the tachometer's RED ZONE.

This may cause severe engine dam-

age.

WARNING

OTQ045401

Never remove the radiator cap

when the engine is hot. The engine

coolant is under pressure and

could cause severe burns. Wait

until the engine is cool before

adding coolant to the reservoir.

OTQ045403

Tachometer

4 41

Content   ..  4  5  6  7   ..
