Hyundai H-1 / Grand Starex (2016 year). Instruction - part 5
Features of your vehicle
D030200AEN-EE
D030400BTQ
✽ NOTICE - Immobilizer system
Theft-alarm stage
Disarmed stage
• If the system is not disarmed with the
The alarm will be activated if any of the
The system will be disarmed when the
transmitter, insert the key into the
following occurs while the system is
doors (and tailgate) are unlocked with the
ignition switch and start the engine.
armed.
transmitter.
Then the system will be disarmed.
• A front or rear door is opened without
After depressing the unlock button, the
• If you lose your keys, we recommend
using the transmitter.
hazard warning lights will blink twice to
that you contact an authorized
• The tailgate is opened without using
indicate that the system is disarmed.
HYUNDAI dealer.
the transmitter.
After depressing the unlock button, if any
• The engine hood is opened.
door (or tailgate) is not opened within 30
CAUTION
The horn will sound and the hazard
seconds, the system will be rearmed.
Do not change, alter or adjust the
warning lights will blink continuously for
theft-alarm system because it could
approximately 30 seconds. To turn off the
✽ NOTICE - Non-immobilizer
cause the theft-alarm system to
system, unlock the doors with the trans-
system
malfunction and we recommend
mitter.
• Avoid trying to start the engine while
that you serviced an authorized
the alarm is activated. The vehicle
HYUNDAI dealer.
starting motor is disabled during the
Malfunctions caused by improper
theft-alarm stage.
alterations, adjustments or modifi-
If the system is not disarmed with the
cations to the theft-alarm system
transmitter, insert the key into the
are not covered by your vehicle
ignition switch, turn the ignition
manufacturer warranty.
switch to the ON position and wait for
30 seconds. Then the system will be
disarmed.
• If you lose your keys, we recommend
that you contact an authorized
HYUNDAI dealer.
4 8
Features of your vehicle
DOOR LOCKS
• Doors can also be locked and
Rear sliding doors
unlocked with the transmitter.
(if
equipped)
• Once the doors are unlocked, they may
be opened by pulling the door handle.
Unlock
• When closing the door, push the door
Lock
by hand. Make sure that doors are
closed securely.
✽ NOTICE
•
In cold and wet climates, door lock
and door mechanisms may not work
OTQ047005
OTQ047006
properly due to freezing conditions.
D050100CTQ
•
Once the rear doors are unlocked, they
•
If the door is locked/unlocked multi-
Operating door locks from out-
may be opened by pulling the door
ple times in rapid succession with
side the vehicle
handle and sliding the door towards
either the vehicle key or door lock
switch, the system may stop operating
the rear of the vehicle.
• Turn the key toward the rear of the
temporarily in order to protect the
•
When the rear door is fully open, the
vehicle to lock and toward the front of
the vehicle to unlock.
circuit and prevent damage to system
door will lock into an open position. To
components.
close the door, pull out the door handle
• If you lock/unlock the driver’s door with
and slide the door towards the front of
a key, all vehicle doors will lock/unlock
vehicle.
automatically. (if equipped)
WARNING
• If you lock the front passenger’s door
• If you do not close the door
with a key all vehicle doors will lock
securely, the door may open
automatically. (if equipped)
again.
• Be careful that someone's body
and hands are not trapped when
closing the door.
4 9
Features of your vehicle
Front door
✽ NOTICE
WARNING
Always remove the ignition key, engage
When the rear sliding door is not
the parking brake, close all windows
fully open, it is not latched and may
and lock all doors when leaving your
move unintentionally. This could
vehicle unattended.
result in a serious injury.
CAUTION
The left sliding door cannot be
OTQ047007
opened when the fuel filler lid is
Rear sliding door
open. However, if the fuel filler lid is
opened after the door is opened
slightly, the left sliding door can be
slide rearward. Close the left sliding
door to prevent possible damage to
the door or the fuel filler lid.
OTQ047008
• To lock a door without the key, push the
inside door lock button (1) or central
door lock switch (2) to the “Lock” posi-
tion and close the door (3).
• If you lock the door with the central
door lock switch (2), all vehicle doors
will lock automatically. (if equipped)
4 10
Features of your vehicle
Front door
•
To lock a door, push the door lock but-
ton (1) to the “Lock” position. If the door
WARNING - Door lock mal-
is locked properly, the red mark (2) on
function
the door lock button will not be visible.
If a power door lock ever fails to
•
To open a door, pull the door handle
function while you are in the vehi-
(3) outward.
cle, try one or more of the following
•
If the inner door handle of the driver’s
techniques to exit:
Lock
door is pulled when the door lock but-
• Operate the door unlock feature
Unlock
ton is in lock position, the button is
repeatedly
(both electronic and
unlocked and door opens. (if equipped)
manual) while simultaneously
•
Front doors cannot be locked if the
pulling on the door handle.
OTQ047009
Rear sliding door
ignition key is in the ignition switch and
• Operate the other door locks and
any front door is open.
handles, front and rear.
Unlock
• Lower a front window and use the
key to unlock the door from out-
Lock
side.
• Move to the cargo area and open
the tailgate. (if equipped)
OTQ047010
Operating door locks from inside
the vehicle
D050201ATQ
With the door lock button
• To unlock a door, push the door lock
button (1) to the “Unlock” position. The
red mark (2) on button will be visible.
4 11
Features of your vehicle
WARNING - Doors
WARNING - Unlocked
•
The doors should always be fully
vehicles
closed and locked while the vehi-
Leaving your vehicle unlocked can
cle is in motion to prevent acci-
invite theft or possible harm to you
dental opening of the door.
or others from someone hiding in
Locked doors will also discour-
your vehicle while you are gone.
age potential intruders when the
Always remove the ignition key,
vehicle stops or slows.
engage the parking brake, close all
•
Be careful when opening doors
windows and lock all doors when
and watch for vehicles, motorcy-
leaving your vehicle unattended.
cles, bicycles or pedestrians
OTQ047011
approaching the vehicle in the
D050202ATQ
path of the door. Opening a door
WARNING - Unattended
With central door lock switch
when something is approaching
children
(if equipped)
can cause damage or injury.
An enclosed vehicle can become
Operate by depressing the central door
extremely hot, causing death or
lock switch.
severe injury to unattended chil-
dren or animals who cannot escape
• When pushing down on the portion (1)
the vehicle. Furthermore, children
of the switch, all vehicle doors will lock.
might operate features of the vehi-
• When pushing down on the portion (2)
cle that could injure them, or they
of the switch, all vehicle doors will
could encounter other harm, possi-
unlock.
bly from someone gaining entry to
• If the key is in the ignition switch and
the vehicle. Never leave children or
any front door is open, the doors will
animals unattended in your vehicle.
not lock when the portion (1) of central
door lock switch is pressed.
4 12
Features of your vehicle
D050300AUN
3. Close the rear door.
Impact sensing door unlock sys-
To open the rear door, pull the outside
tem (if equipped)
door handle (1).
All doors will be automatically unlocked
Even though the doors may be unlocked,
when the impact is delivered to impact
the rear door will not open by pulling the
sensors while the ignition switch ON.
inner door handle until the rear door child
However, the doors may not be unlocked
safety lock is unlocked (
).
if mechanical problems occur with the
door lock system or battery.
WARNING - Rear door
locks
D050400AFD
If children accidentally open the
Speed sensing door lock system
OTQ047012
rear doors while the vehicle is in
(if equipped)
motion, they could fall out and be
D050500ATQ
When the speed of the vehicle keeps
severely injured or killed. To pre-
above 40 km/h for 1 second, it will auto-
Child-protector rear door lock
vent children from opening the rear
matically lock all doors. For activation of
The child safety lock is provided to help
doors from the inside, the rear door
this fearture, we recommend that you
prevent children from accidentally open-
safety locks should be used when-
contact an athourized HYUNDAI dealer.
ing the rear doors from inside the vehicle.
ever children are in the vehicle.
The rear door safety locks should be
✽ NOTICE
used whenever children are in the vehi-
An authorized HYUNDAI dealer can
cle.
select some auto door lock/unlock fea-
1. Open the rear door.
tures as follows;
2. Push the child safety lock located on
• Speed sensing auto door locking
the front edge of the door to the lock
• Auto door unlock when the ignition
(
) position. When the child safety
key is removed from the ignition
lock is in the lock position, the rear
switch
door will not open even though the
If you want to select a door lock/unlock
inner door handle is pulled.
feature, we recommend that you consult
an athourized HYUNDAI dealer.
4 13
Features of your vehicle
TAILGATE
■ Type A
• The tailgate can also be locked and
unlocked with the key if the vehicle is
equipped with a key hole on the tail-
gate.
• If unlocked, the tailgate can be opened
by pressing the handle switch and
pulling the handle up. (Type A)
• If unlocked, the tailgate can be opened
by pulling the handle. (Type B)
OTQ047013
✽ NOTICE
■ Type B
In cold and wet climates, door lock and
OTQ047212
door mechanisms may not work proper-
If your vehicle is equipped with twin
ly due to freezing conditions.
swing type tail gates, you may fully open
(if equipped) as follows ;
1. Open the tail gate.
WARNING
2. Remove the pin from the bracket hole
The tailgate swings upward. Make
and insert the pin into the pin hole.
sure no objects or people are near
3. Open the tail gate fully.
the rear of the vehicle when open-
ing the tailgate.
OTQ047013G
D070100ATQ
Opening the tailgate
CAUTION
Make certain that you close the tail-
• The tailgate is locked or unlocked
when all doors are locked or unlocked
gate before driving your vehicle.
Possible damage may occur to the
with the key, transmitter or central door
tailgate lift cylinders and attached
lock switch. (if equipped)
hardware if the tailgate is not
closed prior to driving.
4 14
Features of your vehicle
D070200AUN
CAUTION
Closing the tailgate
Insert the pin into the bracket hole
To close the tailgate, lower and push
before closing the tail gate. Or the
down the tailgate firmly. Make sure that
tail gate checker and/or vehicle
the tailgate is securely latched.
damage is possible and a danger-
ous situation may occur.
WARNING - Exhaust
fumes
If you drive with the tailgate open,
you will draw dangerous exhaust
fumes into your vehicle which can
OTQ047213
cause serious injury or death to
4. After use, before closing the tail gate,
vehicle occupants.
pull out the pin from the pin hole.
If you must drive with the tailgate
5. Align the checker arm hole and the tail
open, keep the air vents and all win-
gate bracket hole, and insert the pin
dows open so that additional out-
into the bracket hole.
side air comes into the vehicle.
6. Close the tail gate.
4 15
Features of your vehicle
■ Type A
When someone is inadvertently locked in
WARNING - Rear cargo
the luggage compartment, if the lever is
area
pushed, the tailgate latch mechanism is
released and the tailgate is opened by
Occupants should never ride in the
pushing rearward.
rear cargo area where no restraints
are available. To avoid injury in the
event of an accident or sudden
WARNING
stops, occupants should always be
•
For emergencies, be fully aware
properly restrained.
of the location of the emergency
tailgate safety release lever in
OTQ047015
this vehicle and how to open the
■ Type B
tailgate if you are accidentally
locked in the luggage compart-
ment.
•
No one should be allowed to
occupy the luggage compartment
of the vehicle at any time. The
luggage compartment is a very
dangerous location in the event
of a crash.
•
Use the release lever for emer-
OTQ047015G
gencies only. Use extreme cau-
D070300AEN
tion, especially while the vehicle
is in motion.
Emergency tailgate safety release
(if equipped)
Your vehicle is equipped with the emer-
gency tailgate safety release lever locat-
ed on the bottom of the tailgate.
4 16
Features of your vehicle

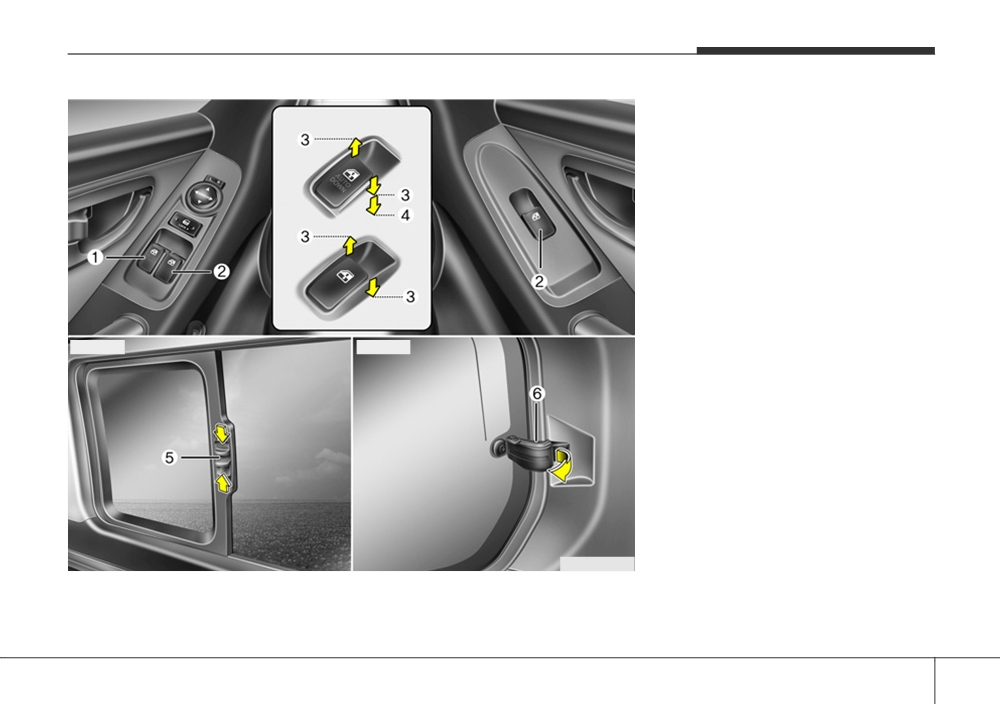

WINDOWS
D080000ATQ
(1) Driver’s door power window switch
(2) Front passenger’s door power win-
dow switch
(3) Window opening and closing
(4) Automatic power window down
(Driver’s window, if equipped)
(5) Rear seat window (Type A)
(6) Rear seat window (Type B)
✽ NOTICE
In cold and wet climates, power windows
may not work properly due to freezing
conditions.
■ Type A
■ Type B
OTQ047016G
4 17
Features of your vehicle
D080100AUN
Power windows (if equipped)
The ignition switch must be in the ON
position for power windows to operate.
Each door has a power window switch
that controls the door's window. The driv-
er has a power window lock switch which
can block the operation of passenger
windows. The power windows can be
operated for approximately 30 seconds
after the ignition key is removed or turned
to the ACC or LOCK position. However, if
OTQ047203
OTQ047204
the front doors are opened, the power
windows cannot be operated within the
D080101ATQ
D080102ATQ
30 second period after the ignition key
Type A
Type B
removal.

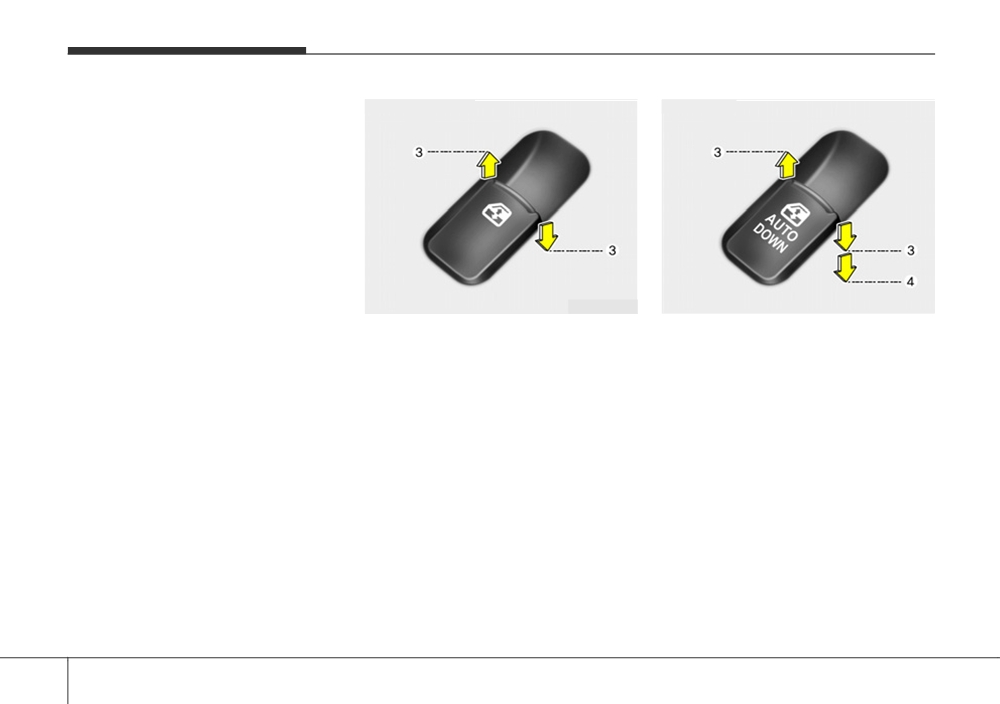

Window opening and closing
Auto down window
(if equipped)
(Driver’s window, if equipped)
✽ NOTICE
The driver’s door has a master power
Depressing the power window switch
While driving, if you notice buffeting
window switch that controls all the win-
momentarily to the second detent posi-
and pulsation (wind shock) with either
dows in the vehicle.
tion
(4) completely lowers the driver’s
side window open, you should open the
To open or close a window, press down
window even when the switch is
opposite window slightly to reduce the
or pull up the front portion of the corre-
released. To stop the window at the
condition.
sponding switch to the first detent posi-
desired position while the window is in
tion (3).
operation, pull up the switch momentarily
to the opposite direction of the window
movement.
4 18
Features of your vehicle
CAUTION
WARNING - Windows
•
To prevent possible damage to
•
NEVER leave the keys in your
the power window system, do not
vehicle with unsupervised chil-
open or close two windows or
dren, when the engine is running.
more at the same time. This will
•
NEVER leave any child unattend-
also ensure the longevity of the
ed in the vehicle. Even very
fuse.
young children may inadvertently
•
Never try to operate the main
cause the vehicle to move, entan-
switch on the driver's door and
gle themselves in the windows,
the individual door window
or otherwise injure themselves or
switch in opposing directions at
others.
the same time. If this is done, the
OTQ047204E
•
Always double check to make
window will stop and cannot be
sure all arms, hands, head and
D080103ATQ
opened or closed.
other obstructions are safely out
Type C
of the way before closing a win-
Auto up/down window
dow.
(Driver’s window, if equipped)
•
Do not allow children to play with
Depressing or pulling up the power win-
the power windows. Serious
dow switch momentarily to the second
injury can result from uninten-
detent position (4) completely lowers or
tional window operation by the
lifts the window even when the switch is
child.
released. To stop the window at the
•
Do not extend face or arms out-
desired position while the window is in
side through the window opening
operation, pull up or depress and release
while driving.
the switch to the opposite direction of the
movement.
4 19
Features of your vehicle
If the power window is not operated cor-
✽ NOTICE
rectly, the automatic power window sys-
The automatic reverse feature for the
tem must be reset as follows:
driver’s window is only active when the
1. Turn the ignition switch to the ON posi-
“auto up” feature is used by fully
tion.
pulling up the switch. The automatic
2. Close driver’s window and continue
reverse feature will not operate if the
pulling up on driver’s power window
window is raised using the halfway posi-
switch for at least 1 second after the
tion on the power window switch.
window is completely closed.
WARNING
Automatic reversal
Always check for obstructions
If the upward movement of the window is
before raising any window to avoid
3FDA2015
blocked by an object or part of the body,
injuries or vehicle damage. If an
D080200AFD
the window will detect the resistance and
object less than 4 mm (0.16 in.) in
will stop upward movement. The window
Manual windows (if equipped)
diameter is caught between the
will then lower approximately 30 cm (11.8
To raise or lower the window, turn the
window glass and the upper win-
in.) to allow the object to be cleared.
window regulator handle clockwise or
dow channel, the automatic reverse
If the window detects the resistance
counterclockwise.
window may not detect the resist-
while the power window switch is pulled
ance and will not stop and reverse
up continuously, the window will stop
direction.
WARNING
upward movement then lower approxi-
mately 2.5 cm (1 in.). And if the power
When opening or closing the win-
window switch is pulled up continuously
dows, make sure your passenger's
arms, hands and body are safely
again within 5 seconds after the window
is lowered by the automatic window
out of the way.
reversal feature, the automatic window
reversal will not operate.
4 20
Features of your vehicle
OTQ047017
OTQ047018
D080200ATQ
Rear seat window
Rear seat window
(Type B, if equipped)
(Type A, if equipped)
To open the windows, pull the rear por-
To open the window, move the window
tion of the latch out. Swing the latch for-
while pressing the handle the direction of
ward and out, then lock it into the open
the arrow.
position by pushing outward until you
hear a click. To close the windows, pull
the handle inward. Then push the handle
rearward until you hear a click.
✽ NOTICE
In cold and wet climates, rear quarter
panel windows may not work properly
due to freezing conditions.
4 21
Features of your vehicle
HOOD
OTQ047019
OTQ046020
OTQ047021
D090100BUN
2. Go to the front of the vehicle, raise the
3. Pull the support rod from the hood.
Opening the hood
hood slightly, pull the secondary latch
4. Hold the hood open with the support
1. Pull the release lever to unlatch the
(1) inside of the hood center and lift
rod.
hood. The hood should pop open
the hood (2).
slightly.
WARNING - Hot parts
Grasp the support rod in the area
WARNING
wrapped in rubber. The rubber will
Open the hood after turning off the
help prevent you from being burned
engine on a flat surface, shifting
by hot metal when the engine is
the shift lever to the P(Park) posi-
hot.
tion for automatic transmission and
to the 1st(First) gear or R(Reverse)
for manual transmission, and set-
ting the parking brake.
4 22
Features of your vehicle
D090200AUN
Closing the hood
WARNING - Hood
WARNING
1. Before closing the hood, check the fol-
•
Before closing the hood, ensure
•
Always double check to be sure
lowing:
that all obstructions are removed
that the hood is firmly latched
from the hood opening. Closing
before driving away. If it is not
• All filler caps in engine compartment
the hood with an obstruction
latched, the hood could fly open
must be correctly installed.
present in the hood opening may
while the vehicle is being driven,
• Gloves, rags or any other com-
result in property damage or
causing a total loss of visibility,
bustible material must be removed
severe personal injury.
which might result in an accident.
from the engine compartment.
•
Do not leave gloves, rags or any
•
The support rod must be inserted
2. Return the support rod to its clip to
other combustible material in the
completely into the hole provided
prevent it from rattling.
engine compartment. Doing so
in the hood whenever you inspect
3. Lower the hood until it is about 30 cm
may cause a heat-induced fire.
the engine compartment. This will
(1 ft.) above the closed position and let
prevent the hood from falling and
it drop. Make sure that it locks into
possibly injuring you.
place.
•
Do not move the vehicle with the
hood in the raised position, as
vision is obstructed and the hood
could fall or be damaged.
4 23
Features of your vehicle
FUEL FILLER LID
D100101ATQ
CAUTION
The left sliding door cannot be
opened when the fuel filler lid is
open. However, if the fuel filler lid is
opened after the door is opened
slightly, the left sliding door can be
slide rearward. Close the left sliding
door to prevent possible damage to
the door or the fuel filler lid.
OTQ047022
OTQ045414
D100100AUN
1. Stop the engine.
Opening the fuel filler lid
2. To open the fuel filler lid, push the fuel
The fuel filler lid must be opened from
filler lid opener button.
inside the vehicle by pushing the fuel
3. Pull the fuel filler lid
(1) out to fully
filler lid opener button located on the dri-
open.
ver’s door.
4. To remove the cap, turn the fuel tank
cap (2) counterclockwise.
✽ NOTICE
5. Refuel as needed.
If the fuel filler lid will not open because
ice has formed around it, tap lightly or
push on the lid to break the ice and
release the lid. Do not pry on the lid. If
necessary, spray around the lid with an
approved de-icer fluid (do not use radi-
ator anti-freeze) or move the vehicle to a
warm place and allow the ice to melt.
4 24
