Hyundai H-1 / Grand Starex (2016 year). Instruction - part 10

Features of your vehicle

✽ NOTICE

Prolonged operation of the heater in the

WARNING

recirculated air position

(without air

•

Continue using the climate con-

conditioning selected) may cause fog-

trol system in the recirculated air

ging of the windshield and side windows

position may allow humidity to

and the air within the passenger com-

increase inside the vehicle which

partment may become stale.

may fog the glass and obscure

In addition, prolonged use of the air con-

visibility.

ditioning with the recirculated air posi-

•

Do not sleep in a vehicle with the

tion selected will result in excessively dry

air conditioning or heating sys-

air in the passenger compartment.

tem on. It may cause serious

harm or death due to a drop in the

oxygen level and/or body temper-

OTQ045235

ature.

Fan speed control

•

Continue using the climate control

The fan speed control knob allows you to

system in the recirculated air

control the fan speed of the airflow in the

position can cause drowsiness or

vehicle.

sleepiness, and loss of vehicle

To change the fan speed:

control. Set the air intake control

• Turn the knob to the right

(+) to

to the outside (fresh) air position

increase fan speed.

as much as possible while driving.

• Turn the knob to the left (-) to decrease

fan speed.

To turn off the fan speed, press the OFF

button.

4 93

Features of your vehicle

OTQ045238

OTQ045240

OTQ047076

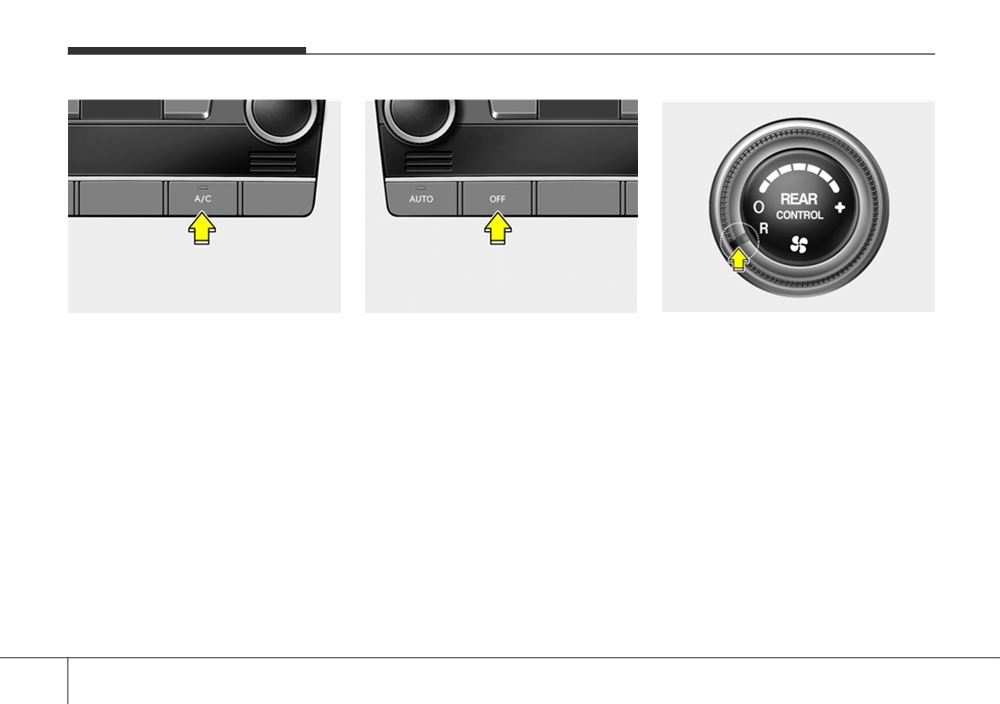

Air conditioning

OFF mode (for 1st)

Rear heating and air conditioning

Press the A/C button to turn the air con-

Press the front blower OFF button to turn

(if equipped)

ditioning system on (indicator light will

off the front air climate control system.

The temperature, fan speed and mode of

illuminate).

However, you can still operate the mode

the rear climate control system can be

Press the button again to turn the air

and air intake buttons as long as the igni-

controlled independently regardless of the

conditioning system off.

tion switch is in the ON position.

front climate control system operation.

Turn the rear climate control selection

knob to the “R” and set the rear tempera-

ture, fan speed and mode to the desired

position.

However, the front climate control system

should be operated together for rear air

conditioning;

1. Set the front fan speed to the desired

position.

2. Push the air conditioning button.

3. Set the rear temperature, fan speed

and mode to the desired position.

4 94

Features of your vehicle

In the front seat

The rear mode is selected automatically

by selecting the rear temperature control.

•

: Rear air blows from the upper

vents on the rear side ceiling.

•

: Rear air blows from the upper

vents on the rear side ceiling and

the lower vents on the floor.

•

: Rear air blows from the lower

vents on the floor.

OTQ045231

In the rear seat

OTQ047077

Rear vents

The vent can be adjusted by rotating the

thumb wheel.

✽ NOTICE

If all the vents are closed, it may cause

some noise. Always open

2 vents or

more.

OTQ047079

Rear temperature control

To change the air temperature in the rear

passenger compartment, turn the knob

to the right for warm and hot air or left for

cooler air.

4 95

Features of your vehicle

In the front seat

System operation

Operation Tips

Ventilation

•

To keep dust or unpleasant fumes from

entering the car through the ventilation

1. Set the mode to the

position.

system, temporarily set the air intake

2. Set the air intake control to the outside

control to the recirculated air position.

(fresh) air position.

Be sure to return the control to the

3. Set the temperature control to the

fresh air position when the irritation

desired position.

has passed to keep fresh air in the

4. Set the fan speed control to the

vehicle. This will help keep the driver

desired speed.

alert and comfortable.

OTQ047095

•

Air for the heating/cooling system is

In the rear seat

Heating

drawn in through the grilles just ahead

1. Set the mode to the

position.

of the windshield. Care should be

2. Set the air intake control to the outside

taken that these are not blocked by

(fresh) air position.

leaves, snow, ice or other obstructions.

3. Set the temperature control to the

•

To prevent interior fog on the wind-

desired position.

shield, set the air intake control to the

fresh air position and fan speed to the

4. Set the fan speed control to the

desired position, turn on the air condi-

desired speed.

tioning system, and adjust the temper-

5. If dehumidified heating is desired, turn

ature control to desired temperature.

OTQ047080

the air conditioning system

(if

D230203ATQ

equipped) on.

Rear fan speed control

• If the windshield fogs up, set the mode

To change the fan speed, turn the knob

to the

or

position.

to the right for higher speed or left for

lower speed.

To turn off the fan, turn the knob to the 0

position.

4 96

Features of your vehicle

Air conditioning (if equipped)

✽ NOTICE

•

During air conditioning system opera-

HYUNDAI Air Conditioning Systems are

tion, you may occasionally notice a

•

When using the air conditioning sys-

filled with environmentally friendly

slight change in engine speed as the

tem, monitor the temperature gauge

R-134a refrigerant.

air conditioning compressor cycles.

closely while driving up hills or in

This is a normal system operation

1. Start the engine. Push the air condi-

heavy traffic when outside tempera-

characteristic.

tioning button.

tures are high. Air conditioning sys-

•

Use the air conditioning system every

2. Set the mode to the

position.

tem operation may cause engine over-

heating. Continue to use the blower

month only for a few minutes to ensure

3. Set the air intake control to the outside

fan but turn the air conditioning sys-

maximum system performance.

air or recirculated air position.

tem off if the temperature gauge indi-

•

When using the air conditioning sys-

4. Adjust the fan speed control and tem-

cates engine overheating.

tem, you may notice clear water drip-

perature control to maintain maximum

•

When opening the windows in humid

ping (or even puddling) on the ground

comfort.

weather air conditioning may create

under the passenger side of the vehi-

•

When maximum cooling is desired, set

water droplets inside the vehicle.

cle. This is a normal system operation

the temperature control to the extreme

Since excessive water droplets may

characteristic.

left position, then set the fan speed

cause damage to electrical equipment,

•

Operating the air conditioning system

control to the highest speed.

air conditioning should only be run

in the recirculated air position provides

with the windows closed.

maximum cooling, however, continual

operation in this mode may cause the

air inside the vehicle to become stale.

Air conditioning system operation tips

•

During cooling operation, you may

• If the vehicle has been parked in direct

occasionally notice a misty air flow

sunlight during hot weather, open the

because of rapid cooling and humid air

windows for a short time to let the hot

intake. This is a normal system opera-

air inside the vehicle escape.

tion characteristics.

• To help reduce moisture inside of the

windows on rainy or humid days,

decrease the humidity inside the vehi-

cle by operating the air conditioning

system.

4 97

Features of your vehicle

Fuel-fired Heater (If equipped)

✽ NOTICE

This fuel-fired heater supplies additional

•

The following symptoms will occur

Outside air

heat to the interior compartment with a

and it is normal.

low fuel consumption to compensate the

- A white smoke may come out from

Recirculated

heat provided by engine alone.

the fuel-fired heater exhaust pipe

air

The following

3 conditions should be

during operation of the heater.

meet at the same time for automatic

However, when an excessive black

operation of the fuel-fired heater.

smoke is discharged, the fuel-fired

heater should be inspected.

• Engine runs.

- A “buk-buk” noise from the heater is

Blower

• Ambient temperature is lower than 5°C.

a noise to form flame for combus-

Heater core

• Coolant temperature is lower than

Climate control

Evaporator

tion.

air filter

core

68°C.

1LDA5047

- When the heater is operated at full

A cleaning process of the fuel-fired

load, a “Wooing” noise occurs.

Climate control air filter

heater will be performed automatically

- When shutting off the engine during

(if equipped)

when the heater is not operated due to

heater operation, a

“Wing” noise

increase of coolant temperature and igni-

The climate control air filter installed

occurs to perform the cleaning

tion off.

behind the glove box filters the dust or

process.

other pollutants that come into the vehi-

During cleaning process, supplied fuel in

•

When refueling, stop operation of the

cle from the outside through the heating

the heater will be burnt completely and

fuel-fired heater by shutting off the

and air conditioning system. If dust or

any smoke will be expelled. It is a neces-

engine.

other pollutants accumulate in the filter

sary process for next operation and dura-

over a period of time, the air flow from the

bility of the heater and takes about 1~3

air vents may decrease, resulting in

minutes.

moisture accumulation on the inside of

the windshield even when the outside

(fresh) air position is selected. If this hap-

pens, we recommend that the climate

control air filter be replaced by an author-

ized HYUNDAI dealer.

4 98

Features of your vehicle

WINDSHIELD DEFROSTING AND DEFOGGING

WARNING - Windshield

heating

Do not use the

or

position

during cooling operation in extreme-

ly humid weather. The difference

between the temperature of the out-

side air and that of the windshield

could cause the outer surface of the

windshield to fog up, causing loss of

visibility. In this case, set the mode

selection knob or button to the

position and fan speed control knob

OTQ045268

OTQ045269

or button to the lower speed.

Manual climate control system

To defrost outside windshield

1. Set the fan speed to the highest

To defog inside windshield

(extreme right) position.

•

For maximum defrosting, set the temper-

1. Select any fan speed except “0” posi-

2. Set the temperature to the extreme hot

ature control to the extreme right/hot

tion.

position and the fan speed control to the

position.

2. Select desired temperature.

highest speed.

3. Select the

position.

3. Select the

or

position.

•

If warm air to the floor is desired while

4. The outside (fresh) air and air condi-

4. If the

position is selected, the out-

defrosting or defogging, set the mode to

tioning will be selected automatically.

side (fresh) air and air conditioning will

the floor-defrost position.

be selected automatically.

•

Before driving, clear all snow and ice

If the air conditioning and outside (fresh)

from the windshield, rear window, outside

air position are not selected automatically,

rear view mirrors, and all side windows.

press the corresponding button manually.

•

Clear all snow and ice from the hood and

air inlet in the cowl grill to improve heater

and defroster efficiency and to reduce the

probability of fogging up the inside of the

windshield.

4 100

Features of your vehicle

If the air-conditioning, outside (fresh) air

position and higher fan speed are not

selected automatically, adjust the corre-

sponding button or knob manually.

If the

position is selected, lower fan

speed is controlled to higher fan speed.

OTQ045270

OTQ045271

Automatic climate control system

To defrost outside windshield

1. Set fan speed to the highest position.

To defog inside windshield

1. Select desired fan speed.

2. Set temperature to the extreme hot

(HI) position.

2. Select desired temperature.

3. Press the defroster button (

).

3. Press the defroster button (

).

4. The air-conditioning will turn on

4. The air-conditioning will turn on

according to the detected ambient

according to the detected ambient

temperature and outside

(fresh) air

temperature, outside (fresh) air posi-

position will be selected automatically.

tion and higher fan speed will be

If the

position is selected, lower fan

selected automatically.

speed is controlled to higher fan speed.

4 101

Features of your vehicle

Defogging logic (if equipped)

To reduce the possibility of fogging up

the inside of the windshield, the air intake

or air conditioning are controlled auto-

matically according to certain conditions

such as

position. To cancel or return

the defogging logic, do the following.

OTQ045277

OTQ045272

Manual climate control system

Automatic climate control system

1. Turn the ignition switch to the ON posi-

1. Turn the ignition switch to the ON posi-

tion.

tion.

2. Turn the mode selection knob to the

2. Press the defroster button (

).

defrost position (

).

3. While pressing the air conditioning but-

3. Push the air intake control button at

ton (A/C), press the air intake control

least 5 times within 3 seconds.

button at least 5 times within 3 seconds.

The indicator light in the air intake control

The indicator on the air intake button blinks

button will blink 3 times with 0.5 second

3 times with 0.5 seconds of interval. It indi-

of interval. It indicates that the defogging

cates that the defogging logic is canceled

logic is canceled or returned to the pro-

or returned to the programmed status.

grammed status.

If the battery has been discharged or dis-

connected, it resets to the defog logic

status.

4 102

Features of your vehicle

STORAGE COMPARTMENT

These compartments can be used to

store small items required by the driver

WARNING

or passengers.

To reduce the risk of injury in an

accident or sudden stop, always

keep the glove box door closed

CAUTION

while driving.

•

To avoid possible theft, do not

leave valuables in the storage

compartment.

•

Always keep the storage com-

CAUTION

partment covers closed while

Do not keep food in the glove box

driving. Do not attempt to place

for a long time.

so many items in the storage

OTQ047107

compartment that the storage

Glove box

compartment cover cannot close

To open the glove box, pull the handle

securely.

and the glove box will automatically

open. Close the glove box after use.

WARNING - Flammable

materials

Do not store cigarette lighters,

propane cylinders, or other flamma-

ble/explosive materials in the vehi-

cle. These items may catch fire

and/or explode if the vehicle is

exposed to hot temperatures for

extended periods.

4 103

Features of your vehicle

WARNING

•

Do not keep objects except sun-

glasses inside the sunglass hold-

er. Such objects can be thrown

from the holder in the event of a

sudden stop or an accident, pos-

sibly injuring the passengers in

the vehicle.

•

Do not open the sunglass holder

while the vehicle is moving. The

rear view mirror of the vehicle

OTQ047108

can be blocked by an open sun-

OTQ047109

D270300BUN

glass holder.

D270400ATQ

Sunglass holder (if equipped)

•

Do not put the glasses forcibly

Multi box (if equipped)

into a sunglass holder to prevent

To open the sunglass holder, press the

To open the cover, pull the handle down.

breakage or deformation of

cover and the holder will slowly open.

Close the cover after use.

glasses. It may cause personal

Place your sunglasses in the compart-

injury if you try to open it forcibly

ment door with the lenses facing out.

when the glasses are jammed in

Push to close.

holder.

4 104

Features of your vehicle

Left-Hand drive type

2. Set the mode control to the face (

)

or bi-level (

) position.

WARNING

3. Turn the open/close lever of the vent

Do not put the perishable food in

installed in the multi box to the open

the cool box because it may not be

position.

able to maintain the necessary con-

sistent temperature to keep the

4. When the cool box is not used, turn

food fresh.

the lever to its closed position.

For improving the effectiveness of the

cool box, do as follows;

OTQ047081

1. Set the temperature to the cold

Right-Hand drive type

(extreme left) position for cool air.

Turn on the air conditioning system for

cooler air.

2. Set the fan speed to the highest

(extreme right) position.

3. Set the mode to the face (

) posi-

tion.

✽ NOTICE

If some items in the cool box block the

OTQ045081R

vent, the cooling effectiveness of the cool

D230600ATQ

box is reduced.

Cool box (if equipped)

You can keep beverage cans or other

items cool using the open/close lever of

the vent installed in the multi box.

1. Turn on the fan and set the tempera-

ture control to the desired position.

4 105

Features of your vehicle

INTERIOR FEATURES

Front

WARNING

•

Do not hold the lighter in after it

is already heated because it will

overheat.

•

If the lighter does not pop out

within 30 seconds, remove it to

prevent overheating.

•

Do not insert foreign objects into

the socket of the cigarette lighter.

It may damage the cigarette

OTQ047111

lighter.

Rear (if equipped)

OTQ047110

D280100BEN

Cigarette lighter

CAUTION

For the cigarette lighter to work, the igni-

We recommend that you use parts

tion switch must be in the ACC position

for replacement from an authorized

or the ON position.

HYUNDAI dealer.

To open the cover, press the cover and it

The use of plug-in accessories

will slowly open.

(shavers, hand-held vacuums, and

To use the cigarette lighter, push it all the

coffee pots, etc.) may damage the

way into its socket. When the element

socket or cause electrical failure.

1VQA2187

has heated, the lighter will pop out to the

D280200ATQ

“ready” position.

Ashtray

WARNING - Ashtray use

• Do not use the vehicle’s ashtrays

as waste receptacles.

• Putting lit cigarettes or matches in

an ashtray with other combustible

materials may cause a fire.

4 106

Features of your vehicle

Front

Front

To open the cover, press the cover and it

WARNING - Hot liquids

will slowly open. To clean the ashtray, the

• Do not place uncovered cups of

plastic receptacle should be removed by

hot liquid in the cup holder while

lifting the plastic ash receptacle upward

the vehicle is in motion. If the hot

and pulling it out.

liquid spills, you burn yourself.

Such a burn to the driver could

Rear (if equipped)

lead to loss of control of the vehi-

cle.

To use the ashtray, open the cover.

OTQ047112

• To reduce the risk of personal

To remove the ashtray to empty or clean,

Center seat

injury in the event of sudden stop

pull it up and out.

or collision, do not place uncov-

ered or unsecured bottles, glass-

es, cans, etc., in the cup holder

while the vehicle is in motion.

WARNING

OTQ047113

Keep cans or bottles out of direct

Rear

sun light and do not put them in a

vehicle that is heated up. It may

explode.

(if equipped)

OTQ044114

D280300BTQ

Cup holder

4 107

Features of your vehicle

CAUTION

CAUTION - Vanity mirror

When putting the drinking water on

lamp (if equipped)

the front or the center seat cup

Close the vanity mirror cover

holder, the liquid may flow into the

securely and return the sunvisor to

external input terminal(if equipped)

its original position after use. If the

by sudden braking, so be sure to

vanity mirror is not closed securely,

close the lid of the drinking water.

the lamp will stay on and could

result in battery discharge and pos-

sible sunvisor damage.

Front

To open the cover, press the knob on the

cover and it will slowly open.

* : if equipped

OTQ047115

Place a cup or small beverage can after

D280400BTQ

WARNING

pulling out the blade (1).

For your safety, do not obstruct your

Sunvisor

vision when using the sunvisor.

Use the sunvisor to shield direct light

Center seat/Rear (if equipped)

through the front or side windows.

Cups or small beverage cans may be

To use a sunvisor, pull it downward.

placed in the cup holders.

To use a sunvisor for a side window, pull

it downward, unsnap it from the bracket

(1) and swing it to the side (2).

To use the vanity mirror (if equipped), pull

down the visor and slide the mirror cover

(3).

Adjust the sunvisor forward or backward

(4, if equipped).

The ticket holder (5) is provided for hold-

ing a tollgate ticket. (if equipped)

4 108

Features of your vehicle

WARNING

CAUTION

Do not put a finger or a foreign ele-

•

Use the power outlet only when

ment (pin, etc.) into a power outlet

the engine is running and remove

and do not touch with a wet hand.

the accessory plug after use.

You may get an electric shock.

Using the accessory plug for pro-

longed periods of time with the

engine off could cause the bat-

tery to discharge.

•

Only use 12V electric accessories

which are less than 10A in elec-

tric capacity.

OTQ047116

•

Adjust the air-conditioner or

D280500AEN

heater to the lowest operating

Power outlet (if equipped)

level when using the power outlet.

•

Close the cover when not in use.

The power outlet is designed to provide

power for mobile telephones or other

•

Some electronic devices can

devices designed to operate with vehicle

cause electronic interference

electrical systems. The devices should

when plugged into a vehicle’s

power outlet. These devices may

draw less than 10 amps with the engine

running.

cause excessive audio static and

malfunctions in other electronic

systems or devices used in your

vehicle.

4 109

Content   ..  8  9  10  11   ..
