DO-IT-YOURSELF MAINTENANCE 6- 31
!
WARNING
The halogen bulb contains gas un-
der pressure and if impacted could
shatter, resulting in flying frag-
ments. Always wear eye protection
when servicing the bulb. Protect
the bulb against abrasions or
scratches and against liquids when
lighted. Turn on the bulb only when
HTB5010
HTB5011
installed in a headlight. Replace
5. Push the bulb spring for removing
6. Remove the protective cap from the
the headlight if damaged or cracked.
the headlight bulb.
replacement bulb and install the new
Keep the bulb out of the reach of
bulb by matching the plastic base
children and dispose of the used
with the headlight hole. Install the
bulb with care.
dust cover after retightening the bulb
spring and reconnect the power cord.
7. Use the protective cap and carton to
dispose of the old bulb.
8. Check for proper headlight aim.
6- 32 DO-IT-YOURSELF MAINTENANCE
G270B01TB-GAT
G270C01TB-GAT
Front Turn Signal light /
Luggage Compartment Light
Position Light
(If Installed)
1. Disconnect the power cord from the
bulb.
2. Replace to the new bulb.
HTB284
3. Replace to the new bulb.
HTB282
G270D01TB-GAT
1. Remove the cover with a (-) driver.
Rear Combination Light
HTB283
HTB5013
2. Disconnect the power cord.

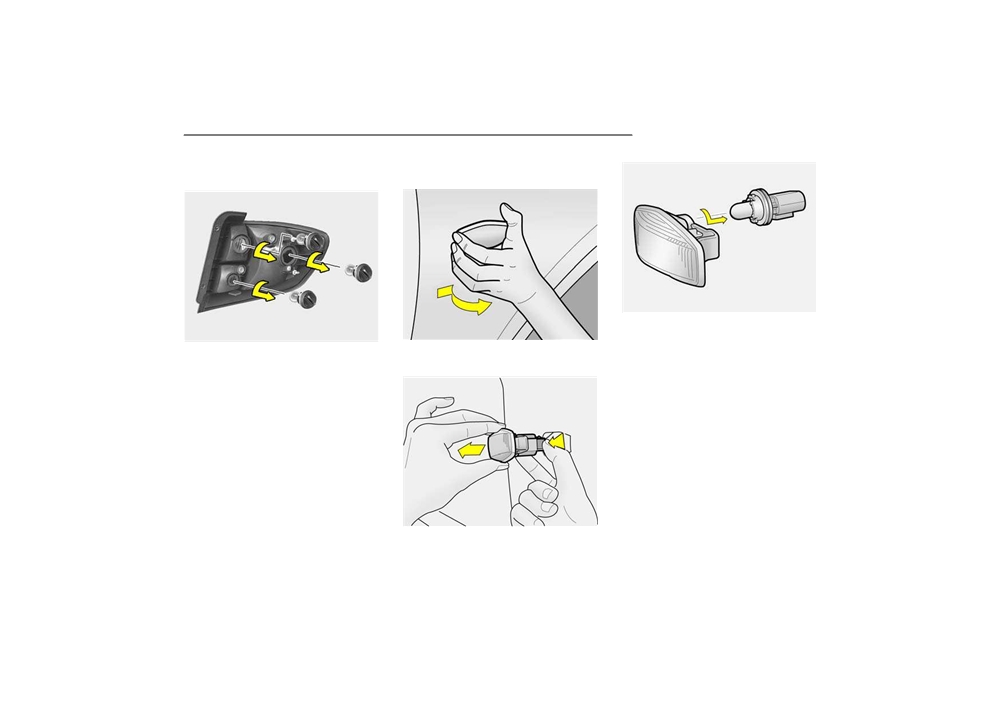

DO-IT-YOURSELF MAINTENANCE 6- 33
G270E01A-GAT
1. Remove the cover with a (+) driver
Side Repeater (If Installed)
2. Disconnect the power cord.
(2)
(1)
HTB278
(3)
3. Replace to the new bulb.
HTB5014
G270E01A
1. Push the cover toward the front of
3. Replace to the new bulb.
vehicle and remove it.
(1) Stop/Tail Light
(2) Turn Signal Light
(3) Back-up Light
HTB277
2. Disconnect the power code.

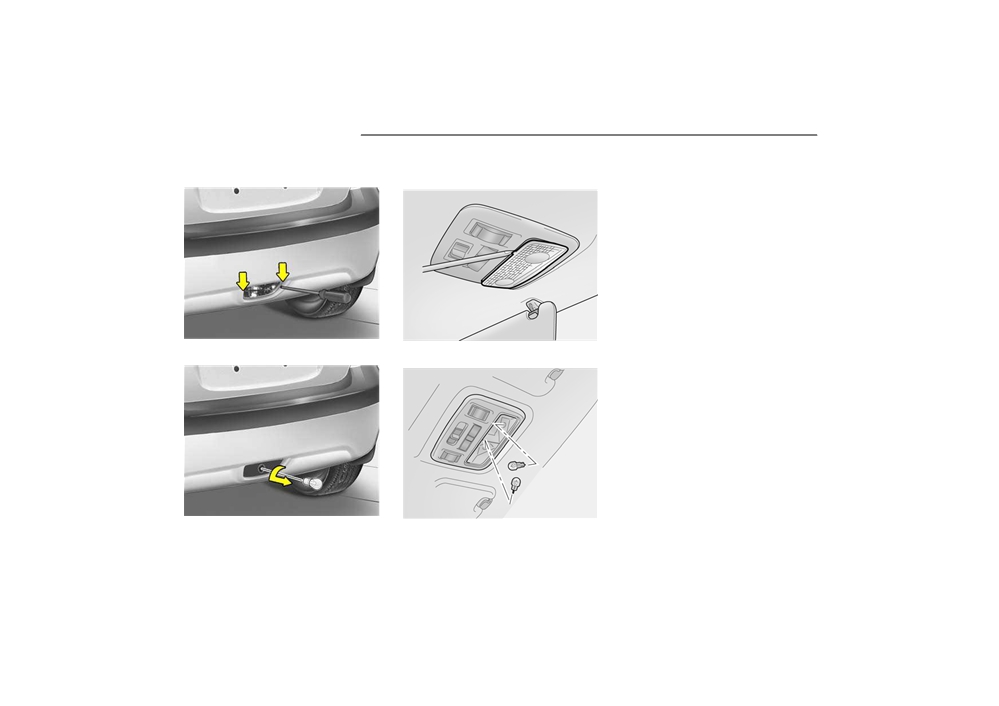

6- 34 DO-IT-YOURSELF MAINTENANCE
G270F01TB-GAT
G270G01TB-GAT

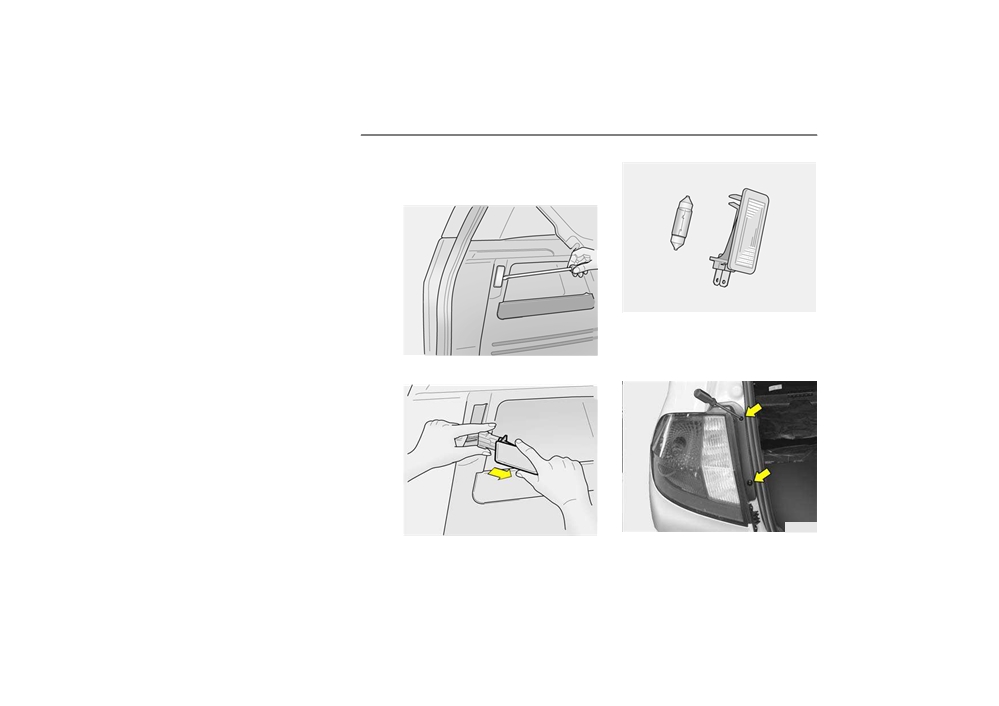

Rear Fog Light (If installed)
Interior Light (If installed)
HTB273
HTB280
1. Remove the cover with a (+) driver.
1. Remove the cover with a (-) driver.
HTB274
HTB281
2. Replace to the new bulb.
2. Replace to the new bulb.
DO-IT-YOURSELF MAINTENANCE 6- 35
G280A03TB-GAT
Bulb wattage
G280A01TB
No.
Part Name
Wattage
Socket type
No.
Part Name
Wattage
Socket type
1
Head Light (High/Low)
60/55
P43t
6
High Mounted Rear Stop Light
16
W2.1 x 9.5d
Front Position Light
5
W2.1 x 9.5d
7
Rear
Turn Signal Light
21
BAU15s
2
Interior Light
Map Light
10
W2.1 x P9.5D
Combination
Stop/Tail Light
21/5
BA15d
Room Light
10
S8.5 / 8.5
Back -up Light
16
BA15s
3
Front Turn Signal Light
21
BA15s
8
Luggage Compartment Light
5
S8.5/8.5
4
Front Fog Light (If installed)
27
PGJ13
9
Rear Fog Light (If installed)
21
BA15s
5
Side Repeater (If installed)
5
W2.1 x P9.5D
10
License Plate Light
5
W2.1 x 9.5d
6- 36 DO-IT-YOURSELF MAINTENANCE
G200C02TB-GAT
FUSE PANEL DESCRIPTION
Engine Compartment
DESCRIPTION
FUSE RATING
PROTECTED COMPONENTS
Gasoline Engine
IGN 2
30A
Ignition Switch
IGN 1
30A
Ignition Switch, Start Relay
ECU
30A
Fuel pump, Alternator, ECM
RAD
30A
Radiator Fan
BATT
50A
Headlight, Defogger Relay
ABS
10A
ABS
C/LIGHTER
25A
C/lighter
F/PUMP
15A
Auto Fuel Cut Switch
ECU-B
10A
ABS1
20A
ABS
ABS2
40A
ABS
BLW
30A
Blower, Blower Motor
P/WDW
30A
Power Window
EPS
50A
Electronic power steering
ECU-1
10A
ECM
ECU-2
20A
ECM
SNSR
10A
A/CON, Fuel Pump
INJ
15A
Injector
A/CON
10A
A/Conditioner
HORN
10A
Horn
BATT
100A
Alternator
G200C01TB
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
When you inspect the fuse box on your vehicle, refer to the fuse box label.
DO-IT-YOURSELF MAINTENANCE 6- 37
G250C01TB-GAT
FUSE PANEL DESCRIPTION
Engine Compartment
DESCRIPTION
FUSE RATING
PROTECTED COMPONENTS
Diesel Engine
IGN 2
30A
Ignition Switch
IGN 1
30A
Ignition Switch, Start Relay
ECU
30A
Fuel pump, Alternator, ECM
FFHS
30A
FFHS
RAD
30A
Radiator Fan
BATT
50A
Headlight, Defogger Relay
ABS
10A
ABS
C/LIGHTER
25A
C/lighter
F/PUMP
15A
Auto Fuel Cut Switch
ECU-B
10A
ABS1
20A
ABS
ABS2
40A
ABS
BLW
30A
Blower, Blower Motor
P/WDW
30A
Power Window
EPS
50A
Electronic power steering
ECU-1
10A
ECM
ECU-2
20A
ECM
SNSR
10A
A/CON, Fuel Pump
INJ
15A
Injector
A/CON
10A
A/Conditioner
HORN
10A
Horn
G200C01TB-2
BATT
100A
Alternator
NOTE:
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing.
When you inspect the fuse box on your vehicle, refer to the fuse box label.
6- 38 DO-IT-YOURSELF MAINTENANCE
G200D02TB-GAT
DESCRIPTION
FUSE RATING
PROTECTED COMPONENTS
Inner Panel (Left hand drive type)
POWER CONN & R/LP
15A
Room Lamp, Audio, Cluster
H/LP LH
15A
High Beam Light Indicator, Headlight (LH)
F/FOG
10A
Front Fog Light
H/LP RH
15A
Headlight (RH)
PR/HTD
30A
Rear window Defroster
BLOWER
10A
Blower, Sunroof
IGNITION
10A
Fog light, ETACM, Power Window,Headlight leveling Device
R/FOG
10A
Rear Fog Light
FRT WPR
20A
Front Wiper Motor
HAZARD
15A
Hazard Warning Light, ETACM
STOP
15A
Stop Light, Power Window
ECU2
15A
ECM
HTD MIR
10A
Rear window Defroster
S/HTD
20A
Seat Warmer
DRL
10A
Daytime Running Light
START
10A
Start Relay, Theft alarm system
RR/WPR
15A
Rear Wiper Motor
D/LOCK
20A
Door Lock System, Sunroof
A/BAG
10A
Air Bag
ECU1
10A
PCM, ABS control
P/OUTLET
15A
Power outlet
CLUSTER
10A
Cluster
TAIL RH
10A
STOP/Tail Light (RH)
T/SIG
10A
Turn Signal Light, Back-up Light
AUDIO
15A
Audio, Electronic Outside Mirror
A/BAG IND
10A
A/Bag, Indicator
G200D01TB
TAIL LH
10A
Stop/Tail Light (LH)
A/C SW
10A
Air conditioner
DO-IT-YOURSELF MAINTENANCE 6- 39
G200E02TB-GAT
DESCRIPTION
FUSE RATING
PROTECTED COMPONENTS
Inner Panel (Right hand drive type)
A/C SW
10A
Air conditioner
TAIL LH
10A
Stop/Tail Light (LH)
A/BAG IND
10A
A/Bag Indicator
AUDIO
15A
Audio, Electronic Outside Mirror
T/SIG
10A
Turn signal Light, Back-up Light
TAIL RH
10A
Stop/Tail Light (RH)
CLUSTER
20A
Cluster
P/OUTLET
15A
Power outlet
ECU 1
10A
PCM, ABS control
A/BAG
Air Bag
D/LOCK
Door Lock System, Sunroof
RR/WPR
20A
Rear Wiper Motor
START
10A
Start Relay, 9oTheft alarm system
S/HTD
15A
Seat Warmer
HTD MIR
20A
Rear window Defroster
ECU2
10A
ECM
STOP
10A
HAZARD
10A
Hazard Warning Light, ETACM
FRT WPR
30A
Front Wiper Motor
R/FOG
15A
Rear Fog Light
IGNITION
10A
Fog light, ETACM, Power Window, Headlight leveling Device
BLOWER
15A
Blower, Sunroof
PR HTD
15A
Rear window Defroster
H/LP RH
15A
Headlight (RH)
F/FOG
Front Fog Light
G200E01TB
H/LP LH
High Beam Light Indicator, Headlight (LH)
POWER CONN & R/LP
Room Lamp, Audio, Cluster
7. EMISSION CONTROL SYSTEM

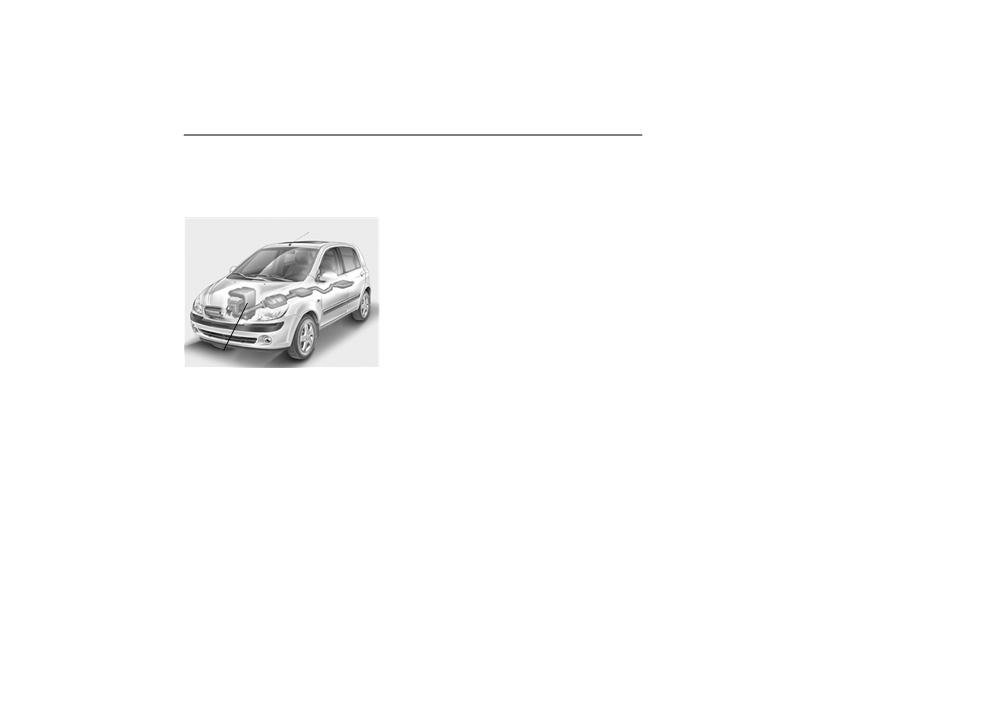

Emission control system
7-2
Catalytic converter
7-3
EGR system
7-4
7
7- 2 EMISSION CONTROL SYSTEMS
H010A01A-GAT
H010B01A-AAT
are drawn into the induction system
EMISSION CONTROL SYSTEM
1. Crankcase Emission Control
through the purge control solenoid
(If Installed)
System
valve.
Your Hyundai is equipped with an
The positive crankcase ventilation
Purge Control Solenoid Valve
emission control system to meet all
system is employed to prevent air
requirements of the Emission prohibi-
pollution caused by blow-by gases
(PCSV)
tion rules of your province.
being emitted from the crankcase.
The purge control solenoid valve is
There are three emission control sys-
This system supplies fresh air to the
controlled by the Engine Control Mod-
tems which are as follows.
crankcase through the air intake hose.
ule (ECM); when the engine coolant
Inside the crankcase, the fresh air
temperature is low during idling, the
1) Crankcase emission control sys-
mixes with blow-by gases, which then
PCSV closes so that evaporated fuel
tem
pass through the PCV valve and into
is not taken into the engine. After the
2) Evaporative emission control sys-
the induction system.
engine warms-up during ordinary driv-
tem
ing, the PCSV opens so as to intro-
3) Exhaust emission control system
H010C02E-GAT
duce evaporated fuel to the engine.
2. Evaporative Emission Control
In order to assure the proper function
System
H010D01A-AAT
of the emission control systems, it is
3. Exhaust Emission Control
recommended that you have your car
The Evaporative Emission Control
inspected and maintained by an au-
System is designed to prevent fuel
System
thorized Hyundai dealer in accordance
vapors from escaping into the atmo-
The exhaust emission control system
with the maintenance schedule in this
sphere.
is a highly effective system which
manual.
controls exhaust emission while main-
Canister
taining good vehicle performance.
While the engine is inoperative, fuel
vapors generated inside the fuel tank
are absorbed and stored in the canis-
ter. When the engine is running, the
fuel vapors absorbed in the canister

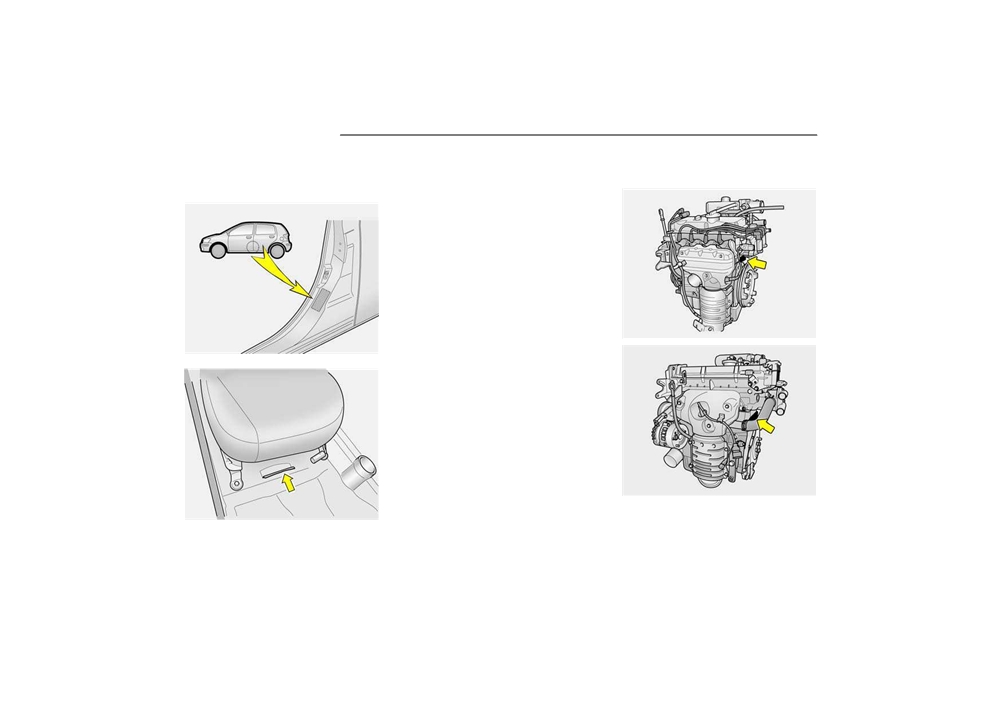

EMISSION CONTROL SYSTEMS
7- 3
H020A01A-GAT
H020D01S-GAT
o
If your engine stalls, pings, knocks,
CATALYTIC CONVERTER
CATALYTIC CONVERTER
or is hard to start, take your car to
(If Installed)
; For a diesel engine
your Hyundai dealer as soon as
; For a gasoline engine
possible and have the difficulty cor-
Hyundai vehicle is equipped with oxi-
rected.
dation type catalytic converter to re-
o
Avoid driving with a very low fuel
duce the carbon monoxide, hydrocar-
level. If your run out of gasoline, it
bons and particulate contained in the
could cause the engine to misfire
exhaust gas.
and result in excessive loading of
the catalytic converter.
H020B03A-GAT
o
Avoid idling the engine for periods
About the Catalytic Converter
longer than 10 minutes.
o
Your Hyundai should not be either
Exhaust gases passing through the
pushed or pulled to get it started.
catalytic converter cause it to operate
This can cause the catalytic con-
Catalytic Converter
at very high temperatures. As a re-
HTB5017
verter to overload.
sult, the introduction of large amounts
o
Do not park, idle, or drive your
Hyundai vehicle is equipped with a
of unburned gasoline may cause it to
vehicle over any combustible mate-
monolith type three-way catalytic con-
overheat and create a fire hazard.
rial such as grass, paper, leaves or
verter to reduce the carbon monoxide,
This can be avoided by observing the
rags. As these materials could come
hydrocarbons and nitrogen oxides con-
following:
in contact with the catalytic con-
tained in the exhaust gas. Exhaust
verter and could cause a fire.
gases passing through the catalytic
o Use unleaded fuel only.
o
Do not touch the catalytic converter
converter may cause it to operate at a
o Maintain your engine in good con-
or any other part of the exhaust
very high temperature. The introduc-
dition. Extremely high converter
system while the engine is running
tion of large amounts of unburned gaso-
temperatures can result from im-
as it is very hot and could result in
line into the exhaust may cause the
proper operation of the electrical,
burns.
catalytic converter to overheat and
ignition or fuel injection systems.
o
Remember that your Hyundai dealer
create a fire hazard. This risk may be
is your best source of assistance.
reduced by observing the following:
7- 4 EMISSION CONTROL SYSTEMS
H020C01S-GAT
Diesel Particulate Filter
If the malfunction indicator light con-
EGR SYSTEM
(If Installed)
tinues to be blinked in spite of the
procedure, please visit an authorized
; For a diesel engine
The Diesel Particulate Filter
(DPF)
HYUNDAI dealer and then check the
This system helps control oxides of
system removes the soot emitted from
DPF system.
nitrogen by recirculating a part of the
the vehicle.
If you continue to drive with the mal-
exhaust gas into the engine.
Unlike a disposable air filter, the DPF
function indicator light blinking for a
system automatically burns (oxidizes)
long time, the DPF system can be
and removes the accumulated soot
damaged and fuel consumption can be
according to the driving condition. In
worsen.
other words, the active burning by
engine control system and high ex-
haust gas temperature caused by nor-
mal/high driving condition burns and
removes the accumulated soot.
However, if the vehicle continues to be
driven at low speed for long time, the
accumulated soot may not be auto-
matically removed because of low
exhaust gas temperature. In this par-
ticular case, the amount of soot is out
of detection limit, the soot oxidation
process by engine control system may
not happen and the malfunction indica-
tor light may blink.
When the malfunction indicator light
blinks, it may stop blinking by driving
the vehicle at more than 60km/h (37
mph) or at more than second gear with
1500 ~ 2000 engine rpm for a certain
time (for about 25 minutes).
8. CONSUMER INFORMATION
Vehicle Identification Number (VIN)
8-2
Engine number
8-2
Recommended inflation pressures
8-3
Snow tires
8-4
Tire chains
8-4
Tire rotation
8-5
Tire balancing
8-5
Tire traction
8-5
When to replace tires
8-6
Spare tire and tools
8-6
8
8- 2 CONSUMER INFORMATION
I010A01TB-GAT
I010B01A-GAT
The vehicle identification number (VIN)
VEHICLE IDENTIFICATION
ENGINE NUMBER
is the number used in registering your
NUMBER (VIN)
car and in all legal matters pertaining to
1.1L
its ownership, etc.
It can be found on the center piller of the
driver side and the lower side of the
front passenger seat.
F040A01TB
I030A01TB
1.4L/1.6L
F040A02TB
I030B01TB
CONSUMER INFORMATION
8- 3
I020A01A-AAT
Diesel Engine
PRESSURE, kPa (PSI)
TIRE INFORMATION
ENG-
RIM
TIRE
UP TO 2
UP TO
INE
SIZE
SIZE
MAX. LOAD
The tires supplied on your new Hyundai
PERSONS
FRONT
REAR
FRONT
REAR
are chosen to provide the best perfor-
5.0Jx14
165/65R14
210(30)
210(30)
mance for normal driving.
GASO-
5.5Jx14
175/65R14
or
or
230(33)
230(33)
LINE
220(32)
220(32)
5.5Jx15
185/55R15
5.0Jx14
I030A04TB-GAT
DIE-
175/65R14
5.5Jx14
220(32)
220(32)
230(33)
230(33)
RECOMMENDED INFLATION
SEL
5.5Jx15
185/55R15
PRESSURES
4.0Tx14
T105/70D14
420(60)
420(60)
420(60)
420(60)
❈ Check the attached tire label in your
I010B02FC
vehicle.
The engine number is stamped on the
engine block as shown in the drawing.
These pressures were chosen to pro-
vide the most satisfactory combination
of ride comfort, tire wear and stability
under normal conditions. Tire pres-
sures should be checked at least
monthly. Proper tire inflation pressures
should be maintained for these rea-
OUN086004
sons:
The tire label attached on driver's (or
o Lower-than-recommended tire pres-
front passenger's) side center pillar gives
sures cause uneven tread wear and
the tire pressures recommended for
poor handling.
your car.
o Higher-than-recommended tire
pressures increase the chance of
damage from impacts and cause
uneven tread wear.
8- 4 CONSUMER INFORMATION
I040A01S-GAT
I050A01TB-GAT
SNOW TIRES
TIRE CHAINS
!
CAUTION:
Tire chains, if necessary should be
If you equip your car with snow tires,
Always observe the following:
installed on the front wheels. Be sure
they should be the same size and have
that the chains are the proper size and
the same load capacity as the original
o Check pressures when the tires
that they are installed in accordance
tires. Snow tires should be installed on
are cold. That is, after the car has
with the manufacturer's instructions.
all four wheels; otherwise, poor han-
been parked for at least three
To minimize tire and chain wear, do
dling may result.
hours and hasn't been driven
not continue to use tire chains when
Snow tires should carry 28 kPa (4 psi)
more than 1.6 km or one mile
they are no longer needed.
more air pressure than the pressure
since starting up.
recommended for the standard tires
o Check the pressure of your spare
on the tire label on, or up to the maxi-
!
tire each time you check the pres-
mum pressure shown on the tire
WARNING:
sure of other tires.
sidewall whichever is less.
o When driving on roads covered
Do not drive faster than 120 km/h (75
with snow or ice, drive at less
mph) when your car is equipped with
than 30 km/h (20 mph).
snow tires.
o Use the SAE "S" class or wire &
plastic chains.
o Don't use the tire chains in 185/
55R 15 tire to prevent body dam-
age.
o If you have noise caused by
chaws contacting the body, re-
tighten the chain to avoid contact
with the vehicle body.
o Retighten the chains to prevent
from a body damage after driving
0.5 ~ 1 km with equipping chains.
