Convenient features of your vehicle
03

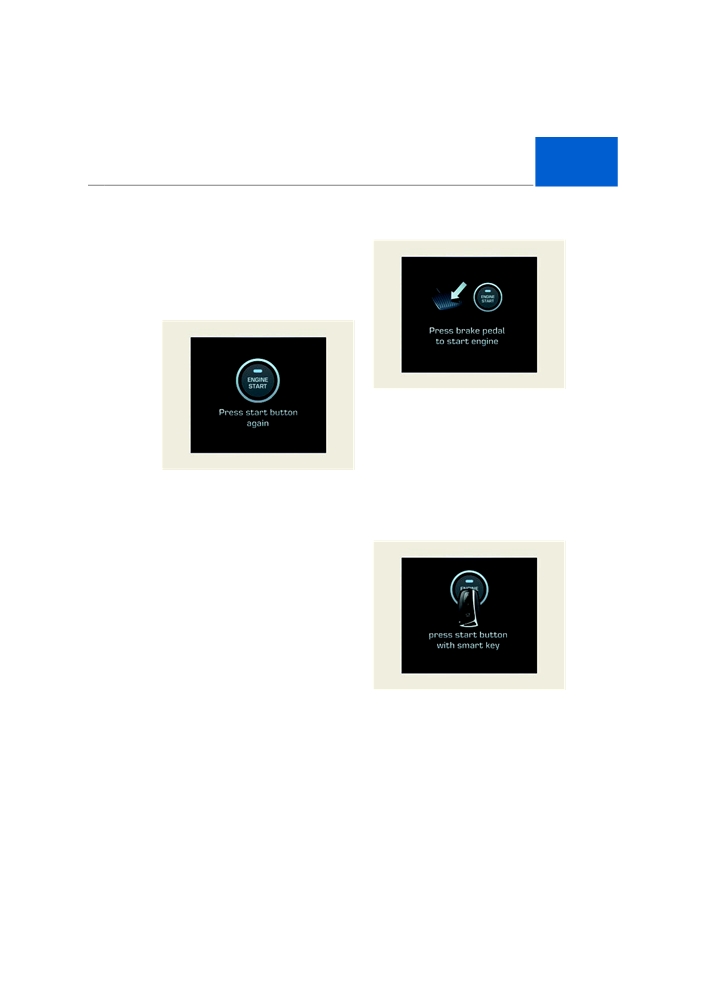

• At this time, the Engine Start/Stop
Press brake pedal to start engine
Button turns to the ACC position
(When you re-press the Engine
Start/Stop Button again, it will turn
to the ON position).
Press start button again
OVI045731
• This warning message illuminates,
the Engine Start/Stop button
changes to the ACC position twice
by repeatedly pressing the button
without pressing the brake pedal.
OVI045730
• You can start the engine by press-
ing the brake pedal.
• This warning message illumi-
nates, when you cannot operate
the Engine Start/Stop button due
Press start button with Smart
to a malfunction with the Engine
Key
Start/Stop button.
• You can start the engine by re-
pressing the Engine Start/Stop
button again.
• When the warning light illuminates
each time you press the Engine
Start/Stop button, have your vehi-
cle inspected by an authorized
EQUUS dealer.
OVI045732
• This warning message illumi-
nates, when you press the Engine
Start/Stop button while the warn-
ing message, “Key not detected,”
is displayed.
• At this time, the immobilizer indi-
cator flashes.
3-79
Convenient features of your vehicle

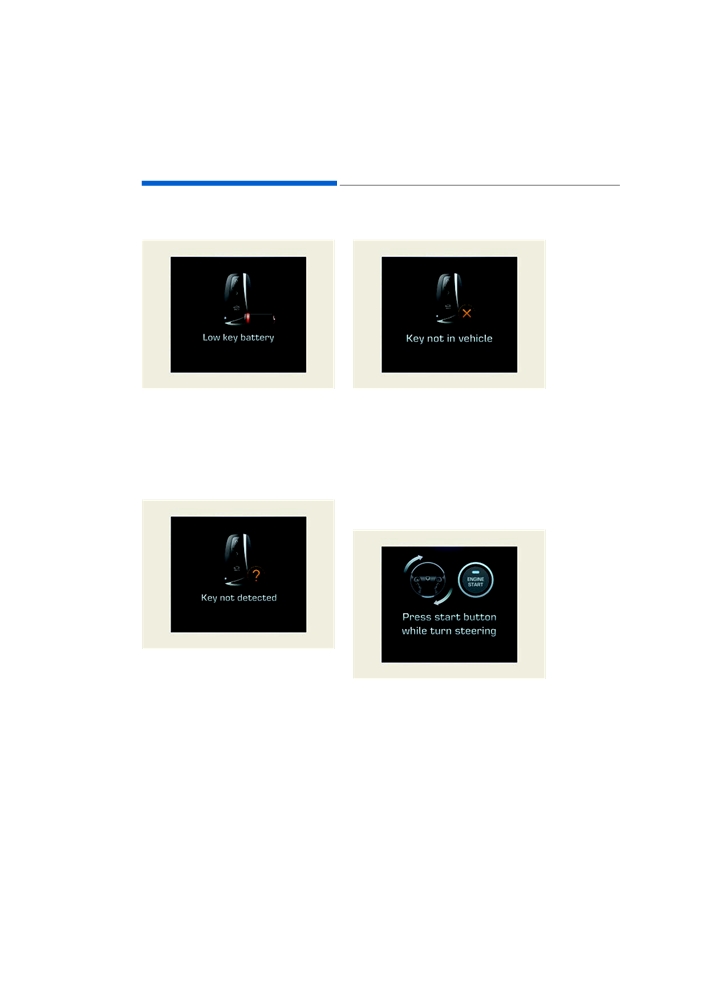

Low Key Battery
Key not in vehicle
OVI045733
OVI045735
• This warning message illumi-
• This warning message illumi-
nates, when the Smart-Key bat-
nates, when the Smart Key is out
tery is discharged while turning
of the vehicle while pressing the
the Engine Start/Stop button to
Engine Start/Stop button.
the OFF position.
• You should always carry the
Smart Key in your possession.
Key not detected
Press start button while turn
steering
OVI045734
• This warning message illumi-
nates, when the Smart Key is not
OVI045736
detected while pressing the
Engine Start/Stop button.
• This warning message illumi-
nates, when the steering wheel is
abnormally locked while pressing
the Engine Start/Stop button.
• You should press the Engine
Start/Stop button while turning the
steering wheel from side to side.
3-80
Convenient features of your vehicle
03

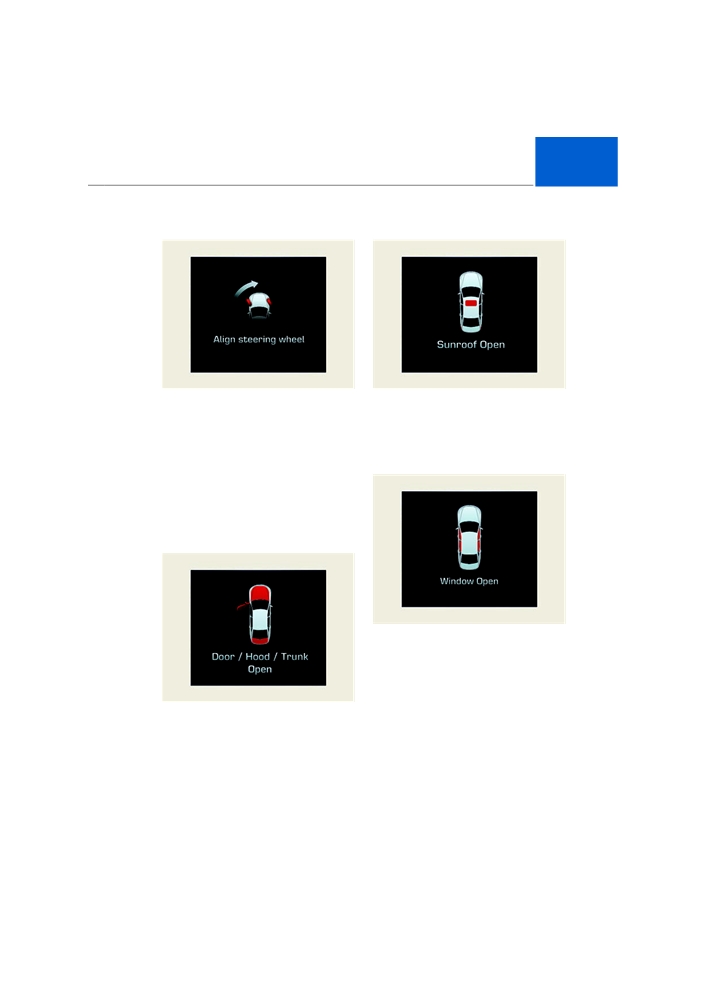

Align steering wheel
Sunroof Open
OVI045753
OVI045752
• This warning message illumi-
• This warning message illumi-
nates, when the steering wheel is
nates, when the sunroof is open
turned at an angle of 90 degrees
while turning OFF the engine.
or wider, either to left or to right,
while starting the engine.
Window Open
• You should align the steering
wheel and narrow the steering
wheel angle to be less than 30
degrees.
Door / Hood / Trunk Open
OVI045737
• This warning message illumi-
nates, when any window is open
while turning OFF the engine.
OVI045751
• It means that any door, hood, or
trunk is open.
3-81
Convenient features of your vehicle

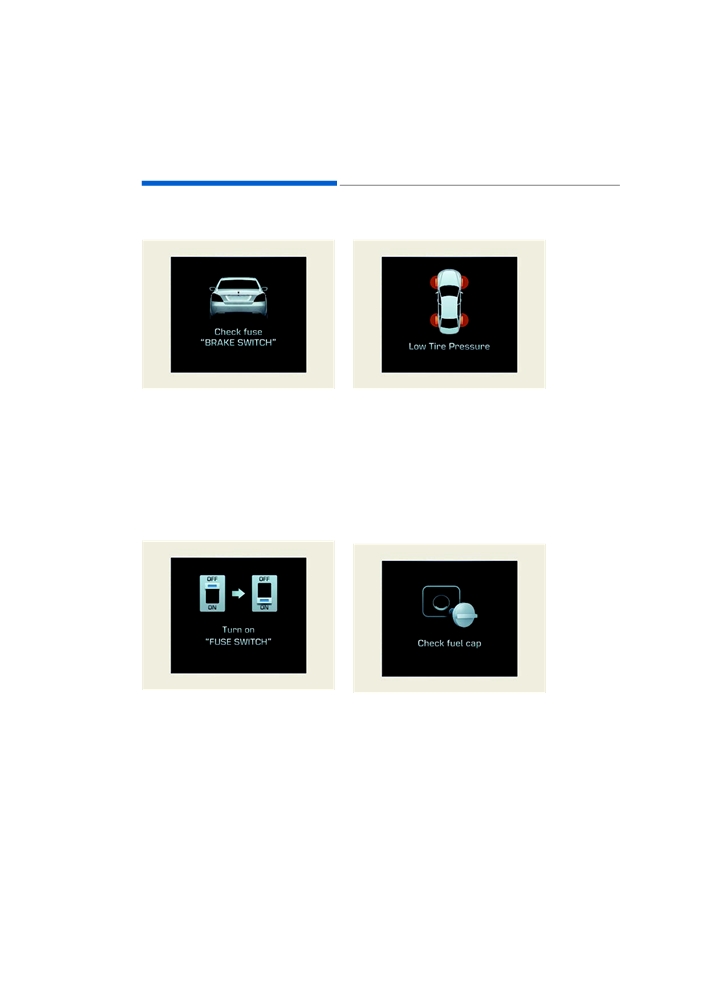

Check fuse "BRAKE SWITCH"
Low Tire Pressure
OVI045738
OVI045740
• This warning message illuminates
• This warning message illumi-
if the brake switch fuse is discon-
nates, when the tire is under-inflat-
nected.
ed with the Engine Start/Stop but-
ton ON.
• You need to replace the fuse with
a new one. If not possible, you can
start the engine by pressing the
❈ For further information, refer to
Engine Start/Stop button for
10
"Tire Pressure Monitoring System
seconds in the ACC position.
(TPMS)" in the chapter 6.
Turn on "FUSE SWITCH"
Check Fuel Cap
OVI045739
OVI045741
• This warning message illuminates
• This warning message illumi-
if the fuse switch under the steer-
nates, when the fuel filler cap is
ing wheel is OFF.
open or is not securely tightened.
• You should turn ON the fuse
Securely close the fuel filler cap.
switch.
❈ For further information, refer to
“Fuses” in the chapter 7.
3-82
Convenient features of your vehicle
03

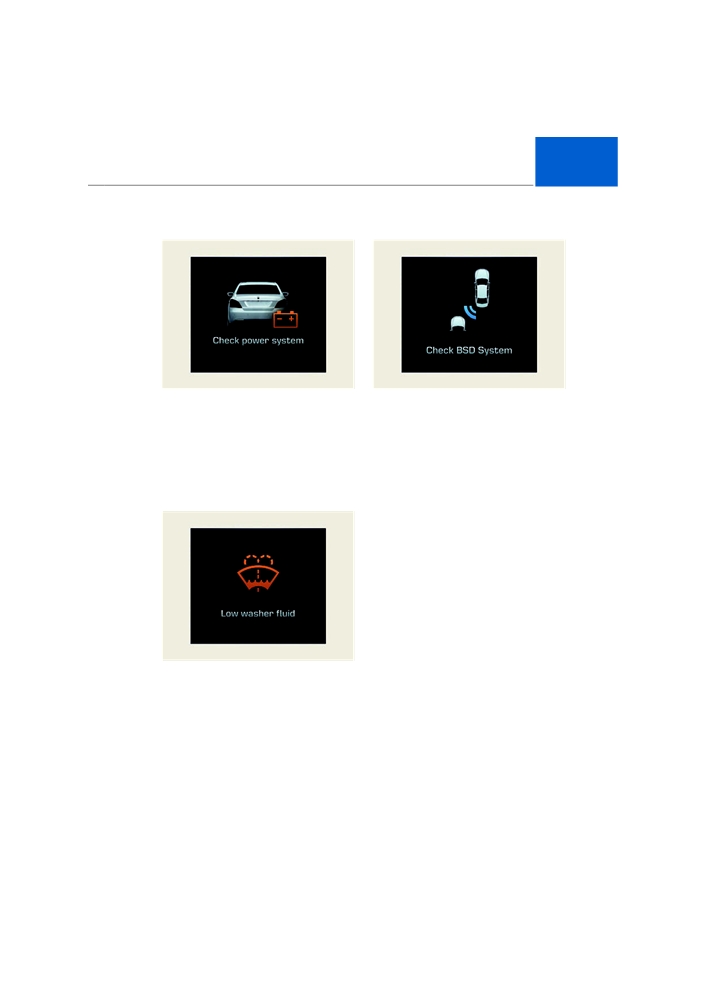

Check Power System
Check BSD System (if equipped)
OVI045742
OVI045744
• This warning message illumi-
• This warning message illumi-
nates, when the battery voltage is
nates, when there is a malfunction
abnormally low, or the battery has
with the Blind Spot Detection
poor performance. In this case,
(BSD) system. The BSD indicator
have your vehicle inspected by an
will turn OFF, when the BSD sys-
authorized EQUUS dealer.
tem is unintentionally deactivated.
In this case, have your vehicle
inspected by an authorized
Low Washer Fluid
EQUUS dealer.
❈ For further information, refer to
"Blind Spot Detection
(BSD)
System" in the chapter 5.
OVI045743
• This warning message illuminates
in the service reminder mode,
when the washer fluid level in the
reservoir is nearly empty.
• You should refill the washer fluid.
3-83
Convenient features of your vehicle

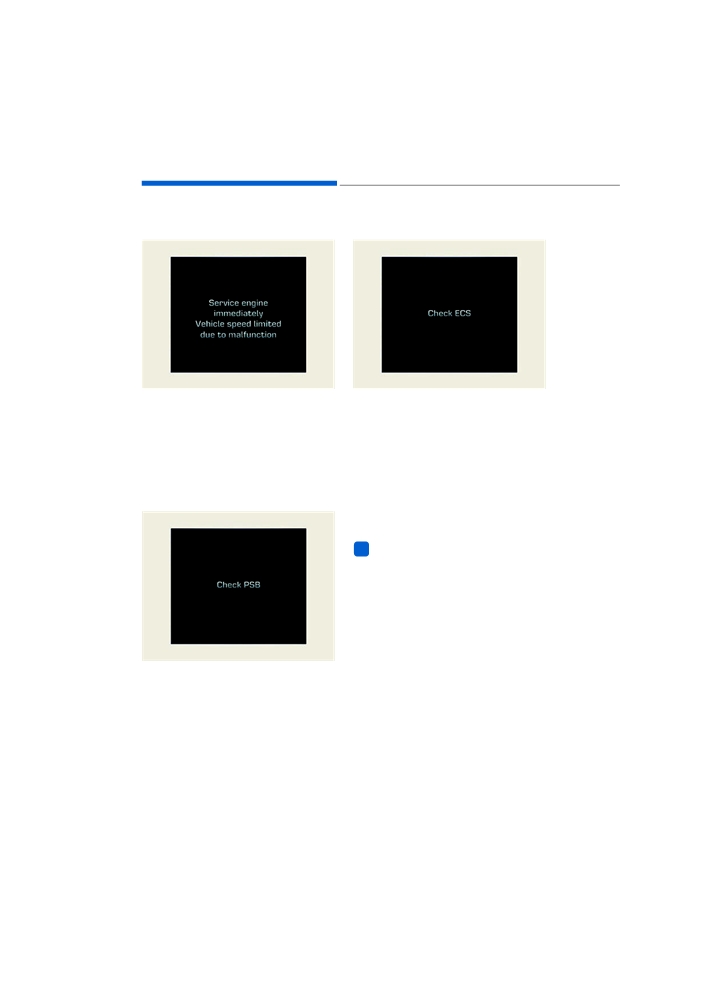

Service Engine Immediately
Check ECS
OVI045745
OVI045747
• This warning message illumi-
• This warning message illuminates,
nates, when there is a malfunction
when there is a malfunction with
with the engine, and a driving
the
Electronic
Controlled
speed is limited. In this case, have
Suspension (ECS) system. In this
your vehicle inspected by an
case, have your vehicle inspected
authorized EQUUS dealer.
by an authorized EQUUS dealer.
Check PSB
❈ For further information, refer to
"Electronic Controlled Suspension
(ECS)" in the chapter 5.
i
Information
- ECS Warning Message
When there is a malfunction with the
Electronic Stability Control
(ESC),
the Electronic Controlled Suspension
(ECS) warning message will illumi-
nate, along with the illumination of
the Electronic Stability Control (ESC)
OVI045746
Indicator.
• This warning message illuminates,
when there is a malfunction with
the Presafe Seat Belt (PSB) sys-
tem. In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
❈ For further information, refer to
"Seat Belt" in the chapter 2.
3-84
Convenient features of your vehicle
03
NOTICE

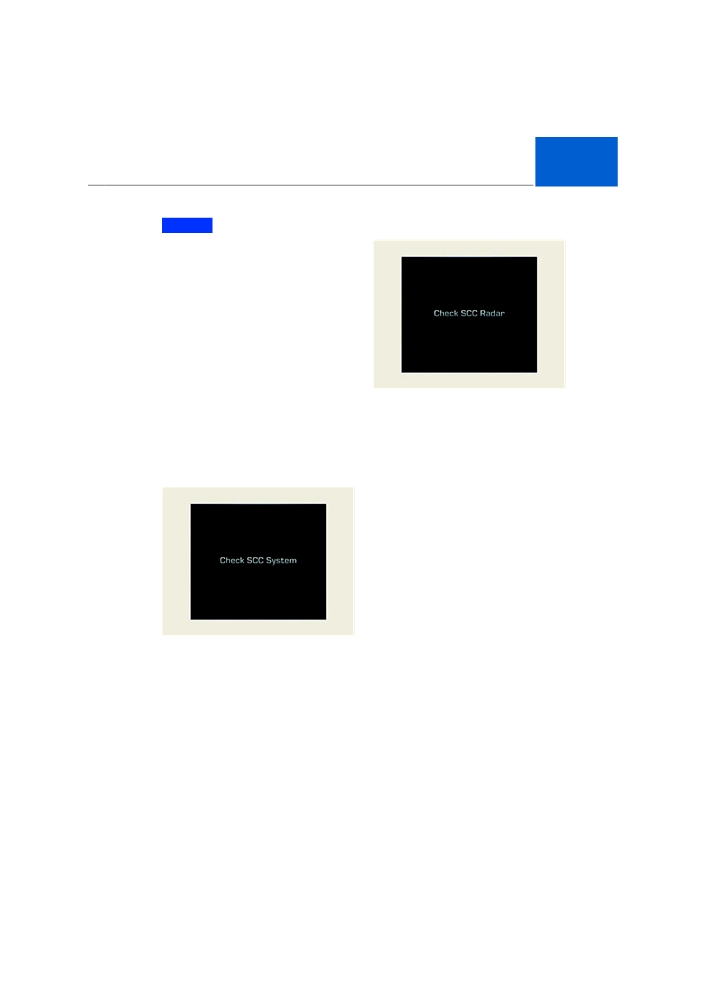

Check SCC Radar
- ECS Warning Message
• When the Electronic Controlled
Suspension
(ECS) Warning
Message illuminates due to the
under-pressure inside the sus-
pension, the vehicle height will be
very low. In this case, do not drive
the vehicle in order to protect it
from a projection on a surface. In
this case, have your vehicle
inspected by an authorized
EQUUS dealer.
OVI045749
• When towing the vehicle, you
• This warning message illumi-
should follow the "Electronic
nates, when the radar of the
Controlled Suspension (ECS)"
advanced smart cruise control
instructions in the chapter 5.
system or its cover is stained.
Remove the stains with a soft
cloth.
Check SCC System
❈ For further information, refer to
"Advanced Smart Cruise Control
System" in the chapter 5.
OVI045748
• This warning message illuminates,
when there is a malfunction with
the advanced smart cruise control
system. In this case, have your
vehicle inspected by an authorized
EQUUS dealer.
❈ For further information, refer to
"Advanced Smart Cruise Control
System" in the chapter 5.
3-85
Convenient features of your vehicle

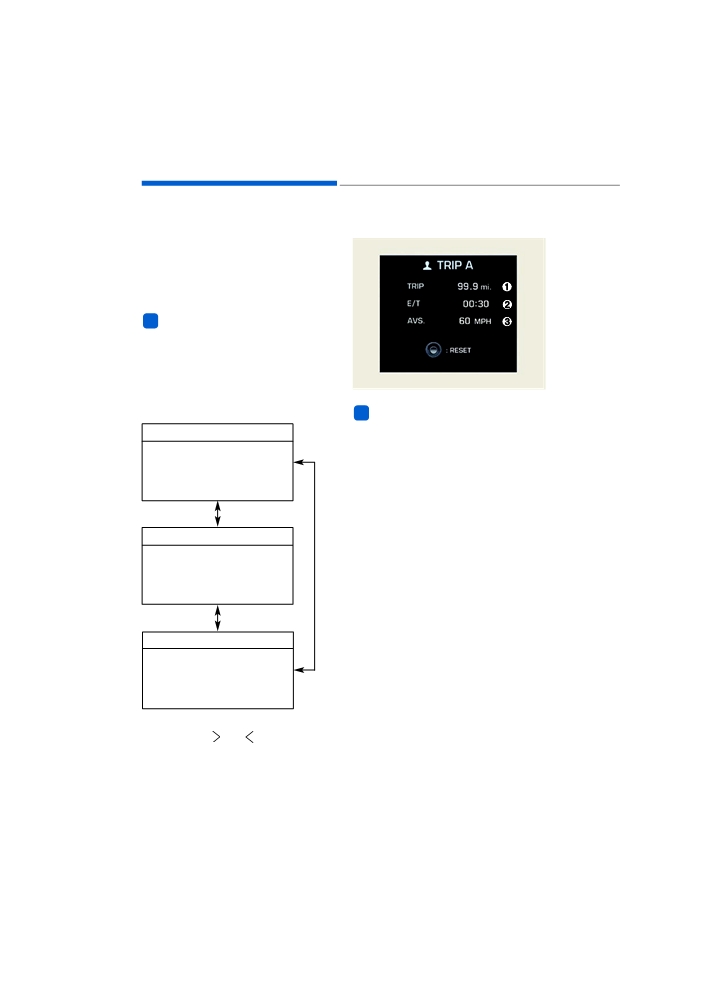

TRIP COMPUTER
Overview
Trip A/B
Description
The trip computer is a driving infor-
mation system, controlled by a
micro-computer. This displays driv-
ing-related information.
i
Information
Some driving information, stored in
the trip computer (i.e. average vehicle
speed), is reset, when the battery is
disconnected.
OVI045750
Trip Modes
i
Information
TRIP A
Even though you attempt to reset one
of the tripmeter, elapsed time, and
• Tripmeter [A]
average vehicle speed information, it
• Average Vehicle Speed [A]
will reset all information together.
• Elapsed Time [A]
❈ For further information about the
OK button, refer to "LCD Display
Control" in this chapter.
TRIP B
• Tripmeter [B]
Tripmeter (1)
• Average Vehicle Speed [B]
• The tripmeter displays the accumu-
lated driving distance information
• Elapsed Time [B]
since its last default setting.
- Distance range: 0.0
~
9999.9
mi. or km
FUEL ECONOMY
• To reset the tripmeter, press the
OK button on the steering wheel
• Distance To Empty
for 1 second or longer, when the
• Average Fuel Economy
tripmeter is displayed.
• Instant Fuel Economy
• Type A : To change the trip mode,
press the
or
button.
• Type B : To change the trip mode,
rotate the haptic switch.
❈ For further information, refer to
"LCD Display control" in this chap-
ter.
3-86
Convenient features of your vehicle
03
Elapsed Time (2)

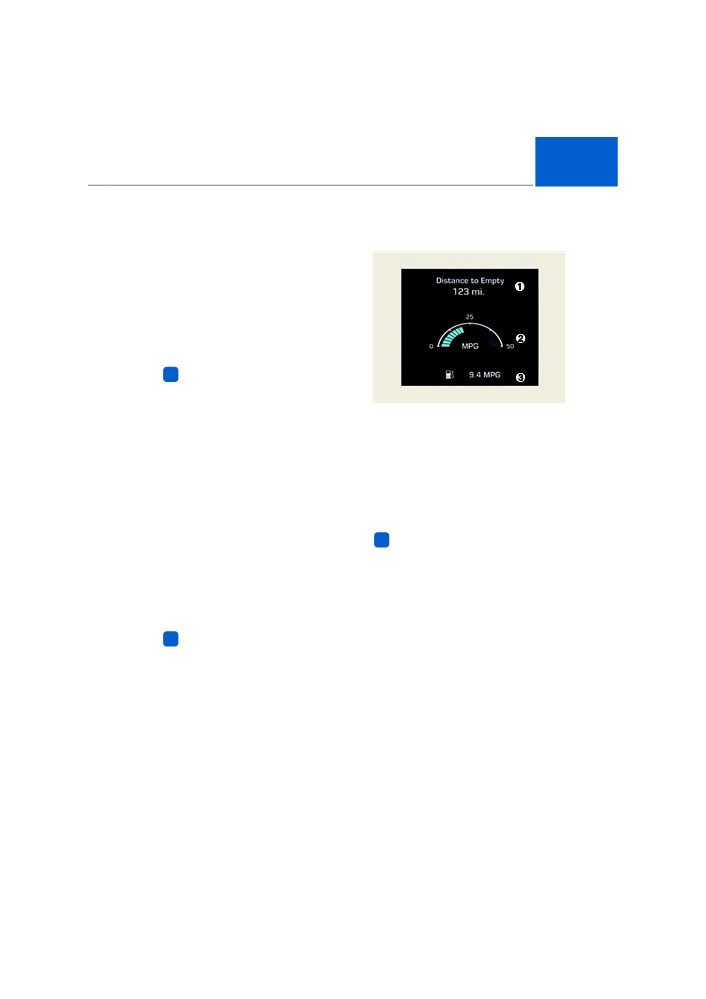

Fuel Economy
• The elapsed time displays the
Distance To Empty (1)
accumulated driving hour informa-
tion since its last default setting.
- Time range
(hh:mm):
00:00
~
99:59
• To reset the elapsed time, press
the OK button on the steering
wheel for 1 second or longer, when
the elapsed time is displayed.
i
Information
Even though the vehicle is not in
OVI045714
motion, the elapsed time keeps being
recorded, while the engine is running.
• The distance to empty is the esti-
mated distance the vehicle can
drive with the remaining fuel.
Average Vehicle Speed (3)
- Distance range: 30 ~ 999 mi. or
• The average vehicle speed is cal-
50 ~ 999 km
culated by dividing the accumulat-
• When the estimated distance to
ed driving distance by the accu-
empty is shorter than 30 mi. (50
mulated driving hour since its last
km), the trip computer displays “---” .
default setting.
- Speed range: 0 ~ 999 MPH or
i
Information
km/h
• To reset the average vehicle
• When the vehicle is not on level
speed, press the OK button on the
ground, or when the battery power is
steering wheel for
1 second or
interrupted, the distance to empty
over, when the average vehicle
may not be correctly calculated.
speed is displayed.
• The distance to empty may differ
from the actual distance, as it is esti-
mated with the calculable driving
i
Information
distance.
• The average vehicle speed is not dis-
• The trip computer may not recog-
played, when the vehicle drives
nizes additional fuel adding, when
shorter than 0.19 miles (300 meters)
less than 1.6 gallons (6 liters) of fuel
after turning ON the Engine
is added.
Start/Stop button.
• The fuel economy and distance to
• Even though the vehicle is not in
empty may significantly vary accord-
motion, the average vehicle speed
ing to driving conditions, driving
keeps being recorded while the
habits, and vehicle conditions.
engine is running.
3-87
Convenient features of your vehicle
Instant Fuel Economy (2)
Automatic reset
• This mode displays the instant fuel
To automatically reset the average
economy during the last few sec-
fuel economy after refueling, select
onds when a driving speed exceeds
the "Auto Reset" mode in User
6.2 MPH (10 km/h).
Setting menu on the LCD display
(Refer to "LCD Display").
- Fuel economy range:
0 ~ 50
MPG or 0 ~ 20 L/100km
In "Auto Reset" mode, the average
fuel economy will be reset to zero
(---), when more than 1.6 gallons (6
Average Fuel Economy (3)
liters) of fuel is added, and then a
• The average fuel economy is cal-
driving speed exceeds 1 km/h.
culated by dividing the total driving
distance by the fuel consumption
i
Information
since its last default setting.
The average fuel economy may dis-
- Fuel economy range: 0.0 ~ 99.9
play inaccurate calculation, when the
MPG or L/100km
vehicle drives shorter than 0.19 miles
• The average fuel economy can be
(300 meters) after turning ON the
reset both manually and automati-
Engine Start/Stop button.
cally.
Manual reset
To manually reset the average fuel
economy, press the OK button on the
steering wheel for 1 second or over,
when the average fuel economy is
displayed.
❈ For further information about the
OK button, refer to "LCD Display
Control" in this chapter.
3-88
Convenient features of your vehicle
03
WARNING AND INDICATOR LIGHTS
Warning lights
Parking Brake & Brake
Fluid Warning Light
i
Information
This warning light illuminates:
Make sure that all warning lights are
• Once you turn ON the ignition
turned OFF after starting the engine.
switch or Engine Start/Stop but-
When any light remains ON, this indi-
ton.
cates the situation that your attention
is required.
- It illuminates for approximately 3
seconds.
- It remains ON, when the parking
Supplemental Restraint
brake is set.
System Warning Light
• When the parking brake is set.
• When the brake fluid level in the
This warning light illuminates:
reservoir is low.
• Once you turn ON the ignition
- When the warning light illumi-
switch or Engine Start/Stop but-
nates with the parking brake
ton.
released, it indicates the brake
- It illuminates for approximately 6
fluid level in reservoir is low.
seconds and then goes OFF.
• When there is a malfunction with
When the brake fluid level in the
the SRS.
reservoir is low:
In this case, have your vehicle
1. Drive carefully to the nearest safe
inspected by an authorized
location and stop your vehicle.
EQUUS dealer.
2. Stop the engine, immediately
check the brake fluid level and add
Seat Belt Warning Light
fluid, as required (For further infor-
mation, refer to "Brake Fluid" in the
chapter 7). Then check all brake
components for fluid leaks. When
This warning light informs the driver
any leak in the brake system is still
that the seat belt is not fastened.
detected, when the warning light
remains ON, or when the brakes
do not properly operate, do not
❈ For further information, refer to the
drive the vehicle.
“Seat Belts” in the chapter 2.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
3-89
Convenient features of your vehicle
Dual-diagonal braking system
Anti-lock Brake System
Your vehicle is equipped with dual-
(ABS) Warning Light
diagonal braking systems. This
means you still have braking on two
This warning light illuminates in
wheels even if one of the dual sys-
one of the following situations:
tems fails.
• You turn ON the ignition switch or
With only one of the dual systems
Engine Start/Stop button.
working, longer pedal travel and
- It illuminates for approximately 3
greater pedal pressure may be
seconds and then goes OFF.
required to stop the vehicle.
• There is a malfunction with the
Also, the vehicle will not stop in as
ABS (The normal braking system
short a distance only with one por-
is still operational without the
tion of the brake systems working.
assistance of the anti-lock brake
If the brakes fail while you are driv-
system).
ing, shift to a lower gear for addition-
In this case, have your vehicle
al engine braking and stop the vehi-
inspected by an authorized
cle as soon as it is safe to do so.
EQUUS dealer.
WARNING
Electronic Brake force
Distribution (EBD)
- Parking Brake & Brake Fluid
System Warning Light
Warning Light
Driving the vehicle with a warn-
ing light ON is dangerous. If the
Parking Brake & Brake Fluid
Warning Light illuminates with
These two warning lights illuminate
the parking brake released, it
at the same time while driving in
indicates that the brake fluid
the following situation:
level is low.
• The ABS and the regular brake
In this case, have your vehicle
system may not properly operate.
inspected by an authorized
EQUUS dealer.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
3-90
Convenient features of your vehicle
03
Malfunction Indicator
WARNING
Lamp (MIL)
- Electronic Brake force
Distribution (EBD) System
This warning light illuminates in
Warning Light
one of the following situations:
When both ABS and the Parking
• You turn ON either the ignition
Brake & Brake Fluid warning
switch or the Engine Start/Stop
lights illuminate, the brake sys-
button.
tem does not properly operate.
- It remains ON until the engine is
You may experience an unex-
started.
pected and dangerous situation
• There is a malfunction with the
in a sudden braking.
emission control system.
In this case, avoid sharp driving
In this case, have your vehicle
and abrupt braking. Have your
inspected by an authorized
vehicle inspected by an author-
EQUUS dealer.
ized EQUUS dealer.
NOTICE
i
Information
- Malfunction Indicator Lamp (MIL)
- Electronic Brake force
Driving with the Malfunction
Distribution (EBD) System
Indicator Lamp
(MIL) ON may
Warning Light
damage the emission control sys-
When the ABS warning light illumi-
tems which could affect drivability
nates, or when both the ABS and the
and/or fuel economy.
Parking Brake & Brake Fluid warn-
ing lights illuminate, the speedometer,
NOTICE
the odometer, or the tripmeter may
not properly operate. Also, the EPS
- Gasoline Engine
warning light may illuminate, and the
When the Malfunction Indicator
efforts to operate the steering wheel
Lamp (MIL) illuminates, the cat-
may require to increase or decrease.
alytic converter is possibly dam-
In this case, have your vehicle inspect-
aged, resulting in loss of engine
ed by an authorized EQUUS dealer.
power.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
3-91
Convenient features of your vehicle
Charging System
Engine Coolant
Warning Light
Temperature Warning
Light
When this warning light illuminates
while the engine is running, the bat-
This warning light illuminates:
tery is
not being charged.
• When the engine coolant temper-
Immediately turn OFF all electrical
ature is above 248°F (120°C). This
accessories. Try not to use electrical-
means that the engine is over-
ly operated controls, such as the
heated and may be damaged.
power windows. Keep running the
When your vehicle is overheated,
engine. Starting the engine will
refer to “Overheating” in the chap-
quickly discharge the battery.
ter 6.
When there is a malfunction with
NOTICE
either the alternator or electrical
charging system:
- Engine Overheating
1. Drive carefully to the nearest safe
Do not continue driving with the
location and stop your vehicle.
overheated engine. Otherwise, the
engine may be damaged.
2. Turn OFF the engine and check
whether the alternator drive belt is
loose or broken.
Engine Oil Pressure
Even though the belt is properly
Warning Light
adjusted, there may be a problem
in the electrical charging system.
This warning light illuminates:
In this case, have your vehicle
• Once you turn ON the ignition
inspected by an authorized
switch or the Engine Start/Stop
EQUUS dealer.
Button.
- It remains ON until the engine is
started.
• When the engine oil pressure is
low.
3-92
Convenient features of your vehicle
03
When the engine oil pressure is low,
Low Fuel Level
follow the below procedures:
Warning Light
1. Carefully drive to the nearest safe
location and stop your vehicle.
This warning light illuminates:
2. Turn OFF the engine and check
When the fuel tank is nearly empty.
the engine oil level
(For further
information, refer to the “Engine
Oil” in the chapter 7). If the level is
When the fuel tank is nearly
low, add the engine oil.
empty:
When the warning light remains
Immediately refuel the vehicle.
ON after adding engine oil and
restarting the engine, or when
NOTICE
engine oil refilling is unavailable,
- Low Fuel Level
turn OFF the engine. These indi-
cate a mechanical problem, which
Driving with the Low Fuel Level
needs to be repaired before con-
warning light ON or with the fuel
tinuously driving. In this case,
level in the “E” range may cause the
have your vehicle inspected by an
engine to misfire and damage the
authorized EQUUS dealer.
catalytic converter (if equipped).
NOTICE
- Engine Oil Pressure Warning
light
To prevent severe engine damage,
after the Engine Oil Pressure
Warning Light illuminates and as
soon as it is safe to do so, turn
OFF the engine and check the
engine oil level. When the oil level
is low, add the engine oil to the
proper level and start the engine
again. When the light stays ON
with the engine running, immedi-
ately turn OFF the engine.
In this case, have your vehicle
inspected by an authorized
EQUUS dealer.
3-93
Convenient features of your vehicle
Low Tire Pressure
WARNING
Warning Light
- Safe Stopping
This warning light illuminates:
• The TPMS cannot alert you to a
• Once you turn ON the ignition
severe and sudden tire damage
switch or the Engine Start/Stop
caused by external factors.
button.
• When any vehicle instability is
- It illuminates for approximately 3
noticed, immediately take your
seconds and then goes OFF.
foot off the accelerator, gradu-
• When one or more of your tires
ally apply the brakes with light
are significantly underinflated
force, and slowly move to a
(The location of the underinflated
safe place off a road.
tires are displayed on the LCD dis-
play).
Door Ajar Warning
Light
❈ For further information, refer to
“Tire Pressure Monitoring System
(TPMS)” in the chapter 6.
This warning light illuminates:
This warning light remains ON after
When a door is not securely closed.
flashing for approximately 60 sec-
onds, or it repeatedly flashes an
interval of approximately three sec-
Trunk Open Warning
onds:
Light
• There is a malfunction with the
TPMS
This warning light illuminates:
In this case, have your vehicle
When the trunk lid is not securely
inspected by an authorized
closed.
EQUUS dealer.
❈ For further information, refer to
“Tire Pressure Monitoring System
(TPMS)” in the chapter 6.
3-94
Convenient features of your vehicle
03
Adaptive Front
Electric Parking Brake
Lighting System
(EPB) Warning Light
(AFLS) Warning Light
This warning light blinks:
This warning light illuminates:
• Once you set the Engine
• Once you turn ON the ignition
Start/Stop Button to the ON posi-
switch or the Engine Start/Stop
tion.
button.
- It illuminates for approximately 3
- It illuminates for approximately 3
seconds and then goes off.
seconds and then goes off.
• When there is a malfunction with
• When there is a malfunction with
the AFLS.
the EPB.
In this case, have your vehicle
When there is a malfunction with the
inspected by an authorized EQUUS
AFLS:
dealer.
1. Carefully drive to the nearest safe
location and stop your vehicle.
i
Information
2. Turn OFF the engine and restart
- Electric Parking Brake
the engine. If the problem persists,
(EPB) Warning Light
have your vehicle inspected by an
The Electric Parking Brake
(EPB)
authorized EQUUS dealer.
warning light may illuminate, when
the Electronic Stability control (ESC)
indicator illuminates due to the ESC
malfunction (This does not indicate
malfunction of the EPB).
Master Warning Light
This indicator light illuminates:
• When there is a malfunction with
the pre-safe seat belt, check the
fuel cap, the washer level, the
electronic control suspension, or
the advanced smart cruise con-
trol. To identify the cause of the
warning, look at the LCD display.
3-95















Content   ..  9  10  11  12   ..
