Hyundai Equus (2016 year). Instruction

Convenient features of your vehicle

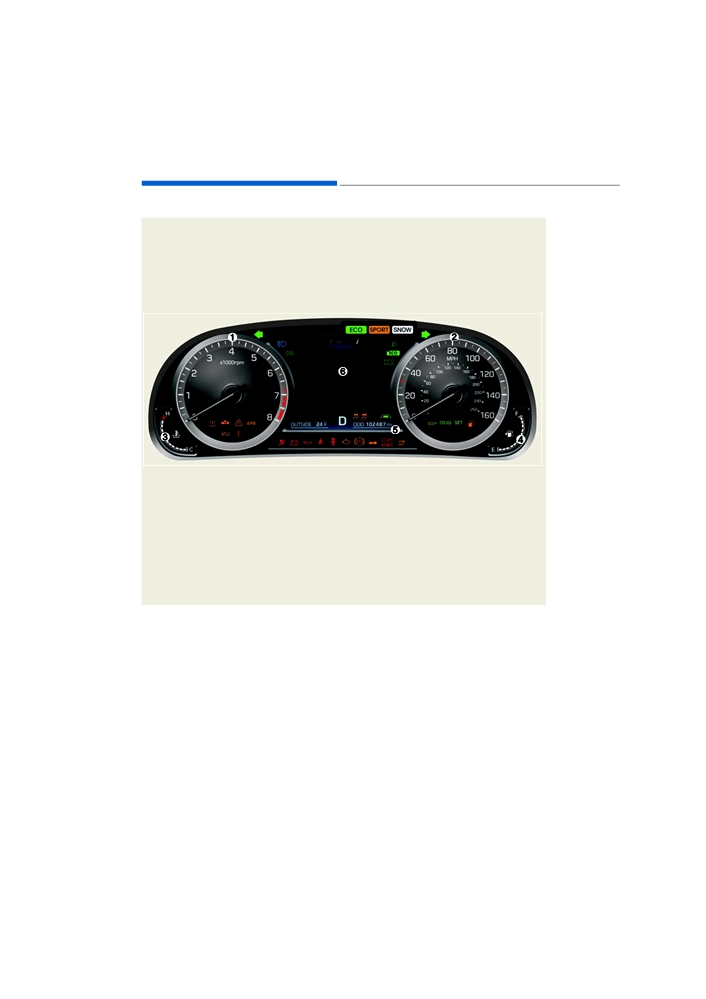

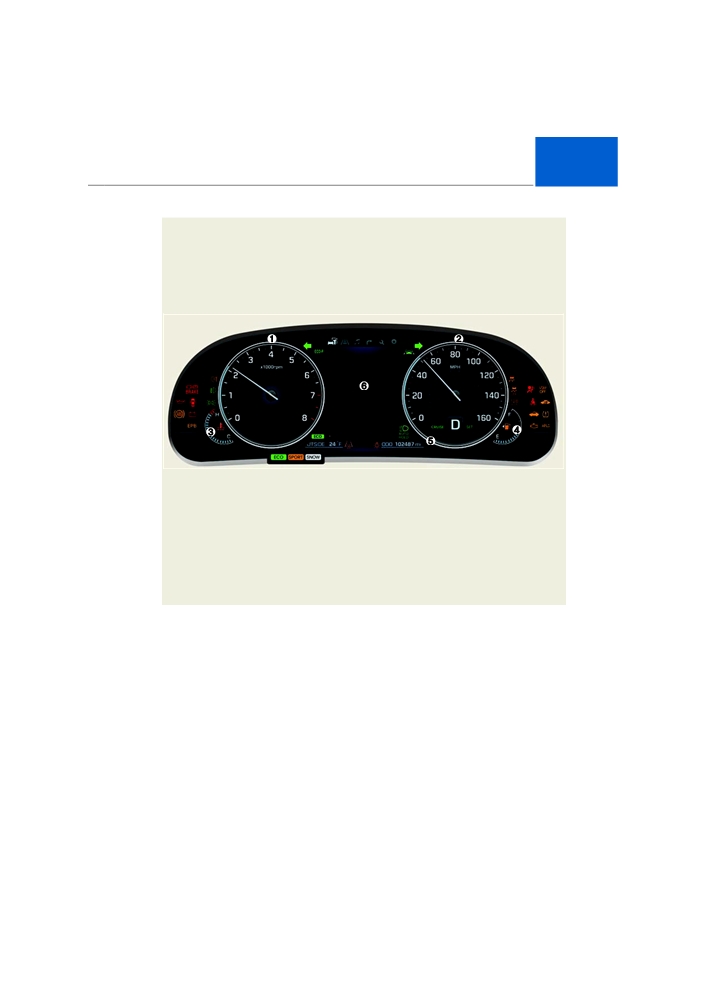

INSTRUMENT CLUSTER

■ Type A

❈ The actual instrument cluster in the vehicle may differ from the illustration.

For further information, refer to "Gauges" in this chapter.

OVI045608N

1. Tachometer

4. Fuel Gauge

2. Speedometer

5. Odometer

3. Engine Coolant Temperature Gauge

6. LCD Display (Including trip computer)

3-62

Convenient features of your vehicle

■ Type B

❈ The actual instrument cluster in the vehicle may differ from the illustration.

For further information, refer to "Gauges" in this chapter.

OVI045414N

1. Tachometer

4. Fuel Gauge

2. Speedometer

5. Odometer

3. Engine Coolant Temperature Gauge

6. LCD Display (Including trip computer)

• The instrument cluster theme is automatically changed in accordance with the drive mode

(NORMAL, SPORT, SNOW).

❈ For further information of the drive mode, refer to "Drive mode integrated control system" in

the chapter 5.

• In the "User Settings Mode" of the LCD display, you can activate or deactivate the automatic

change of the instrument cluster theme.

❈ For further information, refer to "LCD Display" in this chapter.

3-63

Convenient features of your vehicle

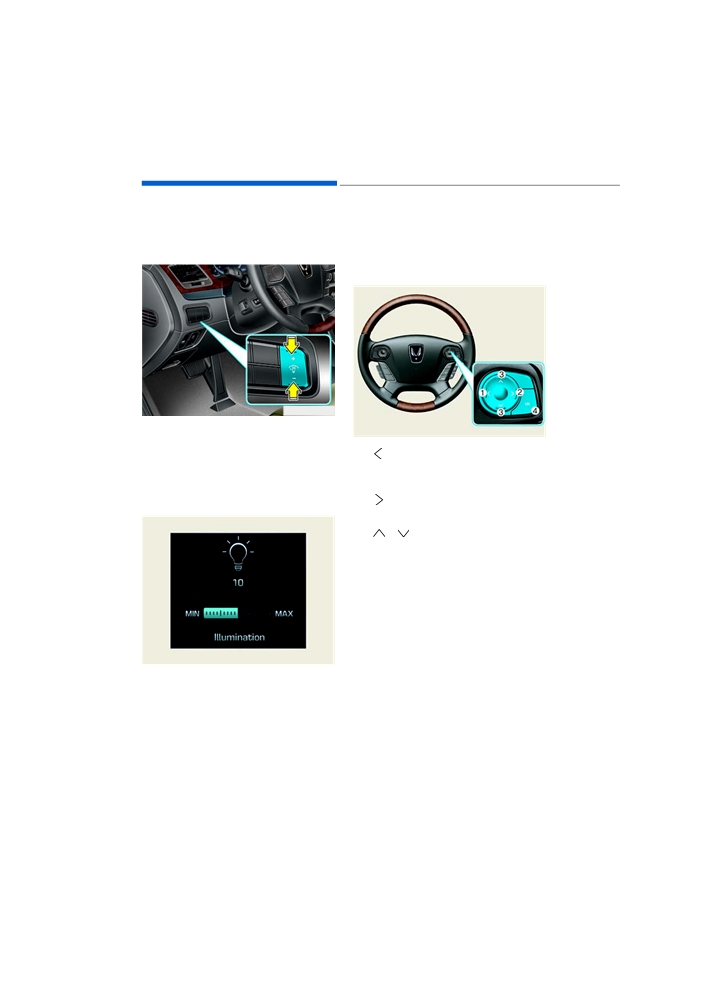

Instrument Cluster Control

LCD Display Control

Adjusting Instrument Cluster

The LCD display modes can be

Illumination

changed with the control buttons on

the steering wheel.

■ Type A

OVI045051N

The brightness of the instrument

OVI045410N

panel illumination can be adjusted by

pressing the illumination control but-

(1)

button : Changing LCD modes

tons

(“+” or

“-”) when the Engine

(right to left), or return-

Start/Stop Button is ON or the tale

ing to previous position

lights are turned ON.

(2)

button : Changing LCD modes

(left to right)

(3)

button : Changing items

(upper or lower)

(4) OK button : Selecting or resetting

❈ For the LCD modes, refer to "LCD

Display" in this chapter.

OVI045702

• The brightness has

20 levels:

1 (MIN) ~ 20 (MAX)

• If you press the illumination con-

trol button (“+” or “-”), the bright-

ness level will be continuously

adjusted.

• If the brightness reaches to the

maximum or minimum level, an

alarm will sound.

3-64

Convenient features of your vehicle

■ Type B

Gauges

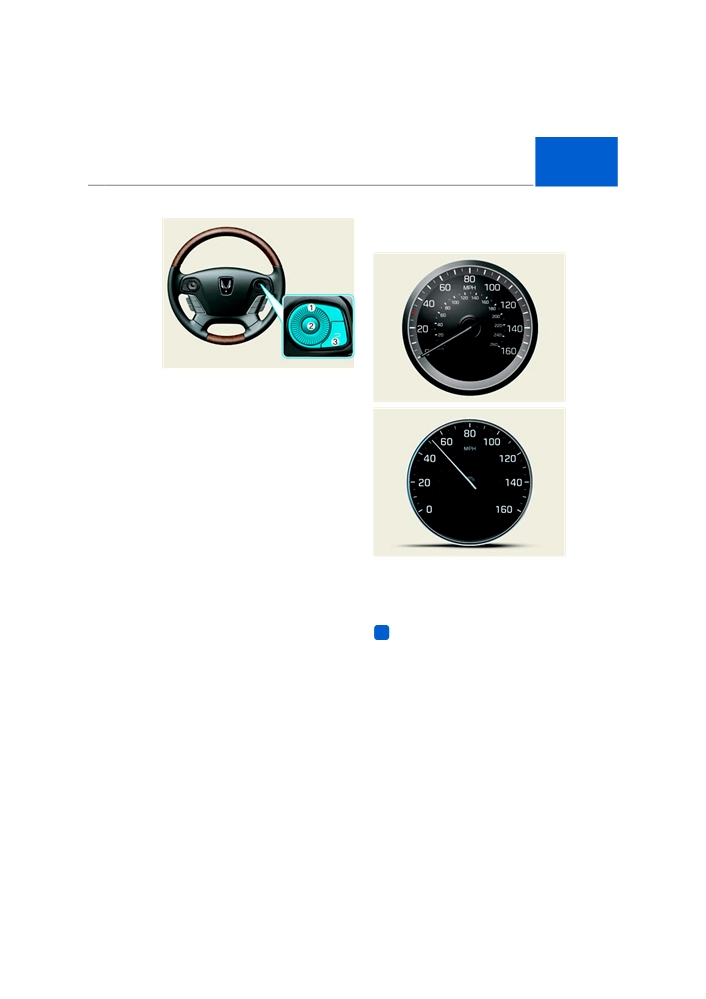

Speedometer

■ Type A

OVI045411N

(1) Haptic switch

: Changing LCD

modes or items

OVI045609N

(2) OK button : Selecting or resetting

■ Type B

(3) RETURN button : Returning to

previous position

You can adjust a tightening level of

the haptic rotating switch in the "User

Settings Mode" on the LCD Display

❈ For further information, refer to

"LCD Display" to in this chapter.

OVI045610N

The speedometer indicates the

speed of the vehicle, calibrated in

miles per hour (mph) and/or kilome-

ters per hour (km/h).

Information

In the "User Settings Mode" of the

LCD display, you can set the font size

of the speedometer (Normal or Large)

(Type B).

3-65

Convenient features of your vehicle

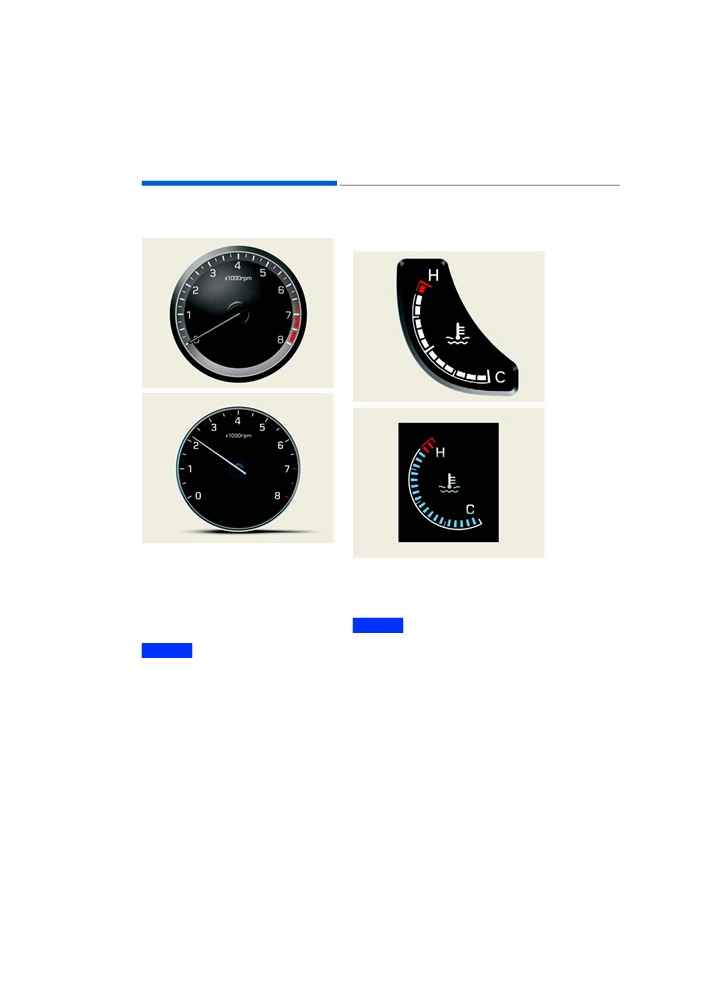

Tachometer

Engine Coolant Temperature

Gauge

■ Type A

OVI045611N

■ Type B

OVI045613N

■ Type B

OVI045612N

OVI045614N

The tachometer indicates the

approximate number of engine revo-

This gauge indicates the tempera-

lutions per minute (rpm).

ture of the engine coolant when the

Use the tachometer to find the cor-

engine is running.

rect shift points and to prevent lug-

ging and/or over-revving the engine.

NOTICE

If the gauge pointer moves out of

NOTICE

the normal range area, toward the

Do not operate the engine when

“H” position, it indicates overheat-

the tachometer pointer is in the

ing of the engine that may damage

RED ZONE. This may cause severe

the engine.

engine damage.

Do not continue driving with an

overheated engine. If your vehicle

is overheated, refer to “If the Engine

Overheats” in the chapter 6.

3-66

Convenient features of your vehicle

CAUTION

Information

• The fuel tank capacity is indicated

Never remove the radiator cap

in chapter 8.

when the engine is hot. The

• The fuel gauge is supplemented by a

engine coolant is under pres-

low fuel warning light, which will

sure and could severely burn.

illuminate when the fuel tank is

Wait until the engine cools

nearly empty.

down before adding coolant to

the reservoir.

• On slopes or curves, the fuel gauge

pointer may fluctuate or the low fuel

warning light may come on earlier

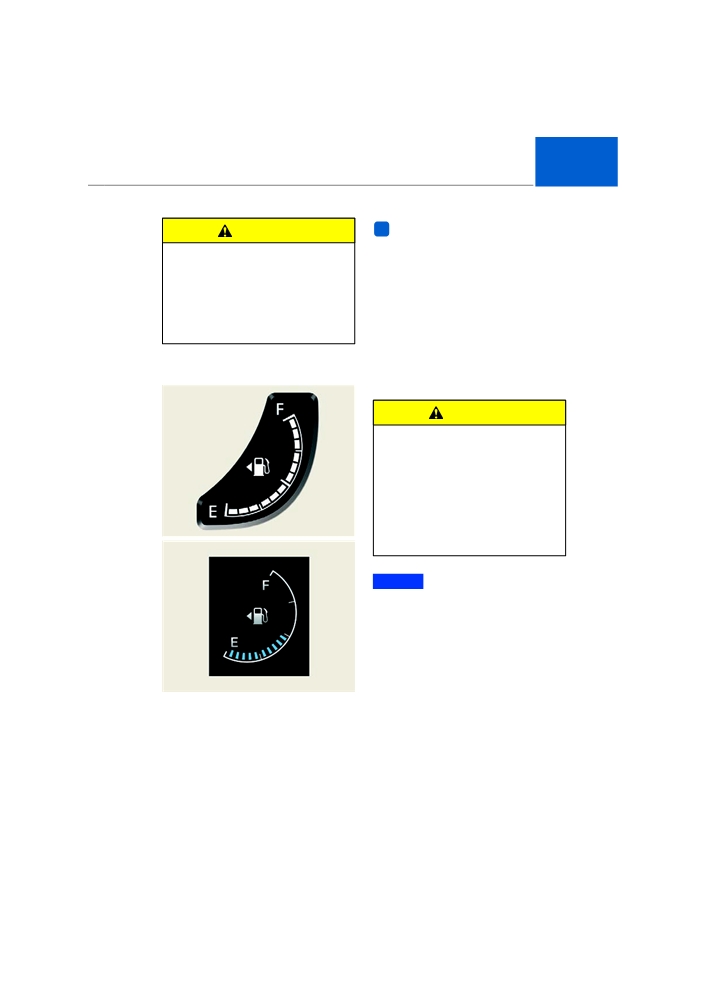

Fuel Gauge

than usual due to the fuel fluctua-

tion in the tank.

■ Type A

CAUTION

- Fuel Gauge

Running out of fuel can expose

vehicle occupants to danger.

You must stop the vehicle and

obtain additional fuel as soon

as possible, after the warning

light comes on or when the

OVI045615N

gauge indicator comes close to

■ Type B

the “E (Empty)” level.

NOTICE

Avoid driving with the extremely

low amount of fuel. Running out of

fuel could cause the engine to

misfire, damaging the catalytic

converter.

OVI045616N

This gauge indicates the approxi-

mate amount of fuel remaining in the

fuel tank.

3-67

Convenient features of your vehicle

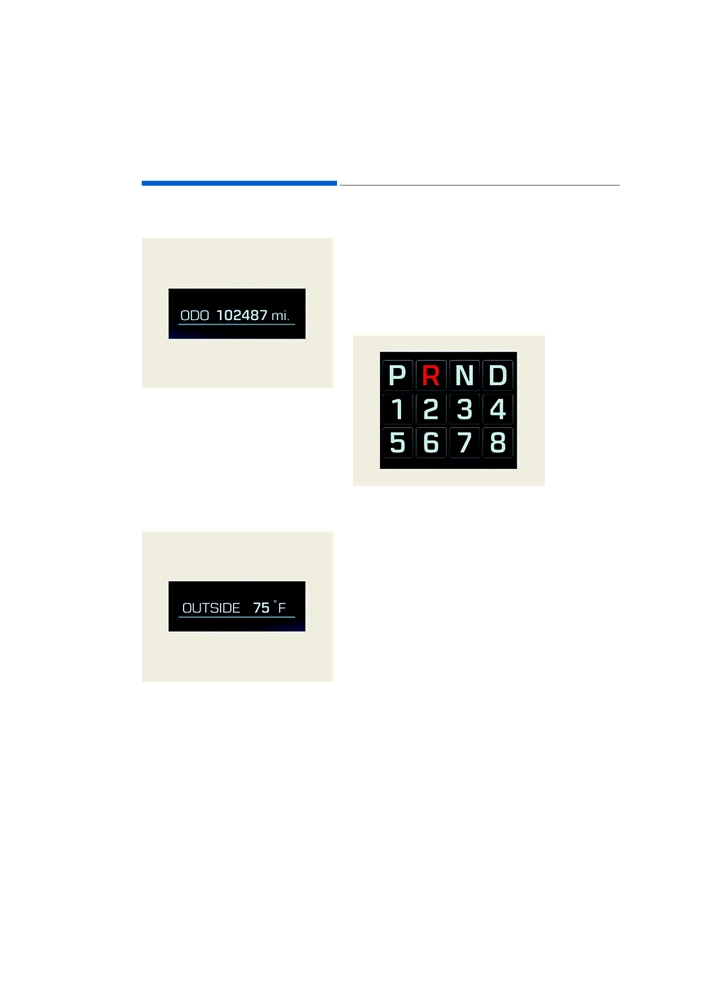

Odometer

The temperature unit (from °C to °F

or from °F to °C) can be changed by

pressing the AUTO/OFF buttons on

the front climate control panel for 3

seconds simultaneously.

Automatic Transmission Shift

Indicator

OVI045711

The odometer indicates the accumu-

lated distance that the vehicle has

driven and determines the periodic

maintenance schedule that should

be performed.

- Odometer range :

0 ~ 999999 miles or kilometers

OVI045713

This indicator displays where the

Outside Temperature Gauge

automatic transmission shift lever is

located.

• Park : P

• Reverse : R

• Neutral : N

• Drive : D

• Sports Mode : 1, 2, 3, 4, 5, 6, 7, 8

OVI045712

This gauge indicates the current out-

side air temperatures by 1°F (1°C).

- Temperature range :

-40°F ~ 140°F (-40°C ~ 60°C)

The outside temperature on the dis-

play may not change immediately

like a general thermometer not to

distract the driver.

3-68

Convenient features of your vehicle

LCD DISPLAY

LCD Modes

Modes

Symbol

Explanation

This mode displays driving information like the trip-

meter, fuel economy, etc.

Trip Computer

❈ For further information, refer to "Trip Computer"

in this chapter.

This mode displays the state of the Advanced

Smart Cruise Control (ASCC) and Lane Departure

Warning System (LDWS).

ASCC/LDWS

❈ For further information, refer to

“Advanced

(if equipped)

Smart Cruise Control

(ASCC)” and

“Lane

Departure Warning System

(LDWS)” in the

chapter 5.

A/V

This mode displays the state of the A/V system.

(if equipped)

Turn By Turn

(TBT)

This mode displays the state of the navigation.

(if equipped)

This mode displays service interval

(mileage or

days) and warning messages related to the

Information

advanced smart cruise control system, pre-safe seat

belt, etc.

In this mode, you can change settings of the doors,

User Settings

lamps, and so on.

❈ For controlling the LCD modes, refer to "LCD Display Control" in this

chapter.

3-69

Convenient features of your vehicle

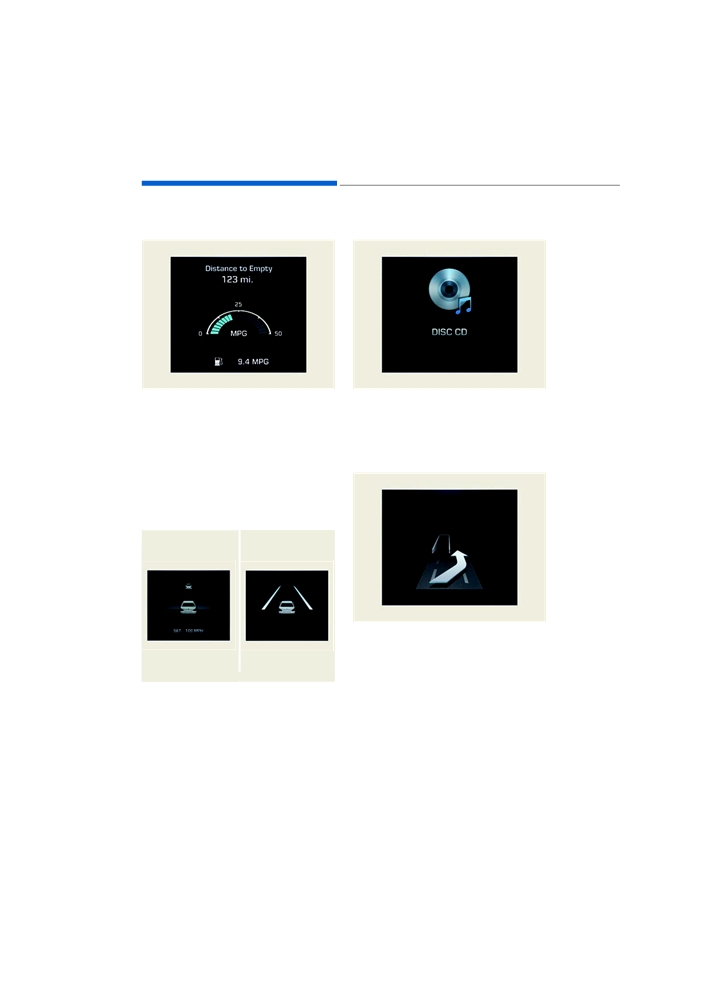

Trip Computer Mode

A/V Mode

OVI045714

OVI045717

This mode displays driving informa-

This mode displays the state of the

tion like the tripmeter, fuel economy,

A/V system.

etc.

Turn By Turn (TBT) Mode

❈ For further information, refer to

(if equipped)

“Trip Computer” in this chapter.

ASCC/LDWS Mode

(if equipped)

ASCC

LDWS

OVI045718

This mode displays the state of the

navigation.

OVI045715/OVI045716

This mode displays the state of the

Advanced Smart Cruise Control

(ASCC) and Lane Departure

Warning System (LDWS).

❈ For further information, refer to

"Advanced Smart Cruise Control

(ASCC)" and "Lane Departure

Warning System (LDWS)" in the

chapter 5.

3-70

Convenient features of your vehicle

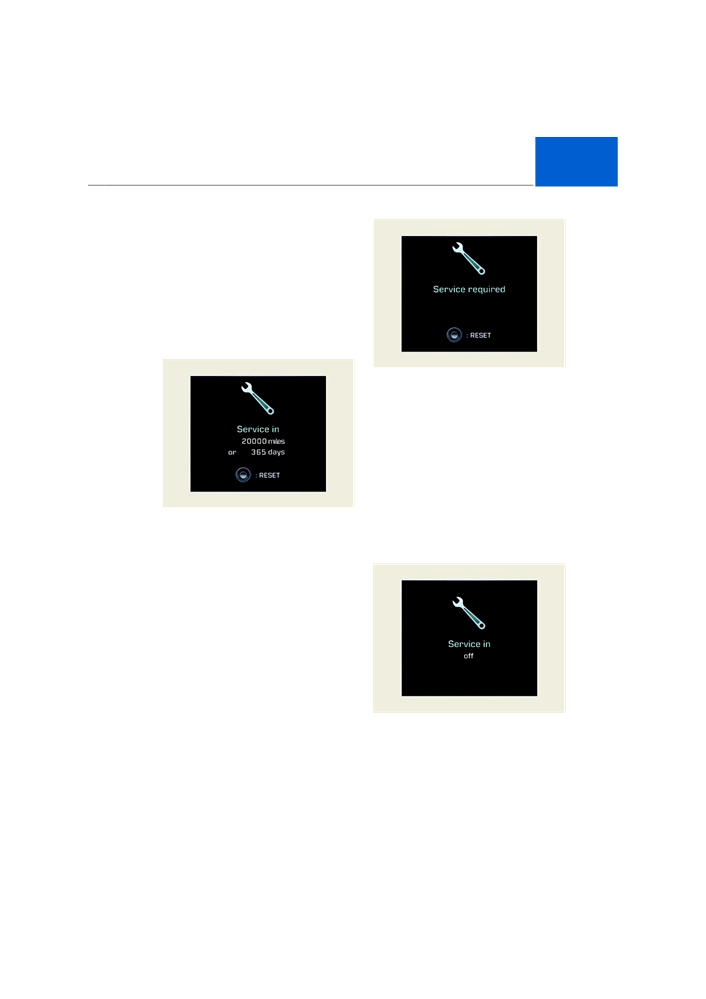

Information Mode

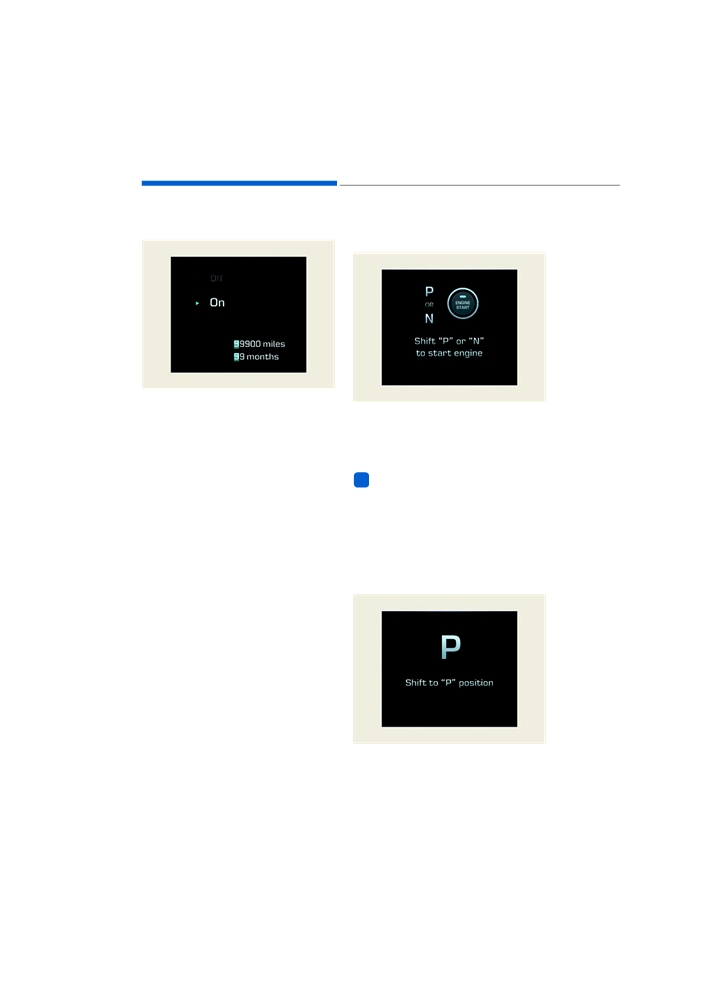

Service Interval

This mode displays the service inter-

val (mileage and days).

❈ For the setting of the service inter-

val, refer to "User Settings Mode"

of the LCD display.

OVI045720

Service required

When you fail to have your vehicle

serviced according to the already

inputted service interval, "Service

required" message is displayed for

several seconds each time you turn

ON the Engine Start/Stop Button.

To reset the service interval in

OVI045719

mileages or days that you initially set:

Service in

- Press the OK button for more than

1 second.

It calculates and displays when you

need a scheduled maintenance serv-

ice (mileage or days).

If the mileage or day after service

passes 900 miles (1,500 km) or 30

days, "Service in" message is dis-

played for several seconds each time

you turn ON the Engine Start/Stop

Button.

OVI045721

Service in OFF

When the service interval is not set,

"Service in OFF" message is dis-

played on the LCD display.

3-71

Convenient features of your vehicle

Information

If any of the following conditions

occurs, the mileage and days may be

incorrect.

- The battery cable is disconnected.

- The fuse switch is turned off.

- The battery is discharged.

Warning Message

If one of followings occurs, warning

OVI045755N

messages will be displayed in the

Rotation

information mode for about 10 sec-

Rotate the angle of the HUD image

onds.

on the windshield glass (Level -5 to

- Malfunction of the pre-safe seat

+5).

belt, electronic control suspen-

sion, or advanced smart cruise

control system

- Low washer fluid

- Check fuel cap

User Settings Mode

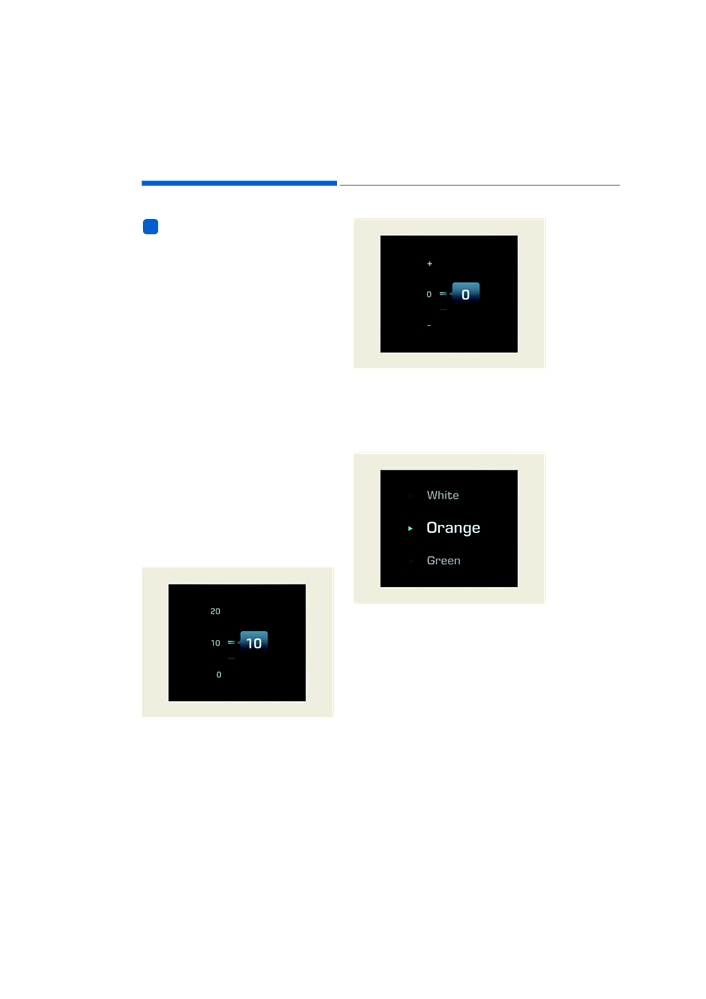

Head-Up Display (HUD) Settings

(if equipped)

OVI045724

Font Color

Choose the font color of the HUD

(White, Orange, Green).

OVI045722

Display Height

Adjust the height of the HUD image

on the windshield glass (Level 0 to

20).

3-72

Convenient features of your vehicle

OVI045725

OVI045726

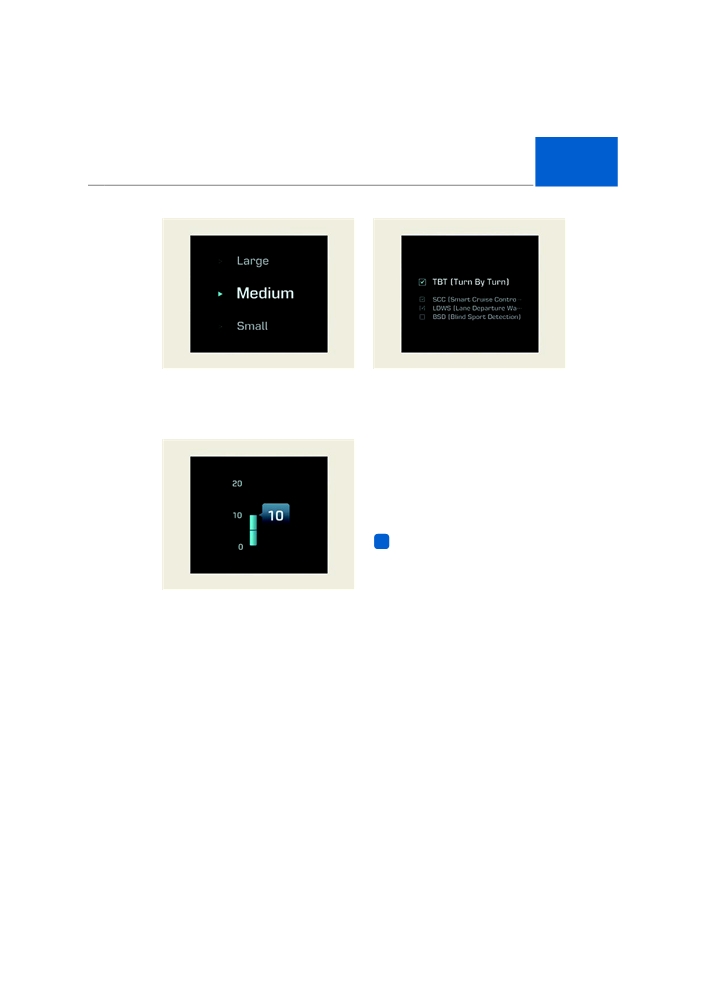

Font Size

Contents Setting (if equipped)

Choose the font size of the HUD

Activate or deactivate each HUD con-

(Large, Medium, Small).

tents (TBT, SCC, LDWS, BSD).

❈ TBT : Turn By Turn

SCC : (Advanced) Smart Cruise

Control

LDWS : Lane Departure Warning

System

BSD : Blind Spot Detection

Information

If you select the Turn By Turn (TBT)

navigation information as HUD con-

tents, the Turn By Turn (TBT) naviga-

OVI045723

tion information will not be displayed

Illumination

on the LCD.

Adjust the brightness of the HUD illu-

mination (Level 0 to 20).

3-73

Convenient features of your vehicle

Vehicle Settings

In this mode, you can change setting of the instrument cluster, doors, lamps,

etc.

Cluster Settings

Items

Explanation

• On: The welcome sound will be activated when the instrument

Welcome Sound

cluster is turned on.

• Off: The welcome sound will be deactivated.

• On: The AVSM system will be activated.

• Off: The AVSM system will be deactivated.

AVSM

❈ For further information, refer to “Advanced Vehicle Safety

(if equipped)

Management (AVSM) System” in the chapter 5.

❈ AVSM: Advanced Vehicle Safety Management

• On: The haptic function of the Lane Departure Warning System

(LDWS) will be activated.

LDWS Haptic

• Off: The haptic function of the Lane Departure Warning System

(if equipped)

(LDWS) will be deactivated.

❈ For further information, refer to “Lane Departure Warning

System (LDWS)” in the chapter 5.

Traffic Information

• On: The LCD will show traffic information.

(if equipped)

• Off: The LCD will not show traffic information.

Speedometer Size

• Choose the font size in the speedometer (Large or Normal).

(if equipped)

• On : The instrument cluster theme is automatically changed in

Driving Mode

accordance with the drive mode

(NORMAL, SPORT,

Theme

SNOW).

(if equipped)

• Off : The automatic change function of the instrument cluster

theme will be deactivated.

3-74

Convenient features of your vehicle

Items

Explanation

• On : The ECO driving mode will be activated.

ECO Driving

• Off : The ECO driving mode will be deactivated.

• Auto Reset: The memory of the average fuel economy will be

automatically reset when refueling.

AVG Fuel Eco

• Manual Reset: The memory of the average fuel economy will

Reset

not be automatically reset when refueling.

❈ For further information, refer to “Trip Computer” in this chapter.

Door

Items

Explanation

• Off: The auto door lock function will be deactivated.

• Speed: All doors will be automatically locked when the vehicle

speed exceeds 9.3mph (15km/h).

Auto Door Lock

• Shift Lever: All doors will be automatically locked, when the

automatic transmission is shifted from P (Park) to R

(Reverse), N (Neutral), or D (Drive).

• Off: The auto door unlock function will be deactivated.

• Power Off: All doors will be automatically unlocked when turn-

ing OFF the Engine Start/Stop Button.

Auto Door Unlock

• Shift Lever: All doors will be automatically unlocked, when the

automatic transmission is shifted to P(Park).

• Driver Door Unlock: All doors will be automatically unlocked,

when the driver's door is unlocked.

• On : The Smart Trunk system will be activated.

Smart Trunk

• Off : The Smart Trunk system will be deactivated.

(if equipped)

❈ For more details, refer to "Smart Trunk" in this chapter.

3-75

Convenient features of your vehicle

Lamp

Items

Explanation

• On: The head lamp delay function is active.

Head Lamp Delay

• Off: The headlamp delay function is deactivated.

❈ For further information, refer to “Lighting” in this chapter.

• On: The welcome light function is active.

• Off: The welcome light function is deactivated.

Welcome Light

❈ For further information, refer to “Welcome System” in this

chapter.

• Off: The one touch turn lamp function will be deactivated.

• 3, 5, 7 Flashing : The lane change signals flash three, five or

One Touch Turn

seven times, when the turn signal lever is

Lamp

slightly operated.

❈ For further information, refer to “Lighting” in this chapter.

3-76

Convenient features of your vehicle

Driver Convenience

Items

Explanation

• Off: The seat easy access function is deactivated.

• Normal/Enhanced:

- When you turn OFF the engine, the driver’s seat automati-

cally moves backwards by

2 inch

(Normal) or

3 inch

(Enhanced) for more comfortable entering or exiting.

Seat Easy Access

- When the Engine Start/Stop Button is turned to the ACC, ON,

or START position from the OFF position, the driver’s seat

resets to its default position.

❈ For further information, refer to

“Driver Position Memory

System” in the chapter 3.

• On: The steering wheel automatically moves forwards or back-

wards for the driver's comfortable entering or exiting.

Steering Easy

• Off: The steering easy access function is deactivated.

Access

❈ For further information, refer to

“Driver Position Memory

System” in the chapter 3.

Haptic Steering System Switch (if equipped)

Adjust a tightening level of the haptic rotating switch on the steering wheel on

the LCD display (Strong, Normal, Mild).

❈ For further information about the haptic switch, refer to "LCD Display

Control" in this chapter.

3-77

Convenient features of your vehicle

Service Interval

Warning Messages

Shift to "P" or "N" to start engine

OVI045727

OVI045728

In this mode, you can activate the

service interval function in mileage

• This warning message illumi-

(mile or kilometer) and period

nates, when you try to start the

(month).

engine with the shift lever not in P

(Park) or N (Neutral).

• Off : The service interval function

is deactivated.

Information

• On : The service interval function

You can start the engine with the shift

is active (mileage or month).

lever in N

(Neutral). However, for

your safety, we recommend that you

start the engine with the shift lever in

Quick Guide (if equipped)

P (Park).

This mode provides quick guides for

the Head-Up Display

(HUD), the

Blind Spot Detection (BSD) System,

Shift to "P" position

the Smart Cruise Control

(SCC)

System, the Lane Departure

Warning System (LDWS), etc.

For further information about each

system, refer to this Owner’s Manual.

OVI045729

• This warning message illumi-

nates, when you attempt to turn

OFF the engine without setting the

shift lever in P (Park).

3-78

Hyundai Equus (2016 year). Instruction - part 10
