RESTRAINTS
AIR BAG MODULE
DISPOSAL
AIRBAG DISPOSAL
E50F62AD
SPECIAL TOOL REQUIRED
Deployment tool 0957A-34100A
Before scrapping any airbags or side airbags (including
those in a whole vehicle to be scrapped), the airbags or
side airbags must be deployed. If the vehicle is still within
the warranty period, before deploying the airbags or side
airbags, the Technical Manager must give approval and/or
special instruction. Only after the airbags or side airbags
have been deployed (as the result of vehicle collision, for
example), can they be scrapped.
If the airbags or side airbags appear intact (not deployed),
treat them with extreme caution. Follow this procedure.
DEPLOYING AIRBAGS IN THE VEHICLE
If an SRS equipped vehicle is to be entirely scrapped, its
airbags or side airbags should be deployed while still in the
vehicle. The airbags or side airbags should not be consid-
ered as salvageable parts and should never be installed in
another vehicle.
1.
Turn the ignition switch OFF, and disconnect the bat-
tery negative cable and wait at least three minutes.
2.
Confirm that each airbag or side airbag is securely
mounted.
3.
Confirm that the special tool is functioning properly by
following the check procedure.
DRIVER’S AIRBAG :
1.
Remove
the
driver’s
airbag
and
install
the
SST(0957A-3F100).
2.
Install the driver’s airbag on the steering wheel.
FRONT PASSENGER’S AIRBAG :
1.
Remove the glove box, then disconnect the 2P con-
nector between the front passenger’s airbag and SRS
main harness.
2.
Install the SST(0957A-3F100).
SIDE AIRBAG :
1.
Disconnect the 2P connector between the side airbag
and side wire harness.
2.
Install the SST (0957A-3F100).
CURTAIN AIRBAG :
1.
Disconnect the 2P connector between the curtain
airbag and wire harness.
2.
Install the SST(0957A-3F100).
SEAT BELT PRETENSIONER :
1.
Disconnect the 2P connector from the seat belt pre-
tensioner.
2.
Install the SST(0957A-38500).
3.
Place the deployment tool at least thirty feet (10 me-
ters) away from the airbag.
4.
Connect a 12 volt battery to the tool.
5.
Push the tool’s deployment switch. The airbag should
deploy (deployment is both highly audible and visible:
a loud noise and rapid inflation of the bag, followed by
slow deflection)
6.

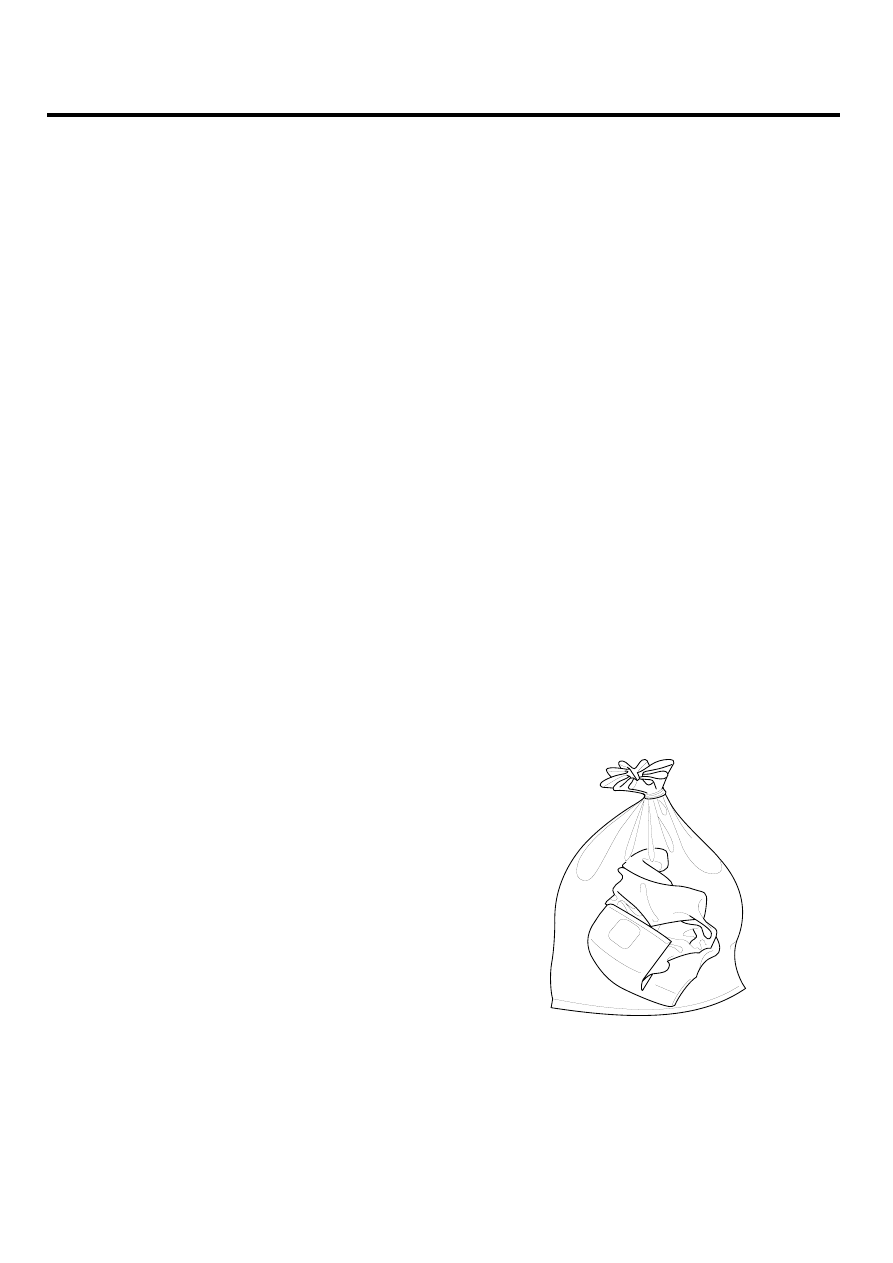

Dispose of the complete airbag. No part of it can be
reused. Place it in a sturdy plastic bag and seal it
securely.
ERKD002U
