Hyundai Santa Fe (2006 year). Manual - part 761





RT -86

RESTRAINTS

DTC B1400 SIDE IMPACT SENSOR [FRONT-DRIVER] DEFECT
DTC B1403 SIDE IMPACT SENSOR [FRONT-PASSENGER] DEFECT
DTC B1409 SIDE IMPACT SENSOR [FRONT-DRIVER]

COMMUNICATION ERROR

DTC B1410 SIDE IMPACT SENSOR [FRONT-PASSENGER]

COMMUNICATION ERROR

DTC DESCRIPTION

E7C1CA1D

The detecting system for side crash consists of the SRSCM and four Side Impact Sensors (SIS). The SRSCM sets above
DTC(s) if it detects that any SIS is defective or there is communication error between any SIS and the SRSCM.

DTC DETECTING CONDITION

EFA2D8F7

DTC

Condition

Probable cause

B1400
B1403
B1409
B1410

• Open between SIS and SRSCM
• Side Impact Sensor (SIS) Malfunction
• SRSCM Malfunction

• Wiring Harness
• Side Impact Sensor (SIS)
• SRSCM

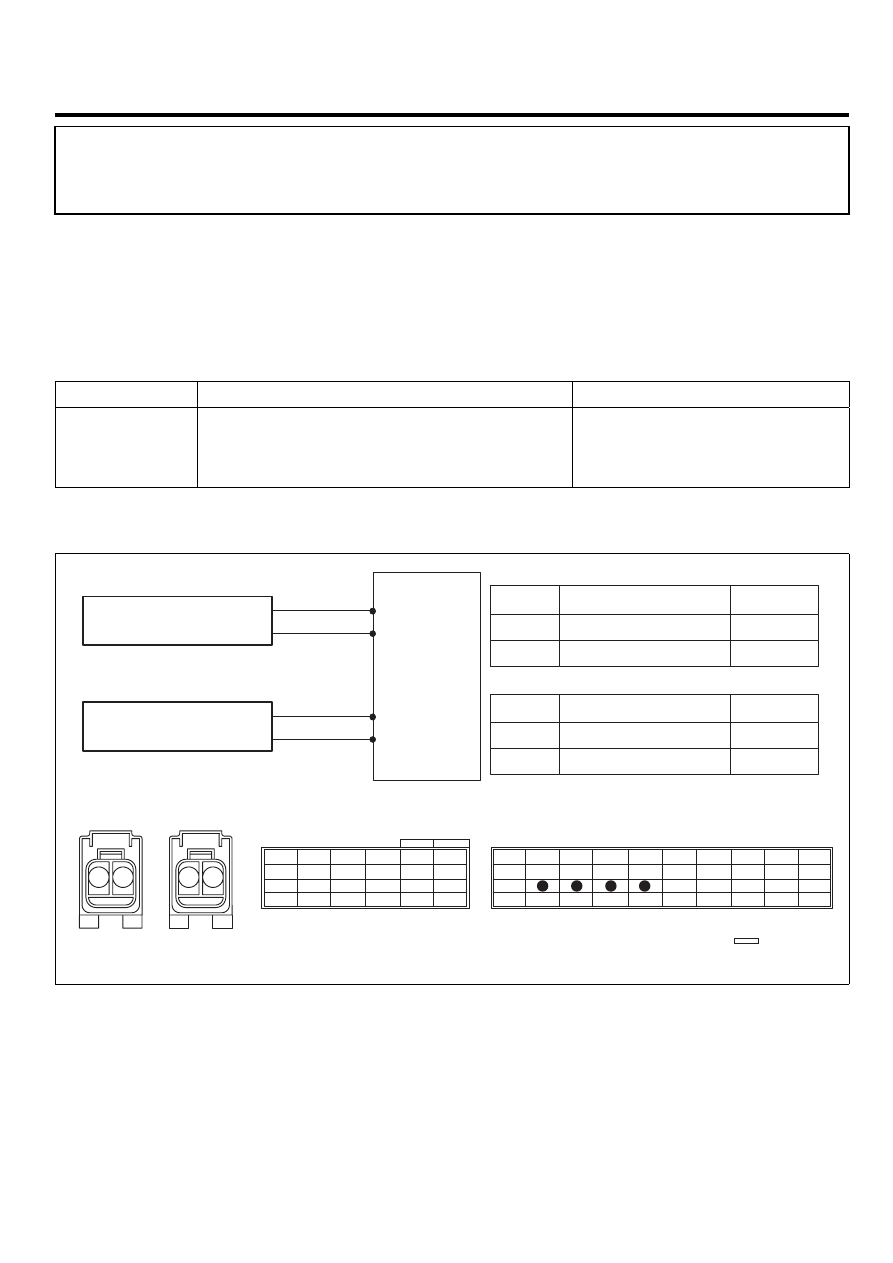

SCHEMATIC DIAGRAM

EB8523E1

[HARNESS CONNECTOR]

SIS[Driver] SIS[Passenger]

SRSCM

26(B)

SIS [Driver]

High

27(B)

29(B)

SIS [Passenger]

High

28(B)

Low

Low

1

2

1

2

Terminal

Terminal

Connected to

Function

Connected to

Function

1

SRSCM Terminal 26(B)

SIS High

2

SRSCM Terminal 27(B)

SIS Low

SIS High

SIS Low

SIS [Driver]

1

SRSCM Terminal 29(B)

2

SRSCM Terminal 28(B)

SIS [Passenger]

SIS High

SIS Low

SRSCM

CONNECTOR A

CONNECTOR B

Shorting Bar

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

30

29

28

27

26

25

24

23

22

21

40

39

38

37

36

35

34

33

32

31

6

5

4

3

2

1

12

11

10

9

8

7

18

17

16

15

14

13

24

23

22

21

20

19

1

2

1

2

SCMRT6160L

TERMINAL & CONNECTOR INSPECTION

E276ABDE

Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

TROUBLESHOOTING

RT -87

INSPECTION PROCEDURE

EE9E71F6

1.

PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

2.

CHECK SIS CIRCUIT

1)

Measure resistance between the terminal 1 of SIS harness connector and the terminal 26(29) of SRSCM harness
connector(B).

2)

Measure resistance between the terminal 2 of SIS harness connector and the terminal 27(28) of SRSCM harness
connector(B).

Specification (resistance) : below 1 Ω

SIS

SRSCM

LOCK

27(28)B

2

26(29)B

1

ERBF502E

3)

Is the measured resistance within specification?

YES

▶Check Side Impact Sensor.

NO

▶ Repair or replace the wiring harness between the SIS and the SRSCM.

3.

CHECK THE SIDE IMPACT SENSOR

1)

Replace the Side Impact Sensor(SIS) with a new one.
● Refer to "Side Impact Sensor(SIS)" section in this SERVICE MANUAL.

2)

Install the DAB module and connect the DAB connector.

3)

Connect the connectors of the PAB, SAB, CAB, BPT, FIS and SIS.

4)

Connect the SRSCM connector.

5)

Connect the battery negative cable to the battery.

6)

Connect a Hi-Scan(Pro) to the data link connector.

RT -88

RESTRAINTS

7)

Turn the ignition switch to ON and check the vehicle again.
Does Hi-Scan (Pro) indicate any DTC related to Side Impact Sensor(SIS)?

YES

▶ Go to next step.

NO

▶ Replace SIS.

4.

CLEAR THE DTC AND CHECK THE VEHICLE AGAIN
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

TROUBLESHOOTING

RT -89

DTC B1401 SIDE IMPACT SENSOR [FRONT-DRIVER] CIRCUIT

SHORT TO GROUND

DTC B1404 SIDE IMPACT SENSOR [FRONT-PASSENGER] CIRCUIT

SHORT TO GROUND

DTC DESCRIPTION

E97ECDA8

The detecting system for side crash consists of the SRSCM and four Side Impact Sensors (SIS). The SRSCM sets above
DTC(s) if it detects short to ground on the SIS circuit.

DTC DETECTING CONDITION

E0FA7544

DTC

Condition

Probable cause

B1401
B1404

• Short to ground between SIS and SRSCM
• Side Impact Sensor (SIS) Malfunction
• SRSCM Malfunction

• Short to ground circuit on

wiring harness

• Side Impact Sensor (SIS)
• SRSCM

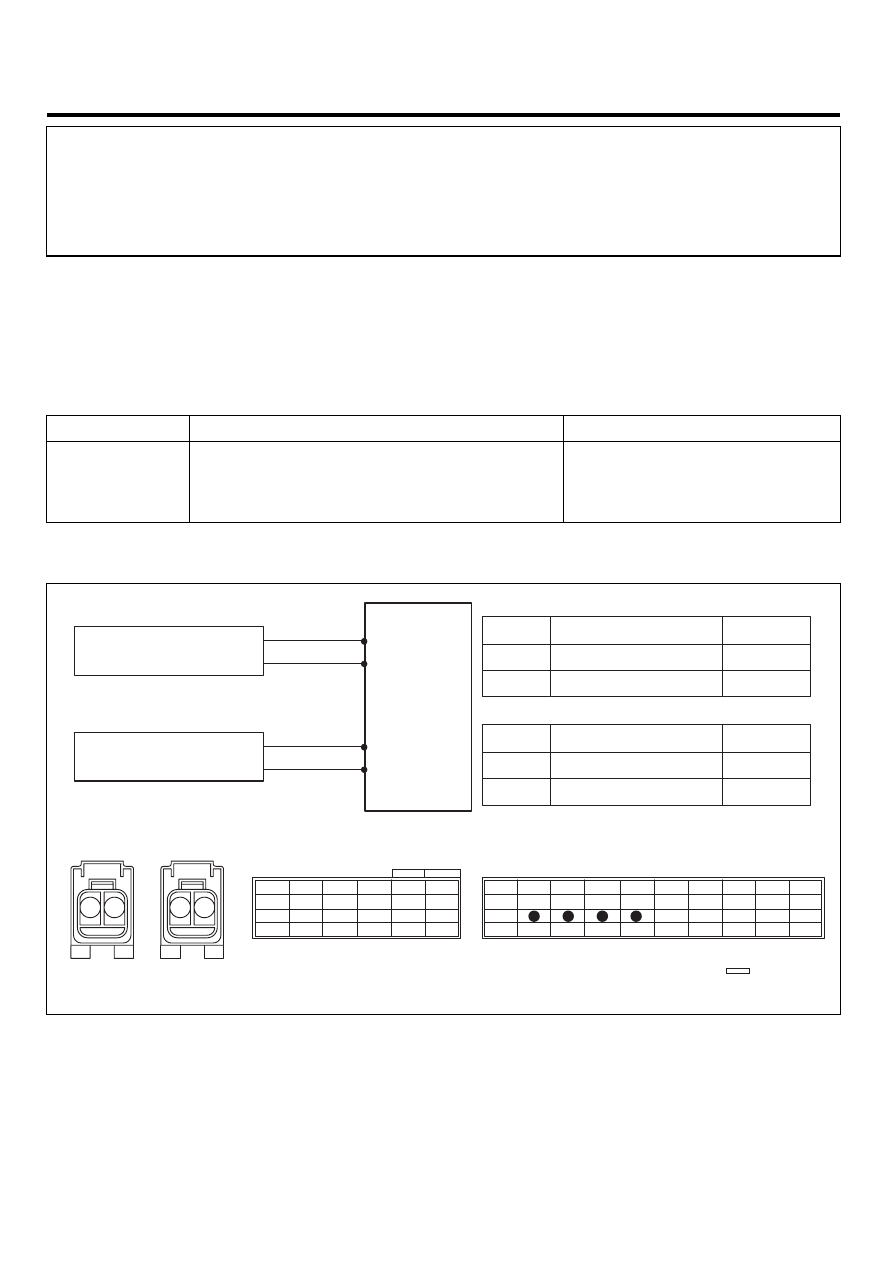

SCHEMATIC DIAGRAM

EE98102E

[HARNESS CONNECTOR]

SIS[Driver] SIS[Passenger]

SRSCM

26(B)

SIS [Driver]

High

27(B)

29(B)

SIS [Passenger]

High

28(B)

Low

Low

1

2

1

2

Terminal

Terminal

Connected to

Function

Connected to

Function

1

SRSCM Terminal 26(B)

SIS High

2

SRSCM Terminal 27(B)

SIS Low

SIS High

SIS Low

SIS [Driver]

1

SRSCM Terminal 29(B)

2

SRSCM Terminal 28(B)

SIS [Passenger]

SIS High

SIS Low

SRSCM

CONNECTOR A

CONNECTOR B

Shorting Bar

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

30

29

28

27

26

25

24

23

22

21

40

39

38

37

36

35

34

33

32

31

6

5

4

3

2

1

12

11

10

9

8

7

18

17

16

15

14

13

24

23

22

21

20

19

1

2

1

2

SCMRT6160L

TERMINAL & CONNECTOR INSPECTION

EF53CDBA

Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

INSPECTION PROCEDURE

E384A624

1.

PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)
