RT -78

RESTRAINTS

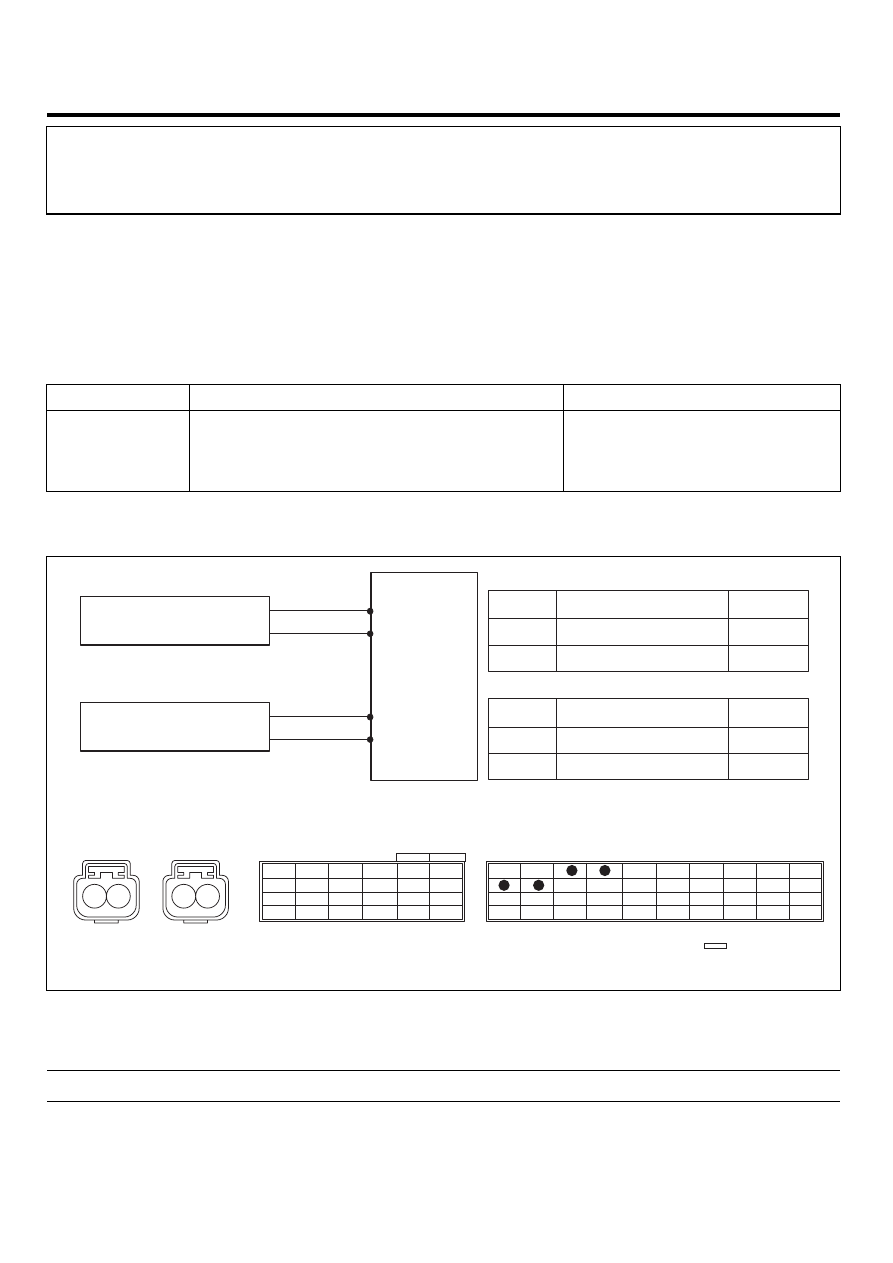

DTC B1378 SIDE AIRBAG [FRONT-DRIVER] RESISTANCE TOO HIGH
DTC B1379 SIDE AIRBAG [FRONT-DRIVER] RESISTANCE TOO LOW
DTC B1382 SIDE AIRBAG [FRONT-PASSENGER] RESISTANCE TOO HIGH
DTC B1383 SIDE AIRBAG [FRONT-PASSENGER] RESISTANCE TOO LOW

DTC DESCRIPTION

E7BD1E52

The Side Airbag circuit consists of the SRSCM and two Side Airbags (SAB). The SRSCM sets above DTC(s) if it detects
that the resistance of SAB squib is too high or low.

DTC DETECTING CONDITION

EFB0E0EA

DTC

Condition

Probable cause

B1378
B1379
B1382
B1383

• Too high or low resistance between SAB

high(+) and SAB low (-)

• Side Airbag (SAB) Malfunction
• SRSCM Malfunction

• Open or short circuit on

wiring harness

• Side Airbag (SAB) squib
• SRSCM

SCHEMATIC DIAGRAM

EC34F93D

[HARNESS CONNECTOR]

SAB[Driver] SAB[Passenger]

SRSCM

19(B)

SAB [Driver]

Low

20(B)

8(B)

SAB [Passenger]

7(B)

High

Low

High

1

2

1

2

Terminal

Terminal

Connected to

Connected to

Function

Function

1

SRSCM Terminal 20(B)

SAB High

2

SRSCM Terminal 19(B)

SAB Low

SAB [Driver]

1

SRSCM Terminal 7(B)

SAB High

2

SRSCM Terminal 8(B)

SAB Low

SAB [Passenger]

1

2

1

2

SRSCM

CONNECTOR B

CONNECTOR A

Shorting Bar

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

30

29

28

27

26

25

24

23

22

21

40

39

38

37

36

35

34

33

32

31

6

5

4

3

2

1

12

11

10

9

8

7

18

17

16

15

14

13

24

23

22

21

20

19

ERBF501S

SPECIFICATION

EBEB1D00

SAB resistance : 1.4 ~ 6.2 Ω

TERMINAL ＆ CONNECTOR INSPECTION

E93C87E7

Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

TROUBLESHOOTING

RT -79

INSPECTION PROCEDURE

EF40A750

1.

PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

2.

CHECK SAB RESISTANCE

CAUTION

Never attempt to measure the circuit resistance of the airbag module(squib) even if you are using the speci-
fied tester.

1)

Connect the Dummy and the Dummy Adapter on SAB harness connector.
● Refer to "SPECIAL SERVICE TOOL" section in this SERVICE MANUAL for the SST No. of Dummy and
Dummy Adapter.

2)

Measure resistance between the terminal 20(7) and 19(8) of SRSCM harness connector(B).

Specification (resistance) : 1.4 ~ 6.2 Ω

Dummy
Adapter

SRSCM

LOCK

20(7)B

2

19(8)B

1

Dummy

Ω

ERBF500Y

3)

Is the measured resistance within specification?

YES

▶Replace the Side Airbag(SAB) module.

NO

▶Check open circuit.

3.

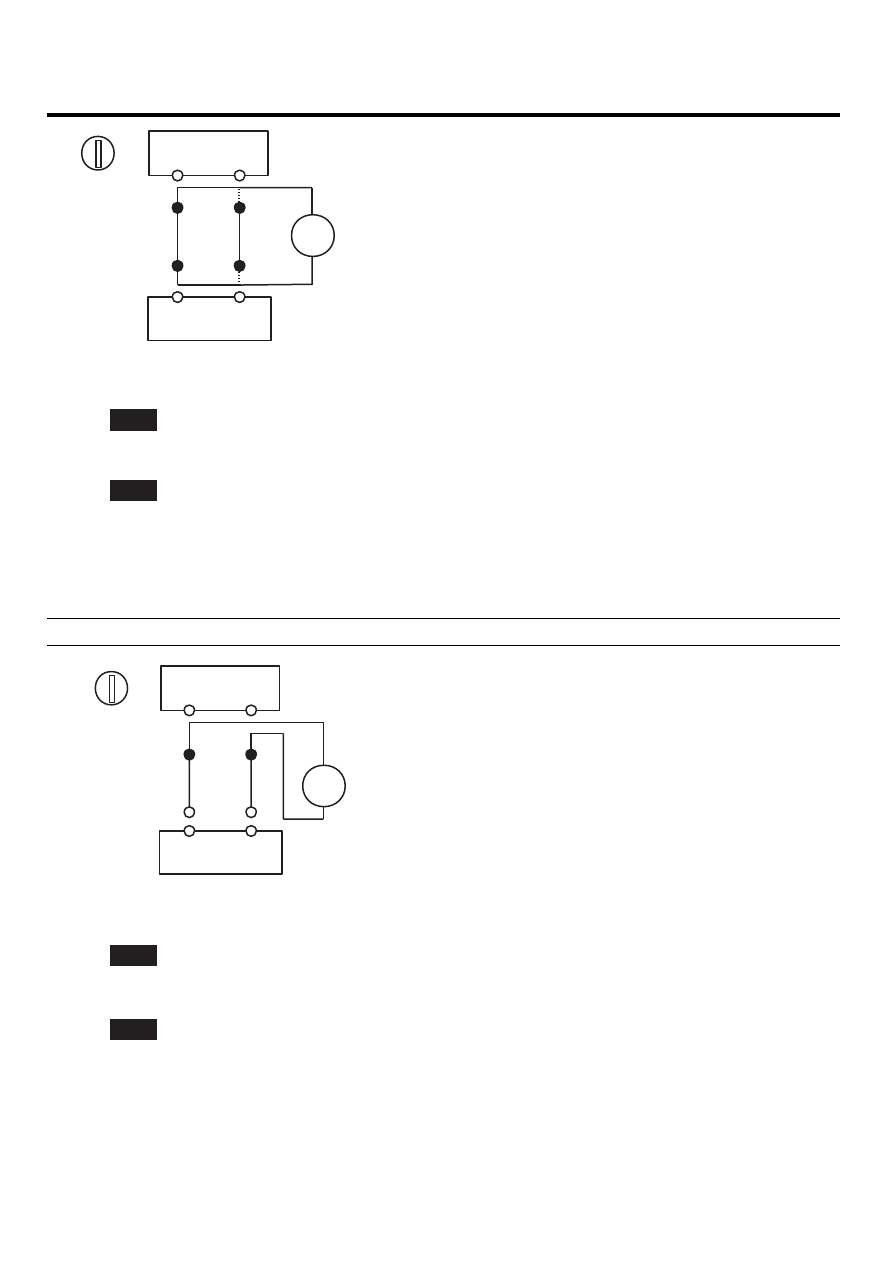

CHECK OPEN CIRCUIT

1)

Measure resistance between the terminal 1 of SAB harness connector and the terminal 20(7) of SRSCM harness
connector(B).

2)

Measure resistance between the terminal 2 of SAB harness connector and the terminal 19(8) of SRSCM harness
connector(B).

Specification (resistance) : below 1 Ω

RT -80

RESTRAINTS

SAB

SRSCM

LOCK

2

1

Ω

20(7)B

19(8)B

SCMRT6151D

3)

Is the measured resistance within specification?

YES

▶Check short circuit.

NO

▶Repair or replace the wiring harness between the SAB and the SRSCM.

4.

CHECK SHORT CIRCUIT

1)

Measure resistance between the terminal 1 and 2 of SAB harness connector.

Specification (resistance) : infinite

SAB

SRSCM

LOCK

19(8)B

2

20(7)B

1

Ω

ERBF200I

2)

Is the measured resistance within specification?

YES

▶ Go to next step.

NO

▶ Repair or replace the wiring harness between the SAB and the SRSCM.

5.

CLEAR THE DTC AND CHECK THE VEHICLE AGAIN
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

TROUBLESHOOTING

RT -81

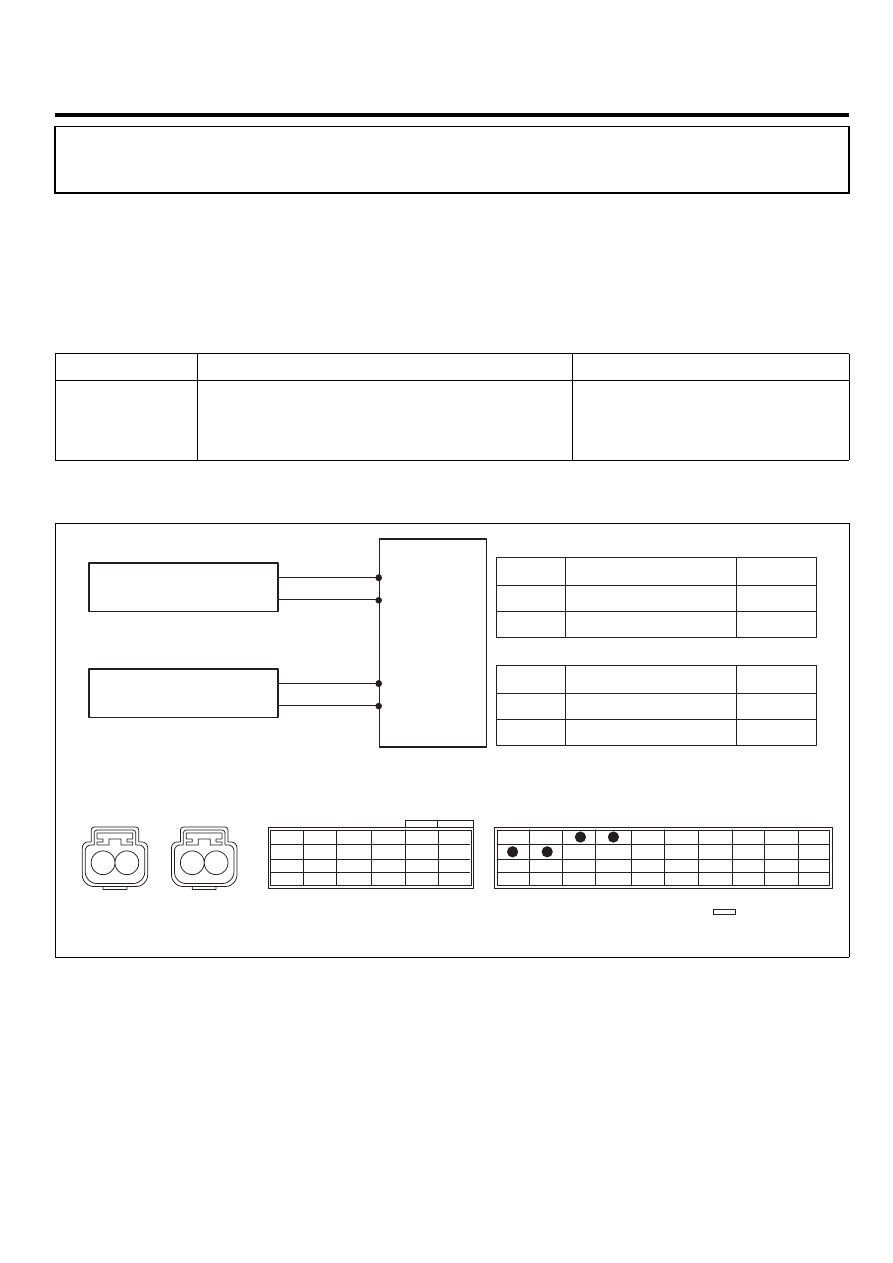

DTC B1380 SIDE AIRBAG [FRONT-DRIVER] CIRCUIT SHORT TO GROUND
DTC B1384 SIDE AIRBAG [FRONT-PASSENGER] CIRCUIT SHORT TO

GROUND

DTC DESCRIPTION

E550E963

The Side Airbag circuit consists of the SRSCM and two Side Airbags (SAB). The SRSCM sets above DTC(s) if it detects
short to ground on the SAB circuit.

DTC DETECTING CONDITION

ED535401

DTC

Condition

Probable cause

B1380
B1384

• Short to ground between SAB and SRSCM
• Side Airbag (SAB) Malfunction
• SRSCM Malfunction

• Short to ground circuit on

wiring harness

• Side Airbag (SAB) squib
• SRSCM

SCHEMATIC DIAGRAM

EF684607

[HARNESS CONNECTOR]

SAB[Driver] SAB[Passenger]

SRSCM

19(B)

SAB [Driver]

Low

20(B)

8(B)

SAB [Passenger]

7(B)

High

Low

High

1

2

1

2

Terminal

Terminal

Connected to

Connected to

Function

Function

1

SRSCM Terminal 20(B)

SAB High

2

SRSCM Terminal 19(B)

SAB Low

SAB [Driver]

1

SRSCM Terminal 7(B)

SAB High

2

SRSCM Terminal 8(B)

SAB Low

SAB [Passenger]

1

2

1

2

SRSCM

CONNECTOR B

CONNECTOR A

Shorting Bar

10

9

8

7

6

5

4

3

2

1

20

19

18

17

16

15

14

13

12

11

30

29

28

27

26

25

24

23

22

21

40

39

38

37

36

35

34

33

32

31

6

5

4

3

2

1

12

11

10

9

8

7

18

17

16

15

14

13

24

23

22

21

20

19

ERBF501S

TERMINAL ＆ CONNECTOR INSPECTION

E894CAD8

Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

INSPECTION PROCEDURE

EFA29334

1.

PREPARATION
Refer to the DESCRIPTION in this TROUBLESHOOTING section. (See page RT - 36)

2.

CHECK SHORT TO GROUND
