Hyundai Santa Fe (2006 year). Manual - part 701





HA -182

HEATING, VENTILATION AND AIR CONDITIONING

1

2

3

1

2

3

v

1. AQS signal input
2. AQS ground

3. AQS power

SCMHA6560L

Operating condition

Voltage

Note

Right after IGN "ON"

2.5V ± 0.3V

preheating(35 ± 2sec)

Normal

4.3V ± 0.3V

Intake door : Fresh

Gas detected

0.9V ± 0.3V

Intake door : Recirculation

Specifications : Voltage value of AQS sensor as a function of position of operating condition.

4) Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

Substitute with a AQS sensor and check for proper operation.
If the problem is corrected, replace AQS sensor and then go to "Verification of Vehicle Repair" procedure.

2.

Check A/C Control Unit

1) Engine : "ON"

2) Disconnect AQS sensor.

3) Measure voltage between terminal "2" of A/C Control Unit and chassis ground.

Specification :Approx. 5V

2.  AQS sensor signal input

1

2

3

4

6

9

10

12

13

14

15

16

17

18

19

20

21

22

23

24

*

* *

*

25

26

v

SCMHA6562L

4) Is the measured voltage within specifications?

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -183

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO

Substitute with a known-good A/C Control Unit and check for proper operation.
If the problem is correcirculationted, replace A/C Control Unit and then go to "Verification of Vehicle Repair"
procedure.

VERIFICATION OF VEHICLE REPAIR

E37705AF

After a repair, it is essential to verify that the fault has been corrected.

1.

Connect scantool and select "Diagnostic Trouble Codes(DTCs)" mode and then clear DTC.

2.

Operate the vehicle and monitor the DTC on the scantool.

3.

Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.

HA -184

HEATING, VENTILATION AND AIR CONDITIONING

DTC B1259 AQS FAILURE

COMPONENT LOCATION

E898B5F4

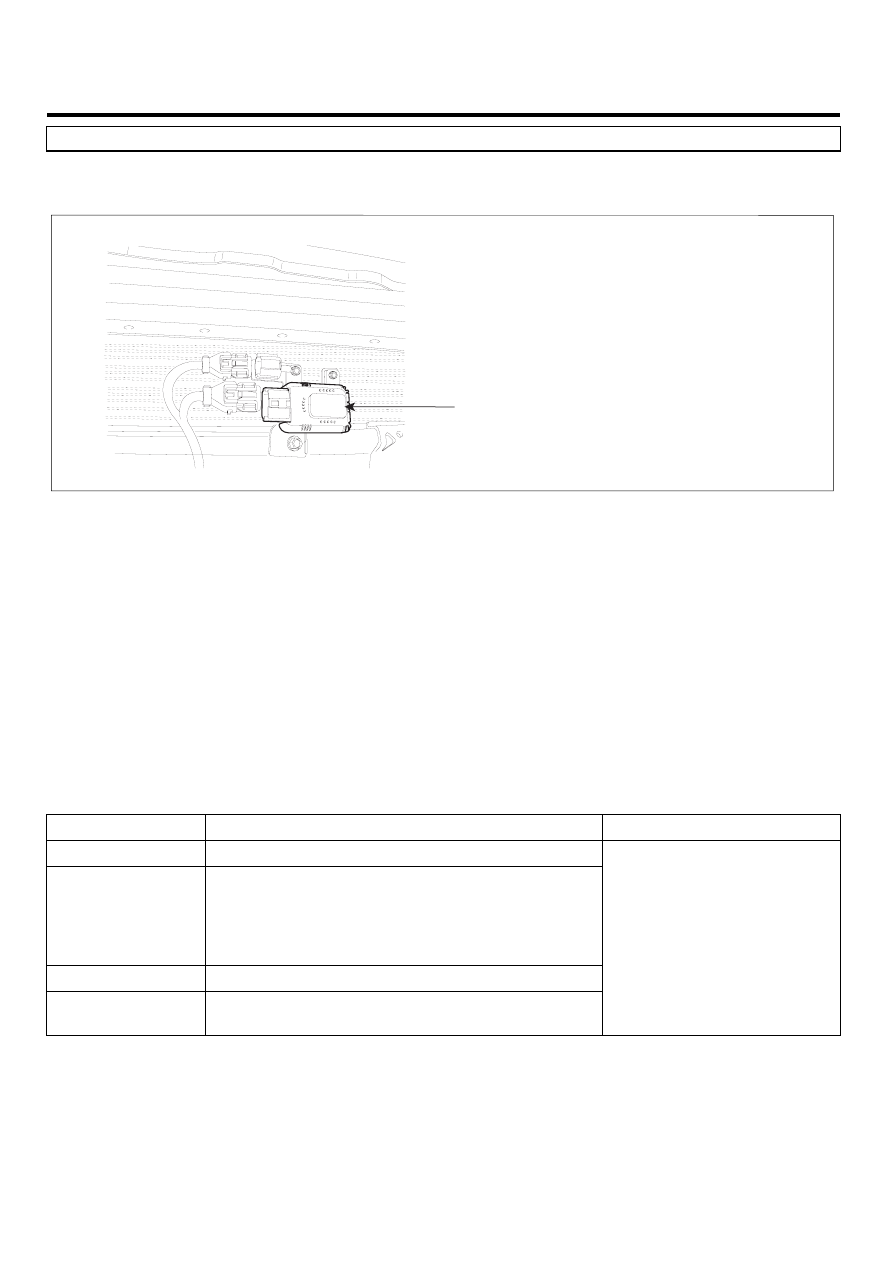

AQS Sensor is Located at Front Aide of Condensor

SCMHA6707L

GENERAL DESCRIPTION

EB944E6D

AQS(Air Quality System) keeps air inside in the most suitable state for driver. In polluted area AQS detects hazardous
gas and intercepts inflow automatically, Inversely, In freshsh area it allows the inflow of air to prevent the shortage of air
and the accumulation of carbon dioxide. AQS sensor is located at front side of condensor and once hazardous gas is
detected, it delivers the voltage signal to A/C controller for closing intake door.

DTC DESCRIPTION

E1DFB9E8

The A/C controller sets DTC B1259 if preheating time of AQS sensor is over 40sec or signal from AQS sensor is not within
specifications.

DTC DETECTING CONDITION

E734CCDD

Item

Detecting Condition

Possible cause

DTC Strategy

• Voltage/time check

Threshold value

• Voltage :

Preheating - 2.5V±0.3V
Normal - 4.3V±0.3V
Gas detected - 0.9V±0.3V

• Preheating time > 40sec

Detecting time

-

FAIL SAFE

• AQS function OFF
• Intake door : return to previous state

• Faulty AQS Sensor
• Poor connection of

connected part

SPECIFICATION

E441620B

Refer to DTC B1258.

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -185

MONITOR SCANTOOL DATA

E226D7AB

1.

Connect scantool to Data Link Connector(DLC).

2.

Engine "ON"

3.

Monitor the " AQS sensor " Parameter on the Scantool. While making hazardous gas such as tobacco fumes around
the AQS sensor.

1.2 CURRENT DATA

FIX

SCRN FULL

PART GRPH HELP

14.0  C

12.0  C

12.0  C

13.0  C

0.00 V

84.69 %

51.76 %

255

2.6   V

HEATER WATER TEMP. SNSR

IN-CAR TEMP. SENSOR

AMBIENT AIR TEMP. SNS

EVAPORATIVE SENSOR

DRIVER PHOTO SENSOR

AIR MIX POPENTIO. (DR.)

DIRECTION POTENIO. DR.

PASSENGER PHOTO SENSOR

AQS SENSOR

1.1 DIAGNOSTIC TROUBLE CODES

NUMBER OF DTC : 1 ITEMS

PART

ERAS

HELP

B1259 AQS SENSOR FAULT

Fig 1 : The current data in abnormal state.
Fig 2 : DTC B1259.

Fig. 1

Fig. 2

EQBF517B

4.

Are the DTC B1259 present and is parameter of "AQS SENSOR" fixed?

YES

Go to "Inspection" procedure.

NO

Fault is intermittent caused by poor contact in the sensor’s and/or A/C controller’s connector or was repaired and
A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of
Vehicle Repair" procedure.

TERMINAL AND CONNECTOR INSPECTION

EFA337DB

Refer to DTC B1258.

SIGNAL CIRCUIT INSPECTION

E3C76BFD

1.

Check for open in harness.

1) Ignition "ON"

2) Disconnect AQS sensor.

3) Measure voltage value between terminal "3" of AQS sensor and chassis ground.
