Hyundai Santa Fe (2006 year). Manual - part 699





HA -174

HEATING, VENTILATION AND AIR CONDITIONING

DTC B1257 AQS OPEN

COMPONENT LOCATION

EF8D2F76

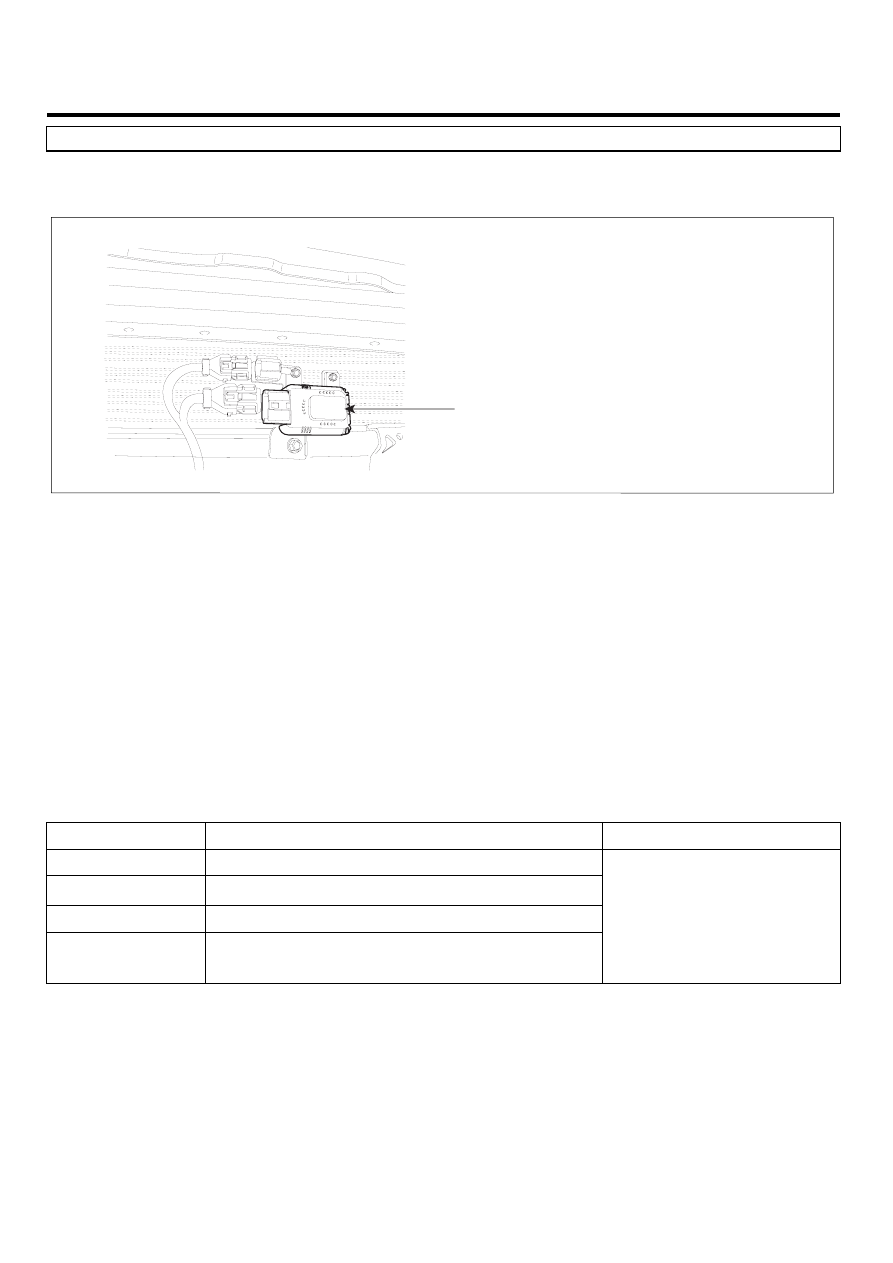

AQS Sensor is Located at Front Aide of Condensor

SCMHA6707L

GENERAL DESCRIPTION

ED4DF3B0

AQS(Air Quality System) keeps air inside in the most suitable state for driver. In polluted area AQS detects hazardous
gas and intercepts inflow automatically, Inversely, In freshsh area it allows the inflow of air to prevent the shortage of air
and the accumulation of carbon dioxide. AQS sensor is located at front side of condensor and once hazardous gas is
detected, it delivers the voltage signal to A/C controller for closing intake door.

DTC DESCRIPTION

E12FB0BD

The A/C controller sets DTC B1257 if there is an open circuit in AQS sensor signal harness or the measured voltage value
of sensor is more than threshold value.

DTC DETECTING CONDITION

EB1B1045

Item

Detecting Condition

Possible cause

DTC Strategy

• Voltage check

Threshold value

• > 4.9V

Detecting time

• 1 sec

FAIL SAFE

• AQS function OFF
• Intake door : return to previous state

• Open Circuit in power

harness

• Open circuit in ground

harness

• Faulty AQS Sensor
• Poor connection of

connected part

SPECIFICATION

ECC6418A

Refer to DTC B1258.

MONITOR SCANTOOL DATA

EA426CBE

1.

Connect scantool to Data Link Connector(DLC).

2.

Engine "ON"

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -175

3.

Monitor the " AQS sensor " Parameter on the Scantool. While making hazardous gas such as tobacco fumes around
the AQS sensor.

1.2 CURRENT DATA

FIX

SCRN FULL

PART GRPH HELP

14.0  C

12.0  C

12.0  C

13.0  C

0.00 V

84.69 %

51.76 %

255

4.3   V

HEATER WATER TEMP. SNSR

IN-CAR TEMP. SENSOR

AMBIENT AIR TEMP. SNS

EVAPORATIVE SENSOR

DRIVER PHOTO SENSOR

AIR MIX POPENTIO. (DR.)

DIRECTION POTENIO. DR.

PASSENGER PHOTO SENSOR

AQS SENSOR

1.1 DIAGNOSTIC TROUBLE CODES

NUMBER OF DTC : 1 ITEMS

PART

ERAS

HELP

B1257 AQS SENSOR-OPEN(HIGH)

Fig 1 : The current data in abnormal state.
Fig 2 : DTC B1257.

Fig. 1

Fig. 2

EQBF590B

4.

Are the DTC B1257 present and is parameter of "AQS SENSOR" fixed?

YES

Go to "Inspection" procedure.

NO

Fault is intermittent caused by poor contact in the sensor’s and/or A/C controller’s connector or was repaired and
A/C controller memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of
Vehicle Repair" procedure.

TERMINAL AND CONNECTOR INSPECTION

E078D7E2

1.

Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or
damage.

3.

Has a problem been found?

YES

Repair as necessary and go to "Verification of Vehicle Repair" procedure.

NO

Go to "Signal circuit inspection" procedure.

HA -176

HEATING, VENTILATION AND AIR CONDITIONING

SIGNAL CIRCUIT INSPECTION

EF29F40C

1.

Check for open in harness.

1) Ignition "OFF"

2) Disconnect AQS sensor.

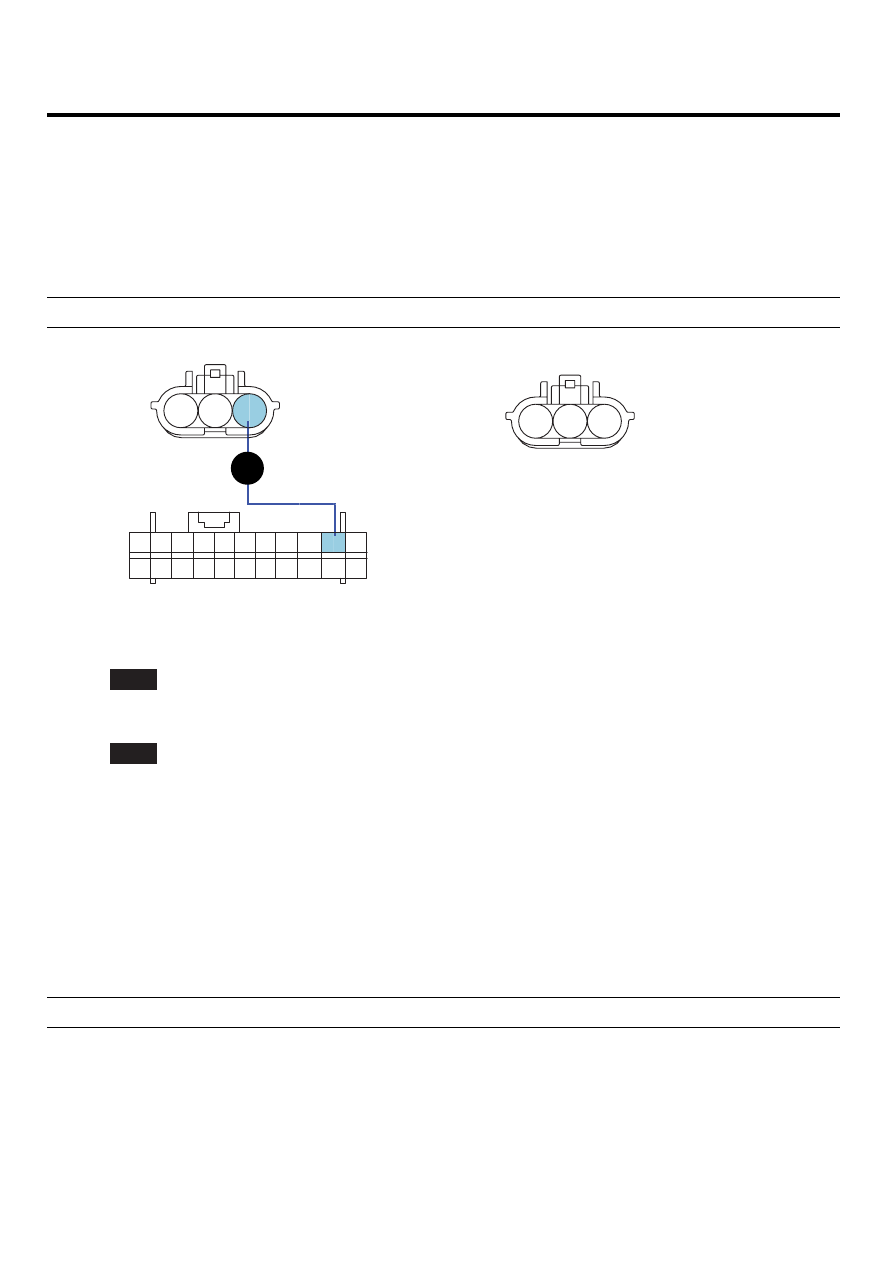

3) Measure resistance between terminal "1" of AQS sensor and terminal "2" of A/C Control Unit.

Specification : Approx. 0 Ω

1

2

3

4

6

9

10

12

13

14

15

16

17

18

19

20

21

22

*

* *

*

1

2

3

1

2

3

1. AQS signal input

2. AQS ground
3. AQS power

SCMHA6558L

4) Is the measured resistance within specifications?

YES

Go to "Ground circuit Inspection " procedure.

NO

Check for open in harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

GROUND CIRCUIT INSPECTION

E60583A8

1.

Check for open in ground harness.

1) Ignition "OFF"

2) Disconnect AQS sensor.

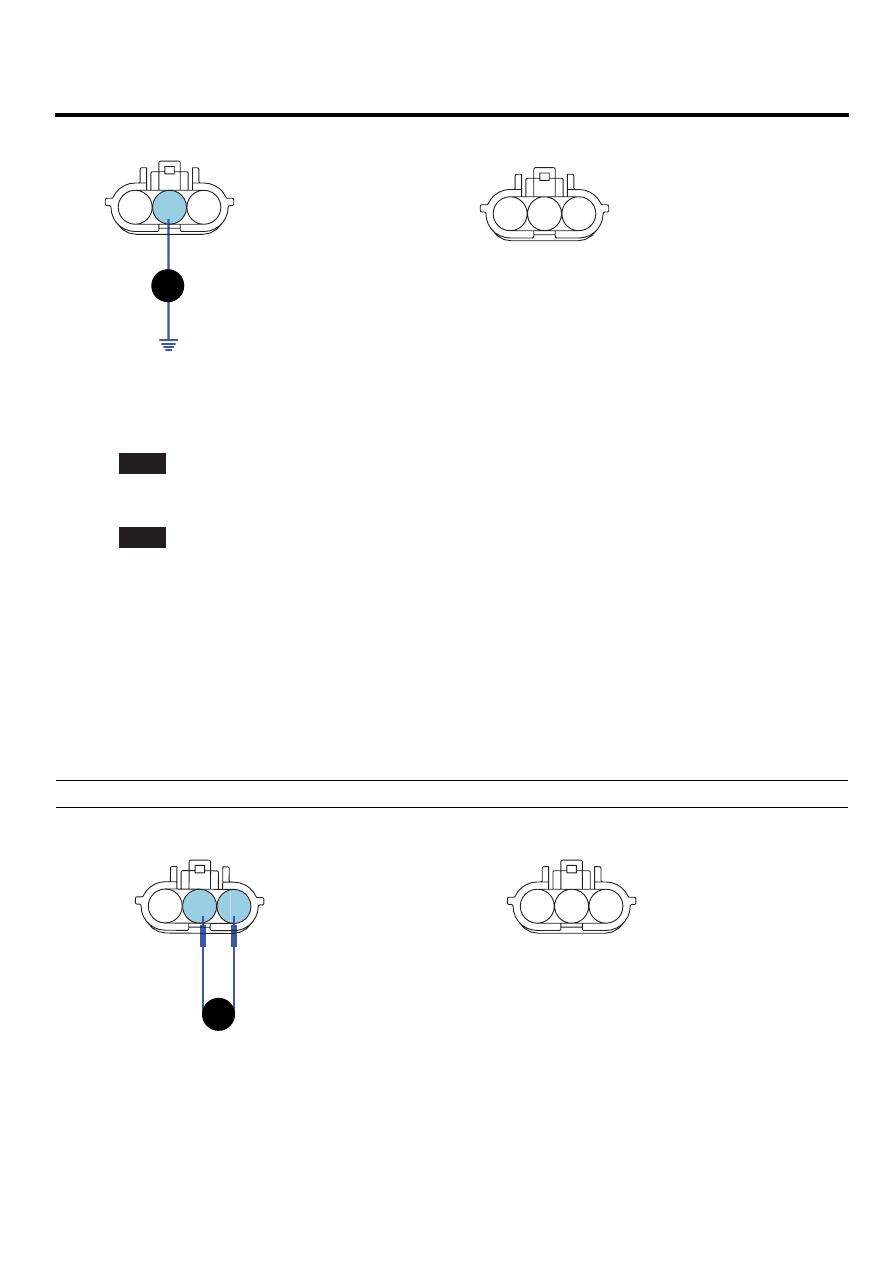

3) Measure resistance between terminal "2" of AQS sensor and chassis ground.

Specification : Approx. 0 Ω

BLOWER AND A/C CONTROLS (AUTOMATIC)

HA -177

1

2

3

1

2

3

1. AQS signal input

2. AQS ground

3. AQS power

SCMHA6559L

4) Is the measured resistance within specifications?

YES

Go to "Component Inspection " procedure.

NO

Check for open in ground harness. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

E0F5764B

1.

Check AQS sensor.

1) Engine "ON"

2) Connect AQS sensor.

3) Measure voltage between terminal "1" and "2" of AQS sensor.

Specification : Refer to the specifications.

1

2

3

1

2

3

v

1. AQS signal input
2. AQS ground

3. AQS power

SCMHA6560L
