HA -62

HEATING, VENTILATION AND AIR CONDITIONING

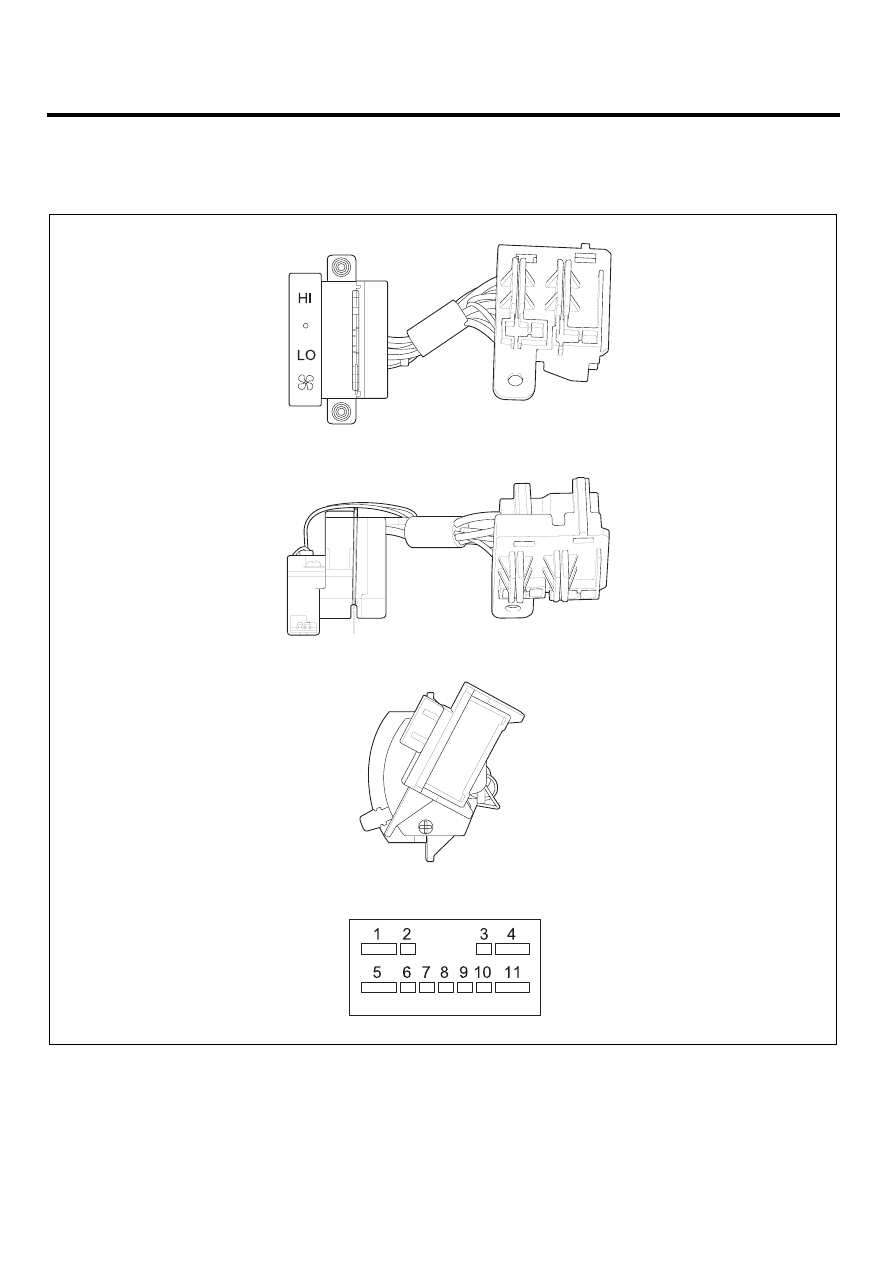

REAR CONTROL PANEL

COMPONENTS

ECAE2C68

SCMHA6191D

REAR HEATER

HA -63

[CONNECTOR]

PIN

1

LOW

2

ILL(+)

3

ILL(-)

4

MIDDLE

5

HIGH

6

-

7

-

8

-

9

-

10

COMMON

11

GND

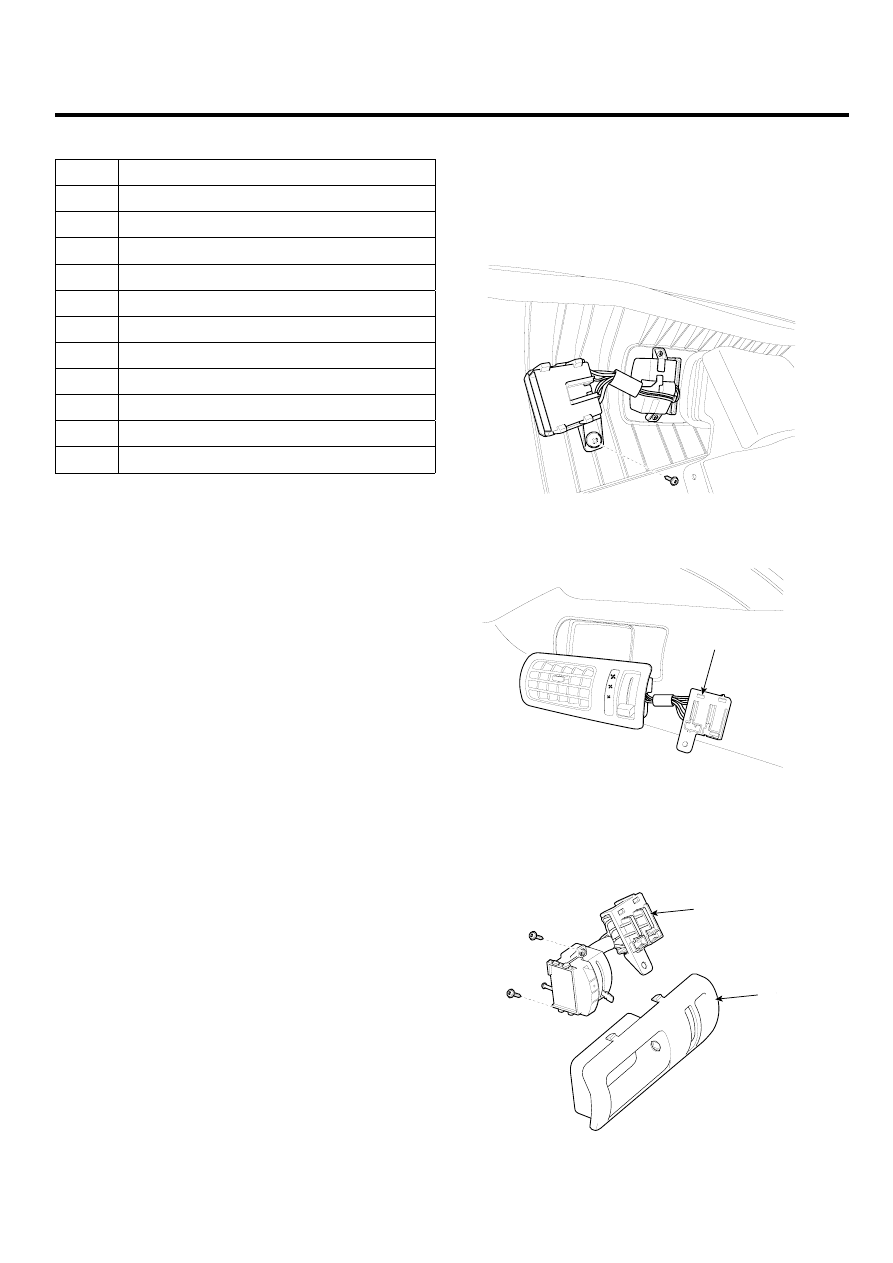

REPLACEMENT

E6EEDD17

1.

Remove the rear side trim. (Refer to BD- Interior Trim)

2.

Loosen the mounting screw and then remove the rear
blower controler(A) from the rear side trim.

SCMHA6192D

OFF

A

SCMHA6193L

3.

Loosen the mounting screw and then remove the rear
blower cintrol unit (A) from the air vant(B).

HI

LO

B

A

SCMHA6194L

4.

Installation is the reverse order of removal.

HA -64

HEATING, VENTILATION AND AIR CONDITIONING

BLOWER CONTROLS

BLOWER UNIT

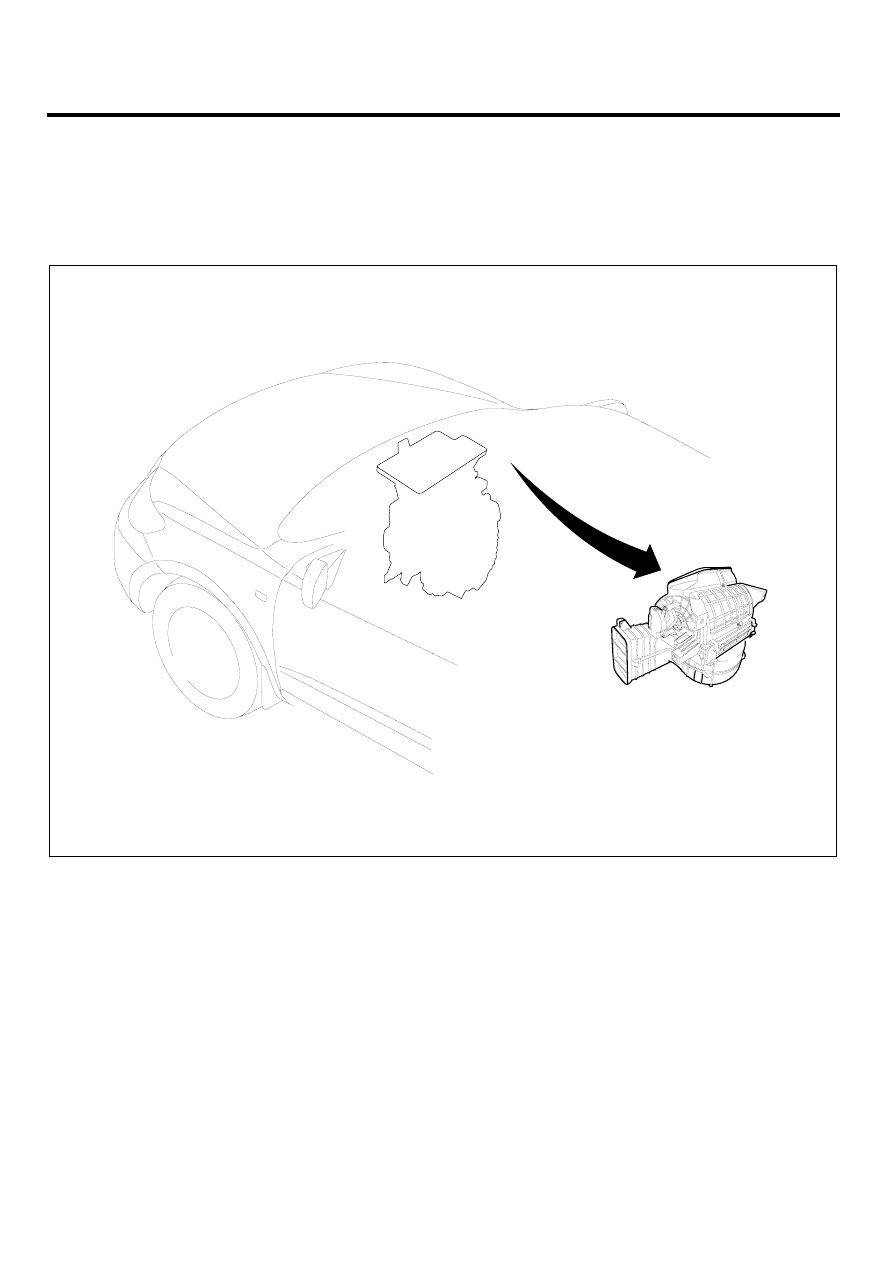

COMPONENT LOCATION

E59E4ACA

Blower unit

SCMHA6164L

BLOWER CONTROLS

HA -65

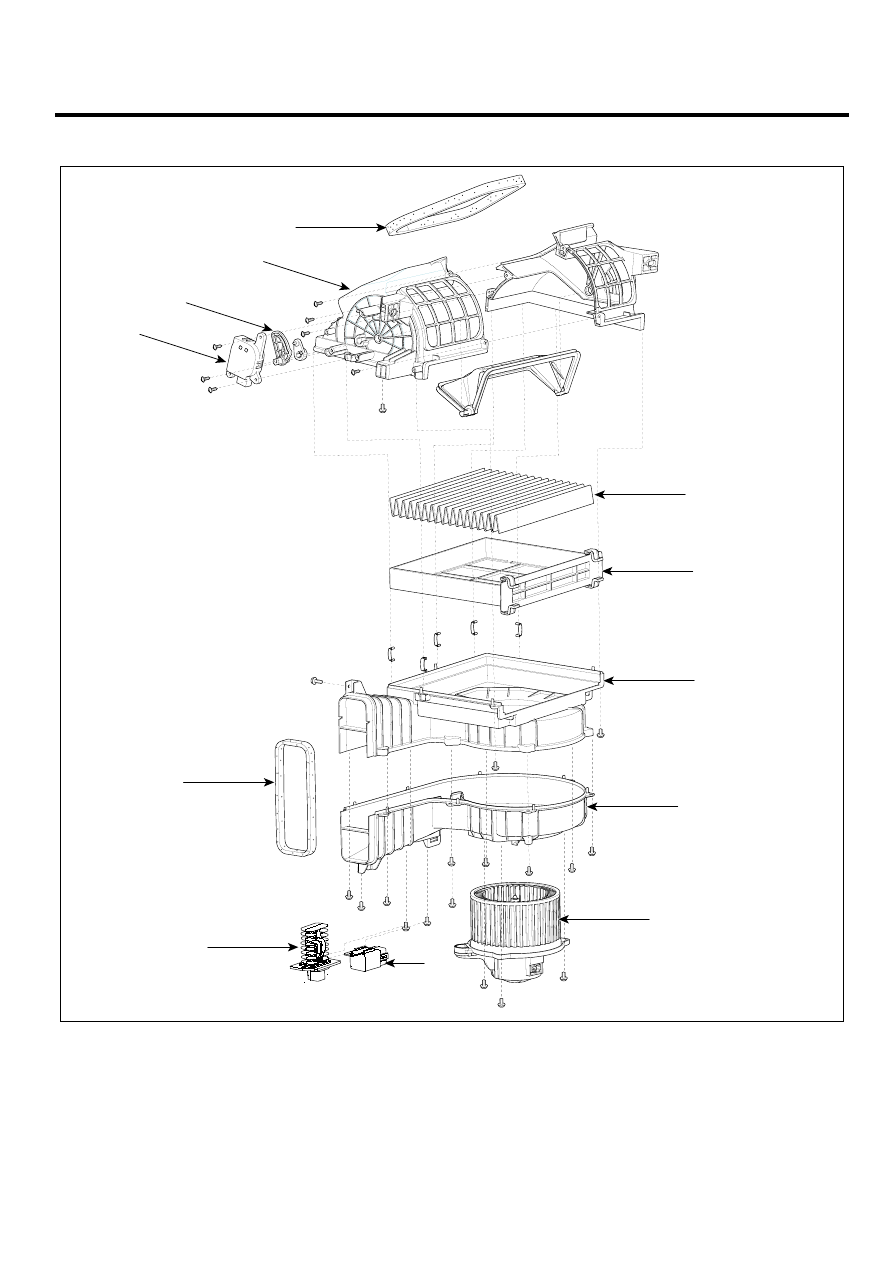

COMPONENTS

E28B595E

1. Rec.duct seal
2. Fresh duct case
3. Intake door assembly
4. Intake actuator
5. Air filter
6. Air filter housing

1

5

6

7

8

10

11

12

9

3

2

4

7. Blower upper case
8. Blower lower case
9. Blower seal
10. Blower motor
11. Power transistor
12. Blower relay

SCMHA6165L
