FLA -502

FUEL SYSTEM

Specification : Approx. B+

4.

Is the measured voltage within specification?

YES

▶ Go to "Control Circuit Inspection" procedure.

NO

▶ Check fuse connected to power of VIS #1 for open or blown-off.
▶ Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.

CONTROL CIRCUIT INSPECTION

E742D31F

1.

Check voltage

1)

IG "OFF" and disconnect VIS #1 connector.

2)

IG "ON" and ENG "OFF"

3)

Measure voltage between terminal 2 of VIS #1 harness connector and chassis ground.

Specification : Approx. 2.5V

4)

Is the measured voltage within specification?

YES

▶ Go to "Component Inspection" procedure.

NO

▶ Go to "Check short in harness" as follows.

2.

Check short in harness

1)

IG "OFF" and disconnect VIS #1 connector and PCM connector.

2)

Measure resistance between terminal 2 of VIS #1 harness connector and chassis ground.

3)

Measure resistance between terminals 1 and 2 of VIS #1 harness connector.

Specification : Infinite

4)

Is the measured resistance within specification?

YES

▶ Go to "Check open in harness" as follows.

NO

▶ Repair short in harness, and go to "Verification of Vehicle Repair" procedure.

3.

Check open in harness

DTC TROUBLESHOOTING PROCEDURES

FLA -503

1)

IG "OFF" and disconnect VIS #1 connector and PCM connector.

2)

Measure resistance between terminal 2 of VIS #1 harness connector and terminal C30-A (71) of PCM harness
connector.

Specification : Below 1Ω

3)

Is the measured resistance within specification?

YES

▶ Go to "Component Inspection" procedure.

NO

▶ Repair open in harness, and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

E902D8C9

1.

Check VIS #1

1)

IG "OFF" and disconnect VIS #1 connector.

2)

Measure resistance between terminals 1 and 2 of VIS #1 connector.(Component side)

Specification : 32 ± 3 Ω [20℃(68℉)]

1. VIS Power
2. VIS Control

C96-1

2

1

SCMF16403L

3)

Is the measured resistance within specification?

YES

▶ Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM
and go to "Verification of Vehicle Repair" procedure.

NO

▶ Substitute with a known - good VIS #1 and check for proper operation. If the problem is corrected, replace
VIS #1 and go to "Verification of Vehicle Repair" procedure.

FLA -504

FUEL SYSTEM

NOTE

There is a memory reset function on scantool that can erase optional parts automatically detected and memorized
by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others

VERIFICATION OF VEHICLE REPAIR

E0A64B5A

After a repair, it is essential to verify that the fault has been corrected.

1.

Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.

2.

Using a Scantool, Clear the DTCs

3.

Operate the vehicle within conditions noted in the freeze frame data or enable conditions

4.

Monitor that all rediness test have been verified as " Complete "

5.

Are any DTCs present ?

YES

▶ Go to the applicable troubleshoooting procedure.

NO

▶ System is performing to specification at this time.

DTC TROUBLESHOOTING PROCEDURES

FLA -505

DTC P0663 INTAKE MANIFOLD TUNING VALVE CONTROL CIRCUIT/OPEN
(BANK 2)

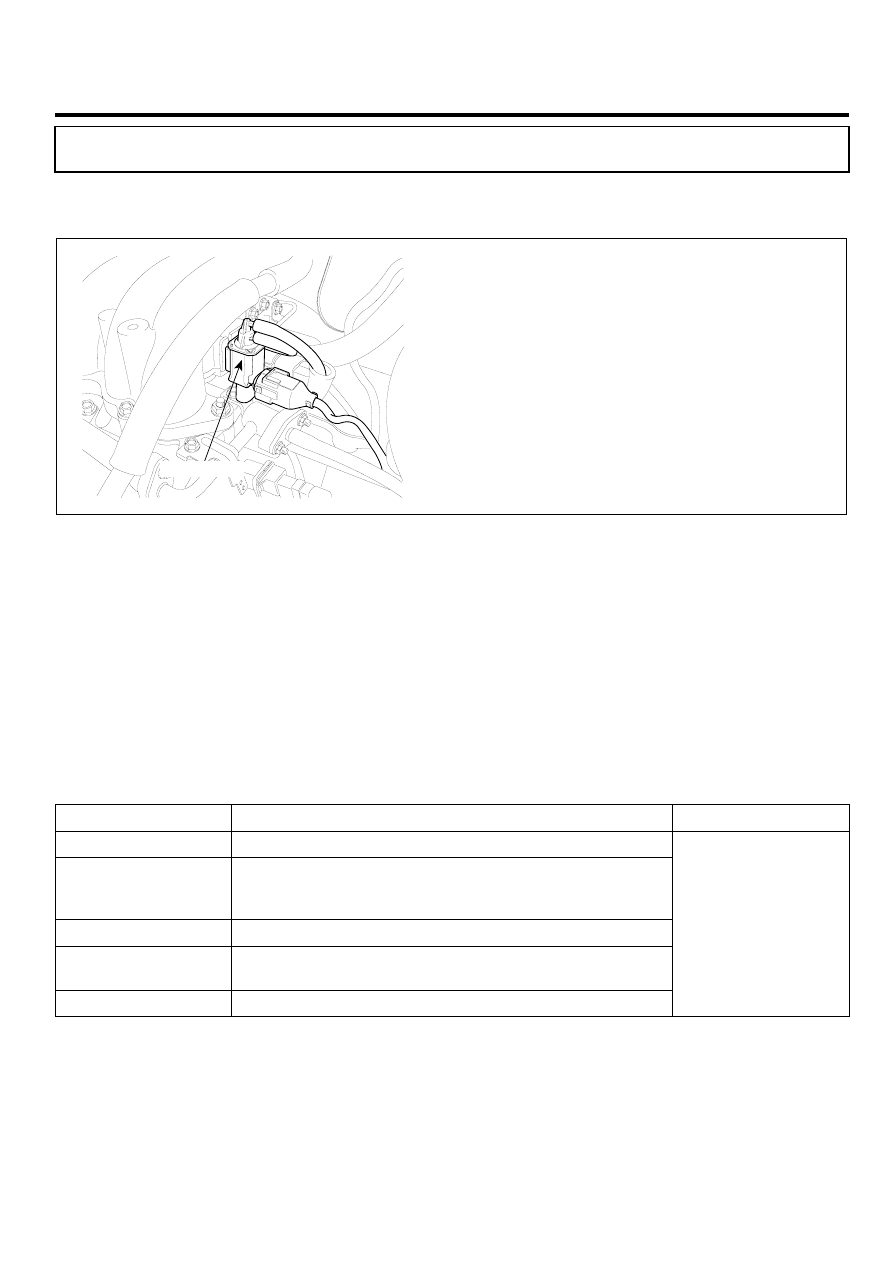

COMPONENT LOCATION

EFCAD4B7

VIS Valve #2

LGLG523A

GENERAL DESCRIPTION

ECB5E846

Refer to DTC P0660.

DTC DESCRIPTION

E3722C51

Checking the output voltage from VIS #2 every 10 sec. under detecting condition, if the value within detecting condition
lasts for more than 5 sec., PCM sets P0663. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till
consecutive 2 driving cycle.

DTC DETECTING CONDITION

E9057D69

Item

Detecting Condition

Possible Cause

DTC Strategy

• Signal low, high

Enable condition

• After 0.5 sec under conditions below
• Engine works
• 11V ≤ Battery voltage ≤ 16V

Threshold value

• Open or short

Diagnosis time

• Continuous

(More than 5 seconds failure for every 10 seconds test)

MIL ON condition

• 2 driving cycles

• Poor connection
• Open or short in

VIS #2 circuit

• Faulty VIS #2
• Faulty PCM

SPECIFICATION

E8B478B3

Refer to DTC P0660.

SCHEMATIC DIAGRAM

E2689279

Refer to DTC P0660.
