FLA -182

FUEL SYSTEM

2.

IG "ON" & ENG "OFF"

3.

Measure voltage between terminal 2 of MAPS harness connector and chassis ground.

Specification : Approx. 5V

4.

Is the measured voltage within specification ?

YES

▶ Go to "Ground circuit inspection" procedure.

NO

▶ Repair open or short to ground in harness and go to "Verification of Vehicle Repair" procedure.

GROUND CIRCUIT INSPECTION

E0B574AA

1.

IG "OFF" and disconnect MAPS connector.

2.

Measure voltage between terminal 2 of MAPS harness connector and chassis ground.

3.

Measure voltage between terminal 2 and 4 of MAPS harness connector.

Specification : Voltage difference between Measurement "A" and "B" is below 200mV.

4.

Is the measured voltage within specification ?

YES

▶ Go to "Signal Circuit Inspection" procedure.

NO

▶ Repair contact reistance or open in harness and then go to "Verification of Vehicle Repair" procedure.

SIGNAL CIRCUIT INSPECTION

E4B8CBED

1.

Check voltage

1)

IG "OFF" and disconnect MAPS connector.

2)

IG "ON" & ENG "OFF"

3)

Measure voltage between terminal 1 of MAPS harness connector and chassis ground.

Specification : Approx. 0V

4)

Is the measured voltage within specification ?

YES

▶ Go to "Check open in harness" as follows.

NO

DTC TROUBLESHOOTING PROCEDURES

FLA -183

▶ Repair short to battery in harness and go to "Verification of Vehicle Repair" procedure.

2.

Check open in harness

1)

IG "OFF" and disconnet MAPS and PCM connector.

2)

Measure resistance between terminal 1 of MAPS harness connector and terminal C201-2 (8) of PCM harness
connector.

Specification : Approx. Below 1 Ω

3)

Is the measured resistance within specification ?

YES

▶ Go to "Component Inspection" procedure.

NO

▶ Repair open in harness and go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

EADD83A9

1.

Check MAPS Performance

1)

IG "OFF" and install scatool.

2)

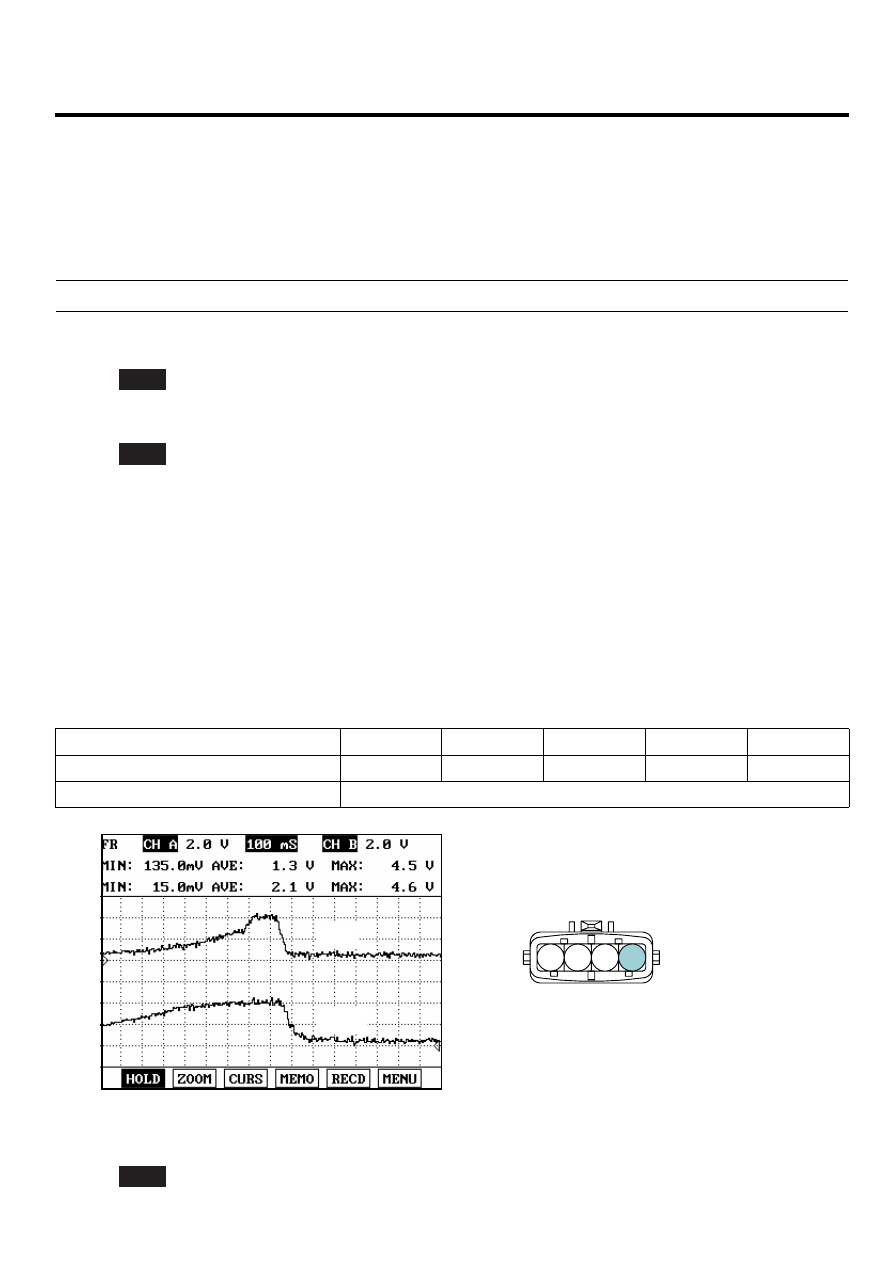

Connect probe to MAPS and TPS to check signal waveform by using oscilloscope function.

3)

ENG "ON" and monitor signal waveform during accelleration and decelleration.

SPECIFICATON :

Pressure (kPa)

20

35

60

95

101.32

Voltage (V)

0.789

1.382

2.369

3.75

4

Tolerance (V)

± 0.045

1

2

4

3

C90

1. MAPS Signal

2. MAPS Power
3. -
4. MAPS Ground

TPS

MAPS

SCMF16197L

4)

Is the measured signal waveform(MAP/TPS Rationality) O.K ?

YES

FLA -184

FUEL SYSTEM

▶ Go to "Check PCM" as follows.

NO

▶ Substitute with a known - good MAPS and check for proper operation. If the problem is corrected, replace
MAPS and go to "Verification of Vehicle Repair" procedure.

2.

Check PCM

1)

IG "OFF" disconnect MAPS connector

2)

Connect Scantool and IG "ON" & ENG "OFF"

3)

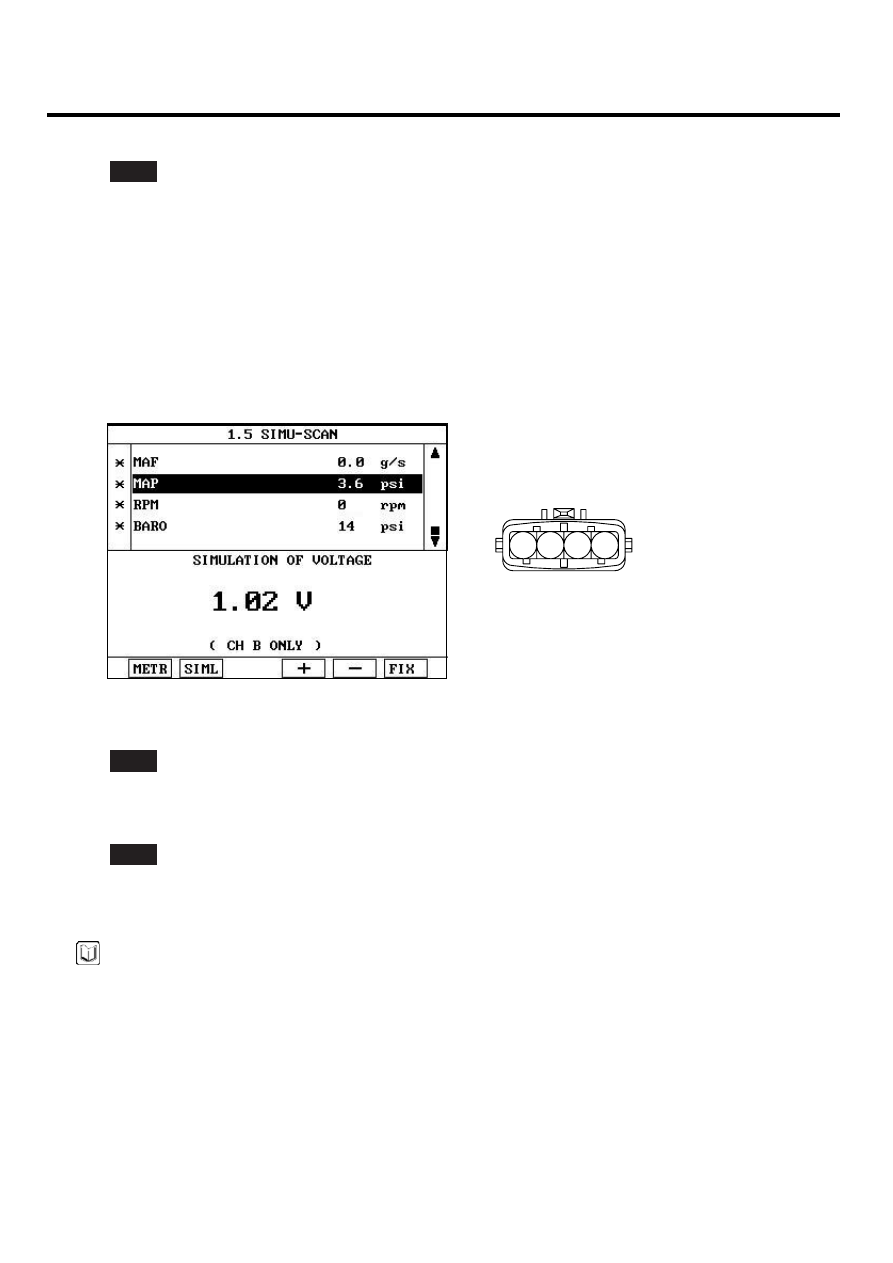

Select simulation function on scantool.

4)

Simulate voltage at terminal 1 of MAPS harness connector.

1

2

4

3

C90

1. MAPS Signal
2. MAPS Power
3. -
4. MAPS Ground

SCMF16198L

5)

Does the signal value of MAP sensor change according to simulation voltage ?

YES

▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deteriora-
tion, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

NO

▶ Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM
and go to "Verification of Vehicle Repair" procedure.

NOTE

There is a memory reset function on scantool that can erase optional parts automatically detected and memorized
by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

VERIFICATION OF VEHICLE REPAIR

E72837AD

After a repair, it is essential to verify that the fault has been corrected.

1.

Monitor and record the Freeze Frame Data for the Diagnostic Trouble Code(DTC) which has been diagnosed.

2.

Using a Scantool, Clear the DTCs

3.

Operate the vehicle within conditions noted in the freeze frame data or enable conditions

DTC TROUBLESHOOTING PROCEDURES

FLA -185

4.

Monitor that all rediness test have been verified as " Complete "

5.

Are any DTCs present ?

YES

▶ Go to the applicable troubleshoooting procedure.

NO

▶ System is performing to specification at this time.
