FL -178
FUEL SYSTEM
Specification : 0.0V~0.1V
5)
Is the measured voltage within the specification?
YES
▶
Go to "Ground Circuit Inspection".
NO
▶
Repair short to battery in signal circuit and go to "Verification of Vehicle Repair".
GROUND CIRCUIT INSPECTION
E33FEF79
1.
IG KEY "OFF", ENGINE "OFF"
2.
Disconnect ECTS connector.
3.
IG KEY "ON"
4.
Measure the voltage of ECTS connector terminal 1. [ TEST "A" ]
5.
Measure the voltage between ECTS connector terminal 1 and 3. [ TEST "B" ]
( terminal 1 : Check + prove , terminal 3 : Check - prove )
Specification : [TEST "A"] Voltage - [TEST "B"] Voltage = below 200mV
6.
Is the measured voltage within the specification?
YES
▶
Go to "Component Inspection".
NO
▶
When "B" voltage is not detected : Repair open in ground circuit and go to "Verification of Vehicle Repair".
▶
When the voltage difference between "A" and "B" is above 200mV : Eliminate the causes of excessive resistance
and go to "Verification of Vehicle Repair".
COMPONENT INSPECTION
E1B394C1
1.
IG KEY "OFF", ENGINE "OFF".
2.
Disconnect ECTS connector.
3.

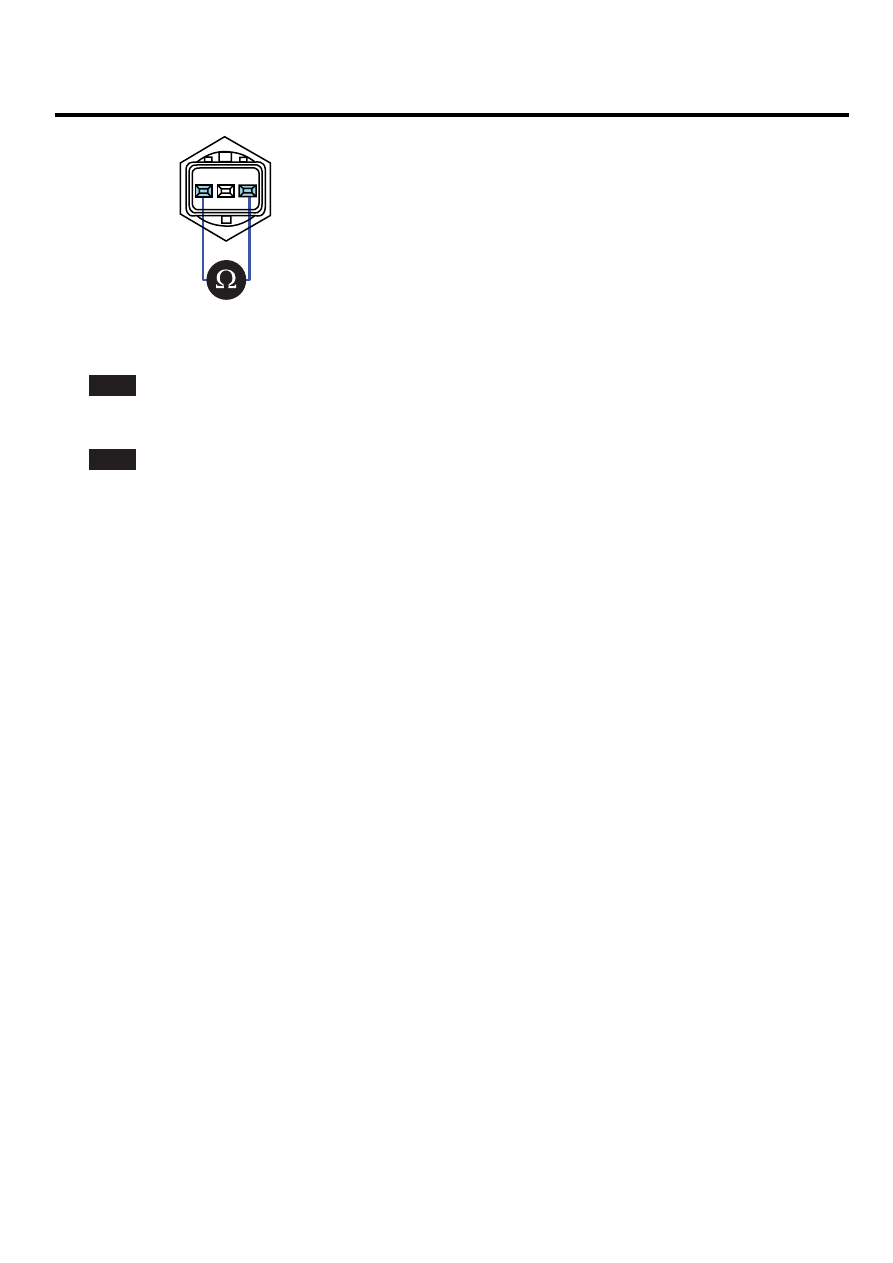

Measure resistance between ECTS terminal 1 and 3, referring to resistance characteristic table of specification of
General information.
Specification : Refer to Specification of General Information
