FL -86
FUEL SYSTEM
SIGNAL WAVEFORM

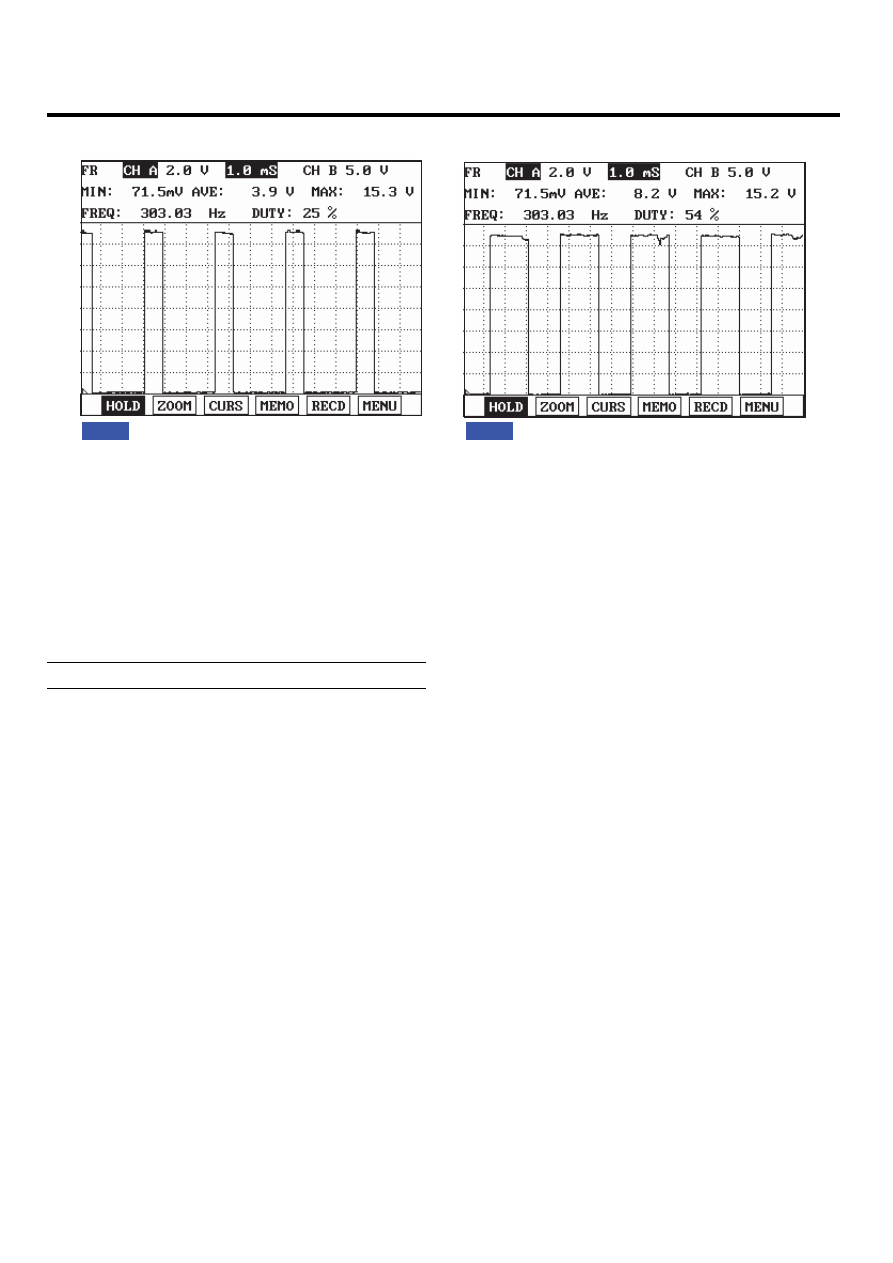

Fig.1
Fig.2
Fig.1) VGT actuator output waveform at 76% duty( (-)duty ). Duty decreases as boost pressure increases.
Fig.2) VGT actuator duty( (-)duty ) decreases as accelerating.
EFQG369A
COMPONENT INSPECTION
1.
Turn ignition switch OFF.
2.
Disconnect the VGT control solenoid valve connector.
3.
Measure resistance between terminal 1 and 2 of the
valve.
Specification: Refer to "SPECIFICATION".
